Product Overview
Complete water pump impeller kit for Johnson and Evinrude 20 HP, 25 HP, 30 HP and 35 HP outboards. It rebuilds the pump, not just the rotor: the set contains the impeller, impeller plate, pump housing, water pump cup, plate gasket, grommet, four O-rings and six stainless steel bolts. It replaces kit 0393630 and the numbers 0390344, 0391636, 0393509 and 0777803, with Sierra 18-3382 as the cross reference. Dispatched from our Australia local warehouse.
Because the housing and the cup are included, this is the kit to buy when the pump has already failed rather than when it is simply due. A scored cup or a worn housing will bypass water no matter how good the new impeller is, and those are the two parts people leave out when they buy an impeller on its own.
Coverage runs 20 HP 1985-1996, 25 HP 1980 and 1985-1996, 30 HP 1984-1996, and 35 HP 1980-1984, 1986-1994 and 1996. Rebuild when the tell-tale weakens, the engine runs hot at low speed, or the impeller comes out with cracked, set or missing blades. Flush the water tube before reassembly, because a thrown vane will block it again on the first run.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Outboard water pump impeller kit |
| Horsepower | 20 HP, 25 HP, 30 HP, 35 HP |
| Quantity | 1 complete pump kit |
| Fasteners | 6 stainless steel bolts |
| O-rings | 4 |
| Pack Size | 150 x 100 x 50 mm / 5.9 x 3.9 x 2.0 in |
| Country of Origin | Taiwan |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Johnson / Evinrude | 0393630, 0390344, 0391636, 0393509, 0777803 |
| Sierra | 18-3382 |
Compatible Engines
| Brand | Horsepower | Years |
|---|---|---|
| Johnson / Evinrude | 20 HP | 1985-1996 |
| Johnson / Evinrude | 25 HP | 1980, 1985-1996 |
| Johnson / Evinrude | 30 HP | 1984-1996 |
| Johnson / Evinrude | 35 HP | 1980-1984, 1986-1994, 1996 |
Coverage by Rating
| Rating | Years Covered | Models |
|---|---|---|
| 20 HP | 1985-1996 | Johnson and Evinrude two stroke |
| 25 HP | 1980, 1985-1996 | Johnson and Evinrude two stroke |
| 30 HP | 1984-1996 | Johnson and Evinrude two stroke |
| 35 HP | 1980-1984, 1986-1994, 1996 | Johnson and Evinrude two stroke |
Kit Against Impeller Only
| Part | In This Kit | Why It Matters |
|---|---|---|
| Impeller | Yes | Moves the water, the part that fails first |
| Impeller plate | Yes | Scored plates bypass water |
| Pump housing | Yes | Worn housings leak past the vanes |
| Water pump cup | Yes | The usual cause of a repeat failure |
| Gaskets and O-rings | Yes | Four O-rings and a plate gasket included |
| Bolts | Yes | Six stainless bolts, no snapping the old ones |

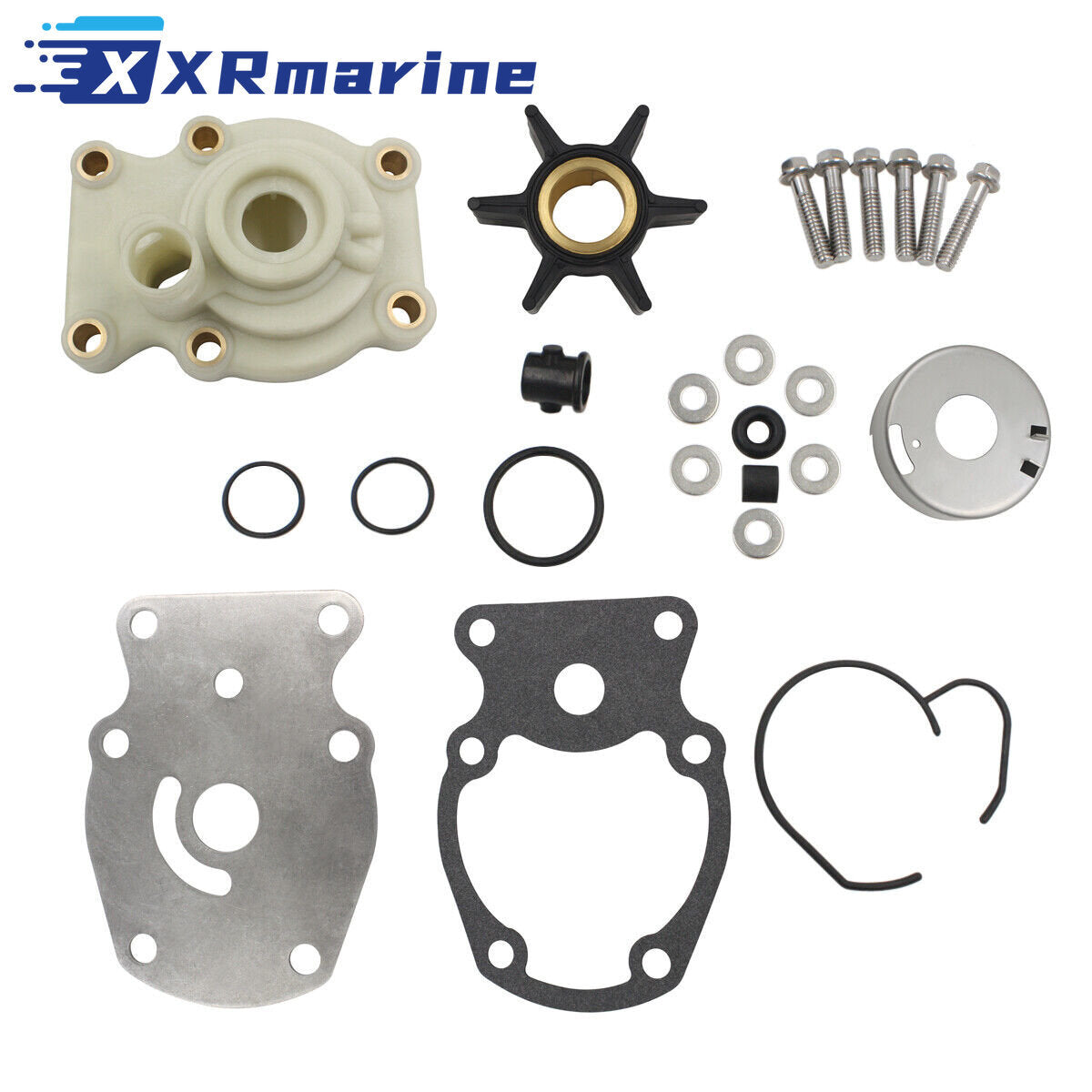

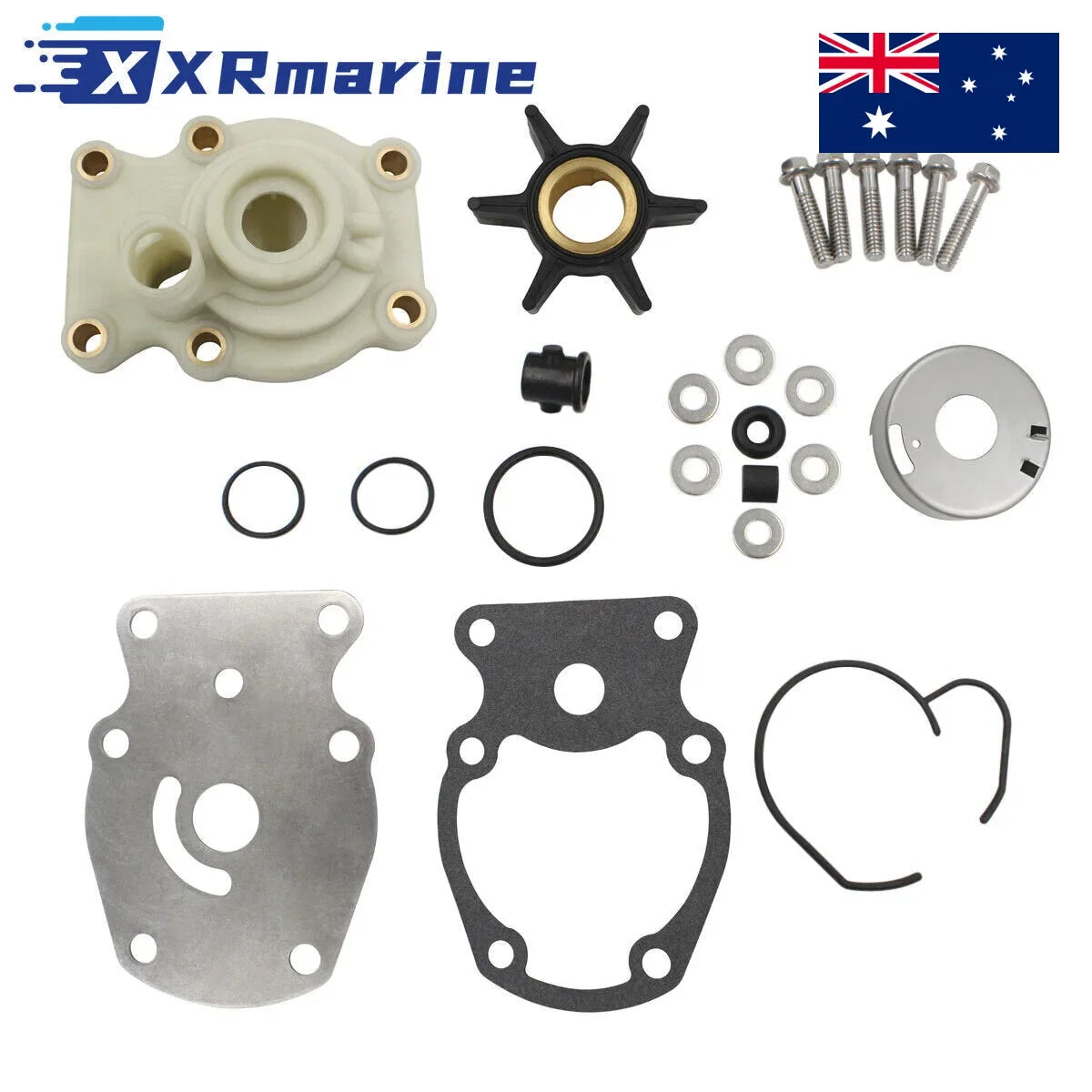

What's Included
| Component | Qty |
|---|---|
| Impeller | 1 |
| Impeller plate | 1 |
| Pump housing | 1 |
| Water pump cup | 1 |

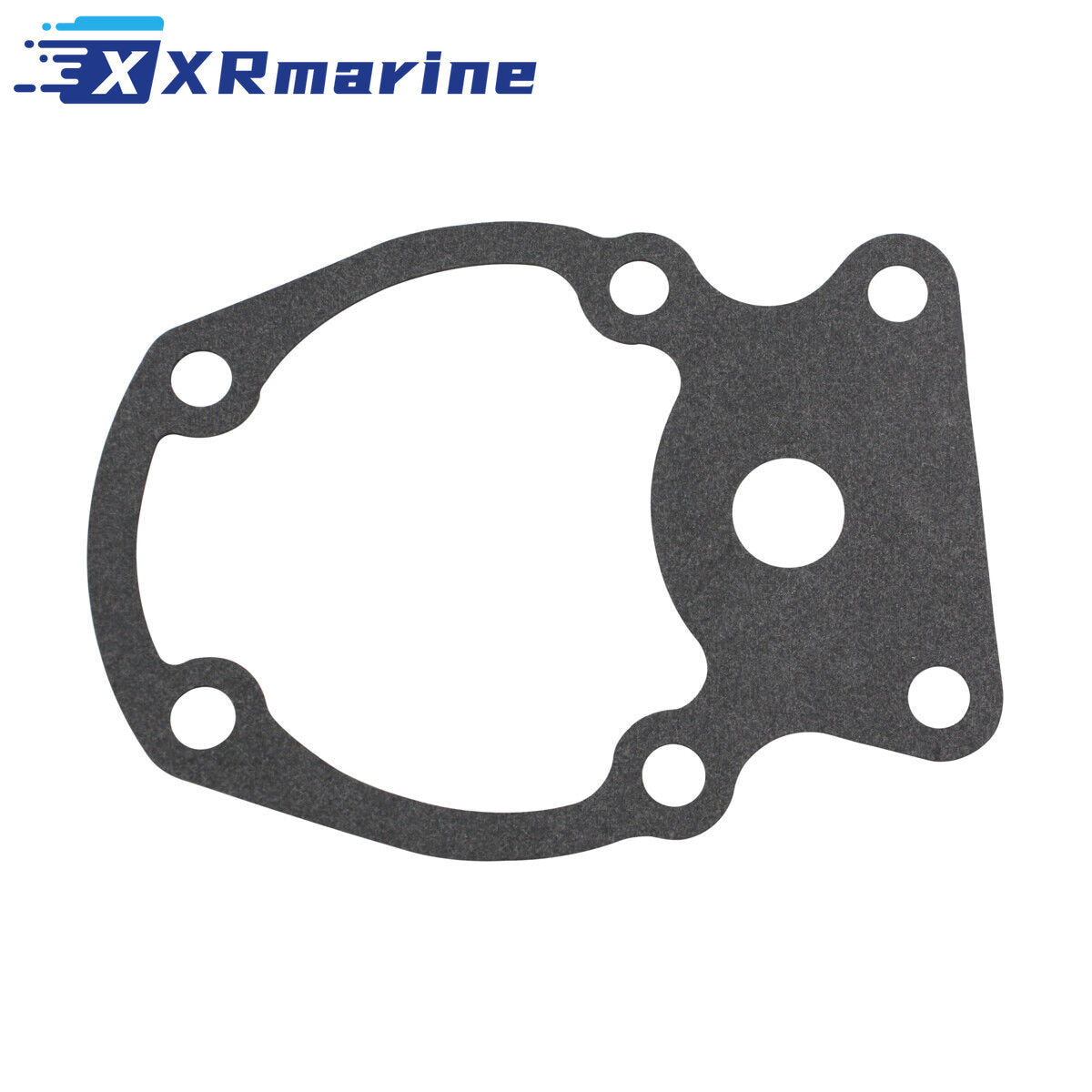

| Impeller plate gasket | 1 |
| Grommet | 1 |
| O-ring | 4 |
| Stainless steel bolt | 6 |
Component Part Numbers
| Component | Number |
|---|---|

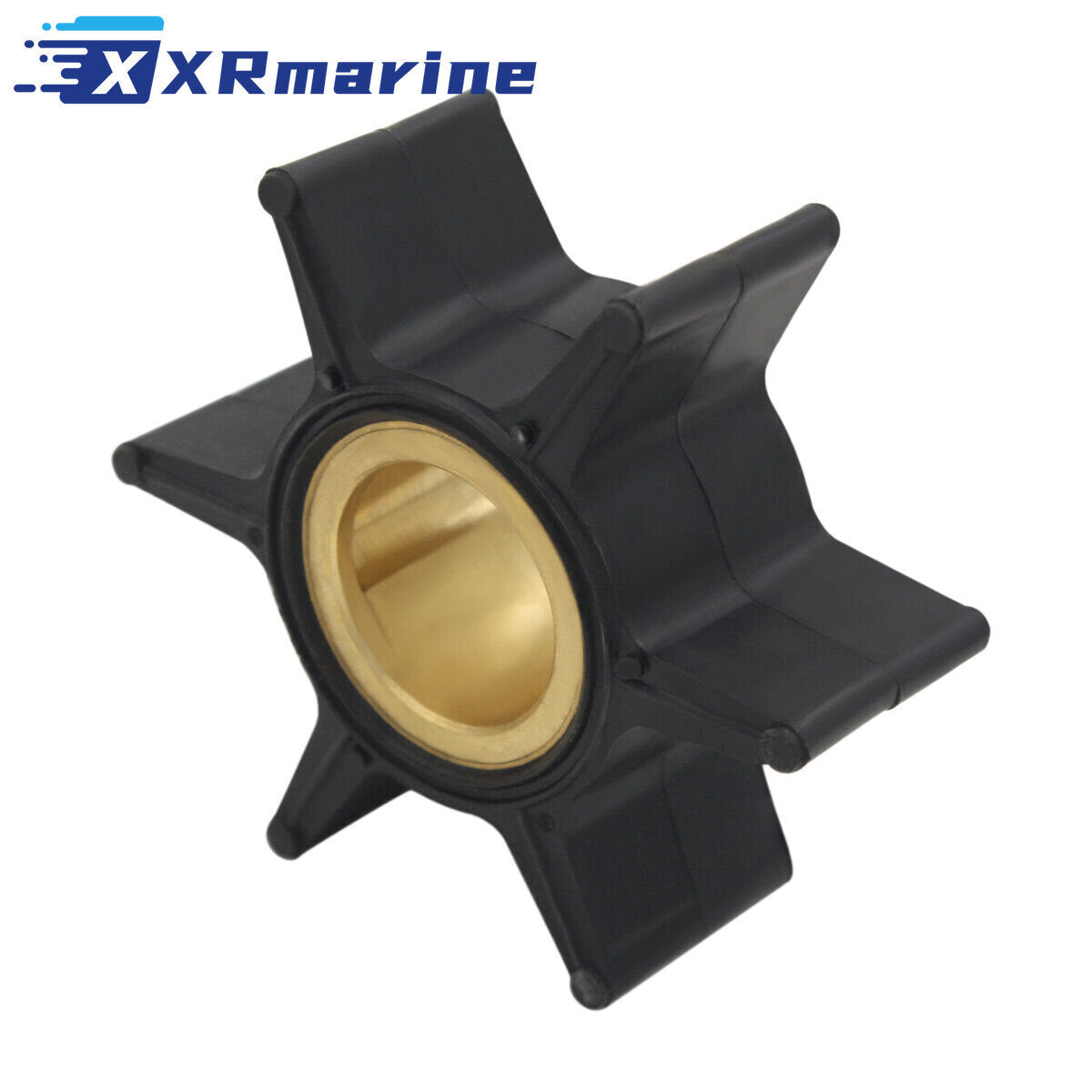

| Impeller | 395289 |

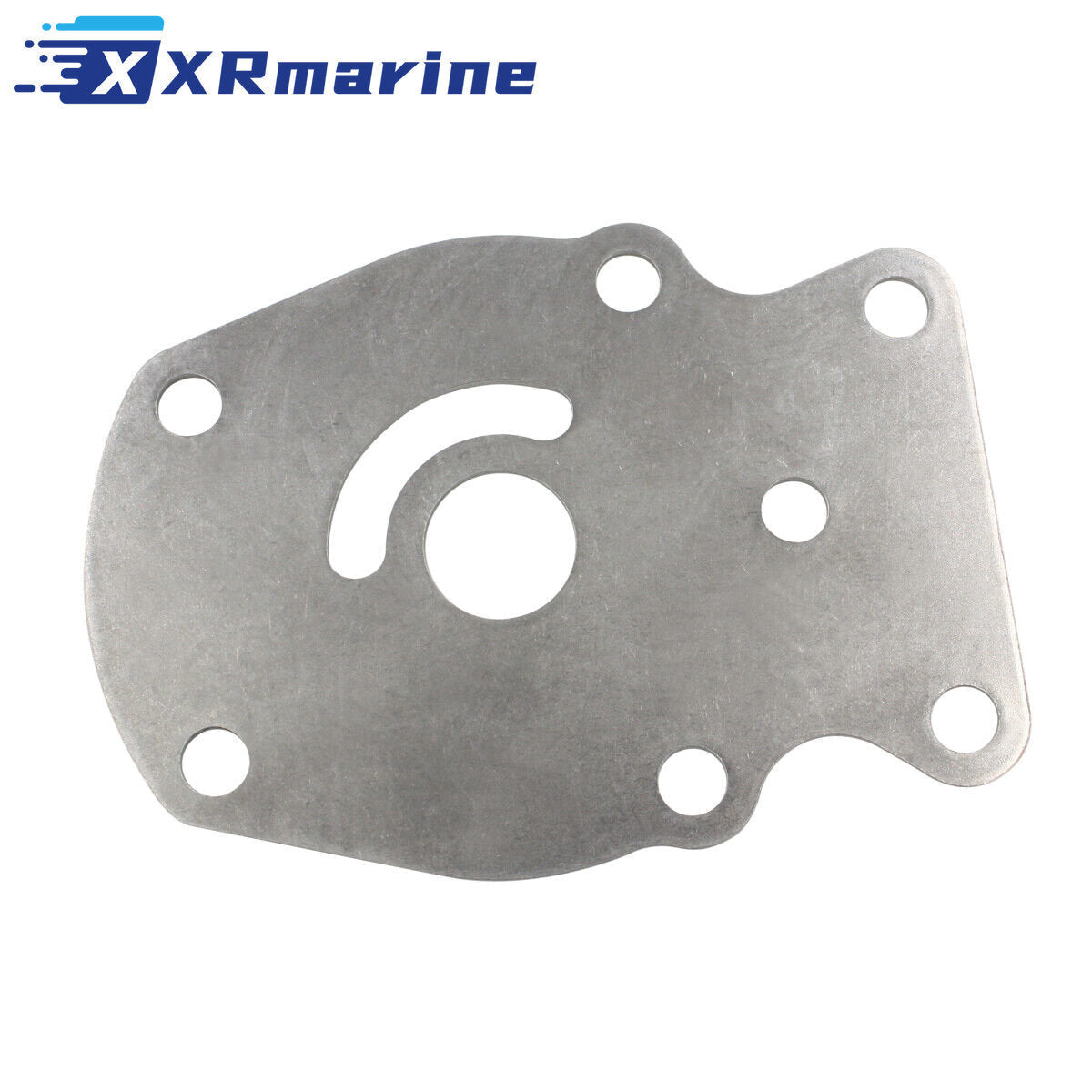

| Impeller plate | 328755 |

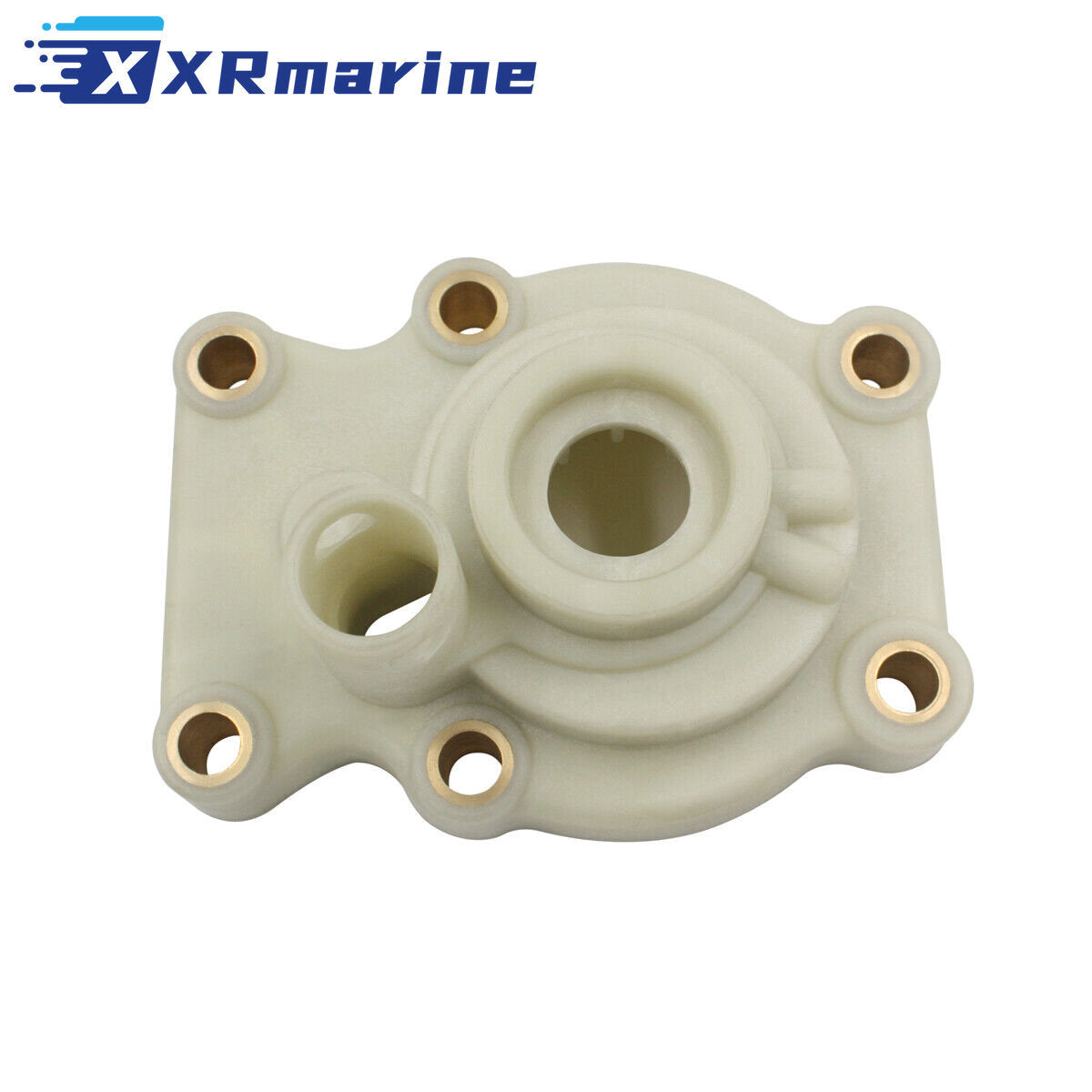

| Pump housing | 393632 |

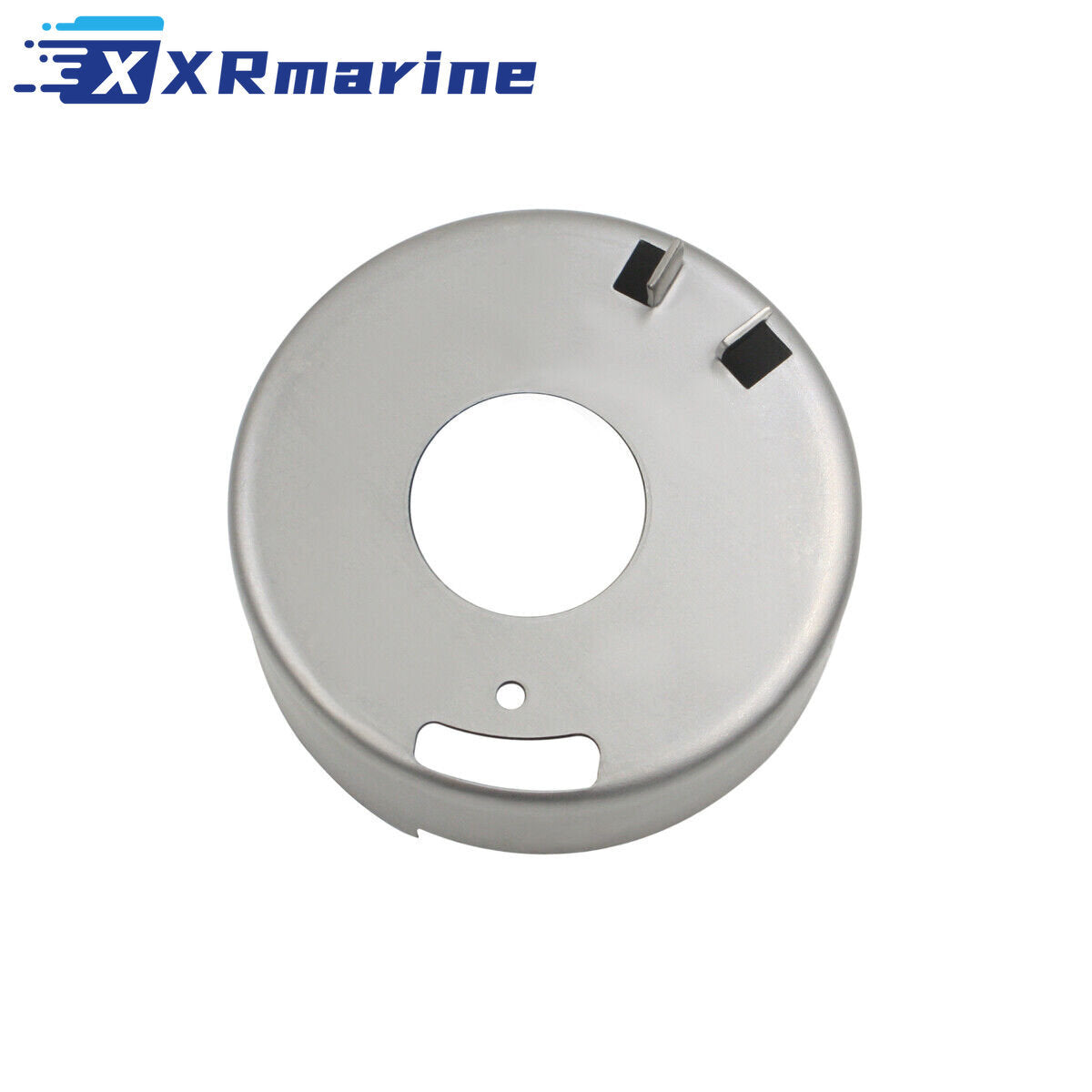

| Water pump cup | 328751 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Australia
| Destination | Warehouse | Note |
|---|---|---|
| Australia | Australia local warehouse | Domestic delivery, no import duty |
| New Zealand | Australia local warehouse | Short transit, customs may apply |
| Asia Pacific | Australia local warehouse | Tracked air and sea options |
Before You Buy
- Confirm your horsepower and year match the table above
- This is a complete pump kit, not an impeller only listing
- Inspect the driveshaft and pump cup area while the housing is off
- Flush the water tube after a failed impeller
- Fit all four O-rings and the plate gasket to avoid a repeat strip-down
- Check tell-tale flow before the first run
- 30-Day Easy Returns
- Ships from our Australia local warehouse
