Thermostat 0436195 436195 0777837 18-3561 13150 143F 62C for Johnson Evinrude 70 120 130 135 140 250 300 HP Outboard Cooling — Australia Local Warehouse
Thermostat 0436195 436195 0777837 18-3561 13150 143F 62C for Johnson Evinrude 70 120 130 135 140 250 300 HP Outboard Cooling — Australia Local Warehouse
Product Overview

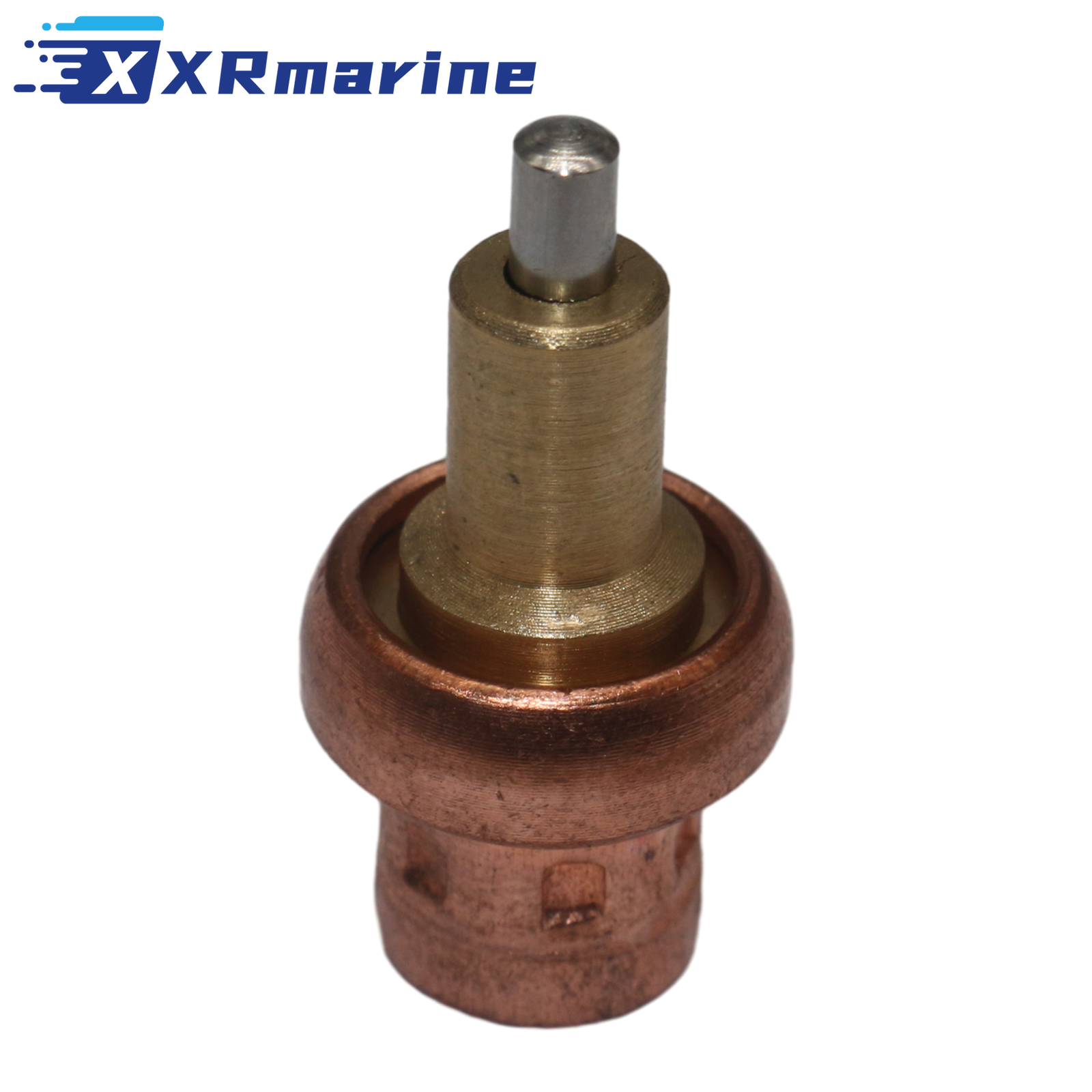

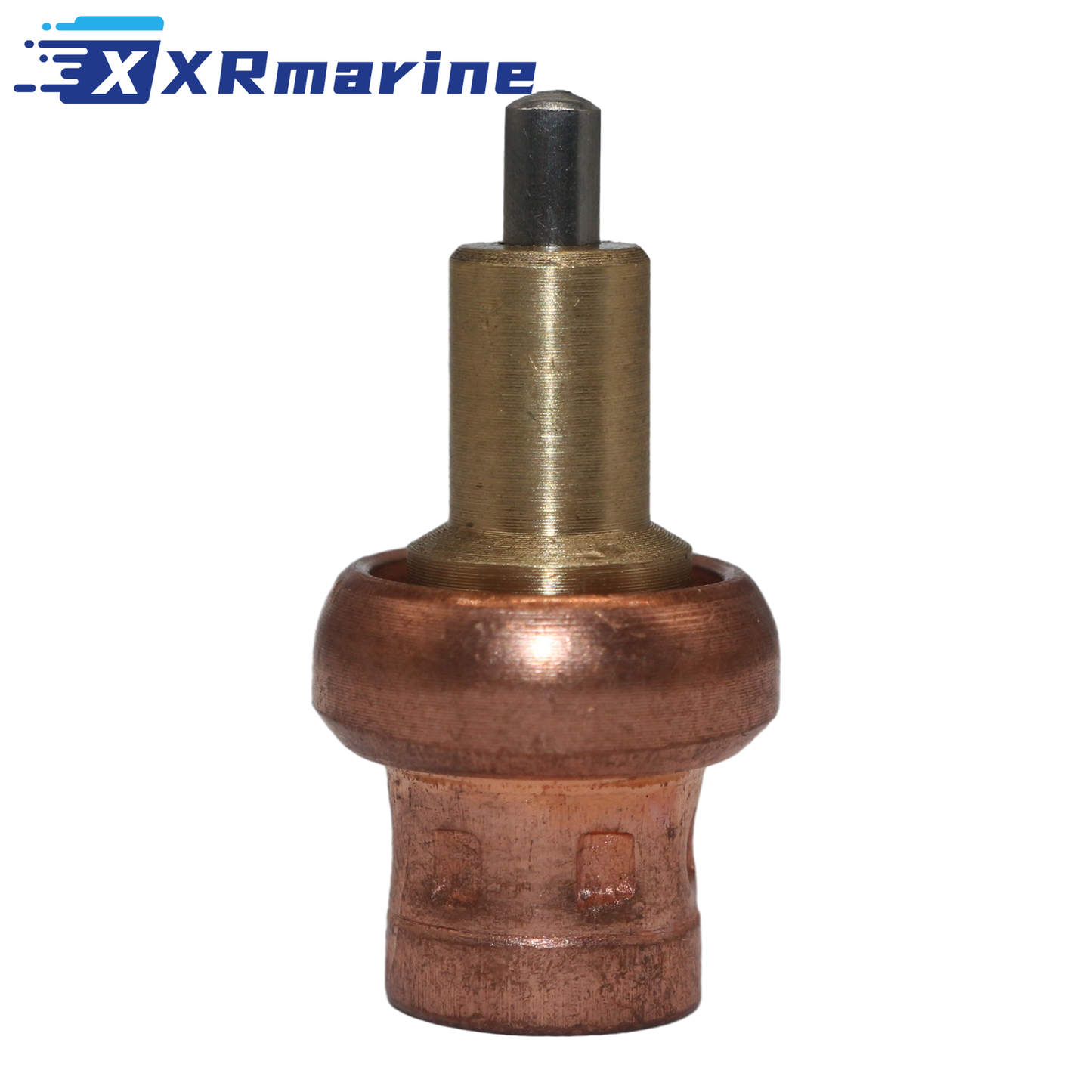

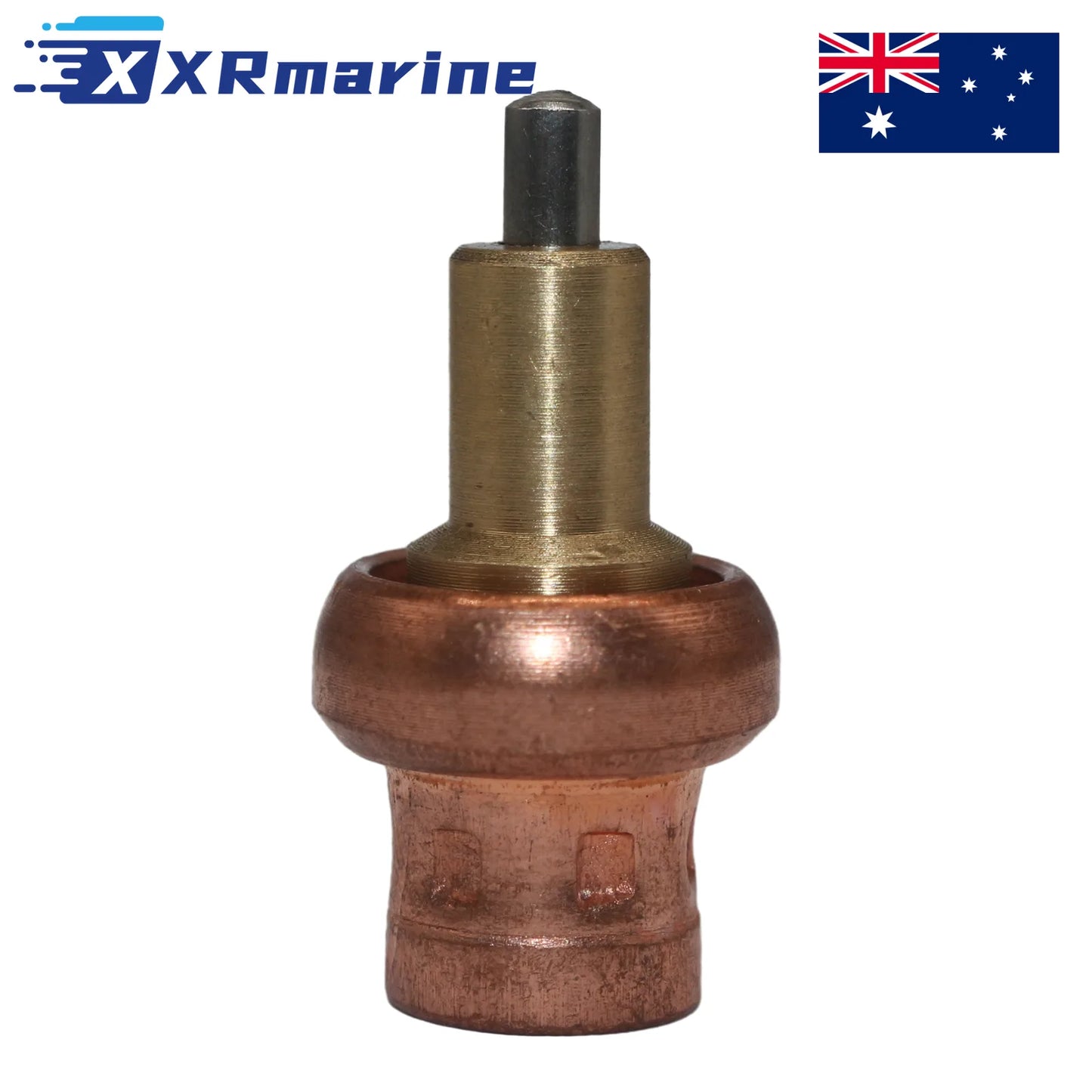

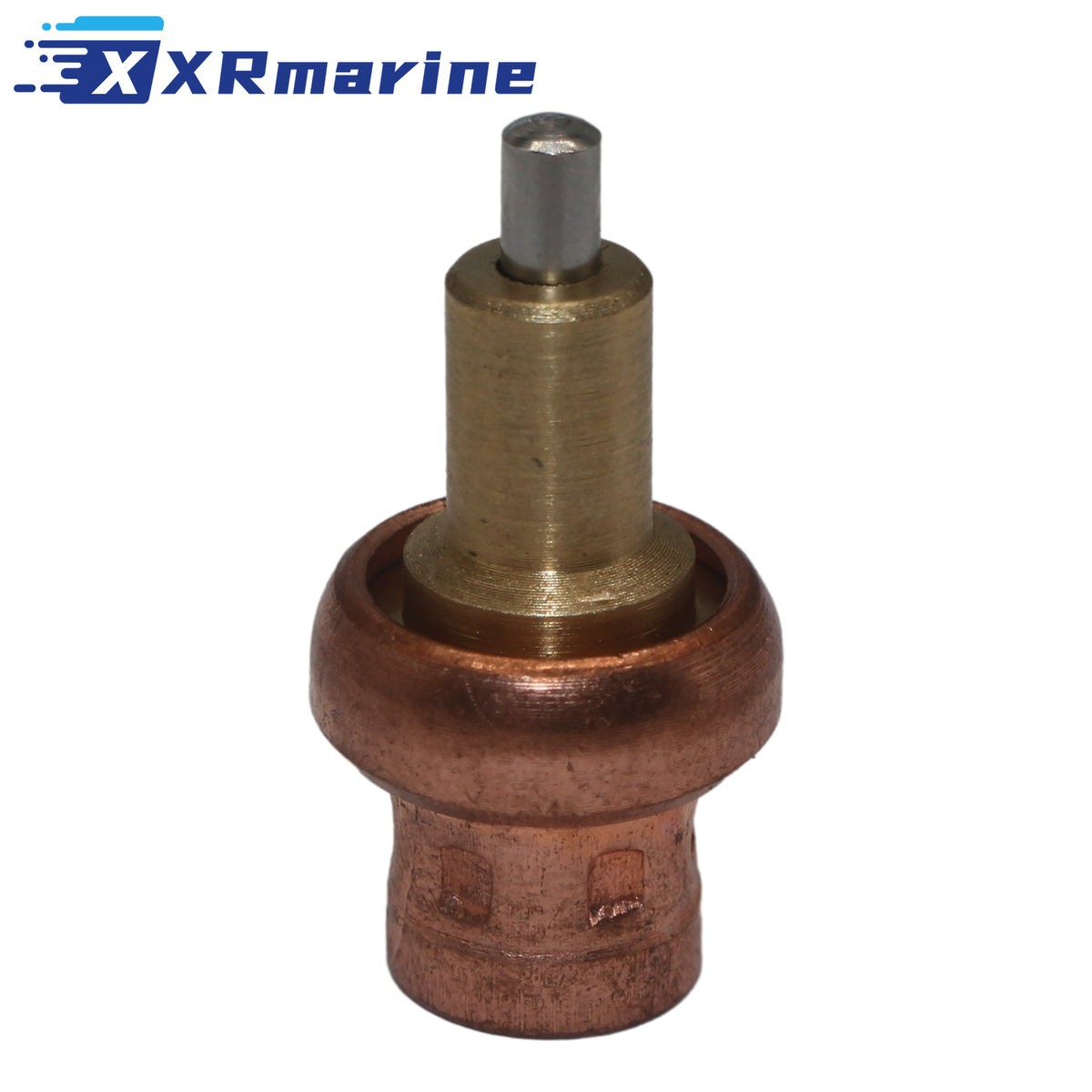

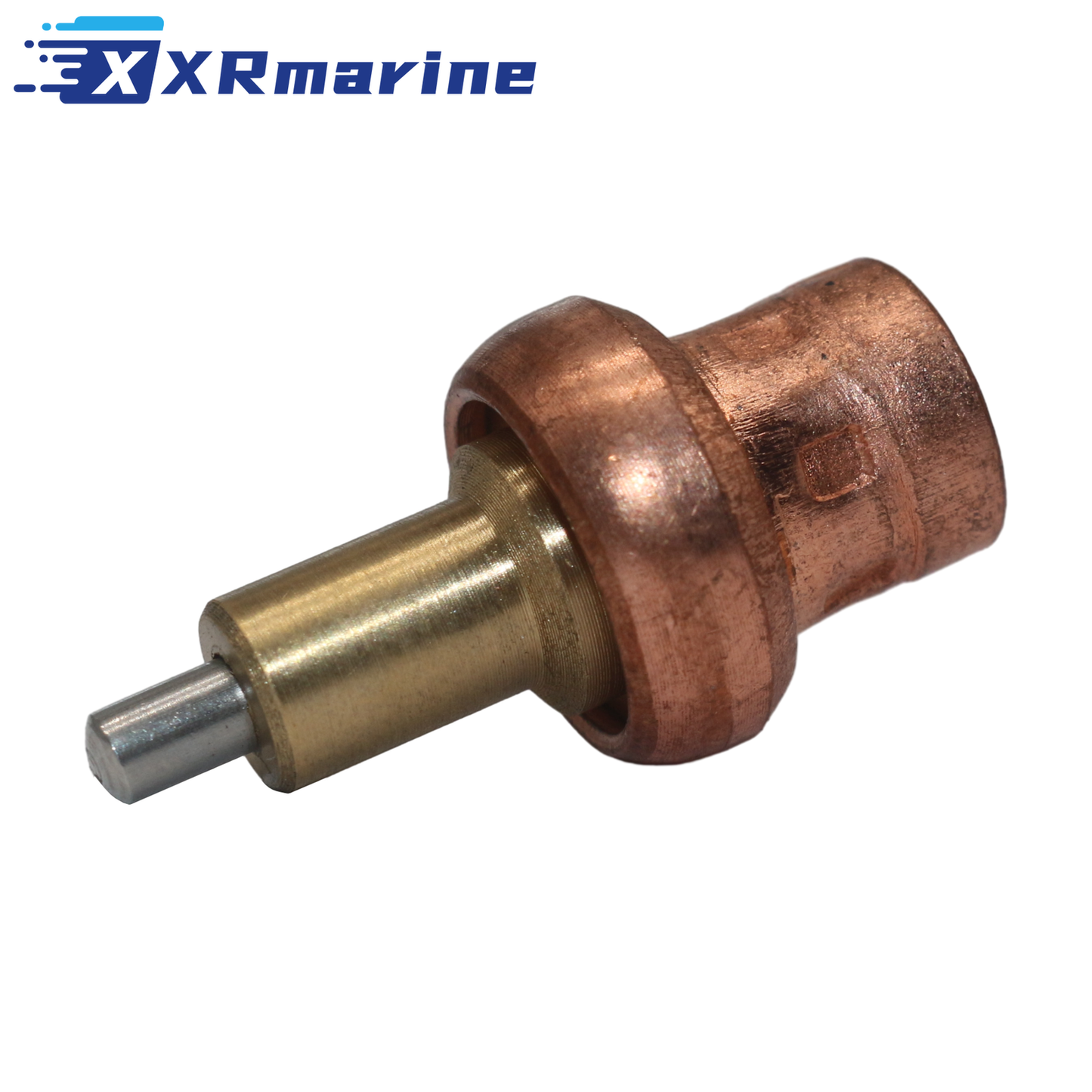

143 °F / 62 °C thermostat for Johnson and Evinrude outboards, a cooling system part that replaces 436195, 0436195 and 0777837 and crosses to Sierra 18-3561 and GLM 13150. One thermostat is supplied. Shipped from our Australia local warehouse.
Sixty two degrees Celsius is the cold rating these motors were set up for. Fitting a hotter automotive thermostat makes them run lean and carbon up, and fitting one that opens early keeps them cold and thirsty.
It is the unit listed in the 70-300 HP parts group and the same thermostat also serves the small twins and triples from 5 HP up to 70 HP. Check the number and the rating on the old thermostat, because the four stroke range uses a different one.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Outboard thermostat |
| Opening Temperature | 143 °F |
| Opening Temperature | 62 °C |
| Application | Johnson and Evinrude outboards from 5 HP to 300 HP |
| Quantity | 1 thermostat |
| Country of Origin | Taiwan |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Johnson / Evinrude | 436195, 0436195 |
| Johnson / Evinrude | 0777837 |
| Johnson / Evinrude | 394411, 0394411 |
| Johnson / Evinrude | 434671, 0434671 |
| Sierra | 18-3561 |
| Mallory | 9-43023 |
| GLM | 13150 |
Compatible Engines
| Horsepower | Years |
|---|---|
| 5 HP | 1998 to 2001 |
| 6 HP | 1998 to 2004 |
| 9.9 HP | 1996 to 2007 |
| 10 HP | 10HP to 140HP models, vernatherm housing |
| 15 HP | 1996 to 2007 |
| 25 HP | 1996 to 2001 |
| 30 HP | 1999 to 2001 |
| 45 HP | 1996 to 2001 |
| 48 HP | 1995 to 1996 |
| 50 HP | 1995 to 2005 |
| 60 HP | 1993 to 2001 |
| 70 HP | 1993 to 2001 |
| 120 HP | 1993 to 1994 |
| 130 HP | 1995 to 2000 |
| 135 HP | 2001 |
| 140 HP | 1993 to 1994 |
| 250 HP | 1994 to 1995 |
| 300 HP | 1994 to 1995 |
What's Included
| Component | Reference | Qty |
|---|---|---|
| Thermostat, 143 °F / 62 °C | 0436195 pattern | 1 |
Stuck Open or Stuck Closed
| What the Motor Does | Which Way It Failed | What Else To Check |
|---|---|---|
| Never reaches normal temperature, runs rich | Stuck open | Thermostat, then the sender and gauge |
| Overheats at speed, cools at idle | Stuck closed or half open | Thermostat and the water pump impeller |
| Temperature swings up and down | Opening late and snapping shut | Thermostat, plus the bypass valve |
| Cold at idle, hot on plane | Thermostat passing, pump weak | Renew both the thermostat and the impeller |
| Overheats only after a lay up | Corrosion holds the valve shut | Thermostat and the housing seal faces |
| Steady temperature all day | Working correctly | Leave it alone, keep the spare |
Why 62 °C and Not an Automotive Part
| If You Fit | What Happens | Result |
|---|---|---|
| 82 °C automotive thermostat | Motor runs hotter than the ECU and oil were set for | Lean running, carbon, detonation risk |
| Thermostat with no bleed hole | Air locks in the head after a rebuild | Hot spot and a stuck gauge |
| A thermostat rated only in °F | Cross check 143 °F equals 62 °C | Wrong part if the numbers do not match |
| No thermostat at all | Motor never reaches running temperature | Rich mixture, plug fouling, fuel burn |
| A four stroke thermostat | Different housing and valve | Will not seat in this housing |
| A used thermostat from another motor | Unknown opening point | Overheat or over cool, no way to tell |
Salt Water, Zincs and the Housing
| Australian Use | Effect on the Part | What To Do |
|---|---|---|
| Salt water boat | Pitting on the housing seal faces | Check the faces each time the thermostat is out |
| Motor flushed irregularly | Salt scale jams the valve open | Flush after every trip |
| Warm northern water | Motor runs near the top of its range anyway | Renew on schedule, not on symptoms |
| Anodes left too long | Corrosion moves to the alloy housing | Renew the anodes with the thermostat |
| Long idle in shallow water | Silt packs around the housing | Flush and check the telltale |
| Boat ashore in the dry season | Rubber seal dries and hardens | Renew the thermostat before the season |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Check the rating and the number on the old thermostat, 143 °F is 62 °C |
| 2 | Check the housing and the cover seal faces for corrosion pitting |
| 3 | Check the impeller at the same service, overheating is often the pump and not the thermostat |
| 4 | Fit the thermostat the right way round, spring end toward the hot side |
| 5 | Seat the gasket dry and tighten the cover evenly, not corner to corner |
| 6 | Run on muffs and watch the head temperature climb and then hold |
| 7 | Check the telltale and the cover joint for weeps after the first run |
| 8 | Recheck the cover bolts when the motor is cold |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Australia
| Destination | Warehouse | Note |
|---|---|---|
| Australia | Australia local warehouse | Domestic delivery, no import duty |
| New Zealand | Australia local warehouse | Short transit, customs may apply |
| Pacific islands | Australia local warehouse | Tracked shipping available |
Before You Buy
- Check the rating on the old thermostat, this one opens at 143 °F and 62 °C
- Check the housing and cover for corrosion pitting on the seal faces
- Check the impeller at the same service
- Fit the thermostat with the spring end toward the hot side
- This is one thermostat, the gasket and housing are not included
- Run on muffs and watch the temperature hold before launching
- 30-Day Easy Returns
- Ships from our Australia local warehouse
