Product Overview
Flexible impeller kit, 51 mm (2.00 in) across and 6 blades, for the Johnson F4 pump family and the Jabsco 653-0001 pump, supplied as one impeller, one gasket and one O-ring. It replaces Johnson 09-810B, Jabsco 653-0001, Sierra 18-45713, Mallory 9-45713, Westerbeke 34440, Yanmar 128990-42200 and Volvo Penta 876097, and it fits every pump built on the Johnson F4 and Jabsco 29460 / 29470 bodies. Held in our United States local warehouse.

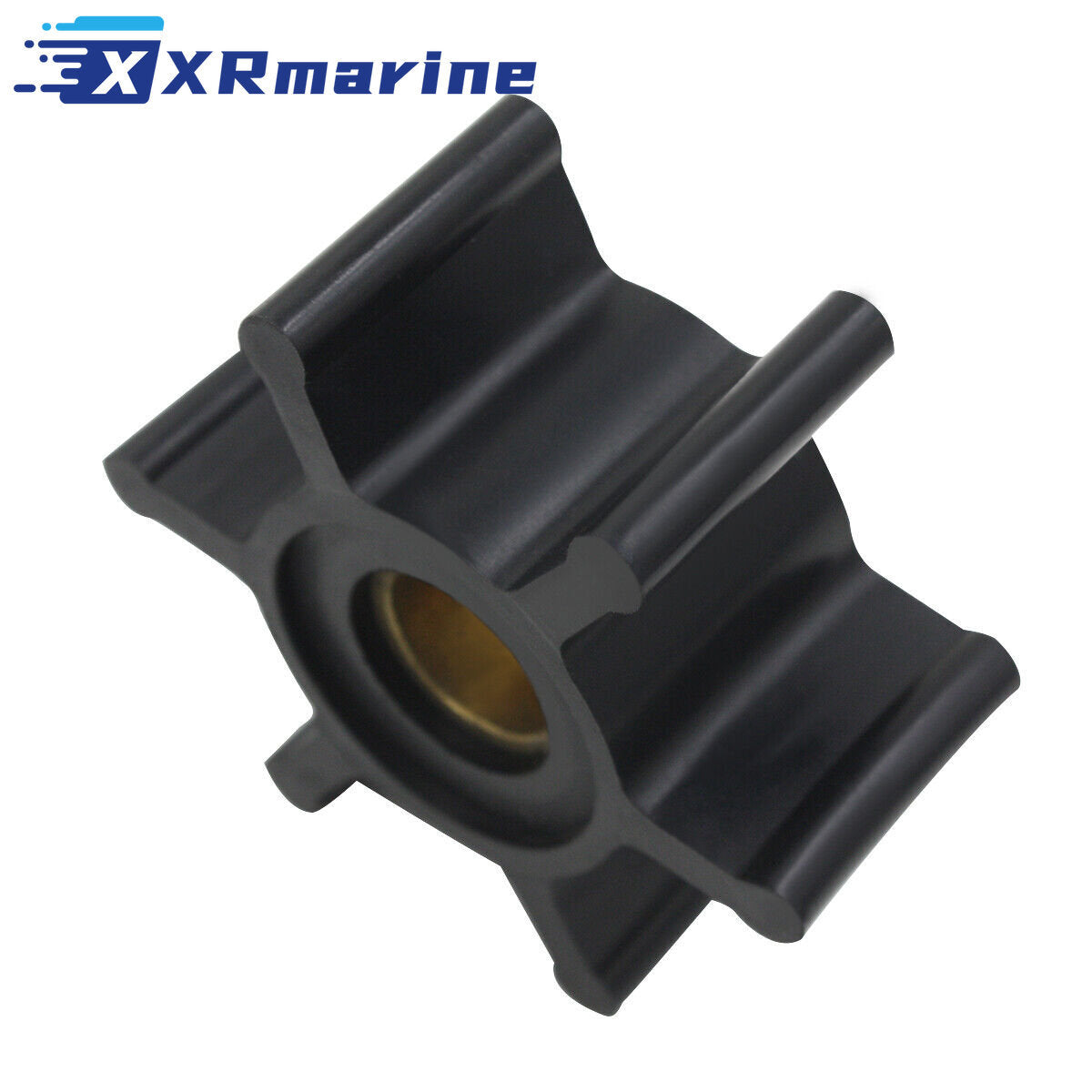

The number that settles fitment is 51 mm (2.00 in) across, 22 mm (0.87 in) wide, 6 blades on a 12 mm (0.47 in) slotted pin drive with a brass insert. The F3 pump takes a 40 mm impeller and this kit will not fit it.
This pump was sold under a dozen badges. Johnson, Jabsco, ITT, SPX, BLA, CEF, JMP, Northern Lights, Westerbeke, Beta Marine, Volvo Penta and Yanmar all used the same body, so the impeller is the same part whatever name is cast into the housing. That is why the cross reference runs so long, and why measuring the old impeller is a faster answer than hunting for a badge.
On a raw water cooled diesel the impeller is the whole cooling system. Blades that have set into their folded position still allow the pump to turn and still look intact, but the flow is a fraction of what it should be, and the first real warning is usually a hot exhaust elbow or a scorched exhaust hose rather than a gauge reading.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Flexible impeller service kit |
| Diameter | 51 mm (2.00 in) |
| Width | 22 mm (0.87 in) |
| Shaft Diameter | 12 mm (0.47 in) |
| Drive | Slotted shaft pin drive |
| Blades | 6 |
| Insert Material | Brass |
| Impeller Material | Neoprene |
| Ports | 3/8 in on the F4B-8007 and the new version F4B |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Johnson Pump | 09-810B, 09-810B-1, 09-810B1-1, 09-0810B, 810B, 810B-1 |
| Jabsco | 653-0001, 653-0001-P, 18653-0001, 18653-001 |
| Sierra | 18-45713 |
| Mallory | 9-45713 |
| Westerbeke | 34440, 034440, 48500 |
| Yanmar | 128990-42200 |
| Volvo Penta | 876097, 829895, 3580946 |
| Northern Lights | 25-18325 |
| CEF | 500101 |
| JMP | 7050-01 |
| BLA | 132964 |
Pump Models Cross Reference
| Pump Family | Pump and Engine Model Numbers |
|---|---|
| Johnson F4 / F4B | 10-24074-1 (12 mm shaft), 10-24509, 10-24570, 10-247074-1, 10-247074-7 (3/8 in shaft), 10-24144, 10-24326, 10-24326-01, 10-35098 |
| Jabsco 29400 / 29500 series | 29410-1101, 29440-1051, 29440-1101, 29460-1201, 29460-1251, 29460-1301, 29460-1401, 29460-1431, 29460-1631, 29460-2501, 29470-1231, 29470-1231C, 29470-2031, 29470-2031C, 29470-2131C, 29470-2231, 29470-2231C, 29470-2351, 29470-2431, 29470-2431C, 29470-2531, 29470-2531C, 29480-2131, 29480-2151, 29490-2001C, 29500-1501, 52020-2031, 9440-1001, MP 5.5M, MP 8M |
| Westerbeke | Flange mount pumps 33636, 48080, 37431, 10 kW and above with Jabsco 52020-2031 |
| Northern Lights | Pump 25-12007, Alaska Diesel M643 and M673, marine engines 6 kW or less |
| Volvo Penta | Pump 829895 and 3580946, diesel MD22 |
| Beta Marine | BD1005, BD662, BD772, BF2803, BV1205, BV1305, BV1505, BV1903, BV2203, BZ482, 2KC, 7222, 8D, KC, KR, Isuzu B3KC1, Kubota BZ / BD / BV series |
Compatible Engines
| Application | Engine or Model | Pump |
|---|---|---|
| Johnson | F4B new version, 3/8 in ports | 10-24570 |
| Johnson | F4B-8007, 3/8 in ports, 12 mm shaft | 10-24074-1 |
| Johnson | F4B-8007, 3/8 in ports, 3/8 in shaft | 10-24074-7 |
| Beta Marine | 10-15 HP propulsion BD and BV, 10-37.5 HP Kubota | 29460-1301, 29460-1431, 29460-1631 |
| Volvo Penta | AQ 95, AQ 110, AQ 115, AQ 115A / B, AQ 130 C / D, AQ 140, BB 30, BB 115 | 29470-1231, 29470-2231C |
| Volvo Penta | MD 3, MD22 diesel | 29470-1231C, 829895 |
| Yanmar | Marine diesel using raw water pump 128990-42200 | 128990-42200 |
| Westerbeke | Generators with flange mount pump 33636 | 33636 |
| Northern Lights | 6 kW and below, Alaska Diesel M643 / M673 | 25-12007 |

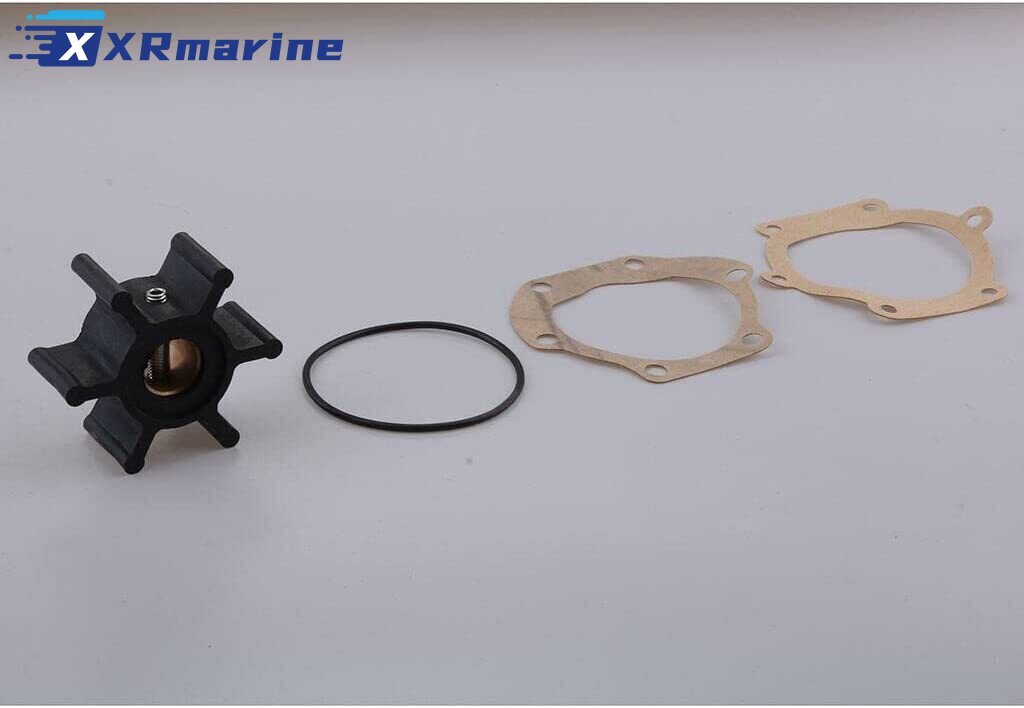

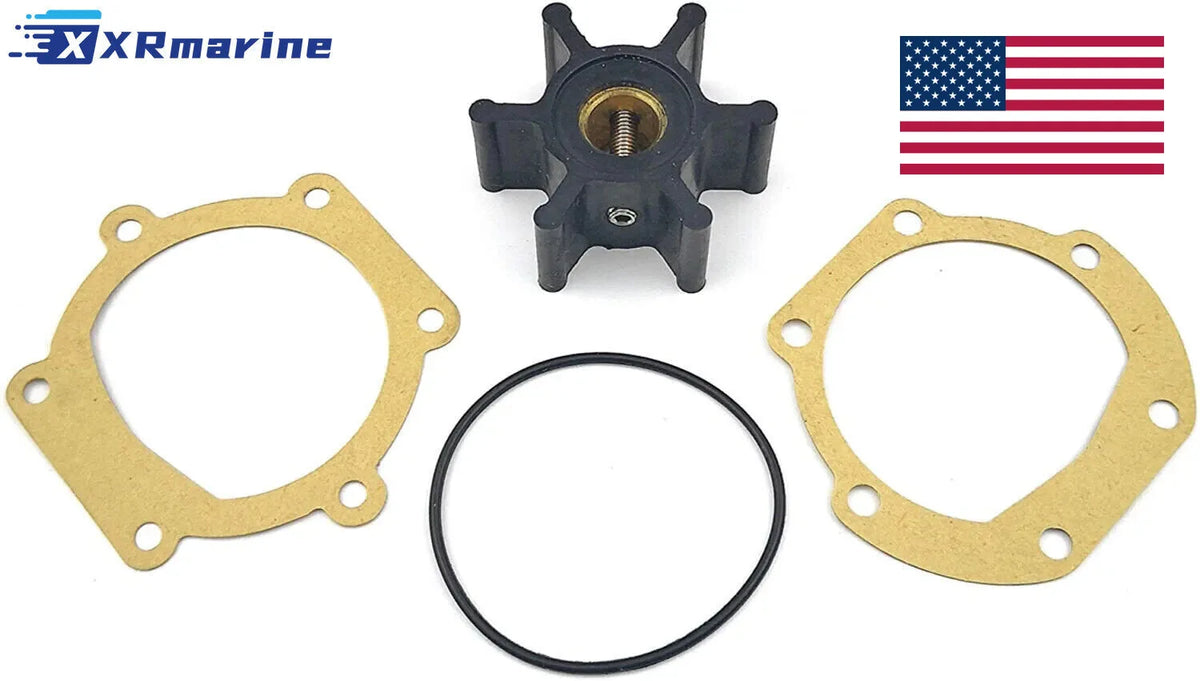

What's Included
| Component | Qty |
|---|---|
| Flexible impeller, 6 blade, 51 mm, pin drive | 1 |
| Pump gasket | 1 |
| O-ring | 1 |
Same Impeller, A Dozen Badges
| Badge on the Pump | What It Means for You | What to Check |
|---|---|---|
| Johnson F4 or F4B | The pump this kit was designed around | Shaft 12 mm or 3/8 in, ports 3/8 in |
| Jabsco 653-0001 | Same body, Jabsco numbering | Measure the old impeller, 51 mm |
| Yanmar 128990-42200 | Yanmar branded pump on a raw water diesel | Check the exhaust elbow runs cool |
| Westerbeke or Northern Lights | Generator set, often 6 kW or below | Flange mount pump, check the cover plate |
| Volvo Penta MD22 | Marine diesel with the same pump body | Pump 829895 or 3580946 |
| Beta Marine BD / BV | Kubota based propulsion engine | Pump 29460 or 29470 series |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Measure the old impeller, 51 mm diameter by 22 mm wide, the F3 pump takes a 40 mm impeller and it will not fit |
| 2 | Check whether the shaft is 12 mm or 3/8 in on the F4B, the pump was sold in both versions |
| 3 | Check the insert is brass and not bare rubber, a worn insert will spin on the shaft |
| 4 | Inspect the pump cover plate for scoring, a grooved plate lets water bypass the new impeller |
| 5 | Clean the pump body and check the cam for wear before fitting |
| 6 | Lubricate the impeller with glycerine before fitting, never install it dry |
| 7 | Turn the shaft by hand after fitting to confirm the blades fold in the correct direction |
| 8 | Look for water under the pump after the first run, a weeping cover gasket is common after a rebuild |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from the United States
| Destination | Warehouse | Note |
|---|---|---|
| United States | United States local warehouse | Domestic delivery, no import duty |
| Canada | United States local warehouse | Customs may apply |
Before You Buy
- Measure the old impeller, 51 mm diameter by 22 mm wide, the F3 pump takes a 40 mm impeller and it will not fit
- Check whether the shaft is 12 mm or 3/8 in on the F4B, the pump was sold in both versions
- Check the insert is brass and not bare rubber, a worn insert will spin on the shaft
- Inspect the pump cover plate for scoring, a grooved plate lets water bypass the new impeller
- Lubricate the impeller with glycerine before fitting, never install it dry
- Turn the shaft by hand after fitting to confirm the blades fold in the correct direction
- Look for water under the pump after the first run, a weeping cover gasket is common after a rebuild
- This is the impeller, gasket and O-ring, the pump housing is not included
- 30-Day Easy Returns
- Ships from our United States local warehouse
