Product Overview

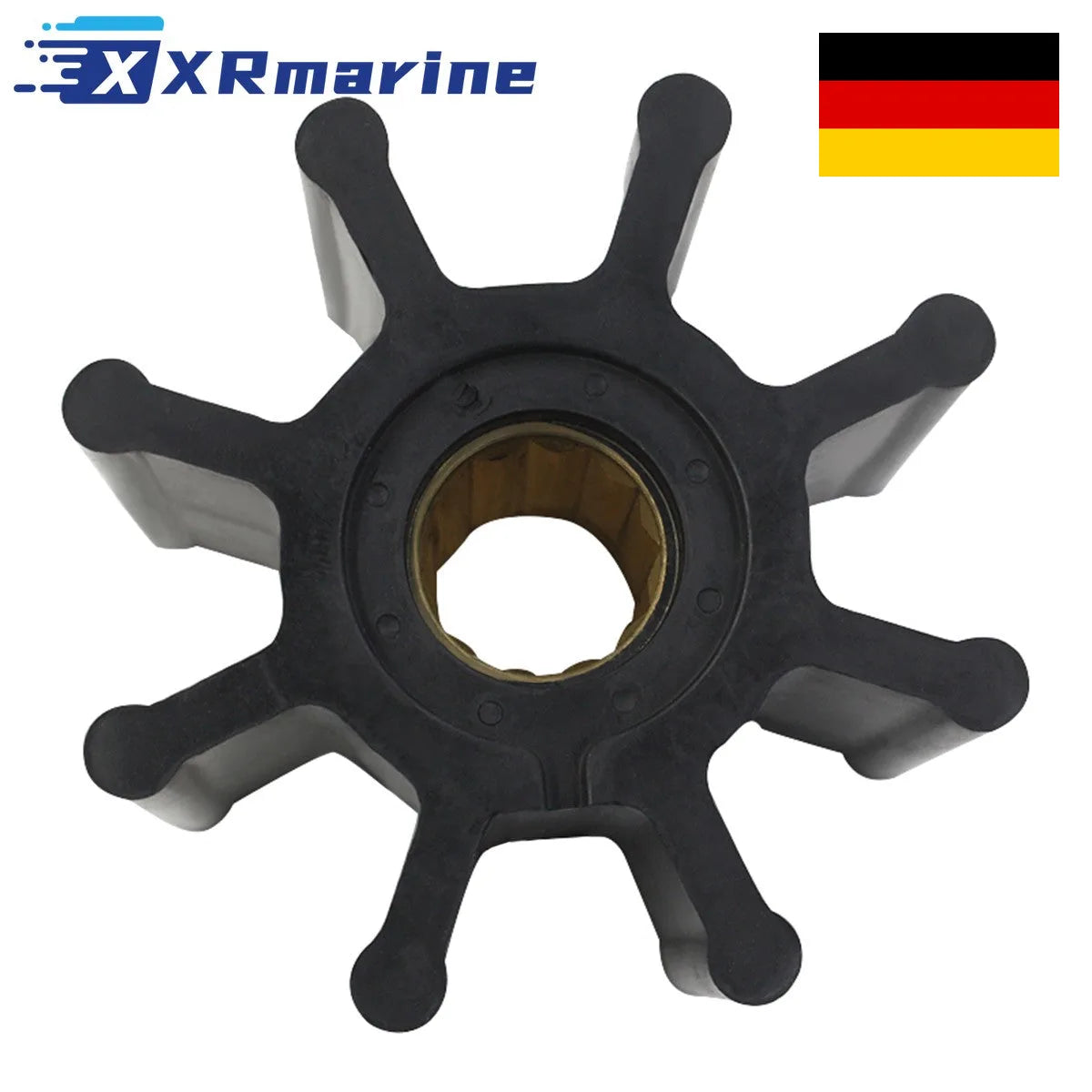

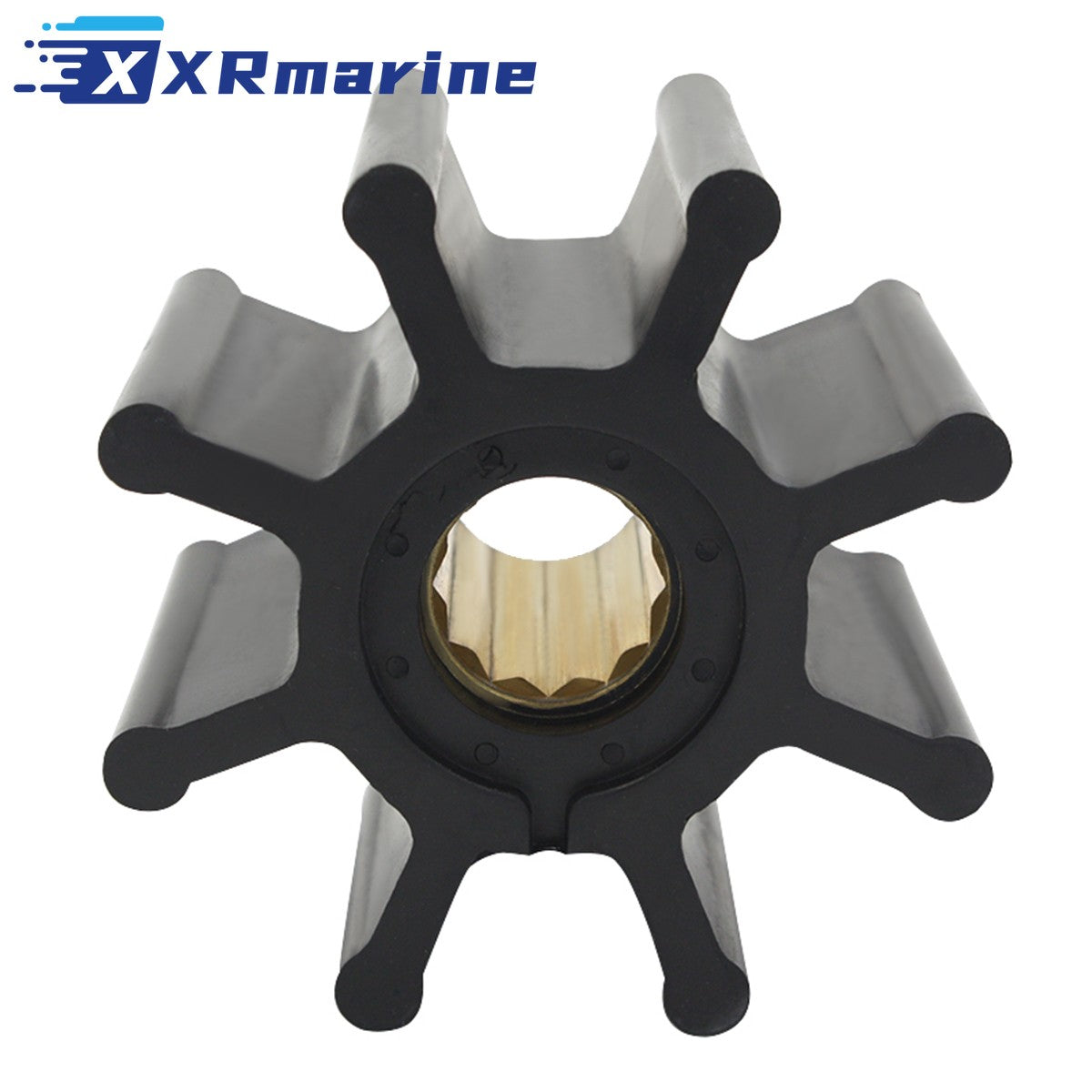

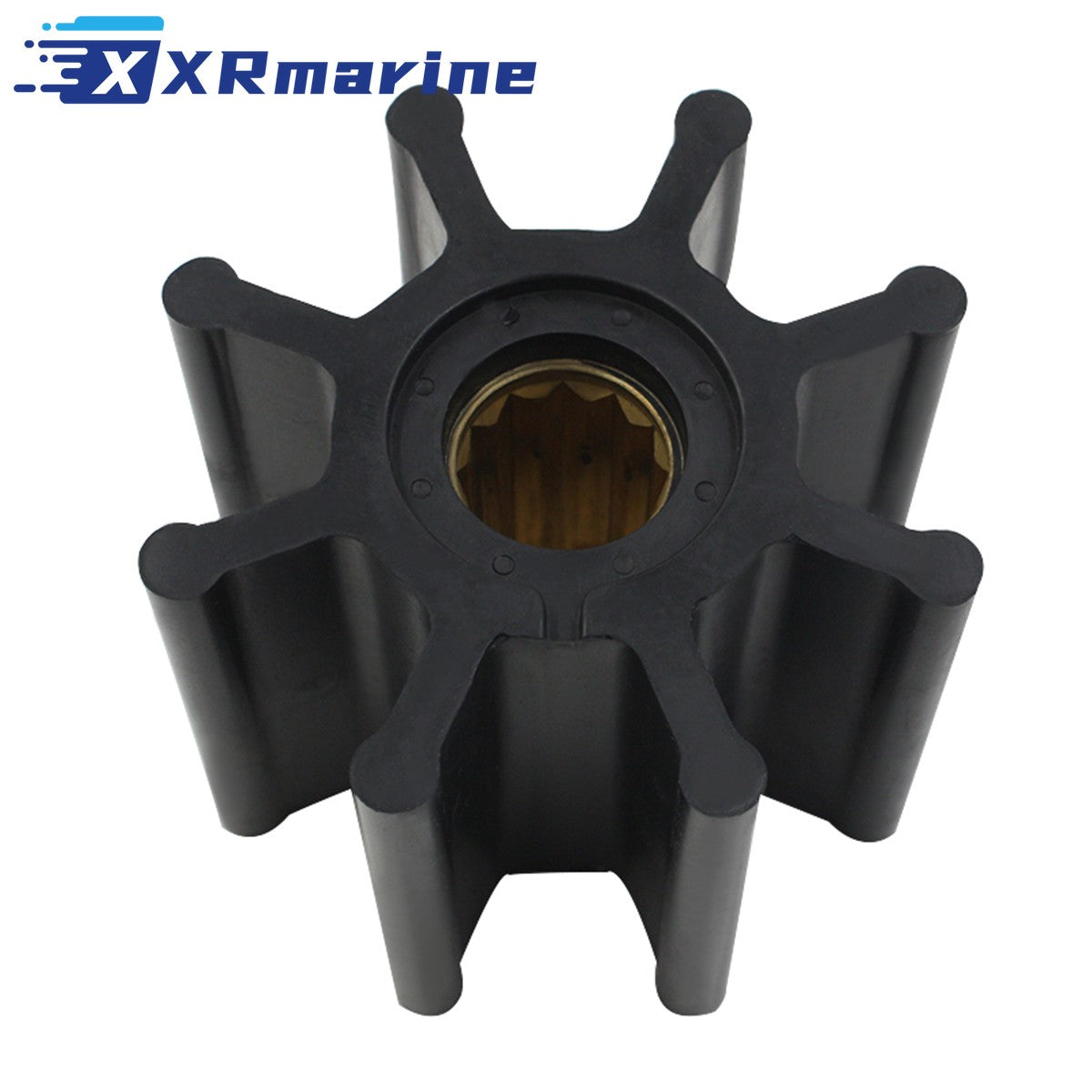

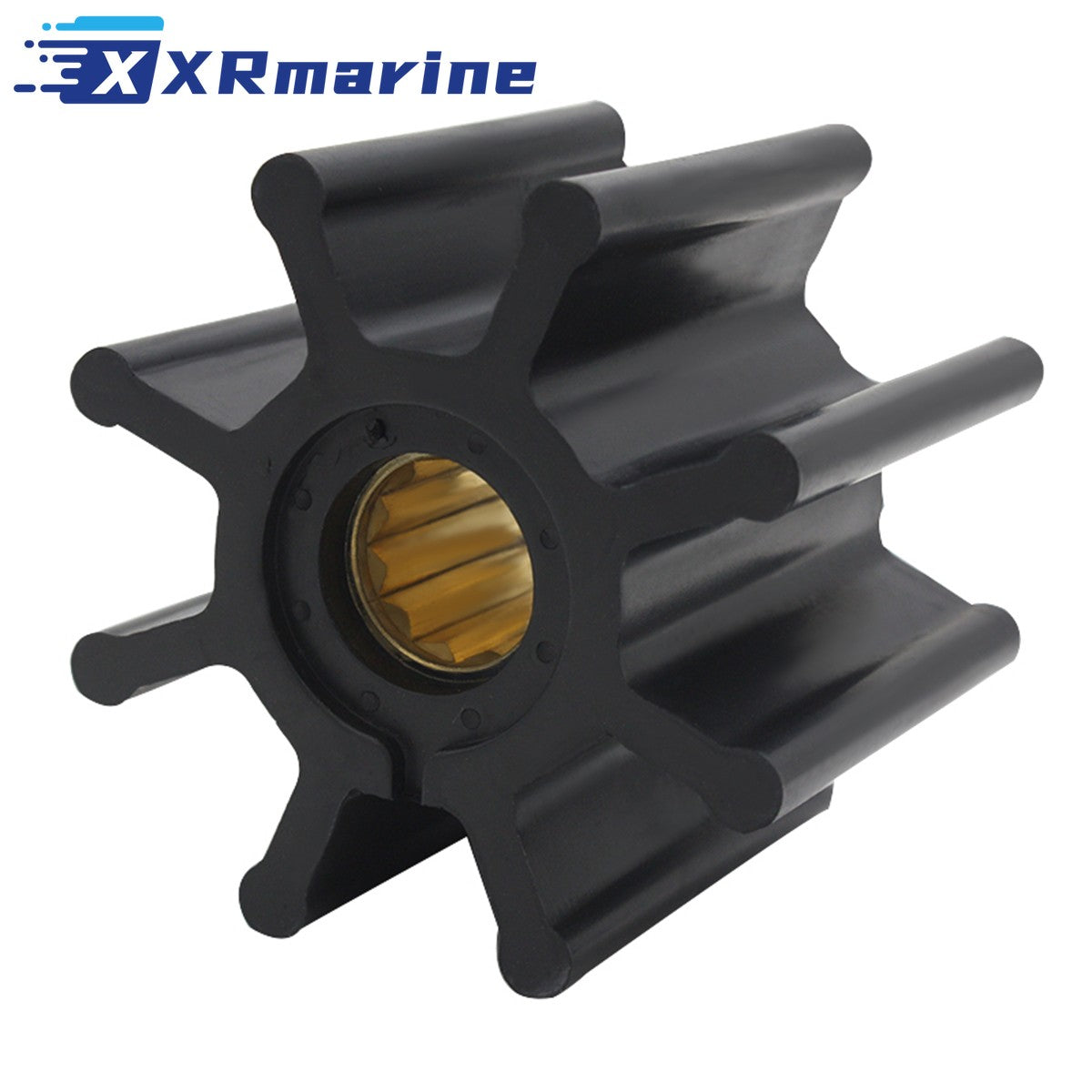

Impeller kit for the large raw water pumps on Volvo Penta, Yanmar, Jabsco, Johnson and Sherwood installations, a service part measuring 65 mm (2.56 in) across and 50 mm (1.97 in) wide with eight blades on a 15.8 mm (0.62 in) spline shaft. It replaces Jabsco 920-0001, Johnson 09-1028B, Sierra 18-3077 and the cross numbers below. Shipped from our Germany local warehouse.
The pack holds the impeller, the pump cover gasket and the O-ring. On these pumps the cover comes off every service, so the seals are disturbed whether or not they look tired, and a two euro gasket that fails costs an engine.
Fitting is straightforward once the hub is square on the shaft. Forced on at an angle, the impeller runs off centre, one side of the blades wears away and the brass hub strips. Seat it by hand, check it turns with the shaft, then fit the cover.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Flexible impeller kit |
| Drive Type | Spline drive |
| Blades | 8 |
| Outer Diameter | 65 mm (2.56 in) |
| Width | 50 mm (1.97 in) |
| Shaft Diameter | 15.8 mm (0.62 in) |
| Material | Neoprene |
| Insert Material | Brass |
| Net Weight | 185 g |
| Pack Size | 15 x 10 x 6 cm |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Jabsco | 920-0001, 920-0001-P |
| Johnson / Evinrude | 09-1028B, 09-1028B-1 |
| Volvo Penta | 877061, 877061-2, 801277, 825941 |
| Volvo Penta | 875593, 875593-6, 807904, 3841697, 21951356 |
| Yanmar | 123325-42020, 123325-42021 |
| Yanmar | 127610-42200, 127610-42270, 120650-42310 |
| Sherwood | 18200, 18200K |
| Perkins | 24880031 |
| Cummins | 650607 |
| Ancor | 500106 |
| Northern Lights | 25-11011 |
| MAN | 50.06506.0091 |
| JMP | 7400 |
| CEF | 500206 |
| GLM | 89550 |
| Mallory | 9-45710 |
| Sierra | 18-3077 |
| Iveco | 8108228 |
| Caterpillar | 3N1906 |
| Detroit Diesel | 5193602 |
| MerCruiser | 47-80133, 47-801332602 |
| ZF | 347.11.008 |
Compatible Engines
| Brand | Engine or Model | Note |
|---|---|---|
| Volvo Penta | D4-225, D4-260, D4-300 | D4 uses pump 21419374 |
| Volvo Penta | D5, D7 | Marine diesel range |
| Volvo Penta | MD31, MD41, MD42 | Older marine diesel |
| Volvo Penta | D30, D31, D32 | Marine diesel range |
| Volvo Penta | D40, D41, D42, D43, D44, D300 | Marine diesel range |
| Volvo Penta | D60, D70, D100, D102, D120, D121 | Marine diesel range |
| Yanmar | 4LH-TE, 4LH-HTE, 4LH-DTE, 4LH-STE | 4LH series |
| Yanmar | 4LHA-DTE, 4LHA-DTZE, 4LHA-DTP, 4LHA-DTZP | 4LHA series |
| Yanmar | 4LHA-STE, 4LHA-STZE, 4LHA-STP, 4LHA-STZP | 4LHA series |
| Yanmar | 4BY150, 4BY150Z, 4BY180, 4BY180Z | 4BY series |
| Yanmar | 6BY220, 6BY220Z, 6BY260, 6BY260Z, BY2 | 6BY series |
| Jabsco | Pump 920-0001 | Jabsco pump body |
| Sherwood | Pump 18200, 18200K | Sherwood pump body |

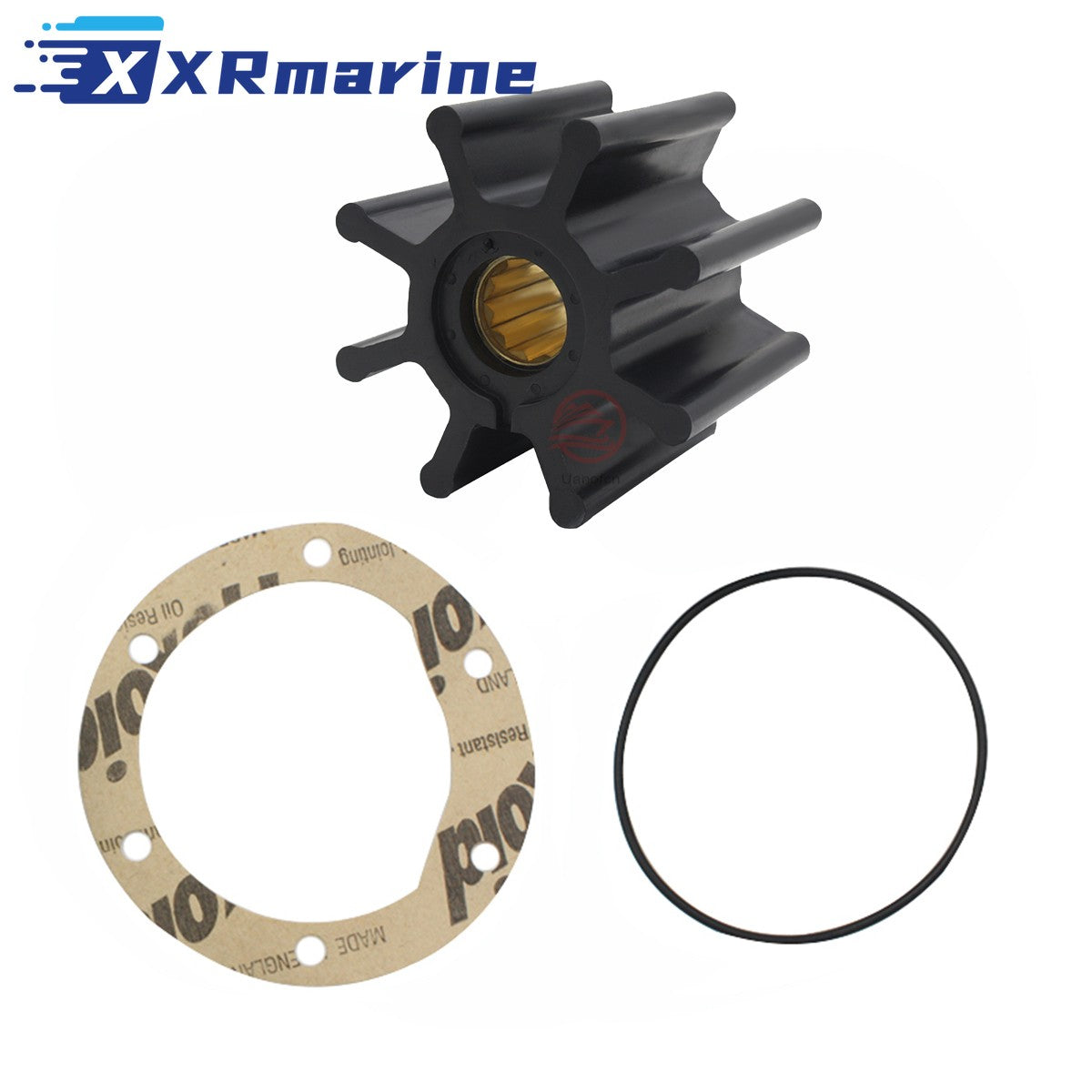

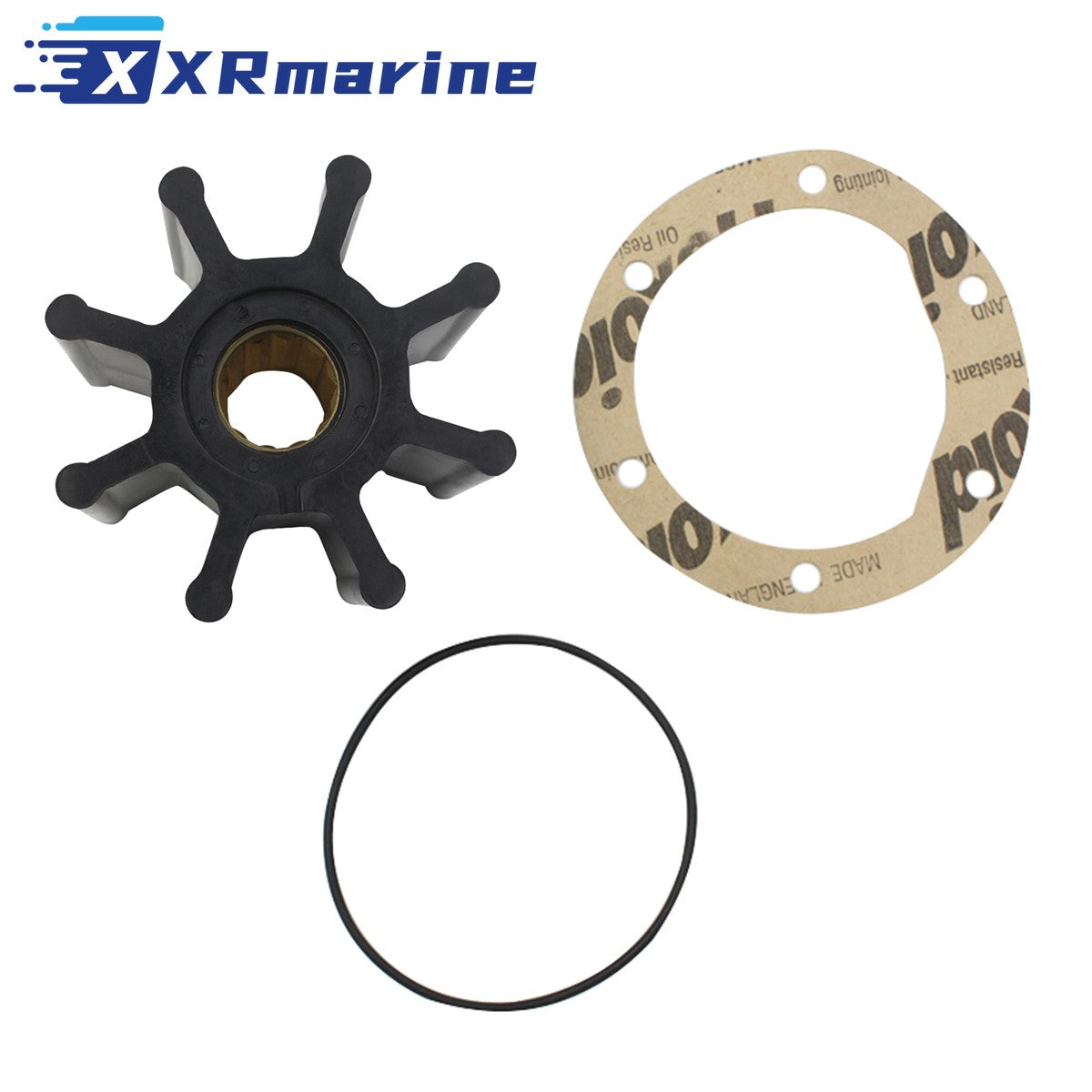

What's Included
| Component | Reference | Qty |
|---|---|---|
| Neoprene impeller, 8 blade spline drive | 920-0001 pattern, 65 mm by 50 mm | 1 |
| Pump cover gasket | 777112 | 1 |
| O-ring | 1.8 mm section, 63 mm inside diameter | 1 |
Service Interval and Engine Hours
| Engine Hours per Year | When To Change | Why |
|---|---|---|
| Under 50, club boat on a lake | Every second season, before launch | Hours are low but the blades still cure |
| 50 to 100, coastal cruising | Every season | One season is the safe interval on salt water |
| 100 to 200, long distance motorboat | Every season, check at half way | Blades wear faster on long runs at cruise |
| Over 200, charter or working boat | Twice a season | Change on hours, not on symptoms |
| Liveaboard, diesel run daily | Every 250 hours | Gensets and main engines both count |
| Any overheat event | Immediately | Heat damages the blades even if they look fine |
Winter Lay Up in Germany
| Lay Up Practice | Effect on the Pump | What To Do |
|---|---|---|
| Engine raw water drained in October | Pump body empty and dry | Fit the new impeller in spring, not before |
| Water left in the pump below 0 °C | Ice splits the cover and the housing | Drain the pump before the first frost |
| Impeller left in the housing all winter | Blades take a set and harden | Remove it or renew it in spring |
| Boat under cover, engine bay damp | Cover screws corrode into the housing | Grease the screw threads at lay up |
| First launch in April | Dry start on a set blade | Prime the pump before the engine starts |
| Baltic and North Sea salt water | Salt crystals on the blades and the cam | Fresh water flush before storage |
Covered and Not Covered Pumps
| Number | Where It Appears |
|---|---|
| 21419374 | Volvo Penta D4 raw water pump |
| 3838288, 3583115 | Volvo Penta raw water pump bodies |
| 920-0001, 920-0001-P | Jabsco pump bodies |
| 09-1028B, 09-1028B-1 | Johnson pump bodies |
| 18200, 18200K | Sherwood pump bodies |
| Not covered | AD40B, AQAD40A, AQAD40B, TAMD40A and TAMD40B with pumps 844971 and 838522 take the 95 mm impeller |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Check the pump body number against the list, this is the 65 mm by 50 mm impeller |
| 2 | Check the old impeller comes out whole and count the blades against the new one |
| 3 | Check the cam, the wear plate and the cover face for scoring |
| 4 | Clean both seal grooves, old gasket and old O-ring out completely |
| 5 | Grease the bore lightly and fold the blades in the running direction |
| 6 | Slide the impeller on square and turn the shaft to confirm it drives |
| 7 | Fit the new gasket and O-ring dry, tighten the cover evenly |
| 8 | Prime the pump, run the engine and check the exhaust water before casting off |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Germany
| Destination | Warehouse | Note |
|---|---|---|
| Germany | Germany local warehouse | Domestic delivery, no import duty |
| Austria, Netherlands, Belgium | Germany local warehouse | EU delivery, no customs charge |
| Other EU destinations | Germany local warehouse | EU delivery, VAT included |
Before You Buy
- Check the pump body number, 920-0001, 09-1028B, 18200 and 21419374 all take this impeller
- AD40 and TAMD40 pumps with 844971 and 838522 take the 95 mm impeller, not this one
- Check the cam, the wear plate and the cover face for scoring
- Seat the impeller square on the shaft before the cover goes on
- This is the impeller, the gasket and the O-ring, the cover and cam are not included
- Change on hours, and always after an overheat
- 30-Day Easy Returns
- Ships from our Germany local warehouse
