Product Overview
Cooling pump impeller kit for Volvo Penta, Yanmar, Jabsco, Johnson and Sherwood raw water pumps, an eight blade service part 65 mm (2.56 in) in diameter and 50 mm (1.97 in) wide, on a 15.8 mm (0.62 in) spline shaft. It replaces 920-0001, 09-1028B and 18-3077 and fits the Volvo Penta D4 and D5 and the Yanmar 4LH range. Shipped from our United Kingdom local warehouse.

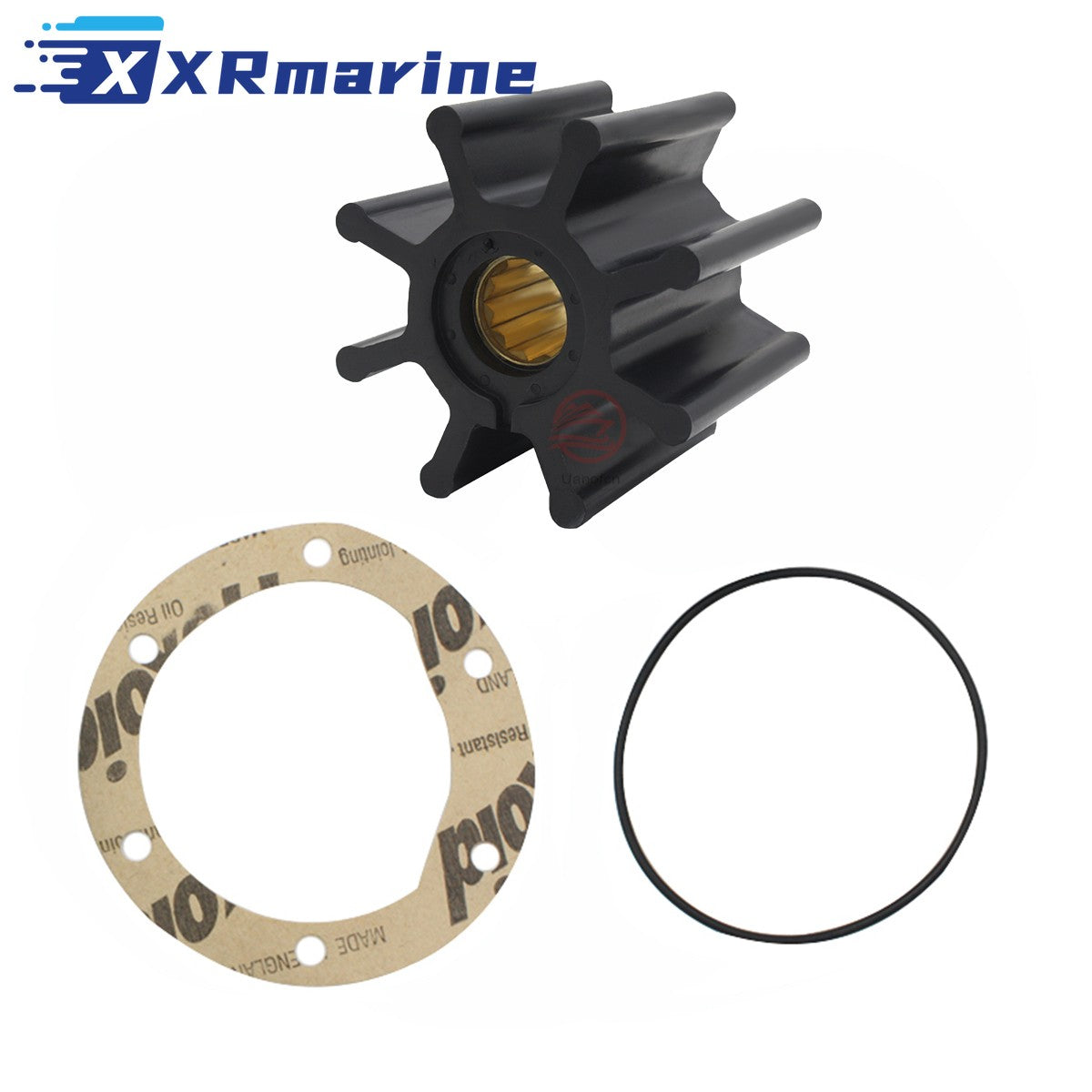

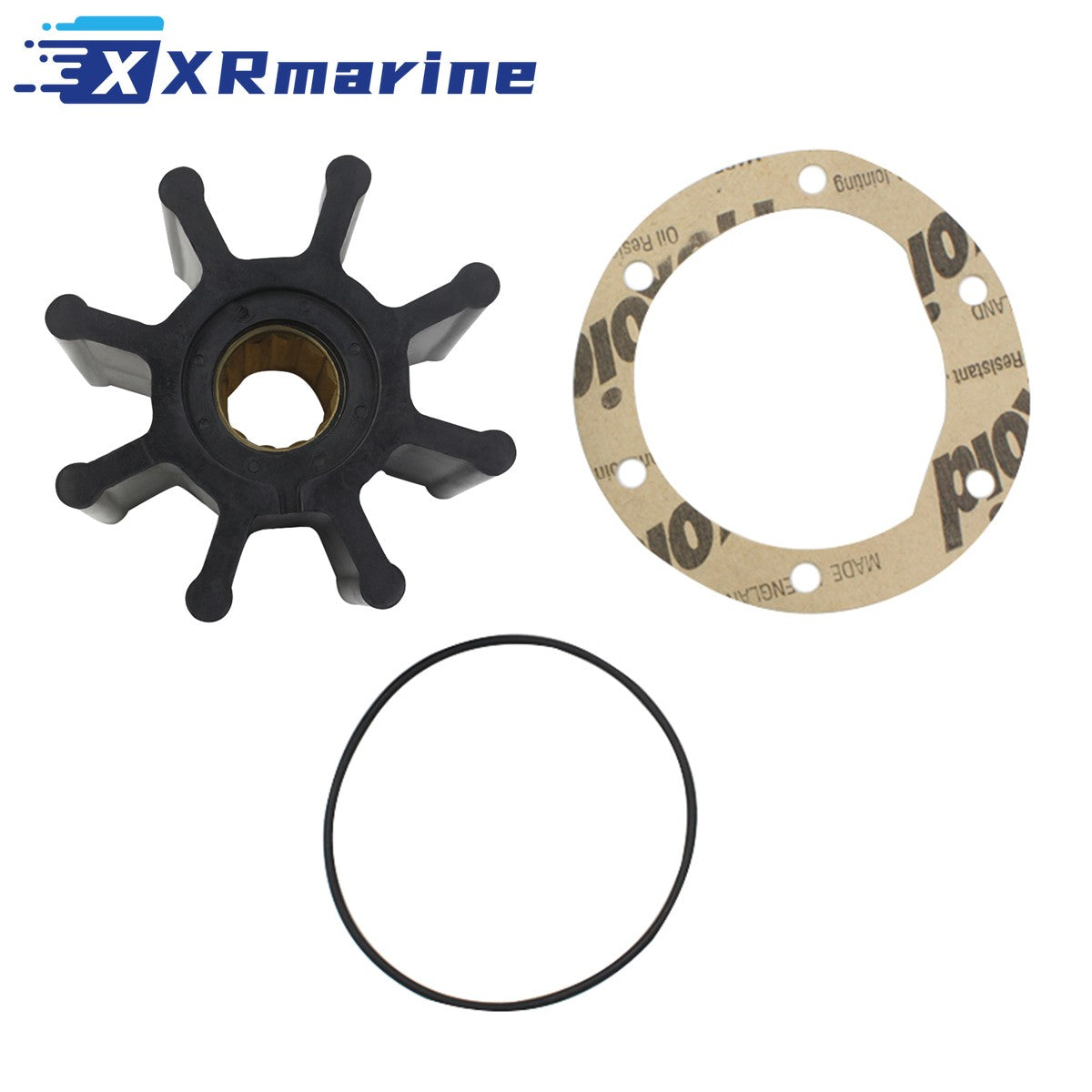

Three parts come in the box: the impeller, the cover gasket and the O-ring. On a shaft drive boat the pump is usually under the engine, reached from the companionway, and the seals are the two things that get pinched or lost on the way back together.

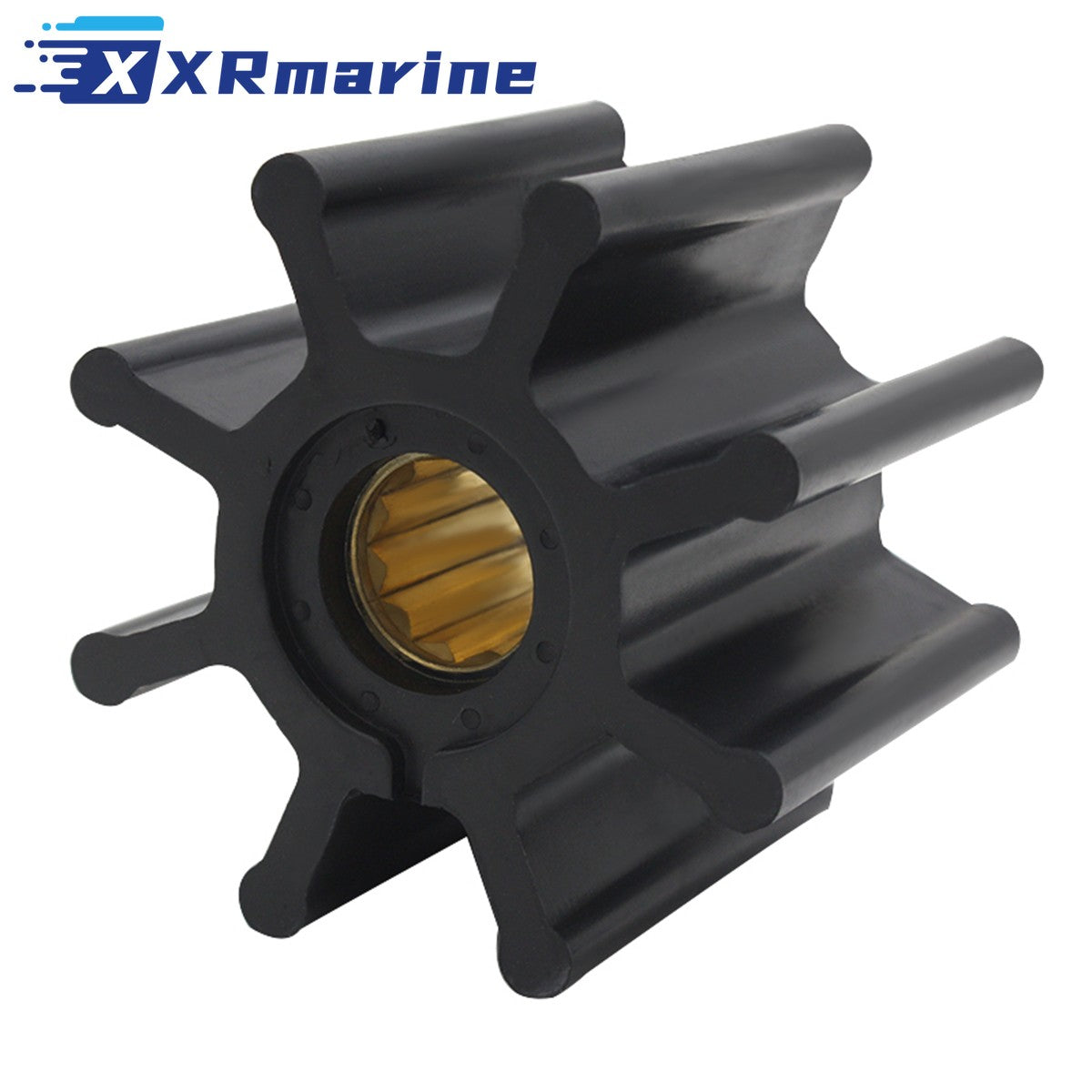

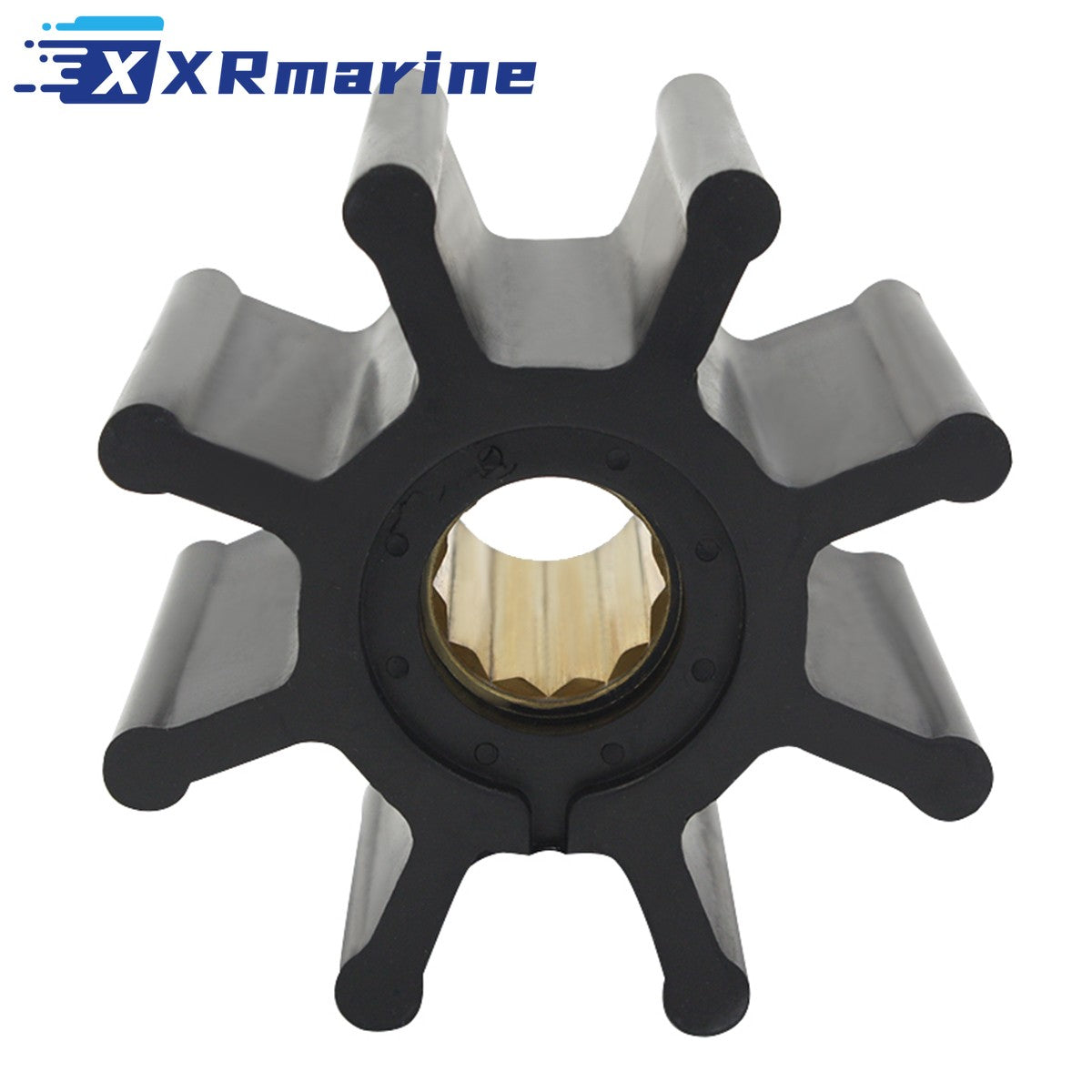

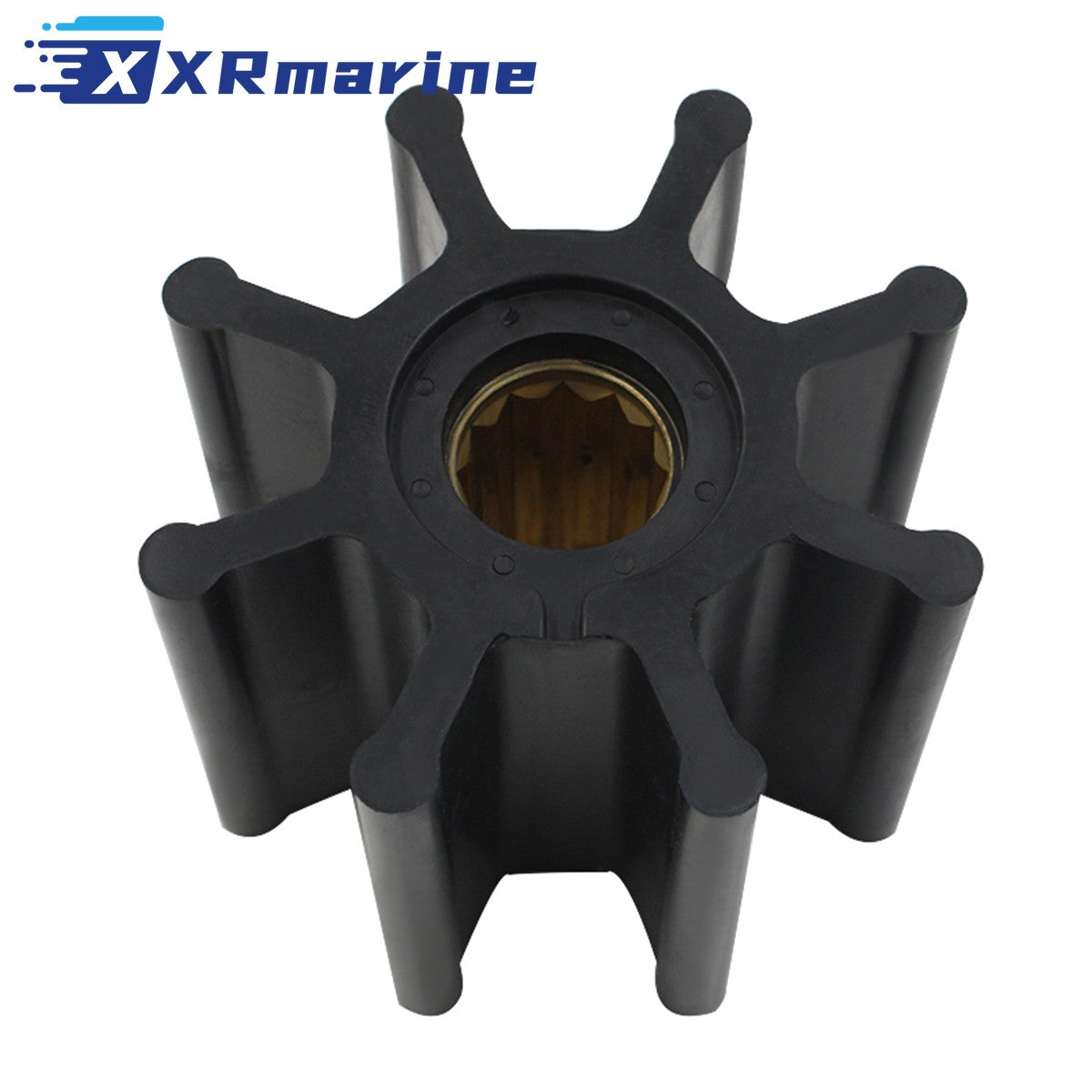

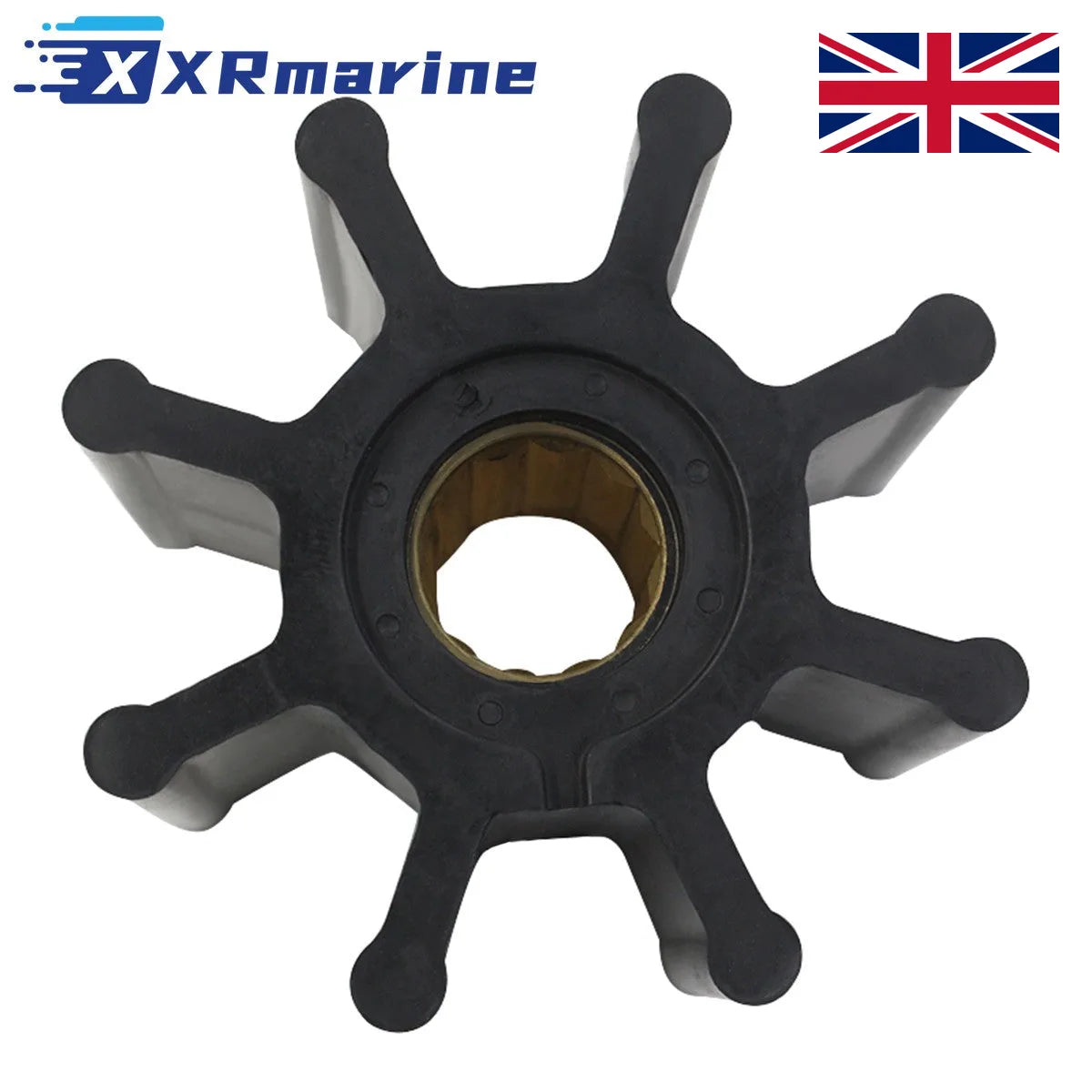

The impeller is neoprene with a brass spline hub. Neoprene copes with raw water and a short dry start better than nitrile, and the brass hub takes the drive load through the splines rather than through friction on a smooth shaft.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Flexible impeller kit |
| Drive Type | Spline drive |
| Blades | 8 |
| Outer Diameter | 65 mm (2.56 in) |
| Width | 50 mm (1.97 in) |
| Shaft Diameter | 15.8 mm (0.62 in) |
| Material | Neoprene |
| Insert Material | Brass |
| Net Weight | 185 g |
| Pack Size | 15 x 10 x 6 cm |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Jabsco | 920-0001, 920-0001-P |
| Johnson / Evinrude | 09-1028B, 09-1028B-1 |
| Volvo Penta | 877061, 877061-2, 801277, 825941 |
| Volvo Penta | 875593, 875593-6, 807904, 3841697, 21951356 |
| Yanmar | 123325-42020, 123325-42021 |
| Yanmar | 127610-42200, 127610-42270, 120650-42310 |
| Sherwood | 18200, 18200K |
| Perkins | 24880031 |
| Cummins | 650607 |
| Ancor | 500106 |
| Northern Lights | 25-11011 |
| MAN | 50.06506.0091 |
| JMP | 7400 |
| CEF | 500206 |
| GLM | 89550 |
| Mallory | 9-45710 |
| Sierra | 18-3077 |
| Iveco | 8108228 |
| Caterpillar | 3N1906 |
| Detroit Diesel | 5193602 |
| MerCruiser | 47-80133, 47-801332602 |
| ZF | 347.11.008 |
Compatible Engines
| Brand | Engine or Model | Note |
|---|---|---|
| Volvo Penta | D4-225, D4-260, D4-300 | D4 uses pump 21419374 |
| Volvo Penta | D5, D7 | Marine diesel range |
| Volvo Penta | MD31, MD41, MD42 | Older marine diesel |
| Volvo Penta | D30, D31, D32 | Marine diesel range |
| Volvo Penta | D40, D41, D42, D43, D44, D300 | Marine diesel range |
| Volvo Penta | D60, D70, D100, D102, D120, D121 | Marine diesel range |
| Yanmar | 4LH-TE, 4LH-HTE, 4LH-DTE, 4LH-STE | 4LH series |
| Yanmar | 4LHA-DTE, 4LHA-DTZE, 4LHA-DTP, 4LHA-DTZP | 4LHA series |
| Yanmar | 4LHA-STE, 4LHA-STZE, 4LHA-STP, 4LHA-STZP | 4LHA series |
| Yanmar | 4BY150, 4BY150Z, 4BY180, 4BY180Z | 4BY series |
| Yanmar | 6BY220, 6BY220Z, 6BY260, 6BY260Z, BY2 | 6BY series |
| Jabsco | Pump 920-0001 | Jabsco pump body |
| Sherwood | Pump 18200, 18200K | Sherwood pump body |
What's Included
| Component | Reference | Qty |
|---|---|---|
| Neoprene impeller, 8 blade spline drive | 920-0001 pattern, 65 mm by 50 mm | 1 |
| Pump cover gasket | 777112 | 1 |
| O-ring | 1.8 mm section, 63 mm inside diameter | 1 |
Pump Numbers This Kit Fits
| Number | Where It Appears |
|---|---|
| 21419374 | Volvo Penta D4 raw water pump |
| 3838288, 3583115 | Volvo Penta raw water pump bodies |
| 920-0001, 920-0001-P | Jabsco pump bodies |
| 09-1028B, 09-1028B-1 | Johnson pump bodies |
| 18200, 18200K | Sherwood pump bodies |
| Not covered | AD40B, AQAD40A, AQAD40B, TAMD40A and TAMD40B with pumps 844971 and 838522 take the 95 mm impeller |
Tidal Moorings and Salt Water
| British Use | Effect on the Pump | What To Do |
|---|---|---|
| Swinging mooring, boat afloat all year | Pump sits wet, blades never fully dry | Check the impeller each spring |
| Solent and Channel salt water | Salt crystals build on the cam face | Flush with fresh water when ashore |
| Mud berth or drying mooring | Silt reaches the strainer at low water | Clean the strainer before every start |
| Inland canals and rivers | Weed and leaf litter block the intake | Check the strainer, clear the grill |
| Winter ashore, engine drained | Blades take a set in the housing | Fit the new kit before launch |
| Frost in an undrained pump | Cover and housing crack | Drain the raw water side at lay up |
Spares Worth Carrying on Board
| Spare | Why | Where It Goes |
|---|---|---|
| This impeller kit | The most common at sea failure after fuel | Engine spares box |
| Spare cover gasket and O-ring | Lost or pinched during a hurried repair | In the kit bag |
| Impeller puller or two screwdrivers | Blades grip the housing after a season | Tool roll |
| Hose clips for the raw water hose | The hose comes off to reach the pump | Tool roll |
| Torch and a shallow tray | Pump is usually low and dark | Engine bay |
| Fresh water flush hose | Salt sits in the pump between trips | Dock box |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Check the pump body number, the D4, 920-0001, 09-1028B and 18200 bodies all take this impeller |
| 2 | Close the seacock before the cover comes off |
| 3 | Check the old impeller comes out whole, a missing blade has to be found in the cooler |
| 4 | Check the cam and the cover face for scoring while the pump is open |
| 5 | Clean both seal grooves, then grease the bore and fold the blades in the running direction |
| 6 | Slide the impeller on square and turn the shaft to check it drives |
| 7 | Fit the new gasket and O-ring dry and tighten the cover evenly |
| 8 | Open the seacock, prime the pump and check the exhaust water before slipping lines |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from United Kingdom
| Destination | Warehouse | Note |
|---|---|---|
| United Kingdom | United Kingdom local warehouse | Domestic delivery, no import duty |
| Ireland | United Kingdom local warehouse | Customs may apply |
| Channel Islands | United Kingdom local warehouse | Tracked shipping available |
Before You Buy
- Check the pump body number before ordering
- AD40 and TAMD40 pumps with 844971 and 838522 take the 95 mm impeller, not this one
- Close the seacock before opening the pump
- Check the cam and the cover face for scoring
- This is the impeller, the gasket and the O-ring, the cover and cam are not included
- Keep a second kit on board for the season
- 30-Day Easy Returns
- Ships from our United Kingdom local warehouse
