Bell Housing Gasket Kit 27-94996Q2 27-949962 for MerCruiser Alpha One Gen II R MR Sterndrive Sierra 18-2743 GLM 31141 — Germany Local Warehouse
Bell Housing Gasket Kit 27-94996Q2 27-949962 for MerCruiser Alpha One Gen II R MR Sterndrive Sierra 18-2743 GLM 31141 — Germany Local Warehouse
Product Overview
Gasket kit for MerCruiser R, MR, Alpha One and Alpha One Gen II sterndrive bell housings from serial 6225577 and above, covering 1983 onward, boxed at 18 x 28 x 3 cm with 1 outdrive mounting gasket, 1 bell housing gasket and 4 O-rings. Cross references are 27-94996Q2, 94996Q2, 94996A2, 94996A20, 64818A3, 949962, 94996 and 94996A1, plus Sierra 18-2743, GLM 31141 and Mallory 9-61012. Shipped from our Germany local warehouse.
For most boats in Germany this work happens once a year, at the start of the season, when the drive comes off for the bellows check. The gaskets and O-rings are compressed on first fit and cannot be reused, so a kit belongs in the parts box before that day rather than after it.
Fresh water is gentler on the casting than salt, but it still leaves scale and the O-ring grooves still fill with silt. Both stop a new ring seating properly, which is why cleaning the grooves takes longer than fitting the parts.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Bell housing gasket kit |
| Drive Family | MerCruiser R, MR, Alpha One, Alpha One Gen II |
| Serial Number | 6225577 and above |
| Years | 1983 and newer |
| Contents | 1 mounting gasket, 1 bell housing gasket, 4 O-rings |
| Packaging Size | 18 x 28 x 3 cm (7.1 x 11.0 x 1.2 in) |
| Quantity | 1 kit |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| MerCruiser | 27-94996Q2, 94996Q2, 94996A2, 94996A20 |
| MerCruiser | 27-949962, 27-94996A1, 94996A1, 94996 |
| MerCruiser | 64818A2, 64818A3, 27-64818A3 |
| Sierra | 18-2743 |
| GLM | 31141 |
| Mallory | 9-61012 |
Compatible Engines
| Drive | Years | Note |
|---|---|---|
| Alpha One Gen II | 1991 to 1997 | Serial 6225577 and above |
| R, MR, Alpha One | 1983 to 1990 | Serial 6225577 and above |
| R, MR, Alpha One, Gen II | 1983 and newer | Petrol 4 and 6 cylinder and V6 and V8 |

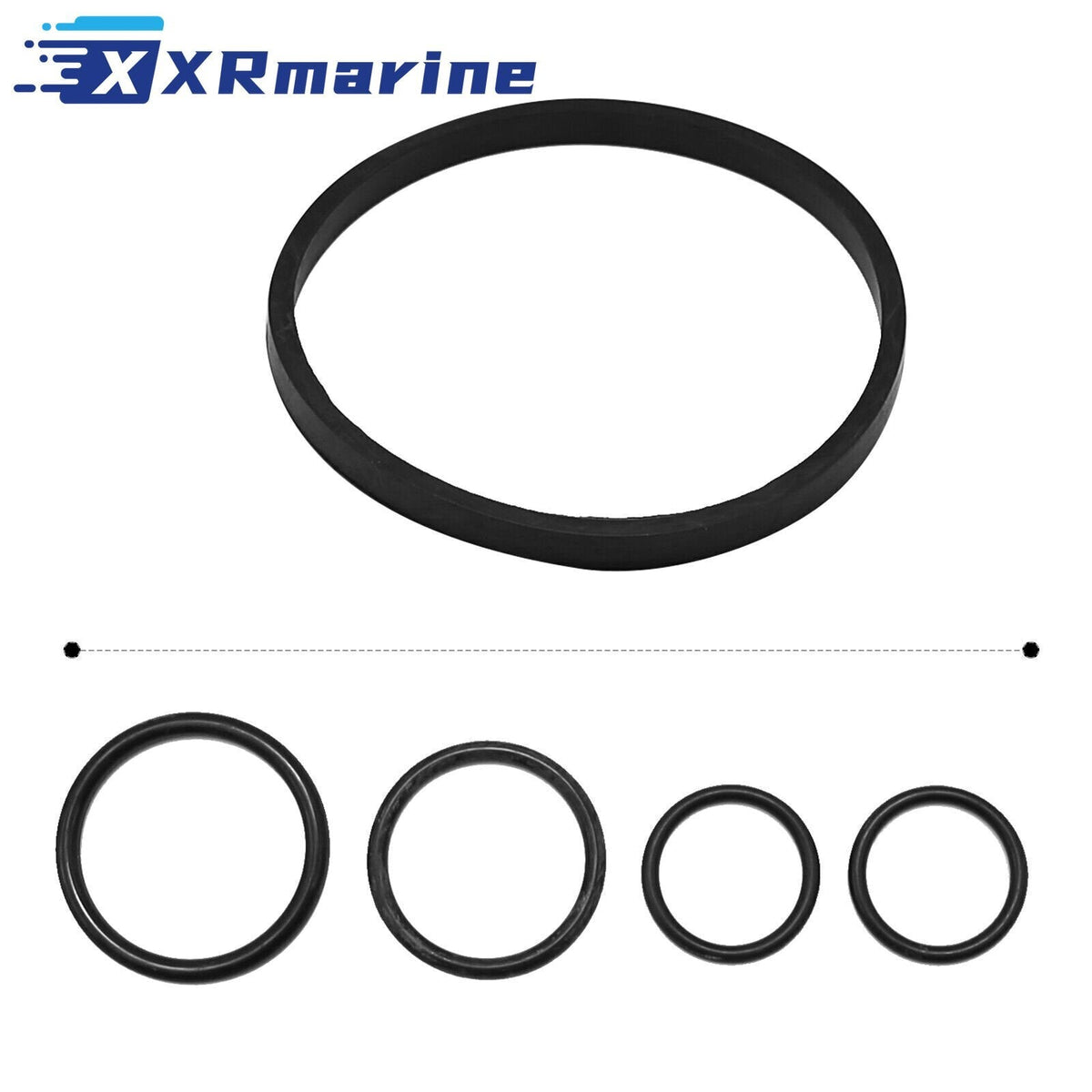

What's Included
| Component | Qty |
|---|---|
| Outdrive mounting gasket | 1 |
| Bell housing gasket | 1 |
| O-ring | 4 |
The Season Start Service
| Task | When | Note |
|---|---|---|
| Fit the bell housing gasket kit | Every time the drive is removed | Single use, do not reuse |
| Inspect the bellows | Annually, before launch | Perished rubber lets water into the housing |
| Grease the driveshaft splines | Every season | Dry splines wear the coupler |
| Check the gimbal bearing | Annually with the drive off | Clean water still rusts an idle bearing |
| Check the anodes | Annually, replace at half worn | Lake anodes behave differently to salt ones |
| Flush the water passage | Before lay up | Silt settles over winter |
| Torque the drive nuts | After every refit | Uneven torque distorts the housing face |
| Note the drive oil level | Before launch and after first run | Milky oil means water is getting in |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Read the drive serial plate, this kit starts at 6225577 and the earlier drives use a different set |
| 2 | Scrape both faces clean, gasket residue left in place holds the new gasket off the surface |
| 3 | Clear the four O-ring grooves with a pick and a cloth, silt packed in a groove will not seal |
| 4 | Seat the O-rings dry, no grease and no sealant on rubber |
| 5 | Offer the drive up squarely and let the splines find their own line, do not draw it on with the nuts |
| 6 | Torque the nuts in a cross pattern to the book figure, then recheck after the first run |
| 7 | Run on muffs before launch and check the housing joint and the water pickup for weeping |
| 8 | Keep the old gasket in the box as a reference for next season, it shows which face was leaking |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Germany
| Destination | Warehouse | Note |
|---|---|---|
| Germany | Germany local warehouse | Domestic delivery, no import duty |
| Austria, Netherlands, Belgium | Germany local warehouse | EU delivery, no customs charge |
| Other EU destinations | Germany local warehouse | EU delivery, VAT included |
Before You Buy
- Read the drive serial plate, this kit starts at 6225577 and the earlier drives use a different set
- Clear the four O-ring grooves before fitting, packed silt will not seal
- Seat the O-rings dry, no grease and no sealant on rubber
- Torque the drive nuts in a cross pattern and recheck after the first run
- This is the gasket and O-ring kit only, bellows, gimbal bearing and anodes are not included
- 30-Day Easy Returns
- Ships from our Germany local warehouse
