4 Inch Upper Exhaust Pipe Bellows 32-44348001 for MerCruiser V6 V8 18-2748
4 Inch Upper Exhaust Pipe Bellows 32-44348001 for MerCruiser V6 V8 18-2748

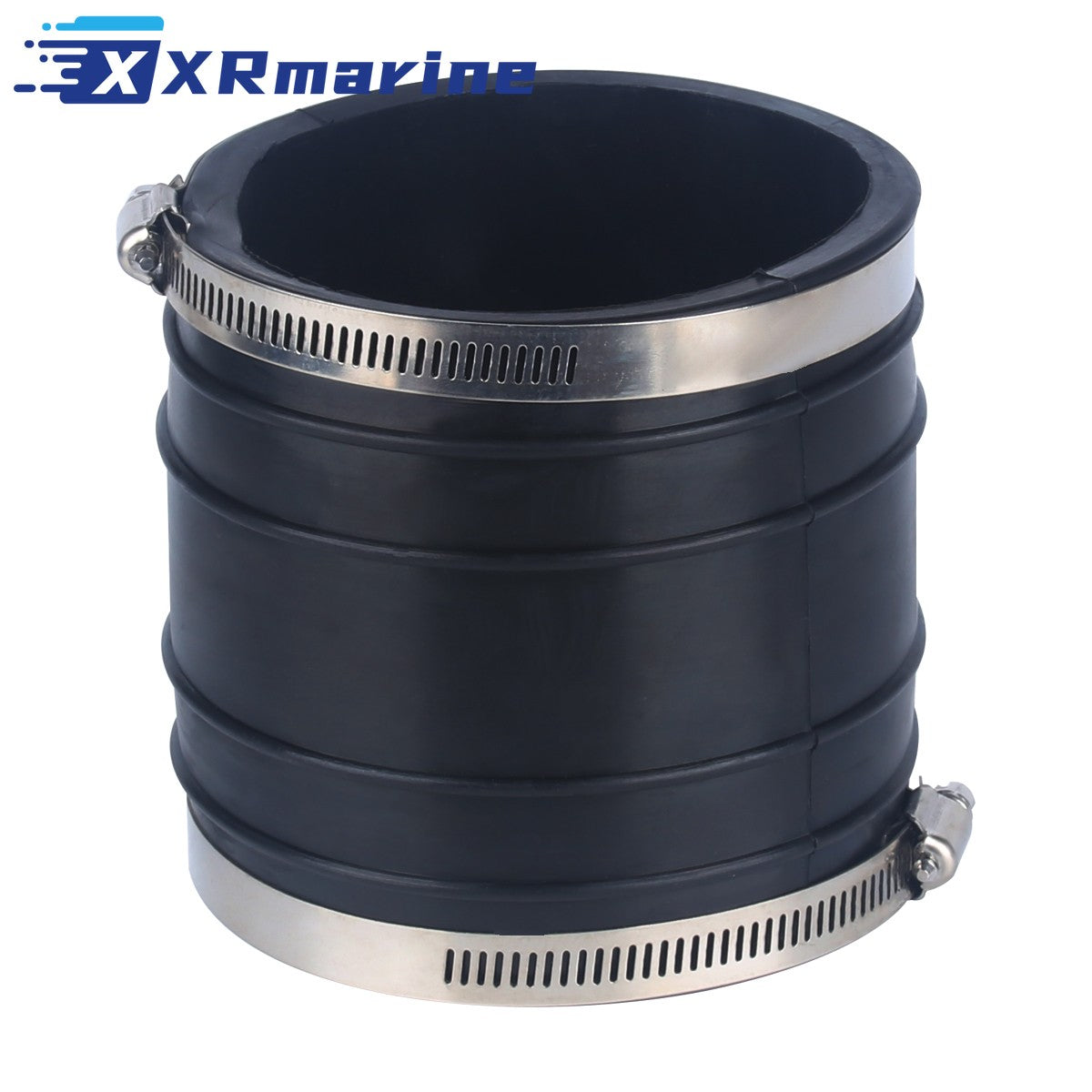

Product Overview
Upper exhaust pipe bellows part for MerCruiser V6 and V8 sterndrive engines, replacing 32-44348001, 32-44348 and 32-44348T and crossing to Sierra 18-2748, Mallory 9-72805 and GLM 89120. It is supplied as 1 x bellows with 2 x stainless clamps, which makes it a complete kit for one joint.
The bellows is 4 inch (101.6 mm) diameter and is the upper pipe in the exhaust system, the one that joins the exhaust pipe to the transom assembly plate at the top of the gimbal housing. Net weight is 481.5 g, so it is a thick walled moulding rather than a thin sleeve.
It covers the 3.0 L, 4.3 L, 5.0 L, 5.7 L, 6.2 L, 7.4 L and 8.2 L V6 and V8 engines on Alpha One and Bravo drives from 1987 to 1998. The serial number ranges in the table below are the only reliable way to check an older boat, because MerCruiser changed the exhaust pipe without changing the model name.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Upper exhaust pipe bellows |
| Diameter | 4 inch (101.6 mm) |
| Net Weight | 481.5 g |
| Material | Marine grade rubber |
| Clamps Included | 2 x stainless steel |
| Fits | MerCruiser V6 and V8 sterndrives |
| Years | 1987 to 1998 on the models listed |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| MerCruiser | 32-44348001, 32-44348, 32-44348T |
| Sierra | 18-2748 |
| Mallory | 9-72805 |
| GLM | 89120 |
Compatible Engines
| Engine Model | Years | Serial Number Range |
|---|---|---|
| 260 GM | 1987 | 0B525982 thru 0B773304 |
| 230 4 BBL GM | 1987 | 0B525982 thru 0B773739 |
| 200 2 BBL GM | 1987 | 0B525982 thru 0B774444 |
| 350 MAG Alpha GM | 1987 to 1995 | 0B525982 thru 0F600999 |
| 5.7 L GM | 1988 to 1995 | 0B525982 thru 0F600999 |
| 7.4 L Bravo GM 454 | 1988 to 1991 | 0B771113 thru 0D603117 |
| 5.0 LX 4 BBL GM | 1988 to 1995 | 0B773740 thru 0F600999 |
| 5.0 L 2 BBL GM | 1988 to 1995 | 0B774445 thru 0F600999 |
| 350 MAG Ski GM | 1991 to 1996 | 0D505450 thru 0K040399 |
| D4.2 L 220 IDI VM 254 | 1994 to 1998 | 0D554732 thru 0M999999 |
| 7.4 L Bravo Gen V GM | 1992 to 1996 | 0D603118 thru 0F800699 |
| 4.3 L Gen II 2 BBL GM | 1992 to 1993 | 0D714107 thru 0F000877 |
| 4.3 LX Gen II 4 BBL GM | 1992 to 1993 | 0D714370 thru 0F001219 |
| 454 MAG Bravo Gen V GM | 1992 to 1993 | 0D805069 thru 0F304999 |
What's Included
| Component | Qty |
|---|---|
| Upper exhaust pipe bellows, 4 inch | 1 |
| Stainless steel clamp | 2 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Before You Buy
- Measure the old bellows at 4 inch diameter, the V6 lower bellows is a different shape and size
- Check the engine serial number against the table, the 1987 engines used a shorter pipe
- Check the transom plate flange for corrosion before fitting, a pitted flange will tear a new bellows
- Fit the bellows before the gimbal bearing and alignment work, the order saves pulling it twice
- Tighten the clamps with the ribs seated in the groove, a clamp on the flat will leak exhaust into the boat
- Check for exhaust smell in the engine bay after the first run, that is the sign of a clamp off its seat
