Product Overview

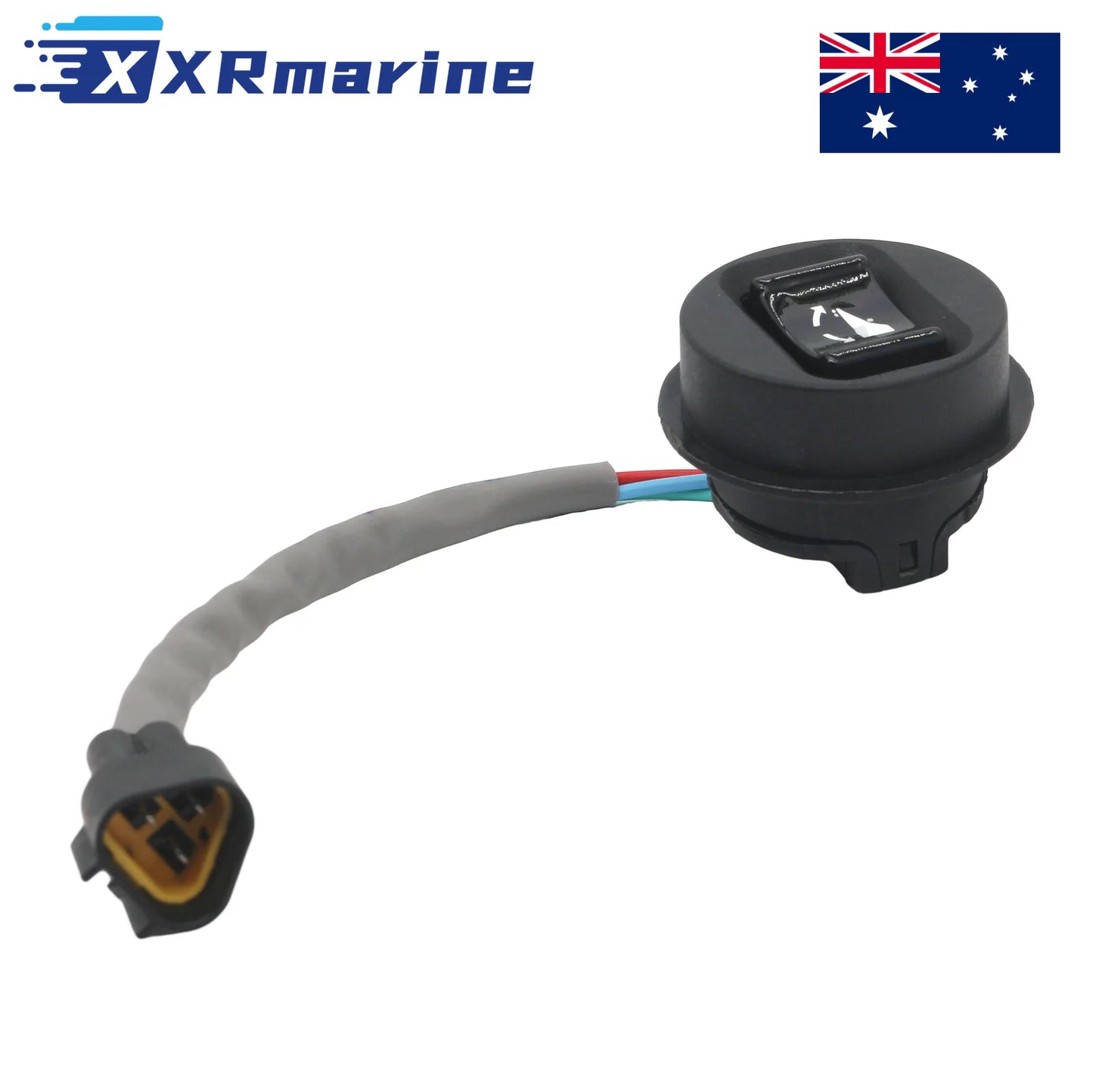

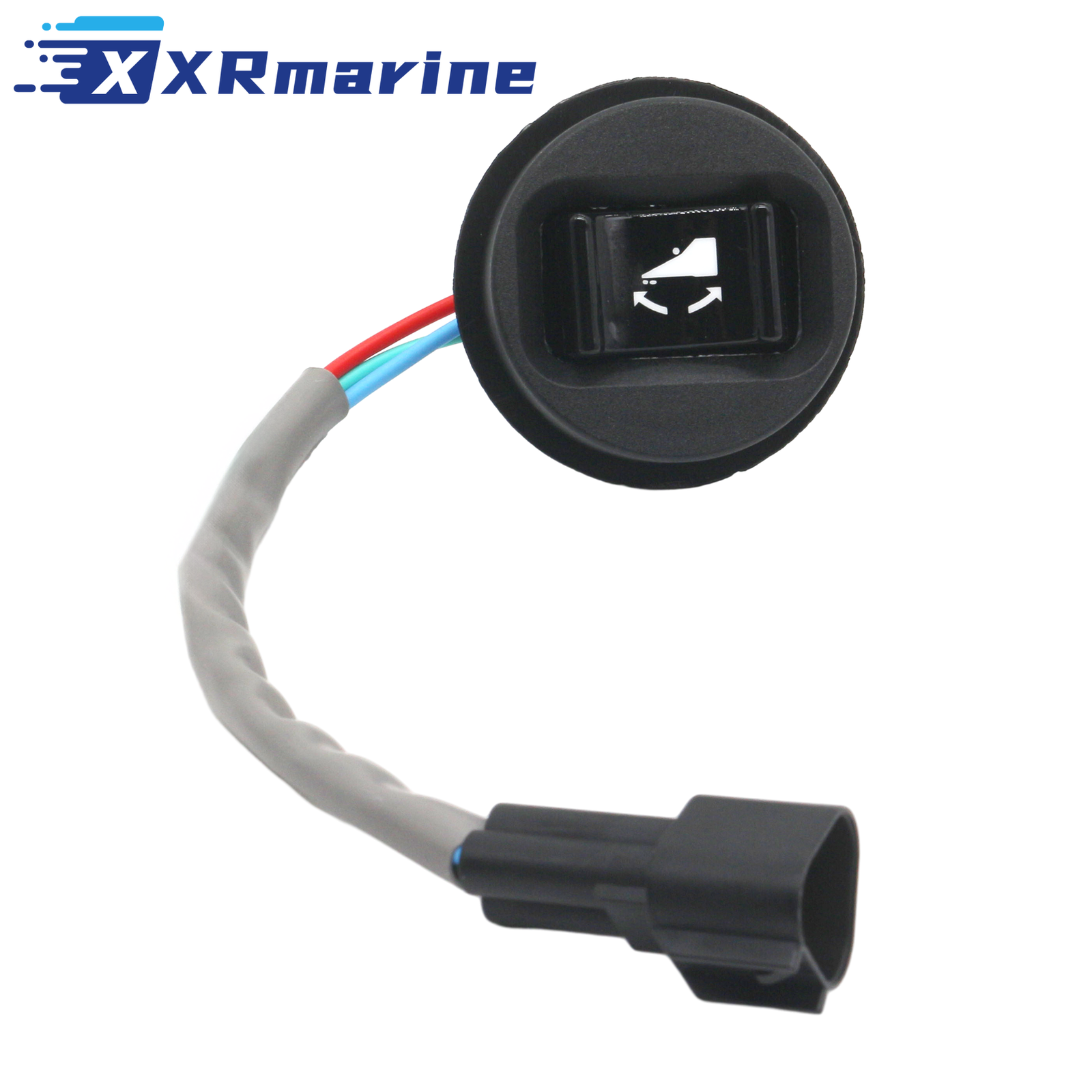

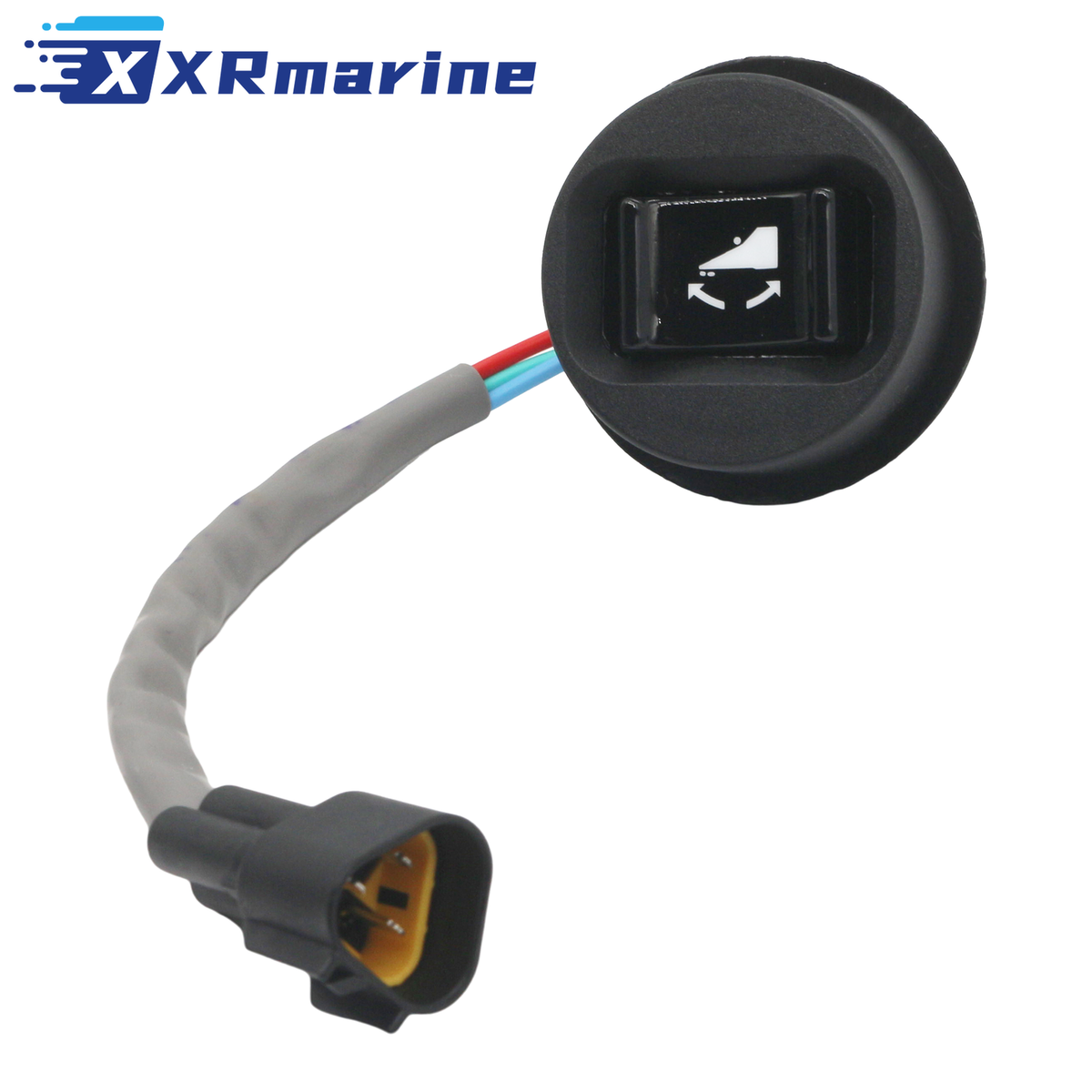

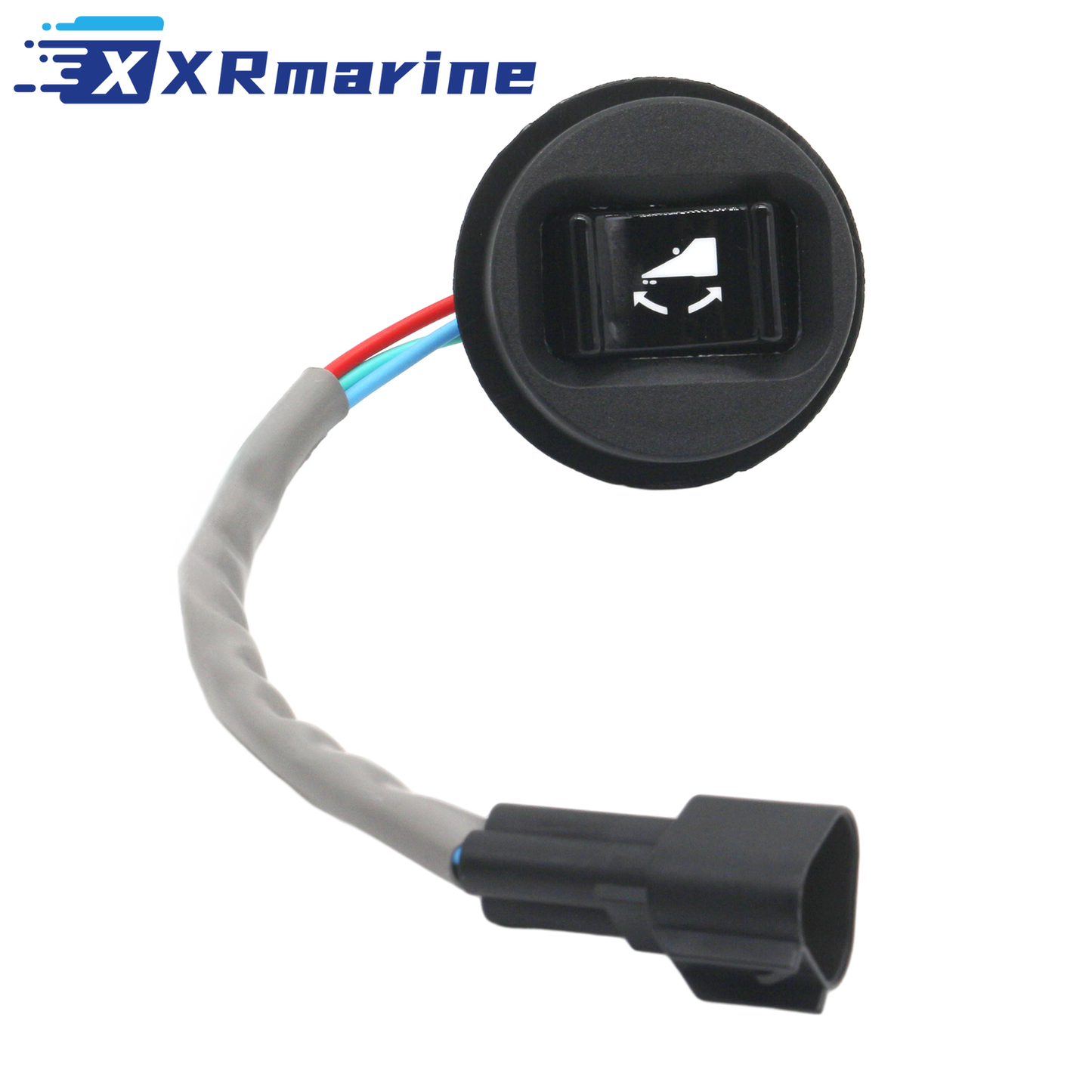

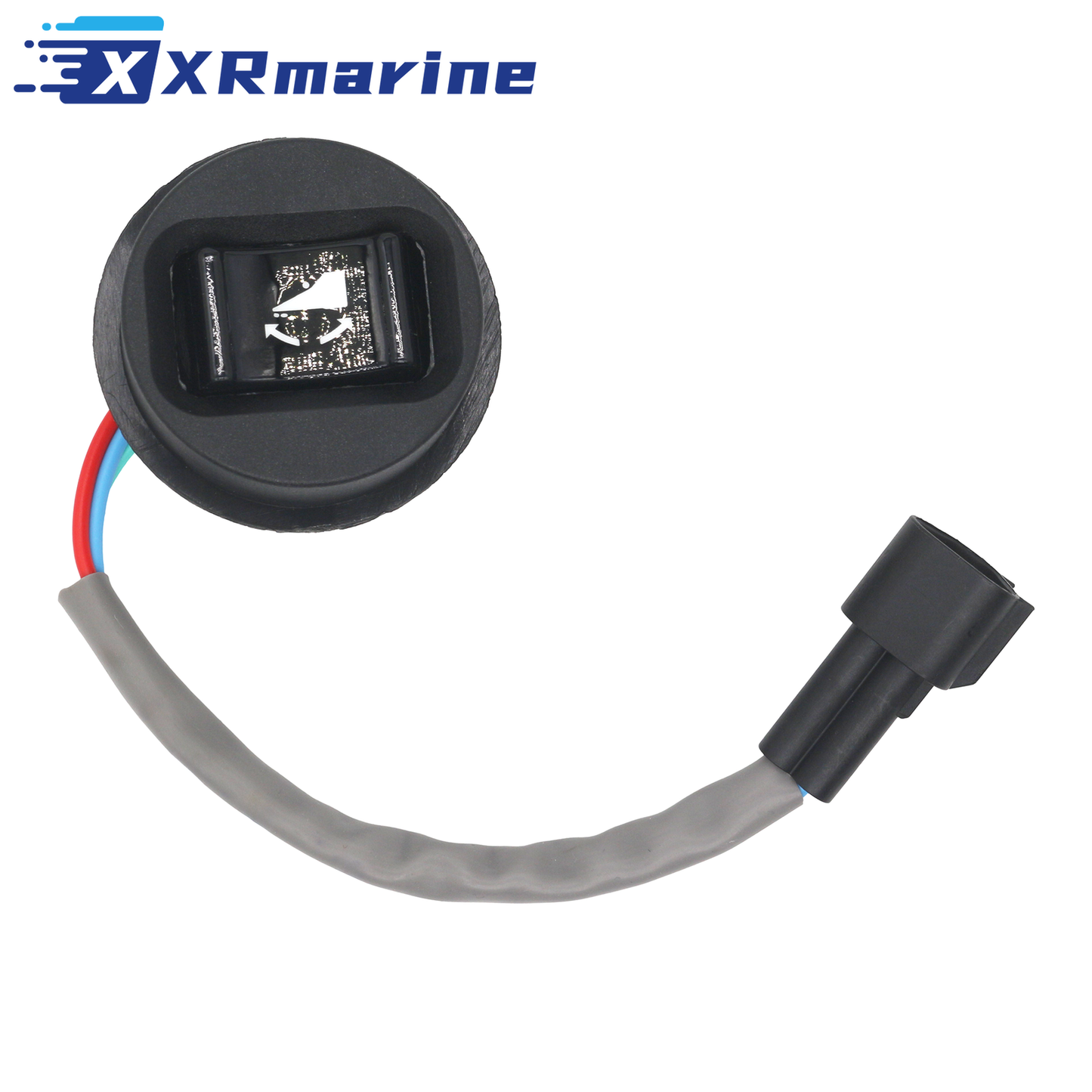

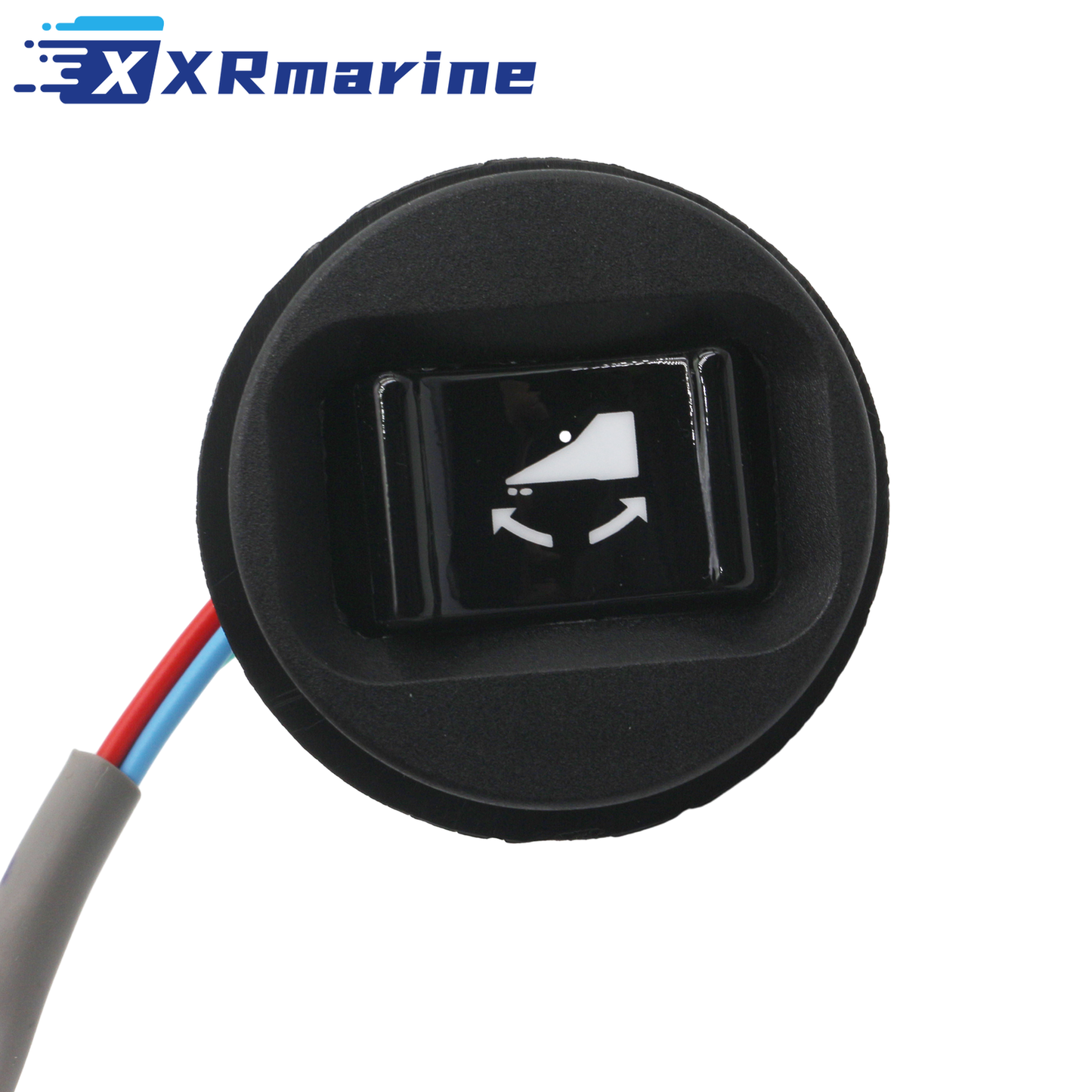

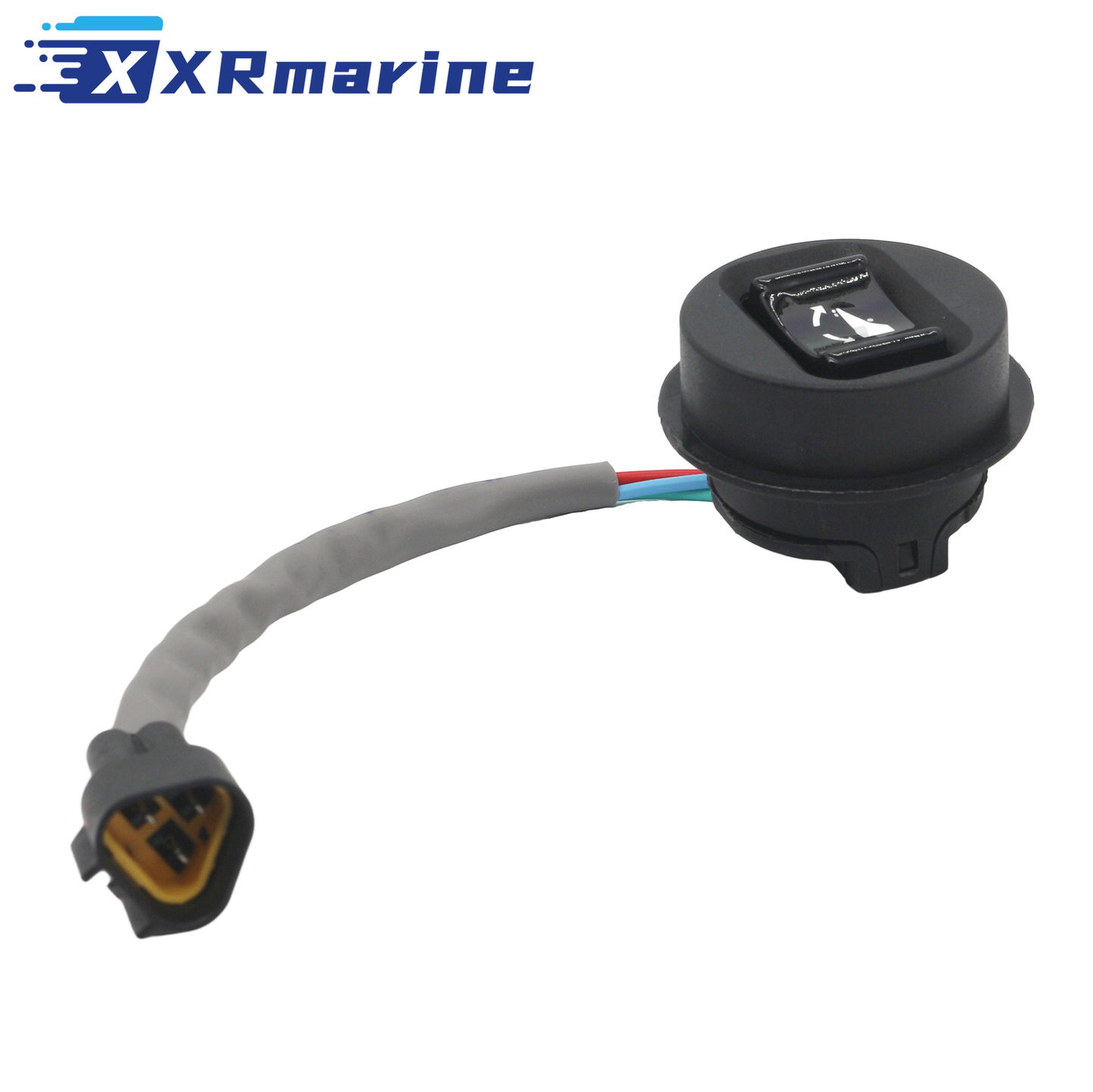

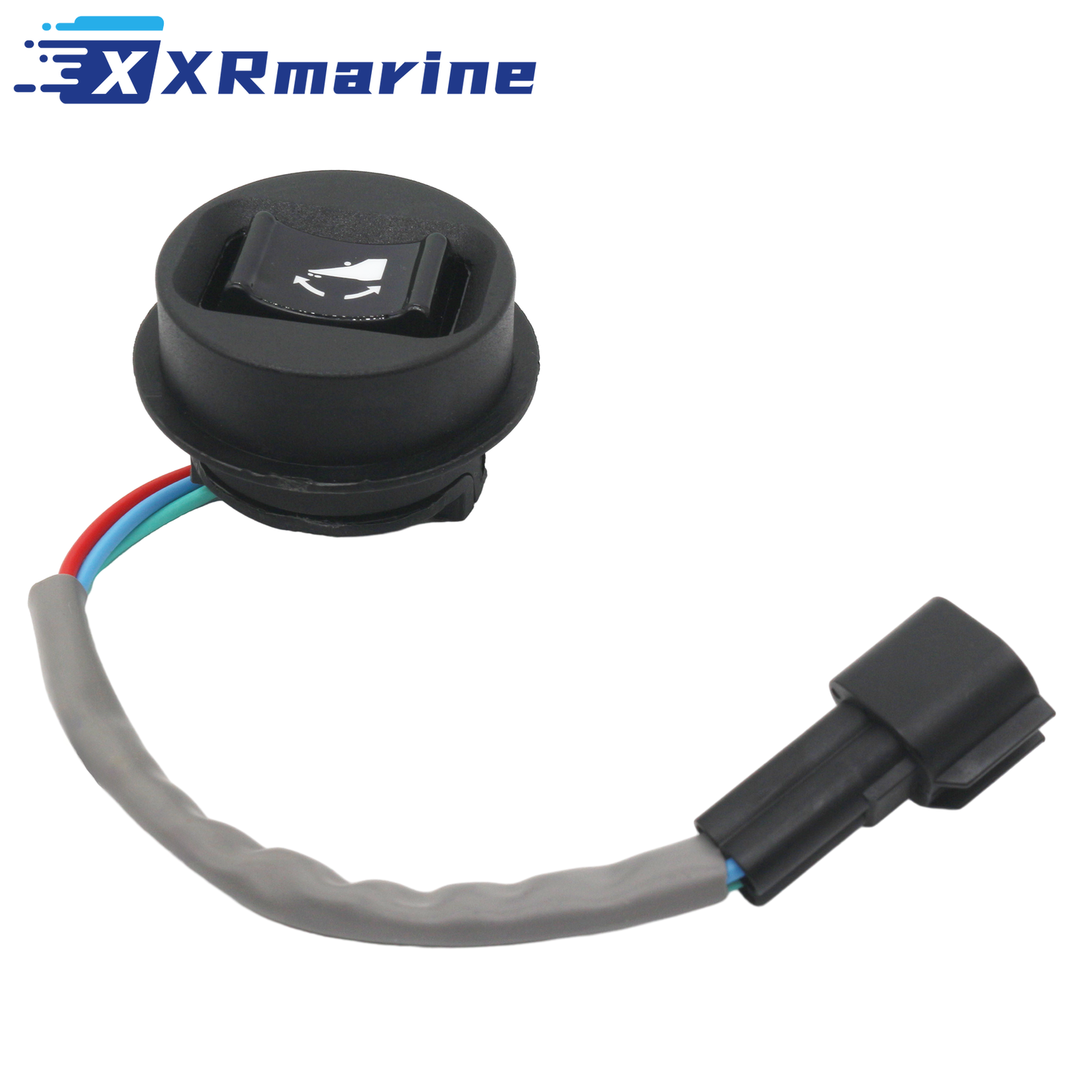

Tilt trim switch assembly part for Yamaha outboards from 15 HP to 115 HP, a handlebar or remote mounted switch with a 25 cm (9.8 in) cable and a sealed plastic housing. It replaces 6R3-82563-01, 63D-82563-10, 61A-82563-01, 6H1-82563-10 and 6H1-82563-11. Dispatched from our Australia local warehouse.
The switch drives the trim relays at the engine, so it carries only control current. That is why a switch that has lost one direction is usually the switch and not the pump: the relay for that direction is still good, the contact inside the handle has simply worn through.
Coverage runs 15 HP, 30 HP, 40 HP, 50 HP, 60 HP, 70 HP, 80 HP, 100 HP and 115 HP models, mainly 1995 to 2005, including the TLRA, TLRB, TLRC, TLRD, TLRV, TLRW, TLRY and TLRZ series. Before ordering, open the handle and check the connector shape and the wire colours against the table below.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Tilt trim switch assembly |
| Engine | Yamaha outboard |
| Horsepower | 15 HP to 115 HP |
| Cable Length | 25 cm / 9.8 in |
| Material | Plastic housing, sealed |
| Years | Mainly 1995-2005 |
| Quantity | 1 switch assembly |
| Pack Size | 150 x 180 x 50 mm / 5.9 x 7.1 x 2.0 in |
| Country of Origin | Taiwan |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Yamaha | 6H1-82563-10, 6H1-82563-11 |
| Yamaha | 6R3-82563-01 |
| Yamaha | 63D-82563-10, 63D-82563-10-00 |
| Yamaha | 61A-82563-01, 61A-82563-01-00 |
Compatible Engines
| Brand | Horsepower | Years |
|---|---|---|
| Yamaha | 15 HP | Mainly 1995-2005 |
| Yamaha | 30 HP | Mainly 1995-2005 |
| Yamaha | 40 HP | Mainly 1995-2005 |
| Yamaha | 50 HP | Mainly 1995-2005 |
| Yamaha | 60 HP | Mainly 1995-2005 |
| Yamaha | 70 HP | Mainly 1995-2005 |
| Yamaha | 80 HP | Mainly 1995-2005 |
| Yamaha | 100 HP | Mainly 1995-2005 |
| Yamaha | 115 HP | Mainly 1995-2005 |
Model Series Covered
| Series | Note |
|---|---|
| TLRA | Covered where the switch is a 6H1 or 6R3 body |
| TLRB | Covered where the switch is a 6H1 or 6R3 body |
| TLRC | Covered where the switch is a 6H1 or 6R3 body |
| TLRD | Covered where the switch is a 6H1 or 6R3 body |
| TLRV | Covered where the switch is a 6H1 or 6R3 body |
| TLRW | Covered where the switch is a 6H1 or 6R3 body |
| TLRY | Covered where the switch is a 6H1 or 6R3 body |
| TLRZ | Covered where the switch is a 6H1 or 6R3 body |
Signs the Switch Has Failed
| Symptom | What It Points To |
|---|---|
| Trim works one way only | One contact worn, replace the switch |
| Button sticks or feels soft | Water in the housing, spring corroded |
| No response from the handle | Switch or connector, test at the relay |
| Trim runs without pressing | Short in the harness, not the switch |
| Works from the engine switch only | Handle switch failed, this part |
What's Included
| Component | Qty |
|---|---|
| Tilt trim switch assembly | 1 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Australia
| Destination | Warehouse | Note |
|---|---|---|
| Australia | Australia local warehouse | Domestic delivery, no import duty |
| New Zealand | Australia local warehouse | Short transit, customs may apply |
| Asia Pacific | Australia local warehouse | Tracked air and sea options |
Before You Buy
- Confirm your outboard horsepower and year are covered above
- Check the connector and wire colours on the original switch
- Test both up and down functions after fitting
- Check the trim relays if the new switch still does not operate
- Check the trim motor earth strap before blaming the switch
- Do not force the switch body into a distorted handle recess
- 30-Day Easy Returns
- Ships from our Australia local warehouse
Couldn't load pickup availability
Out of stock
View full details
