Product Overview

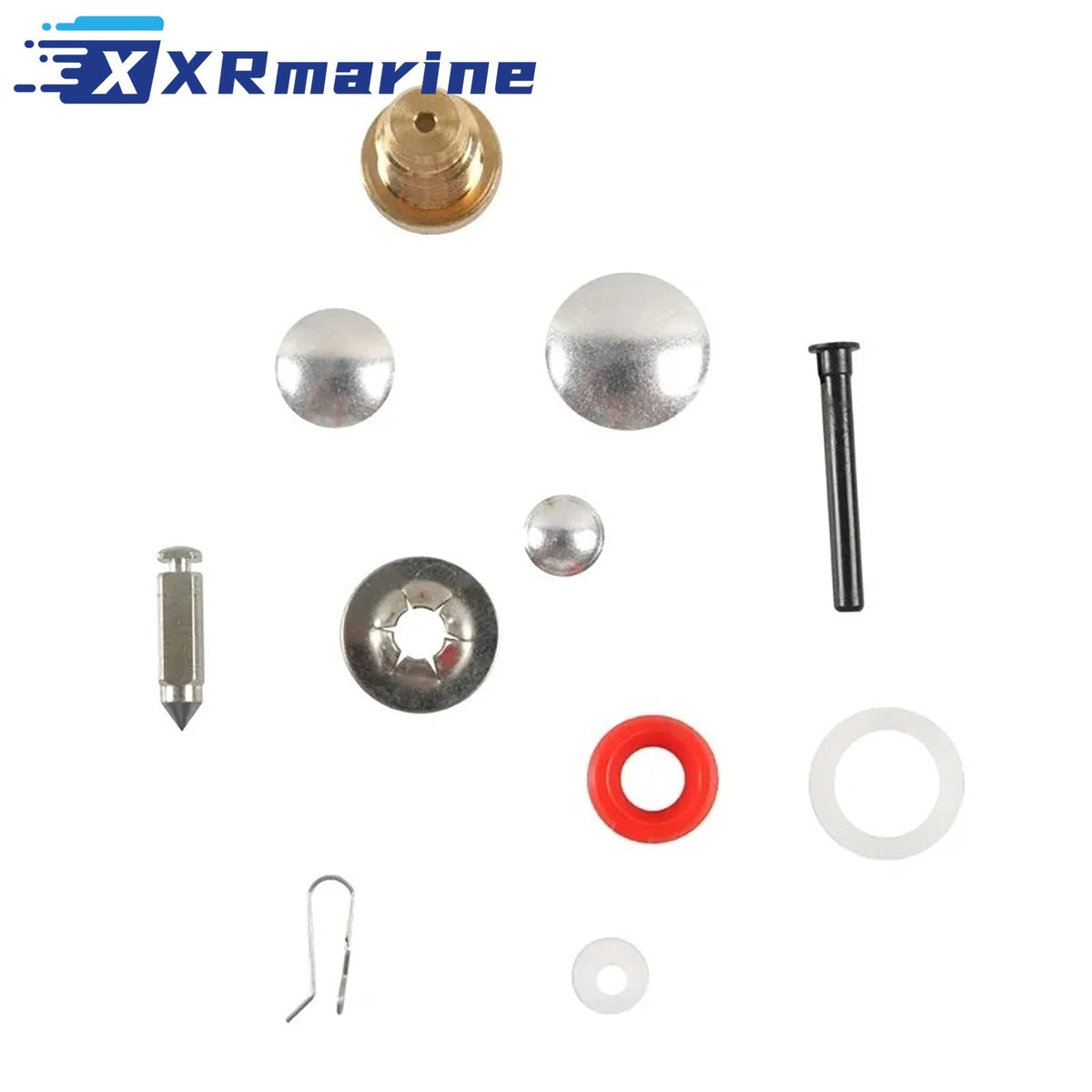

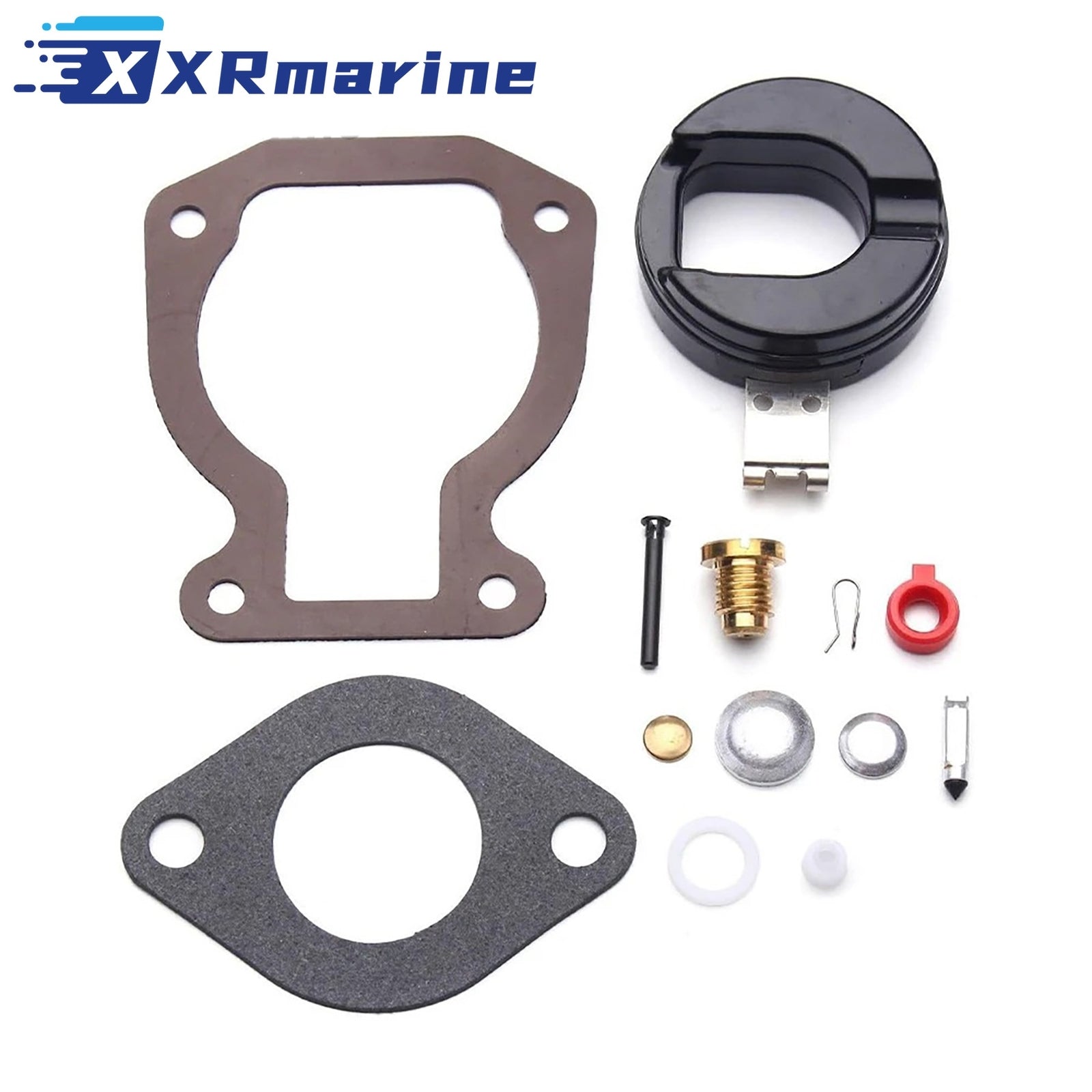

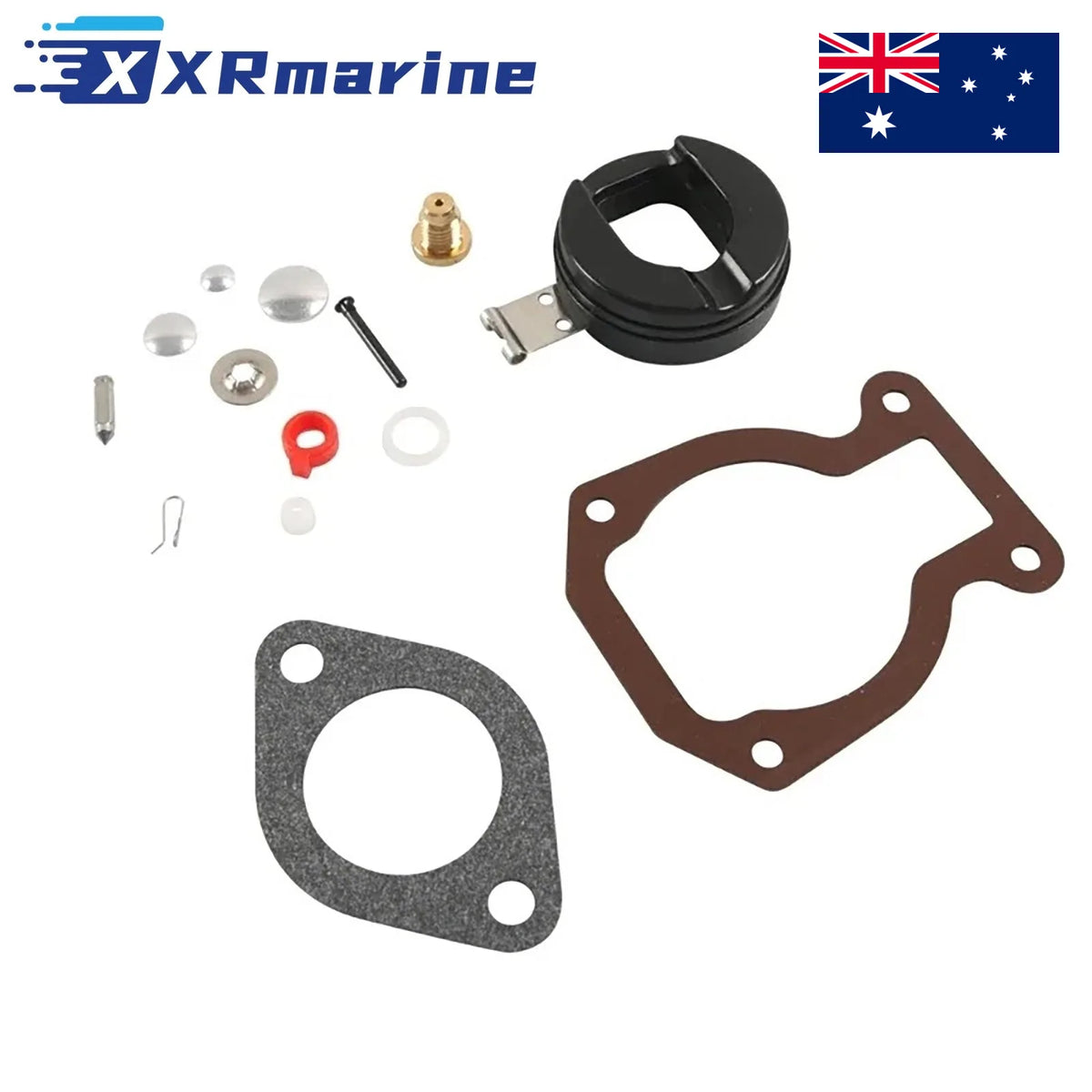

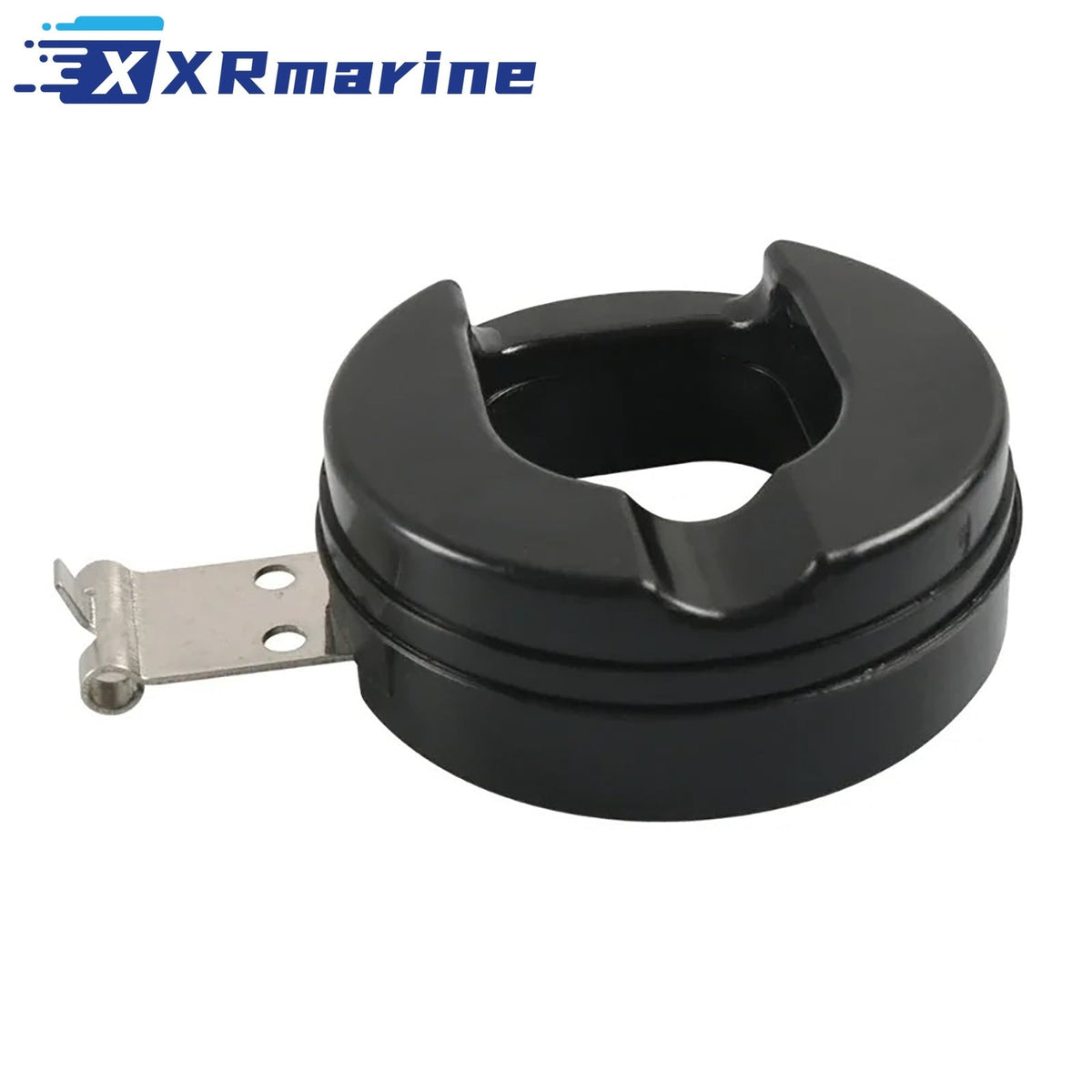

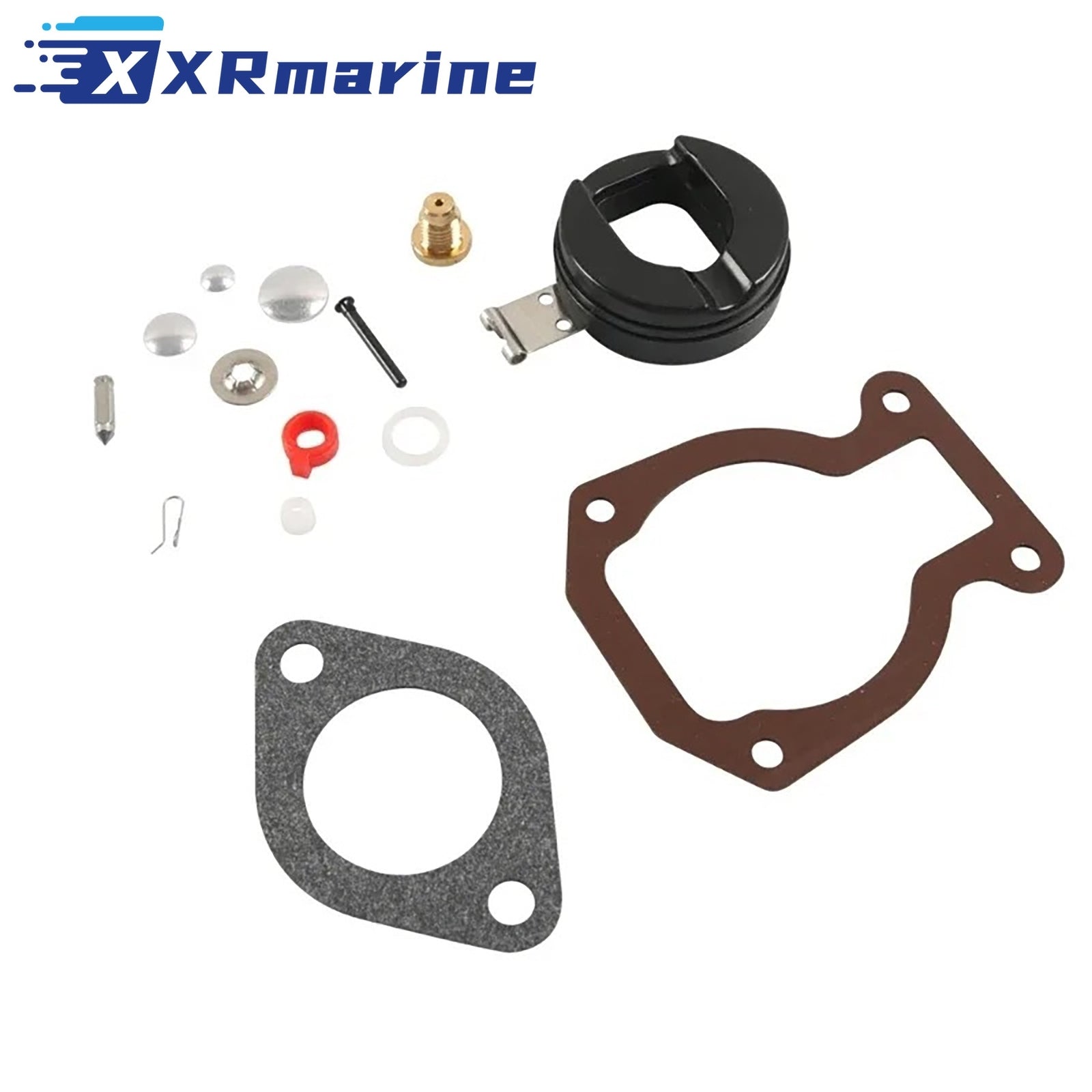

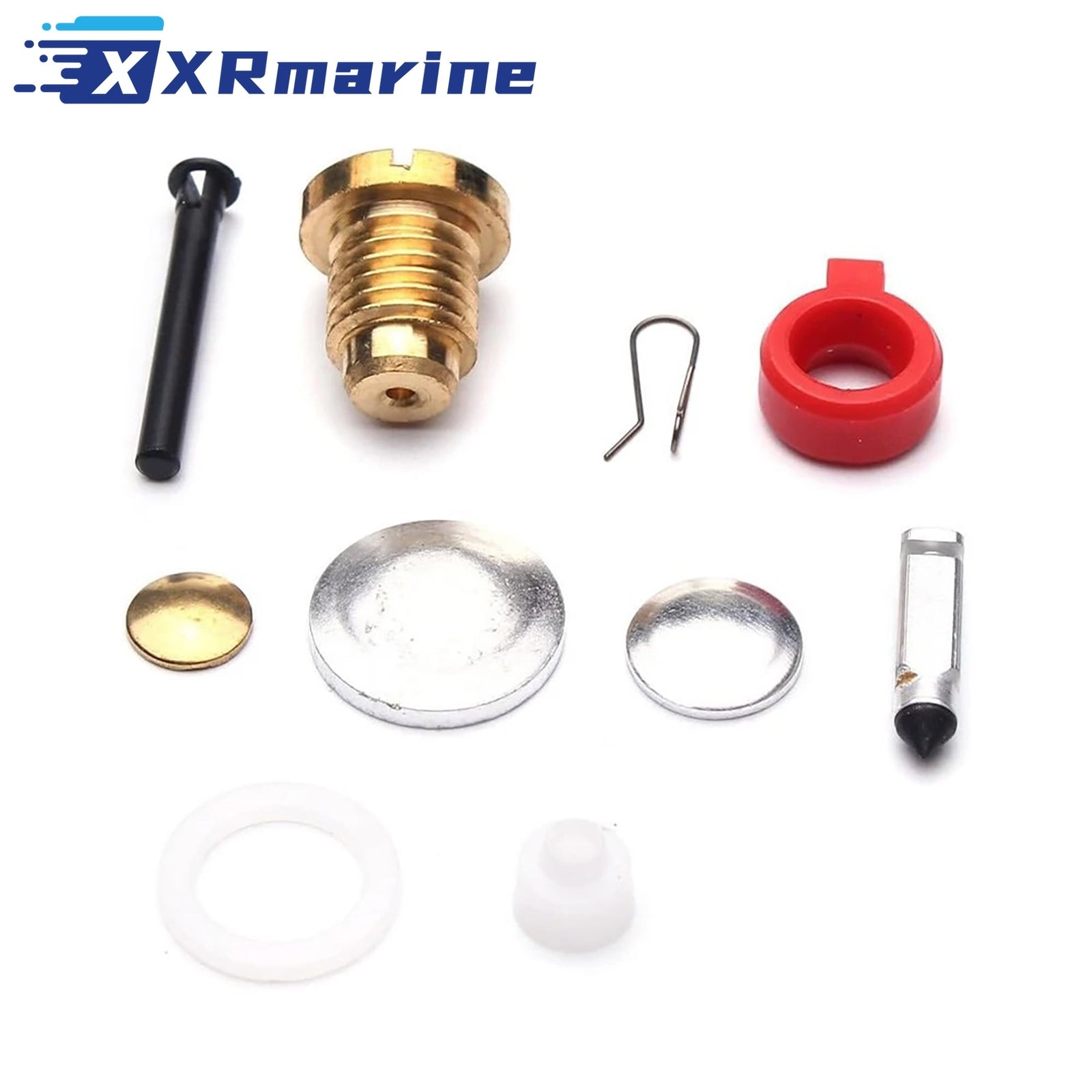

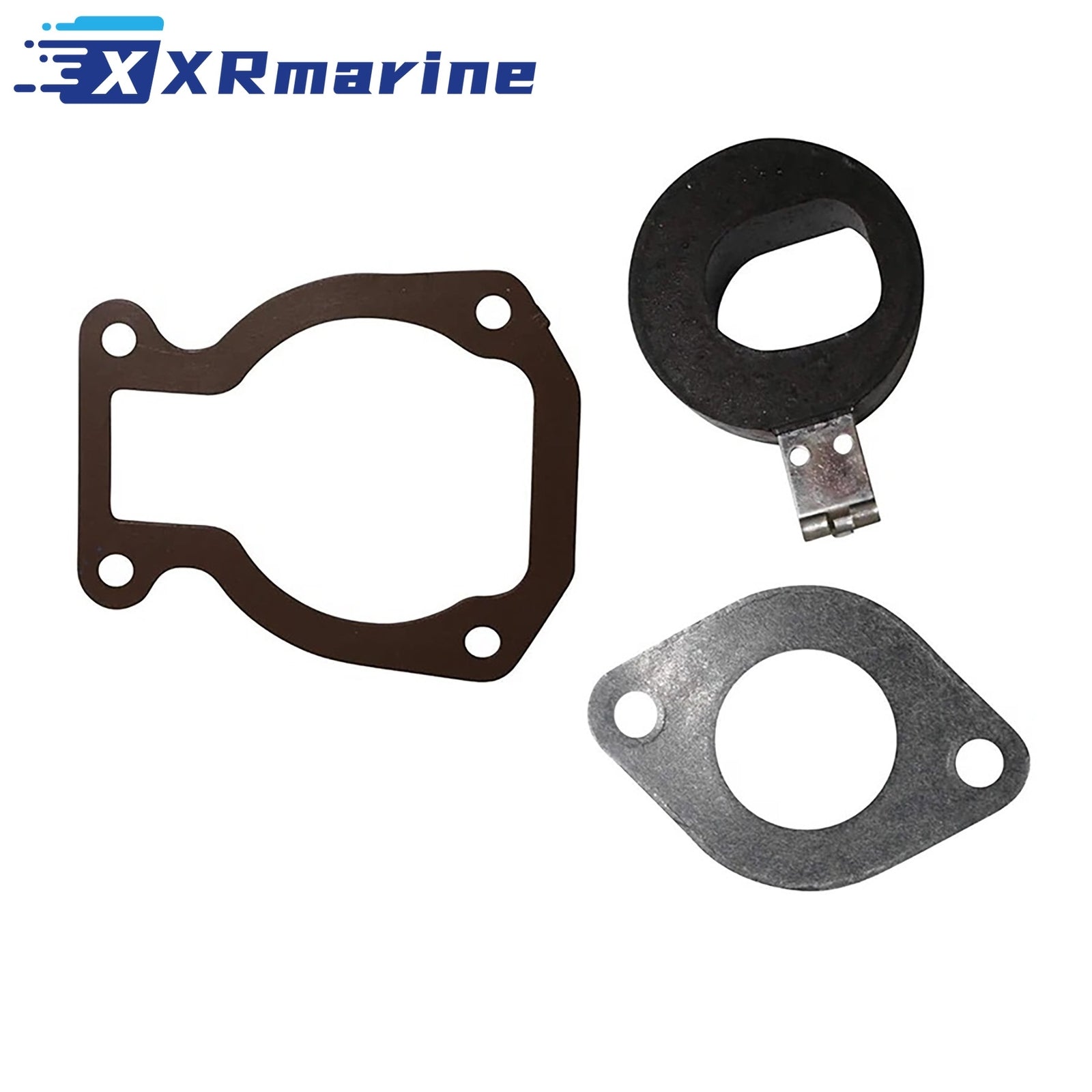

Carburetor repair rebuild kit part for Johnson, Evinrude and OMC outboards from 4 HP to 15 HP, supplied with a float and the needles, seats and gaskets needed to rebuild one carburettor. It replaces 398453, 0398453, 398452, 391305, 439072 and 391937, and crosses to Sierra 18-7223. Dispatched from our Australia local warehouse.
On these small two strokes the carburettor is the whole fuel system, so a tired one shows up as a motor that will not idle, will not sit at low speed without loading up, or needs the choke half out to keep running once warm. Rebuilding is usually enough, because the throttle body and bore rarely wear out on a 4 HP to 15 HP block.
The kit covers the 1974 to 1993 model years and the 4 HP, 4.5 HP, 5 HP, 6 HP, 7.5 HP, 8 HP, 9.9 HP, 14 HP and 15 HP motors listed below. Before stripping the carburettor, check the fuel line and the filter, and count the turns on the idle mixture screw so the motor can be brought back to a baseline once the kit is in.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Carburettor repair and rebuild kit |
| Engine | Johnson, Evinrude and OMC two stroke outboard |
| Horsepower | 4 HP to 15 HP |
| Supplied With | One float and the needles, seats and gaskets for one carburettor |
| Years | 1968 to 1993 depending on model |
| Quantity | 1 kit |
| Country of Origin | Taiwan |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Johnson, Evinrude, OMC | 398453, 398452 |
| Johnson, Evinrude, OMC | 0398453, 765574 |
| Johnson, Evinrude, OMC | 391305, 391937 |
| Johnson, Evinrude, OMC | 439072 |
| Sierra | 18-7223 |
Compatible Engines
| Brand | Horsepower | Years |
|---|---|---|
| Johnson and Evinrude | 4 HP | 1983-1993 |
| Johnson and Evinrude | 4.5 HP | 1982-1984, 1987 |
| Johnson and Evinrude | 5 HP | 1984-1985 |
| Johnson and Evinrude | 6 HP | 1984-1985 |
| Johnson and Evinrude | 7.5 HP | 1982-1983 |
| Johnson and Evinrude | 8 HP | 1984-1985 |
| Johnson and Evinrude | 9.9 HP | 1974-1988 |
| Johnson and Evinrude | 14 HP | 1968 |
| Johnson and Evinrude | 15 HP | 1974-1988 |
Signs the Carburettor Needs a Kit
| Symptom | What It Points To |
|---|---|
| Will not idle without the choke | Idle circuit blocked, gaskets hard |
| Hunts and surges at low speed | Lean mixture, air leak at the gasket faces |
| Loads up and smokes at idle | Needle and seat worn, float level high |
| Hard starting when cold | Choke or primer circuit not delivering |
| Stalls when put into gear | Idle mixture out, fuel level wrong |
| Fuel leaking at the bowl | Bowl gasket or needle and seat failed |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Disconnect the battery and close the fuel tap |
| 2 | Count the turns on the idle mixture screw before removing it |
| 3 | Take the carburettor off and keep the linkage parts together |
| 4 | Strip the bowl, float and needle and seat, note the jet sizes |
| 5 | Clean the passages with carburettor cleaner, never with wire |
| 6 | Fit the new gaskets, needle, seat and float from the kit |
| 7 | Set the float height to the original setting |
| 8 | Refit, set the mixture screw back to the recorded turns, start and tune |
What's Included
| Component | Qty |
|---|---|
| Carburettor repair kit with float | 1 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Australia
| Destination | Warehouse | Note |
|---|---|---|
| Australia | Australia local warehouse | Domestic delivery, no import duty |
| New Zealand | Australia local warehouse | Short transit, customs may apply |
| Asia Pacific | Australia local warehouse | Tracked air and sea options |
Before You Buy
- Confirm the motor is a Johnson, Evinrude or OMC, not a Mercury or Yamaha
- Check the number on the old carburettor body before ordering
- Check the model year against the table above
- Count the idle mixture screw turns before stripping the carburettor
- Check the fuel line and filter while the carburettor is off
- Record jet sizes so the rebuild goes back exactly as it came apart
- 30-Day Easy Returns
- Ships from our Australia local warehouse
