Product Overview

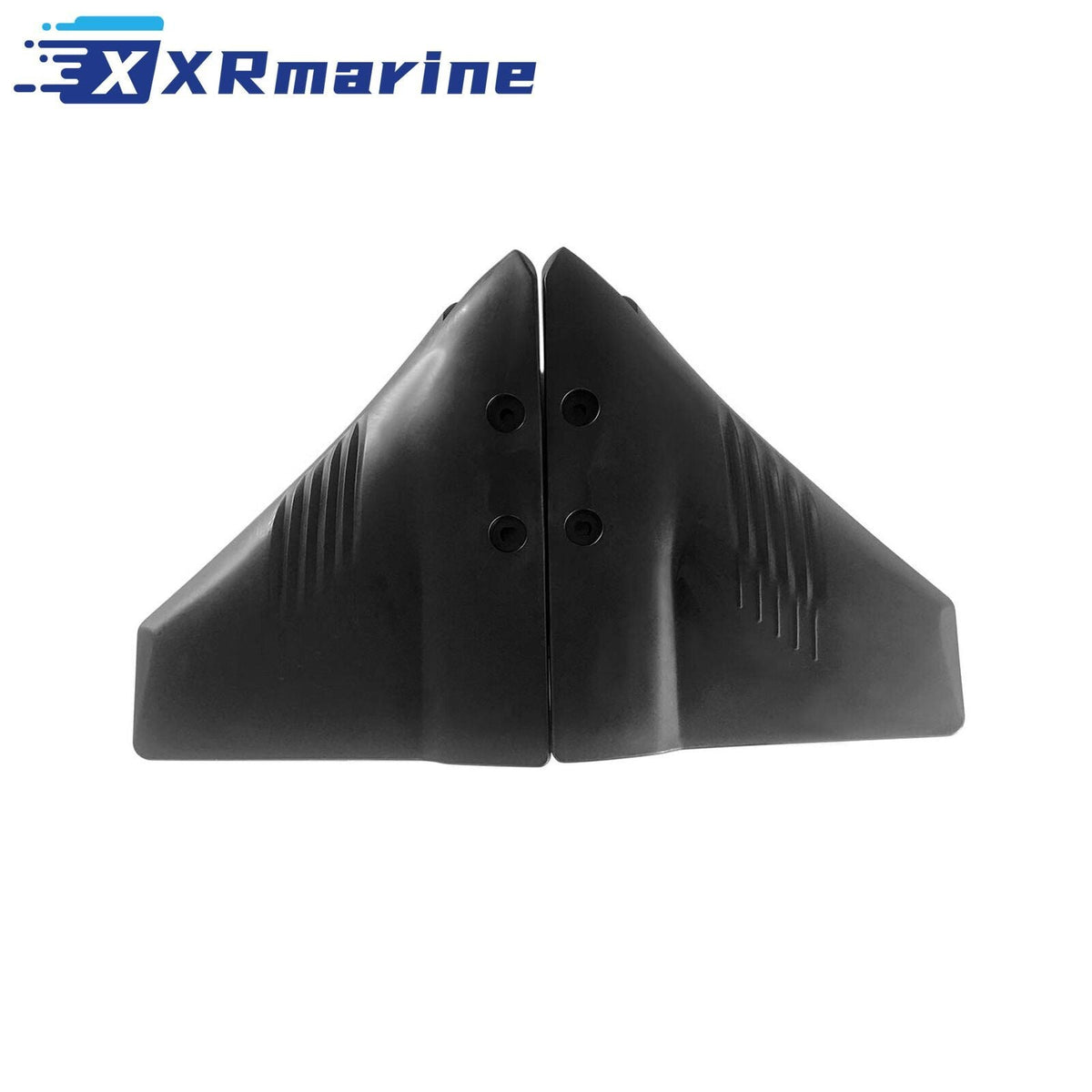

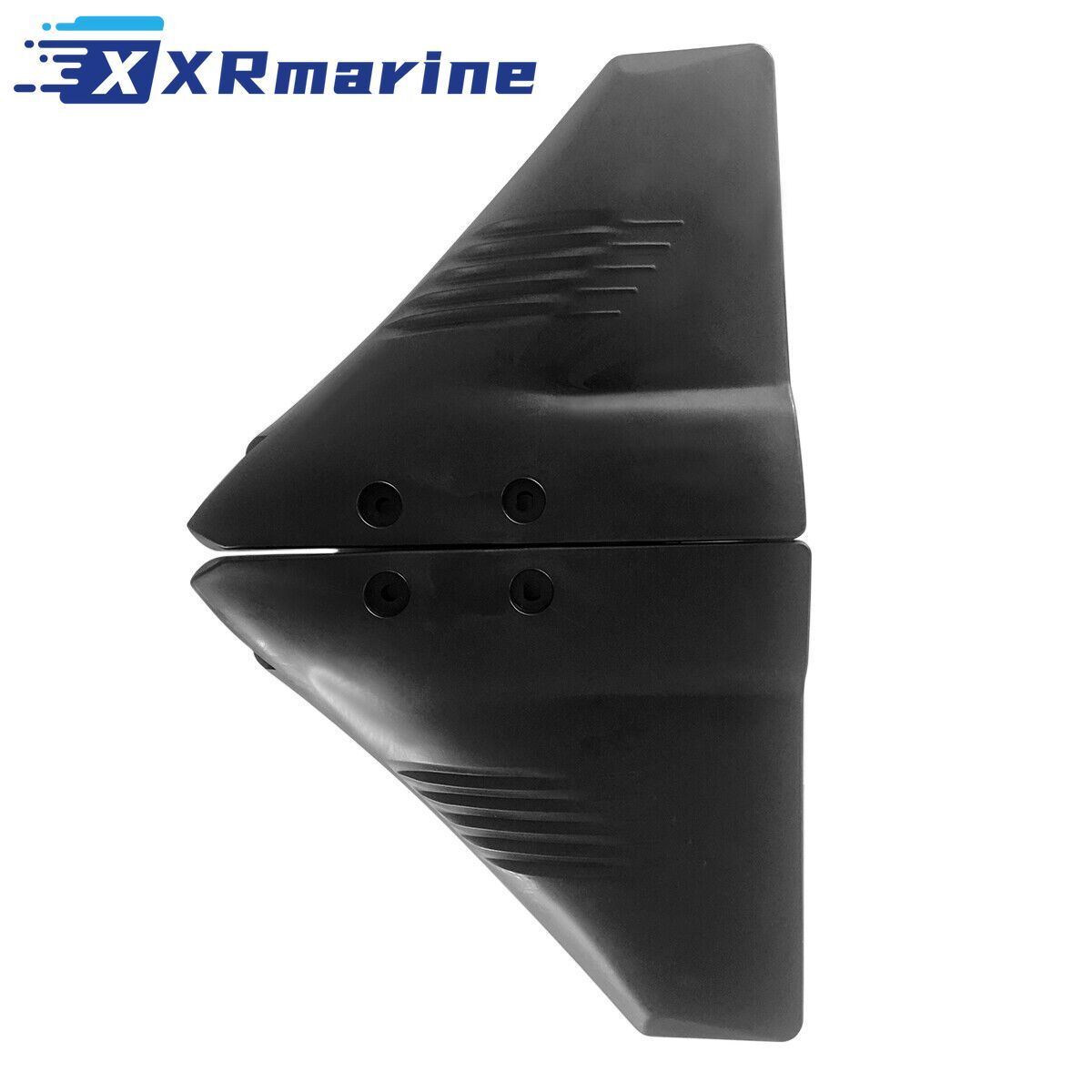

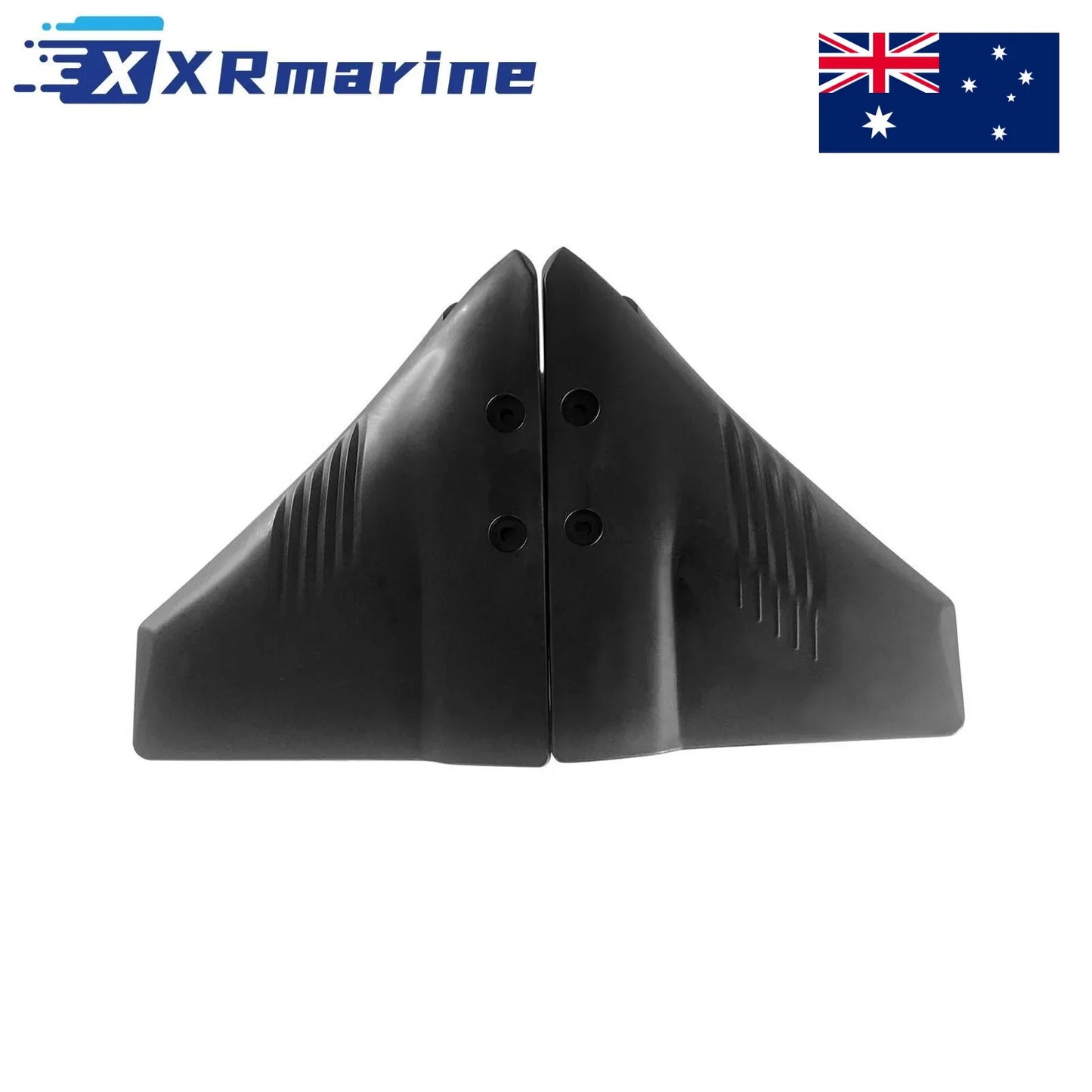

Hydrofoil stabilizer kit for outboard motors from 5 HP to 150 HP, supplied as 2 wings with 4 stainless bolt sets, a drill guide and fitting instructions. Each wing measures 10-1/4 in (260 mm) high by 8-1/4 in (210 mm) wide and is moulded in PA66 nylon, and the fasteners are SS316 rather than the 304 grade that rusts first at the cavitation plate. The kit fits Mercury, Mariner, Yamaha, Johnson, Evinrude, Honda, Tohatsu and Suzuki legs in that range. Held in our Australia local warehouse.
The plate turns the flat cavitation plate above the propeller into an aerofoil. The boat climbs onto plane at lower RPM, holds plane at a lower speed, and the bow stops hunting when you come off the throttle.
On an Australian aluminium hull or a small RIB with a 20 HP to 60 HP motor this matters most in a short chop. A tinny that struggles to hold plane into a headwind will sit on top of it with a foil fitted, and the motor is working well below where it was before.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Hydrofoil stabilizer, dual wing |
| Horsepower Range | 5 HP to 150 HP |
| Material | PA66 nylon, UV resistant |
| Fasteners | SS316 stainless steel bolts and washers |
| Wing Size | 10-1/4 in (260 mm) high x 8-1/4 in (210 mm) wide |
| Wings Supplied | 2 |
| Drill Guide | Included |
| Country of Origin | Taiwan |
Compatible Engines
| Brand | Models |
|---|---|
| Mercury | Outboards from 5 HP to 150 HP |
| Mariner | Outboards from 5 HP to 150 HP |
| Yamaha | Outboards from 5 HP to 150 HP |
| Johnson | Outboards from 5 HP to 150 HP |
| Evinrude | Outboards from 5 HP to 150 HP |
| Honda | Outboards from 5 HP to 150 HP |
| Tohatsu | Outboards from 5 HP to 150 HP |
| Suzuki | Outboards from 5 HP to 150 HP |
| Not for | Sterndrives and jet drives, these need a different mounting pattern |

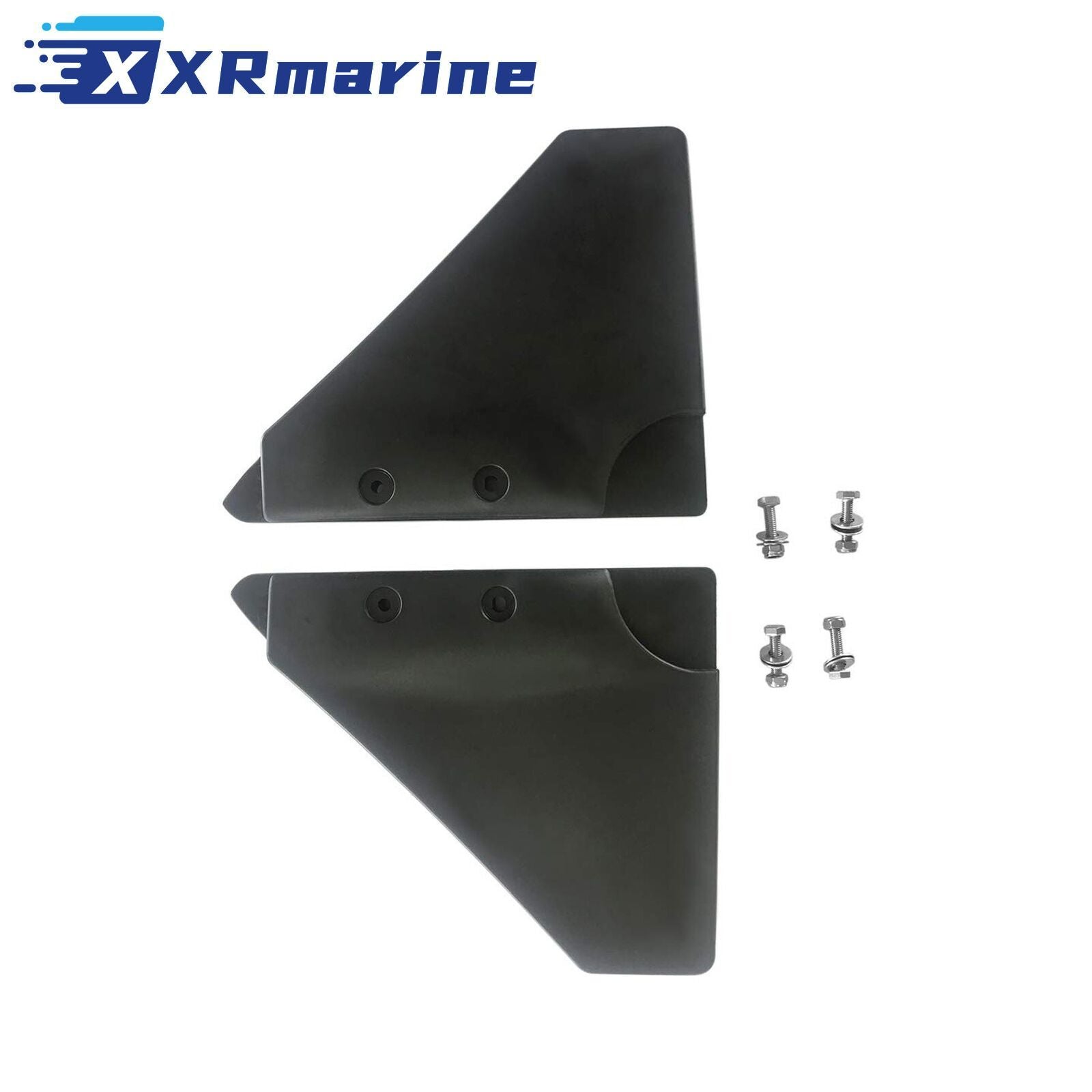

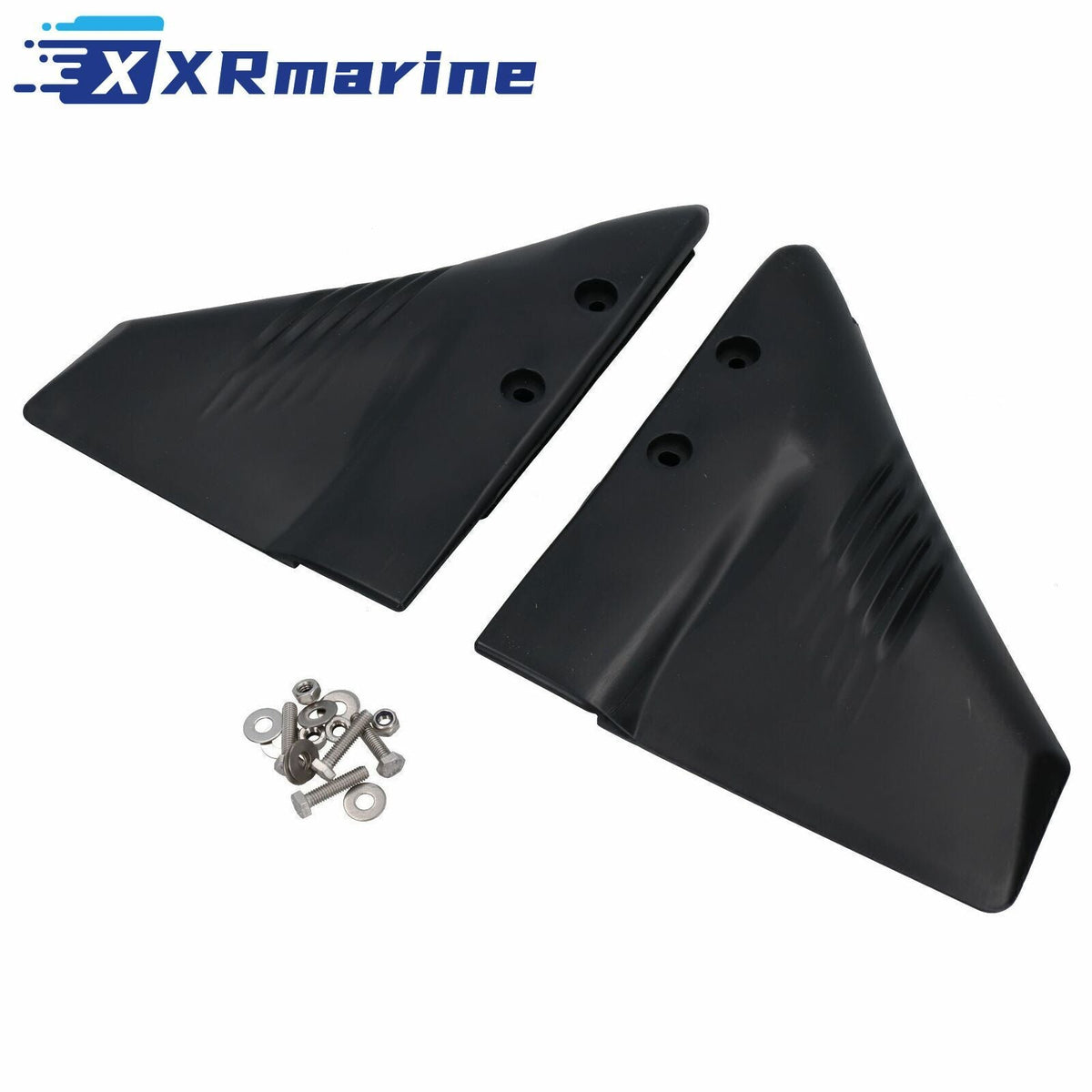

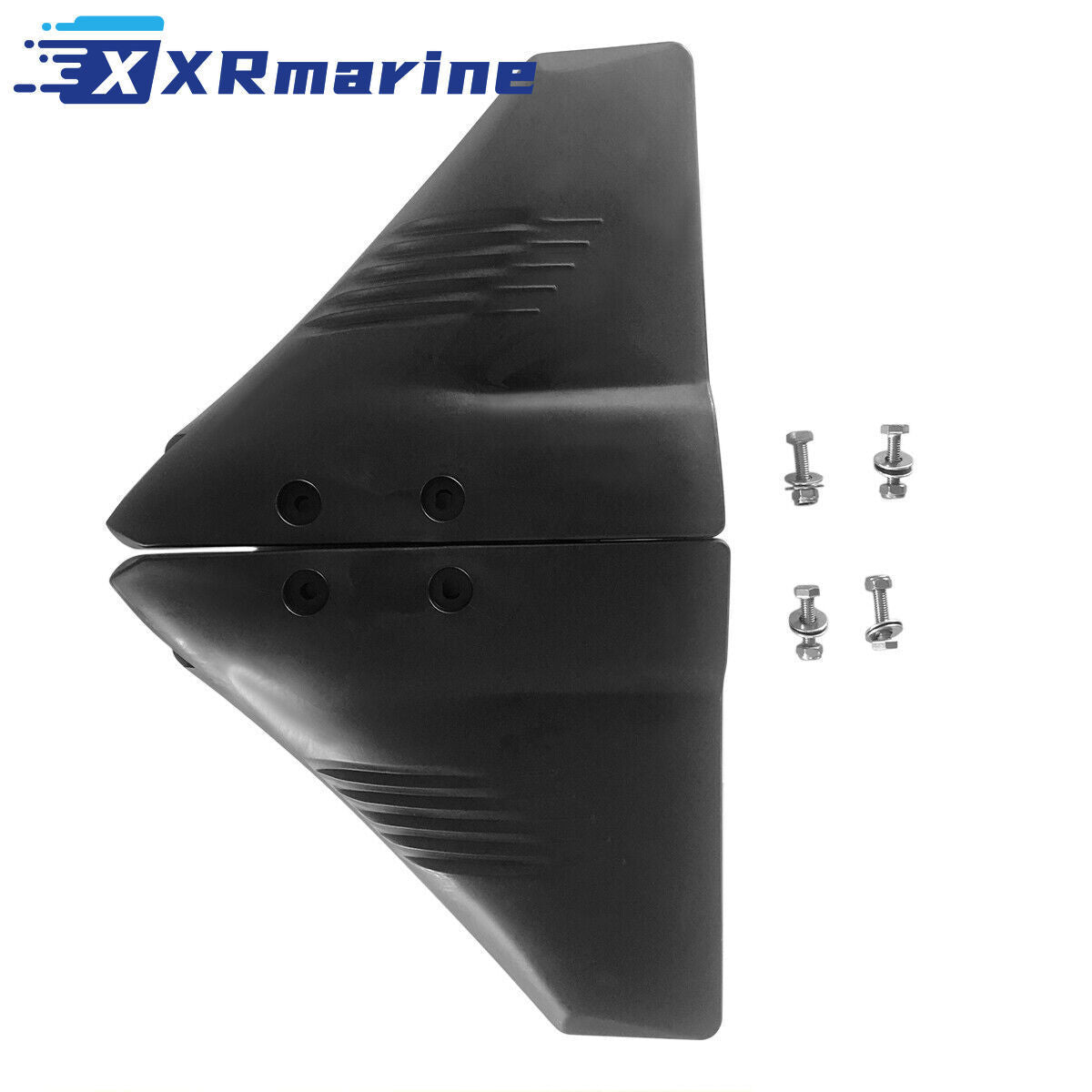

What's Included
| Component | Qty |
|---|---|
| Hydrofoil stabilizer wing | 2 |

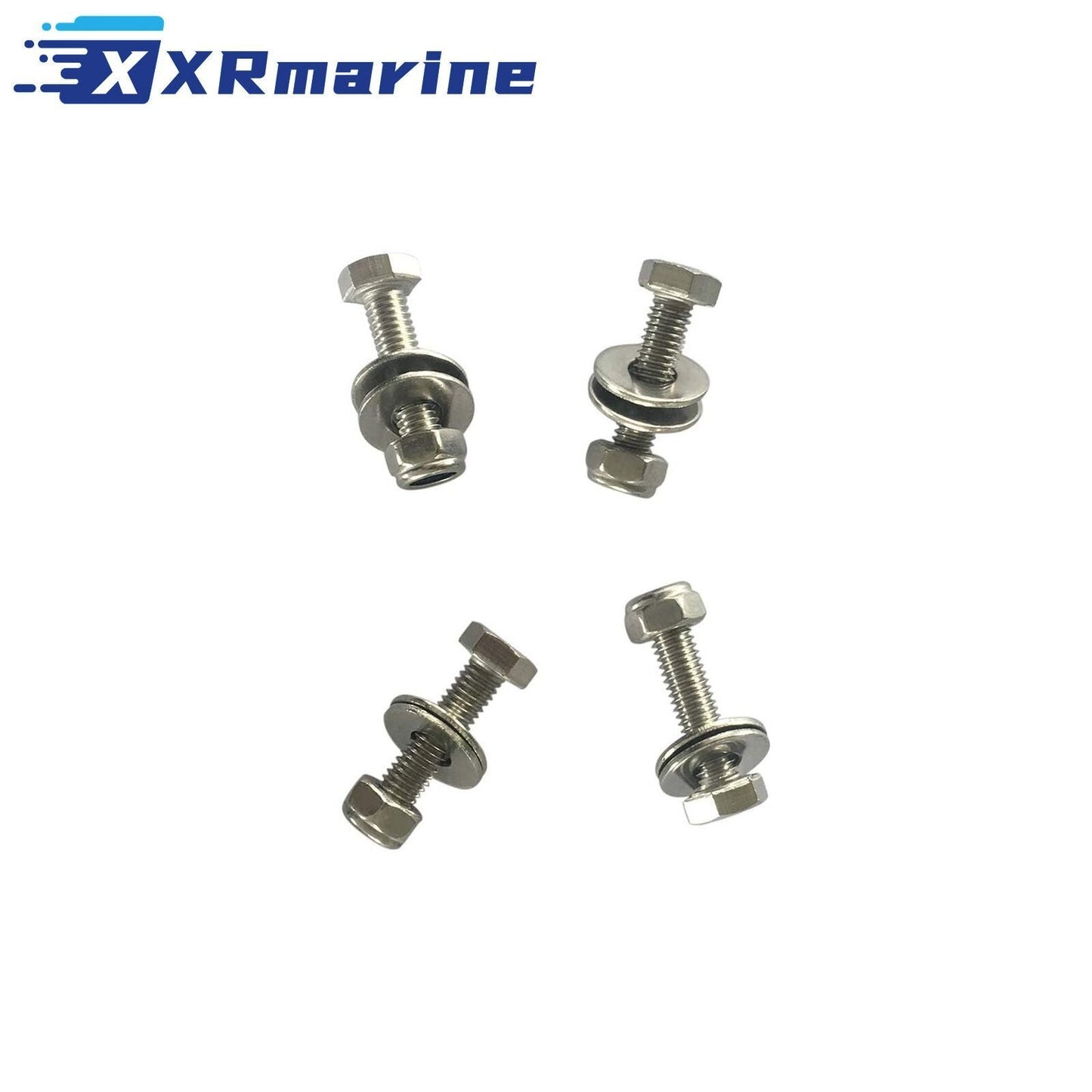

| Stainless bolt, nut and gasket set | 4 |
| Drill guide tool | 1 |
| Installation instructions | 1 |
How It Works
| Effect | What You Notice |
|---|---|
| Lower planing speed | The boat gets on plane sooner, most useful at the bottom of the 5 HP to 150 HP range |
| Less bow rise | The bow stays down instead of pointing at the sky on acceleration |
| Less porpoising | The hull stops bouncing at cruise, which is the main reason people fit one |
| Less cavitation | The prop keeps bite in a turn and in a following sea |
| Better fuel economy | On plane at lower RPM, so a 150 HP motor is not working as hard |
| Steering response | Firmer at low speed and less wander at high speed |
Chop, Tinny Hulls and Shallow Water
| Where You Run | What the Foil Changes | What to Watch |
|---|---|---|
| Open bay with a short chop | Holds plane where the hull used to fall off | Check the wing clearance above the prop |
| Estuary and river mouth | Gets on plane in shallower water | Trim up when the foil is close to the bottom |
| Aluminium tinny, 20 to 60 HP | The biggest gain, these hulls respond most | Measure the flat area before drilling |
| Small RIB with a tiller motor | Less bow rise when you open the throttle | Do not fit one on a tiller motor that is trimmed by hand all the time |
| Bar crossing or following sea | Keeps the prop loaded as the stern lifts | Fit it before the season, not mid trip |
| Trailer boat, shallows and dams | Plane at lower speed, less wash | Check the foil for weed after every trip |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Check the motor is within the 5 HP to 150 HP range and that the cavitation plate is flat where the wings go |
| 2 | Use the drill guide from the kit, the four holes have to line up on both wings |
| 3 | Drill with the motor trimmed level, not on the boat on a trailer with the leg tilted |
| 4 | Seal each bolt with the gaskets from the kit so water cannot reach the plate |
| 5 | Fit the wings on both sides and tighten evenly, do not over compress the nylon |
| 6 | Take the boat out and record the RPM at plane before and after, the change is the proof |
| 7 | Check the bolts after the first trip, they settle into the plate |
| 8 | Inspect the wings each season for UV crazing and replace if the surface has gone chalky |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Boxed with drill guide and instructions |
Shipping from Australia
| Destination | Warehouse | Note |
|---|---|---|
| Australia | Australia local warehouse | Domestic delivery, no import duty |
| New Zealand | Australia local warehouse | Short transit, customs may apply |
| Asia Pacific | Australia local warehouse | Tracked air and sea options |
Before You Buy
- Check the motor is within the 5 HP to 150 HP range before ordering
- Measure the flat area on the cavitation plate, the wings need room on both sides of the leg
- Not for sterndrives or jet drives, those use a different mounting pattern
- Use the drill guide from the kit and seal every bolt
- This is the wings, bolts and drill guide, the motor is not included
- 30-Day Easy Returns
- Ships from our Australia local warehouse
