Product Overview

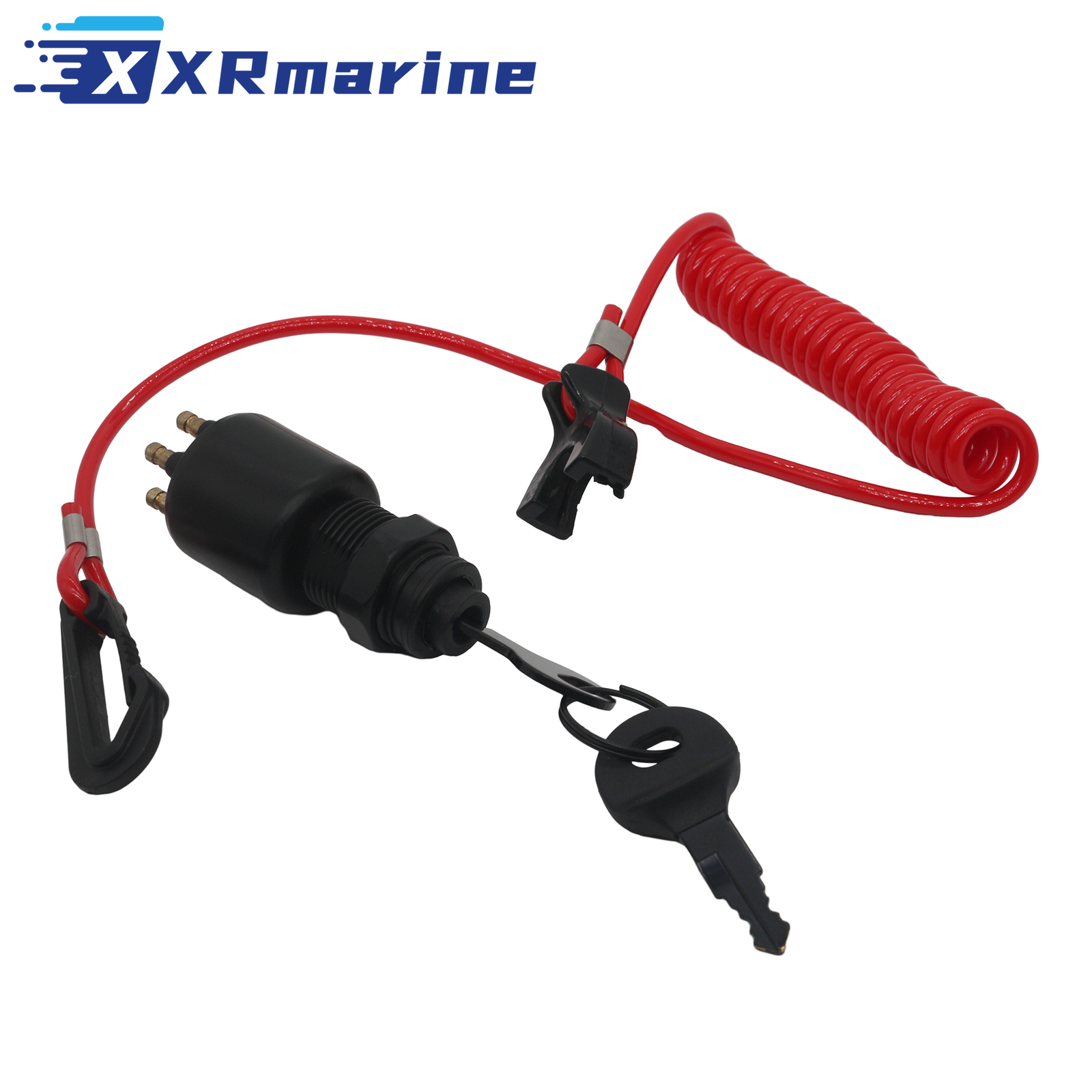

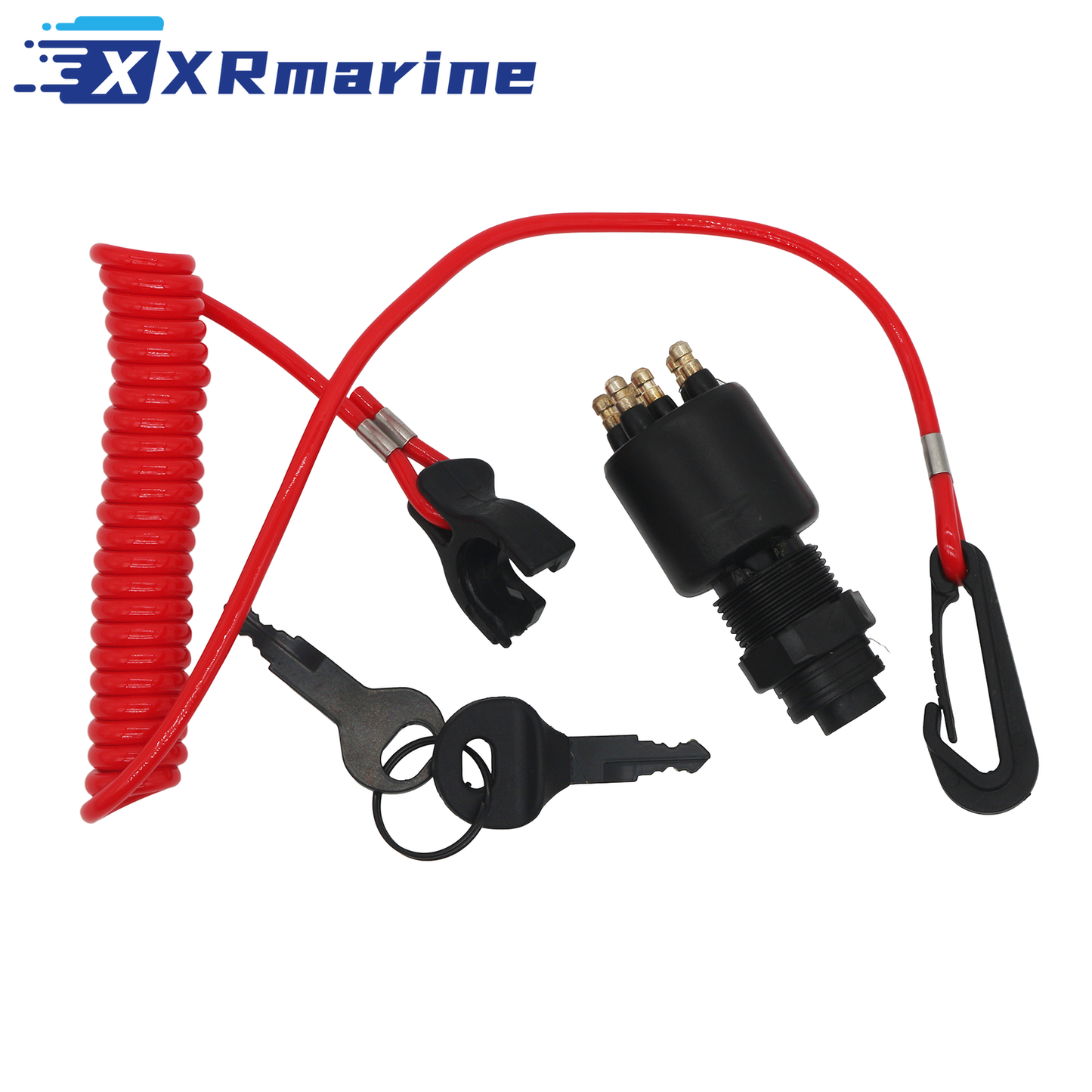

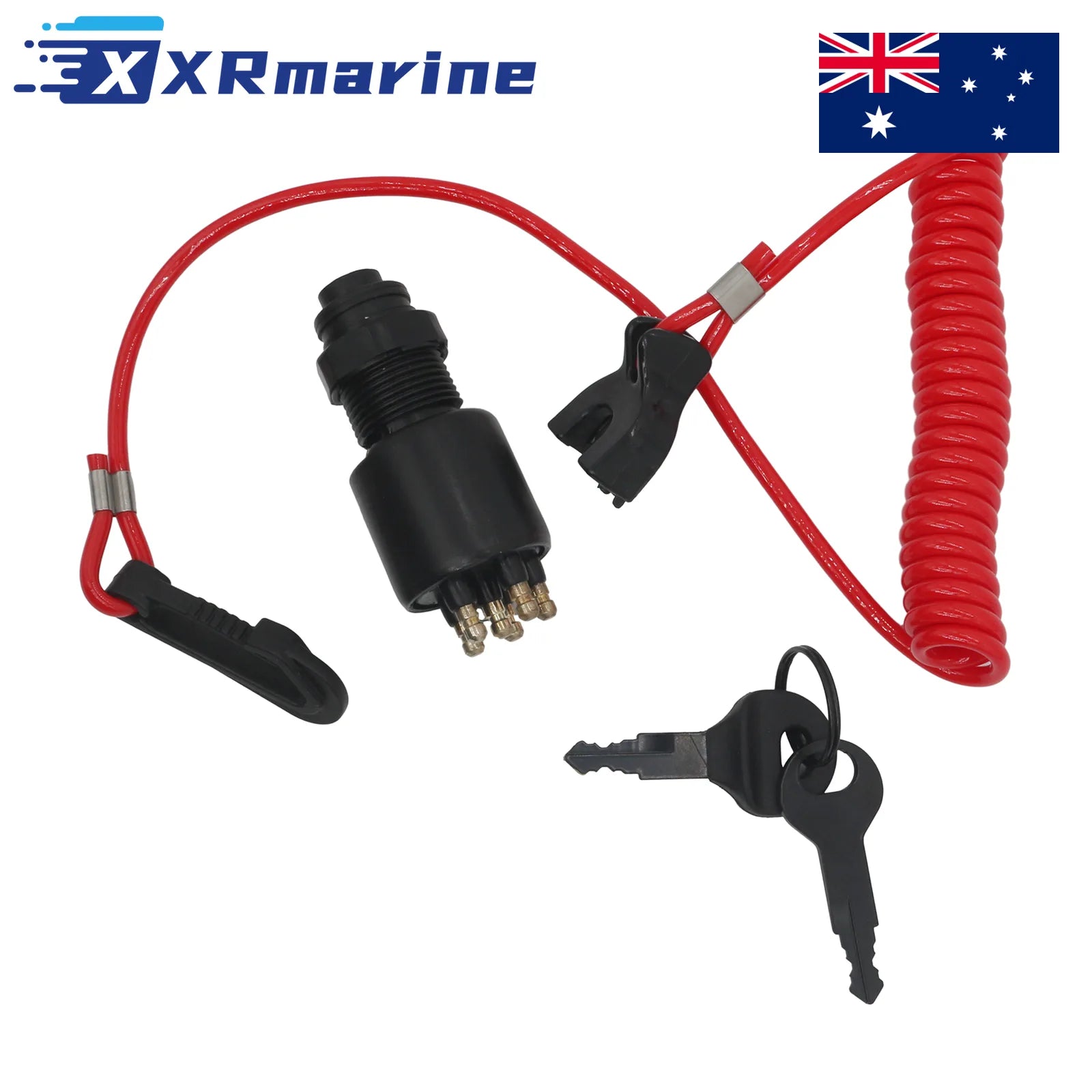

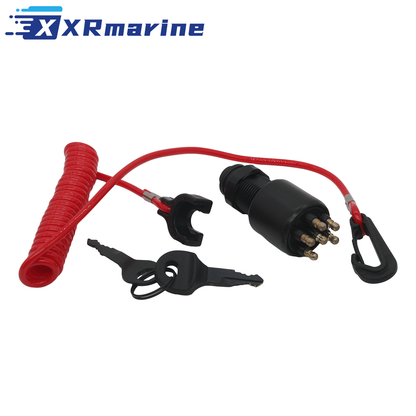

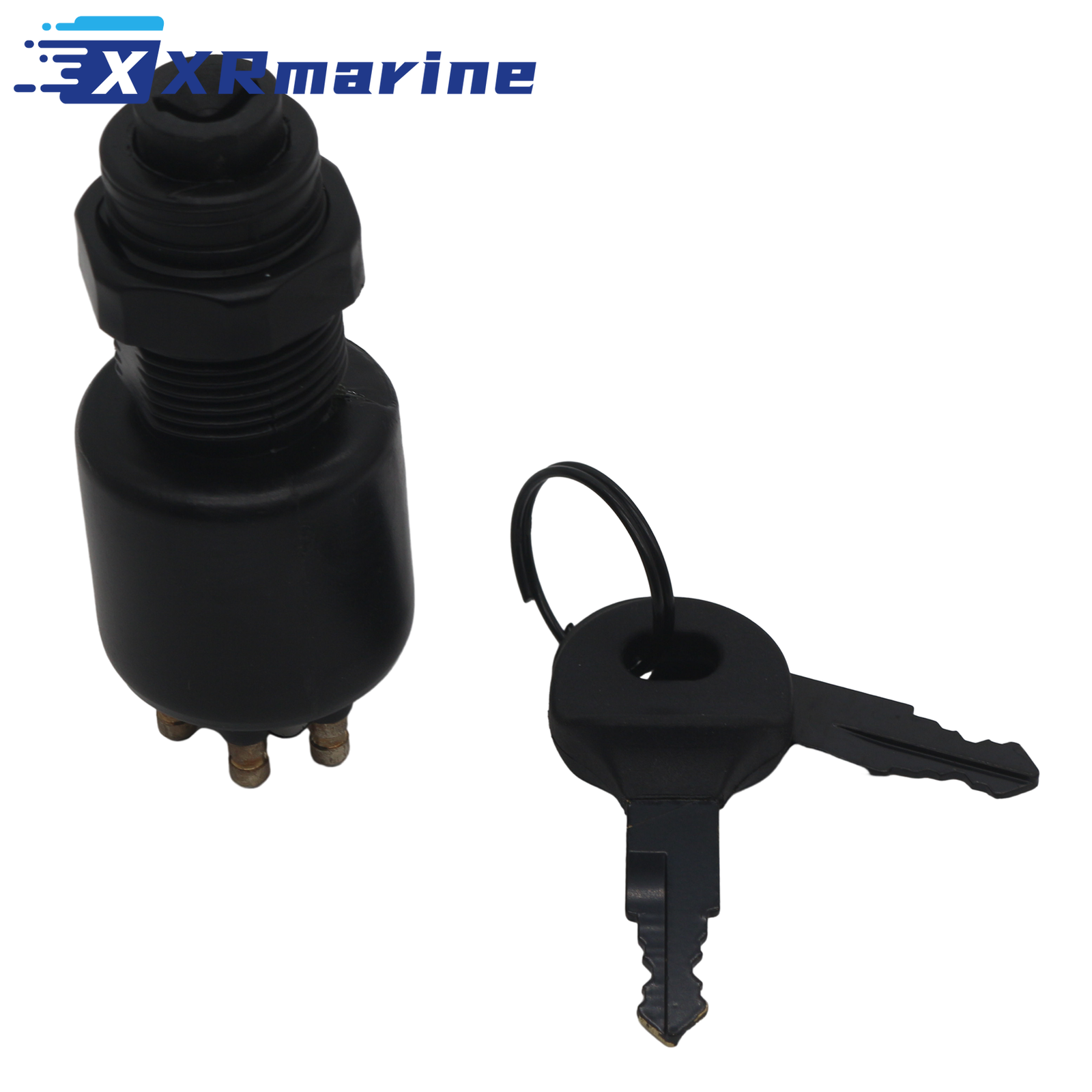

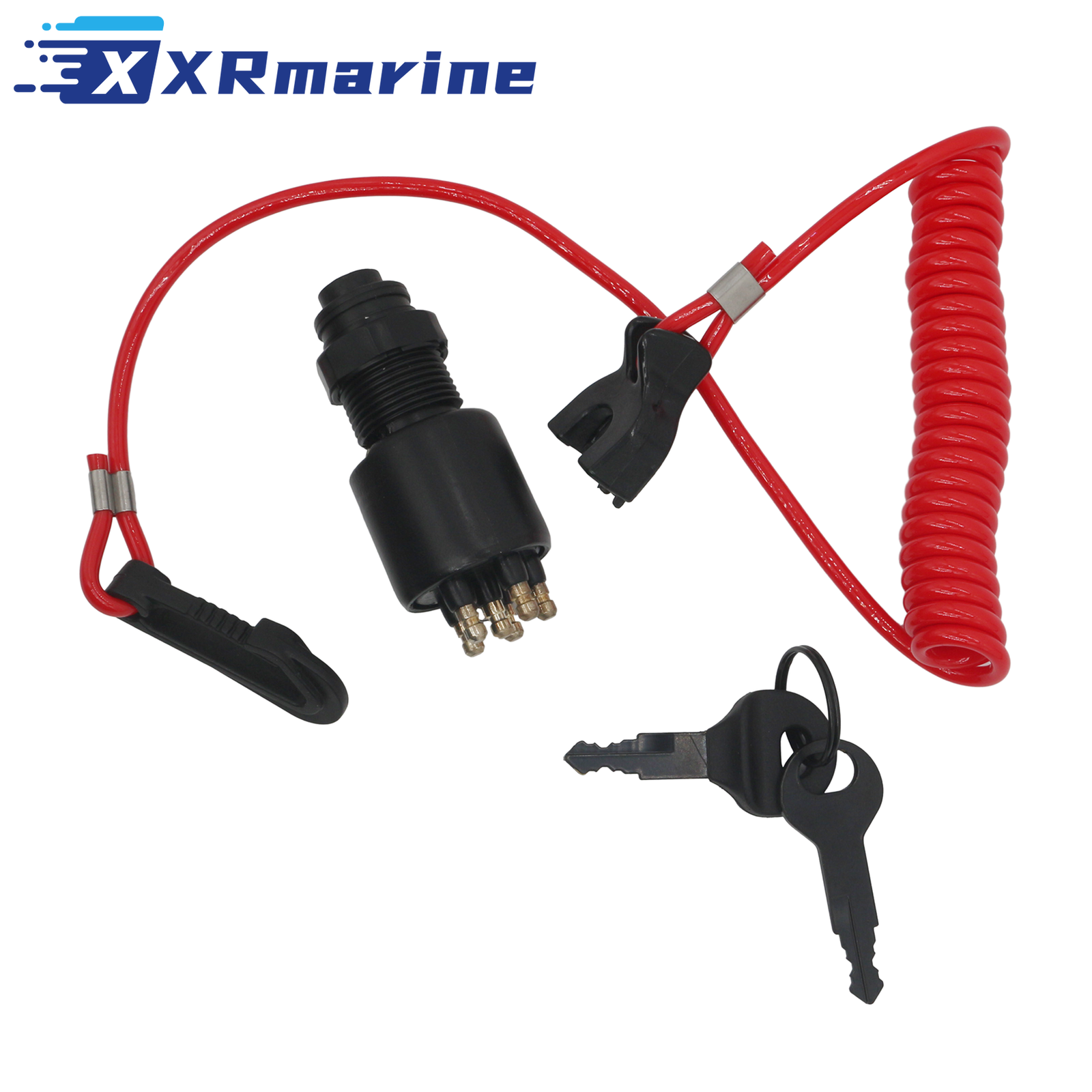

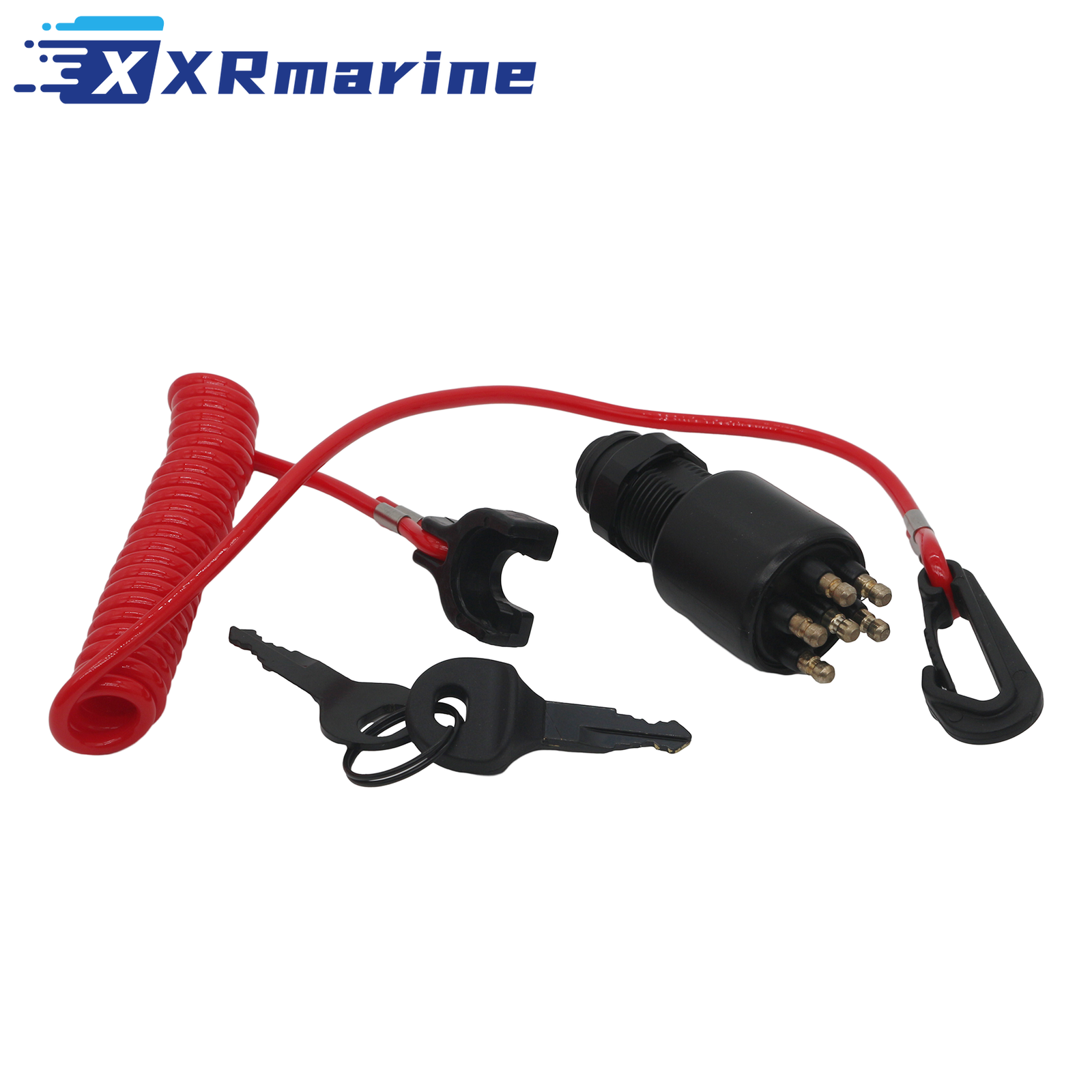

Ignition switch with key part for OMC, Johnson and Evinrude outboards across the 40 HP to 200 HP range, a three position switch with the push to choke function these motors use. It replaces 5005801, 0175974 and 0765562. Dispatched from our Australia local warehouse.
On an OMC harness the key switch carries the start signal, the ignition kill circuit and the choke, so a worn switch shows up as more than a dead starter. A motor that will not shut off with the key, or one that cranks but never fires, is often the switch and not the solenoid or the power pack.
The switch is a straight swap on the dash panel, and the terminal layout matches the original harness plug. Check the plug shape and the terminal count against the photographs before ordering, because the later OMC and the BRP-era panels changed the connector even where the part number carried over.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Ignition key switch assembly |
| Engine | OMC, Johnson and Evinrude outboard |
| Horsepower | 40 HP to 200 HP |
| Positions | Off, Run, Start with push to choke |
| Supplied With | One key |
| Quantity | 1 switch assembly |
| Country of Origin | Taiwan |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| OMC, Johnson, Evinrude | 5005801 |
| OMC, Johnson, Evinrude | 0175974 |
| OMC, Johnson, Evinrude | 0765562 |
Compatible Engines
| Brand | Horsepower | Note |
|---|---|---|
| Johnson and Evinrude | 40 HP | Covered by the 40-200 HP range |
| Johnson and Evinrude | 50 HP | Covered by the 40-200 HP range |
| Johnson and Evinrude | 60 HP | Covered by the 40-200 HP range |
| Johnson and Evinrude | 70 HP | Covered by the 40-200 HP range |
| Johnson and Evinrude | 85 HP | Covered by the 40-200 HP range |
| Johnson and Evinrude | 90 HP | Covered by the 40-200 HP range |
| Johnson and Evinrude | 100 HP | Covered by the 40-200 HP range |
| Johnson and Evinrude | 115 HP | Covered by the 40-200 HP range |
| Johnson and Evinrude | 120 HP | Covered by the 40-200 HP range |
| Johnson and Evinrude | 140 HP | Covered by the 40-200 HP range |
| Johnson and Evinrude | 150 HP | Covered by the 40-200 HP range |
| Johnson and Evinrude | 175 HP | Covered by the 40-200 HP range |
| Johnson and Evinrude | 200HP | Top of the covered range |
Signs the Switch Has Failed
| Symptom | What It Points To |
|---|---|
| Key turns, nothing happens | Start contact worn, replace the switch |
| Motor will not shut off with the key | Kill circuit open inside the switch |
| Choke does not engage when pushed | Choke contact failed in the switch |
| Switch feels loose or gritty | Mechanical wear, key barrel worn |
| Works only with the key wiggled | Terminal or internal contact wear |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Disconnect the battery before touching the dash wiring |
| 2 | Note the terminal positions on the old switch |
| 3 | Release the retaining nut and withdraw the switch |
| 4 | Match the harness plug to the new switch before fitting |
| 5 | Seat the switch and tighten the retaining nut by hand pressure |
| 6 | Reconnect the battery and test start, run and stop |
| 7 | Test the choke push with the motor cold |
What's Included
| Component | Qty |
|---|---|
| Ignition switch assembly | 1 |
| Key | 1 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Australia
| Destination | Warehouse | Note |
|---|---|---|
| Australia | Australia local warehouse | Domestic delivery, no import duty |
| New Zealand | Australia local warehouse | Short transit, customs may apply |
| Asia Pacific | Australia local warehouse | Tracked air and sea options |
Before You Buy
- Confirm the motor is an OMC, Johnson or Evinrude, not a Mercury or Yamaha
- Check the plug shape and terminal count on the old switch
- Check the number on the old switch, 5005801 is the common one
- Disconnect the battery before you start
- Test start, run, stop and choke once the new switch is in
- Check the main fuse if a new switch still does nothing
- 30-Day Easy Returns
- Ships from our Australia local warehouse
