Flexible Impeller Kit 09-824P 6303-0003 for Jabsco Johnson Yanmar Oberdorfer Pump
Flexible Impeller Kit 09-824P 6303-0003 for Jabsco Johnson Yanmar Oberdorfer Pump
Product Overview

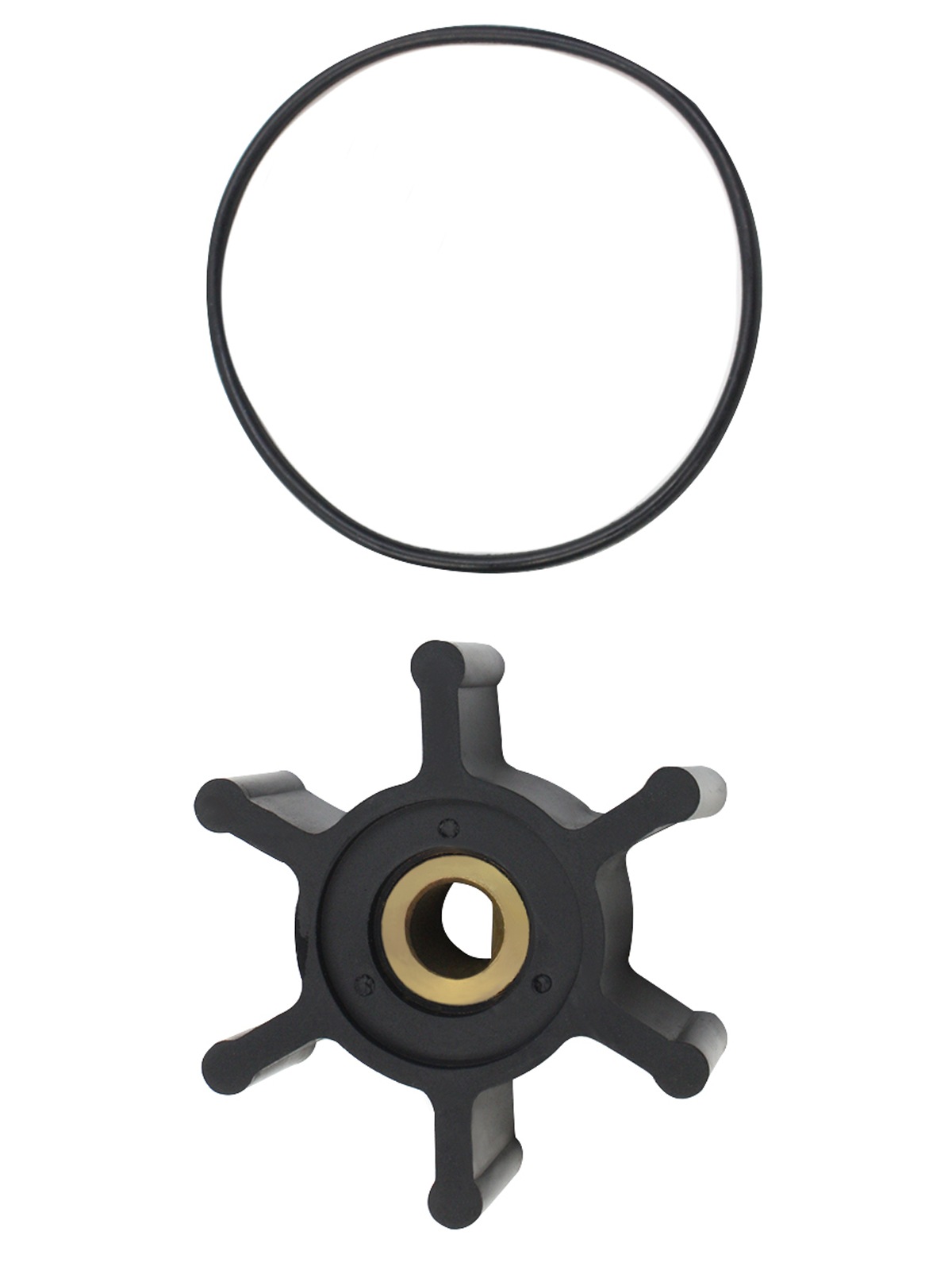

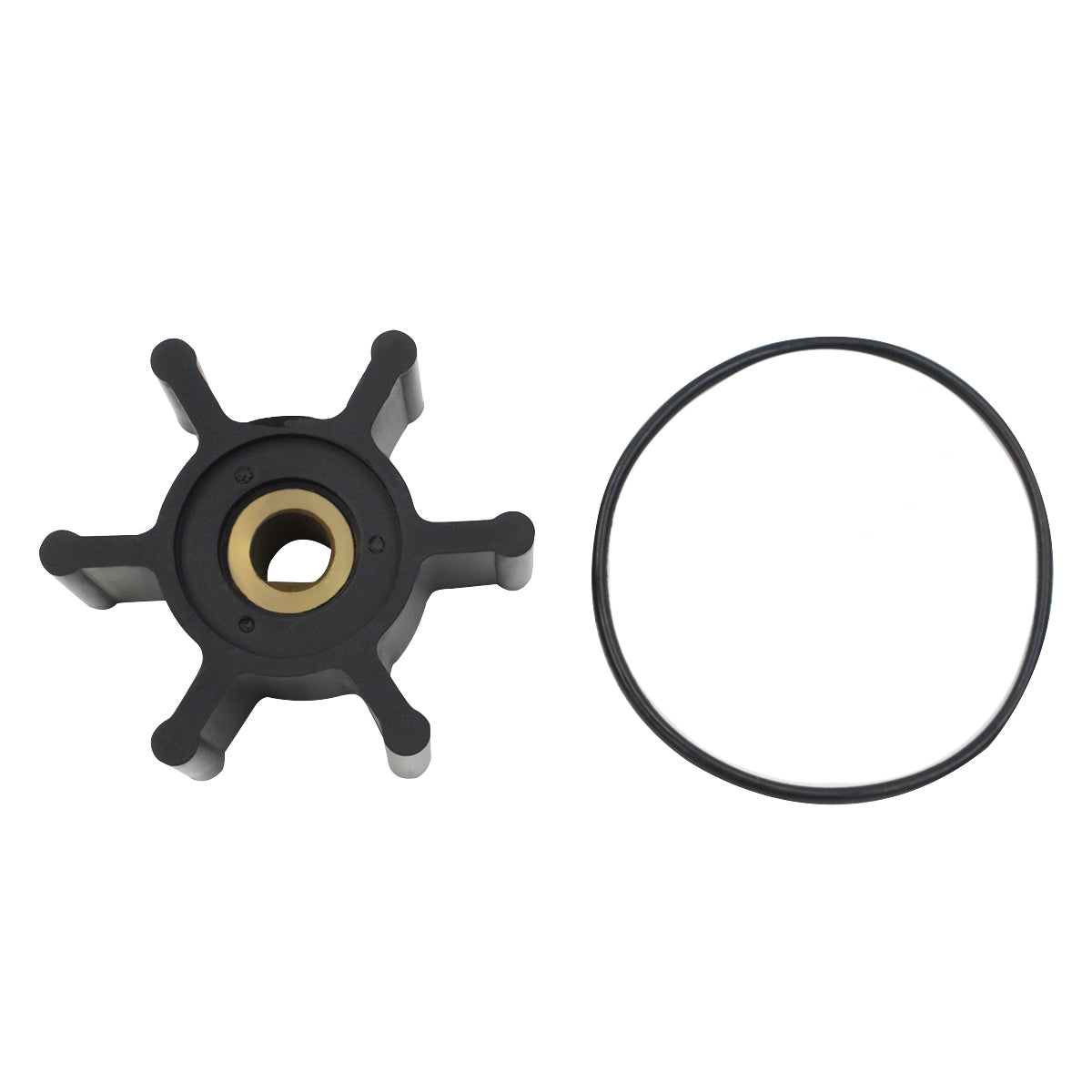

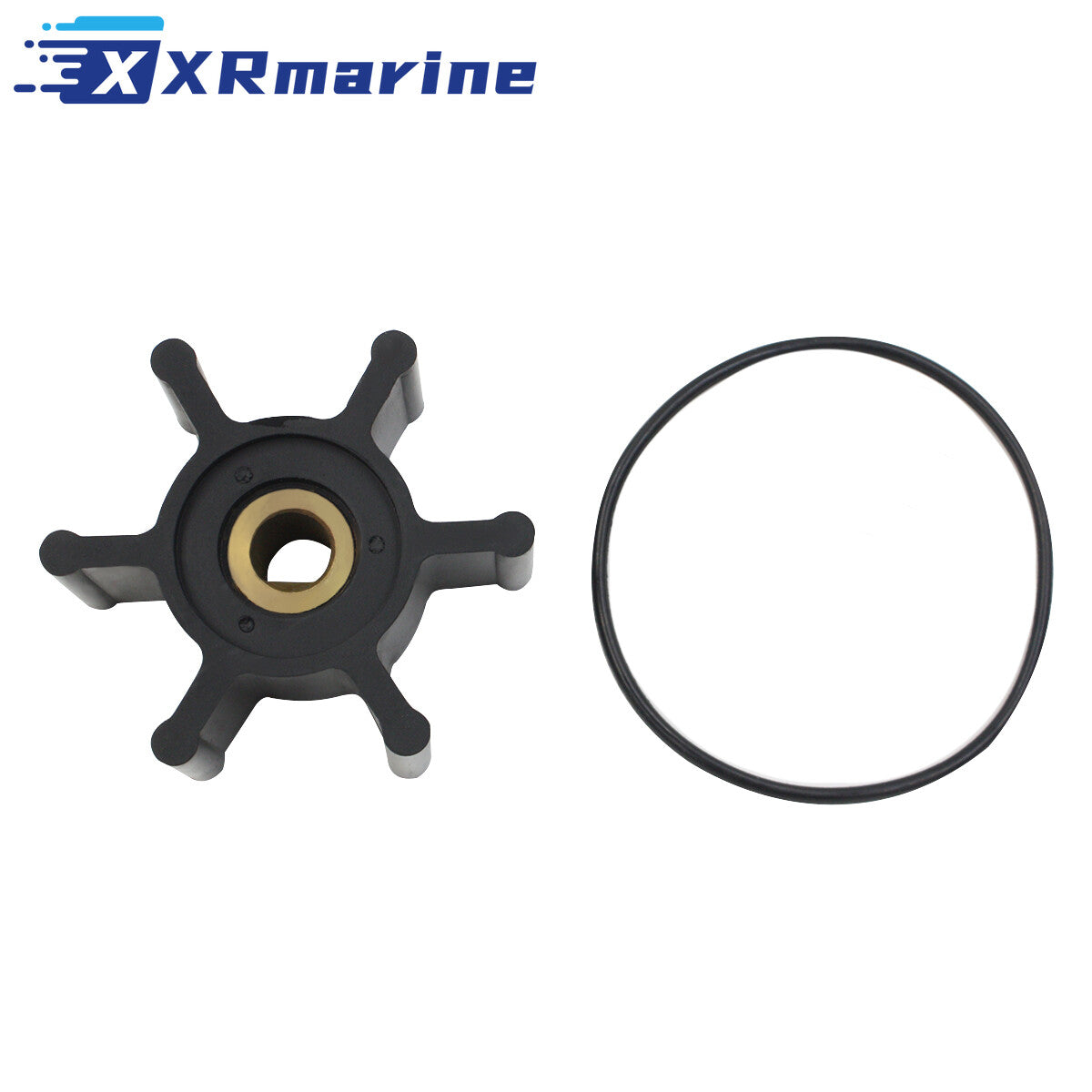

Flexible impeller kit for Jabsco 6303-0003 pumps, Johnson 09-824P pumps, Yanmar 124223-42092 seawater pumps and Oberdorfer 7482 pumps, 6 blades, 51 mm diameter, 22 mm wide, 8 mm shaft, single flat drive, supplied as 1 x impeller and 1 x O-ring.

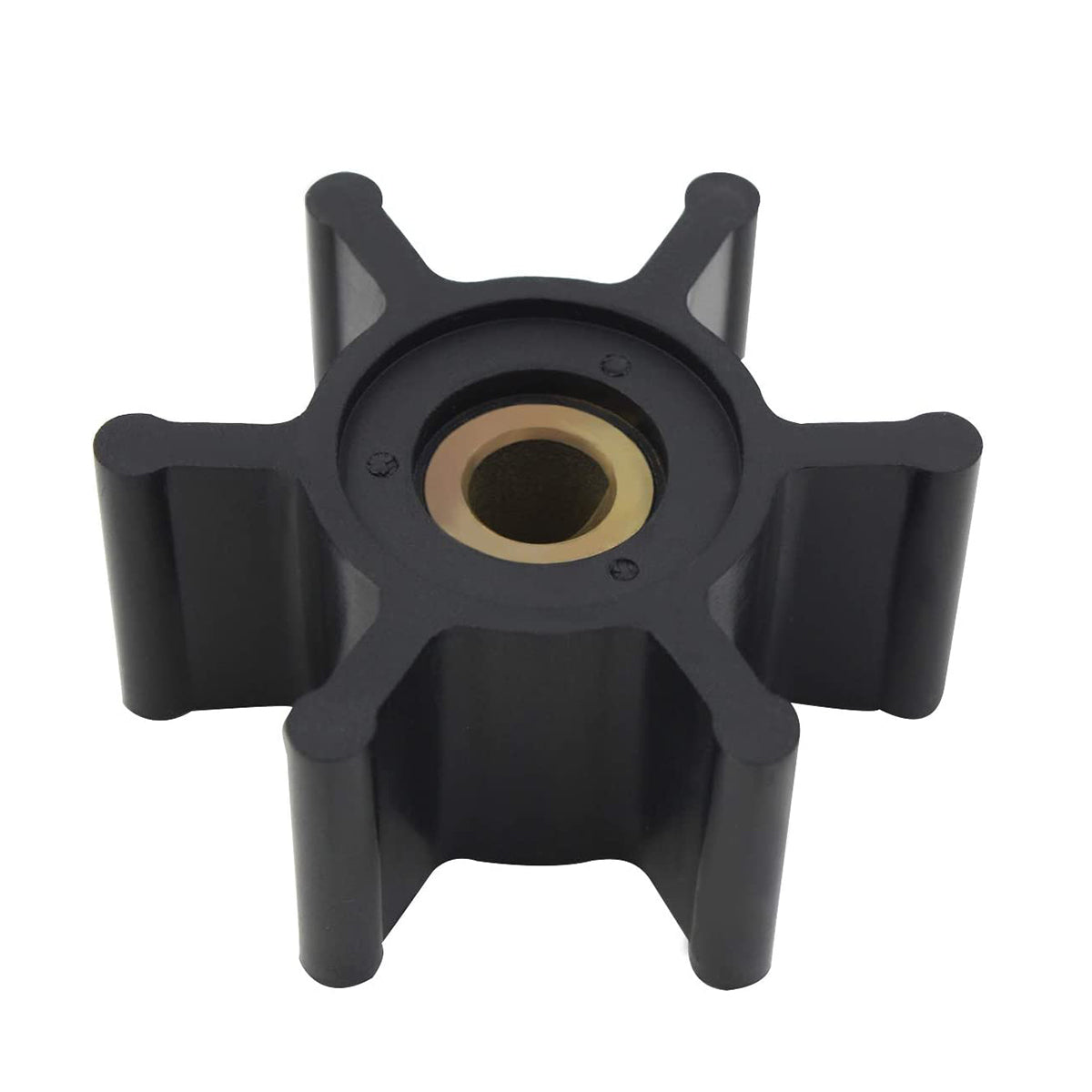

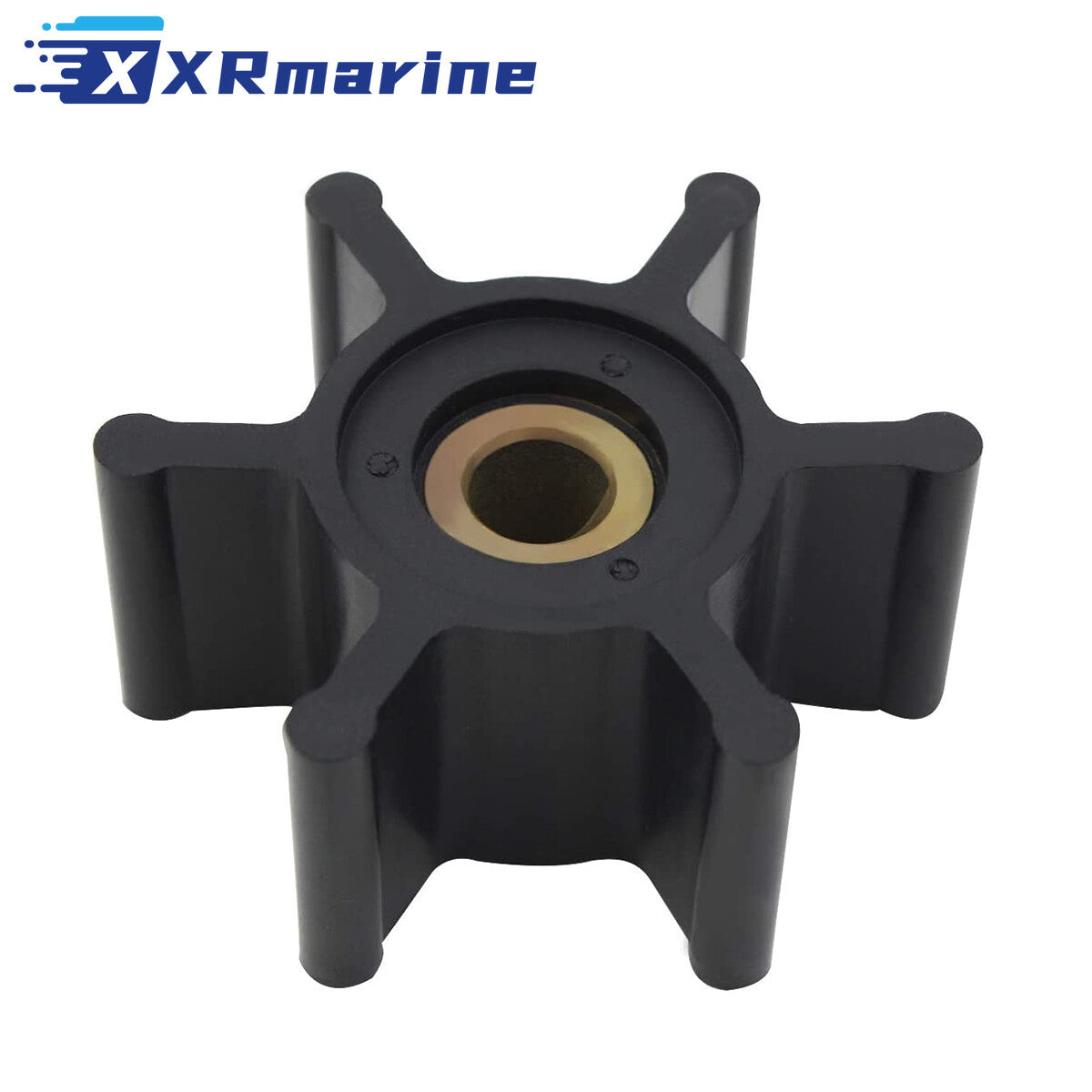

This is the 51 mm neoprene impeller with the brass insert, the one used on small toilet pumps, transfer pumps and raw water pumps across half a dozen brands. The kit ships with the cover O-ring because the seal on an old pump is normally as flat as the impeller blades.
One part covers Jabsco, Johnson, Evinrude, Yanmar, Oberdorfer, Vetus, Ancor, Milwaukee, JMP, CEF and Sierra numbers. The single flat drive means the shaft must have a clean flat for the impeller to turn on, a rounded flat will spin the insert and cook the blades within minutes.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Flexible impeller kit |
| Drive Type | Single flat drive |
| Blades | 6 |
| Diameter | 51 mm / 2 in |
| Width | 22 mm / 7/8 in |
| Shaft Diameter | 8 mm / 5/16 in |
| Material | Neoprene |
| Insert Material | Brass |
| Kit Parts | H-157 impeller, O-ring 1.8 x 50 mm inside diameter |
| Country of Origin | Taiwan |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Jabsco | 22799-0001P, 6303-0003, 6303-0001 |
| Jabsco | 7273-0001 |
| Johnson / Evinrude | 09-824P, 09-824P-9, 09-824B |
| Yanmar | 124223-42092, 124323-42091 |
| Yanmar | 128296-42070, 14242-050 |
| Milwaukee | 49-16-2771, 49162771 |
| Ancor | J050016 |
| Vetus | IMP00101 |
| Oberdorfer | 7482, 6617, 7885 |
| JMP | 7053-01 |
| CEF | 500210 |
| Sierra | 18-30005 |
| Albin | 06-01-007 |
Compatible Engines
| Brand | Pump or Machine | Note |
|---|---|---|
| Jabsco | Pump 6303-0003, 6303-0001, 7273-0001 | Small pump body, 51 mm impeller |
| Jabsco | 37101 series electric toilet | The listing for this SKU names TMC 37101 |
| Johnson | Pump 09-824P, 09-824P-9, 09-824B | Johnson and Evinrude part family |
| Yanmar | Seawater pump 124223-42092, 124323-42091 | Yanmar marine engine pump numbers |
| Yanmar | 128296-42070, 14242-050 | Same impeller, other application numbers |
| Milwaukee | M18 transfer pump 2771-20 | Fits the M18 transfer pump |
| Oberdorfer | Pump 7482, 6617, 7885 | Oberdorfer pump numbers |
| Vetus | Pump IMP00101 | Vetus cooling pump |
What's Included
| Component | Qty |
|---|---|
| Flexible impeller | 1 |
| O-ring for the pump cover | 1 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Before You Buy
- Check the number on the old impeller or on the pump cover, every number in the table above is covered here
- Check the size, this is the 51 mm body, 22 mm wide, 8 mm shaft, a different width will not seat
- Check the shaft flat for wear, a rounded flat will let the new impeller slip
- Check the pump cover plate and cam for score marks before refitting
- Fit with glycerine or soap only, never grease or oil on neoprene
- Fold the blades in the direction of rotation as the cover goes down
- Prime the pump and confirm flow before running under load
