Trim Sender Kit 805130A2 for MerCruiser Alpha One Gen 2 Bravo Sterndrive
Trim Sender Kit 805130A2 for MerCruiser Alpha One Gen 2 Bravo Sterndrive
Product Overview
Trim sender and limit switch kit for Mercury MerCruiser sterndrives, supplied as 1 x sender and limit switch set. It replaces 805130A2, 805320A1, 805320A03, 17693A2, 63115A12, 88678A4, 88678A5 and 96863A15, plus Sierra 18-7633. Fitment covers MC-1, R, MR, Alpha One, Alpha One Gen 2 and Bravo drives. The sender reports drive angle to the gauge and the limit switch stops the drive trimming up past its safe range. Fit the kit when the gauge reads wrong, the trim stops working in one direction, or the switch stays stuck after the drive has been in salt water.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Trim Sender and Limit Switch Kit |
| Engine / Drive | Mercury MerCruiser MC-1, R, MR, Alpha One, Gen 2, Bravo |
| Position | Gimbal ring, port side |
| Quantity | 1 sender + 1 limit switch |
| Packaging Size | 17.5 x 11 x 10 cm (6.9 x 4.3 x 3.9 in) |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| MerCruiser | 805130A2, 805320A1, 805320A03 |
| MerCruiser | 17693A2, 63115A12, 88678A4, 88678A5, 96863A15 |
| Sierra | 18-7633 |
Compatible Engines
| Drive | Note |
|---|---|
| MC-1 | Sterndrive |
| R, MR | Sterndrive |
| Alpha One, Alpha One Gen 2 | Sterndrive |
| Bravo | Sterndrive |

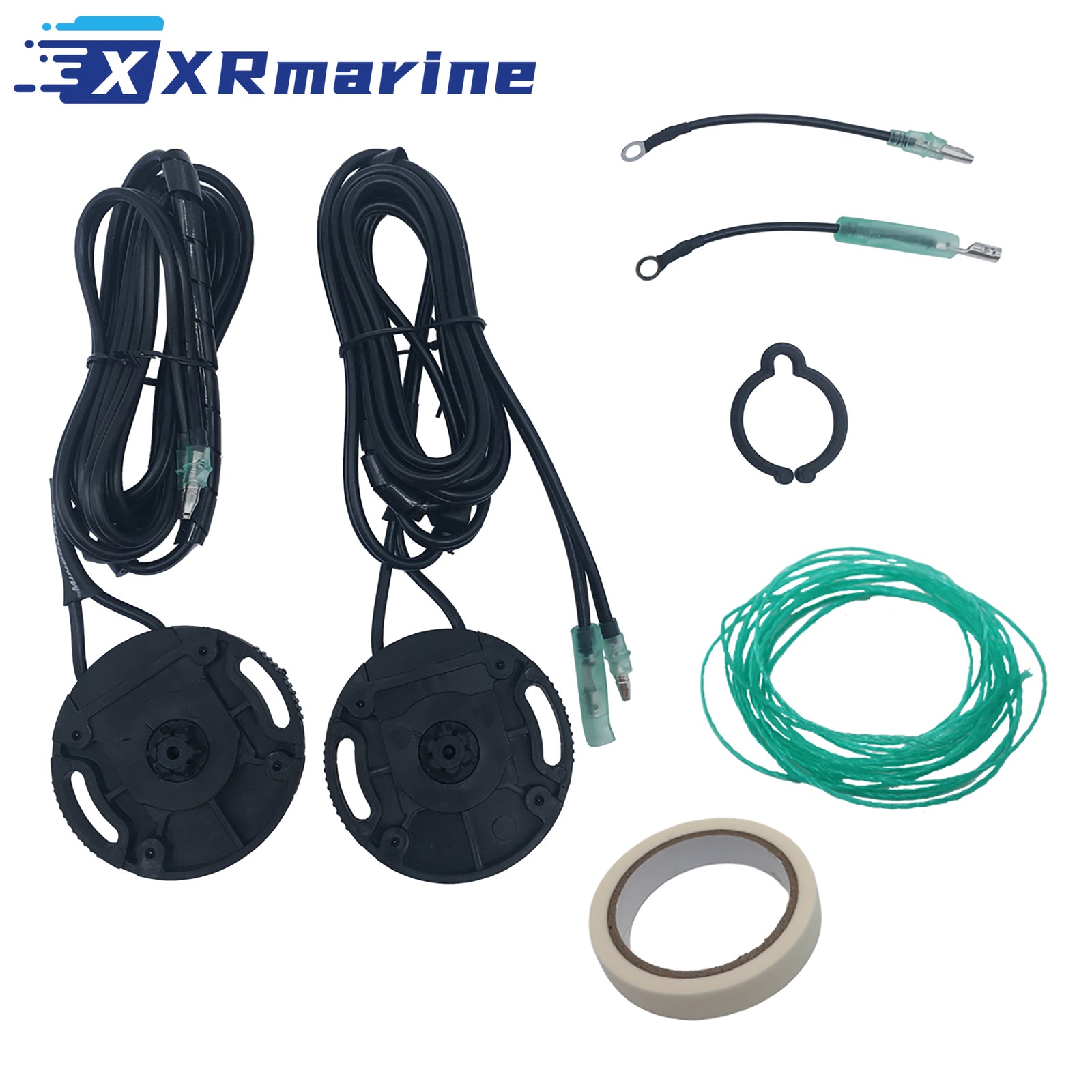

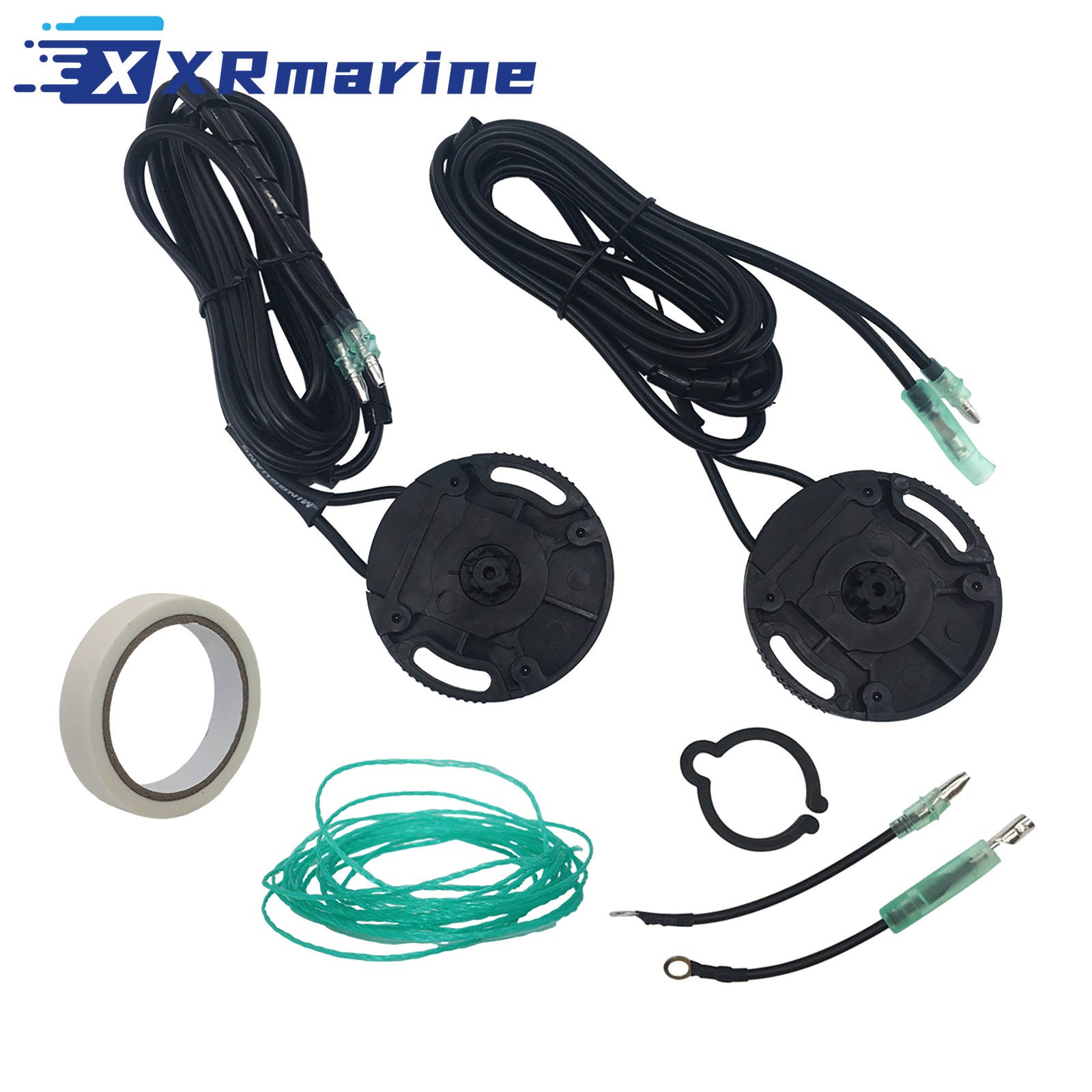

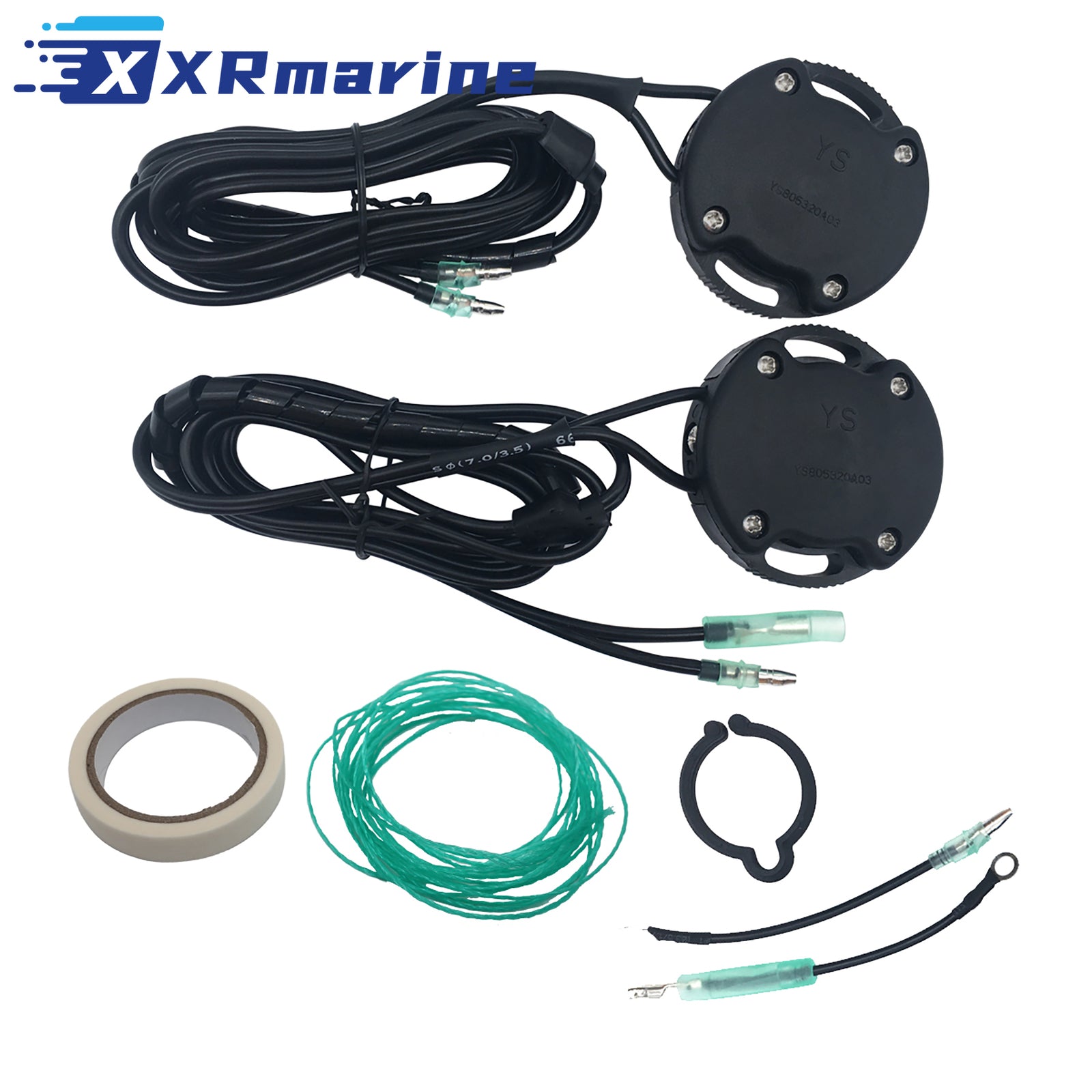

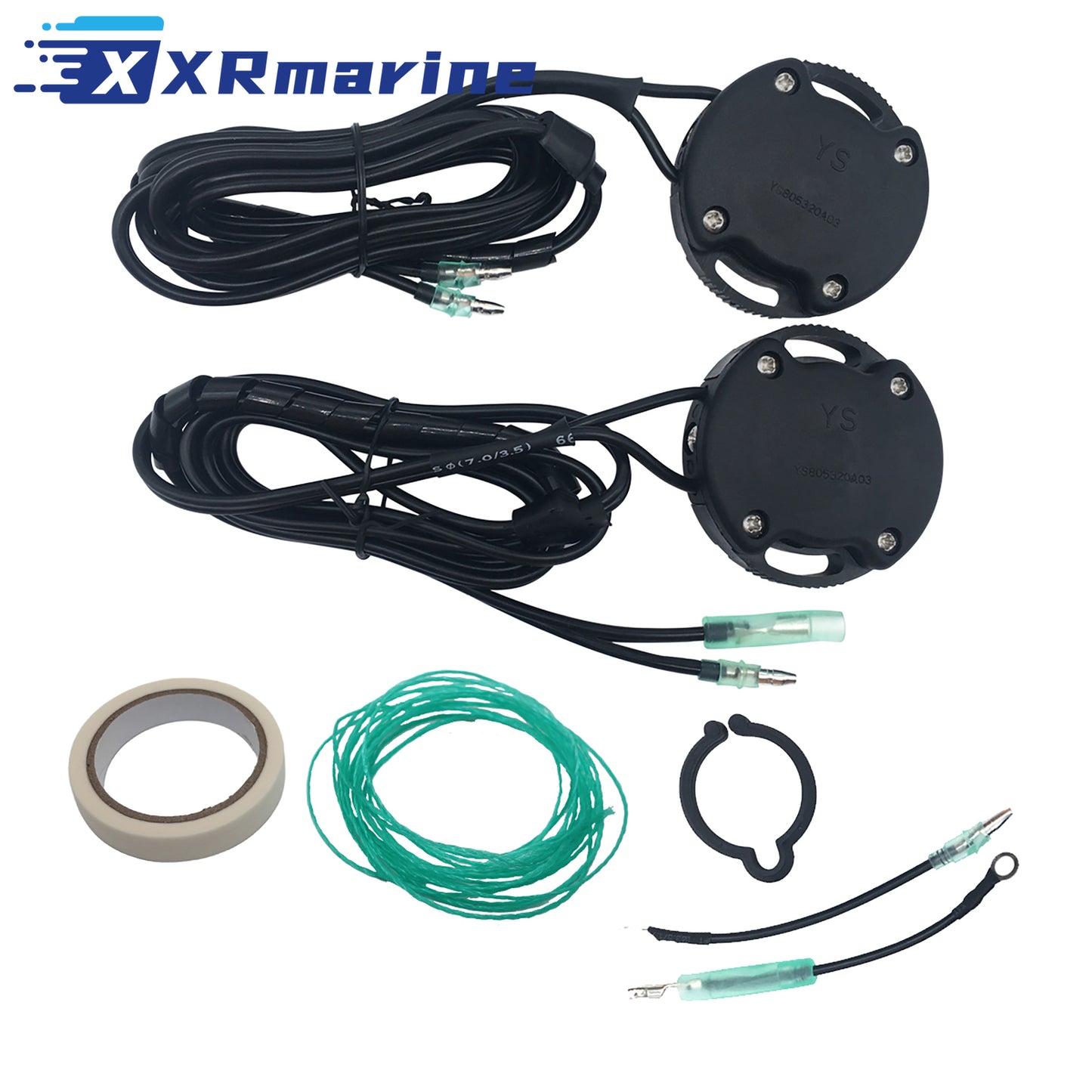

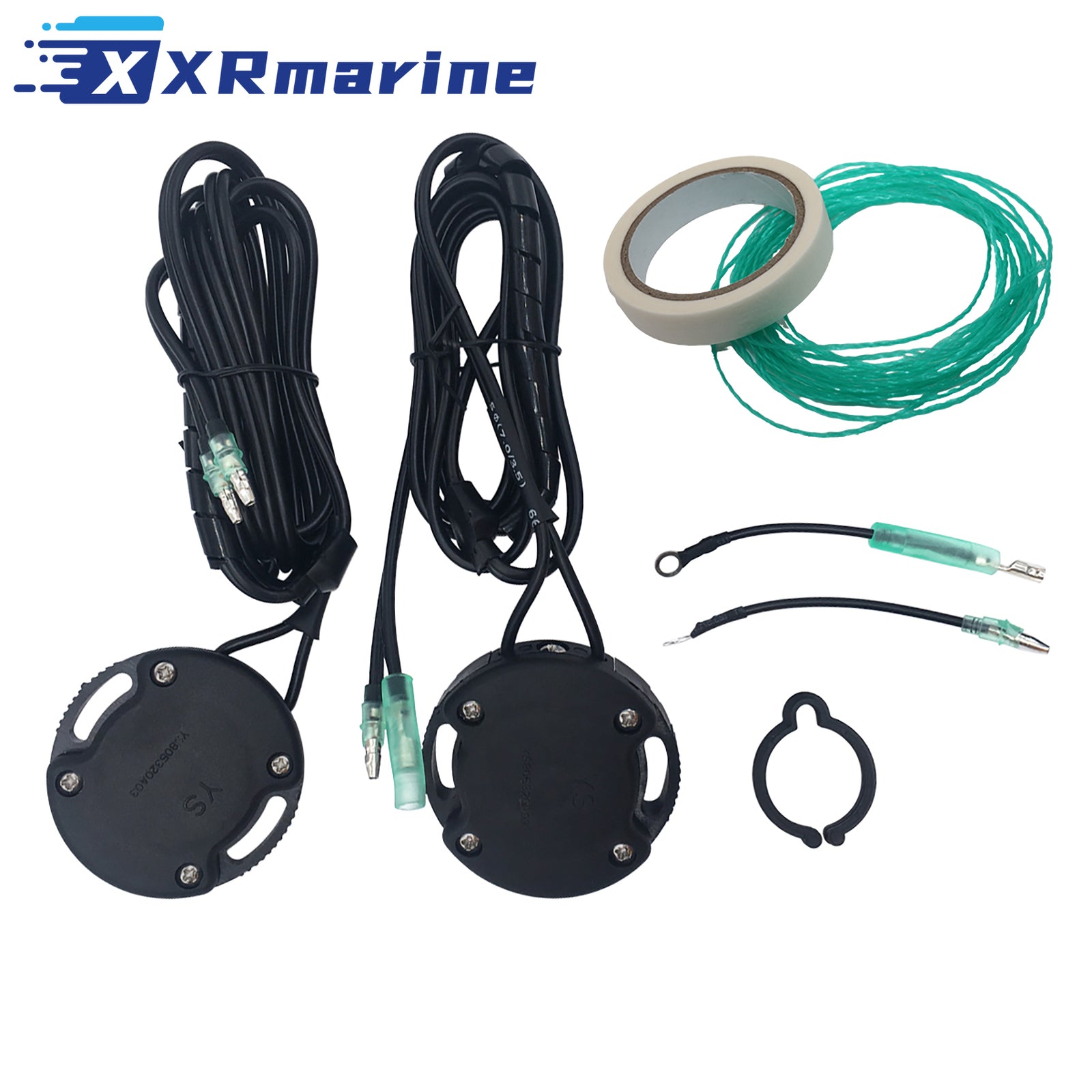

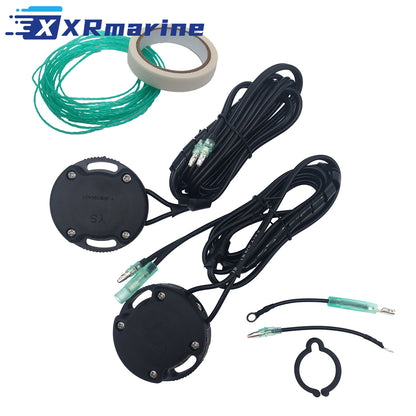

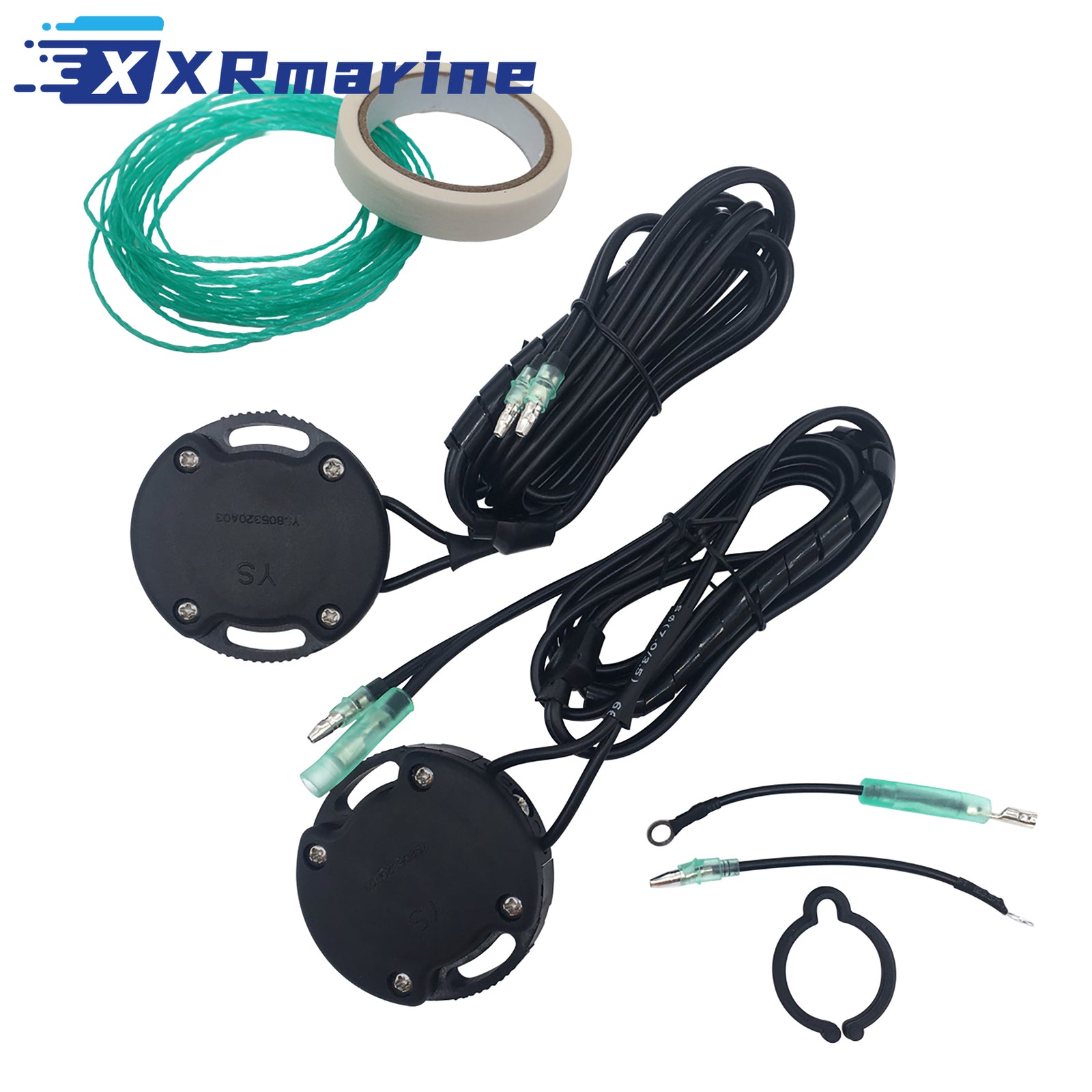

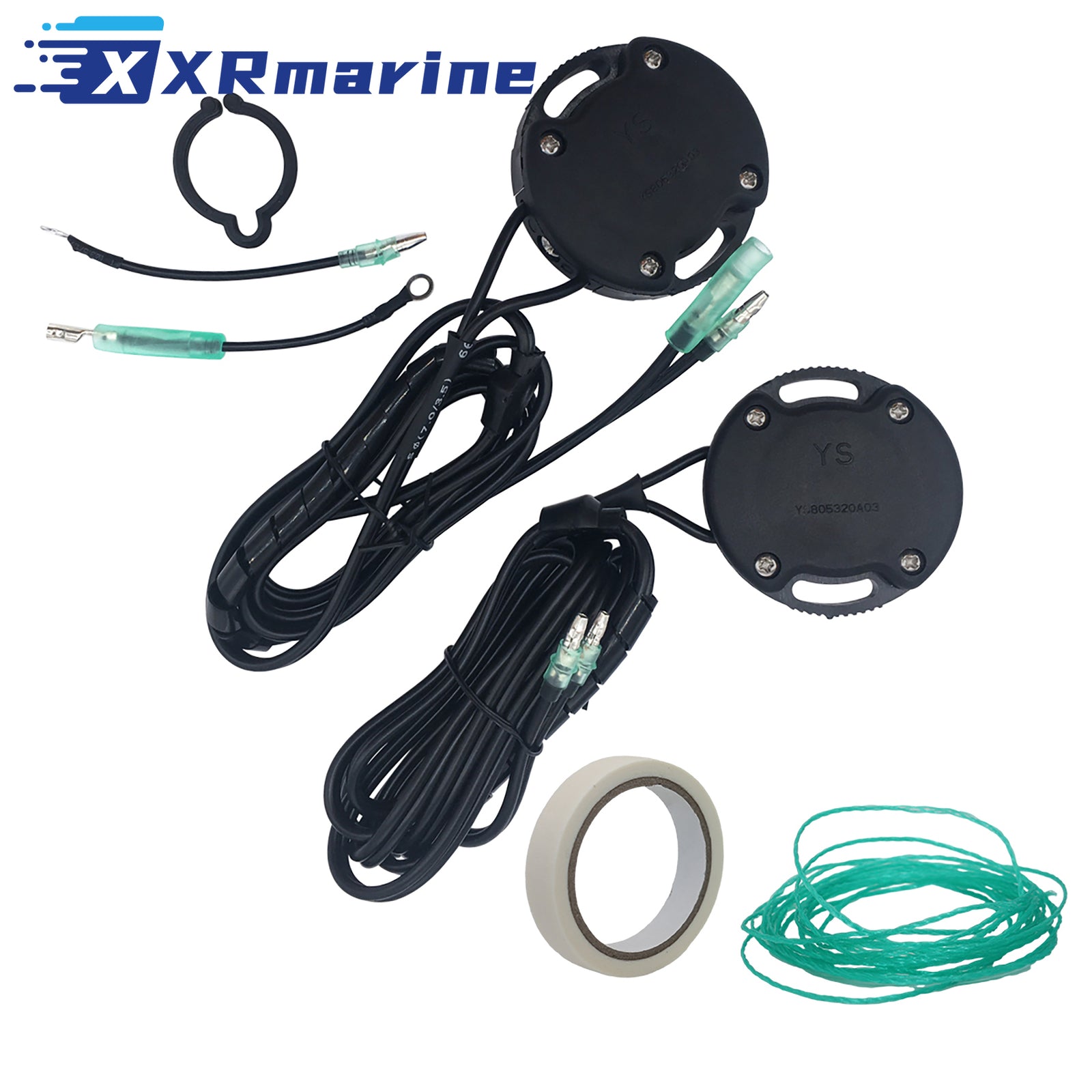

What's Included
| Component | Qty |
|---|---|
| Trim Sender | 1 |
| Trim Limit Switch | 1 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Before You Buy
- Confirm your drive model matches the list above
- Check the wiring loom and connector for corrosion before ordering
- Note the sender position and mark the adjustment before removing the old unit
- Check the gauge reading through the full trim range after fitting
