Raw Sea Water Pump Repair Kit 14510-46090 10-32621-2 for Jabsco Johnson Volvo Penta AQ BB MB MD 12 Blade 57 mm — Germany Local Warehouse
Raw Sea Water Pump Repair Kit 14510-46090 10-32621-2 for Jabsco Johnson Volvo Penta AQ BB MB MD 12 Blade 57 mm — Germany Local Warehouse
Product Overview

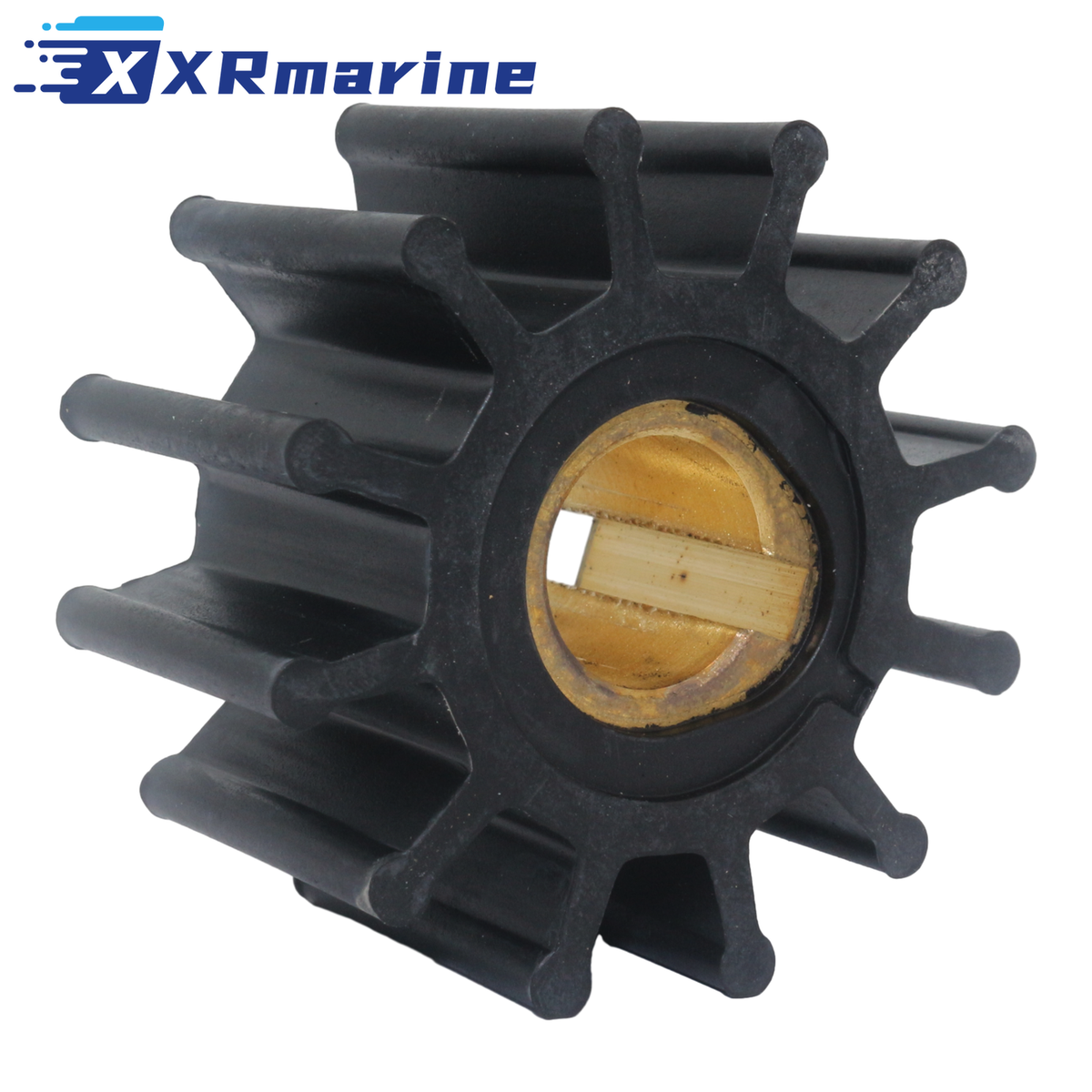

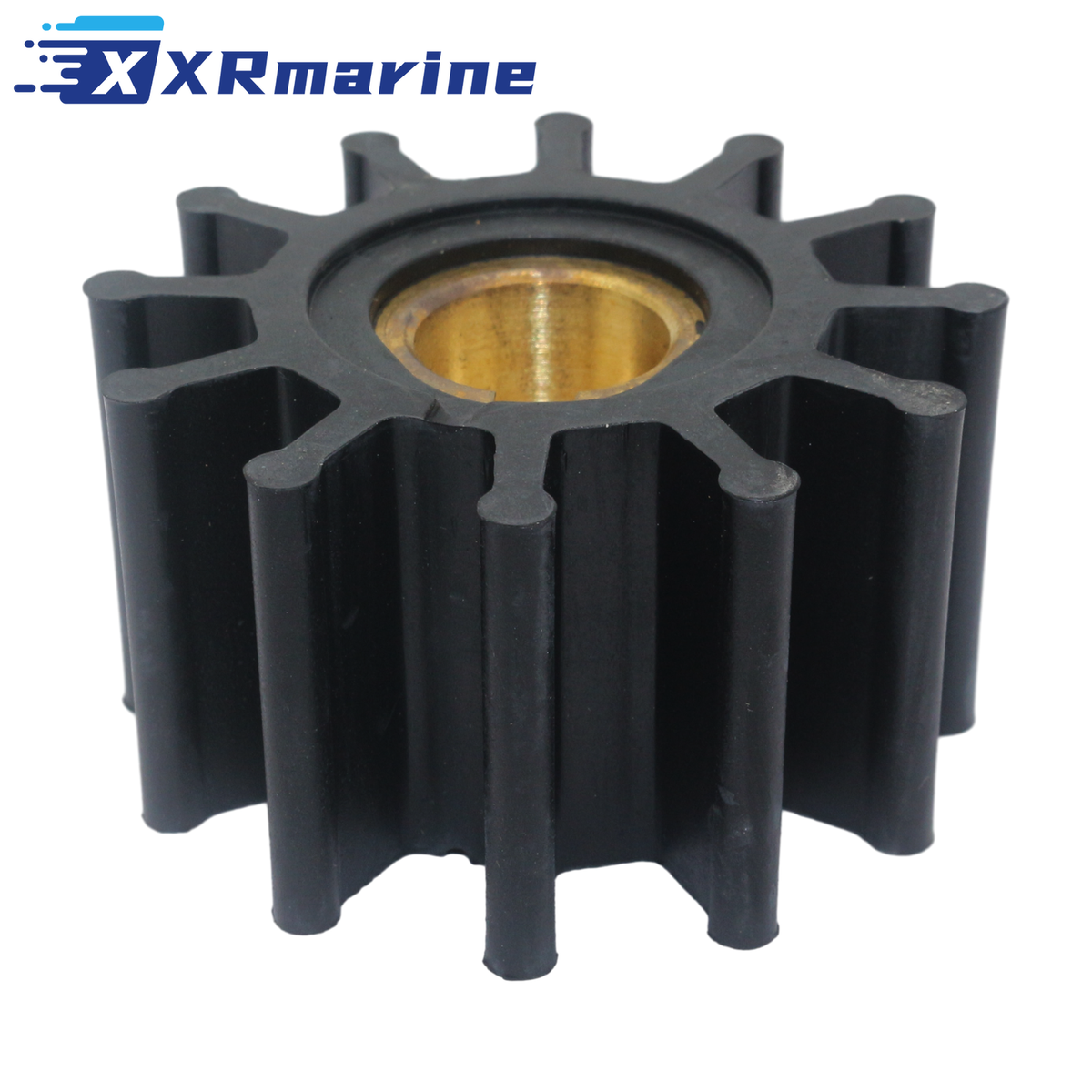

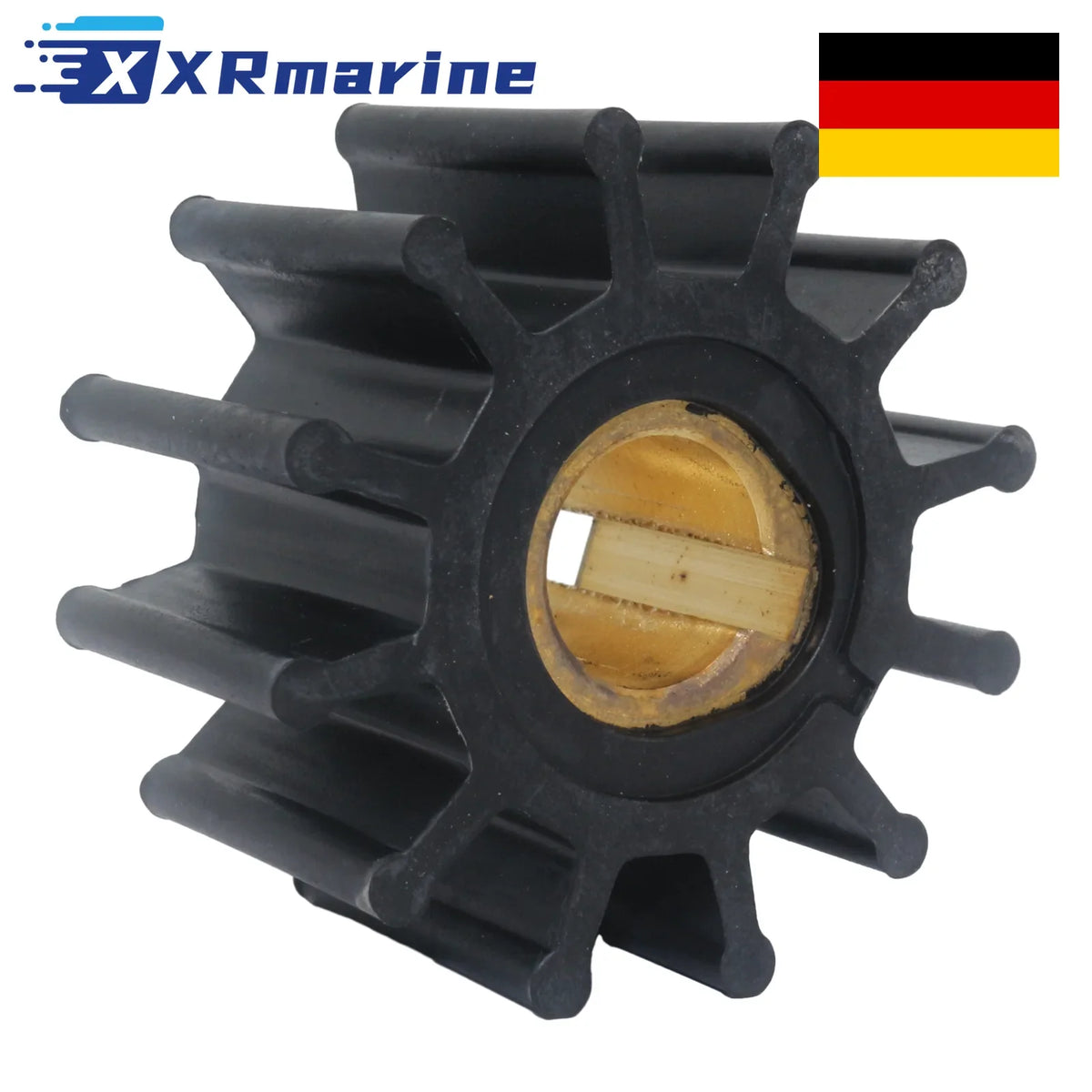

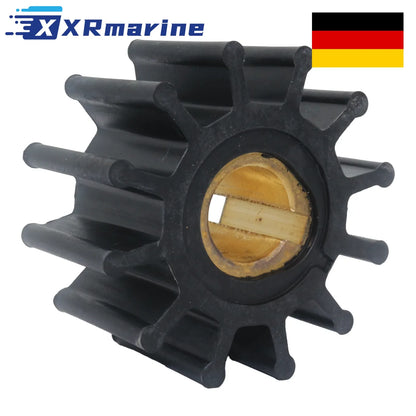

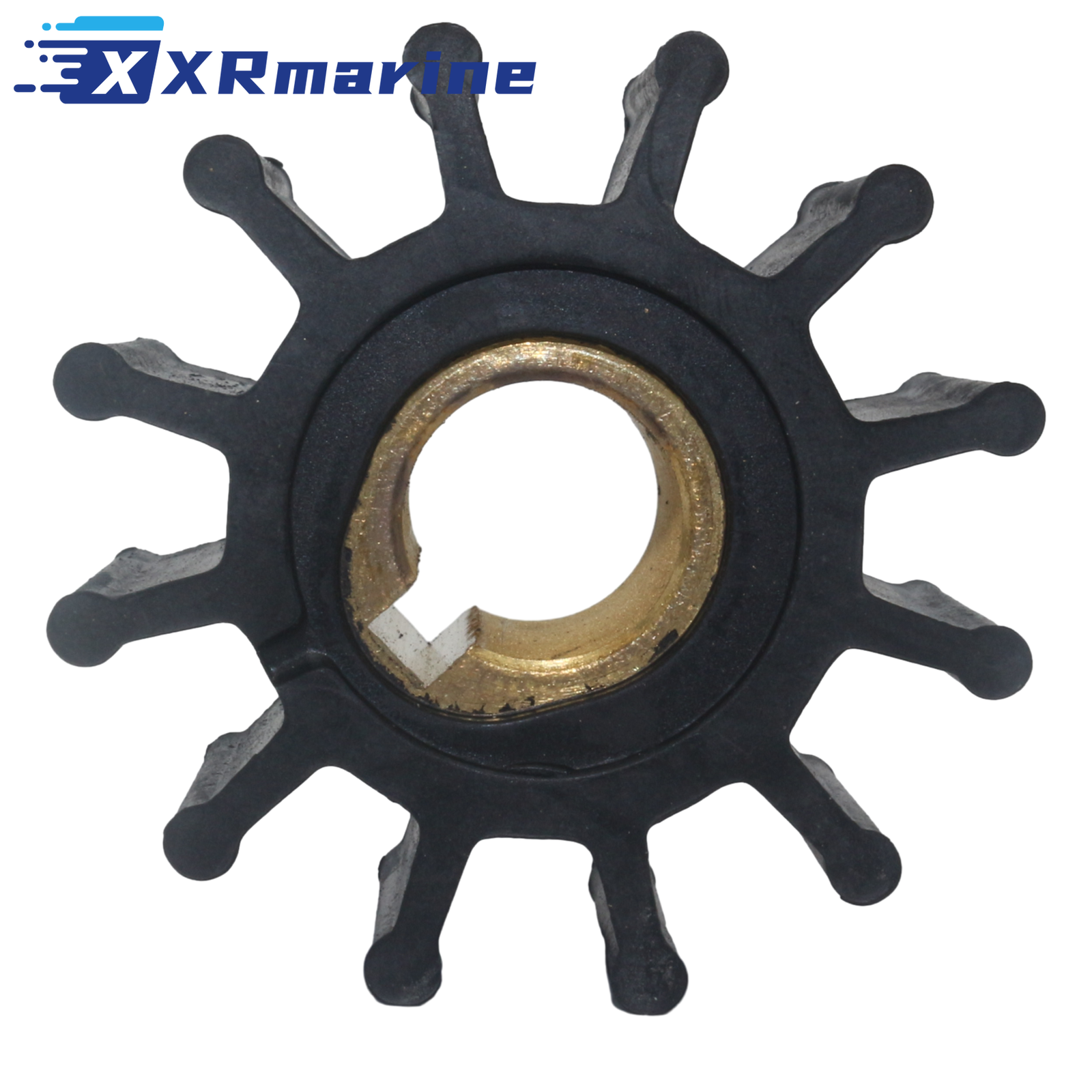

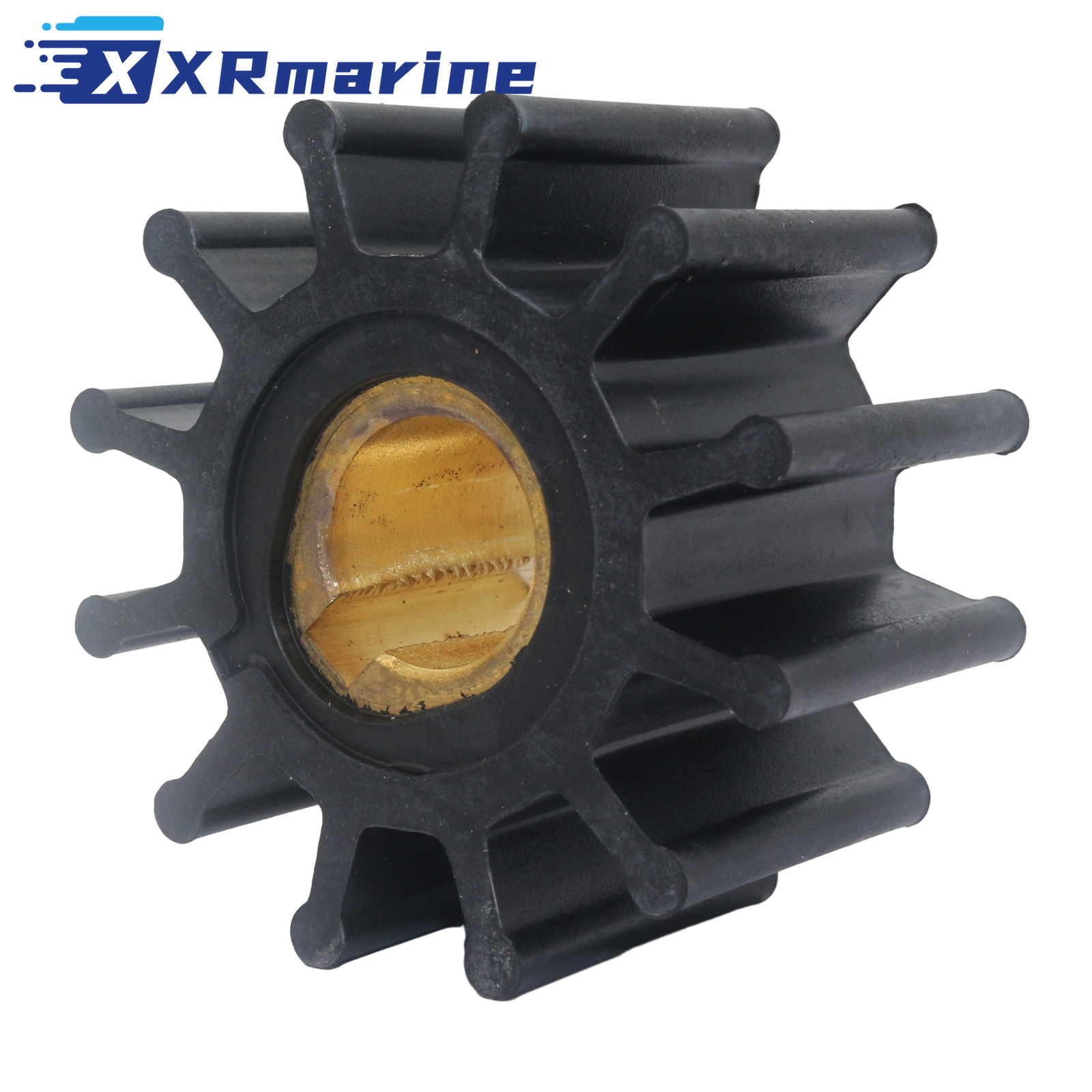

Raw sea water pump repair kit for Jabsco, Johnson, Oberdorfer and Volvo Penta pumps, a 12 blade spline drive neoprene impeller at 57 mm diameter, 31.5 mm width and 15.8 mm shaft, with a brass insert, supplied with the cover gasket. It replaces Jabsco 14510-46090, 124310-46090, 2877-0001, 4568-0001, Johnson 10-32621-2, 10-32621-3, 09-801B, Volvo Penta 21951350, 875575, 831182, Sierra 18-3075, GLM 89530 and Mallory 9-45701. Dispatched from our Germany local warehouse.
This is the pump that sits on the front of the engine and is driven by a splined shaft, so the impeller has a splined bore rather than a keyway. That detail matters at replacement time: a key drive impeller will not fit, and a splined one that is forced onto a damaged shaft will strip the splines and stop pumping.
The kit covers the Volvo Penta AQ, BB, MB and MD series engines as well as the Jabsco, Johnson and Oberdorfer pumps that were fitted to them, which is why the cross-reference list is long. Match the number on the pump body or the old impeller, and check the shaft splines for wear while the cover is off.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Raw water pump repair kit |
| Drive Type | Spline drive |
| Blade Count | 12 |
| Outside Diameter | 57 mm (2.24 in) |
| Width | 31.5 mm (1.24 in) |
| Shaft Diameter | 15.8 mm (0.63 in) |
| Insert Material | Brass |
| Material | Neoprene |
| Quantity | 1 impeller with cover gasket |
| Country of Origin | Taiwan |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Jabsco | 14510-46090, 124310-46090 |
| Jabsco | 2877-0001, 4568-0001 |
| Johnson Pump | 10-32621-2, 10-32621-3 |
| Johnson Pump | 09-801B |
| Volvo Penta | 21951350, 875575, 831182 |
| Oberdorfer | B6620, 8647 |
| Sierra | 18-3075 |
| GLM | 89530 |
| Mallory | 9-45701 |
Compatible Engines
| Brand | Models | Note |
|---|---|---|
| Volvo Penta | 230A, 230B, 250A, 250B | With pump 855517 or 855578 |
| Volvo Penta | 251A, AQD21A, MD21A | Raw water pump |
| Volvo Penta | AQ115A, AQ115B to AQ171C | Raw water pump |
| Volvo Penta | BB115A, BB115B, BB115C to BB170C | Raw water pump |
| Volvo Penta | MB20A, MB20B, MB20C | Raw water pump |
| Johnson Pump | 10-32621-2, 10-32621-3 | Spline drive pump |
| Jabsco Pump | 14510-46090, 124310-46090 | Spline drive pump |
| Jabsco Pump | 2877-0001, 4568-0001 | Spline drive pump |
| Oberdorfer Pump | 301, 302, 303 M | Spline drive pump |
| Oberdorfer Pump | B6620, 8647 | Spline drive pump |

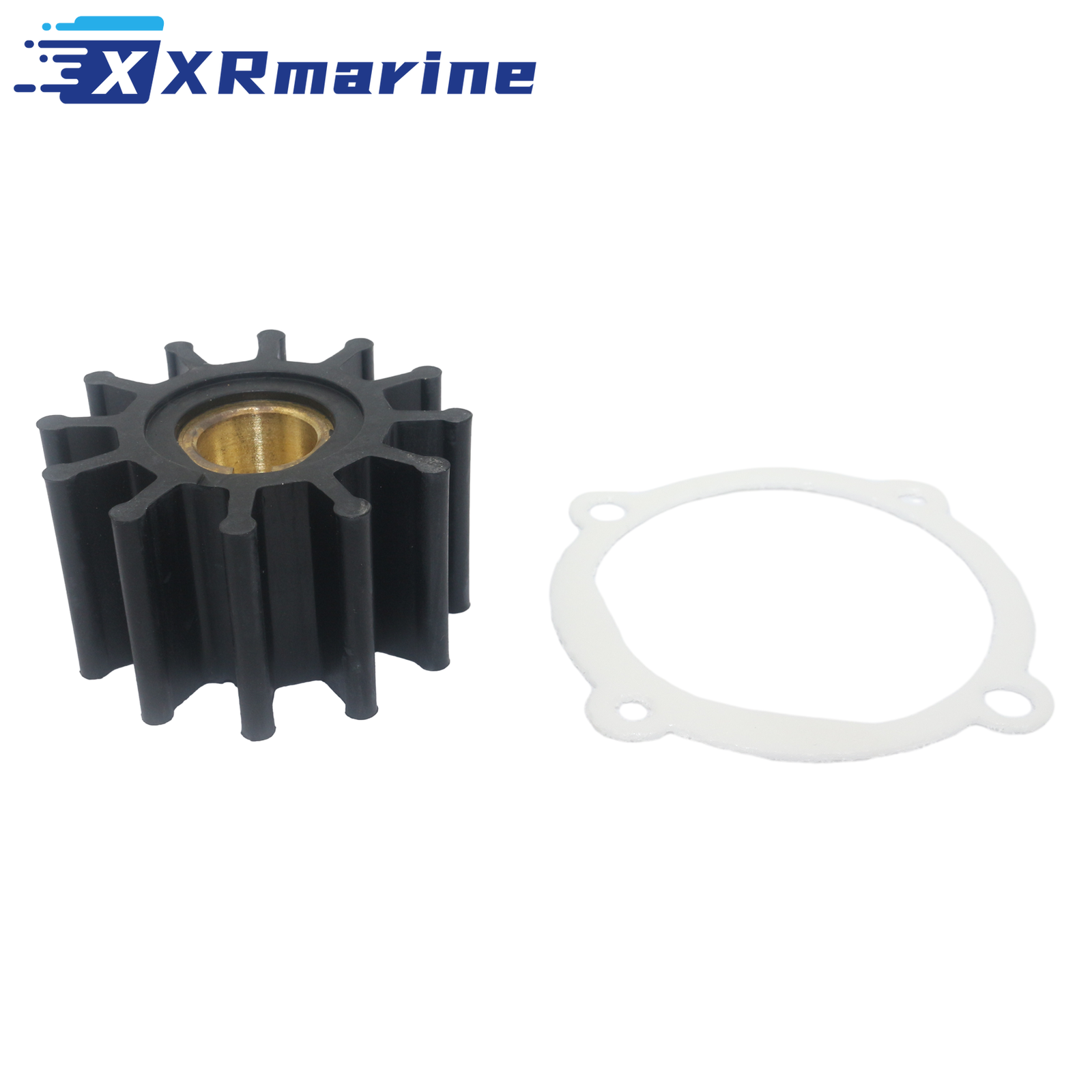

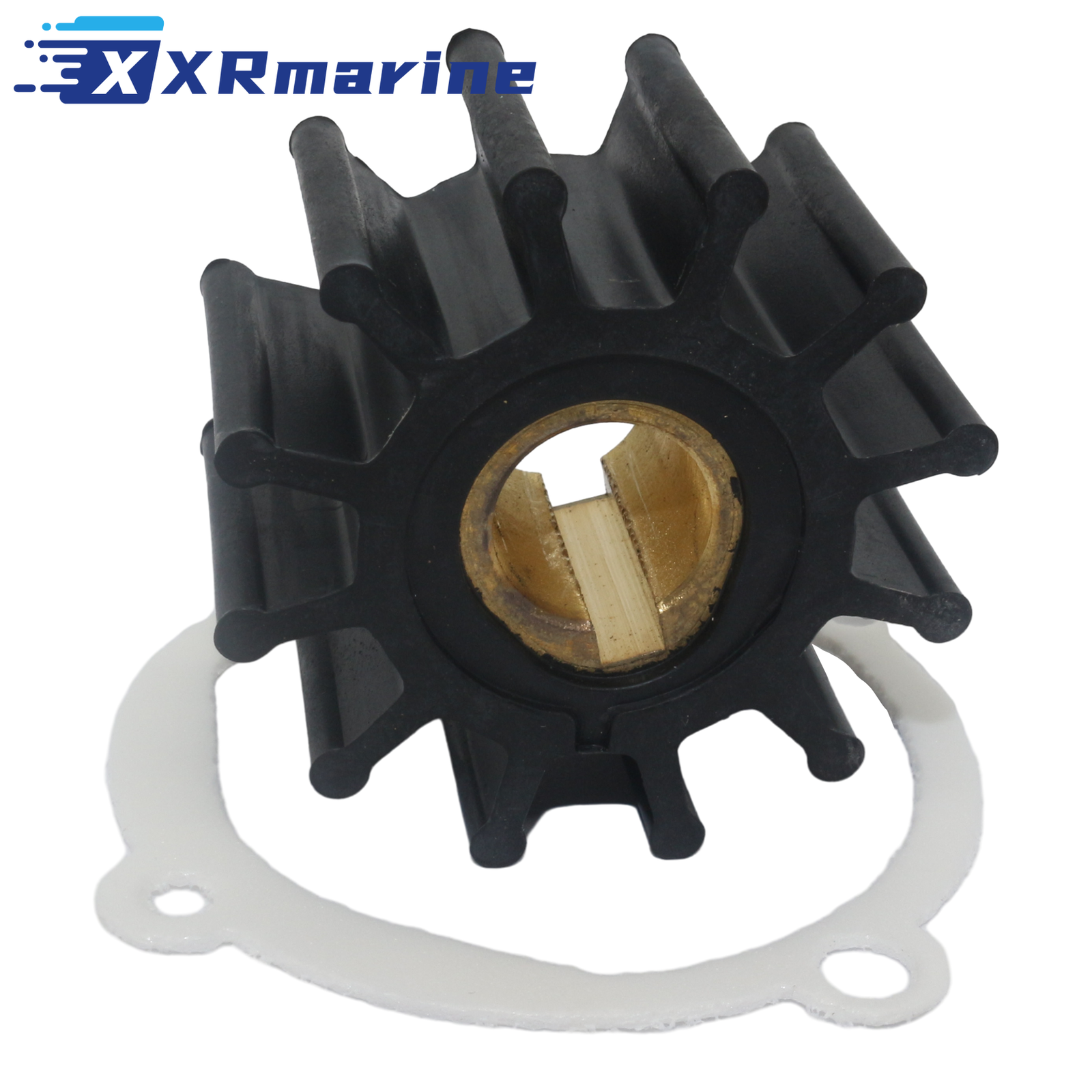

Kit Contents
| Component | Detail |
|---|---|
| Flexible impeller | 12 blade neoprene, brass insert, spline drive |
| Cover gasket | 1 |
Signs the Pump Needs a Kit
| Symptom | What It Points To |
|---|---|
| Engine running hot at cruise | Worn vanes, reduced flow |
| No water at the exhaust on start up | Impeller failed or splines stripped |
| Rubber debris in the strainer | Vanes breaking up, flush the system |
| Water in the bilge under the pump | Cover gasket failed |
| Impeller turns but nothing pumps | Splined bore stripped on the shaft |
| Vanes flat after winter layup | Dry rubber, change before the season |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Close the sea cock and drain the pump |
| 2 | Remove the pump cover and note the vane direction |
| 3 | Pull the impeller out, do not pry against the housing face |
| 4 | Check the shaft splines and the cover plate for wear |
| 5 | Clean the cover and the O-ring or gasket face |
| 6 | Fit the new impeller with the vanes folded the correct way |
| 7 | Fit the new cover gasket, tighten the cover evenly |
| 8 | Open the sea cock, start the engine and check for leaks and flow |
What's Included
| Component | Qty |
|---|---|
| Flexible impeller, 12 blade neoprene | 1 |
| Cover gasket | 1 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Germany
| Destination | Warehouse | Note |
|---|---|---|
| Germany | Germany local warehouse | Domestic delivery, no import duty |
| Austria, Netherlands, Belgium | Germany local warehouse | EU intra-community delivery |
| France, Italy, Spain, Poland | Germany local warehouse | EU intra-community delivery |
Before You Buy
- Check the number on the pump body or the old impeller before ordering
- Confirm the pump is spline drive, a key drive impeller will not fit
- Check the shaft splines for wear while the impeller is out
- This kit is the impeller and cover gasket, not a complete pump
- Check the cover plate for grooves, replace it if scored
- Fit the gasket from the kit, do not reuse the old one
- 30-Day Easy Returns
- Ships from our Germany local warehouse
