Water Pump Impeller Kit 6H4-44352-02 for Yamaha 25 30 40 50 HP with Key
Water Pump Impeller Kit 6H4-44352-02 for Yamaha 25 30 40 50 HP with Key
Product Overview

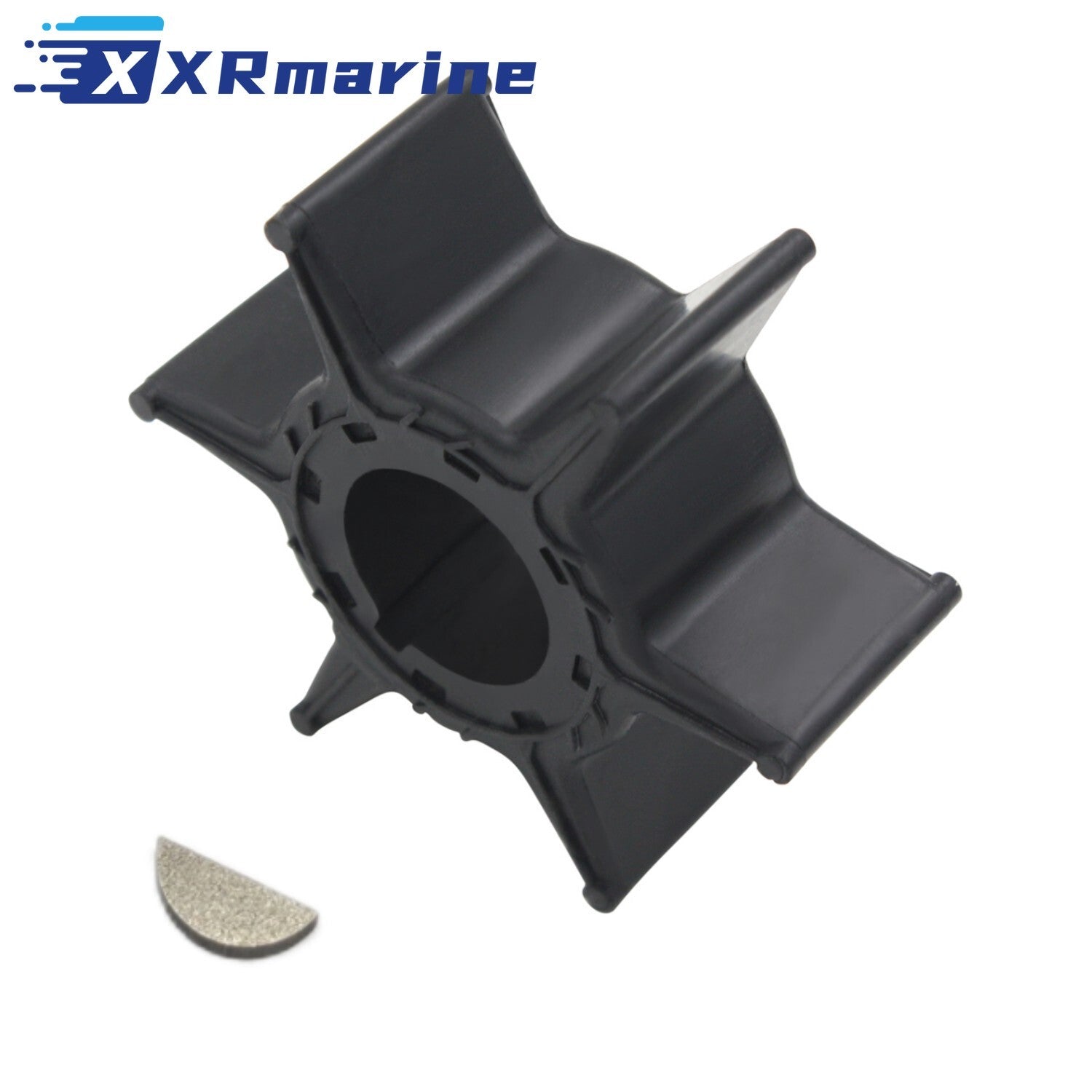

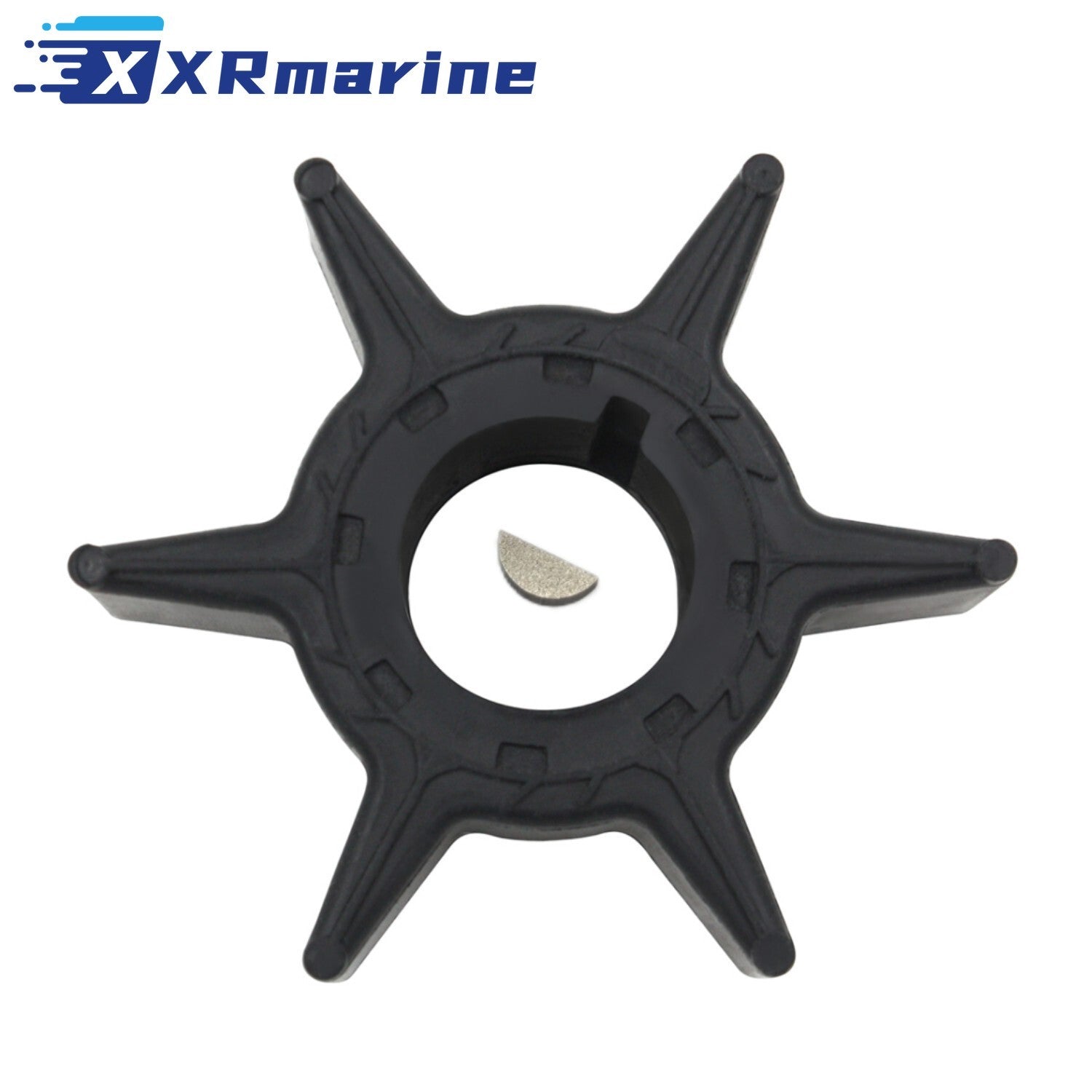

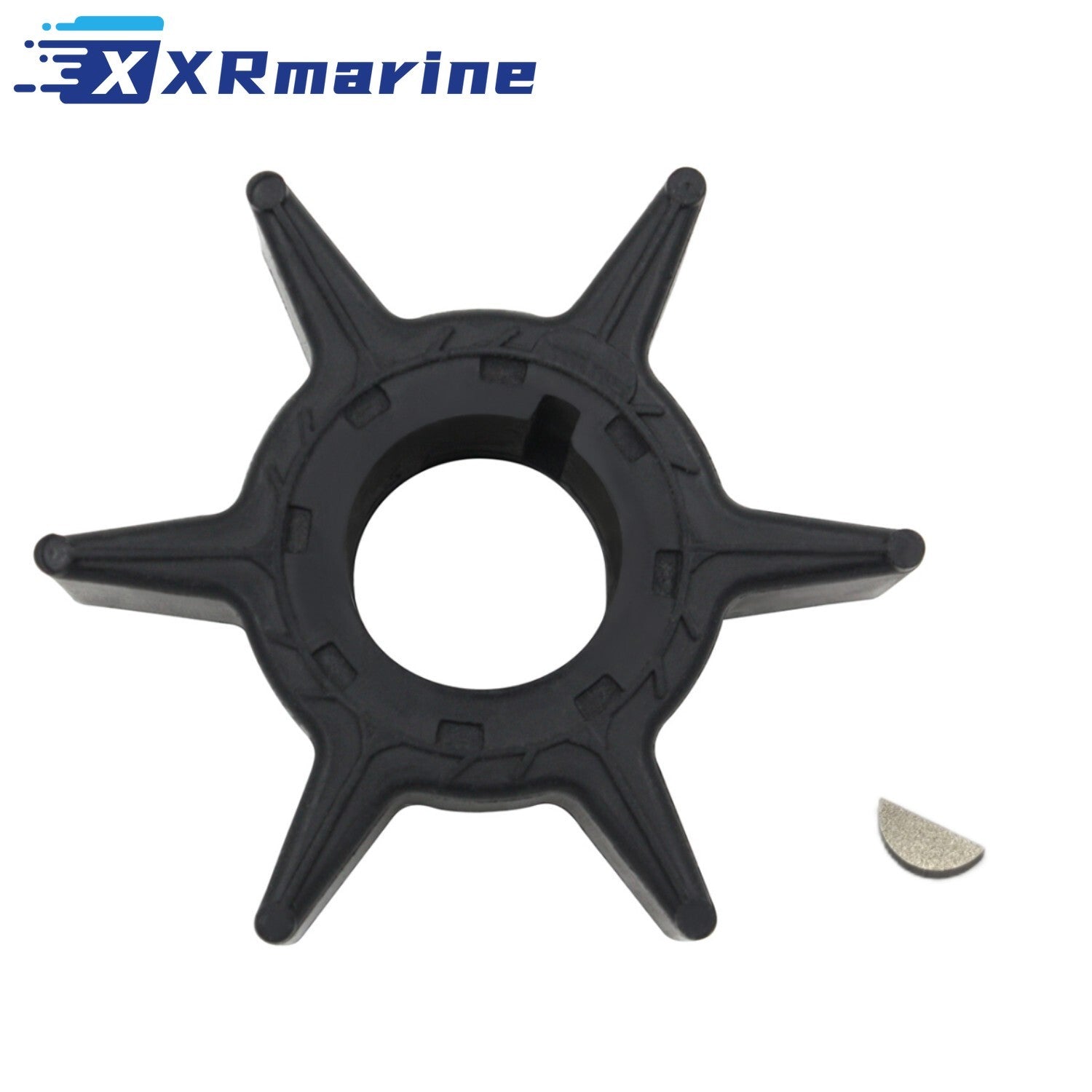

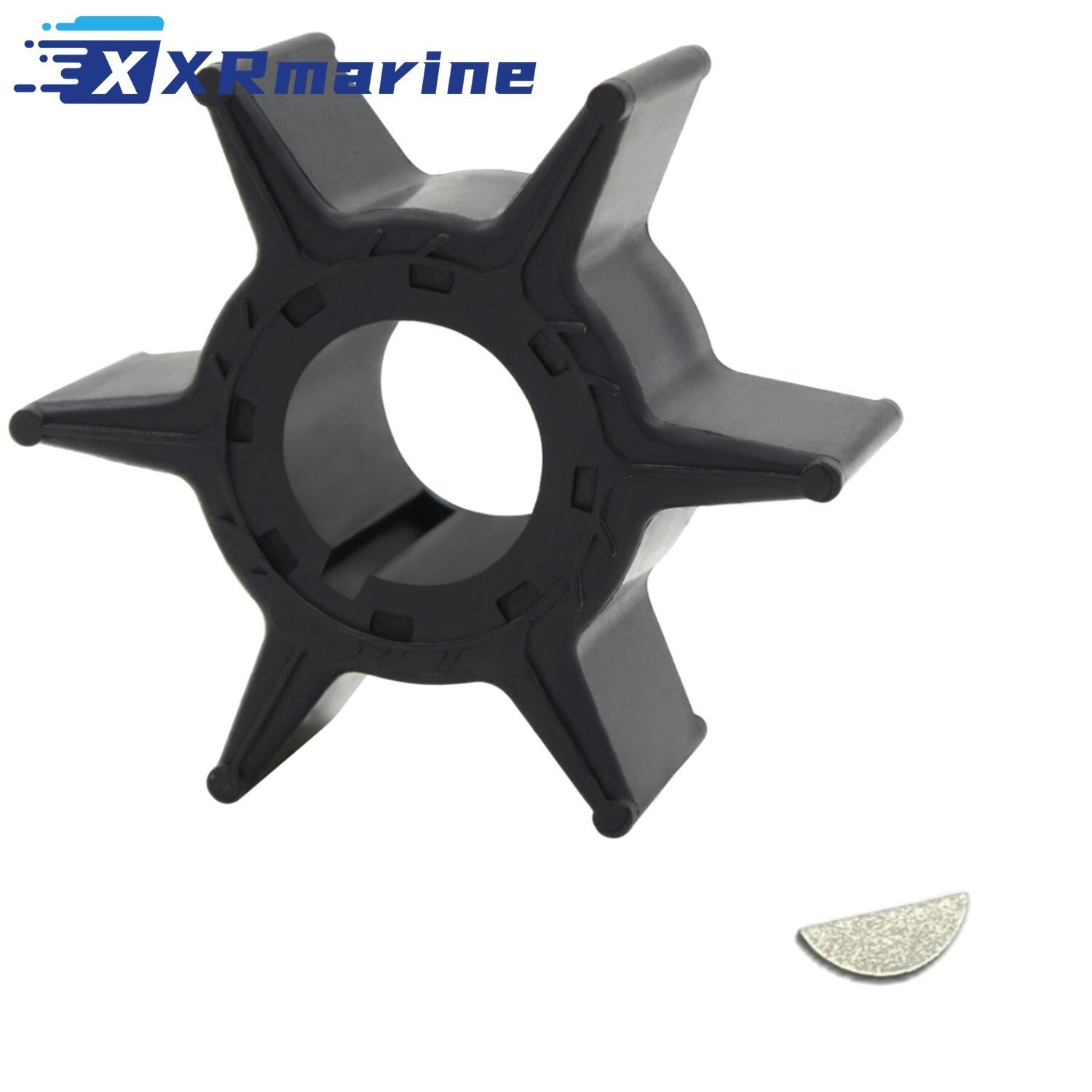

Water pump impeller kit for Yamaha 25, 30, 40 and 50 HP outboards, supplied as 1 impeller and 1 woodruff key. It replaces 6H4-44352-02, 6H4-44352-02-00, 6H4-44352-01, 6H4-44352-01-00, 6H4-44352-00, 6H4-44352-00-00, the older 676-44352-01 and Sierra 18-3068. The impeller is neoprene with 6 blades on a key drive, 51.8 mm outside diameter, 16 mm hub and 19 mm high, so it is the small-hub pump used on the 2-cylinder and 3-cylinder 25 to 50 HP gearcases. If the tell-tale is weak at idle or the engine warms up on plane, the blades are usually curled or missing and the liner is scored.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Water Pump Impeller Kit |
| Engine | Yamaha outboard, 2-stroke and 4-stroke |
| Horsepower Range | 25 HP to 50 HP |
| Outer Diameter | 51.8 mm / 2.04 in |
| Inner Diameter | 16 mm / 0.63 in |
| Height | 19 mm / 0.75 in |
| Blades | 6 |
| Shaft Type | Key drive |
| Material | Neoprene rubber |
| Quantity | 1 impeller and 1 key |
| Shipping Weight | 28 g |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Yamaha | 6H4-44352-02, 6H4-44352-02-00 |
| Yamaha | 6H4-44352-01, 6H4-44352-01-00 |
| Yamaha | 6H4-44352-00, 6H4-44352-00-00 |
| Yamaha (older) | 676-44352-01 |
| Sierra | 18-3068 |
Compatible Engines
| HP | Model | Years |
|---|---|---|
| 25 HP 3-cylinder | 25 | 1996-2002 |
| 25 HP | 25J | 1987-1989 |
| 25 HP 4-stroke | F25, F25A, F25B | 1998-2017 |
| 25 HP 4-stroke | T25 | 2001-2006 |
| 30 HP | 30, 30D | 1986-2002 |
| 30 HP 4-stroke | F30 | 2001-2005, 2013-2017 |
| 30 HP | C30 | 1993-1997 |
| 40 HP | 40N, 40H, 40E | 1984-1994 |
| 40 HP 4-stroke | F40, F40A, F40B | 2000-2017 |
| 50 HP | 50D, 50ETN | 1984-1994 |
| 50 HP | PRO 50, P50, 50 Jet | 1986-1995 |
| 20 HP 4-stroke | F20 | 1998-2005 |
Measure the old impeller if your engine is not listed. Some listings quote 51 mm or 55.48 mm outside diameter for this family, the pump must be checked against the actual gearcase before ordering.
What's Included
| Component | Qty |
|---|---|
| Water Pump Impeller | 1 |
| Woodruff Key | 1 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Before You Buy
- Check the gearcase model, not just the horsepower, several 30 HP families use different pumps
- This impeller will not fit CV models
- Inspect the pump liner and wear plate for grooves before fitting
- Grease the liner and turn the shaft by hand to seat the blades
- Check the tell-tale on muffs before launching
