Product Overview

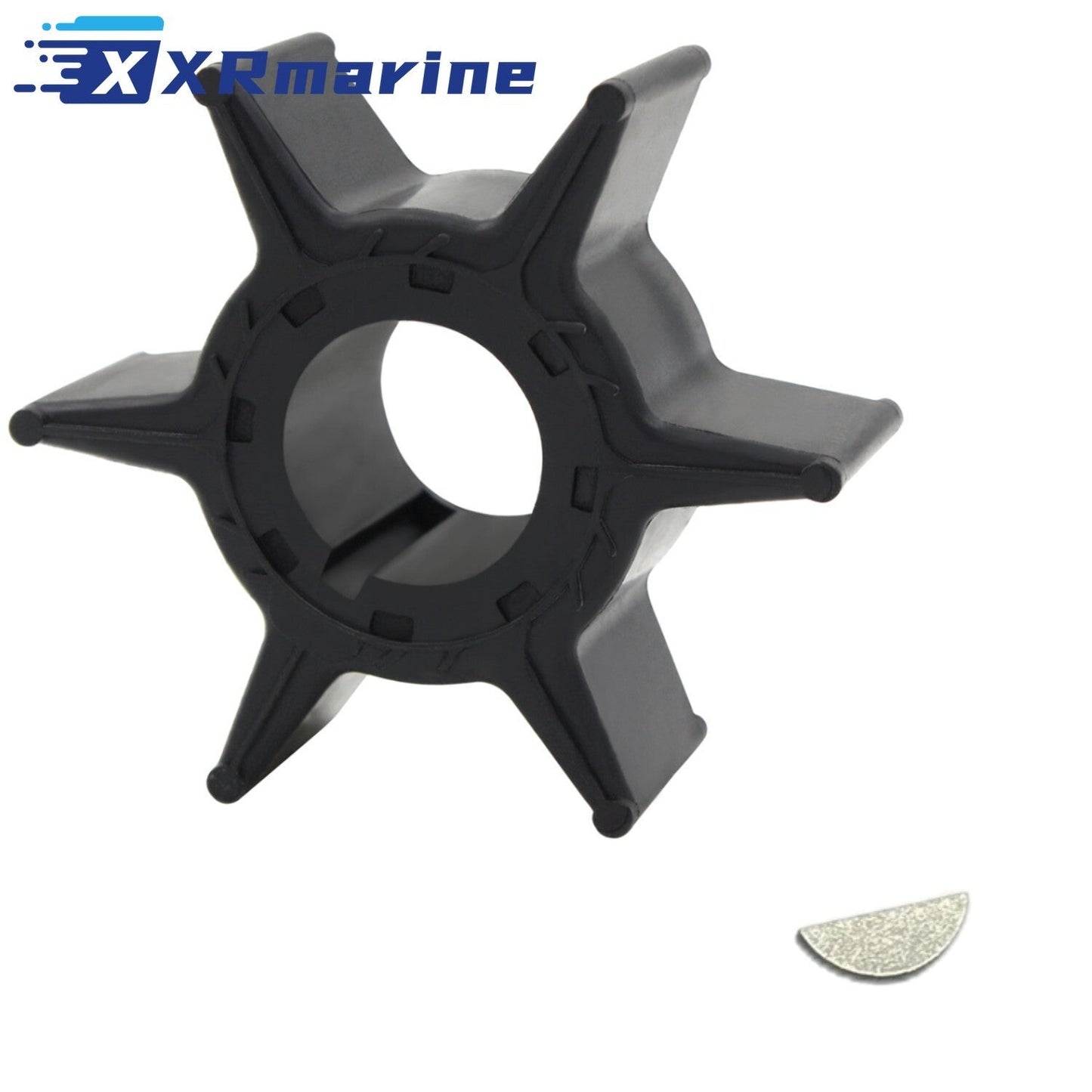

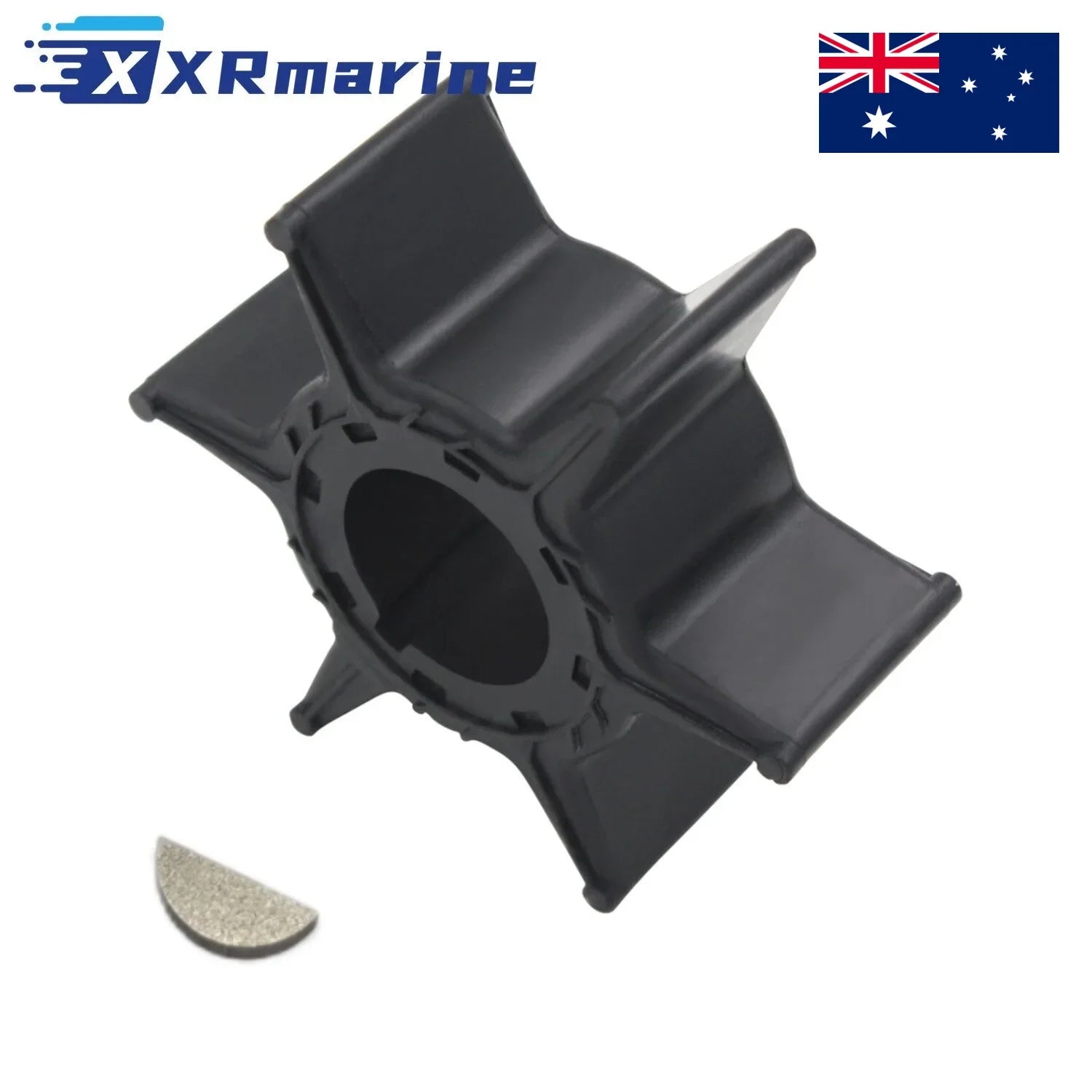

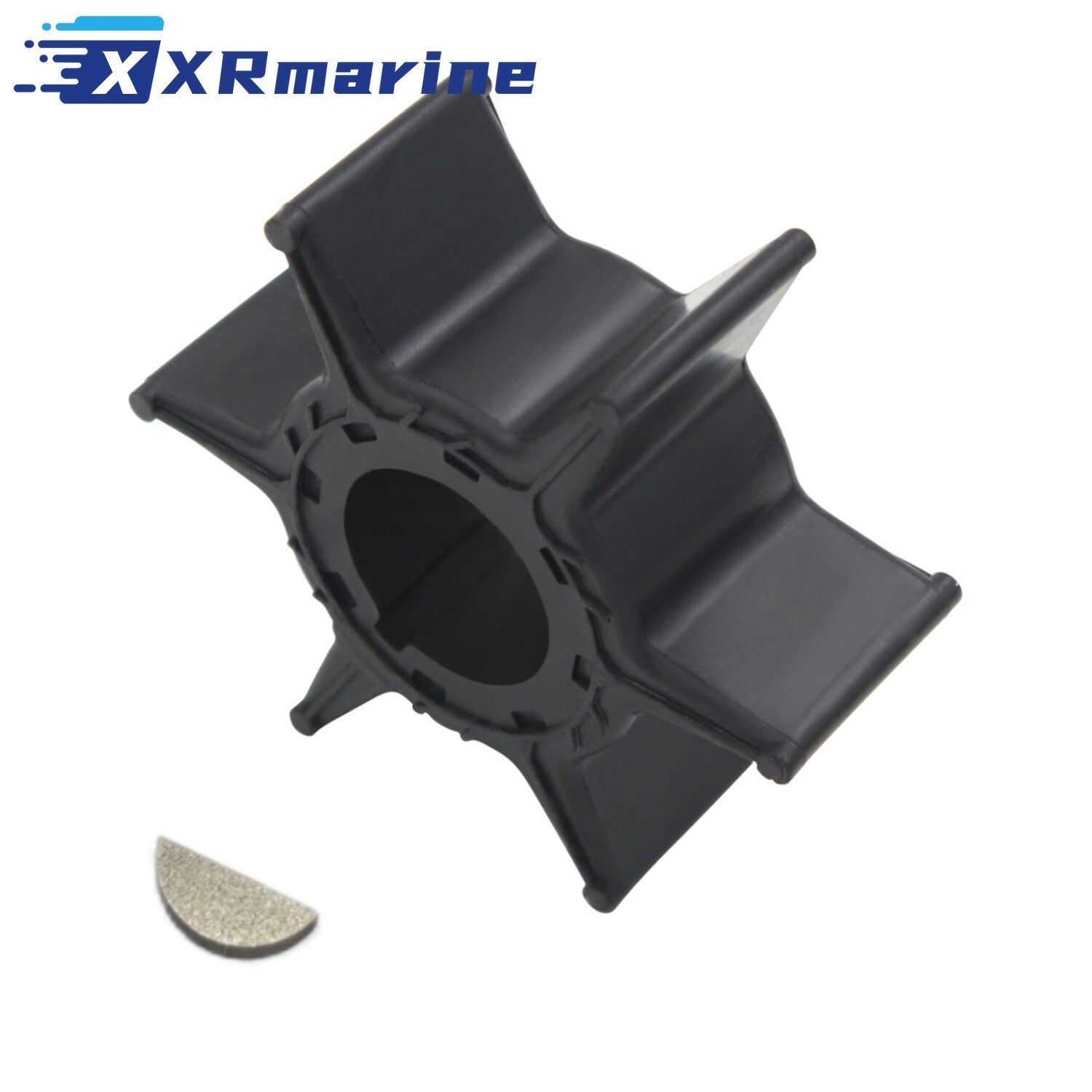

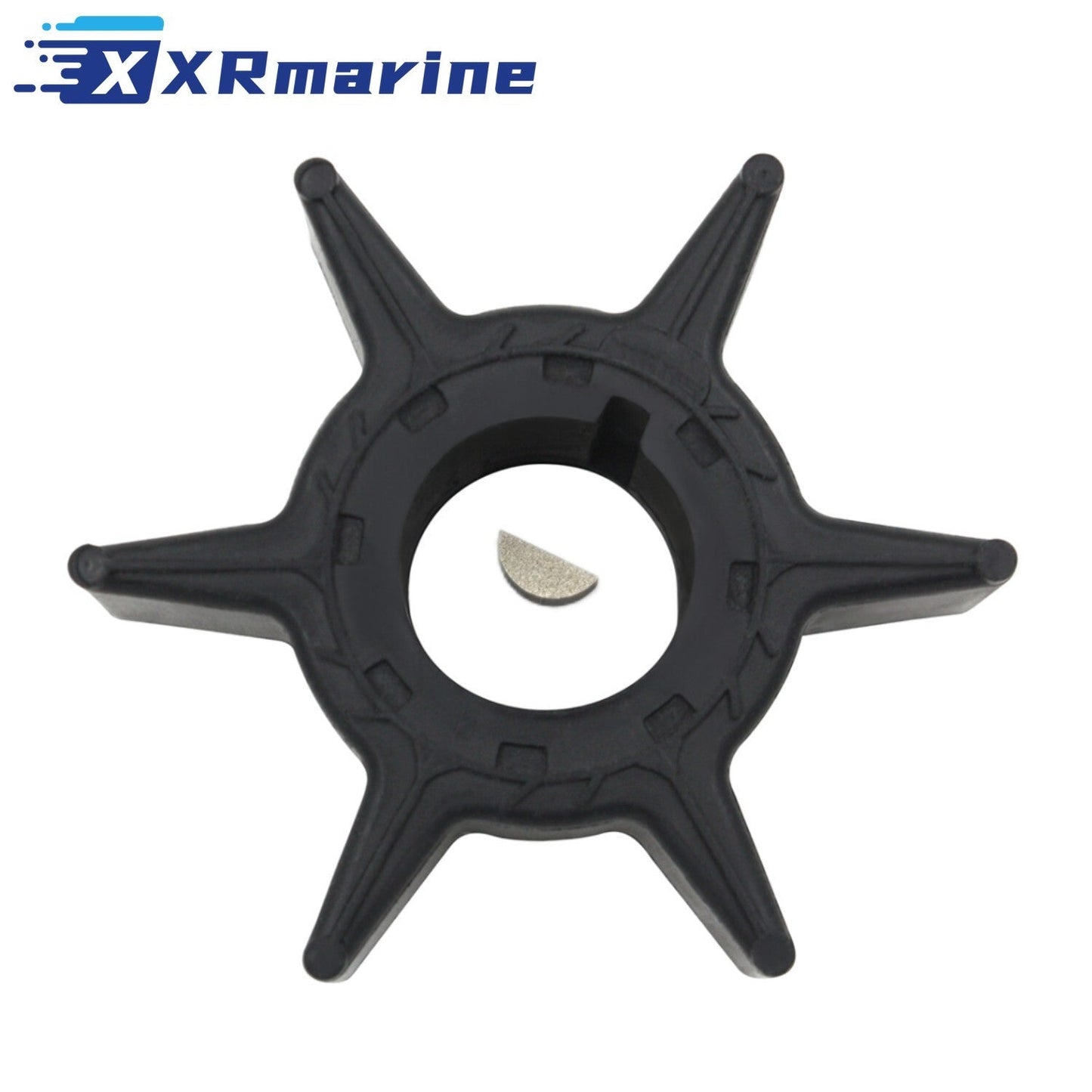

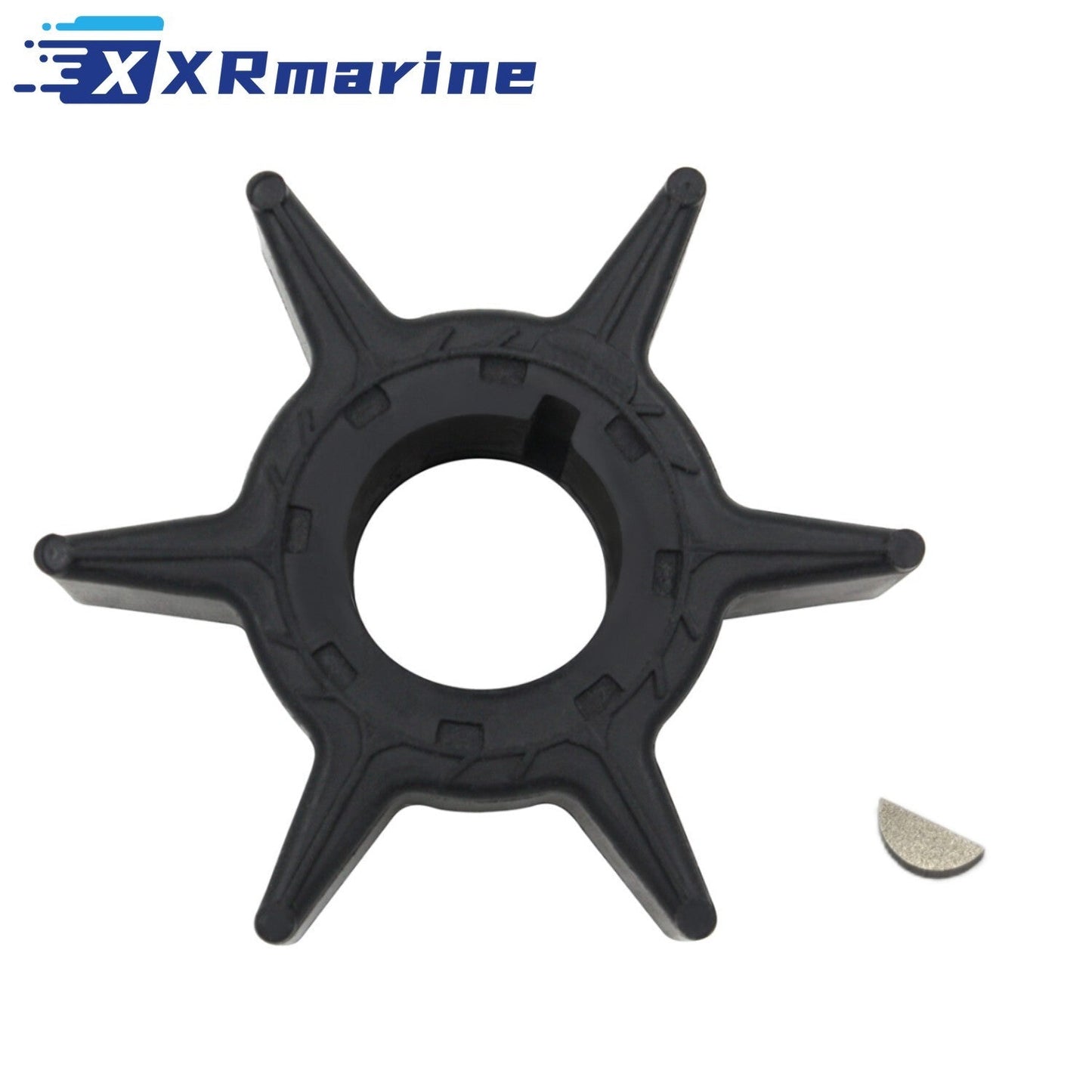

Water pump impeller kit with key for Yamaha 25 HP to 50 HP outboards, supplied as 1 impeller and 1 woodruff key. It measures 51.8 mm (2.04 in) outside diameter, 16 mm (0.63 in) at the hub and 19 mm (0.75 in) high, with 6 neoprene blades on a key drive, 28 g. It replaces Yamaha 6H4-44352-02, 6H4-44352-01 and 6H4-44352-00, the older 676-44352-01, and crosses to Sierra 18-3068. Held in our Australia local warehouse.
This is the small-hub pump used on the 2-cylinder and 3-cylinder gearcases, not the larger pump on the 60 HP and up motors. The key is in the box because a sheared or missing key turns a good impeller into a useless one, and it is the part people forget to order.
The failure mode on these motors is quiet. The blades curl and set before they break, so the pump still moves water at planing speed and starves the motor at idle and on a long run at part throttle.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Water pump impeller kit |
| Engine | Yamaha outboard, 2-stroke and 4-stroke |
| Horsepower Range | 25 HP to 50 HP (25HP, 30HP, 40HP, 50 HP) |
| Outer Diameter | 51.8 mm (2.04 in) |
| Inner Diameter | 16 mm (0.63 in) |
| Height | 19 mm (0.75 in) |
| Blades | 6 |
| Shaft Type | Key drive |
| Material | Neoprene rubber |
| Quantity | 1 impeller and 1 woodruff key |
| Shipping Weight | 28 g |
| Listing Barcode | 784283027038 |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Yamaha | 6H4-44352-02, 6H4-44352-02-00 |
| Yamaha | 6H4-44352-01, 6H4-44352-01-00 |
| Yamaha | 6H4-44352-00, 6H4-44352-00-00 |
| Yamaha older | 676-44352-01 |
| Sierra | 18-3068 |
Compatible Engines
| Model | Horsepower | Stroke | Years |
|---|---|---|---|
| 25 HP 3-cylinder | 25 HP | 2-stroke | 1996-2002 |
| 25J | 25 HP | 2-stroke | 1987-1989 |
| F25, F25A, F25B | 25 HP | 4-stroke | 1998-2017 |
| T25 | 25 HP | 4-stroke | 2001-2006 |
| 30, 30D | 30 HP | 2-stroke | 1986-2002 |
| F30 | 30 HP | 4-stroke | 2001-2005, 2013-2017 |
| C30 | 30 HP | 2-stroke | 1993-1997 |
| 40N, 40H, 40E | 40 HP | 2-stroke | 1984-1994 |
| F40, F40A, F40B | 40 HP | 4-stroke | 2000-2017 |
| 50D, 50ETN | 50 HP | 2-stroke | 1984-1994 |
| PRO 50, P50, 50 Jet | 50 HP | 2-stroke | 1986-1995 |
| F20 | 20 HP | 4-stroke | 1998-2005 |
What's Included
| Component | Qty |
|---|---|
| Water pump impeller, 6 blade | 1 |
| Woodruff key | 1 |
Weak Telltale, Warm Motor
| What You See | What It Means | What to Do |
|---|---|---|
| Telltale weak at idle, strong on plane | Blades curled, flow too low at low rpm | Renew the impeller and key |
| Motor warms on a long run | Part-throttle flow below spec | Check the impeller before the thermostat |
| Telltale fine on muffs, weak on water | Hose pressure hiding the pump | Judge the stream at idle, afloat |
| Sand or mud through the pump | Blade tips scuffed, liner scored | Renew the impeller, check the liner |
| Key sheared or missing | Impeller spinning without the shaft | Fit the new key from the kit |
| Liner grooved from old wear | New blades cut down in a season | Renew the liner with the impeller |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Check the gearcase model as well as the horsepower, several 30 HP families use a different pump |
| 2 | Measure the old impeller at 51.8 mm outside diameter before ordering a replacement |
| 3 | Drain the gearcase oil and look for water or metal before splitting the lower unit |
| 4 | Note the blade direction as the housing lifts off |
| 5 | Check the liner and wear plate for grooves, and the drive key for shear |
| 6 | Grease the liner and the key, then turn the shaft by hand to seat the blades |
| 7 | Fit a new gasket and seat the housing evenly, tightening the bolts in stages |
| 8 | Run on muffs and confirm a strong telltale before the boat leaves the ramp |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Australia
| Destination | Warehouse | Note |
|---|---|---|
| Australia | Australia local warehouse | Domestic delivery, no import duty |
| New Zealand | Australia local warehouse | Short transit, customs may apply |
| Asia Pacific | Australia local warehouse | Tracked air and sea options |
Before You Buy
- Check the gearcase model as well as the horsepower, several 30 HP families use a different pump
- This impeller does not fit the CV models
- Measure the old impeller at 51.8 mm outside diameter, some listings quote other figures for this family
- Inspect the pump liner and wear plate for grooves before fitting
- Grease the liner and turn the shaft by hand to seat the blades
- The kit includes one woodruff key, check whether the old key is still in the shaft
- This is the impeller and key, the housing, liner and gasket are not included
- 30-Day Easy Returns
- Ships from our Australia local warehouse
