Honda Water Pump Repair Kit

Application

This guide is to be used as a reference only. You must verify fitment using your model or serial number.

Package Includes

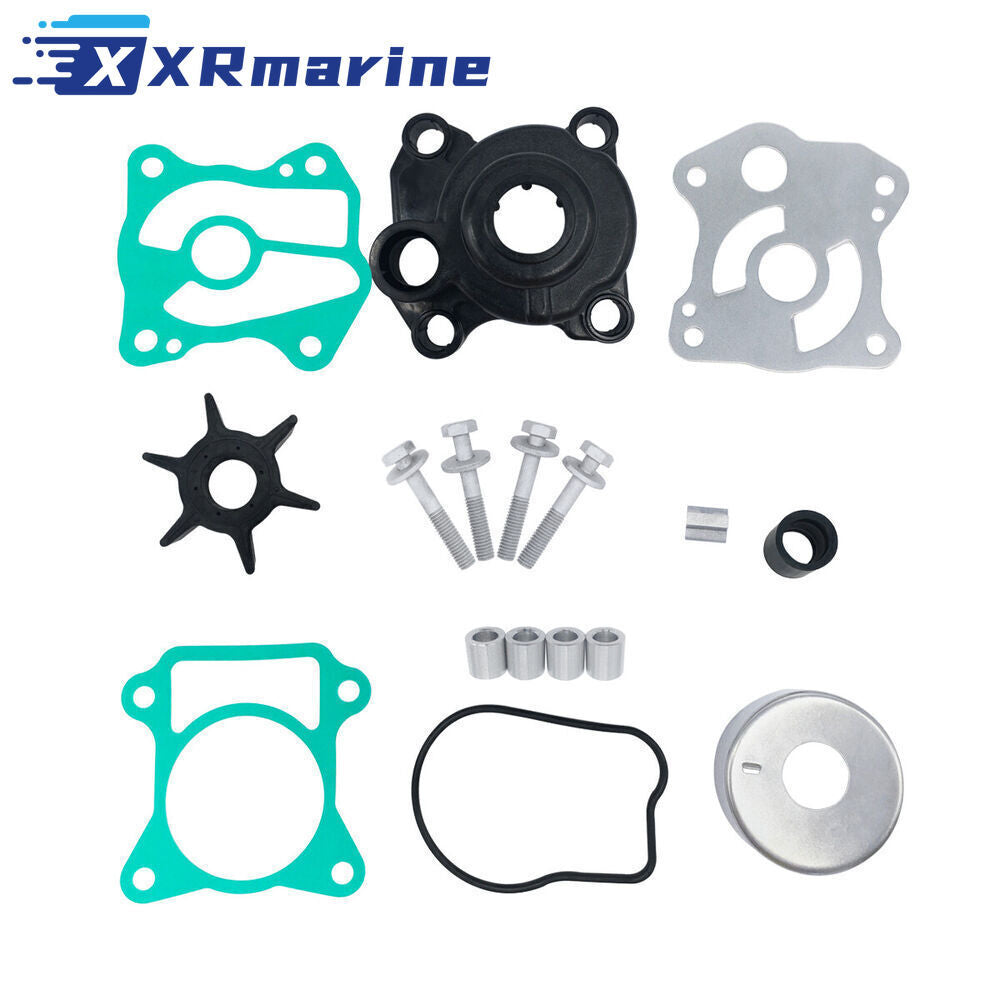

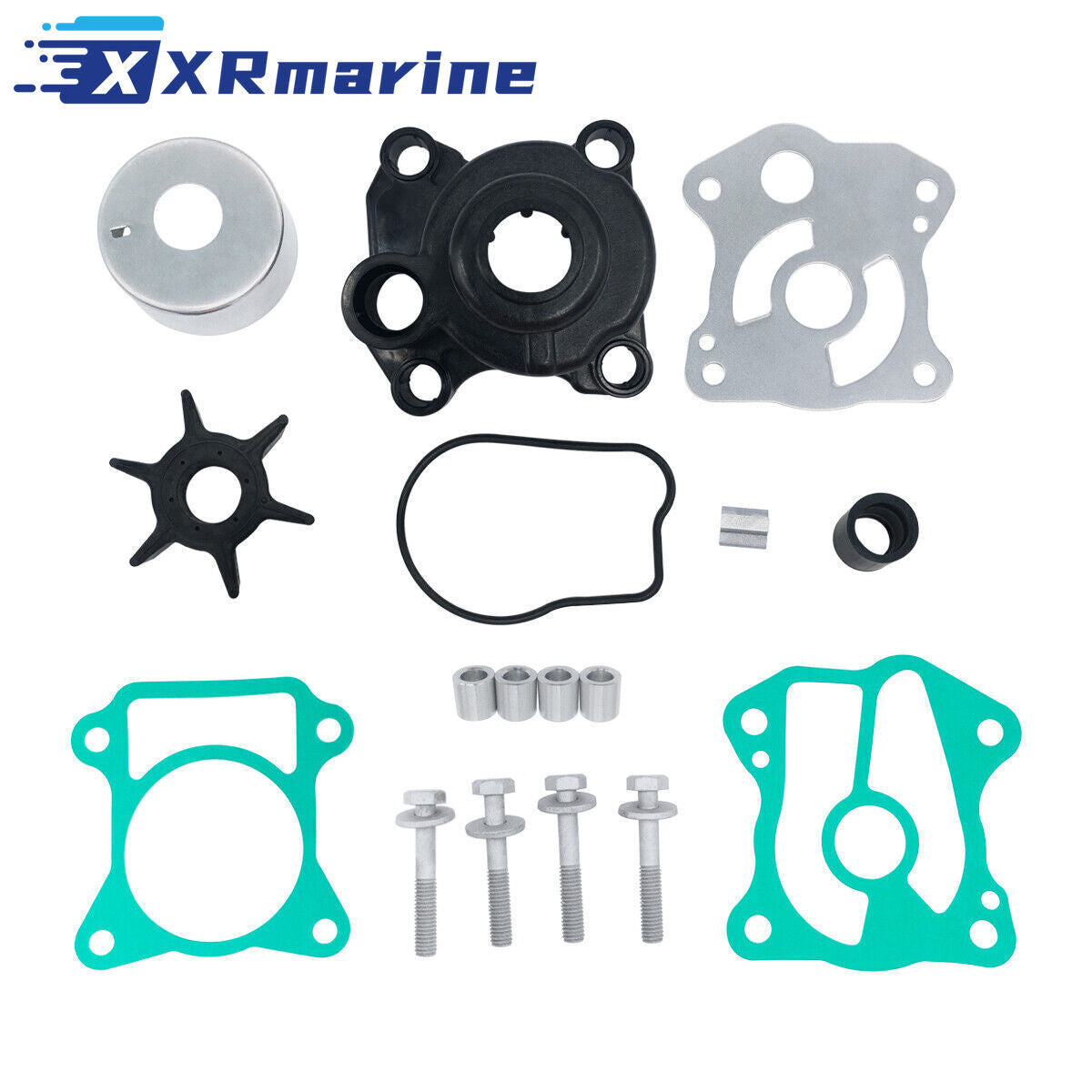

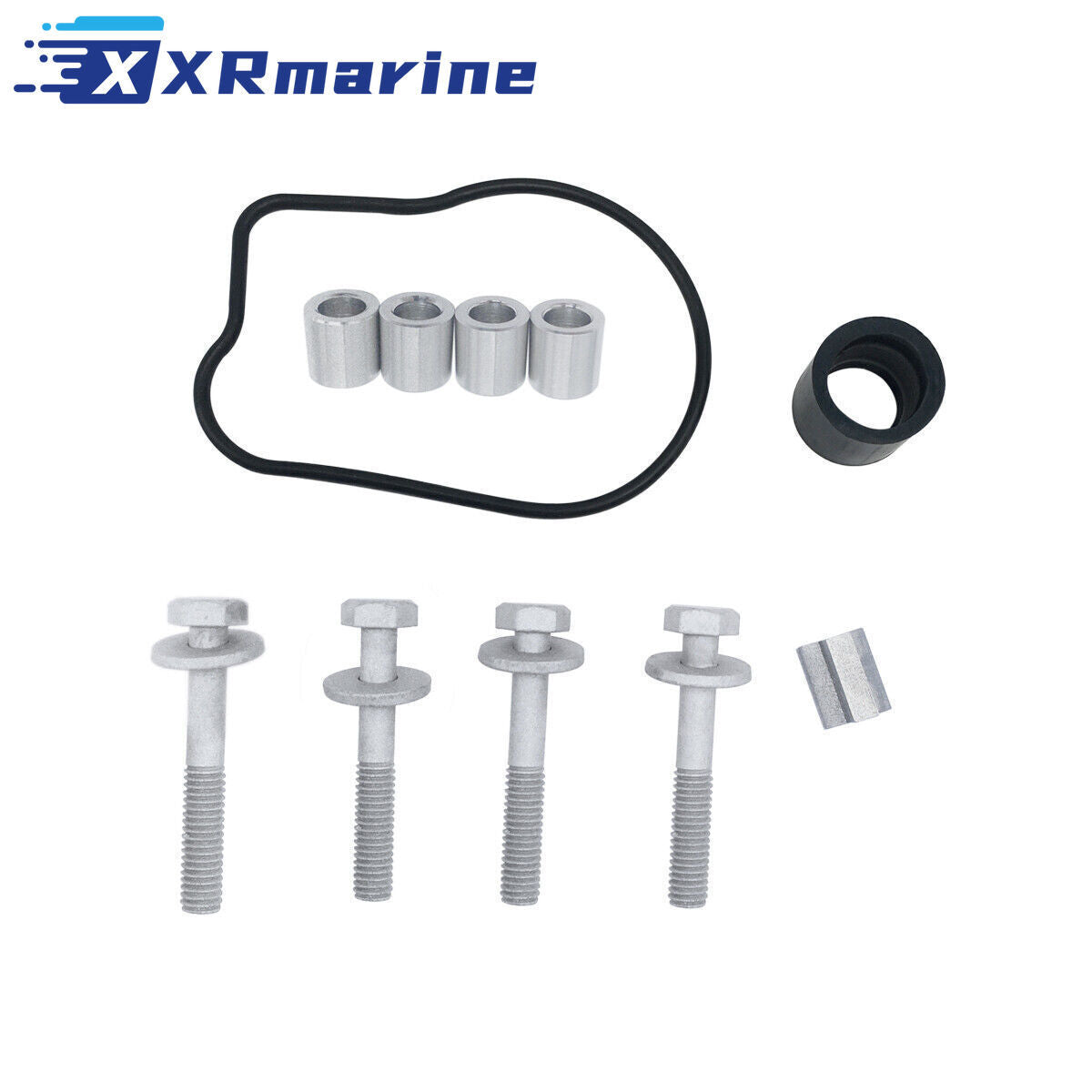

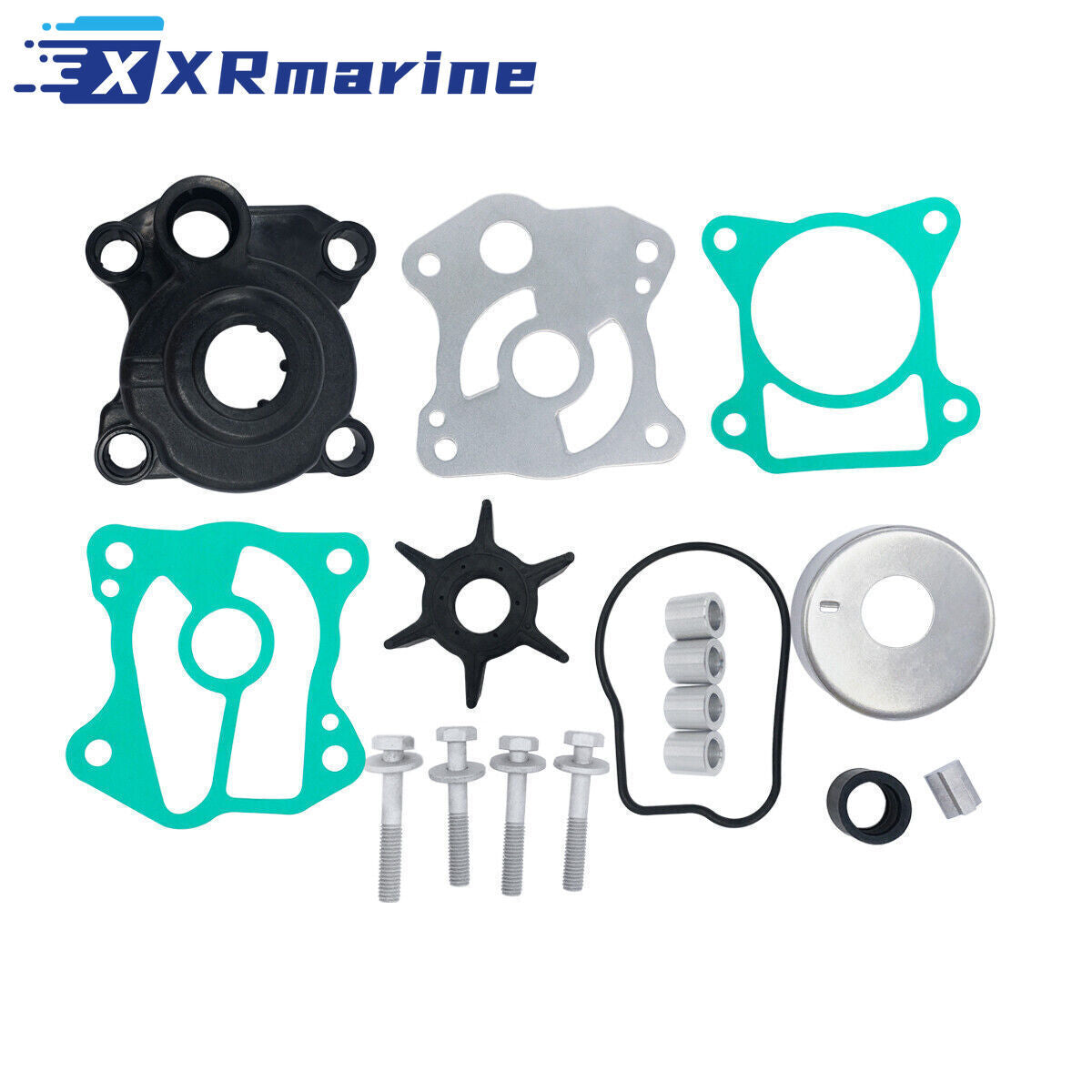

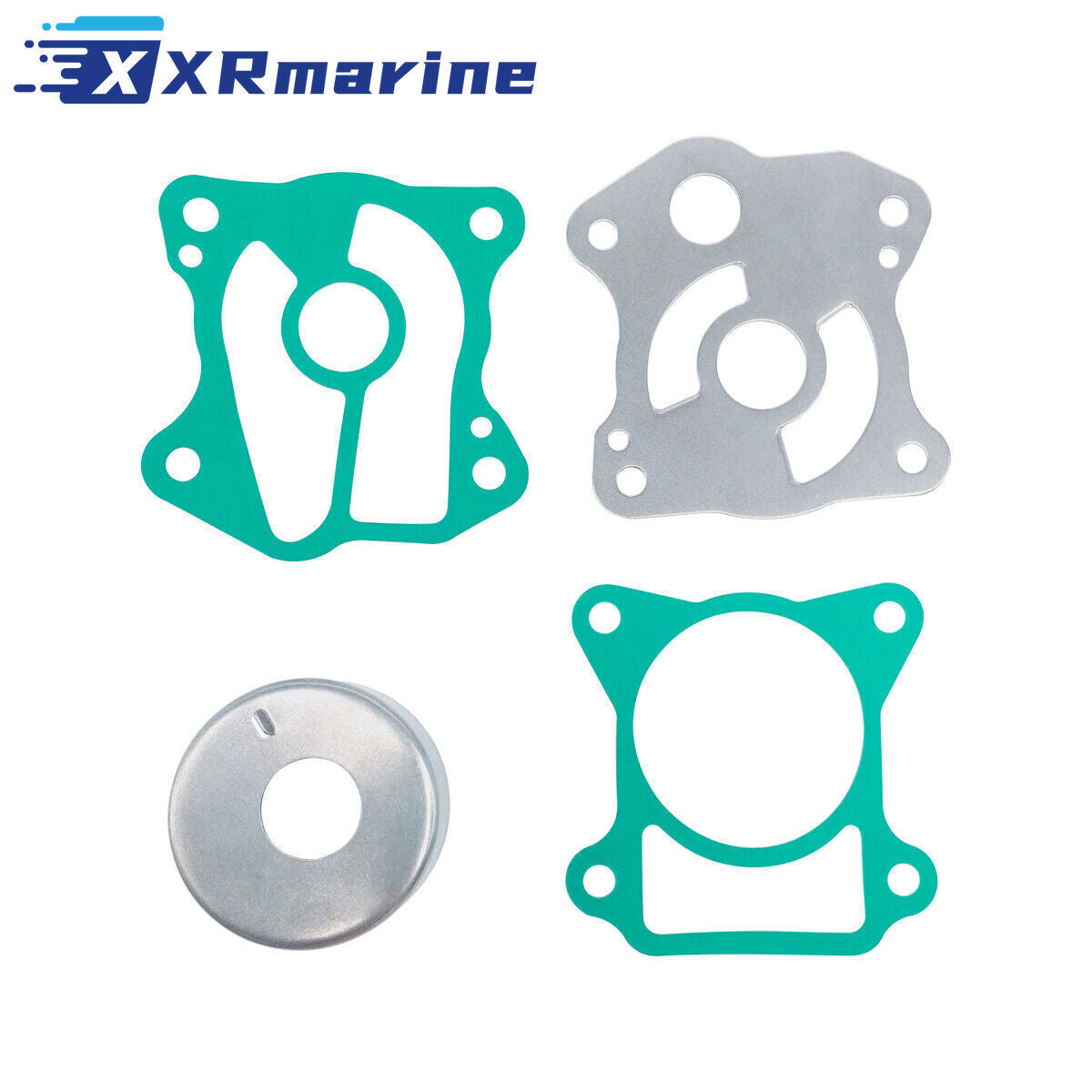

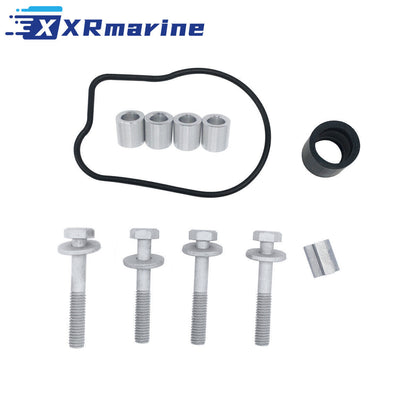

The package contains all the parts shown in the picture.

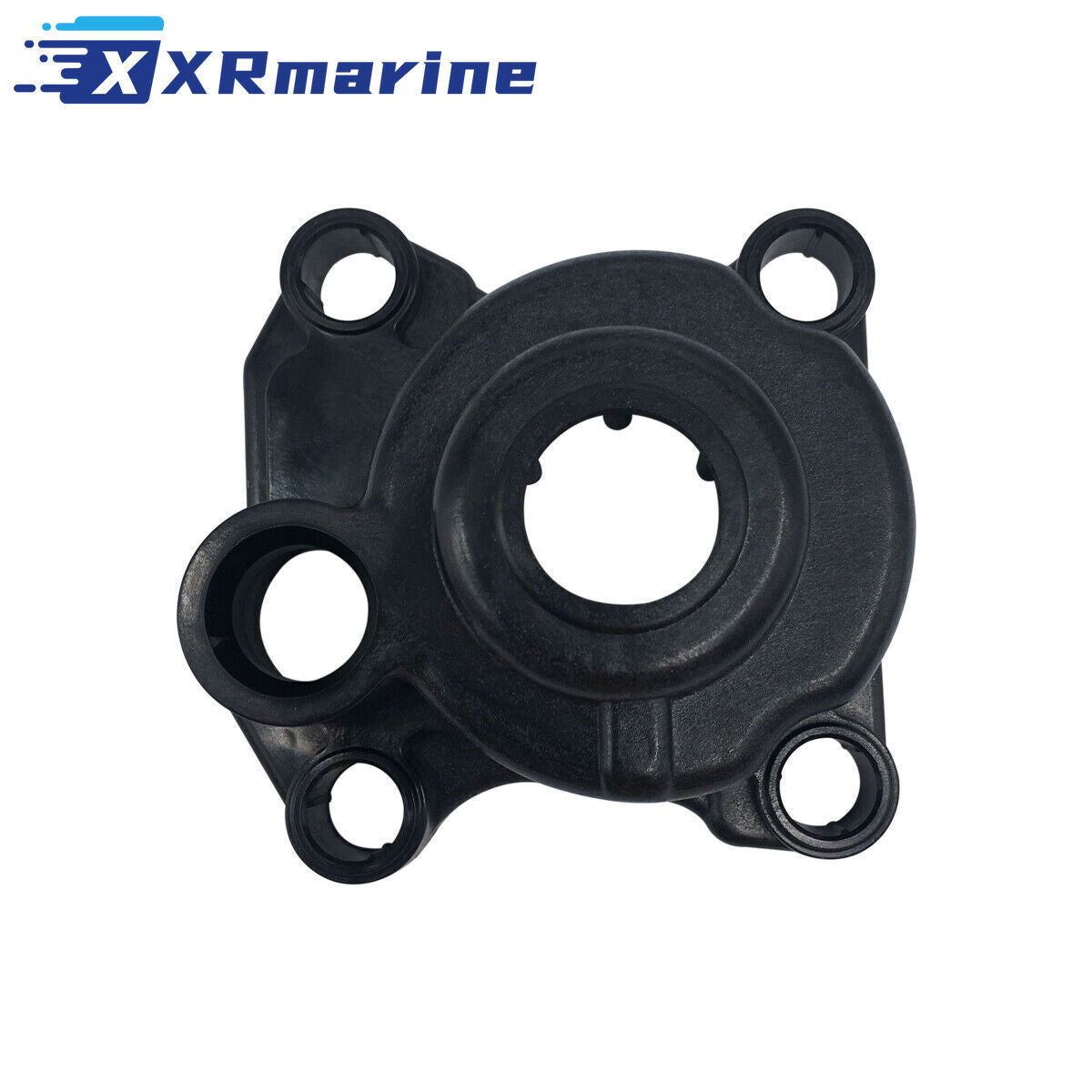

Impeller Housing 19221-ZV5-000 Housing Insert 19223-ZV5-000 Impeller Gasket 19233-ZV5-000 Impeller Gasket 19242-ZV5-000 Water Pump Seal 91356-ZV5-000 Impeller Wear Plate 19231-ZV5-000 Impeller 19210-ZV5-003 Bolts (4x) 90103-ZY1-000 Collar (4x) 91555-ZV5-000 Water Tube Seal 19253-ZV5-000 Impeller Key 90752-ZV5-003 Fitment Honda BF35A Honda BF40A Honda BF45A Honda BF50A Honda BF50D Replacement Water pump replacement/repair kit For Honda # 06193-ZV5-020 40/50 HP Outboard Motors Product Details Outer diameter: 54.86mm Inner diameter: 17.04mm Depth/Height/Width: 19.95mm Number of Blades: 6 Shaft Type: Key Drive Material: Neoprene rubber Important Note

To find the right part for your outboard, it is VERY IMPORTANT to verify outboard model or serial number before purchase. You can leave us message e.g. your outboard engine parts model, serial number, horsepower or year if you are not confirmed this part fits your outboard motor or not. We're pleasure to help you.
