Impeller Kit 46-96148Q8 for Mercury Mariner 75 135 150 200 HP and Mercruiser Alpha MC1
Impeller Kit 46-96148Q8 for Mercury Mariner 75 135 150 200 HP and Mercruiser Alpha MC1
Product Overview
Water pump impeller kit for Mercury Mariner 75 HP to 225 HP outboards and Mercruiser Alpha and MC1 sterndrives, supplied as 1 x housing, 1 x impeller, 1 x wear plate, 1 x water tube guide, 2 x drain screw gaskets and 6 x O-rings, replacing 46-96148A8, 46-96148Q8, 46-96148A5 and 46-96148T8.
One kit covers both sides of the Mercury range because the pump body is shared. The same housing, impeller and wear plate sit on the V6 outboards from 75 HP up and on the Alpha and MC1 sterndrives, so the number you will find on your old housing is usually 46-96148 in one of its suffixes.
The kit is complete down to the O-rings and the drain screw gaskets, which matters on a sterndrive where the pump sits behind the gear housing and a reused seal will let water into the oil. Do the whole set in one go while the lower unit is off.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Water pump impeller kit |
| Application | Mercury Mariner outboards, Mercruiser Alpha and MC1 sterndrives |
| Housing | 1 x, 46-96148A1 |
| Impeller | 1 x, 47-89984 series |
| Net Weight | 380 g |
| Pack Size | 15 x 10 x 8 cm |
| Country of Origin | Taiwan |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Mercury / Mariner | 46-96148A8, 46-96148A5 |
| Mercury / Mariner | 46-96148Q8, 46-96148T8 |
| Mercury / Mariner | 46-32437A1, 46-37433A1 |
| Mercury / Mariner | 46-42579A4, 46-44292A4 |
| Mercury / Mariner | 46-48747A3, 46-57234A3 |
| Mercury / Mariner | 46-58618A4, 46-60367A1 |
| Mercury / Mariner | 46-60367A4, 46-64141A11 |
| Mercury / Mariner | 46-69222A3, 46-73802A3 |
| Mercury / Mariner | 46-73804A3, 46-78400A2 |
| Mercruiser | 46-32437A3, 46-37433A1, 46-96148A8 |
| Sierra | 18-3517, 18-3319, 18-3314, 18-3316 |
| GLM | 12280 |
| Mallory | 9-48311 |

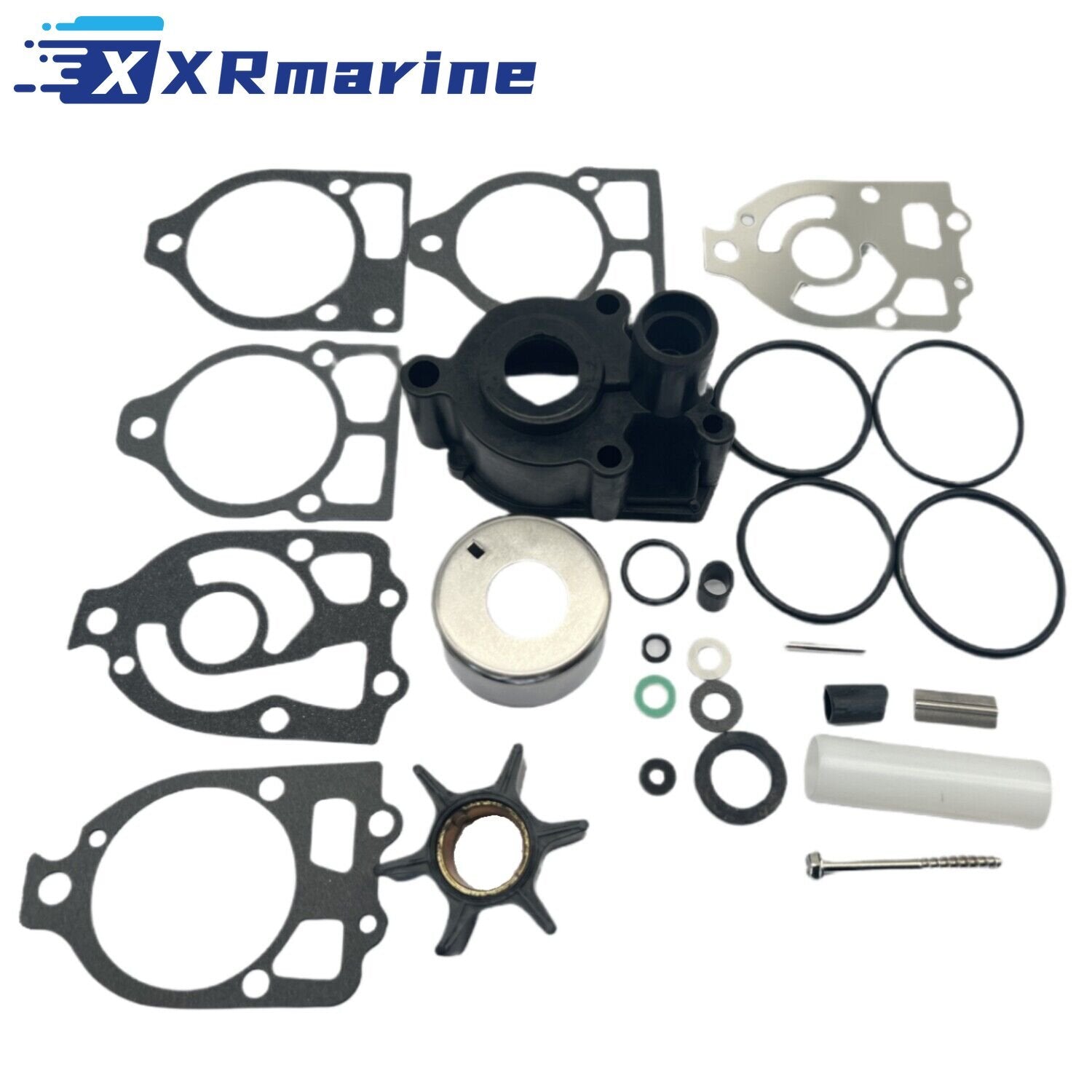

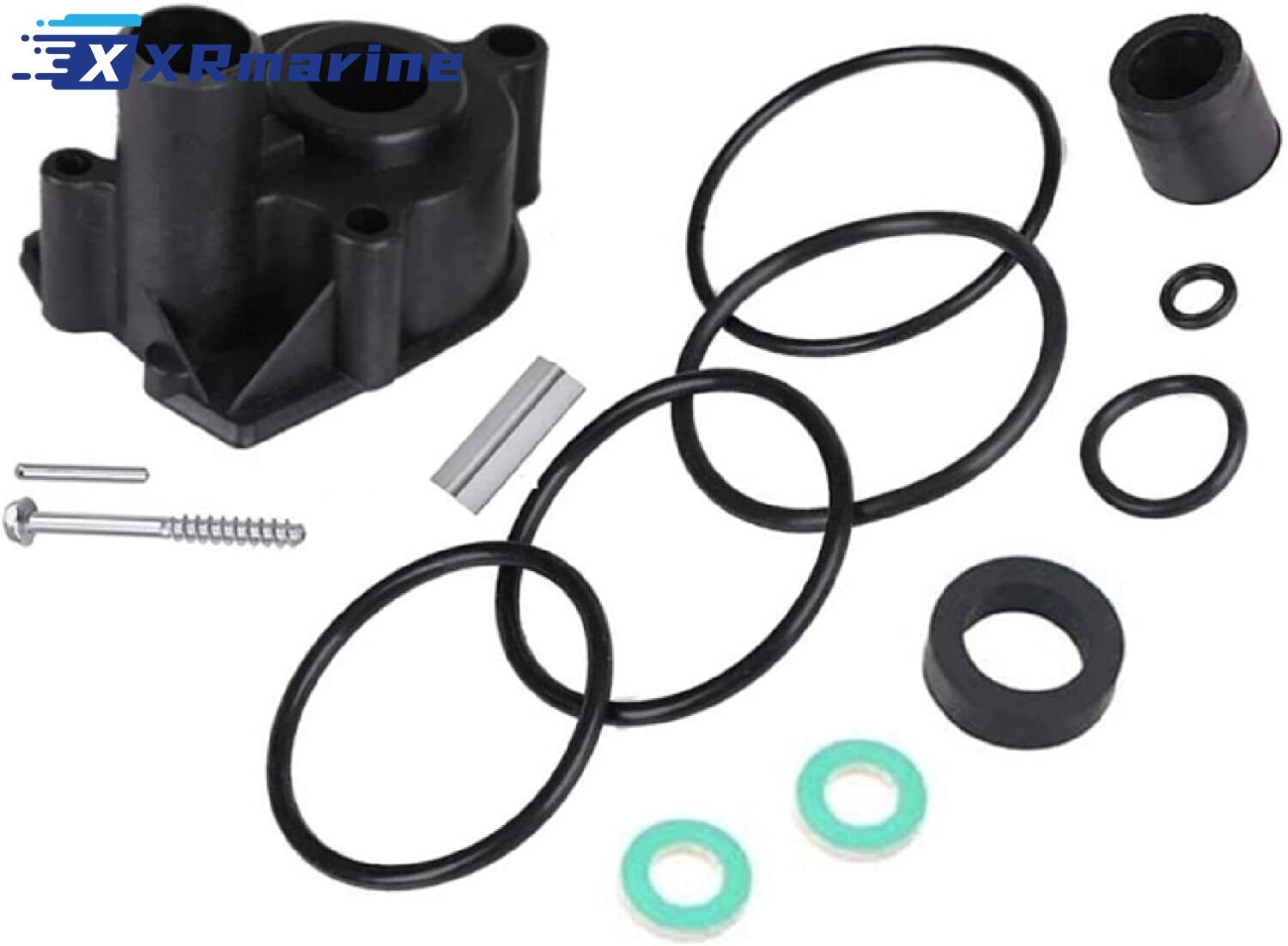

What's Included
| Component | OEM Number | Qty |
|---|---|---|

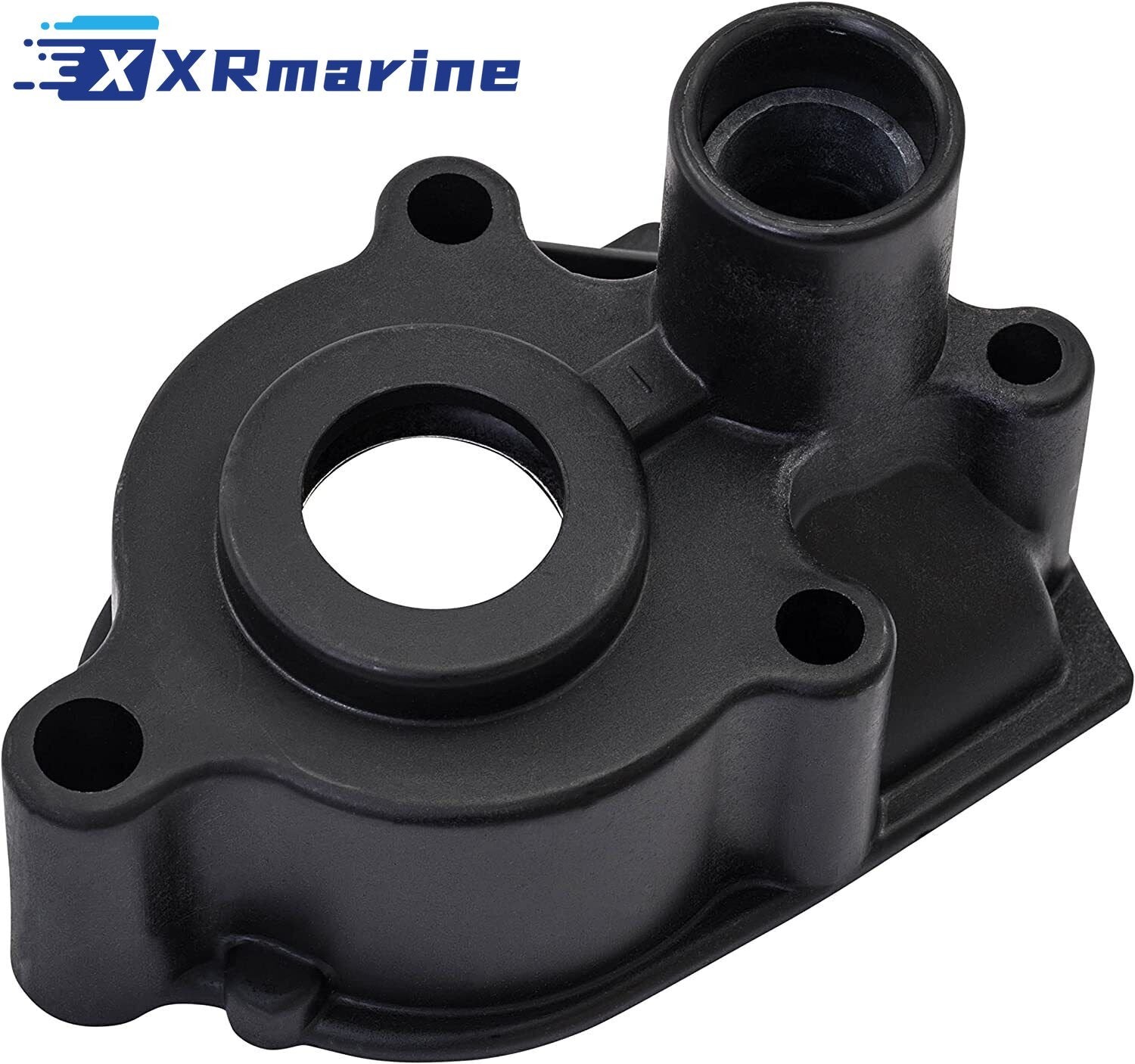

| Water pump housing | 46-96148A1, 46-96148T1 | 1 |
| Water pump impeller | 46-89984, 47-89984, 47-89984T3, 47-89984T4, 47-30221, 47-65960 | 1 |
| Impeller sub-assembly alternates | 47-803631T, 47-F694065 | 1 |
| Water tube guide | 23-29804, 32-29804T | 1 |
| Pump base to gear housing gasket | 27-42631-1 | 1 |
| Pump base to gear housing gasket | 27-85610-1 | 1 |
| Pump base to gear housing gasket | 27-32438 | 1 |
| Impeller wear plate | 32435 | 1 |
| Wear plate gasket, lower | 27-85608-1 | 1 |
| Wear plate gasket, upper | 27-85609-1 | 1 |
| Water tube grommet | 26-38970 | 1 |
| Oil passage seal | 26-45577 | 1 |
| Drain screw gasket | 12-19183 | 2 |
| O-ring | 25-30613, 25-33145 | 2 |
| O-ring | 25-30224, 25-90011 | 2 |
| O-ring | 25-38099, 25-30271 | 2 |
| Bolts and seal set | As per photograph | 1 |
| Mounting key, 130K | 56654 | 1 |
Compatible Engines
| Family | Coverage |
|---|---|
| Mercury outboards | 80 HP to 200 HP DFI, by serial range below |
| Mariner outboards | 75 HP to 220 HP, by model year below |
| Mercruiser sterndrives | 120, 140, 165, 485, Alpha and MC1 by ratio below |
Mercury Outboard Serial Ranges
| Horsepower | Serial Range |
|---|---|
| 80 HP | 4831999 thru 9256130 |
| 90 HP | 4845301 thru 7123762 |
| 115 HP | 4855153 thru 8061269 |
| 140 HP | 4865678 and up |
| 150 HP DFI | 1B690542 thru 2B535572, Pro XS 1B690542 and up |
| 175 HP DFI Pro XS | 1B516339 thru 2B535624 |
| 200 HP DFI XS ROS | 1E050852 and up |
Mariner Outboards
| Horsepower | Years |
|---|---|
| 75 HP | 1985 |
| 90 HP | 1984 to 1986 |
| 115 HP | 1980, 1984 to 1987 |
| 135 HP | 1986 |
| 150 HP | 1986 to 1987 |
| 175 HP | 1979 to 1980, 1985 to 1986, 1991 |
| 200 HP | 1980, 1982 to 1987, 1991 |
| 220 HP | 1979 onward, V6 block |
Mercruiser Sterndrive Models
| Model | Years |
|---|---|
| 120 | 1978 |
| 140 | 1978 |
| 165 | 1978 to 1981 |
| 485 | 1980 to 1982 |
| ALPHA 1.32:1 | 1988 to 1990 |
| ALPHA 1.47:1 | 1990 |
| ALPHA 1.50:1 | 1988 to 1990 |
| ALPHA 1.62:1 | 1990 |
| ALPHA 1.65:1 | 1988 to 1991 |
| ALPHA 1.81:1 | 1990 |
| ALPHA 1.84:1 | 1988 to 1990 |
| ALPHA 1.94:1 | 1990 |
| ALPHA 1.98:1 | 1988 to 1990 |
| ALPHA Transom | 1990 |
| MC1 1.32:1 | 1983 to 1987 |
| MC1 1.47:1 | 1987 |
| MC1 1.50:1 | 1982 to 1987 |
| MC1 1.81:1 | 1987 |
| MC1 1.84:1 | 1982 to 1987 |
| MC1 1.94:1 | 1987 |
| MC1 1.98:1 | 1982 to 1987 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Before You Buy
- Check the number on the pump housing, 46-96148 is the family this kit replaces
- Check the drive ratio on the sterndrive, all the Alpha and MC1 ratios listed use this pump
- Check the serial range on the outboard, the list above is the guide for the 75 to 225 HP V6
- Check the gear housing for scoring and the water tube for a swollen grommet seat
- Fit the impeller with the blades folded in the direction of rotation and a smear of glycerine only
- Replace the drain screw gaskets and pressure test the gear housing before refilling
- Check the gear oil after the first run, milky oil means a seal was missed
