Water Pump Impeller Kit 17400-98551 for Suzuki DT6 DT8 Outboard 18-3259
Water Pump Impeller Kit 17400-98551 for Suzuki DT6 DT8 Outboard 18-3259
Product Overview
Water pump impeller kit part for Suzuki DT6 and DT8 two stroke outboards, replacing kit 17400-98551 and 17400-98550 and crossing to Sierra 18-3259. It is supplied as 1 x impeller, 1 x plate, 1 x gasket and 1 x drive key, which is the full pump rebuild rather than the rubber alone.
The impeller inside the kit is the 6 blade part measuring 40.85 mm outside diameter, 9.75 mm at the shaft and 13.75 mm high. It is the same impeller used across the small Suzuki range, so the kit is the DT6 and DT8 version with the plate and gasket that those two models need.

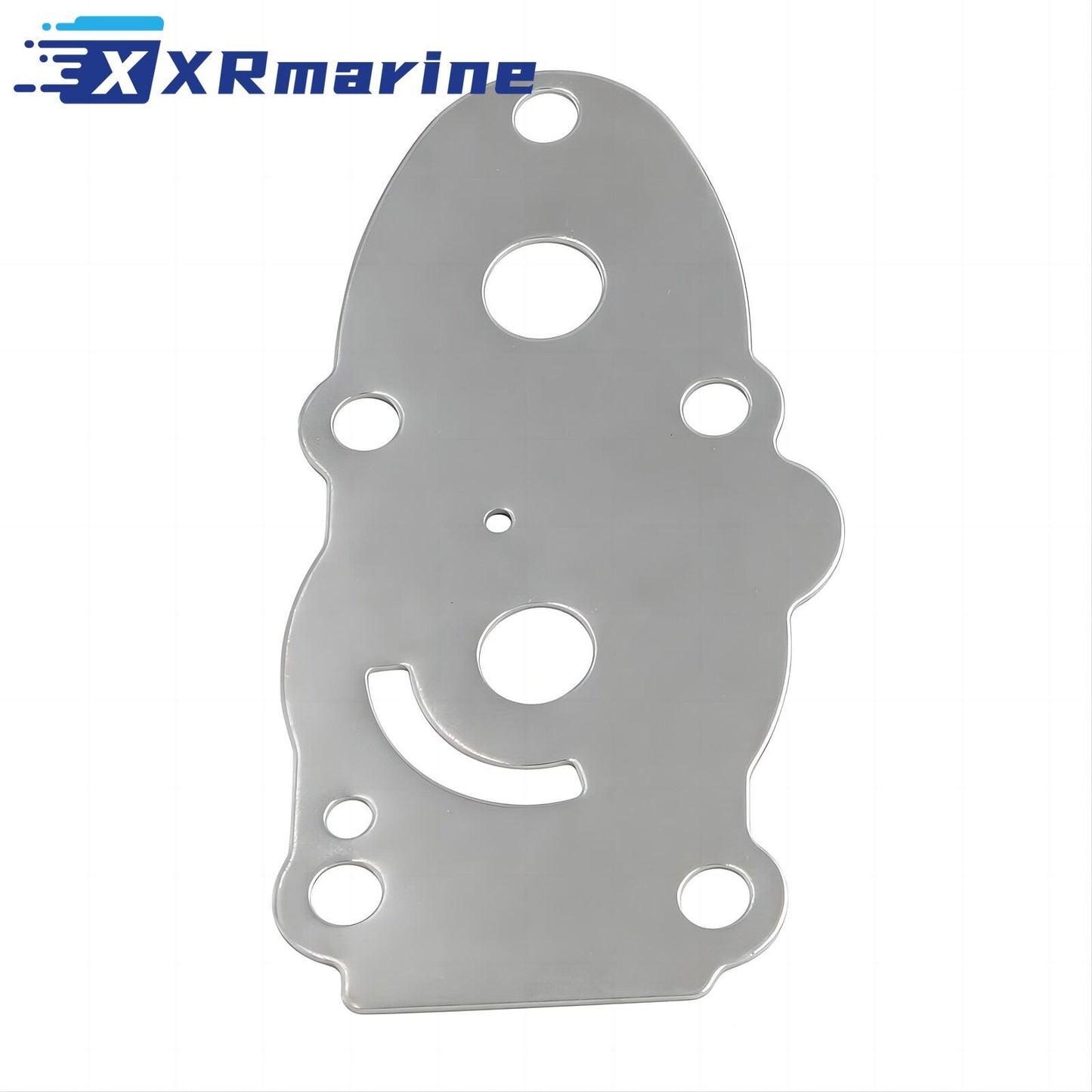

The plate is the part most people leave out, and it is the one that decides whether a new impeller holds pressure. A stainless plate wears a shallow groove where the blade tips run, and a new impeller against a grooved plate pumps less than the worn one it replaced.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Water pump impeller service kit |
| Impeller Outer Diameter | 40.85 mm (1.61 in) |
| Impeller Shaft Diameter | 9.75 mm (0.38 in) |
| Impeller Height | 13.75 mm (0.54 in) |
| Blades | 6 |
| Kit Contents | Impeller, plate, gasket, drive key |
| Fits | Suzuki DT6 and DT8 two stroke outboards |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Suzuki kit | 17400-98551, 17400-98550 |
| Suzuki impeller | 17461-98501 |
| Suzuki plate | 17471-98503 |
| Suzuki gasket | 17472-98503 |
| Suzuki key | 09420-03002 |
| Sierra | 18-3259 |
Compatible Engines
| Engine | Horsepower | Years |
|---|---|---|
| Suzuki DT6 two stroke | 6 HP | 1984 to 2002 |
| Suzuki DT8 two stroke | 8 HP | 1980 to 1987 |
| Not for | DT2 to DT5 | Uses the impeller without this plate and gasket set |
What's Included
| Component | Qty |
|---|---|
| Water pump impeller, 6 blade | 1 |
| Pump plate | 1 |
| Pump gasket | 1 |
| Drive key | 1 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Before You Buy
- Check the model is a DT6 or DT8, the smaller Suzuki motors use a different kit
- Measure the old impeller at 40.85 mm outside and 13.75 mm high before ordering
- Fit the new plate and gasket in the kit, reusing the old plate wastes the new impeller
- Check the pump housing for scoring, a grooved housing needs replacing as well
- Lubricate the impeller with glycerine and turn the shaft by hand to set the blade direction
- Check the telltale at idle and again at planing speed on the first run
