Water Pump Impeller Kit 17400-93951 for Suzuki DT9.9 DT15 DF9.9 DF15 5033106
Water Pump Impeller Kit 17400-93951 for Suzuki DT9.9 DT15 DF9.9 DF15 5033106
Product Overview

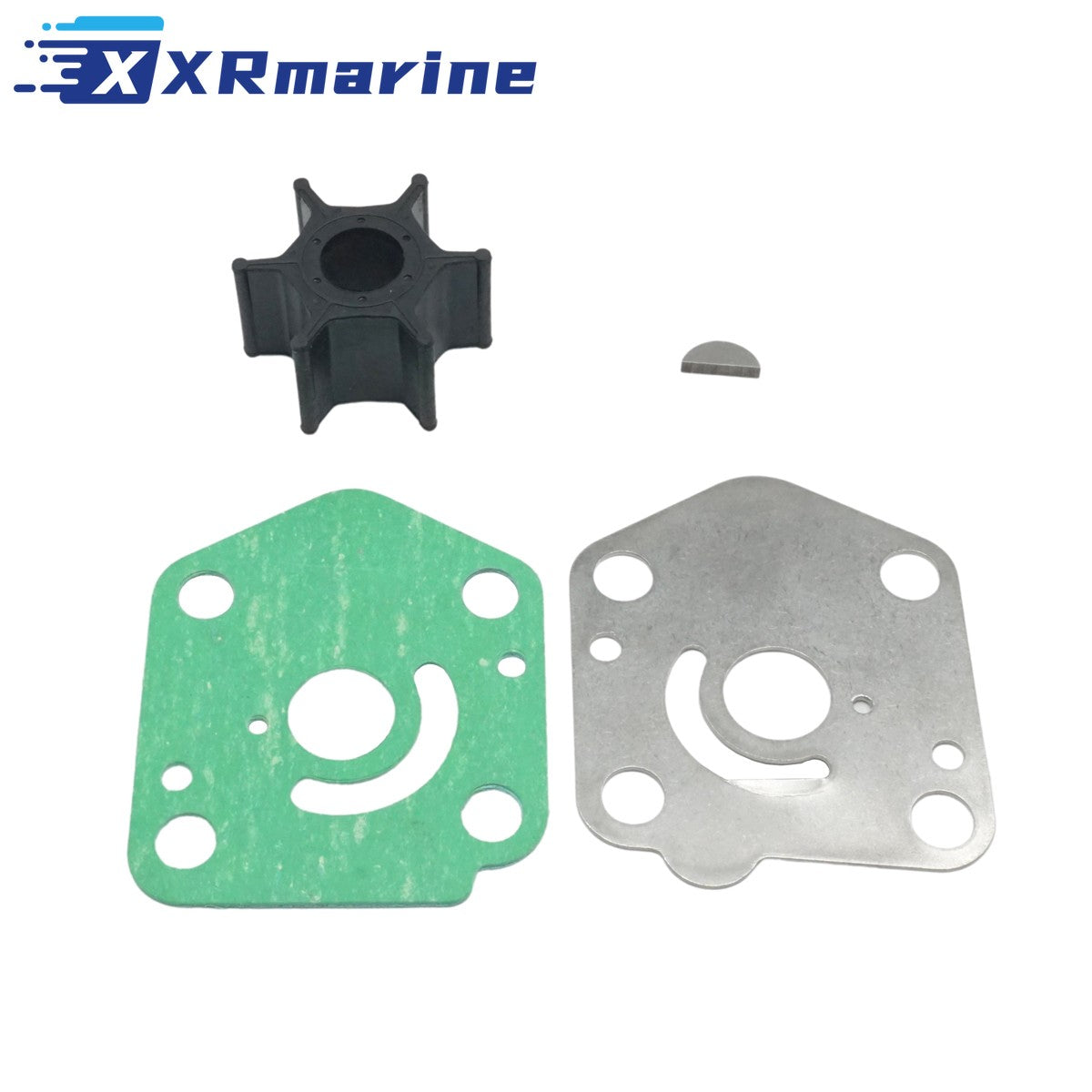

Water pump repair kit for Suzuki DT9.9, DT15, DT15C, DF9.9 and DF15 outboards and Johnson Evinrude 9.9 HP and 15 HP four stroke, supplied as 1 x impeller, 1 x plate, 1 x gasket and 1 x key, replacing 17400-93951 and 5033106.
This is the complete four part service kit for the small Suzuki gearcase and for the Johnson Evinrude four stroke built on the same pump. Impeller, stainless plate, gasket and drive key all in one pack, which is what you want because the plate under an old impeller is normally grooved and the key is normally half worn.
Suzuki sells the kit as 17400-93951 and the same four pieces individually as 17461-93901 impeller, 17471-93902 plate and the matching gasket and key. The Johnson Evinrude side of the range uses the 5033106 family. Check which badge and which year the motor carries, both are covered here.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Outboard water pump repair kit |
| Kit Parts | Impeller, plate, gasket, drive key |
| Pieces in Pack | 4 |
| Impeller Part | 17461-93901 |
| Plate Part | 17471-93902 |
| Drive Type | Key drive |
| Net Weight | 81 g |
| Pack Size | 15 x 10 x 3 cm |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Suzuki kit | 17400-93951, 17400-93950, 17400-93960 |
| Suzuki impeller | 17461-93901, 17461-93902, 17461-93903 |
| Suzuki impeller | 17461-93900, 17461-939M0, 17461-939L0 |
| Suzuki plate | 17471-93902, 17471-93901, 17471-93900 |
| OMC / Johnson / Evinrude | 5033106, 5033112, 5033113 |
| OMC / Johnson / Evinrude | 5035603, 5033114, 0766485 |
| Sierra | 18-3256 kit, 18-3099 impeller, 18-3190 plate |
| GLM / Mallory | 12152, 89970, 89647, 9-45500 |
| GLM | 12558, 12581 |
| EMP | 46-46414, 47-09207 |
Compatible Engines
| Brand | Model | Horsepower | Stroke | Years |
|---|---|---|---|---|
| Suzuki | DT9.9 | 9.9 HP | Two stroke | 1983 to 1987 |
| Suzuki | DT15 | 15 HP | Two stroke | 1983 to 1988 |
| Suzuki | DT15C | 15 HP | Two stroke | 1989 to 1997 |
| Suzuki | DF9.9 | 9.9 HP | Four stroke | 1997 to 2006 |
| Suzuki | DF15 | 15 HP | Four stroke | 1997 to 2006 |
| Johnson / Evinrude | J10 | 9.9 HP | Four stroke | 2002 to 2006 |
| Johnson / Evinrude | J15 | 15 HP | Four stroke | 2002 to 2006 |
| Johnson / Evinrude | 4 stroke 302 cc family | 9.9 HP and 15 HP | Four stroke | 2002 to 2006 |
What's Included
| Component | Part Number | Qty |
|---|---|---|

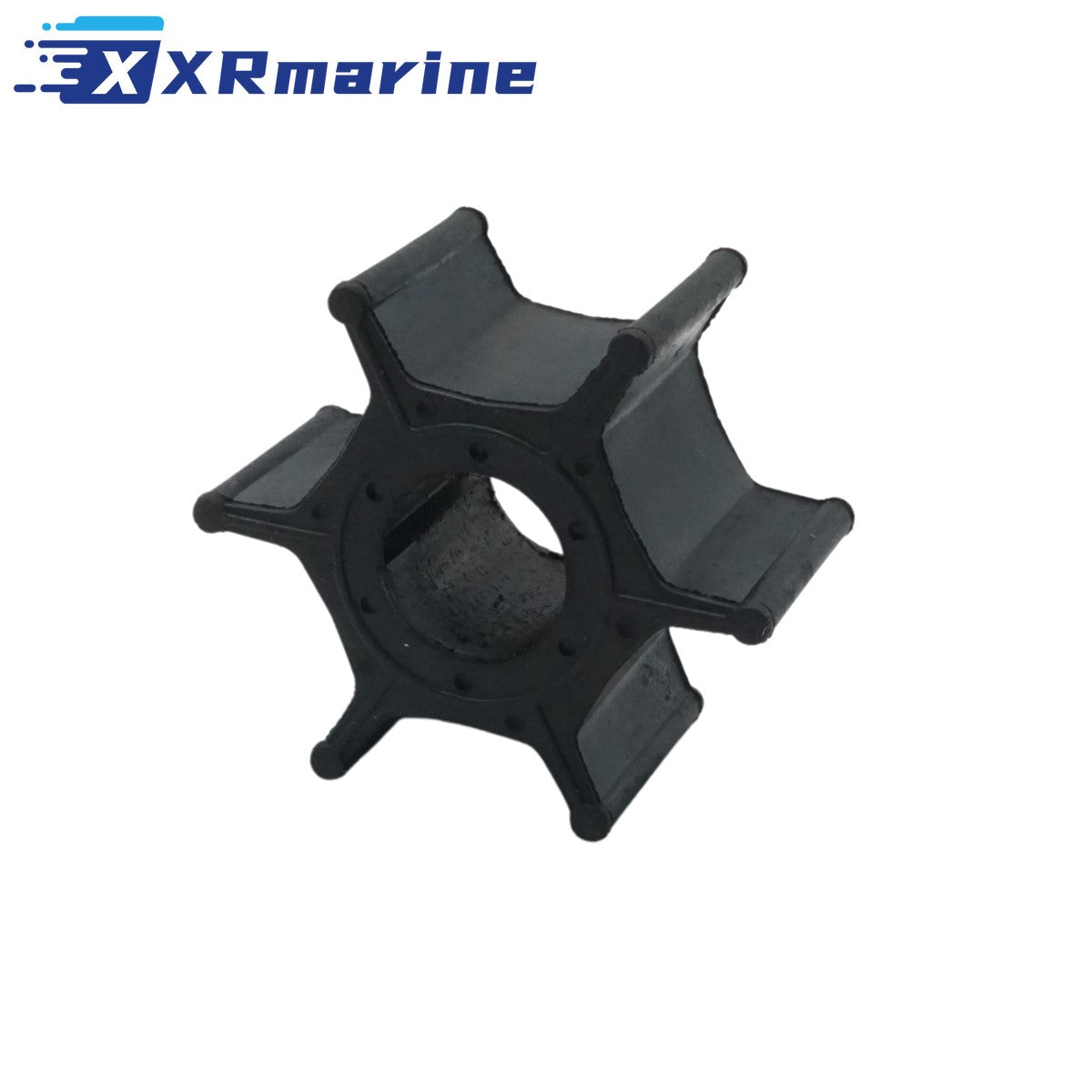

| Water pump impeller | 17461-93901 | 1 |

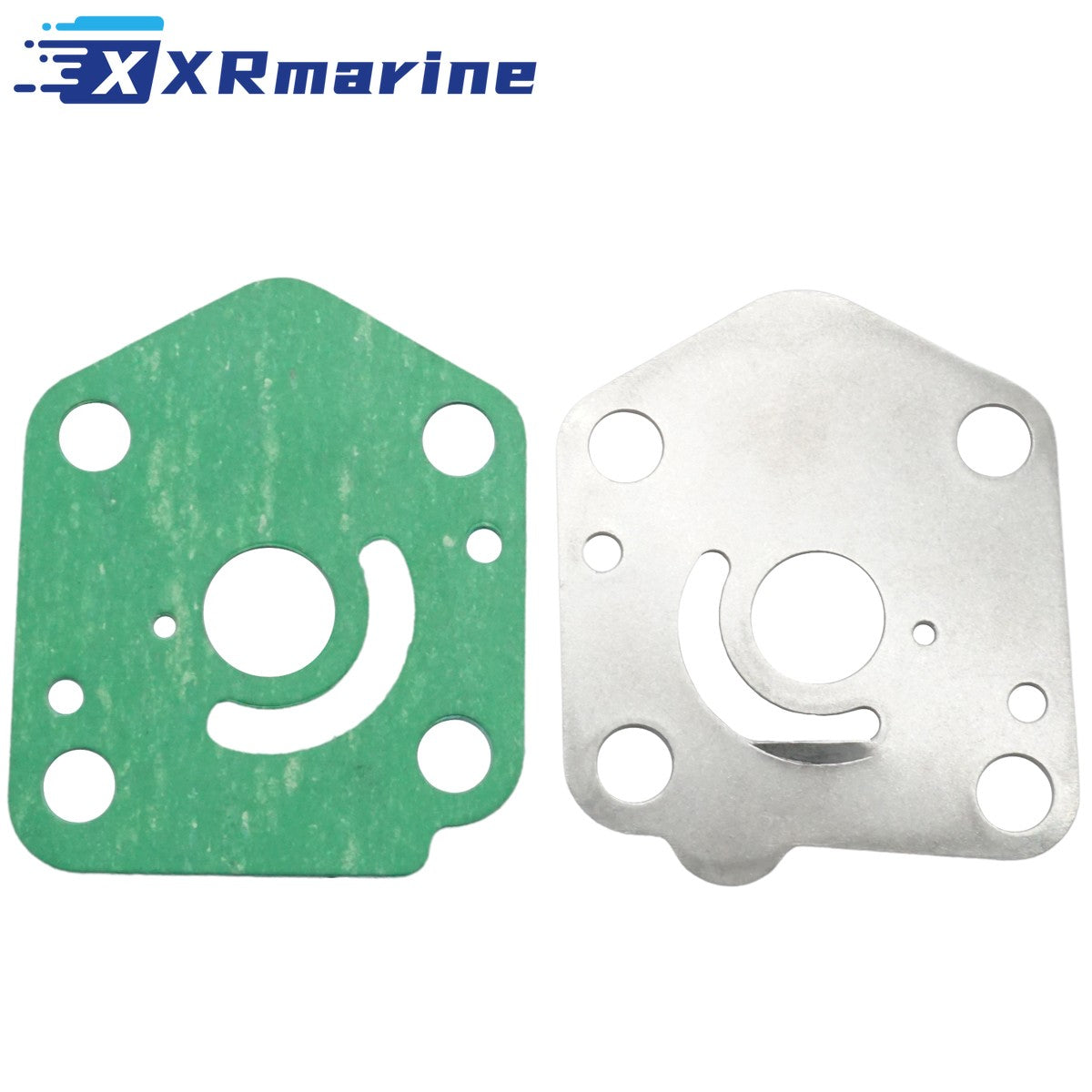

| Pump case under panel plate | 17471-93902 | 1 |

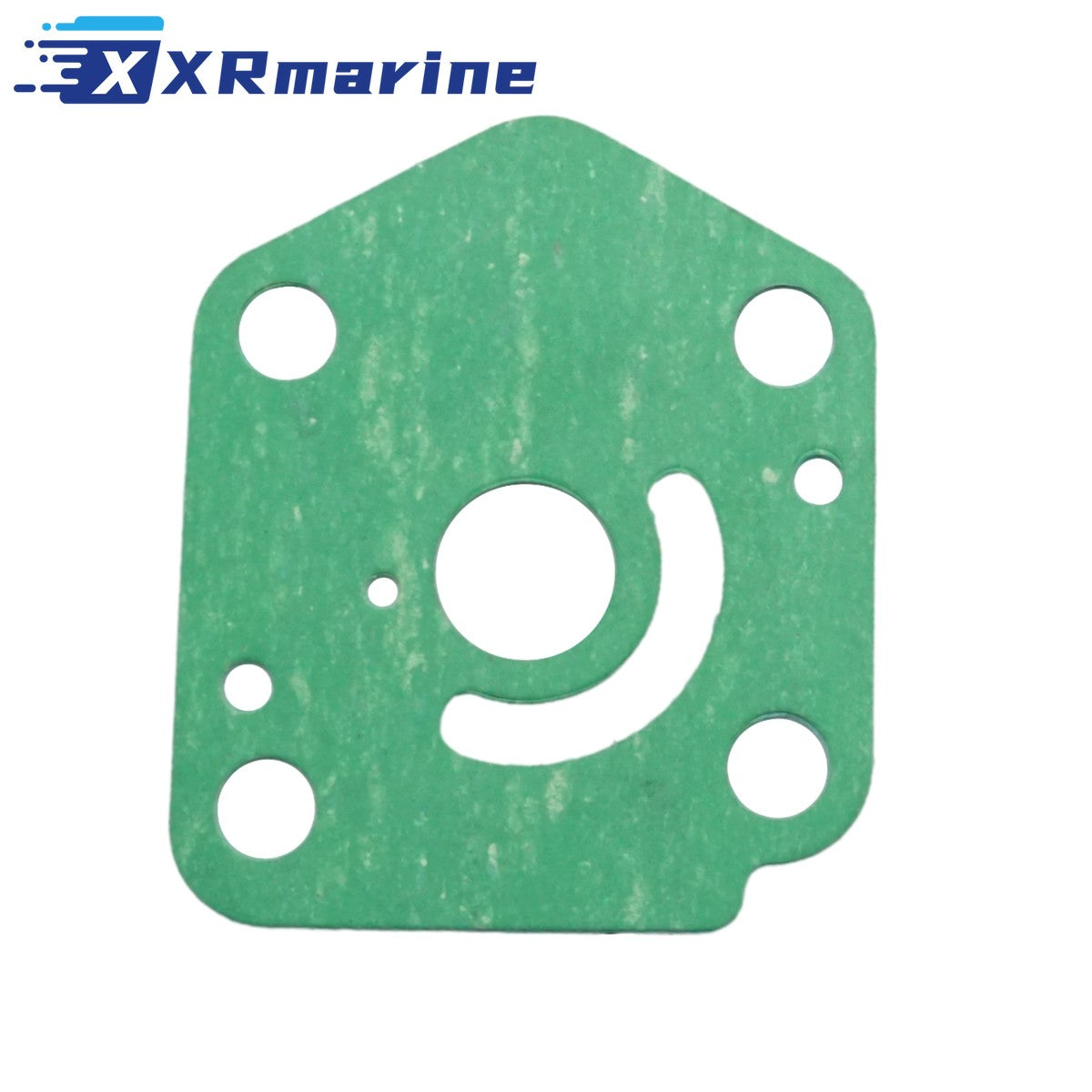

| Water pump gasket | Not published | 1 |
| Drive key | Not published | 1 |
Fitment Notes
| Item | Detail |
|---|---|
| Suzuki two stroke | DT9.9 and DT15 changed in the late 1980s, the DT15C from 1989 uses the same kit |
| Suzuki four stroke | DF9.9 and DF15 are covered, the DF9.9A and DF15A models are not |
| Johnson Evinrude | The 302 cc four stroke 9.9 and 15 HP shares this pump, kit number 5033106 |
| Kits also sold as | 17400-93950 and 17400-93960, same four pieces |
| Where to look | Model and serial plate on the transom bracket |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Before You Buy
- Check the number on the old impeller and on the pump plate, 17400-93951 and 5033106 are both covered here
- Check the model letter, the DF9.9A and DF15A four strokes are not covered
- Check the driveshaft keyway, a worn slot will not hold a new key
- Check the housing liner for grooves before fitting the new plate and impeller
- Fit with glycerine or soap only, never grease or oil on neoprene
- Fit the plate the right way up and fold the blades in the direction of rotation
- Change the gear oil at the same time and check the drain plug washers
- Run on muffs and confirm the telltale stream before leaving the ramp
