Water Pump Impeller Minor Repair Kit 394711 for Johnson Evinrude 8 9.9 15 HP
Water Pump Impeller Minor Repair Kit 394711 for Johnson Evinrude 8 9.9 15 HP
Product Overview

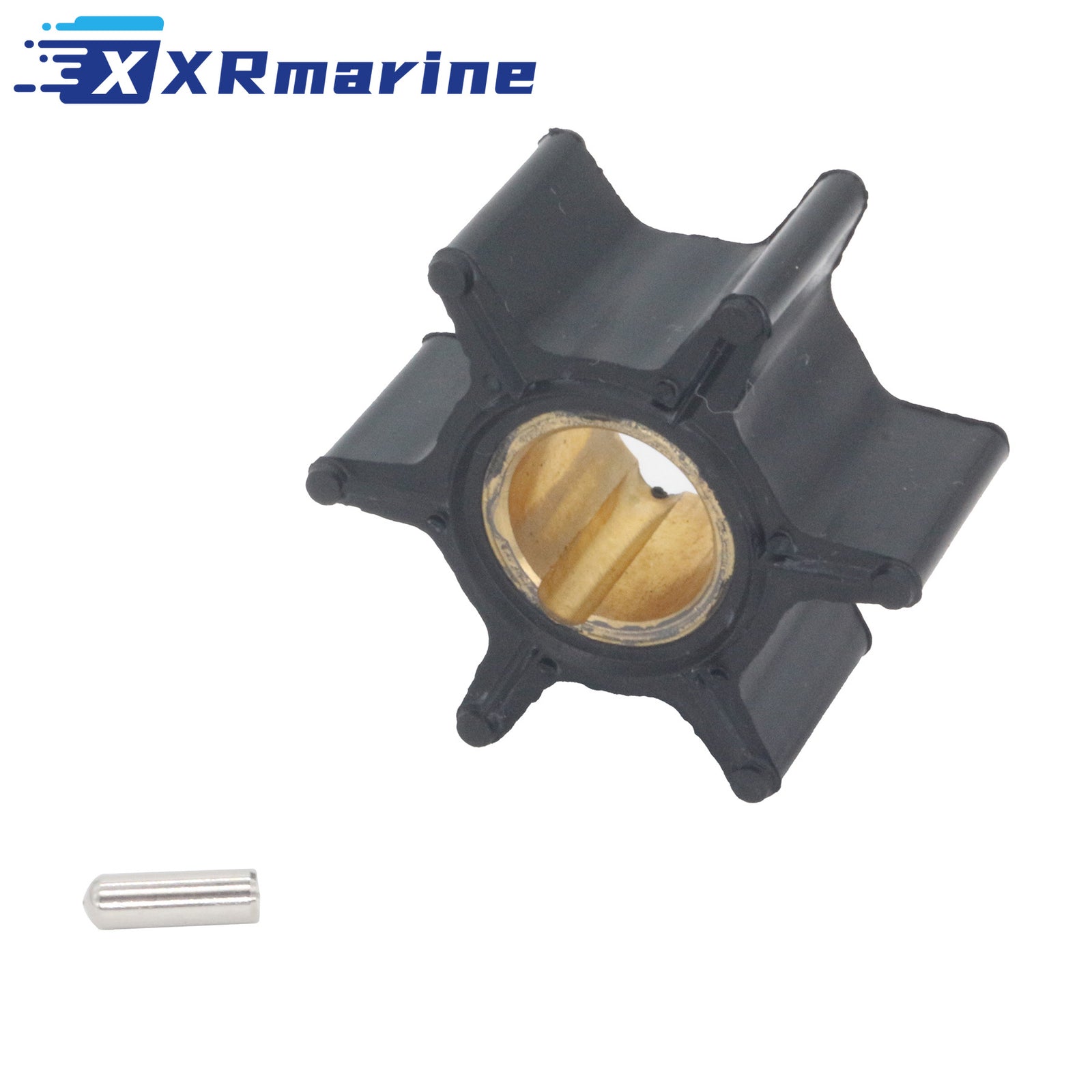

Water pump impeller minor repair kit for Johnson and Evinrude 8 HP, 9.9 HP and 15 HP outboards, supplied as 1 impeller, 2 O-ring seals and 1 drive key. It replaces 394711, 0394711, 391388, 777801 and Sierra 18-3327, and crosses to GLM 12050 and Mallory 9-48201. This is the reduced kit: the housing, wear plate and cup are not included, so it is the right choice when the pump body is still good and only the rubber and seals have gone hard. If the liner is scored, buy the kit with housing instead, because a new impeller in a worn housing will not hold prime at idle.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Water Pump Impeller Minor Repair Kit |
| Engine | Johnson and Evinrude outboard |
| Horsepower | 8 HP, 9.9 HP, 15 HP |
| Years | 1974-2007 (see fitment) |
| Blades | 6 |
| Included | Impeller, 2 O-rings, drive key |
| Excluded | Housing, wear plate, cup |
| Quantity | 1 kit |
| Shipping Weight | 222 g |
| Packaging Size | 16 x 12 x 8 cm (6.3 x 4.7 x 3.1 in) |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Johnson / Evinrude | 394711, 0394711, 391388, 0391388, 777801, 0777801 |
| Johnson / Evinrude | 389114, 0389114, 388139, 0388139, 393560, 0393560 |
| Johnson / Evinrude | 391698, 0391698, 387610, 0387610 |
| Johnson / Evinrude | 318875, 386685, 386886, 389112 |
| Johnson / Evinrude | 318999, 386697, 319989 |
| Sierra | 18-3327 |
| GLM | 12050 |
| Mallory | 9-48201 |
Compatible Engines
| Horsepower | Years | Model Codes |
|---|---|---|
| 8 HP | 1996-2004 | BE, BJ, E8, HE, HJ, J8 |
| 9.9 HP | 1975-1980, 1982-2001, 2003-2007 | 10, 10E, 10R, 10S, BE, BJ, E10, HE, HJ, J10, L10, SE, SJ, TE, TJ |
| 15 HP | 1974-2001, 2003-2007 | 15, 15E, 15R, BE, BJ, E15, HE, HJ, J15, SE, SJ, TE, TJ |
What's Included
| Component | Qty |
|---|---|
| Water Pump Impeller | 1 |
| Large O-Ring Seal | 1 |
| Small O-Ring Seal | 1 |
| Drive Key | 1 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Before You Buy
- This kit does not include the housing, check the old liner before ordering
- If the liner is scored, use the kit with housing instead
- Confirm the engine is 8, 9.9 or 15 HP and note the year range
- Grease the liner and turn the shaft by hand before closing the housing
- Check the tell-tale on muffs before launching
