Water Pump Impeller Kit with Housing 394711 for Johnson Evinrude 9.9 15 HP
Water Pump Impeller Kit with Housing 394711 for Johnson Evinrude 9.9 15 HP
Product Overview

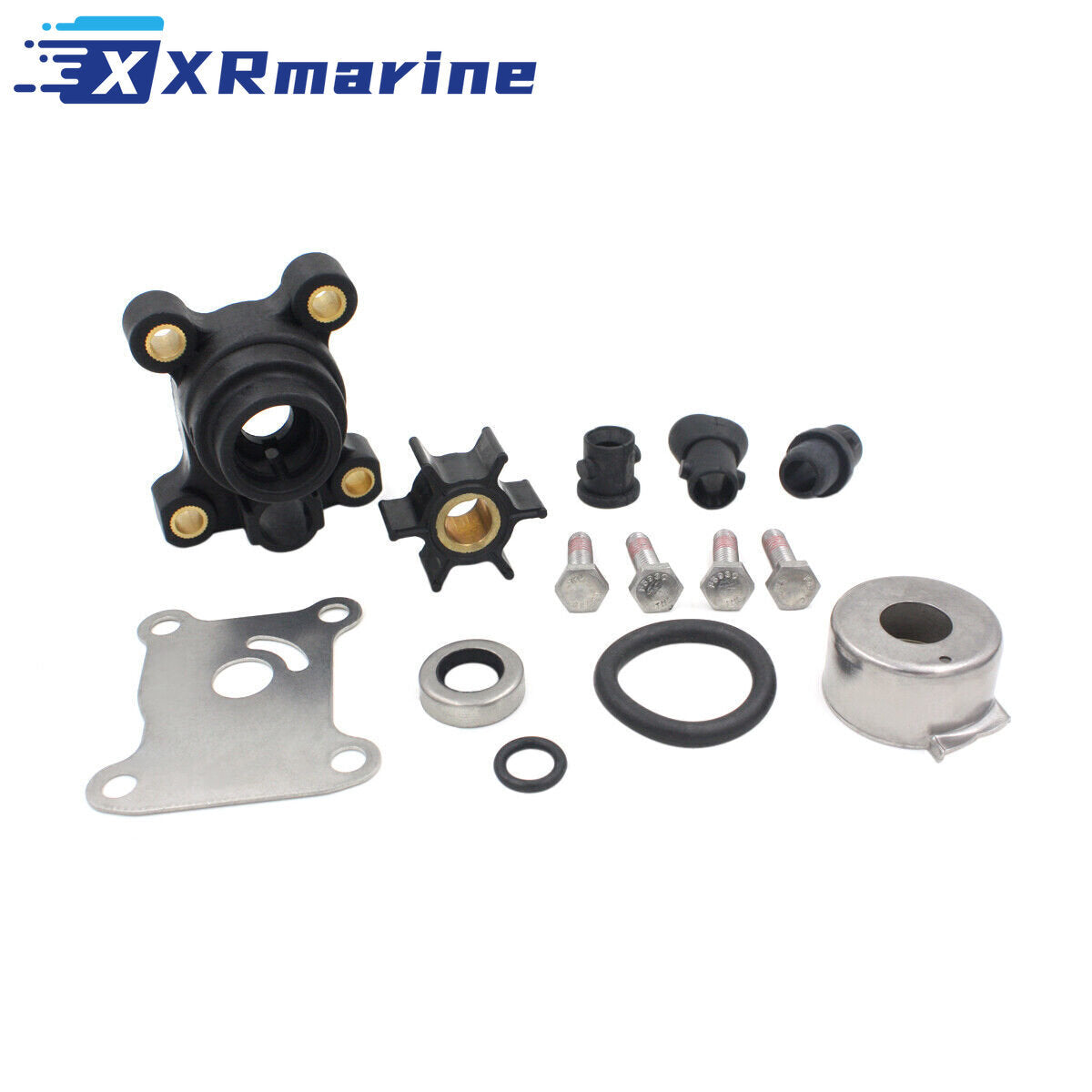

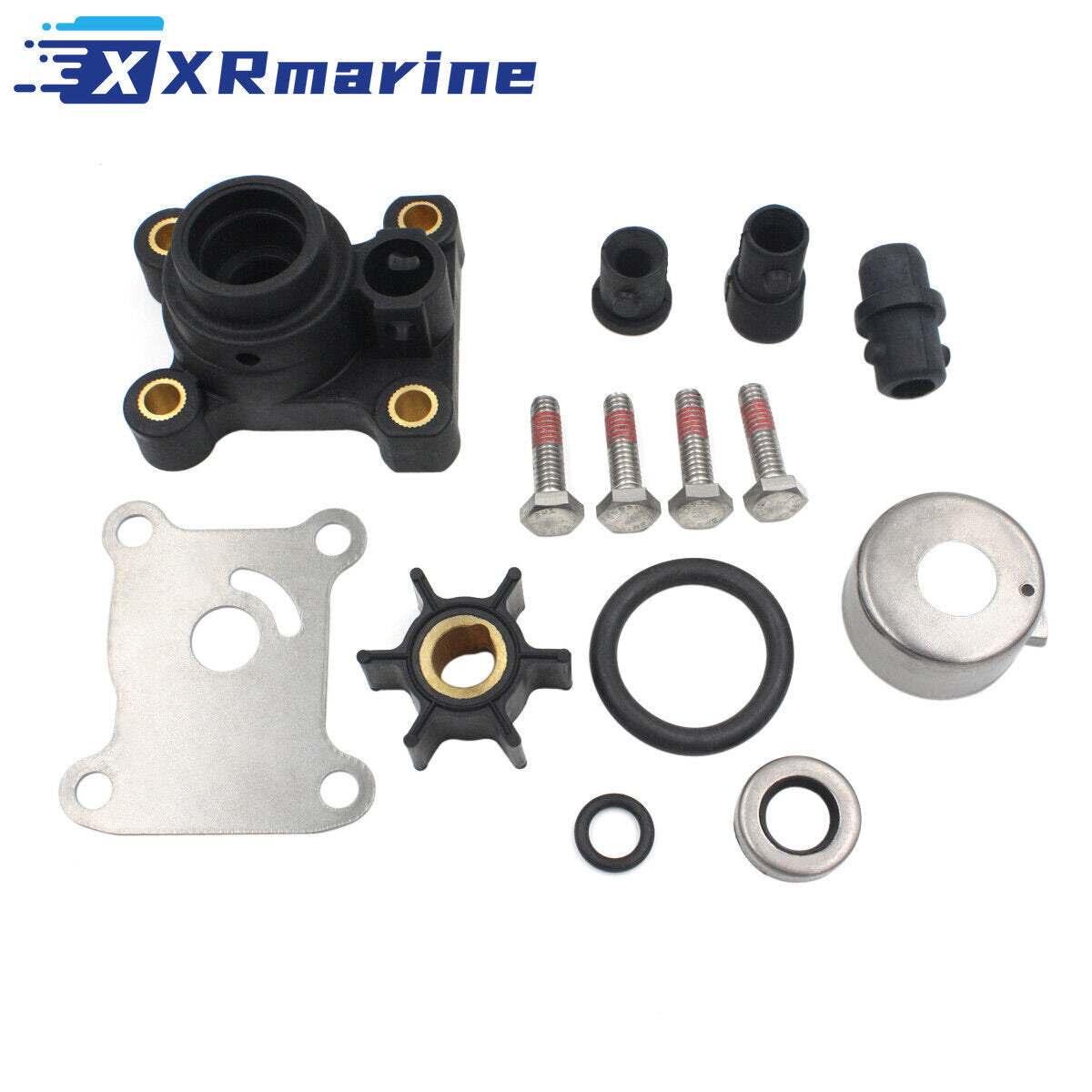

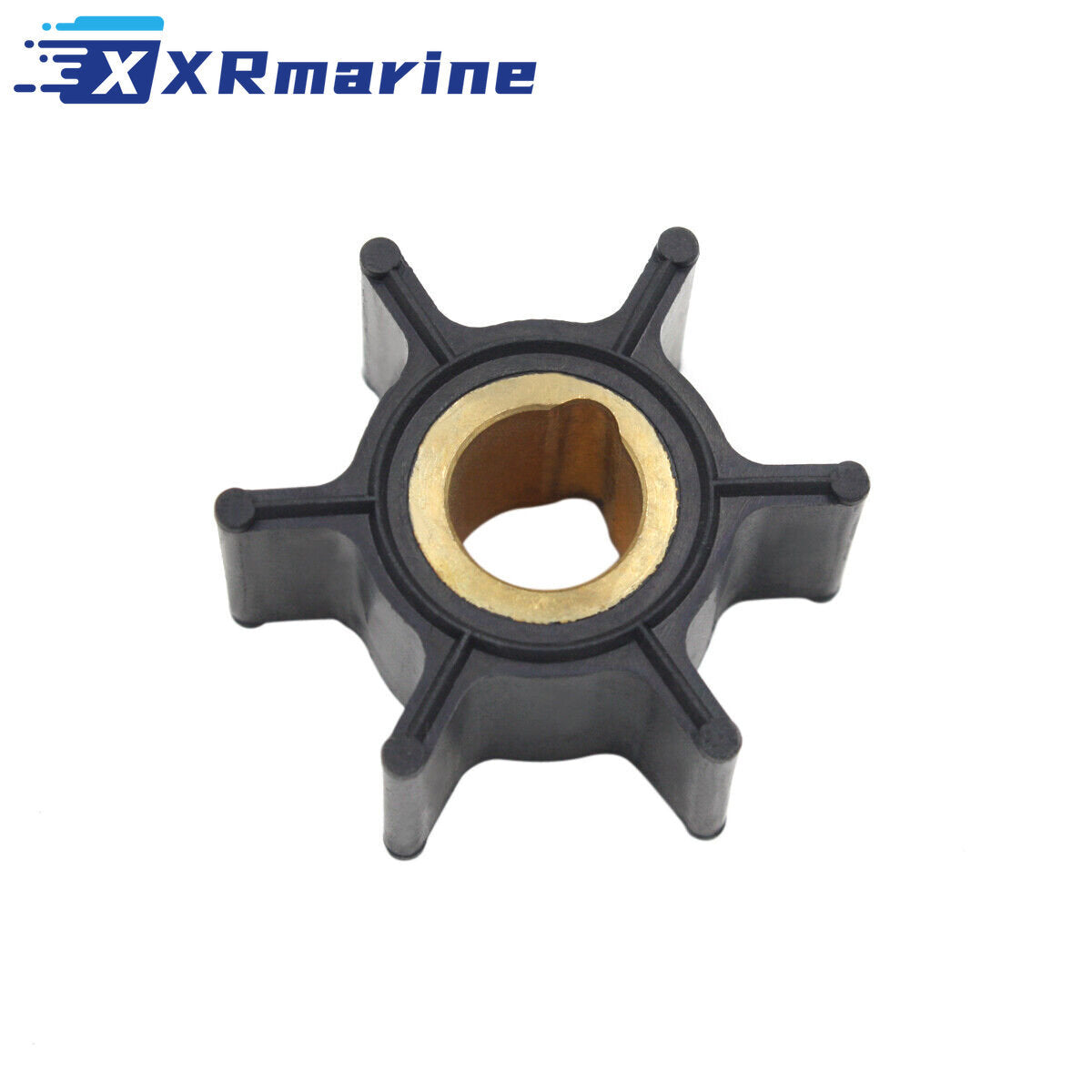

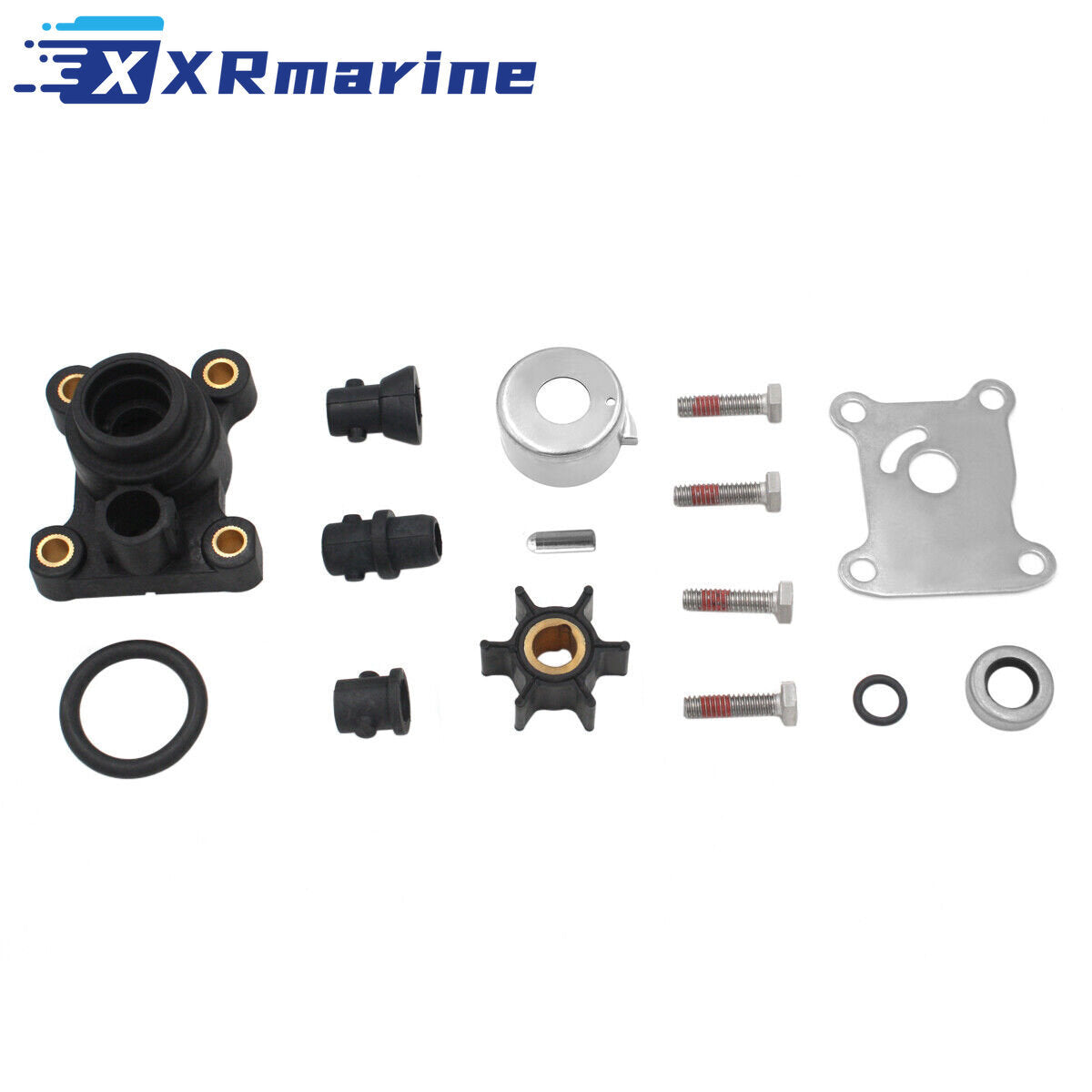

Water pump impeller repair kit with housing for Johnson and Evinrude 9.9 HP and 15 HP outboards, supplied as 1 impeller, 1 housing, 1 wear plate, 1 cup, 2 grommets, 1 oil seal, 2 O-rings, 1 pin and 4 stainless bolts. It replaces 394711 and Sierra 18-3327, and crosses to 386697, 391698, 389112, 387610, 46-02855, GLM 12050 and 12251, WSM 750-290 and Mallory 9-48220. The impeller has 6 blades, a 38.40 mm outside diameter and a 12.75 mm hub, and the kit includes the housing because the original liner scores and the pump then loses prime at idle even with a new impeller in it.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Water Pump Impeller Repair Kit with Housing |
| Engine | Johnson and Evinrude outboard |
| Horsepower | 9.9 HP and 15 HP |
| Years | 1974 and later, 4-stroke 1995 and later |
| Outer Diameter | 38.40 mm / 1.51 in |
| Inner Diameter | 12.75 mm / 0.50 in |
| Blades | 6 |
| Quantity | 1 complete kit |
| Shipping Weight | 219 g |
| Packaging Size | 16 x 12 x 10 cm (6.3 x 4.7 x 3.9 in) |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Johnson / Evinrude | 394711 |
| Johnson / Evinrude | 386697, 391698, 389112, 387610 |
| Johnson / Evinrude | 46-02855 |
| Sierra | 18-3327 |
| GLM | 12050, 12251 |
| WSM | 750-290 |
| Mallory | 9-48220 |
Compatible Engines
| Engine | Years |
|---|---|
| 9.9 HP Johnson / Evinrude | 1974 and later |
| 9.9 HP Johnson / Evinrude 4-stroke | 1995 and later |
| 15 HP Johnson / Evinrude | 1974 and later |
| 15 HP Johnson / Evinrude 4-stroke | 1995 and later |
| 8 HP to 15 HP range | Mid 1990s to early 2000s |
What's Included
| Component | Qty |
|---|---|
| Water Pump Impeller | 1 |

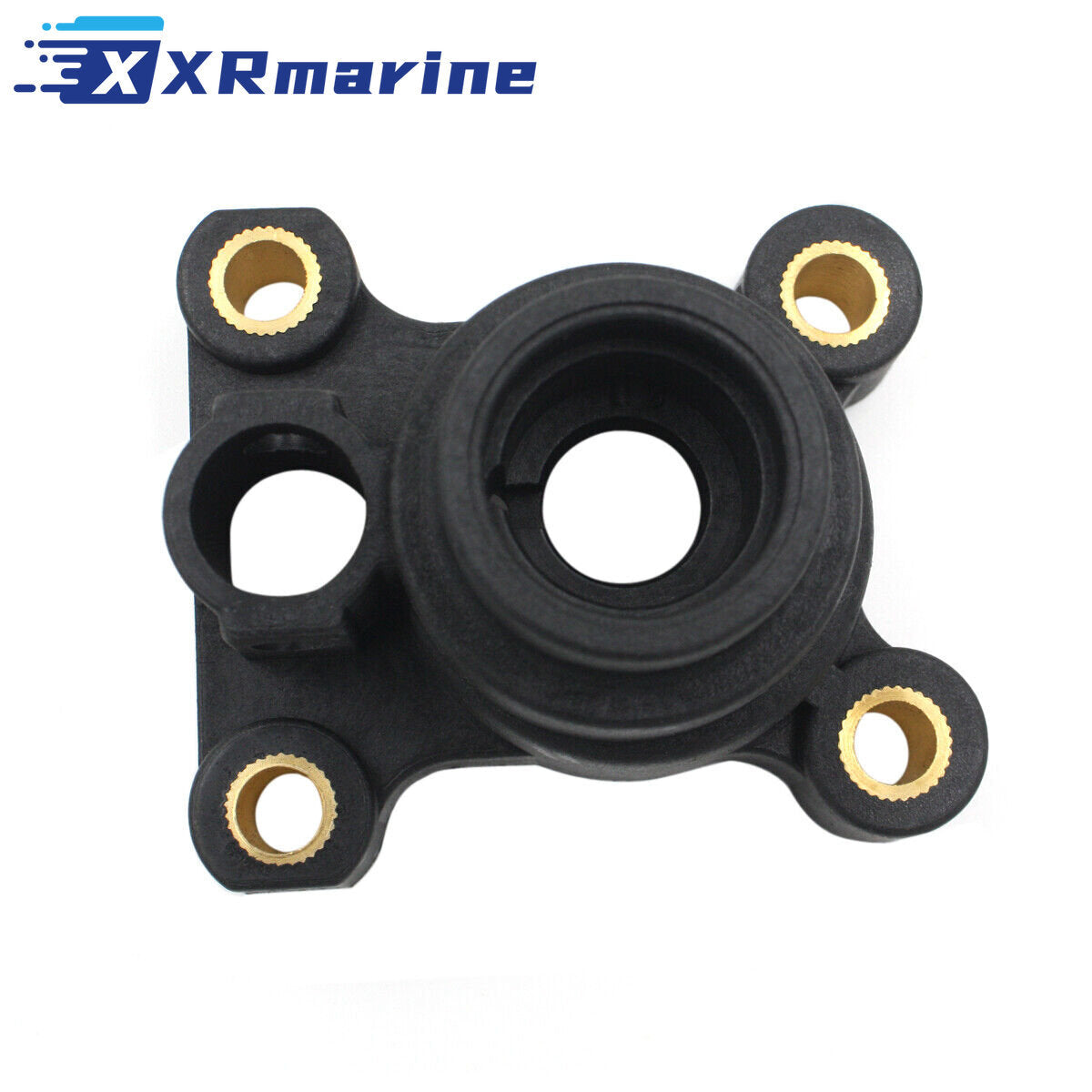

| Impeller Housing | 1 |
| Wear Plate | 1 |

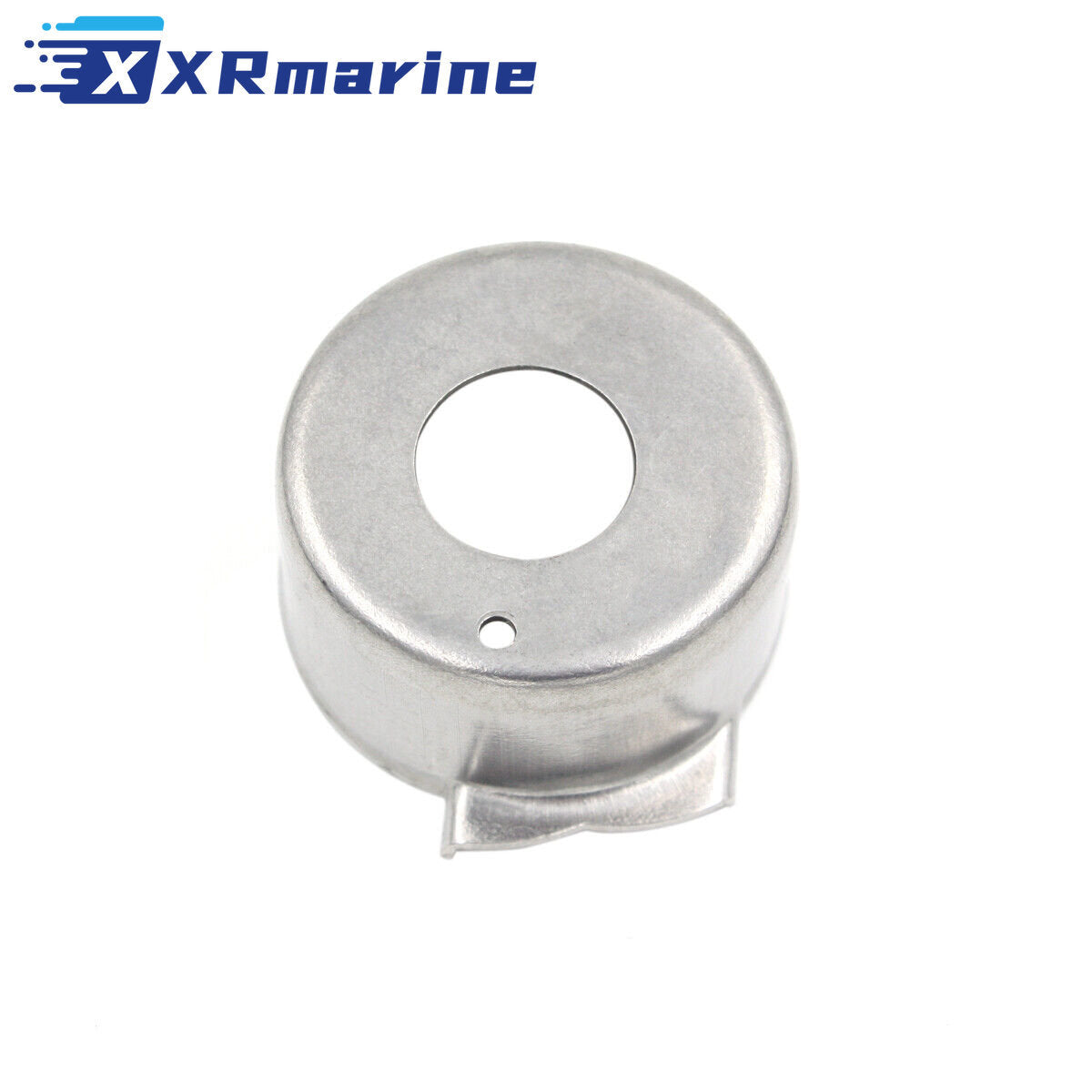

| Water Pump Cup | 1 |
| Grommet | 2 |
| Oil Seal | 1 |
| O-Ring | 2 |
| Pin | 1 |
| Stainless Steel Bolt | 4 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Before You Buy
- Confirm the engine is 9.9 or 15 HP, the 6 and 8 HP use a different pump
- The housing is in the kit, so check the old one for a scored liner before buying an impeller alone
- Fit the new oil seal and O-rings, old ones harden and let the gearcase draw air
- Grease the liner and turn the shaft by hand before closing the housing
- Check the tell-tale on muffs before launching
- 30-Day Easy Returns
- Free Worldwide Shipping
