Flexible Impeller Kit 17937-0001 0460024 for Volvo Penta Perkins Jabsco Oberdorfer Pump
Flexible Impeller Kit 17937-0001 0460024 for Volvo Penta Perkins Jabsco Oberdorfer Pump
Product Overview

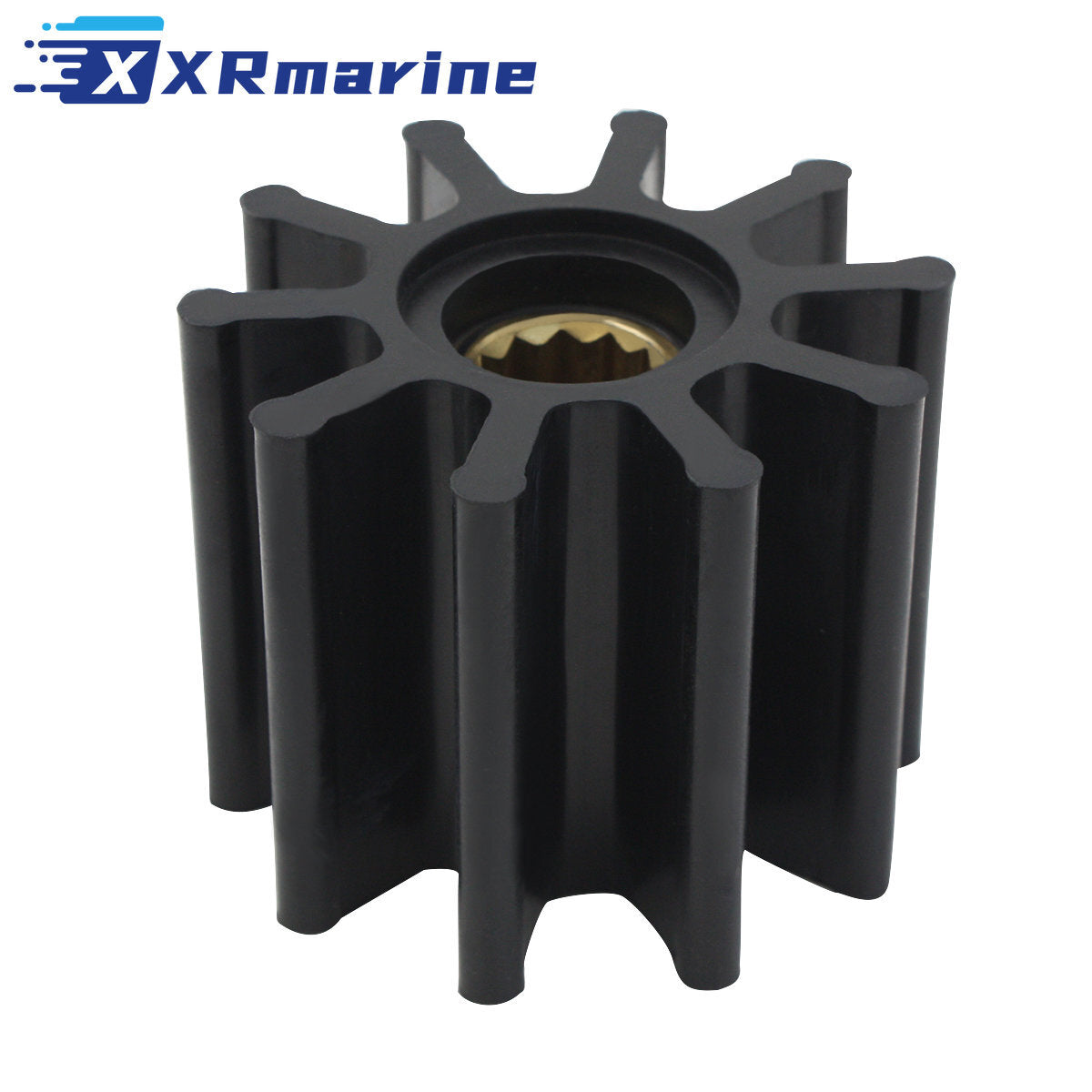

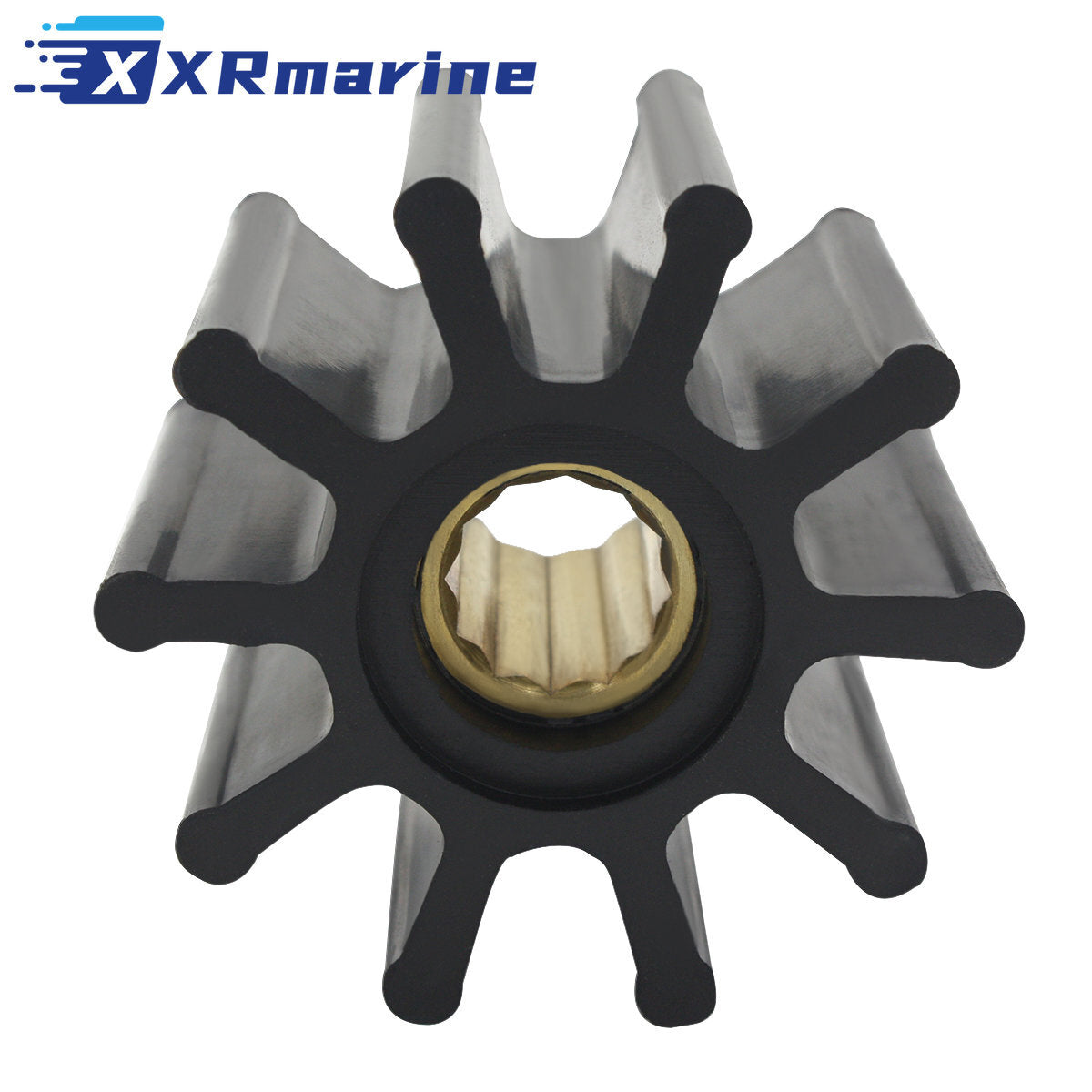

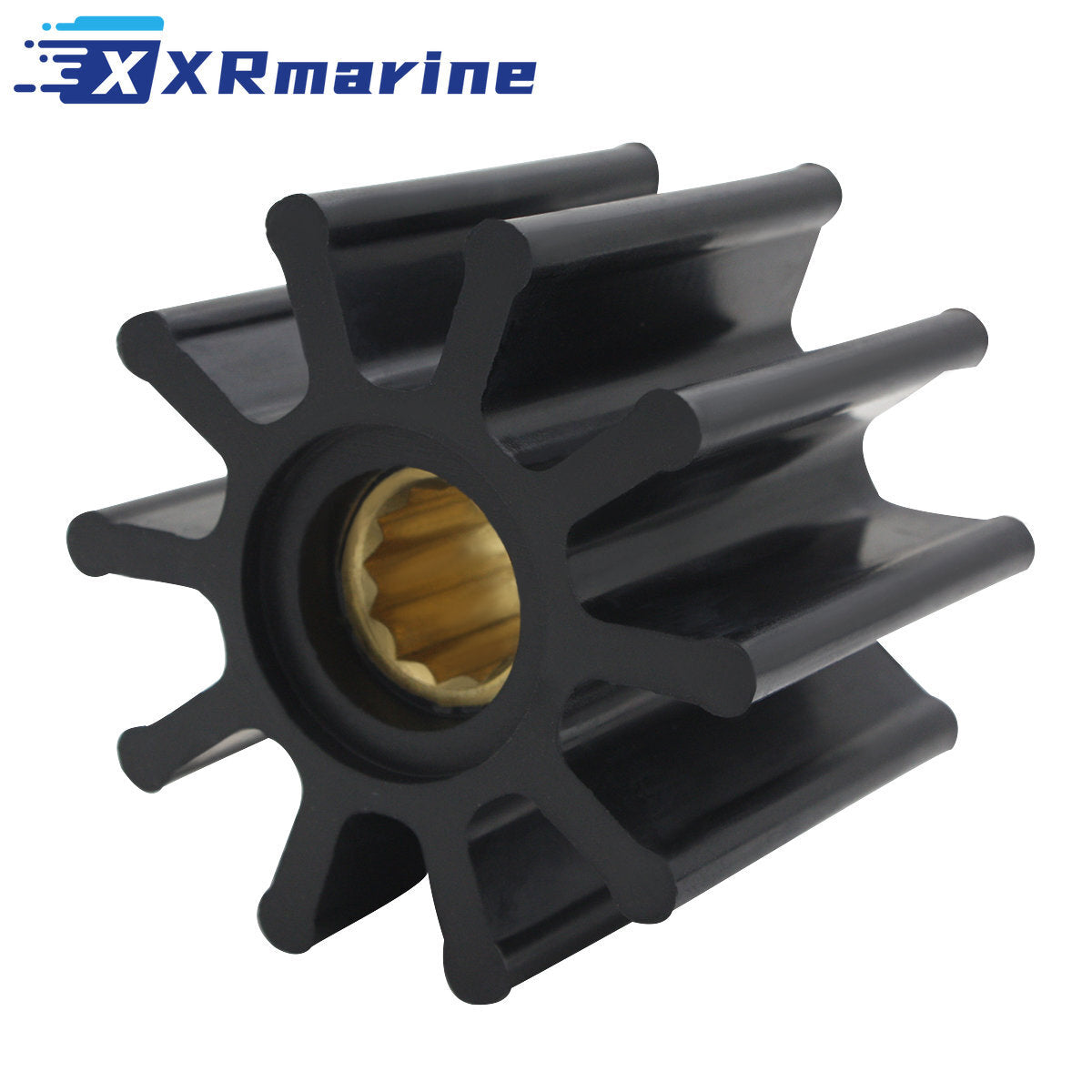

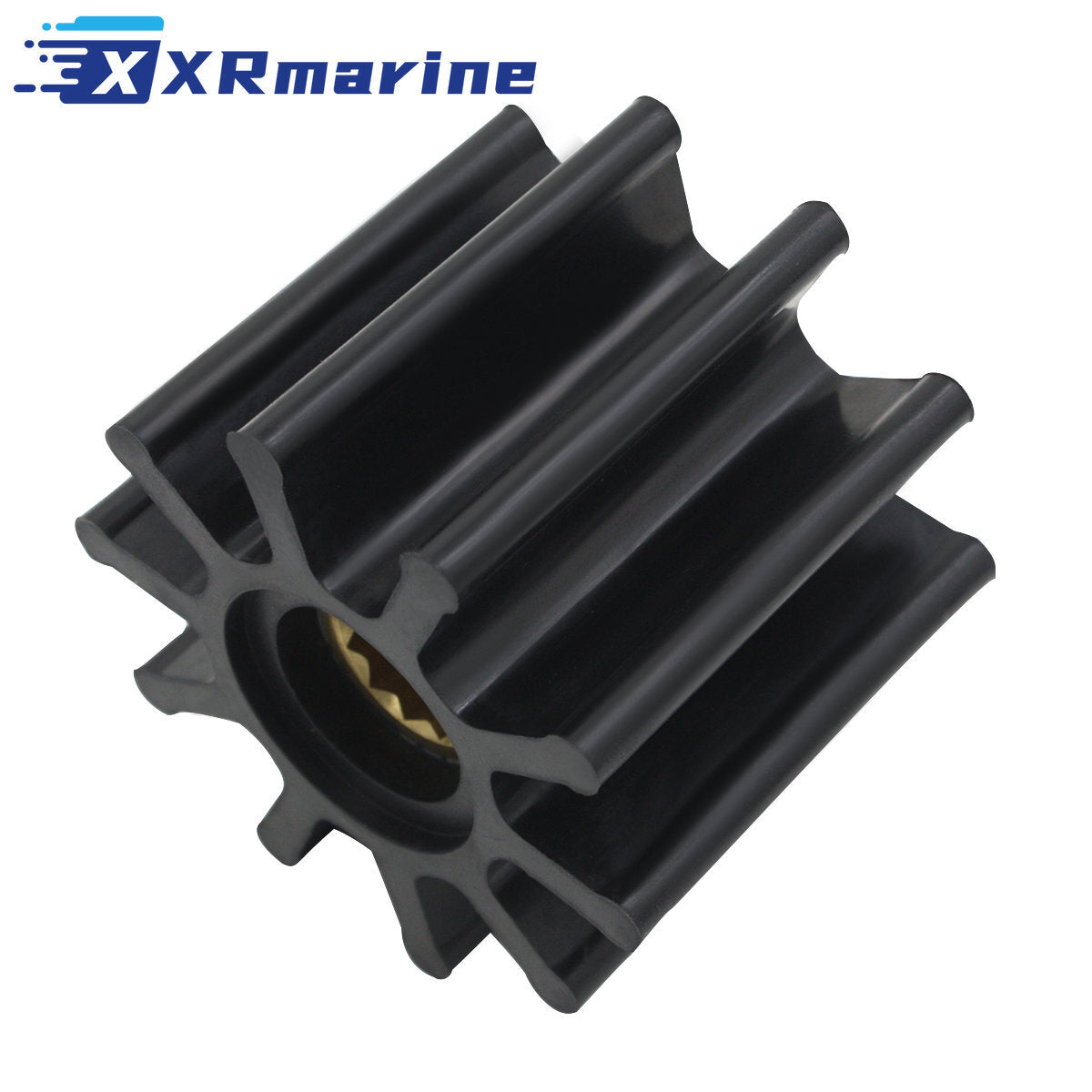

Flexible water pump impeller kit for Jabsco, Volvo Penta, Perkins, Yanmar, MerCruiser, Caterpillar, Oberdorfer and Northern Lights pumps, 10 blades, 65 mm diameter, 51 mm wide, 16 mm shaft, 12 spline drive, supplied with a gasket, replacing 17937-0001 and 0460024.
This is the wide 51 mm impeller with the 12 spline hub, the common diesel engine raw water impeller across the Perkins, Volvo Penta, Caterpillar and genset range. The gasket comes in the pack because the pump cover is usually disturbed at the same service.
Twelve spline means the hub must seat square on the shaft spline before the cover goes down. Anything less and the impeller runs half engaged, which shows up as a hot engine and a shredded hub within a couple of hours.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Flexible impeller kit |
| Drive Type | 12 spline drive |
| Blades | 10 |
| Diameter | 65 mm / 2.56 in |
| Width | 51 mm / 2 in |
| Shaft Diameter | 16 mm / 5/8 in |
| Material | Neoprene |
| Insert Material | Brass |
| Kit Parts | Impeller K-1104 and gasket |
| Net Weight | 194 g |
| Pack Size | 15 x 10 x 6 cm |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Jabsco | 17937-0001, 17937-0001-P, 777-0001, 17937-0003 |
| Volvo Penta | 3588475, 801277, 825941, 877061-2, 3584062 |
| Perkins | 0460024, 24880031, 15021 |
| Yanmar | 127610-42200 |
| MerCruiser | 47-8013326-01, 47-899194186 |
| Detroit Diesel | 8924483 |
| Caterpillar | 7C3286 |
| Oberdorfer | 7441, 7466 |
| Northern Lights | 25-11011, 25-19501 |
| Vetus | IMP00301 |
| Ancor | J050009 |
| JMP | 7426-01 |
| CEF | 500114 |
| MAN | 51.06500.6488 |
Compatible Engines and Pumps
| Brand | Pump or Engine | Note |
|---|---|---|
| Volvo Penta | Water pump 3584062 | The pump number on the cover |
| Perkins | Water pump 33004 | Perkins marine pump |
| Oberdorfer | Pump 401M-2 | Oberdorfer pump body |
| MAN | D0826, GLE40, ML | MAN marine engine pump |
| Northern Lights | Genset pump M445PT | Northern Lights generator set |
| Caterpillar | 7C3286 | Caterpillar engine pump number |
| Jabsco | Pumps 17937-0001, 17937-0003, 777-0001 | Jabsco pump family |
| Yanmar | 127610-42200 | Yanmar engine pump number |
| Detroit Diesel | 8924483 | Detroit Diesel engine pump number |

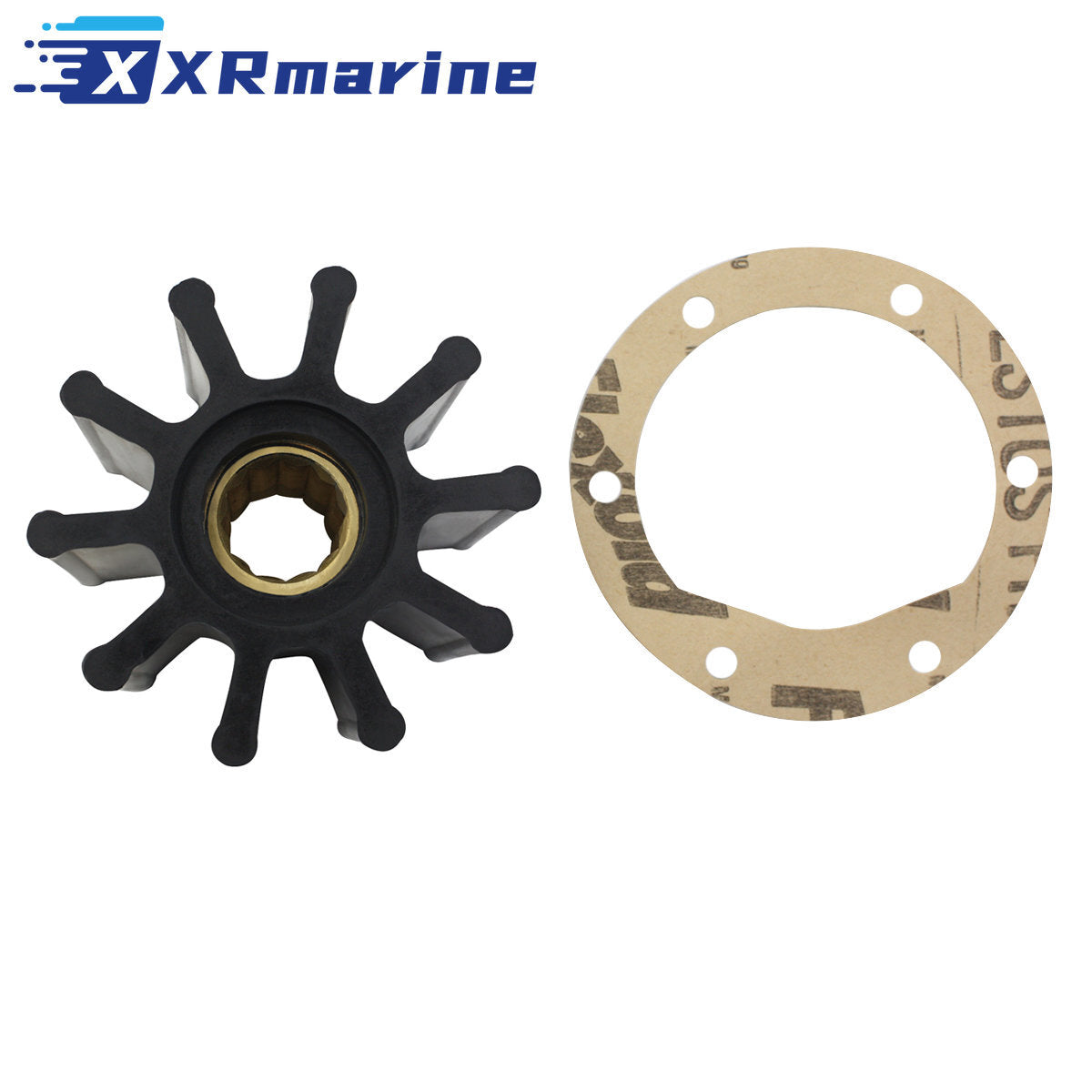

What's Included
| Component | Qty |
|---|---|
| Flexible impeller | 1 |
| Pump cover gasket | 1 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Before You Buy
- Check the number on the old impeller or the pump cover, 17937-0001 and 0460024 are both covered here
- Check the width, this is the 51 mm wide 65 mm body, the narrow version will not pump
- Check the shaft spline for wear, a stripped female spline will ruin the new impeller
- Check the pump cover and cam plate for scoring before refitting
- Fit with glycerine or soap only, never grease or oil on neoprene
- Seat the spline fully and fold the blades in the direction of rotation
- Prime the pump and check the flow at the exhaust or the outlet before loading the engine
