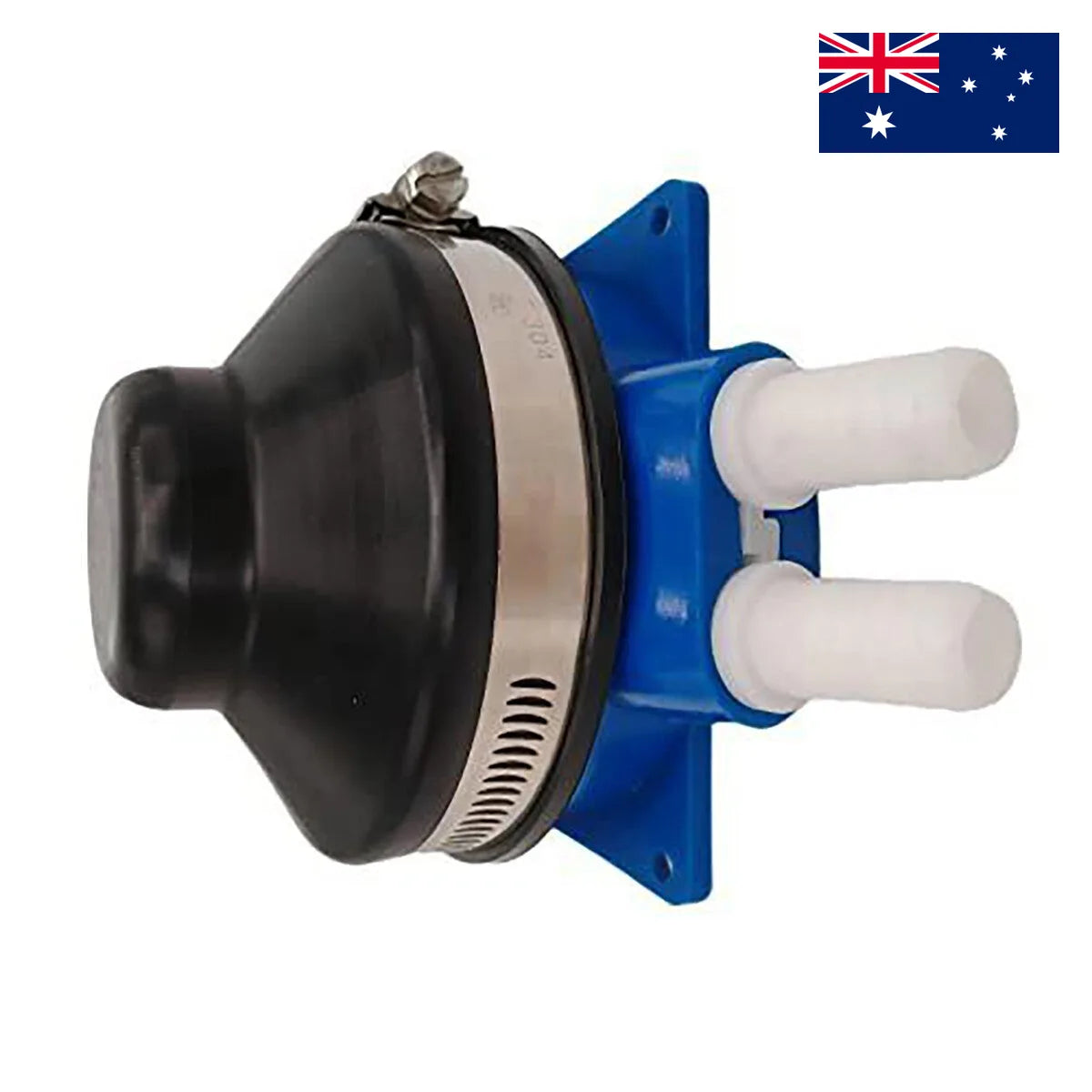

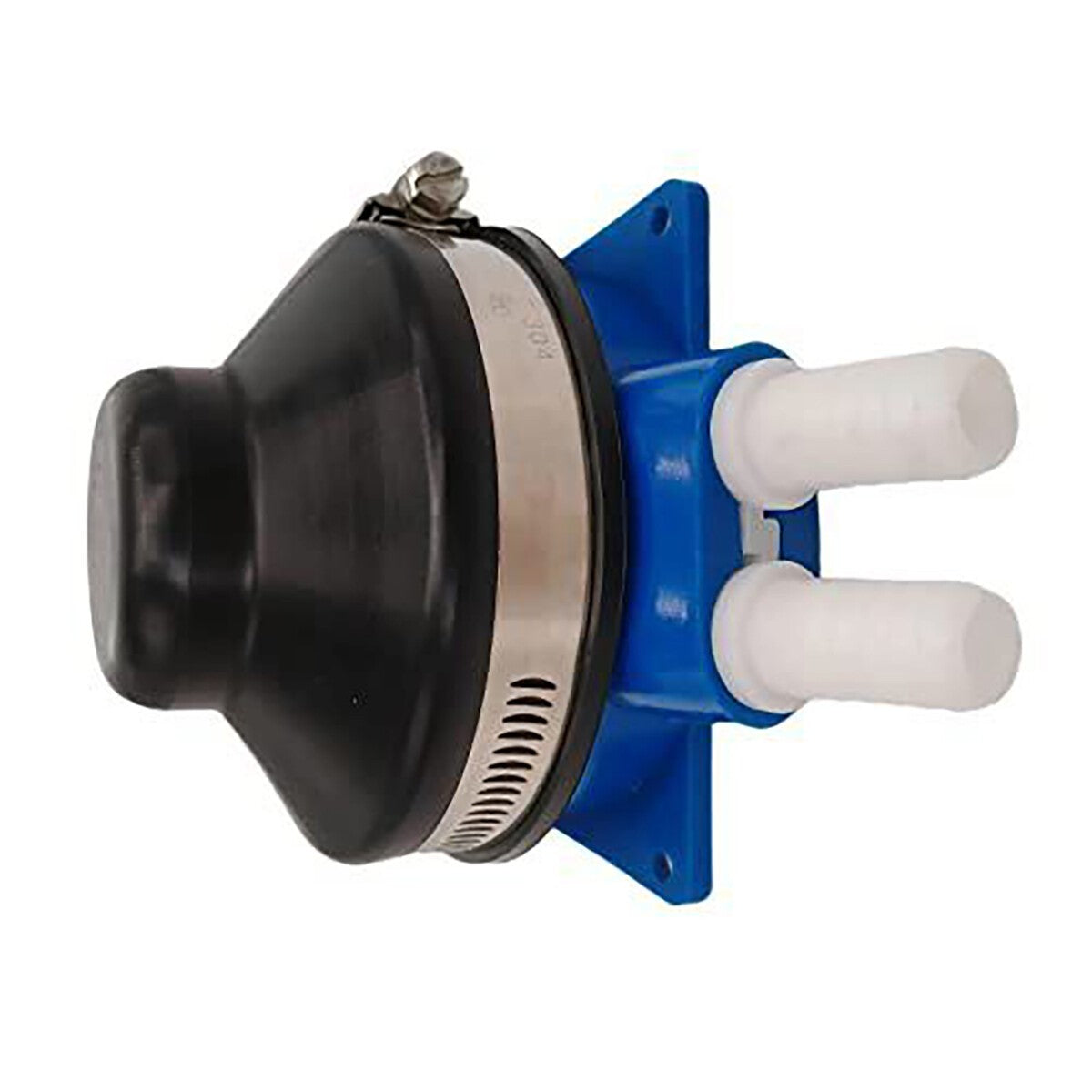

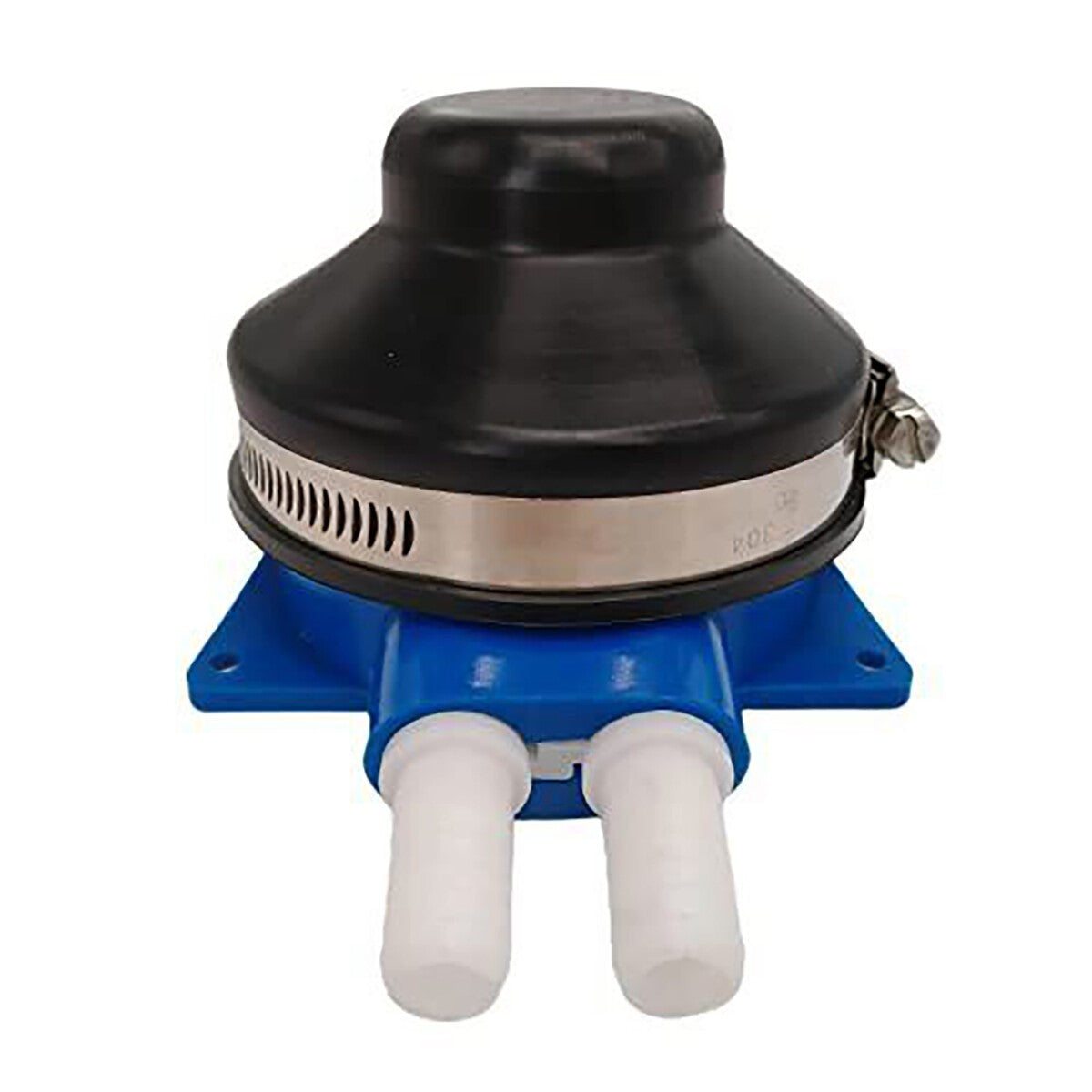

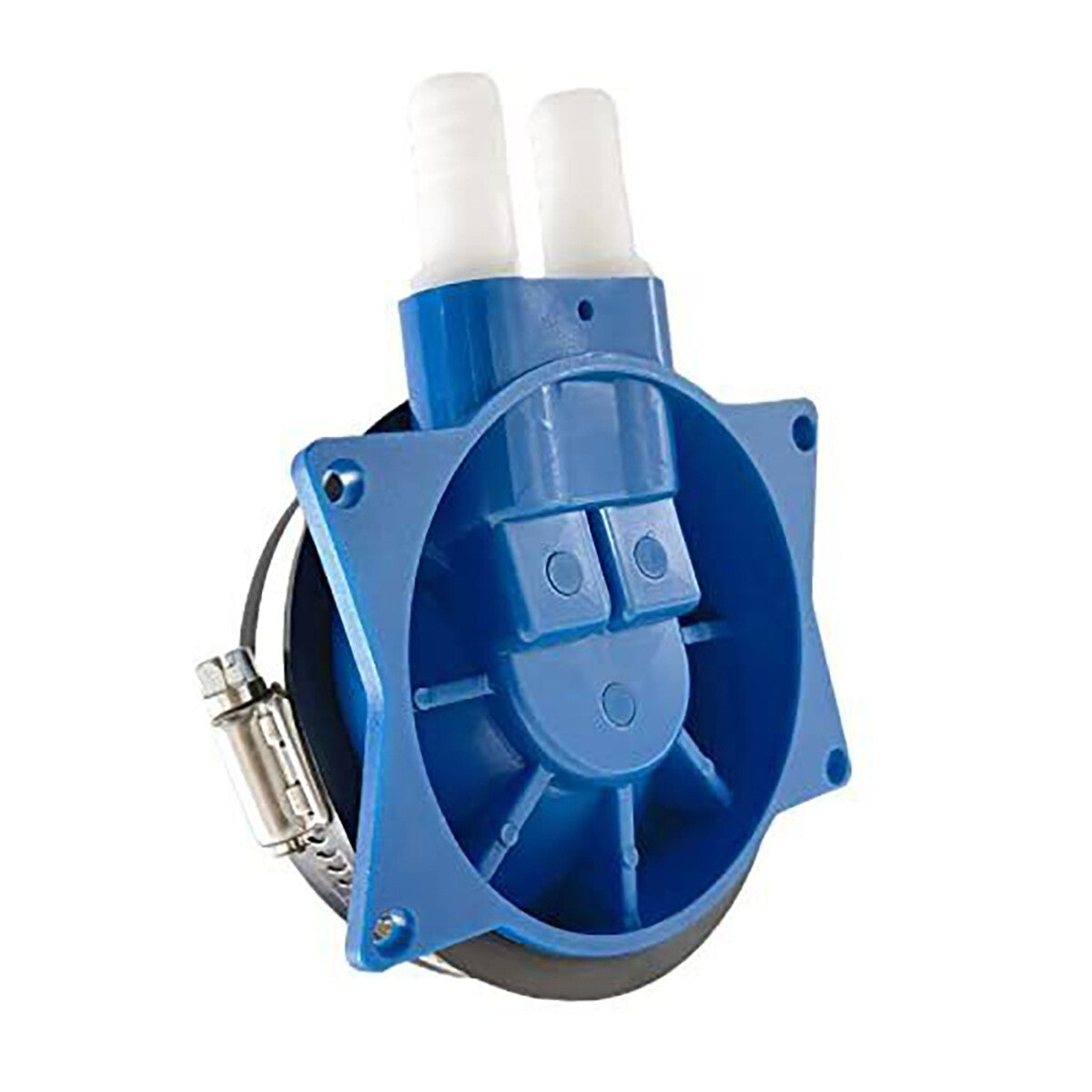

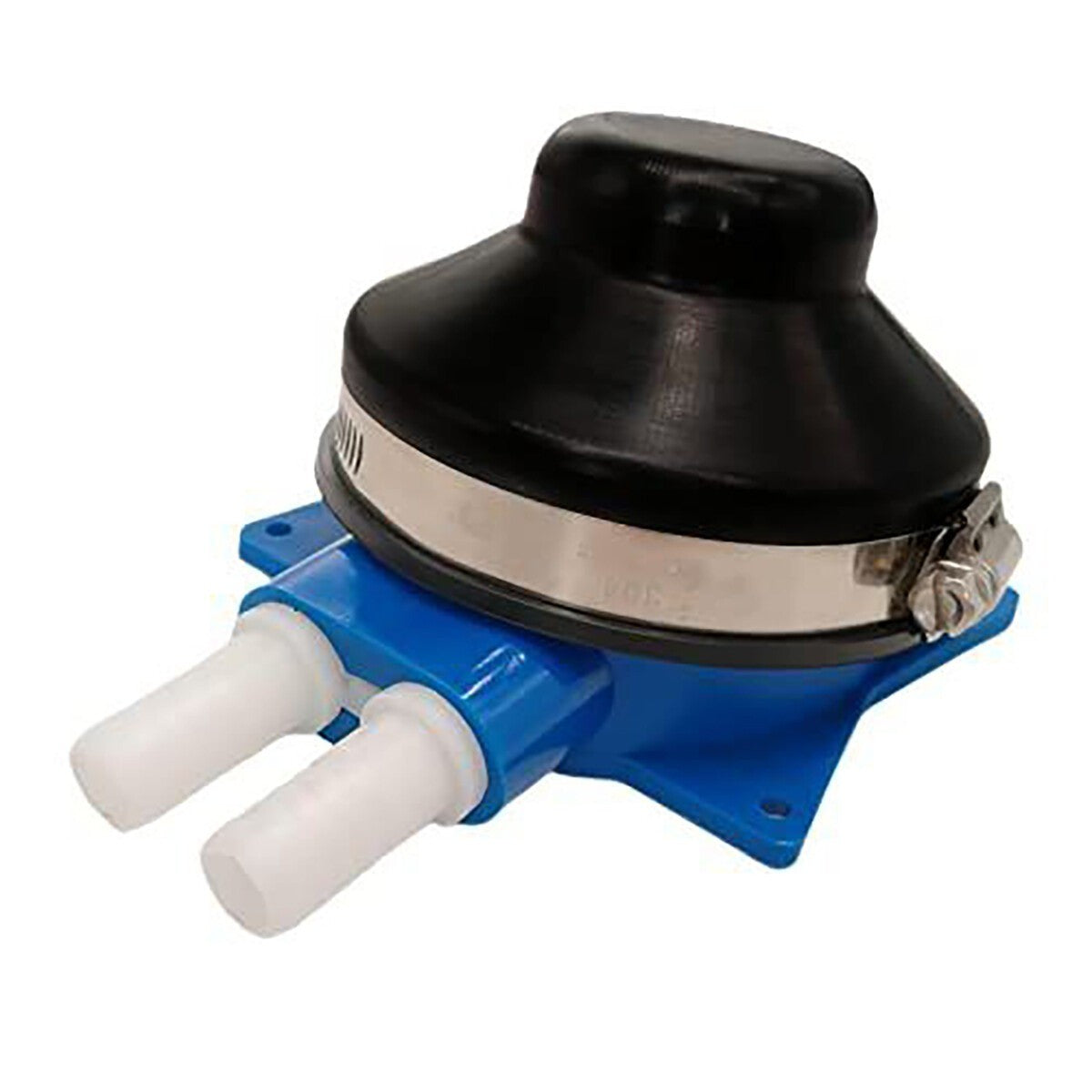

Self Priming Foot Water Pump 8 L/min 1/2 in Hose for Yacht Bilge Galley Sink Wash Basin RV Toilet — Australia Local Warehouse
Self Priming Foot Water Pump 8 L/min 1/2 in Hose for Yacht Bilge Galley Sink Wash Basin RV Toilet — Australia Local Warehouse
Product Overview
Self priming foot water pump for wash basins, galley sinks and bilge duties on boats, 8 L/min (2.11 GPM) through a 1/2 in (12.7 mm) flexible hose, fixed on-deck mounting with a 3-1/2 in (88.9 mm) rubber top. The pump body measures 5 in (127 mm) long, 4 in (101.6 mm) wide and 2-7/8 in (73 mm) high. Dispatched from our Australia local warehouse.
A foot pump is the one part of a boat water system that keeps working when the electrics do not, which is why it stays popular on yachts and trailer boats. There is no pressure switch, no accumulator and no drain on the battery, just a diaphragm that lifts water on each stroke, so the tap runs for as long as someone is standing on the pedal.
The mounting pattern is what catches people out. This pump needs 2-1/4 in (57.2 mm) between the long screw holes and 3-5/8 in (92.1 mm) between the short ones, so check the old pump's footprint before ordering, especially on a cockpit sole where the holes already exist.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Self priming foot water pump |
| Mounting | Fixed on-deck |
| Maximum Output | 8 L/min (2.11 GPM) |
| Hose Size | 1/2 in (12.7 mm) flexible hose |
| Rubber Top Diameter | 3-1/2 in (88.9 mm) |
| Length | 5 in (127 mm) |
| Width | 4 in (101.6 mm) |
| Height | 2-7/8 in (73 mm) |
| Quantity | 1 pump with mounting hardware |
| Country of Origin | Taiwan |
Mounting Dimensions
| Measurement | Imperial | Metric |
|---|---|---|
| Overall length | 5 in | 127 mm |
| Overall width | 4 in | 101.6 mm |
| Overall height | 2-7/8 in | 73 mm |
| Screw distance, length | 2-1/4 in | 57.2 mm |
| Screw distance, width | 3-5/8 in | 92.1 mm |
| Rubber top diameter | 3-1/2 in | 88.9 mm |
| Hose connection | 1/2 in | 12.7 mm |
Compatible Applications
| Application | Typical Use |
|---|---|
| Yacht bilge | Lifting bilge water to a deck outlet or a bucket |
| Galley sink | Fresh or sea water supply with no electric pump |
| Wash basin | Head and basin supply on boats with no pressure system |
| Deck wash | Sea water rinse for anchor and deck gear |
| RV and caravan | Fresh water supply away from mains power |
| Camper and 4WD | Water transfer from a tank to a sink |
How It Works
| Stage | What Happens |
|---|---|
| 1 | The pedal is pressed and the diaphragm compresses |
| 2 | Water is pushed out through the outlet valve |
| 3 | The pedal is released and the diaphragm springs back |
| 4 | The inlet valve opens and water is drawn up the hose |
| 5 | The non-return valves hold the prime between strokes |
Installation Notes
| Step | Action |
|---|---|
| 1 | Choose a flat surface where the pedal can be fully depressed |
| 2 | Check the screw spacing against the old pump before drilling |
| 3 | Fit the inlet hose with a strainer on the pick-up end |
| 4 | Keep the inlet hose as short and as low as practical |
| 5 | Fit hose clamps on both connections, do not rely on a push fit |
| 6 | Fasten with stainless screws and seal the holes |
| 7 | Prime with a few strokes and check for air leaks at the joints |
Maintenance
| Item | Recommendation |
|---|---|
| Strainer | Clean before every season, more often in silty water |
| Hoses | Check for hardening and cracks at the clamps |
| Rubber top | Replace when the tread is worn smooth |
| Valves | Flush with fresh water after salt water use |
| Mounting screws | Check for loosening after the first trips |
What's Included
| Component | Qty |
|---|---|
| Self priming foot water pump | 1 |
| Mounting hardware | 1 set |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Australia
| Destination | Warehouse | Note |
|---|---|---|
| Australia | Australia local warehouse | Domestic delivery, no import duty |
| New Zealand | Australia local warehouse | Short transit, customs may apply |
| Asia Pacific | Australia local warehouse | Tracked air and sea options |
Before You Buy
- Check the screw spacing, 2-1/4 in by 3-5/8 in between centres
- Check the hose size, this pump takes 1/2 in flexible hose
- Check there is room on the sole for the pedal to travel fully
- This is a manual foot pump, not an electric pressure pump
- Order a strainer for the pick-up end if the tank has debris
- Use stainless screws, plain steel will rust out in a season
- 30-Day Easy Returns
- Ships from our Australia local warehouse
