Manual Self Priming Foot Water Pump 8 L/min 1/2 in for RV Camper Trailer Boat Galley Sink Bilge — United States Local Warehouse
Manual Self Priming Foot Water Pump 8 L/min 1/2 in for RV Camper Trailer Boat Galley Sink Bilge — United States Local Warehouse
Product Overview

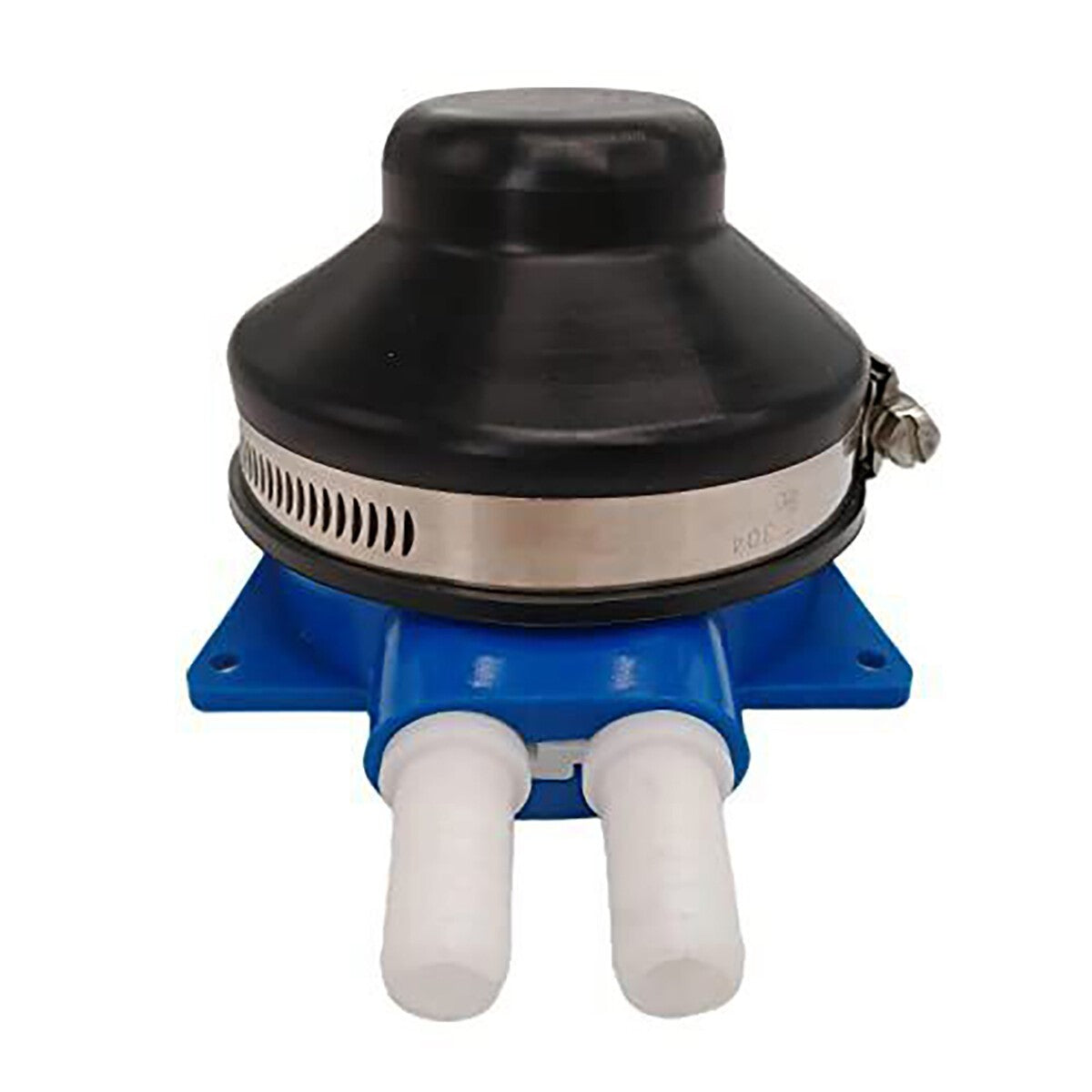

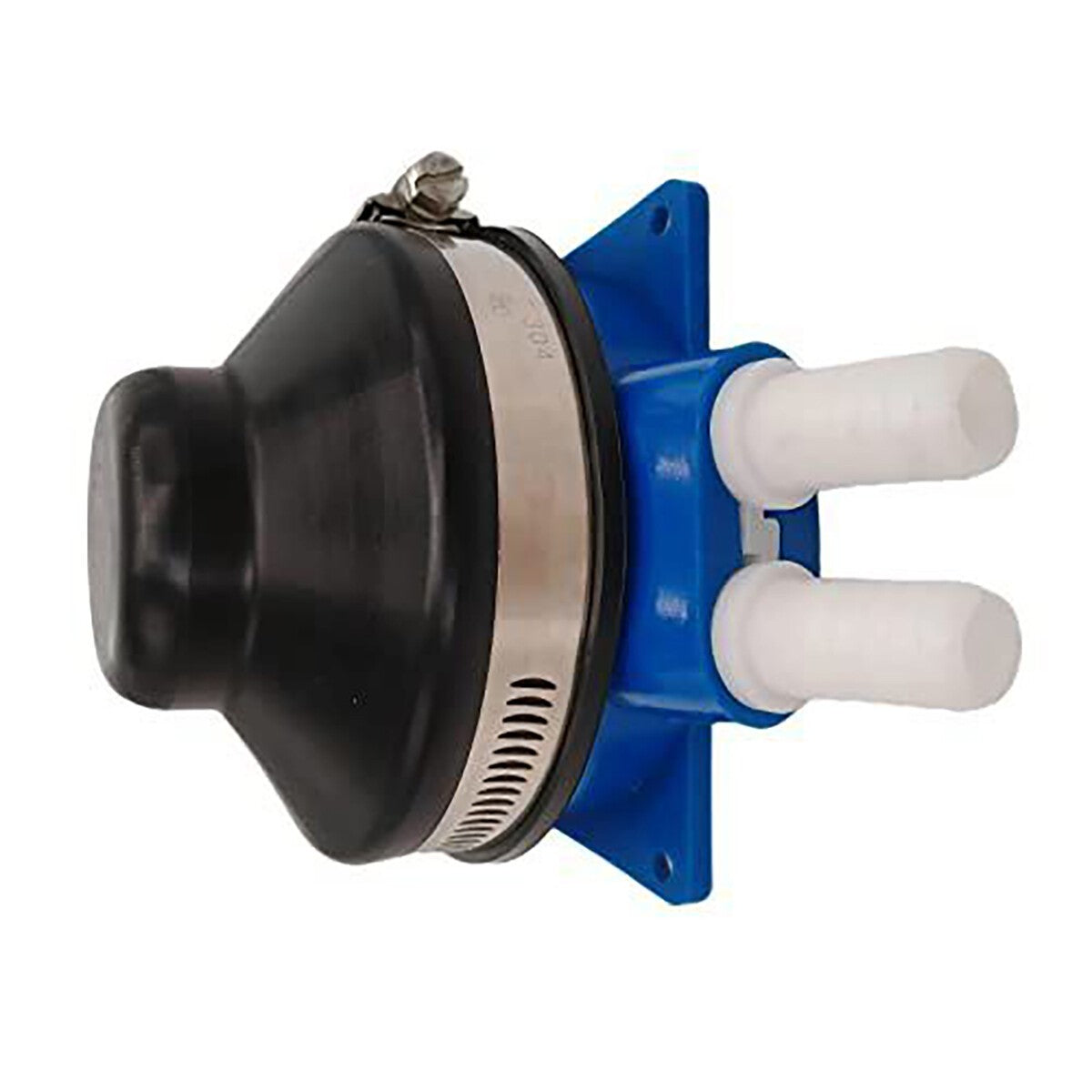

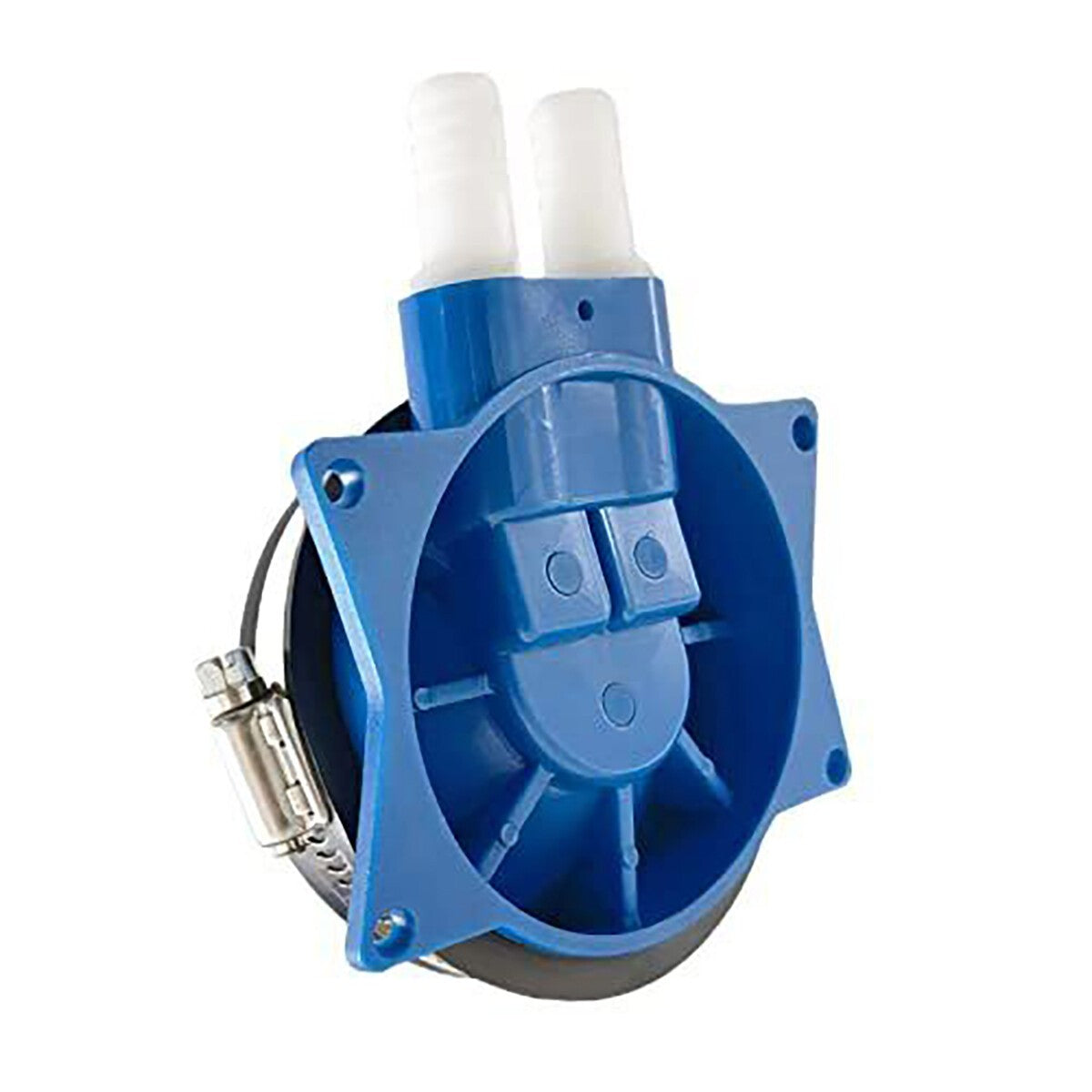

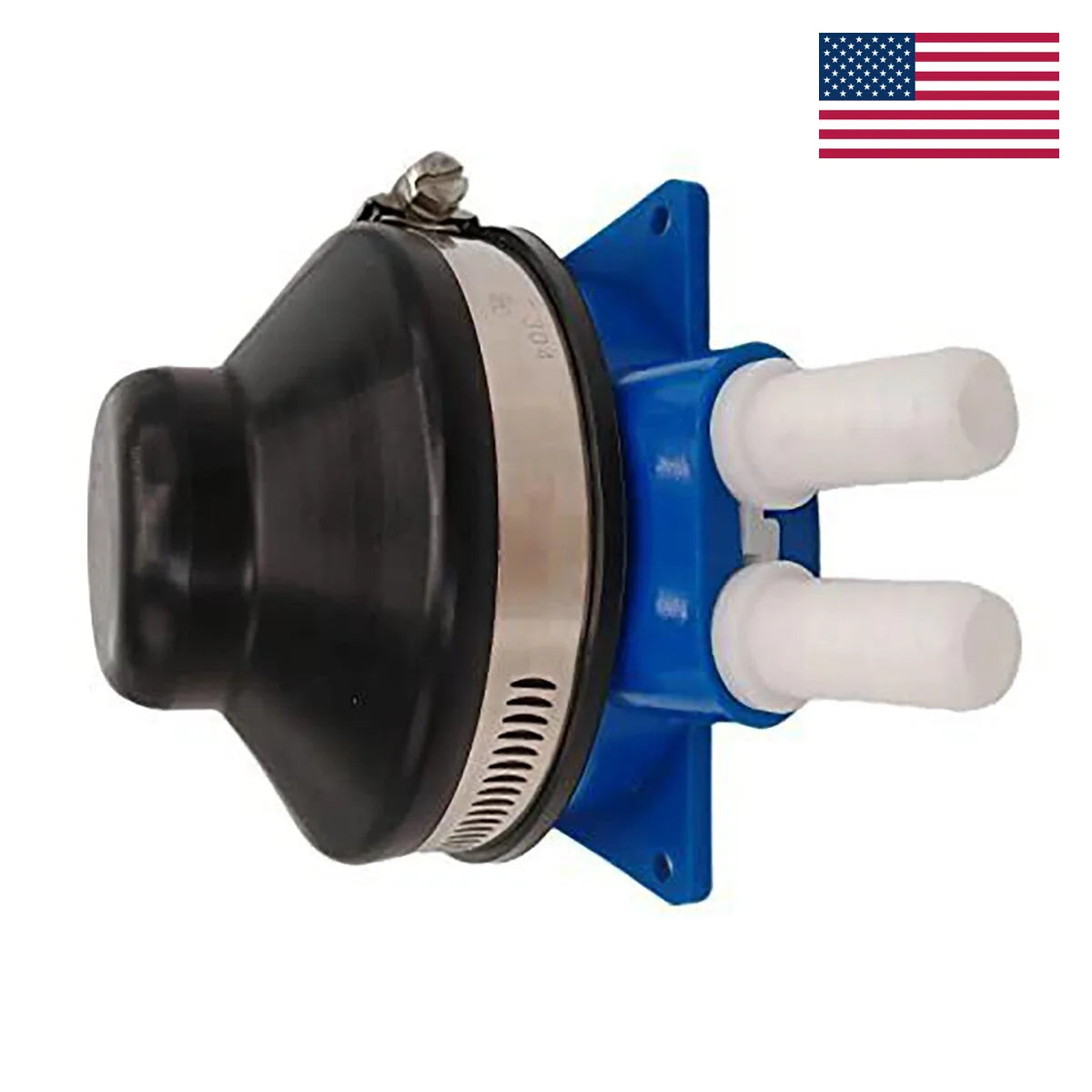

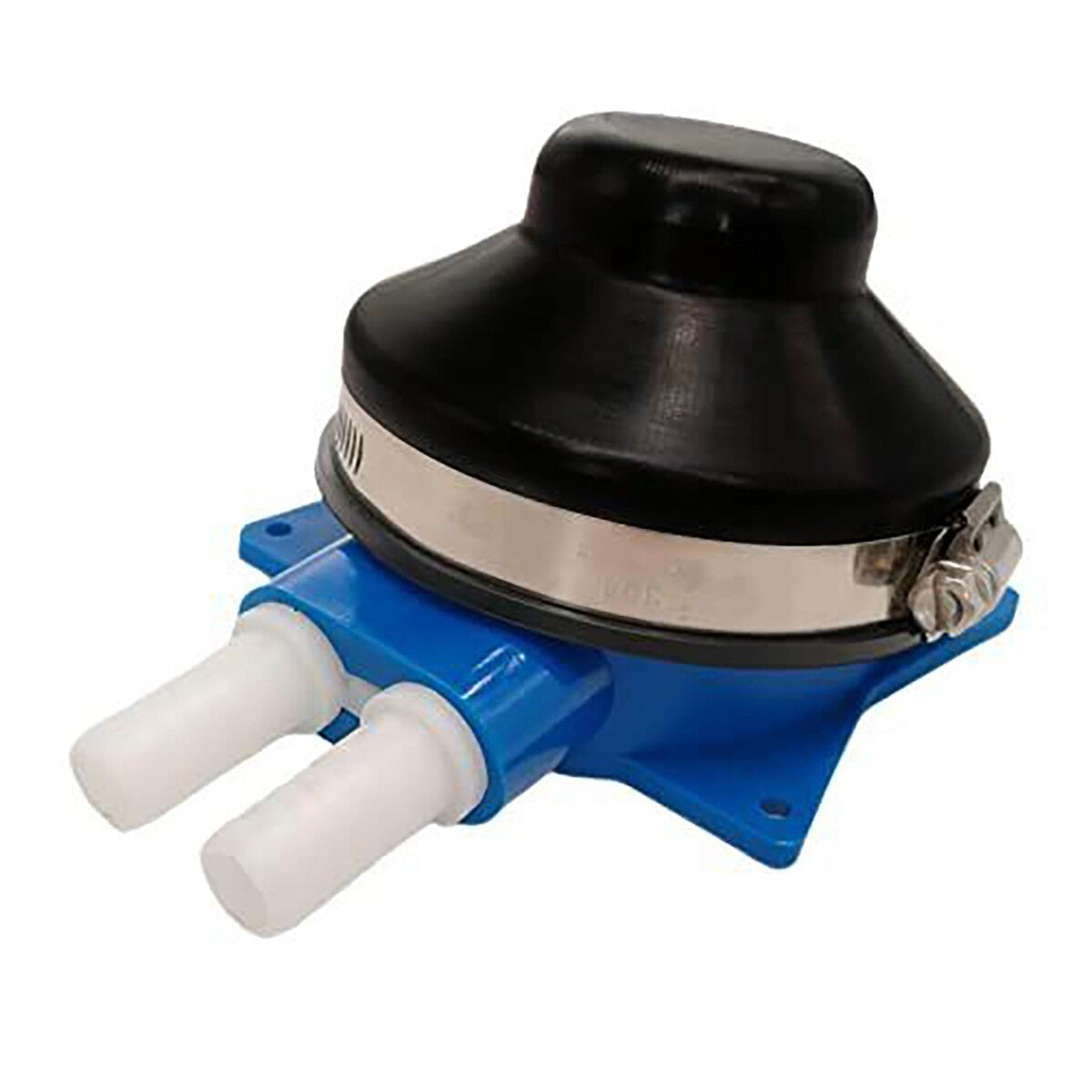

Manual self priming foot pump for RV, camper and boat water systems, delivering 8 L/min (2.11 GPM) through 1/2 in (12.7 mm) flexible hose with a fixed on-deck mount and a 3-1/2 in (88.9 mm) rubber tread. Footprint is 5 in (127 mm) by 4 in (101.6 mm), standing 2-7/8 in (73 mm) high. Shipped from our United States local warehouse.
Nothing about this pump needs a battery. Two check valves and a diaphragm do all the work, so it lifts water from a tank under the floor to a sink above it as long as someone keeps pressing, and it holds its prime between uses. On a camper or a small boat that is often the difference between having running water and not.
The pedal can be unbolted from the base when the vehicle is stored, which is worth knowing before you mount it. Keep the base screws where you can reach them, leave enough slack in the 1/2 in hose to lift the body clear, and the whole unit comes out for cleaning without disturbing the plumbing.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Self priming foot water pump |
| Mounting | Fixed on-deck, pedal detachable |
| Maximum Output | 8 L/min (2.11 GPM) |
| Hose Size | 1/2 in (12.7 mm) flexible hose |
| Rubber Tread Diameter | 3-1/2 in (88.9 mm) |
| Length | 5 in (127 mm) |
| Width | 4 in (101.6 mm) |
| Height | 2-7/8 in (73 mm) |
| Quantity | 1 pump with mounting hardware |
| Country of Origin | Taiwan |
Dimensions & Mounting
| Measurement | Imperial | Metric |
|---|---|---|
| Body length | 5 in | 127 mm |
| Body width | 4 in | 101.6 mm |
| Body height | 2-7/8 in | 73 mm |
| Screw holes, long side | 2-1/4 in | 57.2 mm |
| Screw holes, short side | 3-5/8 in | 92.1 mm |
| Tread diameter | 3-1/2 in | 88.9 mm |
| Hose connection | 1/2 in | 12.7 mm |
Where It Fits
| Vehicle or Area | Typical Duty |
|---|---|
| RV and motorhome | Galley sink and bathroom basin supply |
| Camper van and conversion | Fresh water from a tank under the bench |
| Travel trailer | Sink supply with no 12 V pump |
| 4WD and overland build | Water transfer and rear tap supply |
| Yacht and sailboat | Galley sink and head basin |
| Trailer boat | Deck wash and bilge lift |
Winterising
| Step | Action |
|---|---|
| 1 | Empty the tank or close the tank valve |
| 2 | Pump the line dry with a few dozen strokes |
| 3 | Disconnect the inlet hose at the pump |
| 4 | Pump again until no water comes out of either port |
| 5 | Leave the hose off until spring, or fit a drain valve |
| 6 | Store the pedal indoors if the vehicle is unheated |
Installation Notes
| Step | Action |
|---|---|
| 1 | Pick a flat, dry area for the body with room for full pedal travel |
| 2 | Mark the four holes at 2-1/4 in by 3-5/8 in spacing |
| 3 | Drill, then seal the holes before the screws go in |
| 4 | Fit a strainer on the tank end of the inlet hose |
| 5 | Clamp both hose ends, a push fit will draw air |
| 6 | Prime with several strokes and check for leaks at the joints |
Troubleshooting
| Symptom | Cause and Fix |
|---|---|
| Pump moves but no water | Air leak at a clamp, or the inlet is above the water |
| Water only on the down stroke | Outlet valve dirty, strip and rinse |
| Prime is lost overnight | Inlet valve not seating, or a cracked hose |
| Water in the bilge under the pump | Hose clamp loose or the diaphragm has split |
| Pedal hard to press | Blocked strainer or a kinked hose |
| Output dropped over a season | Worn valves, clean or replace |
What's Included
| Component | Qty |
|---|---|
| Self priming foot water pump | 1 |
| Mounting hardware | 1 set |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from United States
| Destination | Warehouse | Note |
|---|---|---|
| United States | United States local warehouse | Domestic delivery, no import duty |
| Canada | United States local warehouse | Customs may apply |
| Mexico | United States local warehouse | Customs may apply |
Before You Buy
- Check the hole spacing, 2-1/4 in by 3-5/8 in between centres
- Check the pump takes 1/2 in flexible hose, not 3/8 in
- Leave room for the pedal to go all the way down
- This is a manual foot pump, it does not switch on with a tap
- Fit a strainer if the tank can pick up debris
- Drain it before a hard freeze, the valves hold water
