Product Overview
Impeller kit part number 0393630 for Johnson and Evinrude 20 HP, 25 HP, 30 HP and 35 HP outboards, sold as a full pump rebuild rather than a rotor on its own. Inside the box are the impeller 395289, impeller plate 328755, housing 393632, water pump cup 328751, plate gasket, grommet, four O-rings and six stainless steel bolts. Cross references are 0390344, 0391636, 0393509 and 0777803 from OMC, and Sierra 18-3382. In stock in our United States local warehouse.
The pump on these two strokes sits in the midsection, driven off the driveshaft, and on freshwater boats the impeller often outlives the cup. That is why the kit carries the cup, the plate and the housing together: replacing only the rubber leaves a worn metal surface that eats the new vanes within a few outings.
Applications run 20 HP 1985 to 1996, 25 HP 1980 and 1985 to 1996, 30 HP 1984 to 1996, and 35 HP 1980 to 1984, 1986 to 1994 and 1996. If the engine has overheated, also check the thermostat and the water tube for a thrown vane before the boat goes back in the water.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Outboard water pump impeller kit |
| Horsepower | 20 HP, 25 HP, 30 HP, 35 HP |
| Quantity | 1 complete pump kit |
| Fasteners | 6 stainless steel bolts |
| O-rings | 4 |
| Pack Size | 150 x 100 x 50 mm / 5.9 x 3.9 x 2.0 in |
| Country of Origin | Taiwan |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Johnson / Evinrude | 0393630, 0390344, 0391636, 0393509, 0777803 |
| Sierra | 18-3382 |
Compatible Engines
| Brand | Horsepower | Years |
|---|---|---|
| Johnson / Evinrude | 20 HP | 1985-1996 |
| Johnson / Evinrude | 25 HP | 1980, 1985-1996 |
| Johnson / Evinrude | 30 HP | 1984-1996 |
| Johnson / Evinrude | 35 HP | 1980-1984, 1986-1994, 1996 |
Component Part Numbers
| Component | Number |
|---|---|

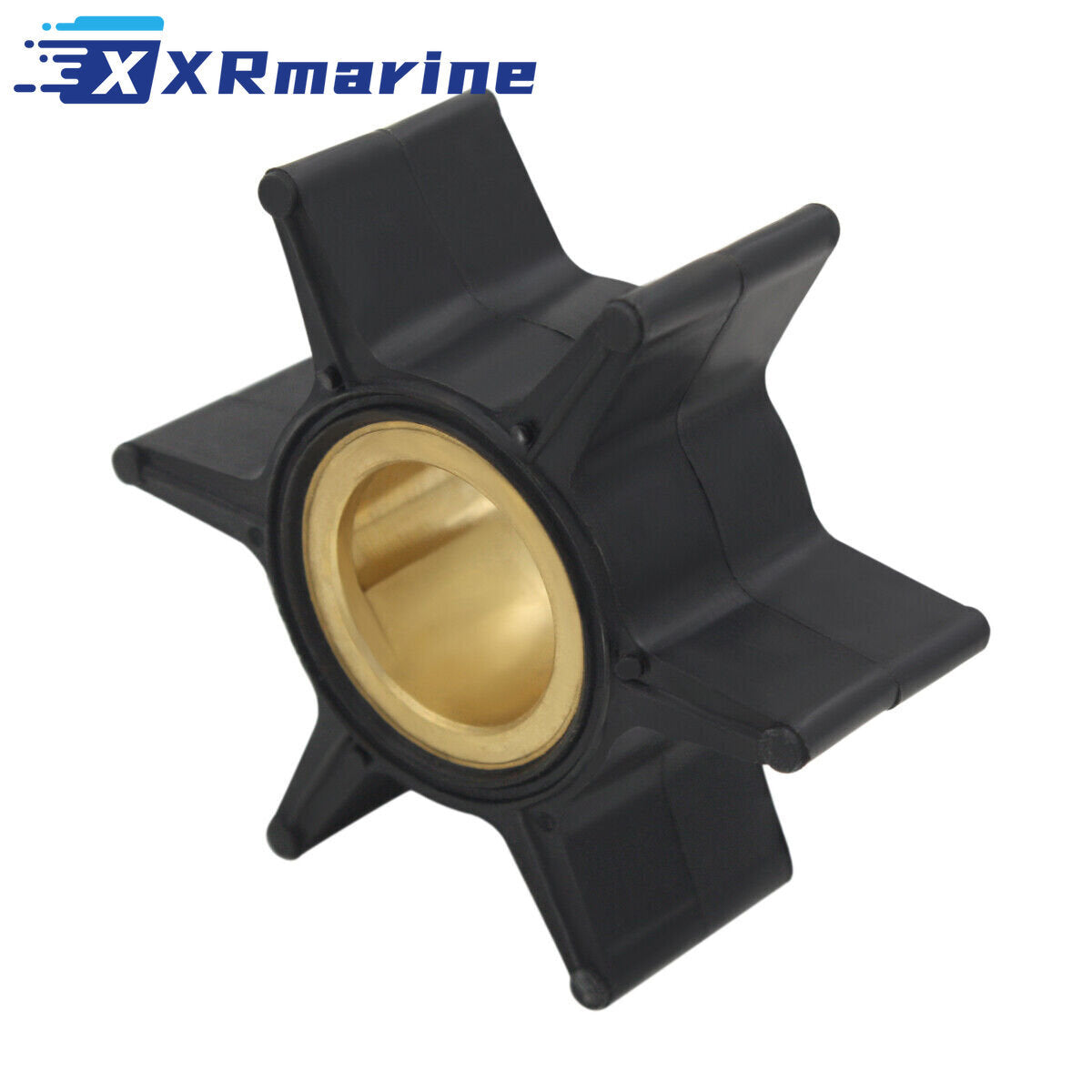

| Impeller | 395289 |

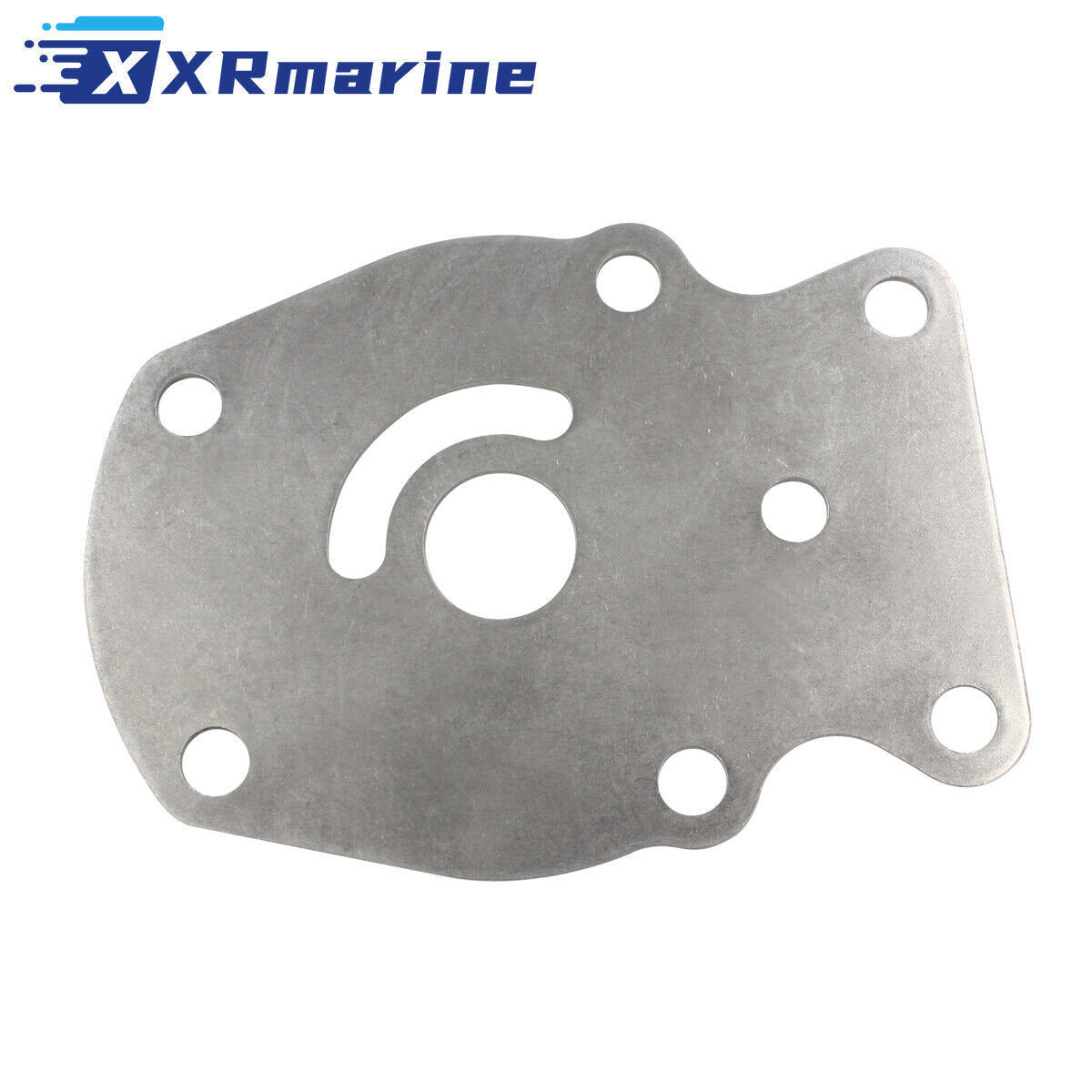

| Impeller plate | 328755 |

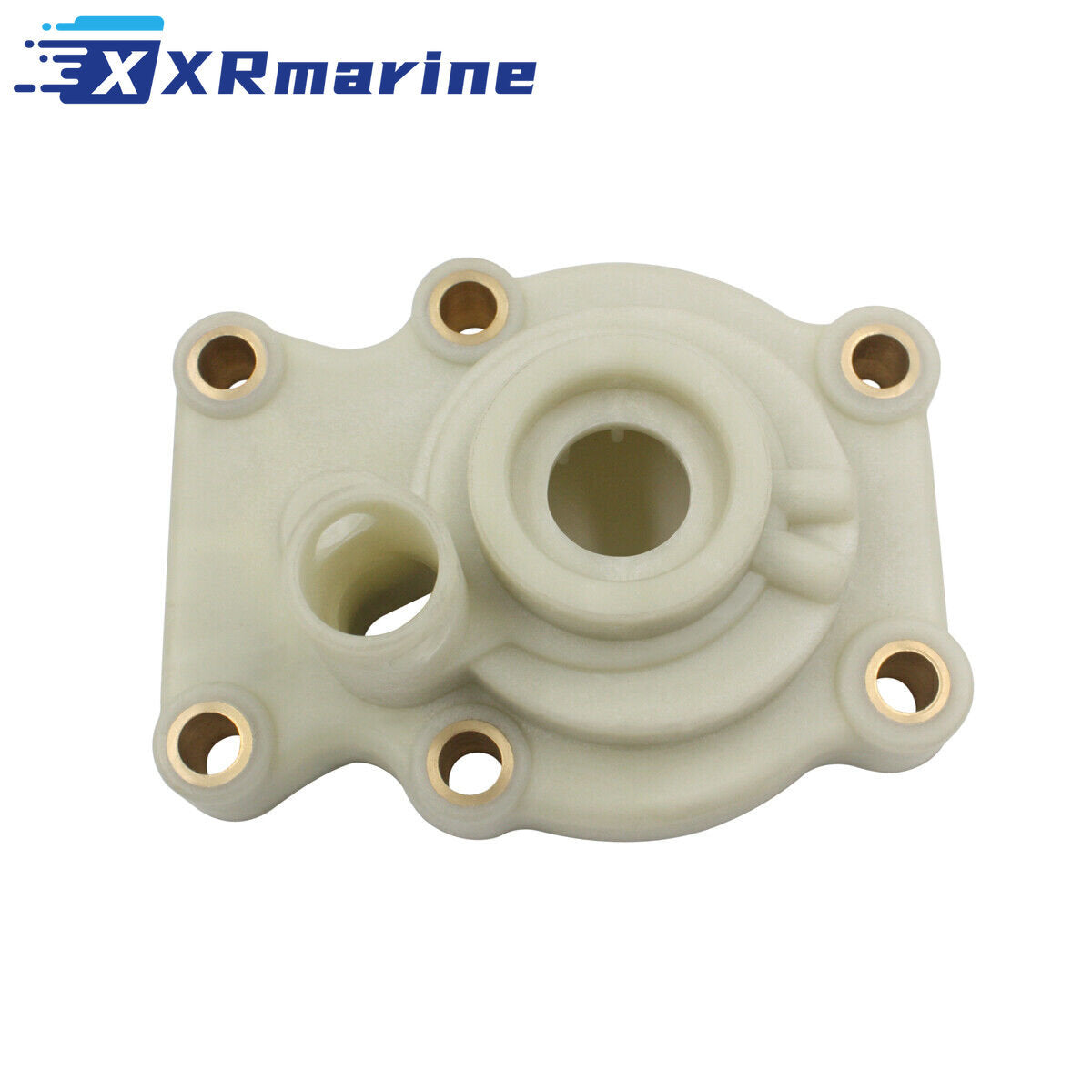

| Pump housing | 393632 |

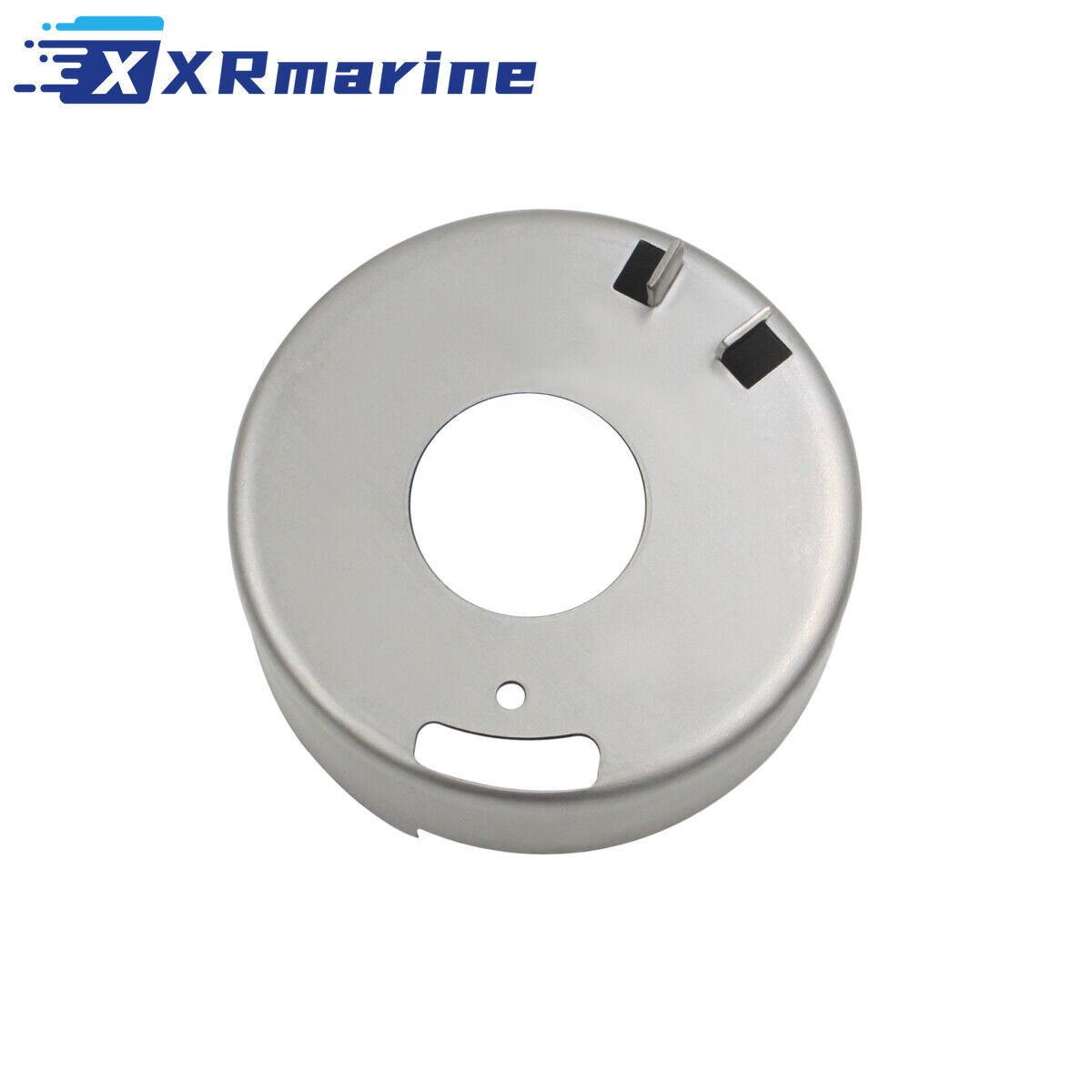

| Water pump cup | 328751 |
Symptoms and Diagnosis
| What You See | What It Means | Do This |
|---|---|---|
| Weak tell-tale at idle | Vanes set or worn | Rebuild the pump with this kit |
| Overheat at low speed only | Low speed flow lost | Kit plus a water tube flush |
| Cracked or missing vanes | Impeller has failed | Kit, flush, check the thermostat |
| Rubber in the water tube | A vane has been thrown | Clear the tube before reassembly |
| Repeat failure after an impeller only swap | Cup or housing is scored | This kit replaces both |

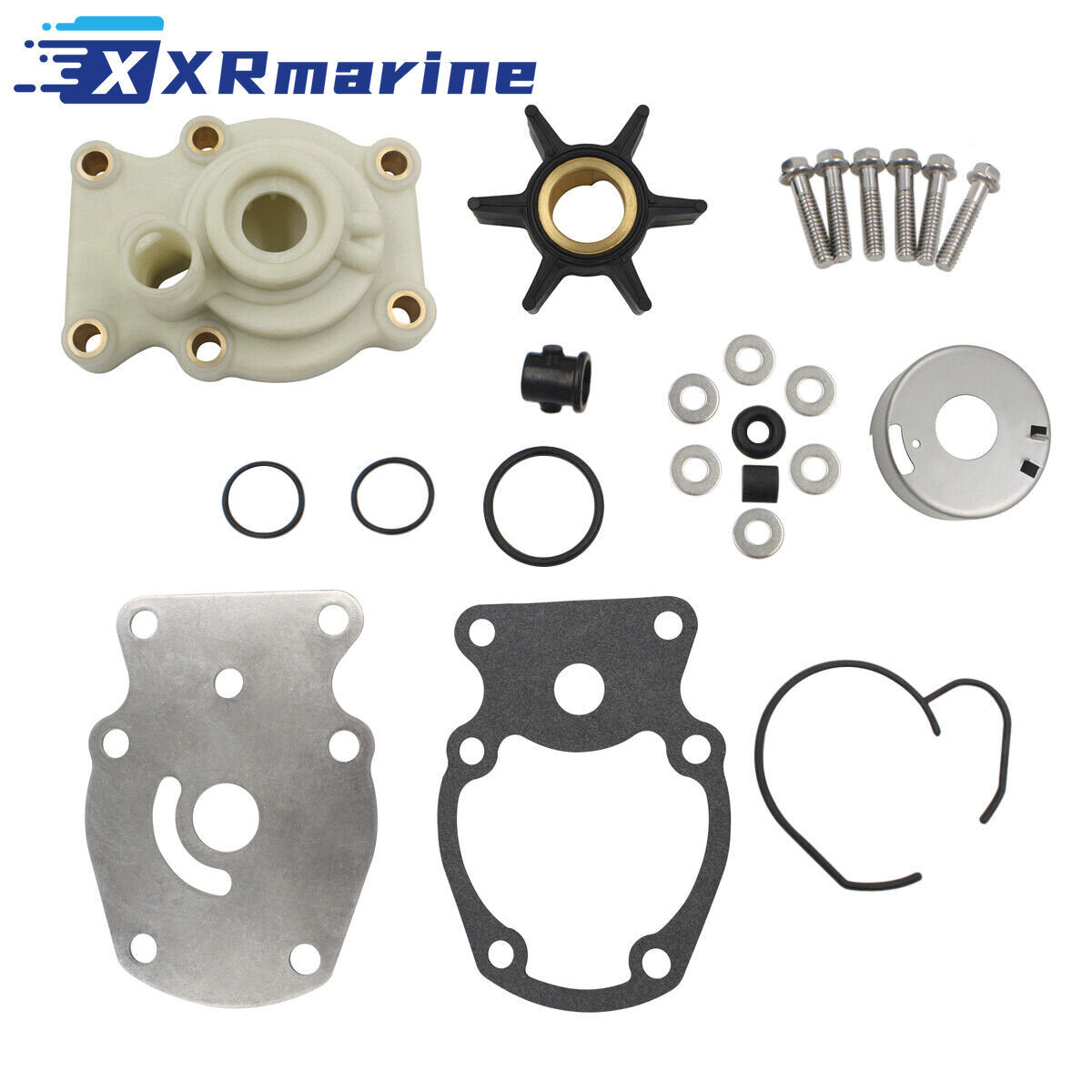

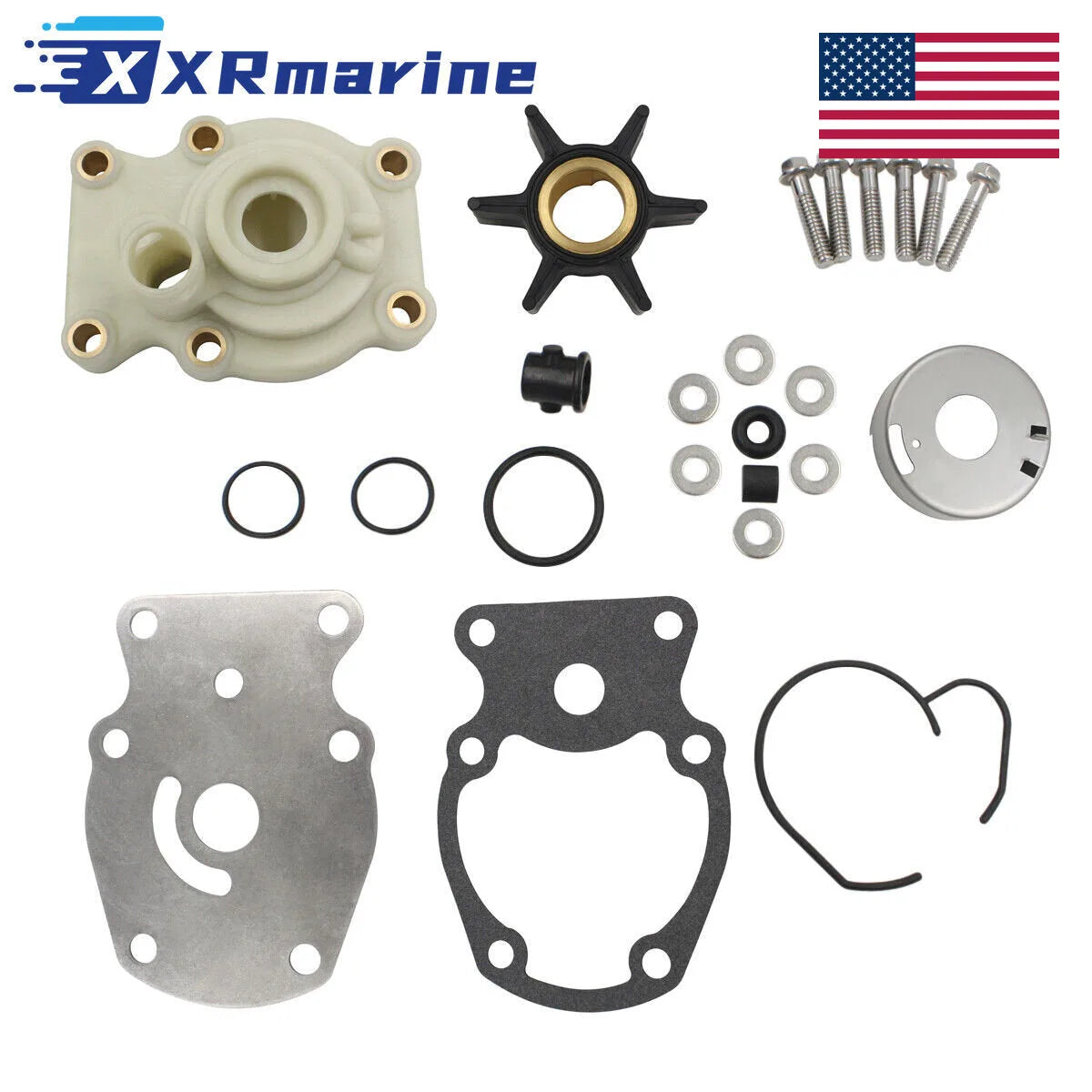

What's Included
| Component | Qty |
|---|---|
| Impeller | 1 |
| Impeller plate | 1 |
| Pump housing | 1 |
| Water pump cup | 1 |

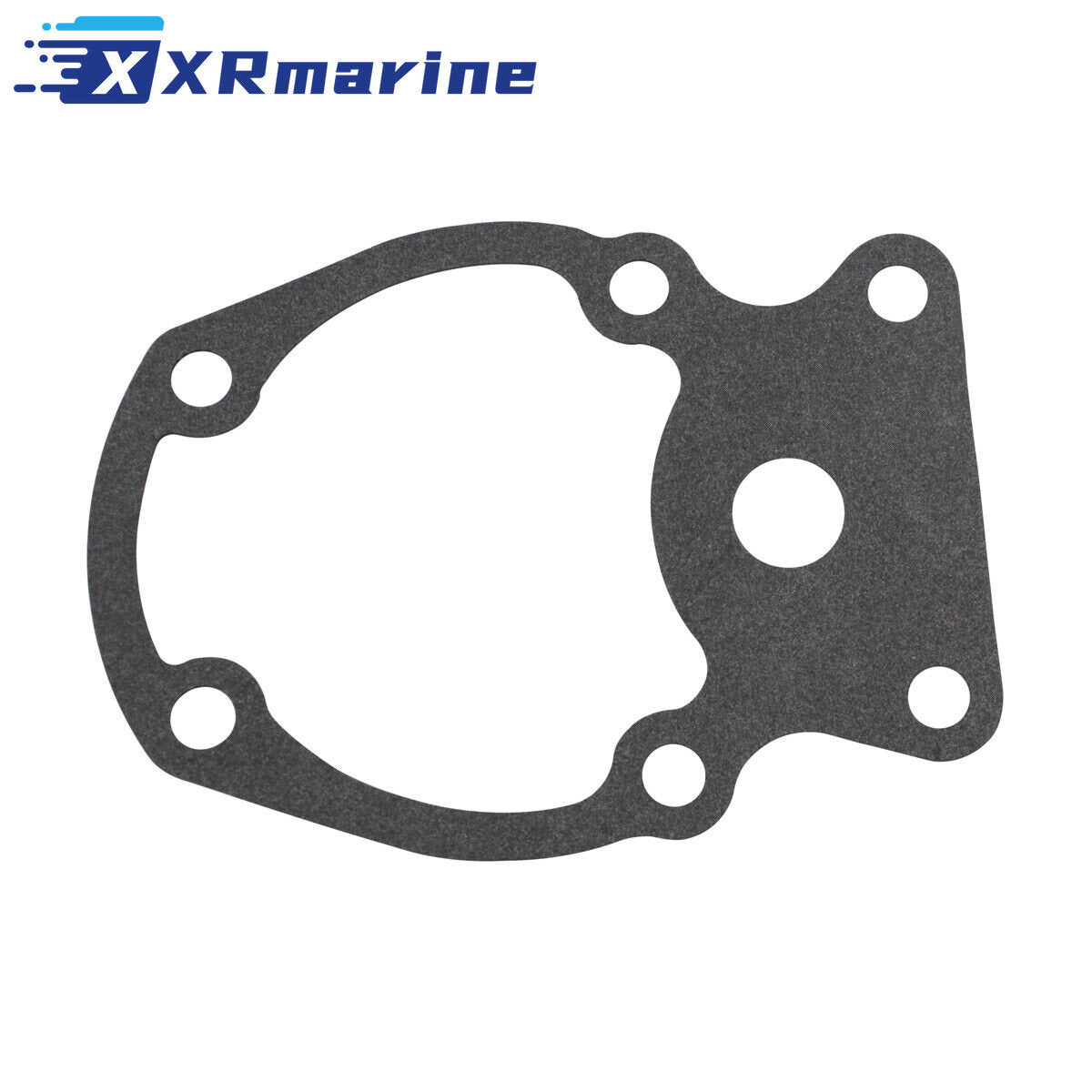

| Impeller plate gasket | 1 |
| Grommet | 1 |
| O-ring | 4 |
| Stainless steel bolt | 6 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from United States
| Destination | Warehouse | Note |
|---|---|---|
| United States | United States local warehouse | Domestic delivery, no import duty |
| Canada | United States local warehouse | Cross border, customs may apply |
| Mexico | United States local warehouse | Cross border, customs may apply |
Before You Buy
- Confirm your horsepower and year against the table above
- This is a complete pump kit, not an impeller only listing
- Check the driveshaft splines and the pump bore while it is apart
- Flush the water tube after any impeller failure
- Fit the plate gasket and all four O-rings before closing the pump
- Check tell-tale flow before the first run
