1395-9179 Carburetor Kit for Mercury Mariner Outboard 6 8 9.9 10 15 20 25 HP — Australia Local Warehouse
1395-9179 Carburetor Kit for Mercury Mariner Outboard 6 8 9.9 10 15 20 25 HP — Australia Local Warehouse
Product Overview

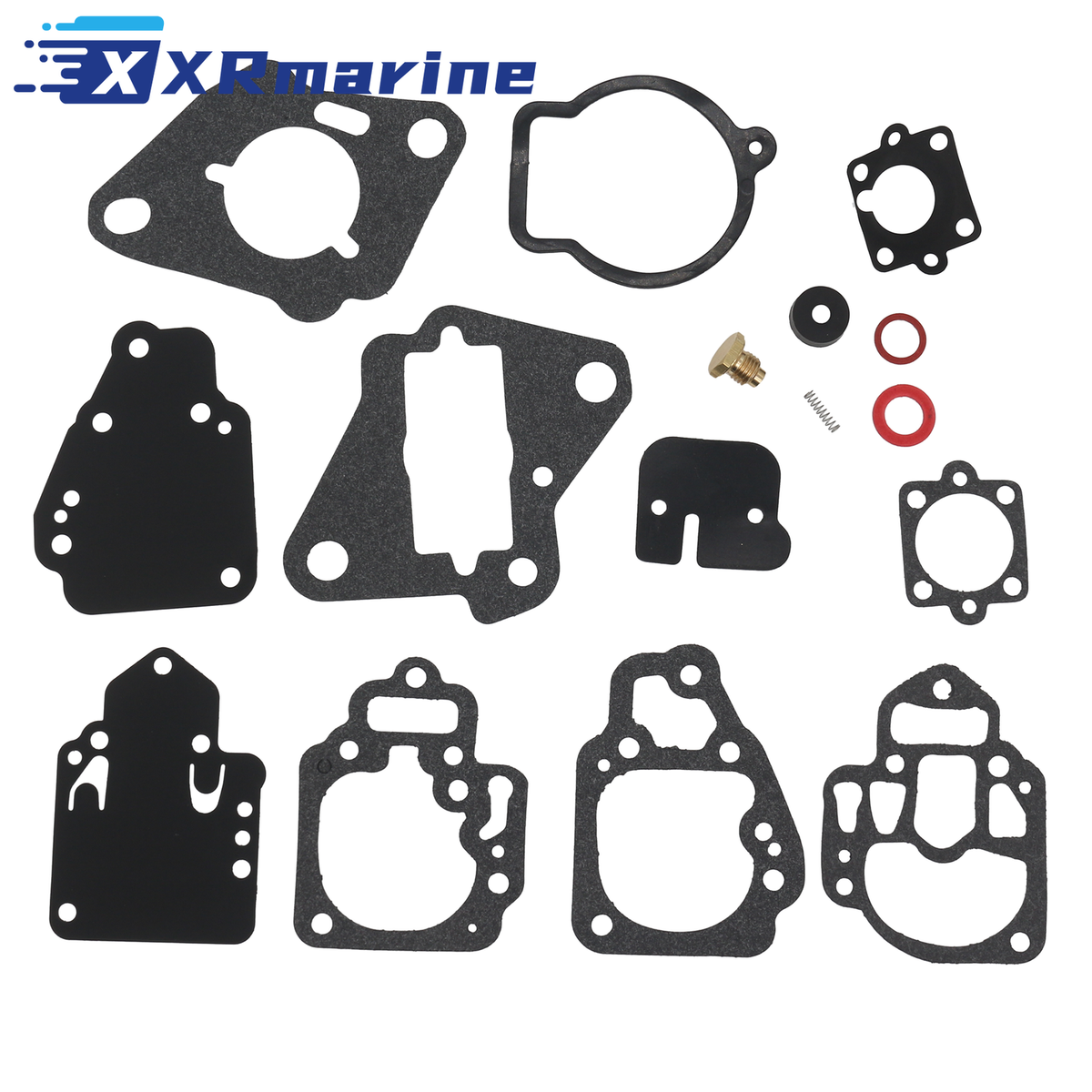

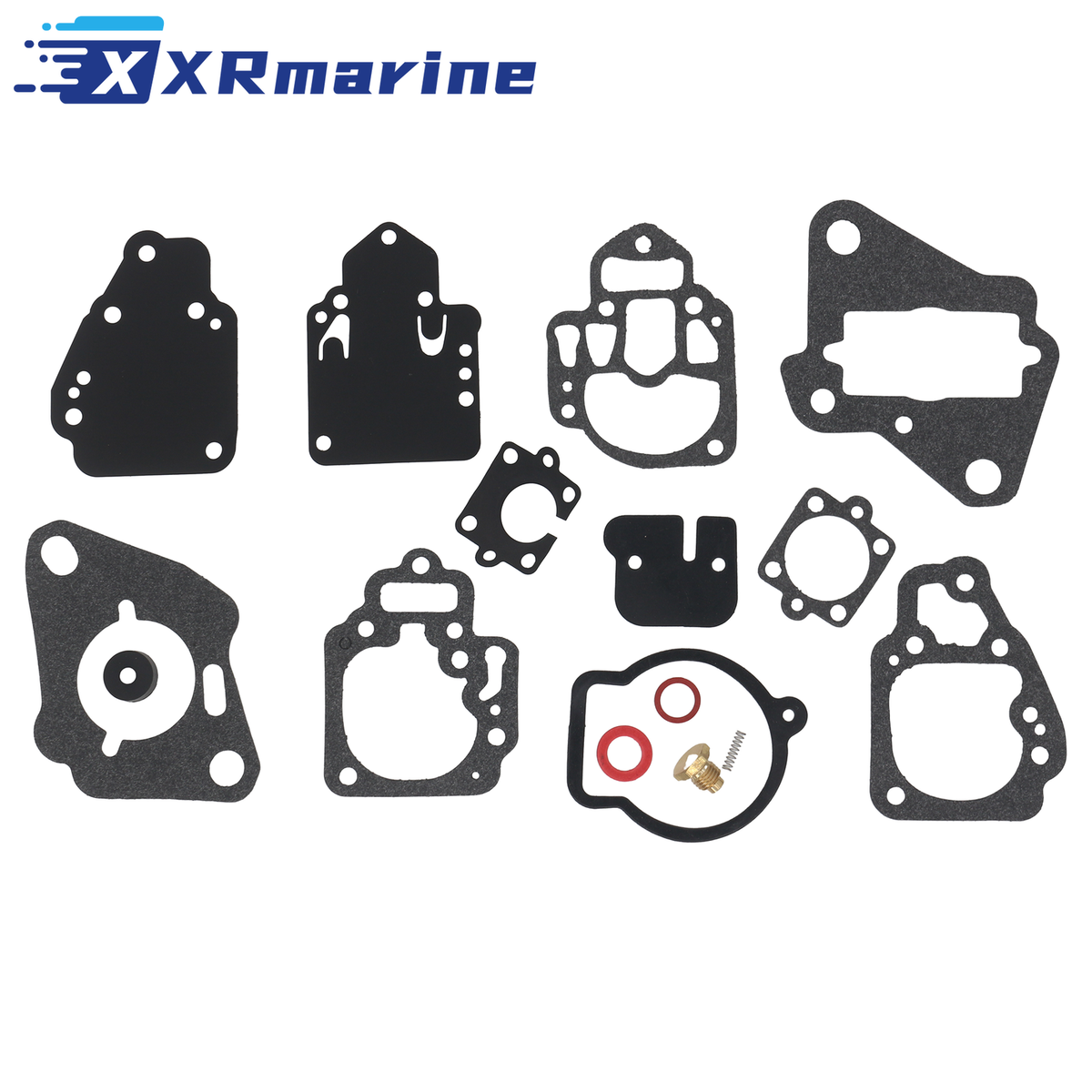

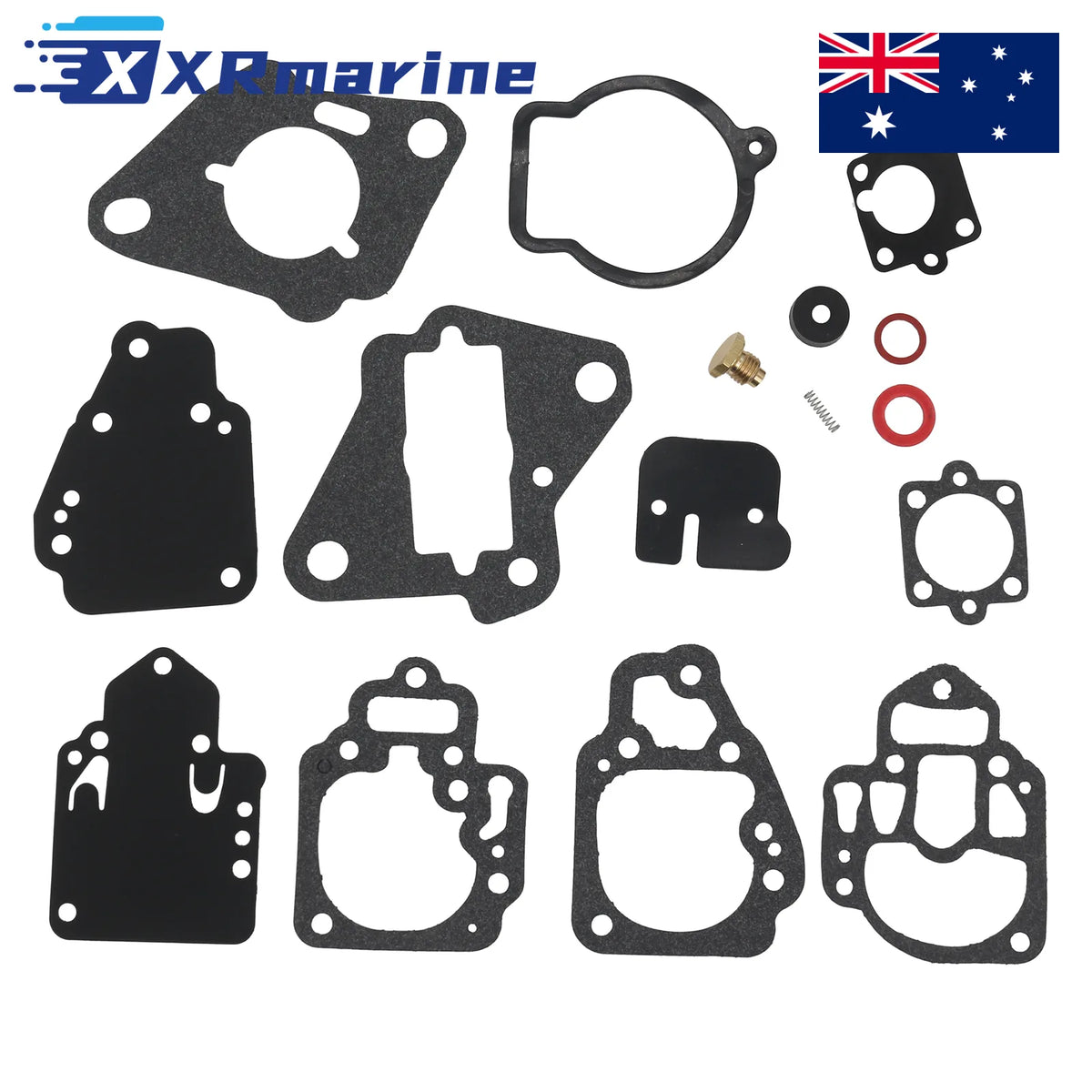

Carburetor repair kit for Mercury and Mariner outboards from 6 HP to 25 HP, covering the 8, 9.9, 10, 15 and 20 HP models as well. It replaces Mercury 1395-9761, 1395-97611, 1395-9803, 1395-9725, 1395-9645, 1395-9377, 1395-9179 and 1395-811357, and crosses to Sierra 18-7212, GLM 40610 and Mallory 9-37304 and 37304. Dispatched from our Australia local warehouse.

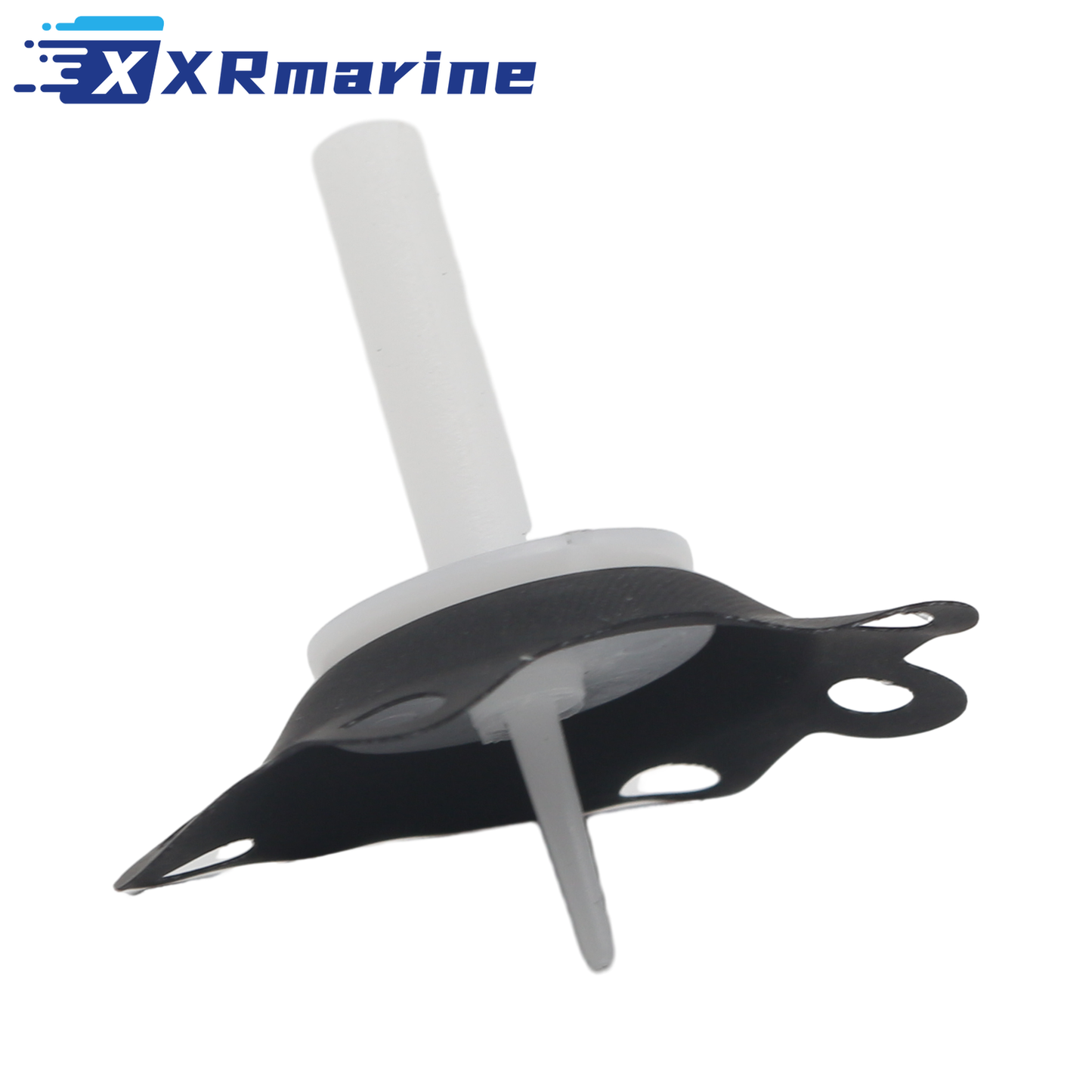

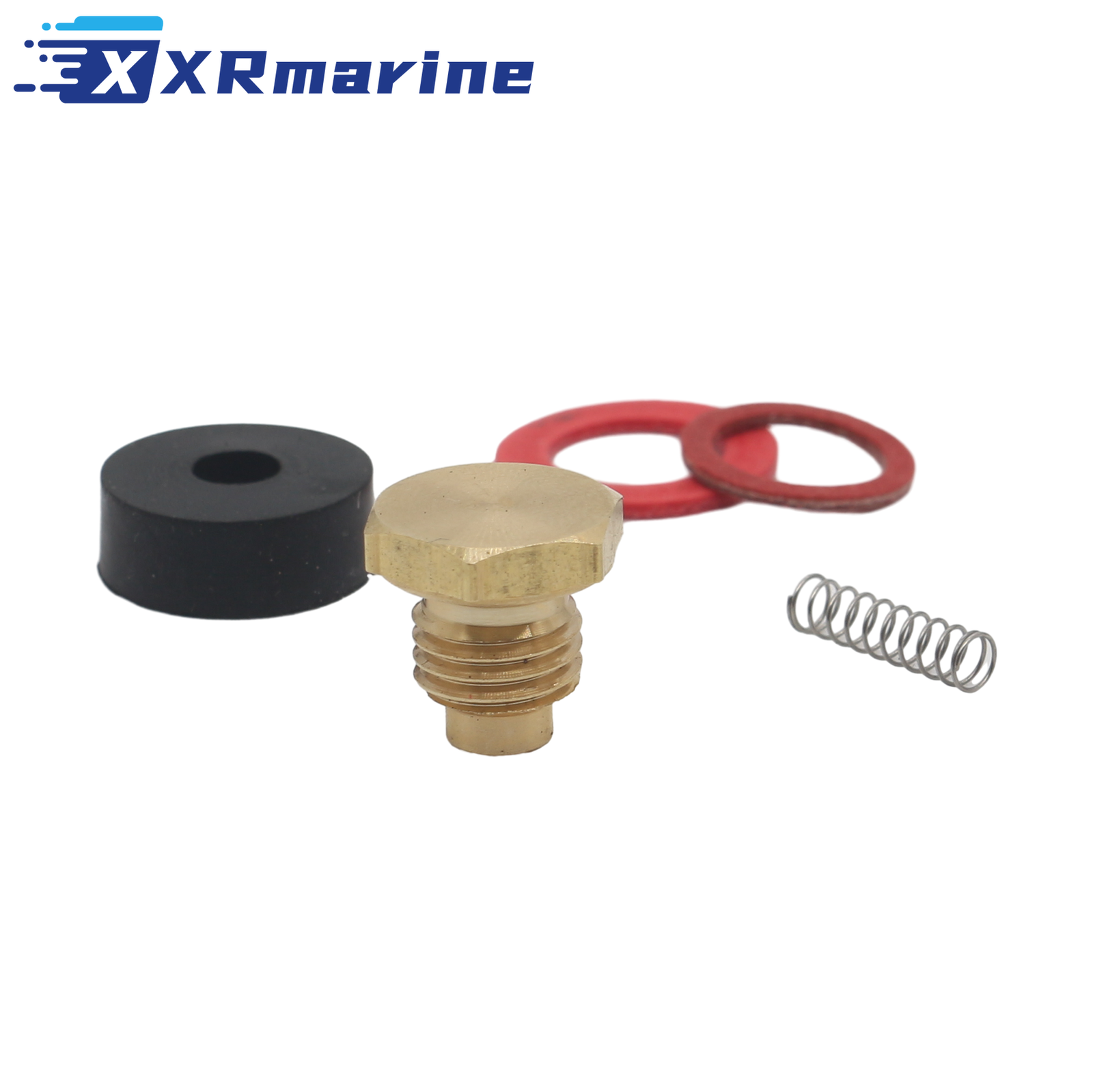

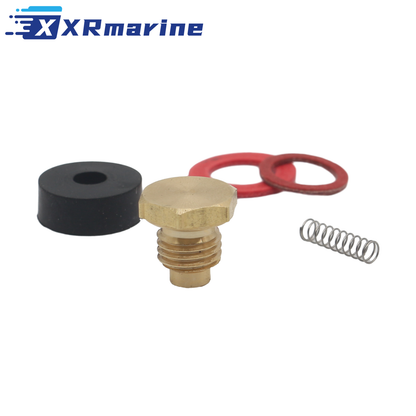

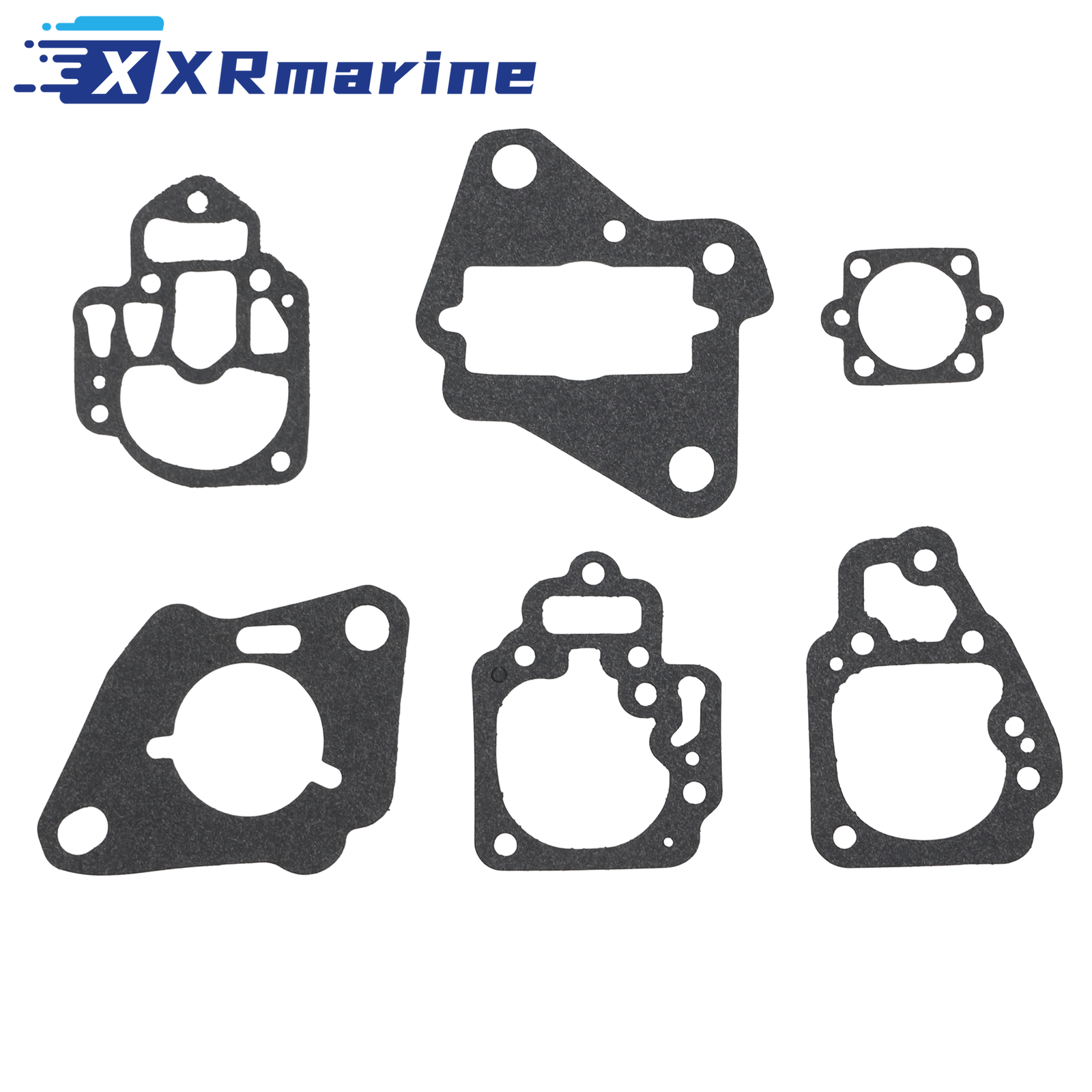

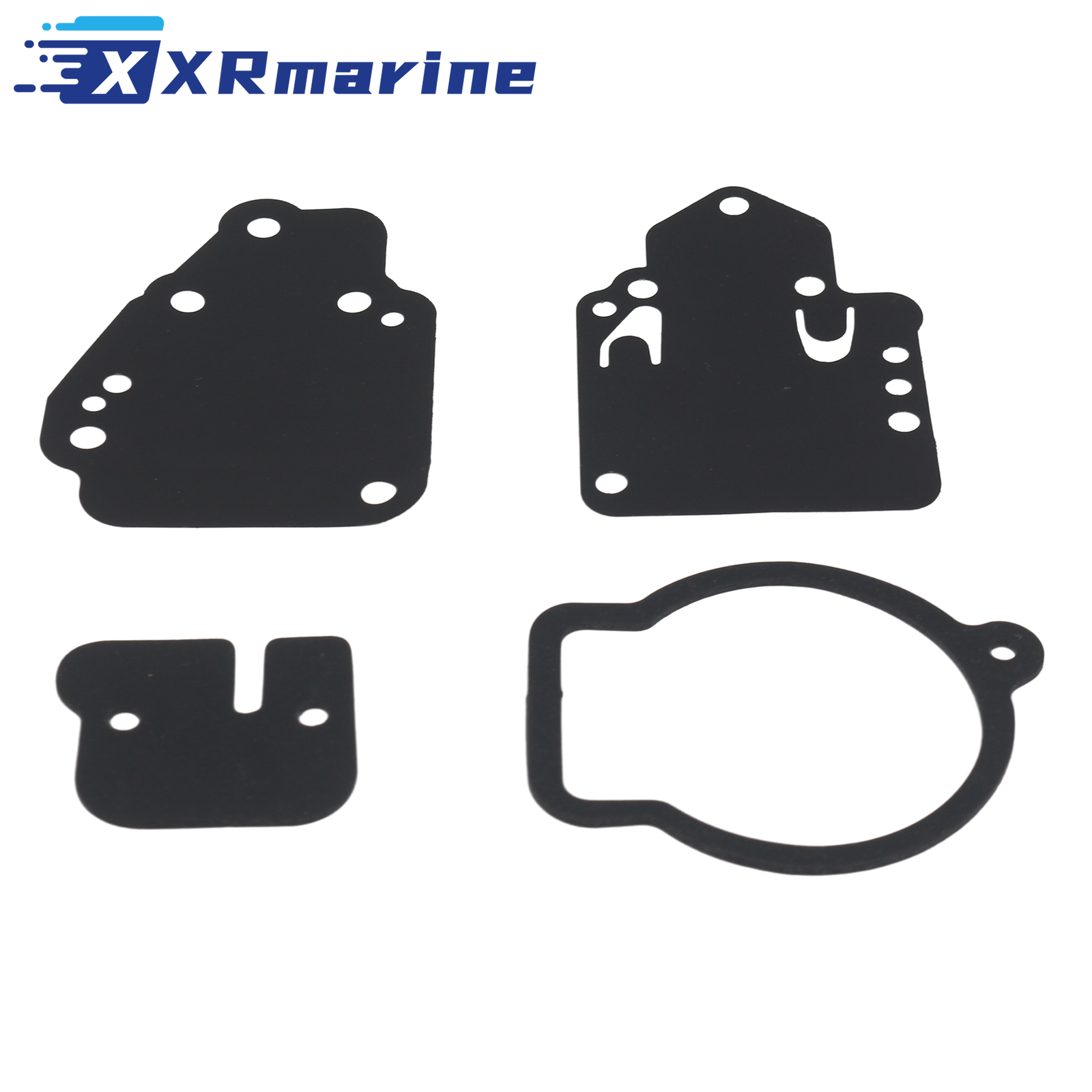

The kit carries the gaskets, needle and seat, and the soft parts that harden when an outboard sits through a long spell between trips. A carburettor that has started to flood, surge or refuse to idle can be brought back without buying a whole carburettor.
These are the WMC carburettors fitted across the small Mercury and Mariner range. They run a small float bowl and a single mixture screw, and the rubber tip on the needle takes a set after a few seasons, which is why the engine drips fuel and floods after a long idle. Rebuilding is the cheap fix as long as the throttle shaft and the bore are not worn, so check both before ordering.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Carburetor rebuild kit |
| Engine Family | Mercury and Mariner outboards |
| Horsepower | 6, 8, 9.9, 10, 15, 20 and 25 HP |
| Carburettor | WMC, single mixture screw |
| Quantity | 1 carburetor rebuild kit |
| Packaging Size | 150 x 180 x 10 mm (5.9 x 7.1 x 0.4 in) |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Mercury | 1395-9761, 1395-97611 |
| Mercury | 1395-9803, 1395-9725 |
| Mercury | 1395-9645, 1395-9377 |
| Mercury | 1395-9179, 1395-811357 |
| Sierra | 18-7212 |
| GLM | 40610 |
| Mallory | 9-37304, 37304 |
Compatible Engines
| Outboard | Serial Number | Kit Fits |
|---|---|---|
| 6 HP | 0A197112 and up | Yes |
| 8 HP | 0A197112 and up | Yes |
| 9.9 HP | 0A197112 and up | Yes |
| 10 HP | 0D038000 and up | Yes |
| 15 HP | 0B292414 and up | Yes |
| 20 HP | 6443973 and up | Yes |
| 25 HP | 6443973 and up | Yes |
What's Included
| Component | Qty |
|---|---|
| Carburetor rebuild kit, complete | 1 |
Flooding, Surge and Idle Faults
| Symptom | Likely Cause | Fixed by This Kit |
|---|---|---|
| Floods after sitting at idle | Needle tip hardened, float level high | Yes |
| Drips fuel when tilted | Needle and seat not sealing | Yes |
| Surges at mid throttle | Blocked passage or air leak at a gasket | Yes |
| Will not idle below 900 rpm | Idle circuit blocked or mixture screw seal hard | Yes |
| Runs rich, black plugs | Float level or worn needle | Yes |
| Idle changes when the engine is bumped | Worn throttle shaft | No, shaft or body needed |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Read the serial number on the clamp bracket before ordering |
| 2 | Note the mixture screw setting before stripping, it is your starting point |
| 3 | Drain the float bowl and remove the carburettor |
| 4 | Soak the body in cleaner and blow every passage with air, never poke with wire |
| 5 | Fit the new needle, seat and gaskets from the kit |
| 6 | Set the float height to spec and check it holds pressure |
| 7 | Refit and set the mixture screw back to the recorded setting |
| 8 | Run on muffs and check for leaks before the first trip |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Australia
| Destination | Warehouse | Note |
|---|---|---|
| Australia | Australia local warehouse | Domestic delivery, no import duty |
| New Zealand | Australia local warehouse | Short transit, customs may apply |
| Asia Pacific | Australia local warehouse | Tracked air and sea options |
Before You Buy
- Read the serial number on the clamp bracket, the 6, 8 and 9.9 HP start at 0A197112 and the 20 and 25 HP at 6443973
- Check the carburettor body for a worn throttle shaft, a rebuild will not fix a leaking shaft
- Soak the body in cleaner and blow every passage with air, never poke them with wire
- Set the float height to spec and check it holds pressure before fitting
- This is the rebuild kit, the carburettor body is not included
- 30-Day Easy Returns
- Ships from our Australia local warehouse
