17461-98501 Water Pump Impeller for Suzuki DT2 DT3.5 DT4 DT5 DT6 DT8 Johnson Evinrude 4 5 6 HP — Germany Local Warehouse
17461-98501 Water Pump Impeller for Suzuki DT2 DT3.5 DT4 DT5 DT6 DT8 Johnson Evinrude 4 5 6 HP — Germany Local Warehouse
Product Overview

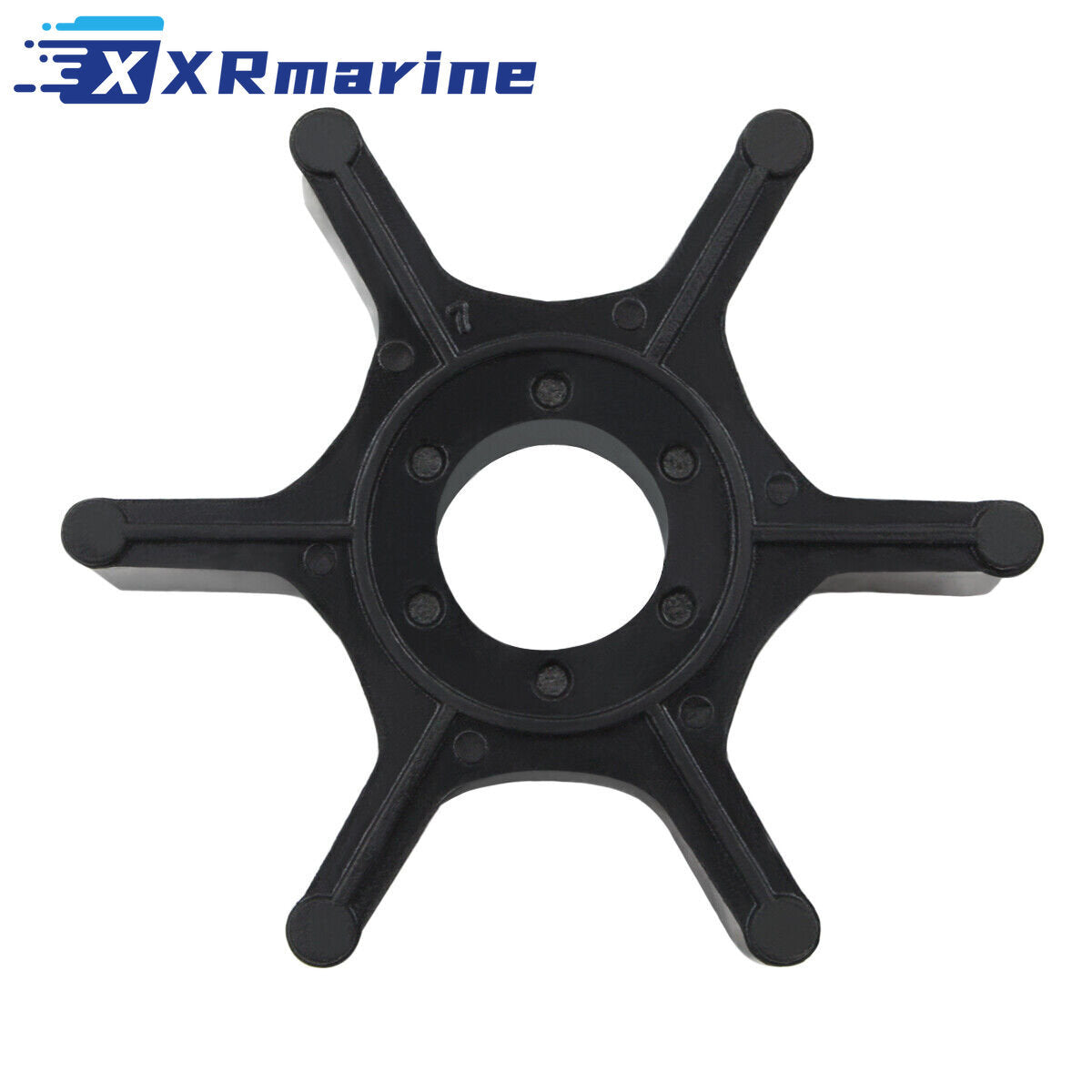

Water pump impeller for Suzuki DT outboards from 2 HP to 8 HP and for the Johnson Evinrude 4, 5 and 6 HP, supplied as one impeller. It measures 40.85 mm (1.61 in) outside diameter, 9.75 mm (0.38 in) at the shaft insert and 13.75 mm (0.54 in) high, with 6 blades on a key drive, 8 g. It replaces Suzuki 17461-98501 and Johnson Evinrude 5030188 and 0769477, crossing to Sierra 18-3097, Mallory 9-45504 and CEF 500336. Shipped from our Germany local warehouse.
One impeller covers 2HP, 4HP, 5HP, 6HP and 8 HP on both brands because Johnson bought these pumps from Suzuki and used them unchanged on its own 4, 5 and 6 HP motors from 1998. The Suzuki DT2, DT2.2, DT3.5, DT4, DT5, DT6 and DT8 take it, as do the DF4 and DF6 four strokes.
The size that separates this from the wrong part is 40.85 mm across. The 9.9 HP and larger pumps look the same in a listing photo and measure meaningfully bigger in the hand.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Water pump impeller |
| Engine Family | Suzuki DT / DF outboards, Johnson Evinrude 4 to 6 HP |
| Horsepower | 2 HP to 8 HP (2HP, 3.5HP, 4HP, 5HP, 6HP, 8 HP) |
| Outside Diameter | 40.85 mm (1.61 in) |
| Shaft Insert Diameter | 9.75 mm (0.38 in) |
| Height | 13.75 mm (0.54 in) |
| Blades | 6 |
| Net Weight | 8 g |
| Drive | Key drive |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Suzuki | 17461-98501, 17461-98500, 17461-98502, 17461-98503, 17461-985M0 |
| Suzuki | 17461-98400, 17461-98401, 17461-98402, 17461-985L0, 17465-98402 |
| Johnson Evinrude OMC | 5030188, 0769477 |
| Sierra | 18-3097 |
| Mallory | 9-45504 |
| CEF | 500336 |
| Cross numbers | 0042-501001, 0042-610779, 0042-718001, 0801-634029 |
Compatible Engines
| Engine | Horsepower | Stroke | Years |
|---|---|---|---|
| Suzuki DT2 | 2 HP | 2-stroke | 1977-1997 |
| Suzuki DT2.2 | 2.2 HP | 2-stroke | 1983-1997 |
| Suzuki DT3.5 | 3.5 HP | 2-stroke | 1983-1984 |
| Suzuki DT4 | 4 HP | 2-stroke | 1984-1998 |
| Suzuki DF4 | 4 HP | 4-stroke | 2003-2010 |
| Suzuki DT5 | 5 HP | 2-stroke | 1977-1983 and 1999-2002 |
| Suzuki DT6 | 6 HP | 2-stroke | 1984-2002 |
| Suzuki DF6 | 6 HP | 4-stroke | 2003-2010 |
| Suzuki DT8 | 8 HP | 2-stroke | 1980-1987 |
| Johnson Evinrude 4 | 4 HP | 2-stroke | 2003-2007 |
| Johnson Evinrude 5 | 5 HP | 2-stroke | 1998-2001 and 2003-2007 |
| Johnson Evinrude 6 | 6 HP | 2-stroke | 2005-2007 |
What's Included
| Component | Qty |
|---|---|
| Water pump impeller, 6 blade | 1 |
Spring Launch Checklist
| Point in the Season | What the Impeller Does | What to Do |
|---|---|---|
| October, motor comes off the boat | Drained, left folded inside the housing | Note running hours, plan the change |
| November to March, cellar or garage | Neoprene takes a set in one position | Order the part before the season starts |
| March, first service before launch | Set vanes will not straighten | Fit the new impeller, keep the old one as spare |
| April, first run on the lake | Cold water, stiffer rubber | Watch the telltale at idle for the first ten minutes |
| Summer, long canal passages | Hours at low speed and part throttle | Check the stream, idle is the hard case |
| End of season | Normal wear, vanes curved | Renew at the manual interval, not only on failure |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Check the model plate, DT2 through DT8 and the Johnson Evinrude 4, 5 and 6 HP take this impeller |
| 2 | Measure the old one at 40.85 mm outside diameter before ordering a replacement |
| 3 | Drain the gearcase oil and check for water or metal before splitting the lower unit |
| 4 | Note the blade direction as the housing lifts off |
| 5 | Inspect the wear plate, the cup and the housing for scoring |
| 6 | Lubricate the new impeller with glycerine and turn the shaft as the housing goes down |
| 7 | Fit a new gasket and seat the housing evenly, tightening the bolts in stages |
| 8 | Run in a tank or on muffs and confirm a strong telltale before the first trip |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Germany
| Destination | Warehouse | Note |
|---|---|---|
| Germany | Germany local warehouse | Domestic delivery, no import duty |
| Austria, Netherlands, Belgium | Germany local warehouse | EU intra-community delivery |
| France, Italy, Spain, Poland | Germany local warehouse | EU intra-community delivery |
Before You Buy
- Check the model plate, DT2 through DT8 and the Johnson Evinrude 4, 5 and 6 HP take this impeller
- Measure the old one at 40.85 mm outside diameter, the 9.9 HP and larger pumps are bigger
- The DT5 was built in two separate periods, both use the same pump and the same impeller
- Renew the impeller before the season rather than after the first overheating warning
- Check the shaft key, the keyway and the pump liner while the housing is off
- Keep the old impeller as an emergency spare if the vanes are still intact
- This is the impeller only, the housing, wear plate and gasket are not included
- 30-Day Easy Returns
- Ships from our Germany local warehouse
