Water Pump Impeller Kit 06192-ZW9-A30 for Honda Marine Outboard 8 9.9 15 20 HP — Australia Local Warehouse
Water Pump Impeller Kit 06192-ZW9-A30 for Honda Marine Outboard 8 9.9 15 20 HP — Australia Local Warehouse
Product Overview

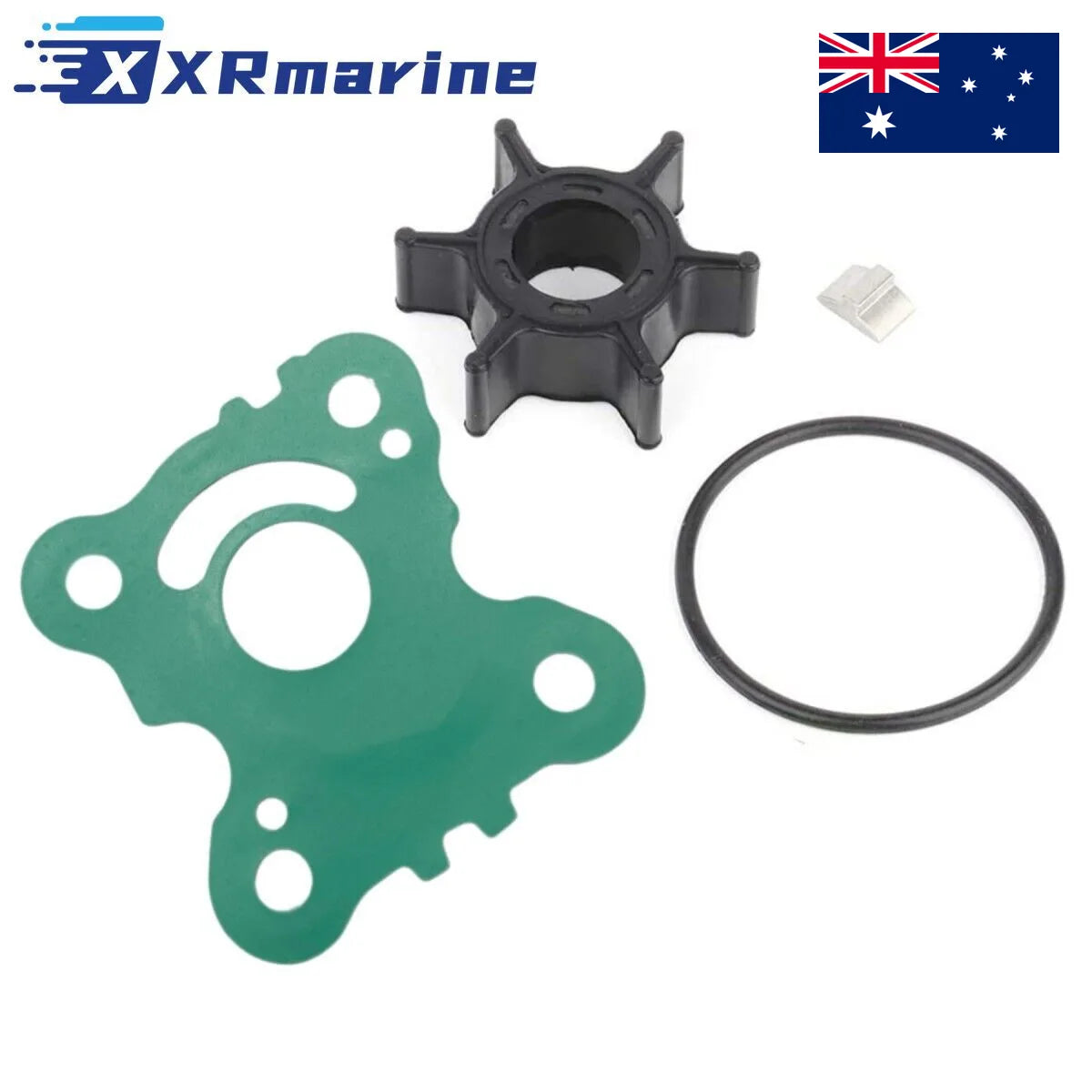

Water pump impeller kit for Honda outboards from 8 HP to 20 HP, with a 45.1 mm outside diameter, a 16.06 mm inside diameter and a 14.48 mm height. It replaces Honda 06192-ZW9-A30 and Sierra 18-3478, and the kit includes the impeller, the gasket, the key and the O-ring. Dispatched from our Australia local warehouse.

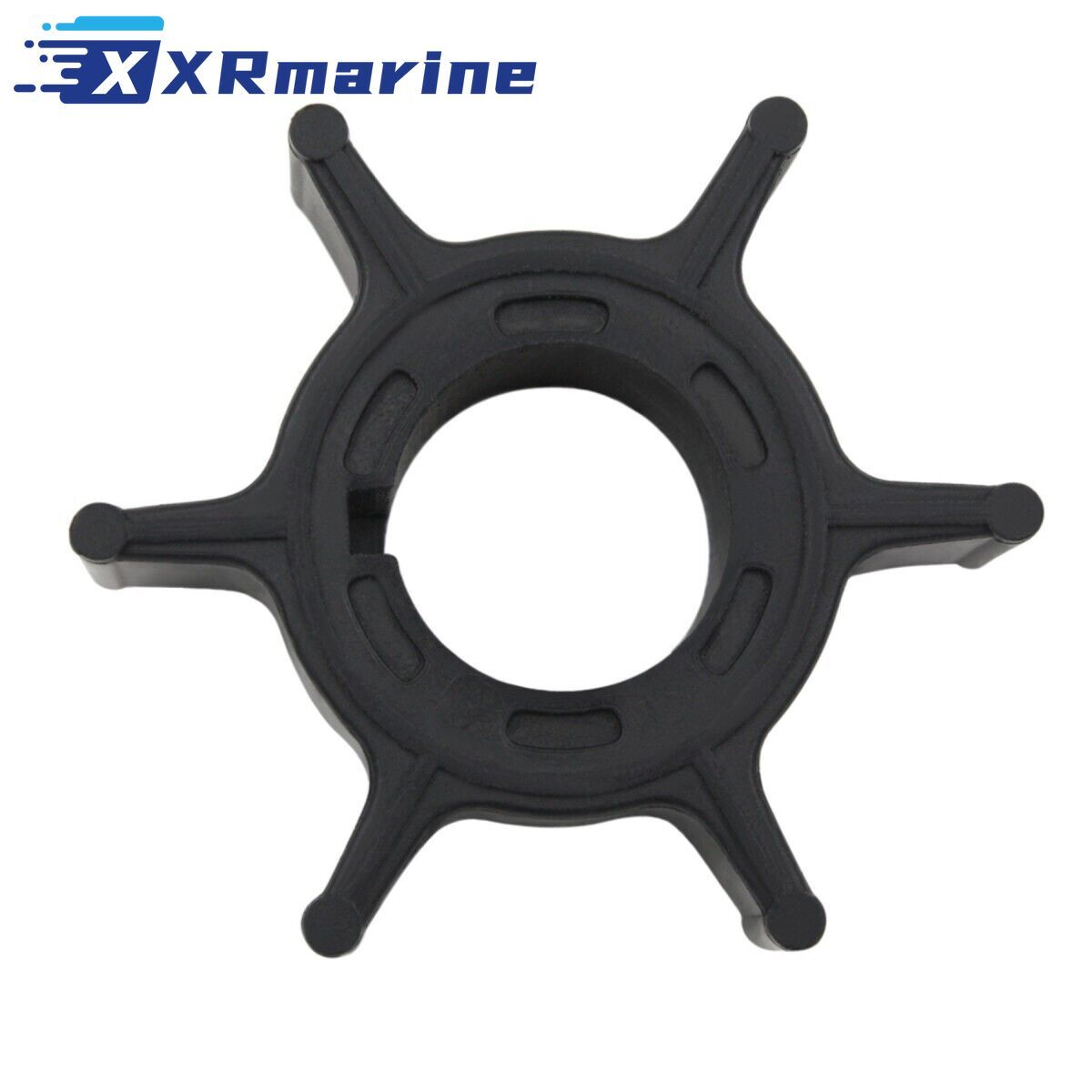

The 6-blade neoprene impeller uses a key drive and fits the BFP8D, BFP9.9D, BF15D, BFP15D, BF20D and BFP20D models, the four-stroke range that covers most Australian tinnies and small runabouts in this horsepower band.
A worn impeller shows up as a weak tell-tale, a temperature gauge that climbs at cruise, or blades that are cracked and set when the pump is opened. Fitting the complete kit renews the key, gasket and O-ring at the same time, which is what stops the job coming back as a leak or a slipped impeller two trips later.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Outboard water pump impeller kit |
| Material | Neoprene rubber |
| Number of Blades | 6 |
| Drive Type | Key drive |
| Outside Diameter | 45.1 mm (1.78 in) |
| Inside Diameter | 16.06 mm (0.63 in) |
| Height | 14.48 mm (0.57 in) |
| Horsepower | 8, 9.9, 15, 20 HP |
| Quantity | 1 impeller + 1 gasket + 1 key + 1 O-ring |
| Packaging Size | 15 x 10 x 3 cm (5.9 x 3.9 x 1.2 in) |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Honda | 06192-ZW9-A30 |
| Honda prefix, no suffix | 06192-ZW9 |
| Sierra | 18-3478 |

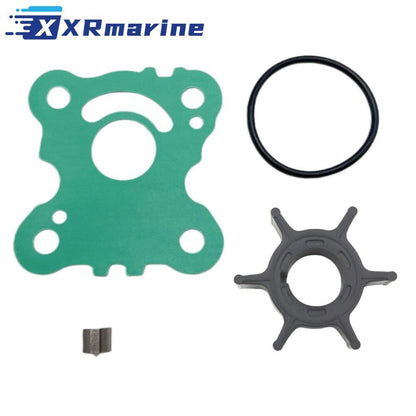

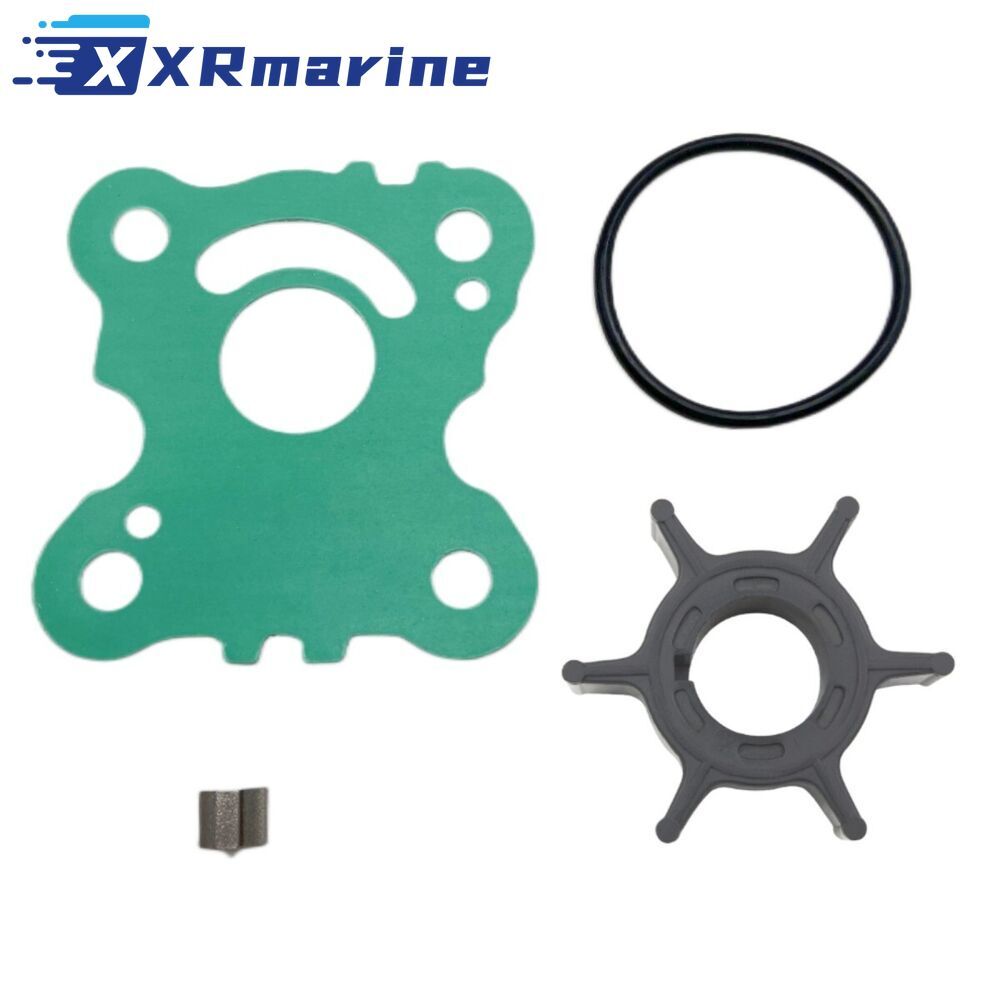

Kit Components
| Component | Honda Number | Qty |
|---|---|---|
| Water pump impeller, 6 blade | 19210-ZW9-A31 | 1 |
| Drive key | 90752-ZW9-000 | 1 |

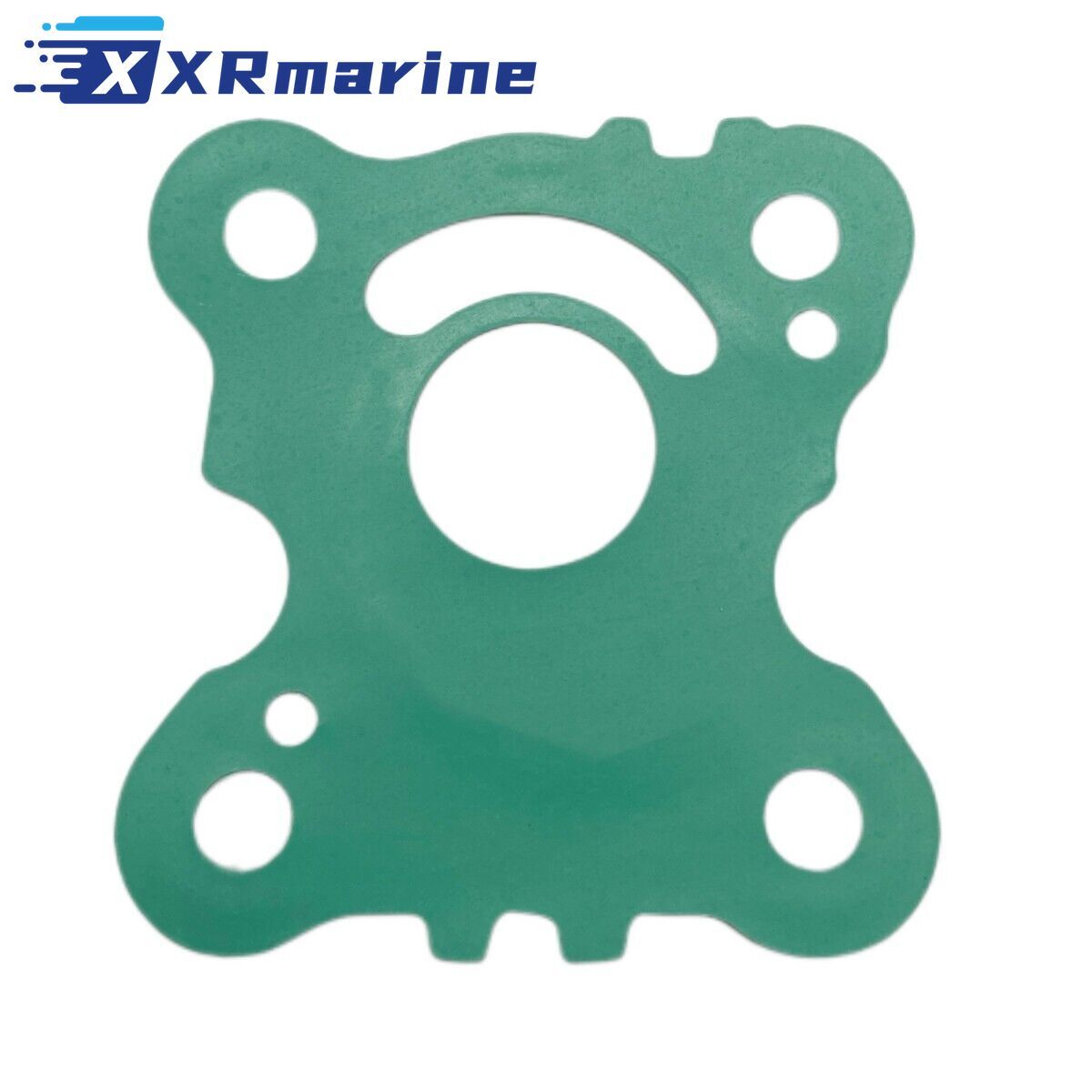

| Gasket | 19232-ZW9-000 | 1 |
| O-ring, 2.65 x 40 mm inside diameter | 91301-ZG3-000 | 1 |
Compatible Engines
| Brand | Model | Horsepower |
|---|---|---|
| Honda | BFP8D | 8 HP |
| Honda | BFP9.9D | 9.9 HP |
| Honda | BF15D, BFP15D | 15 HP |
| Honda | BF20D, BFP20D | 20 HP |
| Compact form | Same models, written 20HP and 15HP | 20 HP, 15 HP |
What's Included
| Component | Qty |
|---|---|
| Water pump impeller | 1 |
| Gasket | 1 |
| Key | 1 |
| O-ring | 1 |
Kit or Impeller Only
| Condition Found | Right Choice | Why |
|---|---|---|
| Key tight, gasket and O-ring soft | Impeller only | The seals still do their job |
| Key worn or rounded | This kit | A worn key lets the impeller slip on the shaft |
| Gasket hardened or torn | This kit | The pump will not hold pressure |
| Sand in the pump bore | This kit and check the plate | Grit scores the plate and the new impeller |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Confirm the outboard is BFP8D, BFP9.9D, BF15D, BFP15D, BF20D or BFP20D |
| 2 | Drain the gearcase and split the lower unit |
| 3 | Note the blade direction before the old impeller comes out |
| 4 | Check the drive key and the wear plate while the pump is open |
| 5 | Clean the pump bore and the cover face |
| 6 | Fit the new key, gasket and O-ring with the impeller |
| 7 | Fold the blades in the running direction and fit the cover |
| 8 | Check the tell-tale flow on muffs before launching |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Australia
| Destination | Warehouse | Note |
|---|---|---|
| Australia | Australia local warehouse | Domestic delivery, no import duty |
| New Zealand | Australia local warehouse | Short transit, customs may apply |
| Asia Pacific | Australia local warehouse | Tracked air and sea options |
Before You Buy
- Confirm the outboard model is BFP8D, BFP9.9D, BF15D, BFP15D, BF20D or BFP20D
- Check the drive key and the wear plate when the pump is opened
- Fit the new gasket and O-ring with the impeller
- Measure the old impeller, 45.1 mm outside and 14.48 mm high
- This is the impeller kit, the housing is not included
- 30-Day Easy Returns
- Ships from our Australia local warehouse
