Water Pump Impeller Kit 06192-ZW9-A30 for Honda BF8 BF9.9 BF15 BF20 Outboard 6 Blade — Germany Local Warehouse
Water Pump Impeller Kit 06192-ZW9-A30 for Honda BF8 BF9.9 BF15 BF20 Outboard 6 Blade — Germany Local Warehouse
Product Overview
Impeller kit for the Honda four-stroke outboard range from 8 HP to 20 HP, 6 blades, 45.1 mm outside diameter, 16.06 mm inside diameter and 14.48 mm high. The kit replaces Honda 06192-ZW9-A30 and Sierra 18-3478 and arrives with the gasket, the drive key and the O-ring, so the pump is resealed in the same job. Shipped from our Germany local warehouse.
It covers BFP8D, BFP9.9D, BF15D, BFP15D, BF20D and BFP20D. These are the four-strokes that hang on trailer boats across Germany, the Netherlands and the Baltic coast, and most of them spend half the year ashore under a tarpaulin.
Neoprene does not recover from six months folded in one position. The vanes take a permanent set, the pump still turns but moves less water, and the first long run of the season is when the temperature gauge starts climbing. Replacing the impeller, gasket, key and O-ring together at launch is the routine that avoids that.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Outboard water pump impeller kit |
| Material | Neoprene rubber |
| Number of Blades | 6 |
| Drive Type | Key drive |
| Outside Diameter | 45.1 mm (1.78 in) |
| Inside Diameter | 16.06 mm (0.63 in) |
| Height | 14.48 mm (0.57 in) |
| Horsepower | 8, 9.9, 15, 20 HP |
| Quantity | 1 impeller + 1 gasket + 1 key + 1 O-ring |
| Packaging Size | 15 x 10 x 3 cm (5.9 x 3.9 x 1.2 in) |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Honda | 06192-ZW9-A30 |
| Honda prefix, no suffix | 06192-ZW9 |
| Sierra | 18-3478 |

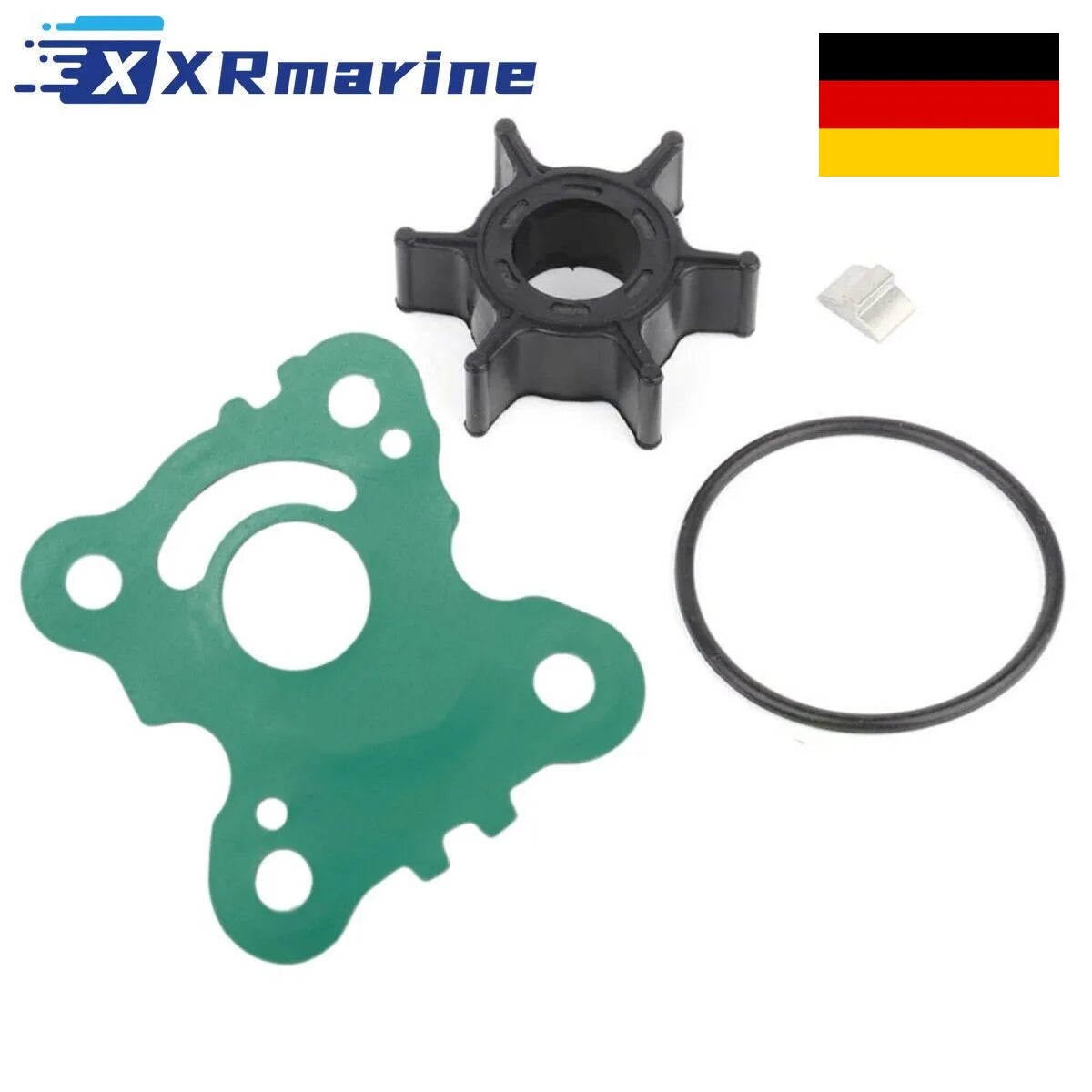

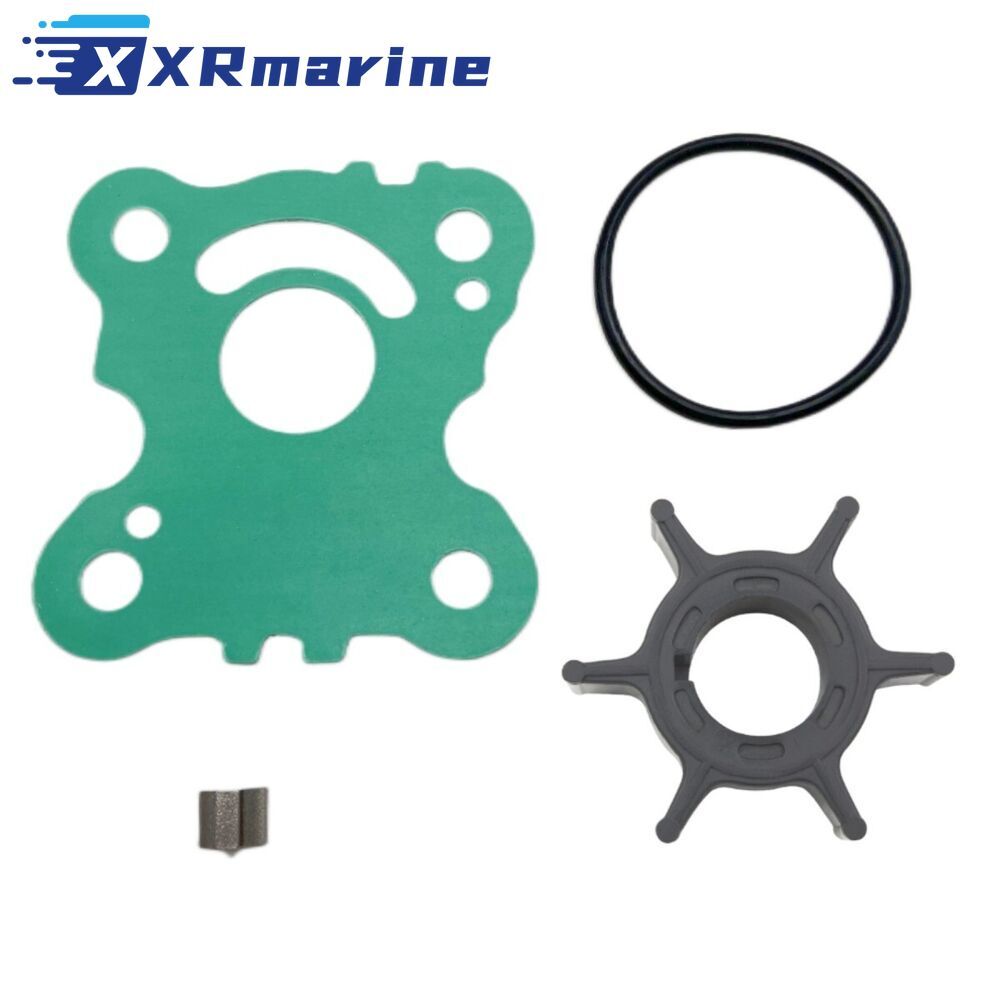

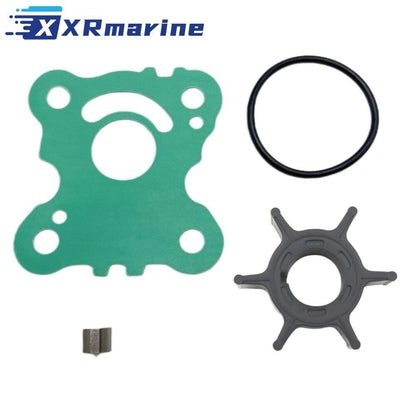

Kit Components
| Component | Honda Number | Qty |
|---|---|---|

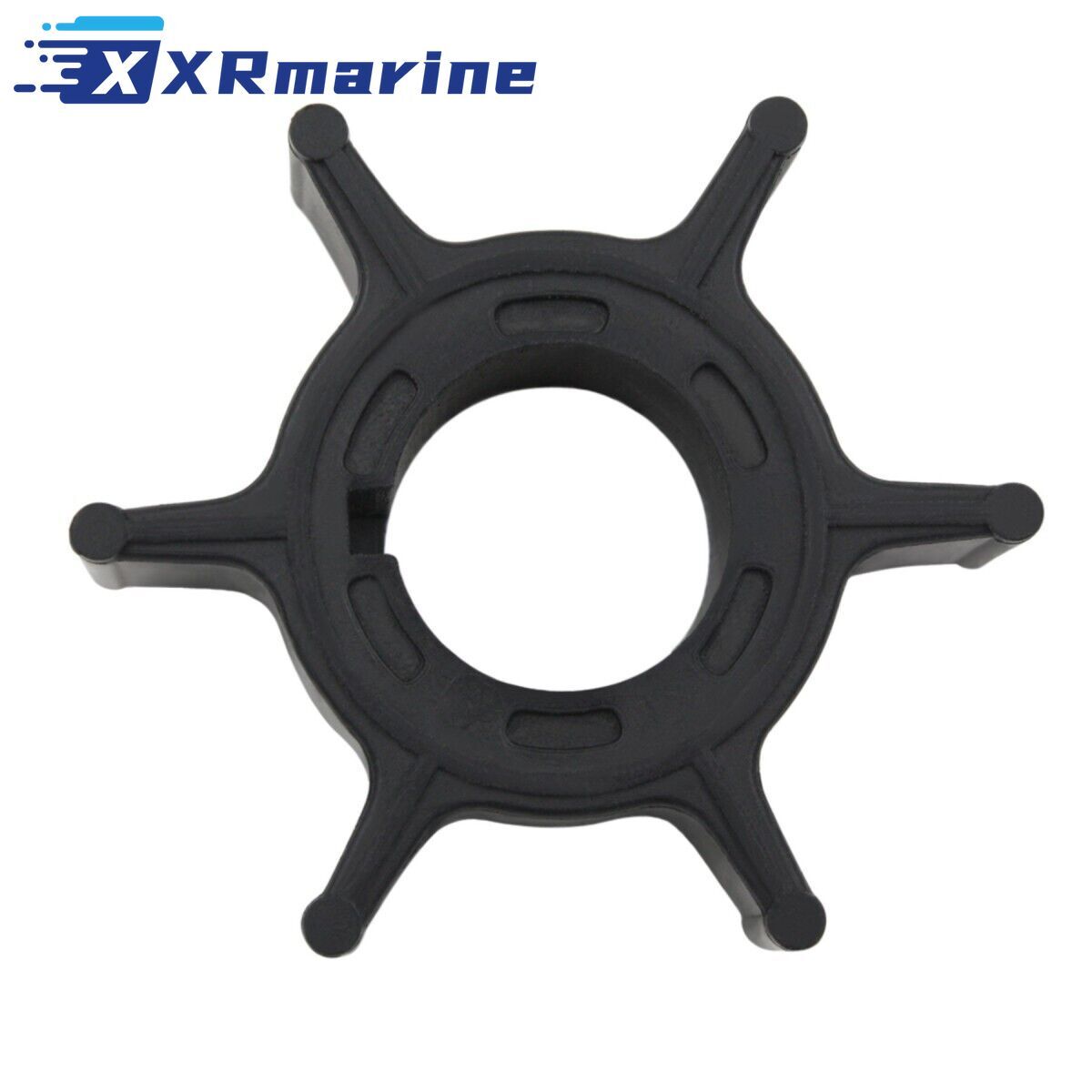

| Impeller, 6 blade | 19210-ZW9-A31 | 1 |
| Drive key | 90752-ZW9-000 | 1 |

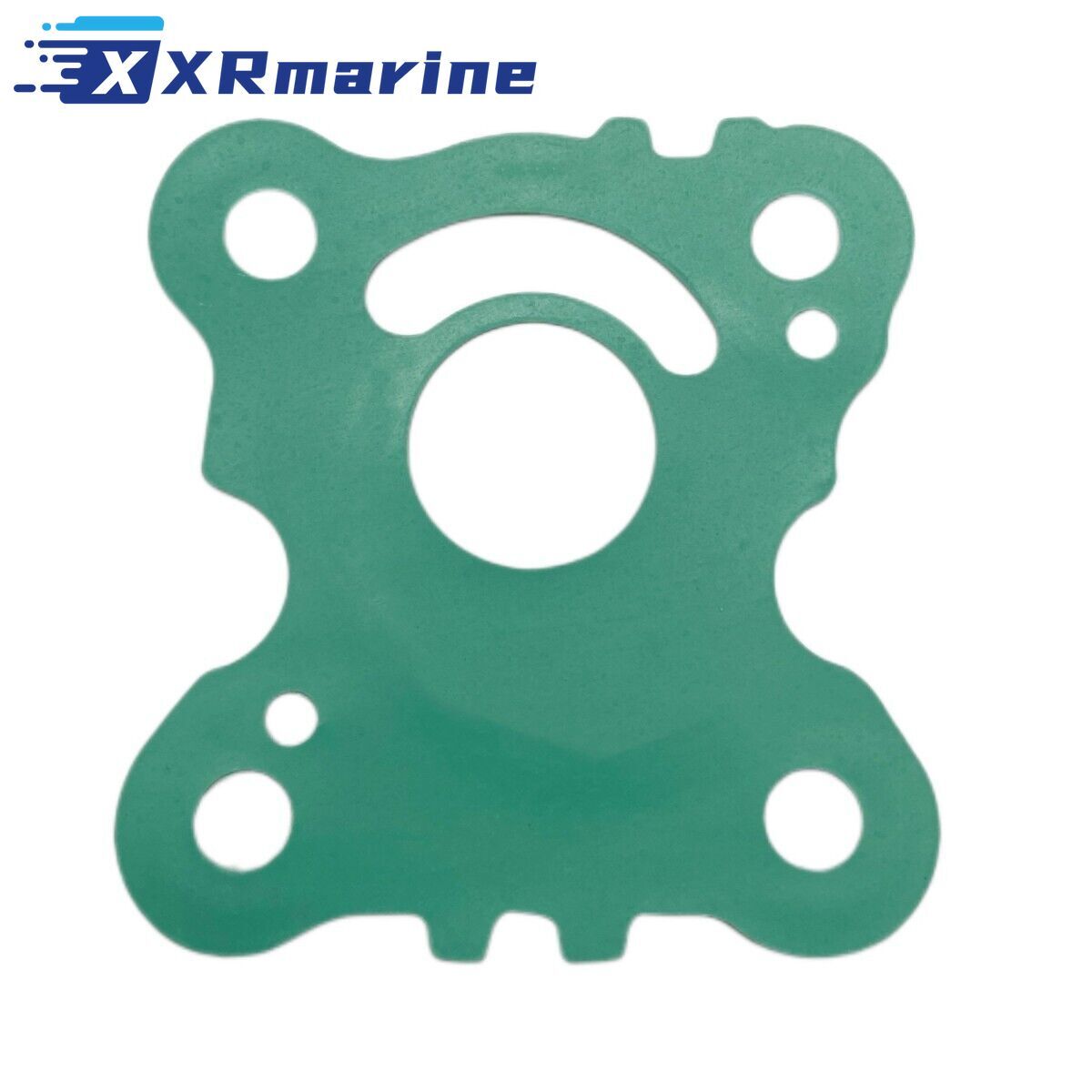

| Gasket | 19232-ZW9-000 | 1 |
| O-ring, 2.65 x 40 mm inside diameter | 91301-ZG3-000 | 1 |
Compatible Engines
| Brand | Model | Horsepower |
|---|---|---|
| Honda | BFP8D | 8 HP |
| Honda | BFP9.9D | 9.9 HP |
| Honda | BF15D, BFP15D | 15 HP |
| Honda | BF20D, BFP20D | 20 HP |
Winter Lay-Up and First Launch
| Month | What Happens to the Pump | Action |
|---|---|---|
| October, boat comes out | Pump drained, vanes rest in one position | Note the running hours |
| November to March | Neoprene takes a set, gasket hardens | Nothing to do, plan the change |
| April, before launch | Set vanes will not straighten | Fit this kit with a new gasket and O-ring |
| First run of the season | Weak tell-tale is the first sign | Check the stream at idle on muffs |
| June, after long runs | Temperature climbs at cruise | Check the impeller before the thermostat |
What's Included
| Component | Qty |
|---|---|
| Water pump impeller | 1 |
| Gasket | 1 |
| Key | 1 |
| O-ring | 1 |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Confirm the model is BFP8D, BFP9.9D, BF15D, BFP15D, BF20D or BFP20D |
| 2 | Drain the gearcase and split the lower unit |
| 3 | Note the blade direction, the pump only moves water one way |
| 4 | Check the drive key and the wear plate while the pump is open |
| 5 | Clean the pump bore and the cover face before fitting |
| 6 | Fit the new key, gasket and O-ring with the impeller |
| 7 | Fold the blades in the running direction and fit the cover |
| 8 | Check the tell-tale flow on muffs before the boat goes in the water |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Germany
| Destination | Warehouse | Note |
|---|---|---|
| Germany | Germany local warehouse | Domestic delivery, no import duty |
| Austria, Netherlands, Belgium | Germany local warehouse | EU intra-community delivery |
| France, Italy, Spain, Poland | Germany local warehouse | EU intra-community delivery |
Before You Buy
- Confirm the outboard model is BFP8D, BFP9.9D, BF15D, BFP15D, BF20D or BFP20D
- Change it at launch if the boat has been ashore over winter
- Check the drive key and the wear plate when the pump is opened
- Fit the new gasket and O-ring with the impeller, not on their own later
- This is the impeller kit, the housing is not included
- 30-Day Easy Returns
- Ships from our Germany local warehouse
