Water Pump Impeller Kit 46-96148Q8 46-96148A8 46-96148A5 18-3517 for Mercury Mariner 75-225 HP Mercruiser Alpha MC1 Sterndrive Outboard — Germany Local Warehouse
Water Pump Impeller Kit 46-96148Q8 46-96148A8 46-96148A5 18-3517 for Mercury Mariner 75-225 HP Mercruiser Alpha MC1 Sterndrive Outboard — Germany Local Warehouse
Product Overview

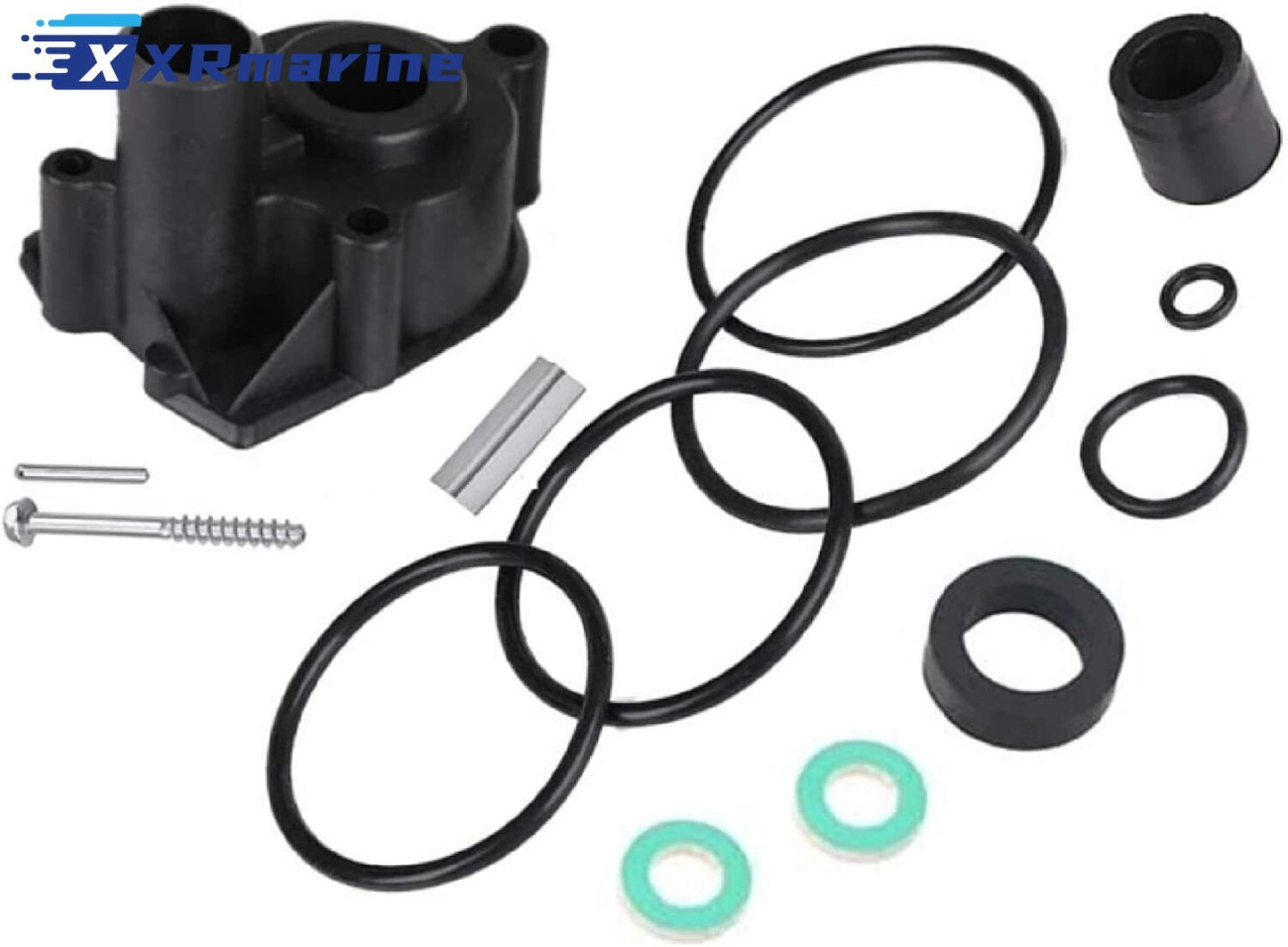

Complete water pump kit for the Mercury and Mariner V6 outboards from 75-225 HP and for the Mercruiser Alpha and MC1 sterndrives, supplied as 1 housing, 1 impeller, 1 wear plate, 1 water tube guide, 3 base gaskets, 2 wear plate gaskets, 6 O-rings, 2 drain screw washers, 1 oil passage seal, 1 water tube grommet and 1 mounting key, net weight 380 g. It replaces Mercury 46-96148A8, 46-96148Q8, 46-96148A5 and 46-96148T8, with Sierra 18-3517, 18-3319, 18-3314 and 18-3316, GLM 12280 and Mallory 9-48311 as the aftermarket equivalents. Shipped from our Germany local warehouse.
The pump body is shared between the outboard and the sterndrive, so the kit covers both: the same housing, wear plate and impeller serve a 90 HP outboard and an Alpha one drive. What changes is how you get to it.
On the outboard the lower unit comes off. On the sterndrive the pump sits behind the gear housing and the job also touches the oil system, which is why a complete set of gaskets and seals matters far more on that side.
Specifications
| Specification | Value |
|---|---|
| Condition | New / New with tags |
| Type | Water pump impeller kit |
| Coverage | Mercury Mariner 75-225 HP, Mercruiser Alpha and MC1 |
| Housing | 46-96148A1 or 46-96148T1 |
| Impeller | 47-89984 series, 47-803631T or 47-F694065 |
| Water Tube Guide | 23-29804 or 32-29804T |
| Net Weight | 380 g |
| Pack Size | 15 x 10 x 8 cm |
| Country of Origin | Taiwan |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Mercury / Mariner | 46-96148A8, 46-96148A5, 46-96148Q8, 46-96148T8 |
| Mercury / Mariner | 46-32437A1, 46-37433A1, 46-42579A4, 46-44292A4 |
| Mercury / Mariner | 46-48747A3, 46-57234A3, 46-58618A4, 46-60367A1 |
| Mercury / Mariner | 46-60367A4, 46-64141A11, 46-69222A3, 46-73802A3 |
| Mercury / Mariner | 46-73804A3, 46-78400A2 |
| Mercruiser | 46-32437A3, 46-37433A1, 46-96148A8 |
| Sierra | 18-3517, 18-3319, 18-3314, 18-3316 |
| GLM | 12280 |
| Mallory | 9-48311 |
What's Included
| Group | Parts | Qty |
|---|---|---|
| Pump body | Housing 46-96148A1 / 46-96148T1, wear plate 32435 | 2 |
| Rubber | Impeller, water tube grommet 26-38970, oil passage seal 26-45577 | 3 |
| Gaskets | 3 base gaskets, 2 wear plate gaskets | 5 |
| O-rings | 25-30613, 25-33145, 25-30224, 25-90011, 25-38099, 25-30271 | 6 |
| Hardware | Drain screw washers 12-19183, mounting key 130K 56654 | 3 |
| Guide | Water tube guide 23-29804 / 32-29804T | 1 |
Compatible Engines
| Group | What Is Covered |
|---|---|
| Mercury outboard | 80 HP to 200 HP DFI, matched on serial number |
| Mariner outboard | 75 HP to 220 HP, matched on model year |
| Mercruiser sterndrive | 120, 140, 165, 485, Alpha and MC1, matched on ratio |
Serial and Year Check
| Engine | Number to Match |
|---|---|
| Mercury 80 HP | 4831999 thru 9256130 |
| Mercury 90 HP | 4845301 thru 7123762 |
| Mercury 115 HP | 4855153 thru 8061269 |
| Mercury 140 HP | 4865678 and up |
| Mercury 150 HP DFI | 1B690542 thru 2B535572 |
| Mercury 175 HP DFI Pro XS | 1B516339 thru 2B535624 |
| Mercury 200 HP DFI XS ROS | 1E050852 and up |
| Mariner 75 HP | 1985 |
| Mariner 90 HP | 1984-1986 |
| Mariner 115 HP | 1980, 1984-1987 |
| Mariner 135 HP | 1986 |
| Mariner 150 HP | 1986-1987 |
| Mariner 175 HP | 1979-1980, 1985-1986, 1991 |
| Mariner 200 HP | 1980, 1982-1987, 1991 |
| Mariner 220 HP | 1979 onward, V6 block |
Mercruiser Drive Ratios
| Drive | Ratios | Years |
|---|---|---|
| 120 and 140 | Single ratio | 1978 |
| 165 | Single ratio | 1978-1981 |
| 485 | Single ratio | 1980-1982 |
| Alpha | 1.32, 1.47, 1.50, 1.62, 1.65, 1.81, 1.84, 1.94, 1.98 | 1988-1990 |
| Alpha transom assembly | Single ratio | 1990 |
| MC1 | 1.32, 1.47, 1.50, 1.81, 1.84, 1.94, 1.98 | 1982-1987 |
Outboard and Sterndrive: Two Different Jobs
| Aspect | Outboard | Sterndrive |
|---|---|---|
| Access | Drop the lower unit | Split the drive and the gear housing |
| Gear oil | Drained and refilled anyway | Oil system is part of the job, seals matter |
| Seals in the kit | Water tube grommet is the critical one | Oil passage seal and drain washers decide success |
| Usual mistake | Impeller fitted dry | Reusing a drain screw washer |
| First check after | Telltale stream | Gear oil colour after the first run |
| Interval | Every season | Every season, plus any time the drive is split |
Fresh Water, Baltic and Winter Storage
| Situation | Effect on the Pump | What to Do |
|---|---|---|
| German inland lakes and rivers | Silt rather than salt, slower corrosion | Flush and check the liner each season |
| Baltic and North Sea use | Salt stays in the housing between trips | Flush with fresh water after every trip |
| Boat ashore with the drive raised | Water drains out, the impeller dries against the cup | Turn the shaft by hand before the first start |
| Frost in an unheated shed | Trapped water freezes around the pump | Drain the raw water side before lay up |
| Seal changed against a scored cup | New impeller wears flat in one season | Use the new housing and plate from the kit |
| Boat used only a few weekends a year | Pump ages without being used | Change on the calendar, not on hours |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Read the number on the old housing, 46-96148 in any suffix is this family |
| 2 | On a sterndrive, note the drive ratio and check it against the table above |
| 3 | On an outboard, check the serial number against the ranges above before ordering |
| 4 | Check the cup and the wear plate for scoring, which is why both are in the kit |
| 5 | Fold the impeller blades in the direction of rotation, glycerine only, no grease |
| 6 | Use the new drain screw washers and O-rings, a reused one lets water into the oil |
| 7 | Pressure test the gear housing on a sterndrive before refilling it |
| 8 | Check the gear oil and the telltale after the first run, not only the temperature gauge |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Germany
| Destination | Warehouse | Note |
|---|---|---|
| Germany | Germany local warehouse | Domestic delivery, no import duty |
| Austria, Netherlands, Belgium | Germany local warehouse | EU delivery, no customs charge |
| Other EU destinations | Germany local warehouse | EU delivery, VAT included |
Before You Buy
- Read the number on the old housing, 46-96148 in any suffix is this family
- On a sterndrive, check the drive ratio before ordering
- On an outboard, check the serial number against the ranges above
- Check the cup and the wear plate for scoring, both come in the kit
- Fold the impeller blades the right way and never fit it dry
- This is the pump kit, the gear oil, the gearcase seals and the housing bolts are not included
- 30-Day Easy Returns
- Ships from our Germany local warehouse
