Product Overview

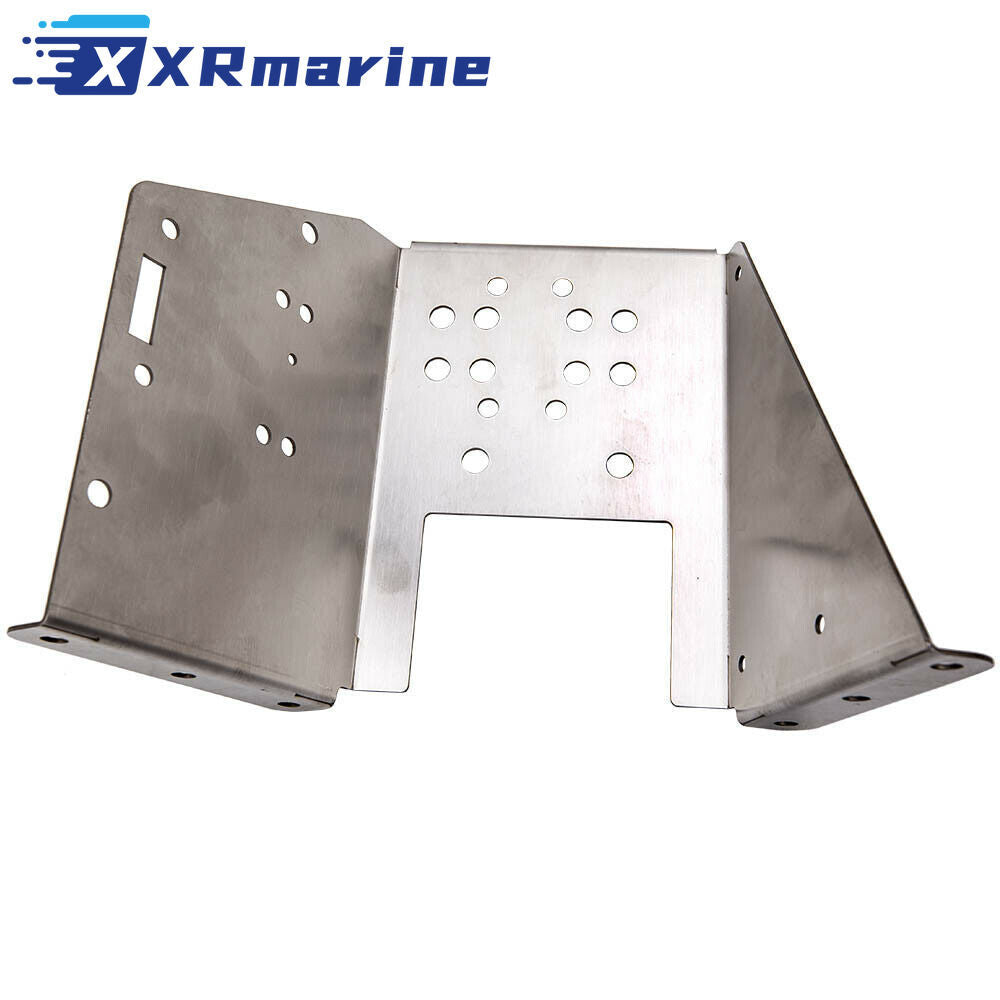

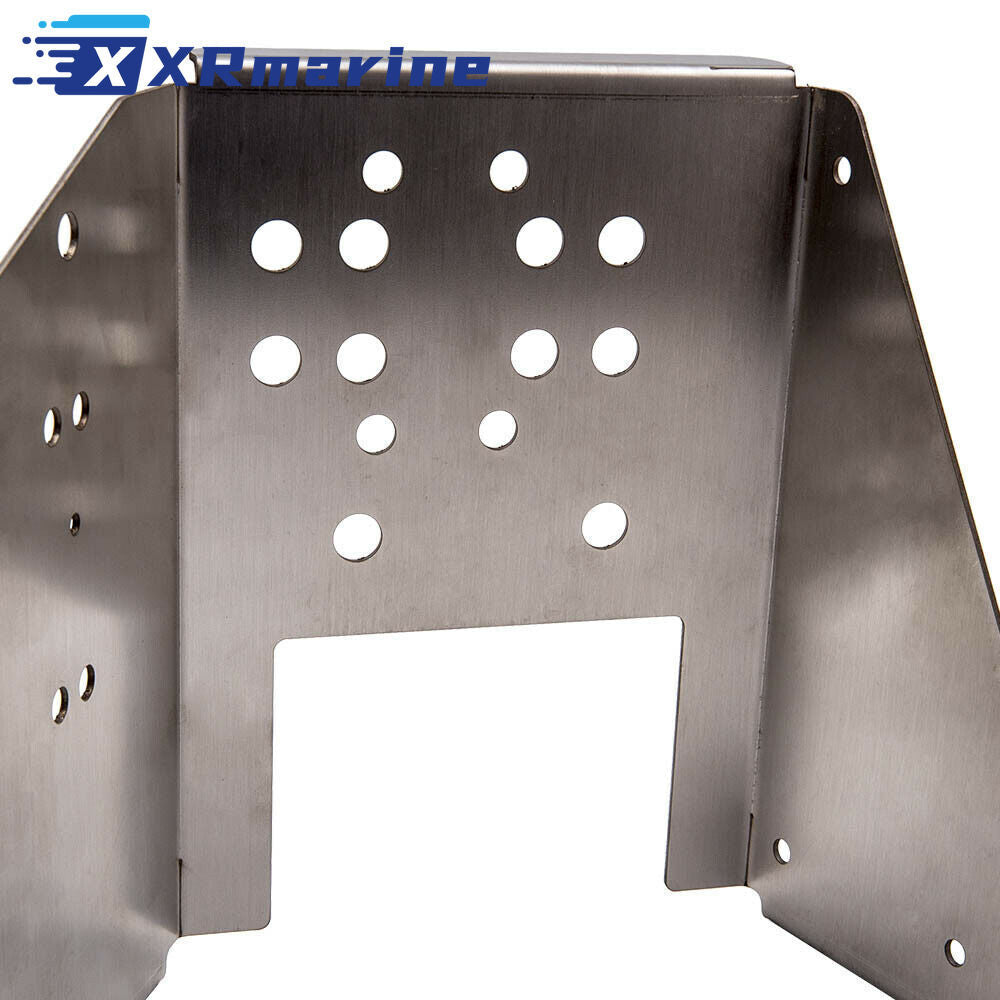

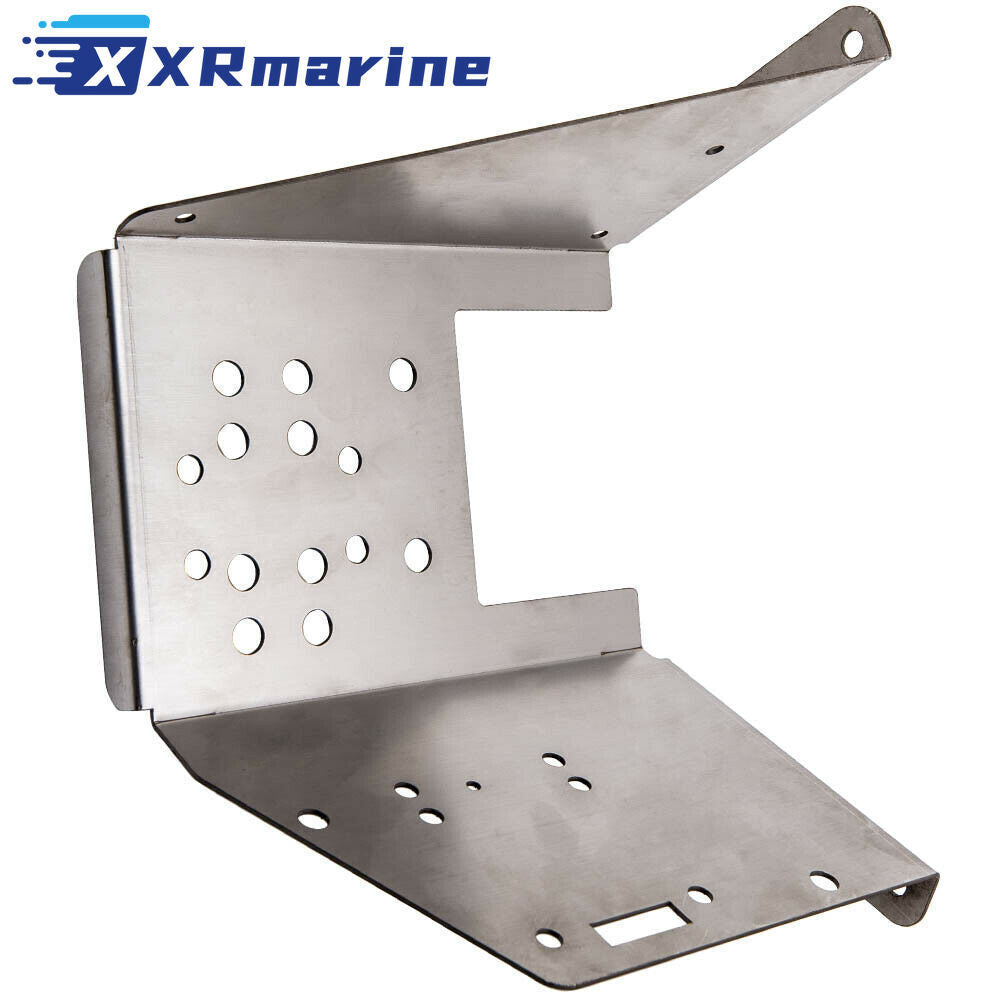

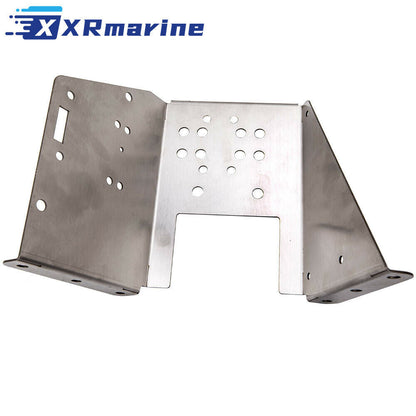

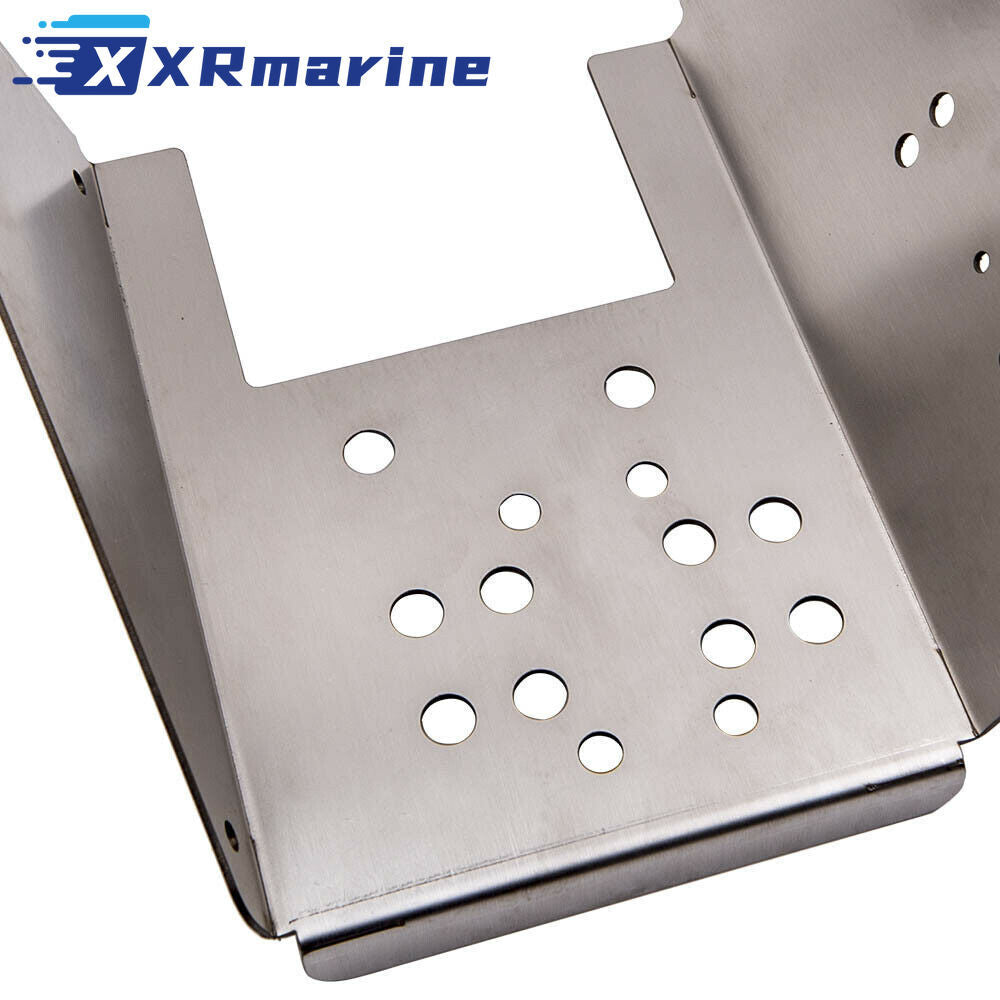

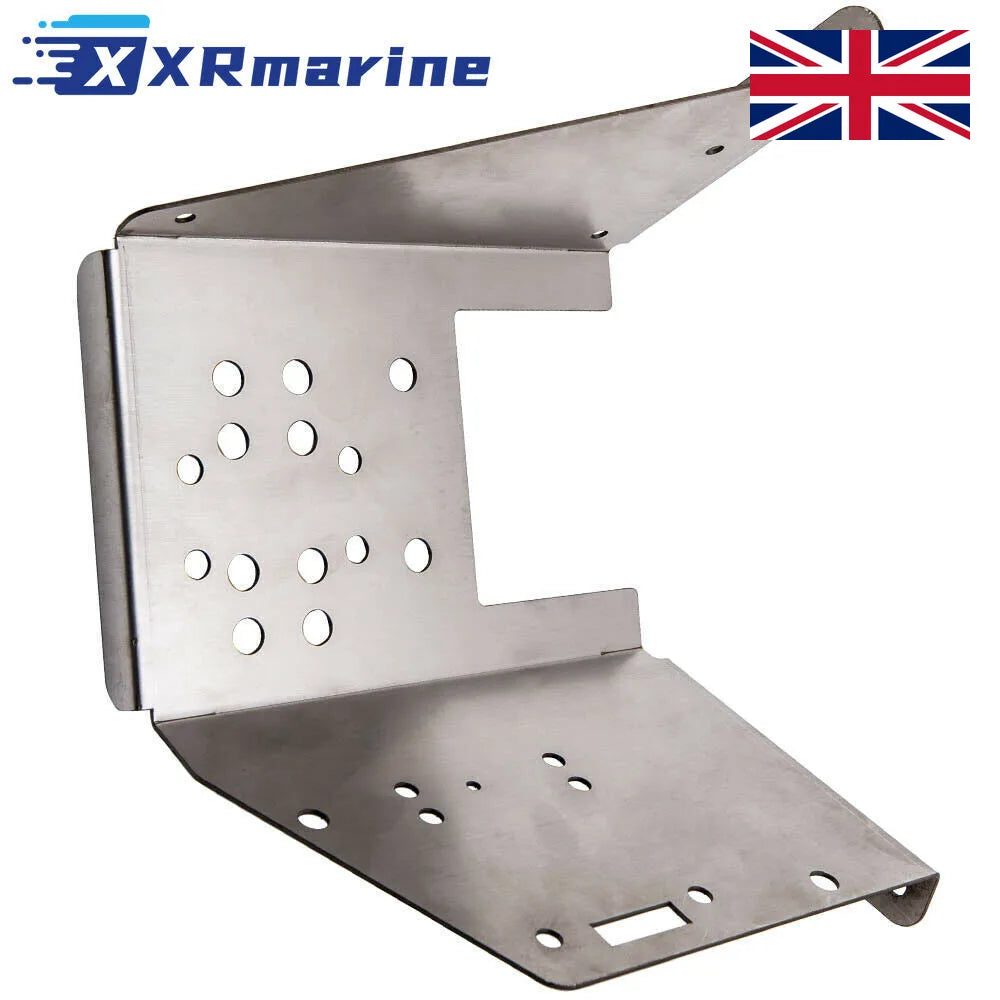

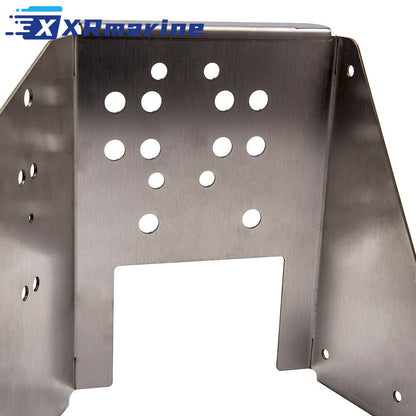

Floor mount trim pump bracket for MerCruiser and Mercury sterndrives, fitting Bravo X, XZ and XR, Bravo One, Two and Three, Alpha One Gen 2 from 1991 onwards, and the 8.2 L 502 CID V8. It replaces 42419A1, 58397A2, 58397A3, 862548A1, 88553A1 and 88893A4, and crosses to Sierra 18-6749, 18-6750 and PH200-T066. Dispatched from our United Kingdom local warehouse.
The bracket is the part that keeps the trim pump off the floor of the engine bay, and on a sterndrive boat it lives in the wettest corner of the boat. A mild steel bracket that has been sitting in bilge water for years will still hold the pump, but the bolts seize and the mounting holes rot out at the corners, which is usually noticed when the pump starts moving under trim load rather than when the bracket fails outright.
This listing covers the bracket itself. Two build types were used across the range: the heavy duty stainless version with four bolts, and a powder coated steel floor mount. Check which one is on the boat before ordering, because the hole pattern is the same but the finish decides how long the next one lasts.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Trim pump floor mount bracket |
| Application | MerCruiser and Mercury sterndrive trim pump |
| Fitment | Bravo X, XZ, XR, Bravo One, Two, Three |
| Fitment | Alpha One Gen 2 from 1991, 8.2 L 502 CID V8 |
| Build | Heavy duty stainless, four bolts |
| Alternate Build | Powder coated steel floor mount |
| Quantity | 1 bracket |
| Country of Origin | Taiwan |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| MerCruiser | 42419A1, 58397A2, 58397A3 |
| MerCruiser | 862548A1, 88553A1, 88893A4 |
| Sierra | 18-6749, 18-6750, 18-6750B |
| Sierra | PH200-T066 |
Compatible Engines
| Drive or Engine | Years | Note |
|---|---|---|
| Bravo X, Bravo XZ, Bravo XR | As listed | Floor mount trim pump bracket |
| Bravo One | 1988 onwards | Floor mount trim pump bracket |
| Bravo Two | 1988 onwards | Floor mount trim pump bracket |
| Bravo Three | 1988 onwards | Floor mount trim pump bracket |
| Alpha One Gen 2 | 1991 onwards | Floor mount trim pump bracket |
| 8.2 L 502 CID V8 | As listed | Big block, same bracket |
| Most MerCruiser sterndrive motors | As listed | Check the pump mounting holes |
Stainless vs Powder Coated
| Build | Where It Suits |
|---|---|
| Stainless, four bolts | Bilge that stays wet, salt water use, long service life |
| Powder coated steel | Dry engine bay, fresh water, original look |
| Both builds | Same mounting holes, same trim pump fitment |
Signs the Bracket Needs Replacing
| Symptom | What It Points To |
|---|---|
| Trim pump moves under load | Bracket cracked or bolts pulled through |
| Rust streaks down the bracket | Plating gone, steel is thinning |
| Bolts will not undo | Seized in a rotten bracket, cut and replace |
| Pump sits at an angle | Bracket bent by a strike or a heavy pump |
| Water pooling around the base | Drain blocked, bracket will rot next |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Disconnect the battery before working near the trim pump |
| 2 | Support the pump, then undo the bracket bolts |
| 3 | Clean the mounting area and check the floor for rot |
| 4 | Seal the screw holes and use a bedding compound |
| 5 | Bolt the new bracket down and check it sits flat |
| 6 | Refit the pump and torque the mounting bolts evenly |
| 7 | Check the trim rams travel fully up and down |
| 8 | Run the trim through a full cycle and look for leaks |
What's Included
| Component | Qty |
|---|---|
| Trim pump floor mount bracket | 1 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from United Kingdom
| Destination | Warehouse | Note |
|---|---|---|
| United Kingdom | United Kingdom local warehouse | Domestic delivery, no import duty |
| Ireland | United Kingdom local warehouse | Short transit, customs may apply |
| EU destinations | United Kingdom local warehouse | Customs cleared on arrival |
Before You Buy
- Check whether the boat has the stainless or the powder coated bracket
- Check the drive is a Bravo or an Alpha One Gen 2
- Check the pump mounting holes match 42419A1
- This is the bracket only, the trim pump is not included
- Order the mounting bolts with it if the old ones are seized
- Seal the screw holes, the bracket sits in the wettest part of the bilge
- 30-Day Easy Returns
- Ships from our United Kingdom local warehouse
