Water Pump Impeller Kit 17461-939M0 5033112 for Suzuki Johnson 9.9 15 20 HP Outboard
Water Pump Impeller Kit 17461-939M0 5033112 for Suzuki Johnson 9.9 15 20 HP Outboard
Product Overview

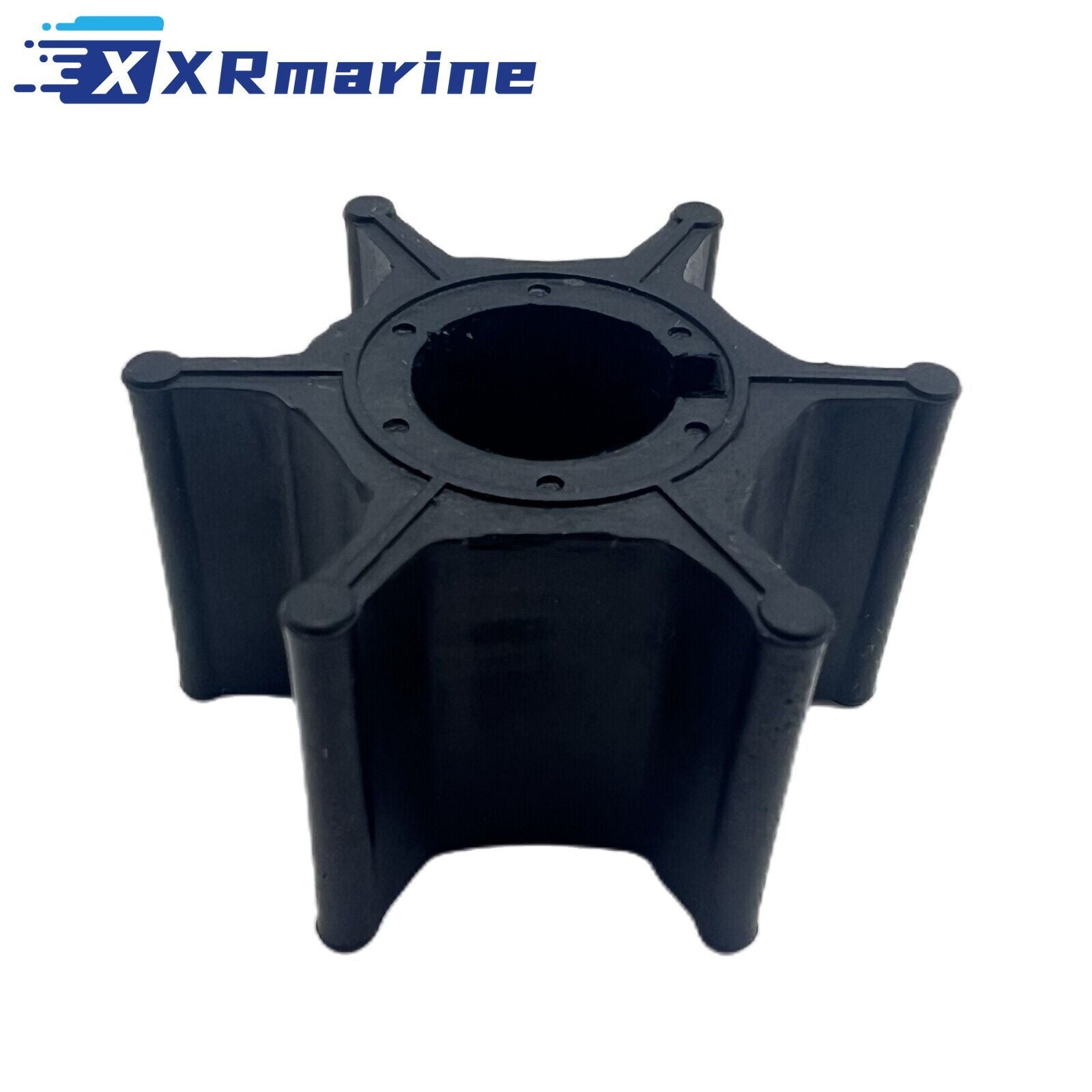

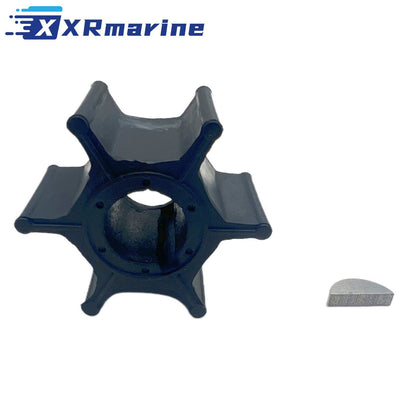

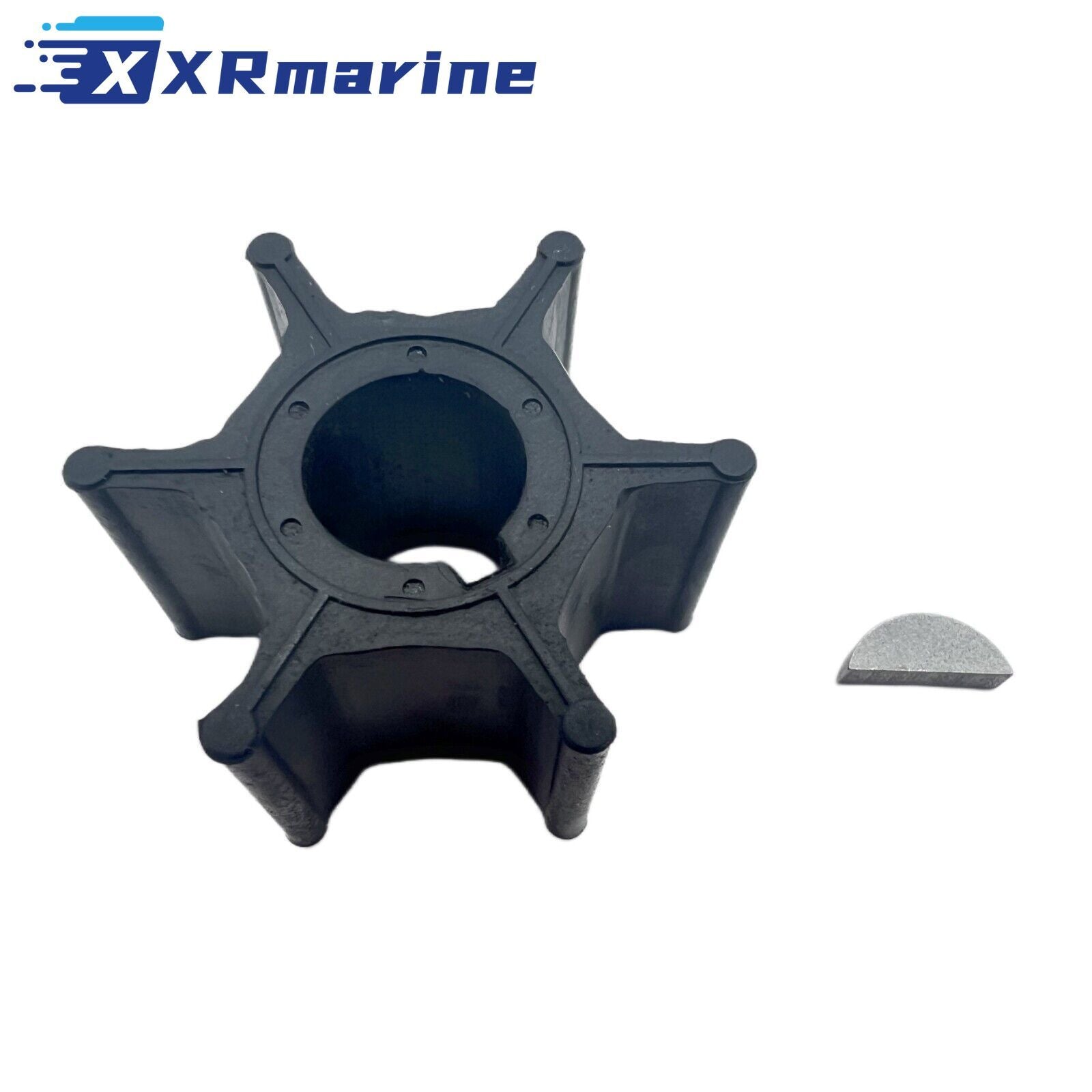

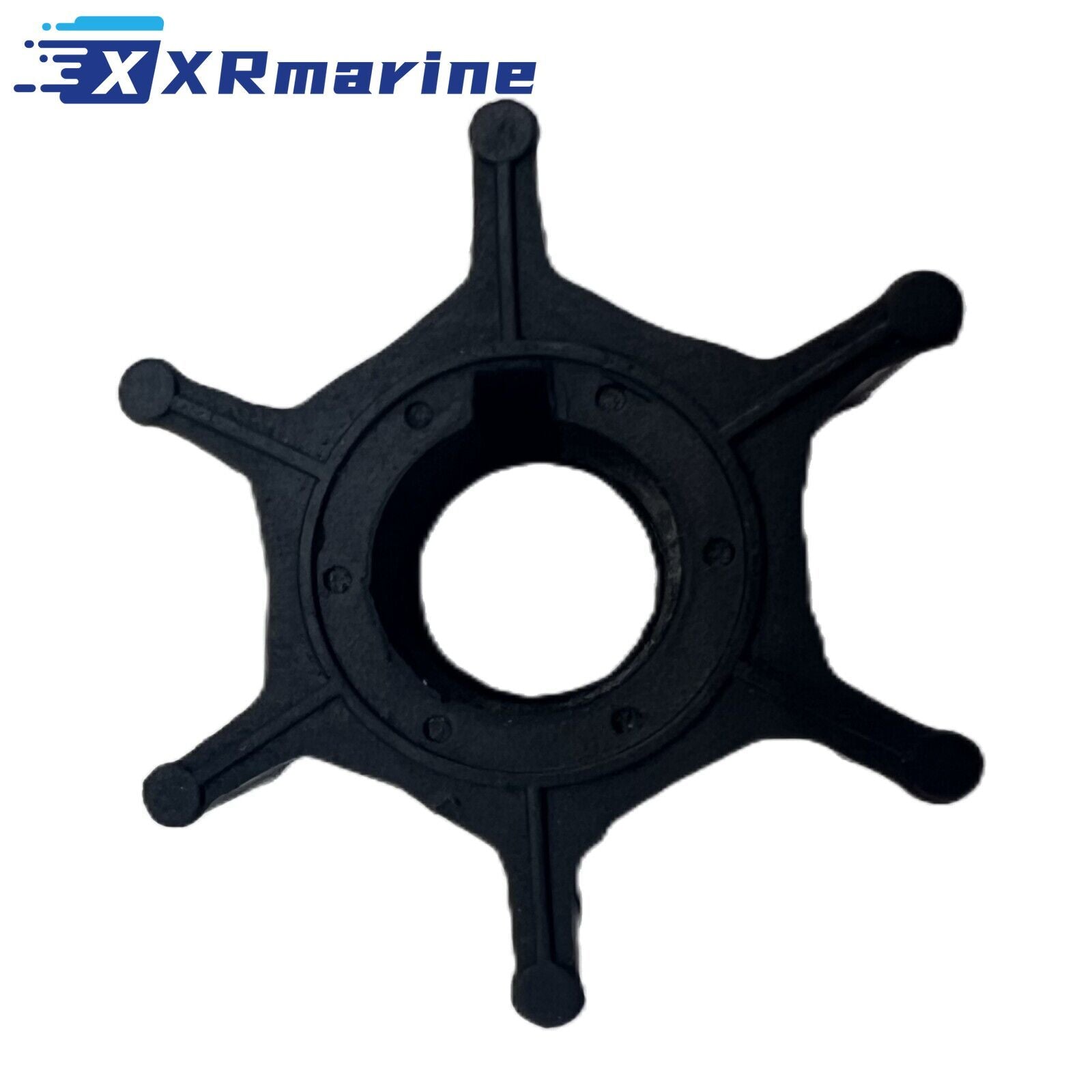

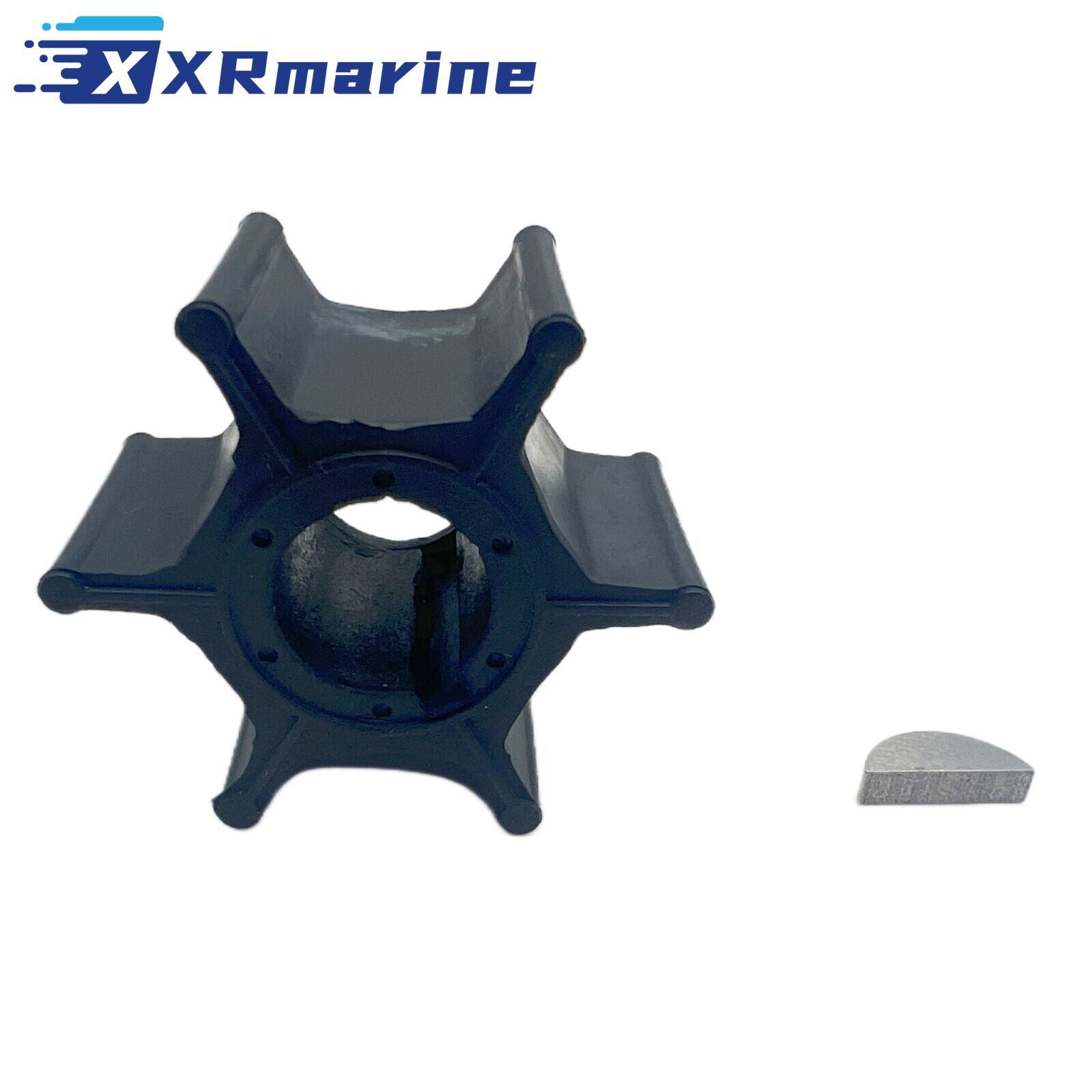

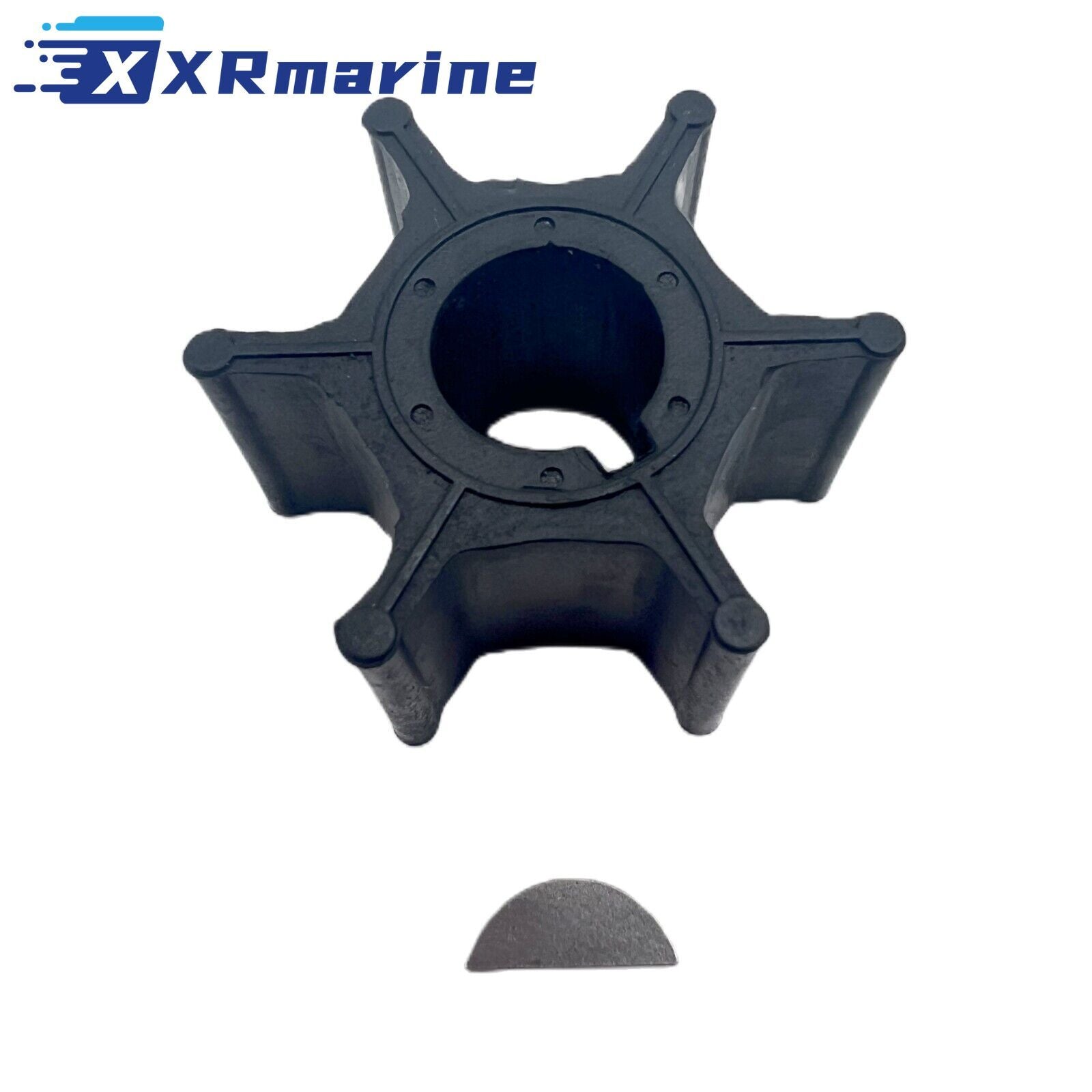

Water pump impeller kit with drive key for Suzuki DT9.9, DT15, DF8, DF9.9, DF15 and DF20 outboards and Johnson Evinrude J10 and J15 four stroke motors, 6 blades, 39.36 mm outer diameter, key drive, replacing 17461-939M0, 5033112 and Sierra 18-3099.
This is the small key drive impeller used on the Suzuki 8 to 20 HP range and on the Johnson Evinrude four stroke built on the same pump. The key comes in the pack because the old one is normally half sheared when the impeller has been spinning on a dry housing.
The same impeller is sold as 17461-93901 in the Suzuki catalogue and as 5033112 by OMC, so a motor with either badge takes this kit. Check the diameter before ordering, the 39.36 mm body is the small one and will not fit the 9.9 to 15 HP two stroke built before 1983.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Outboard water pump impeller kit |
| Drive Type | Key drive |
| Blades | 6 |
| Outer Diameter | 39.36 mm |
| Inner Diameter | 13.03 mm |
| Height | 21.95 mm |
| Material | Neoprene |
| Kit Parts | Impeller and drive key |
| Net Weight | 23 g |
| Pack Size | 15 x 18 x 3 cm |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Suzuki | 17461-939M0, 17461-93900, 17461-93901 |
| Suzuki | 17461-93902, 17461-93903, 17461-93904 |
| Suzuki | 17461-939L0, 17491-93903 |
| OMC / Johnson / Evinrude | 5033112 |
| Sierra | 18-3099 |
| Mallory | 9-45500 |
Compatible Engines
| Brand | Model | Horsepower | Stroke | Years |
|---|---|---|---|---|
| Suzuki | DT9.9 | 9.9 HP | Two stroke | 1983 to 1987 |
| Suzuki | DT15 | 15 HP | Two stroke | 1983 to 1987 |
| Suzuki | DF8 | 8 HP | Four stroke | 2010 to 2011 |
| Suzuki | DF9.9 | 9.9 HP | Four stroke | 1996 and up |
| Suzuki | DF15 | 15 HP | Four stroke | 1996 and up |
| Suzuki | DF20, DF20A | 20 HP | Four stroke | 2013 and up |
| Johnson / Evinrude | J10 | 9.9 HP | Four stroke | 2002 to 2007 |
| Johnson / Evinrude | J15 | 15 HP | Four stroke | 2002 to 2007 |
Fitment Notes
| Item | Detail |
|---|---|
| Suzuki two stroke | DT9.9 and DT15 from 1983 to 1987 use the 39.36 mm impeller |
| Suzuki four stroke | DF9.9 and DF15 from 1996, DF8 in 2010 and 2011, DF20A from 2013 |
| Johnson Evinrude | The J10 and J15 four stroke shares this pump under part number 5033112 |
| Not covered | Pre 1983 two stroke and the larger 15 HP gearcases use a different impeller |
| Where to look | Model and serial plate on the transom bracket |
What's Included
| Component | Qty |
|---|---|
| Water pump impeller | 1 |

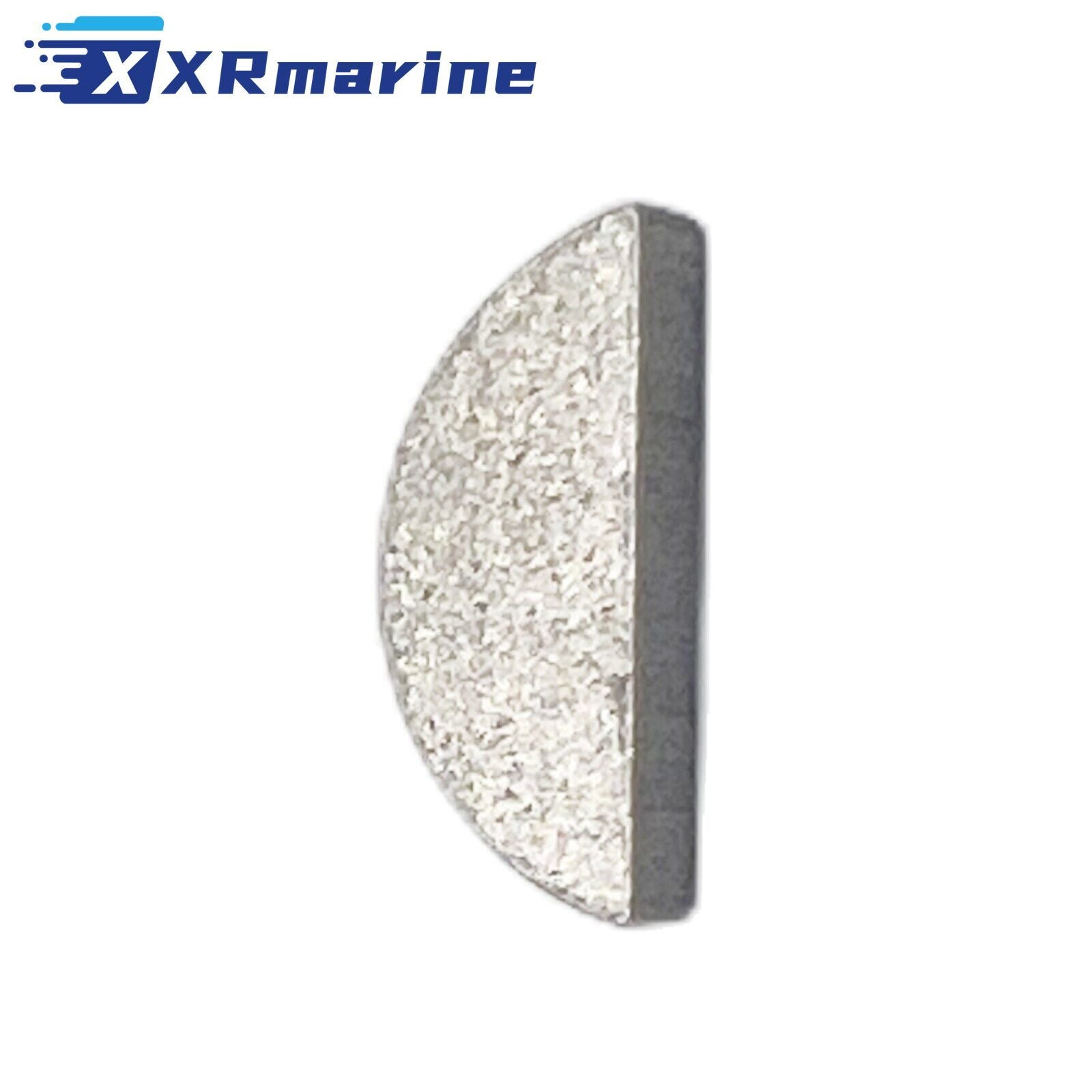

| Drive key | 1 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Before You Buy
- Check the number on the old impeller, 17461-939M0 and 5033112 are the same impeller in two badges
- Check the diameter, this is the 39.36 mm body for the 8 to 20 HP range
- Check the driveshaft keyway, a worn slot will not hold the new key
- Check the pump housing liner and wear plate for grooves before refitting
- Fit with glycerine or soap only, never grease or oil on neoprene
- Seat the key in the shaft before pushing the impeller down, then fold the blades with rotation
- Run on muffs and confirm the telltale stream before leaving the ramp
