5Pcs Zinc Anode Kit 119574-18790 119574-44150 for Yanmar 6LY 6LP 6LPA 4LHA Diesel Engine — Germany Local Warehouse
5Pcs Zinc Anode Kit 119574-18790 119574-44150 for Yanmar 6LY 6LP 6LPA 4LHA Diesel Engine — Germany Local Warehouse
Product Overview

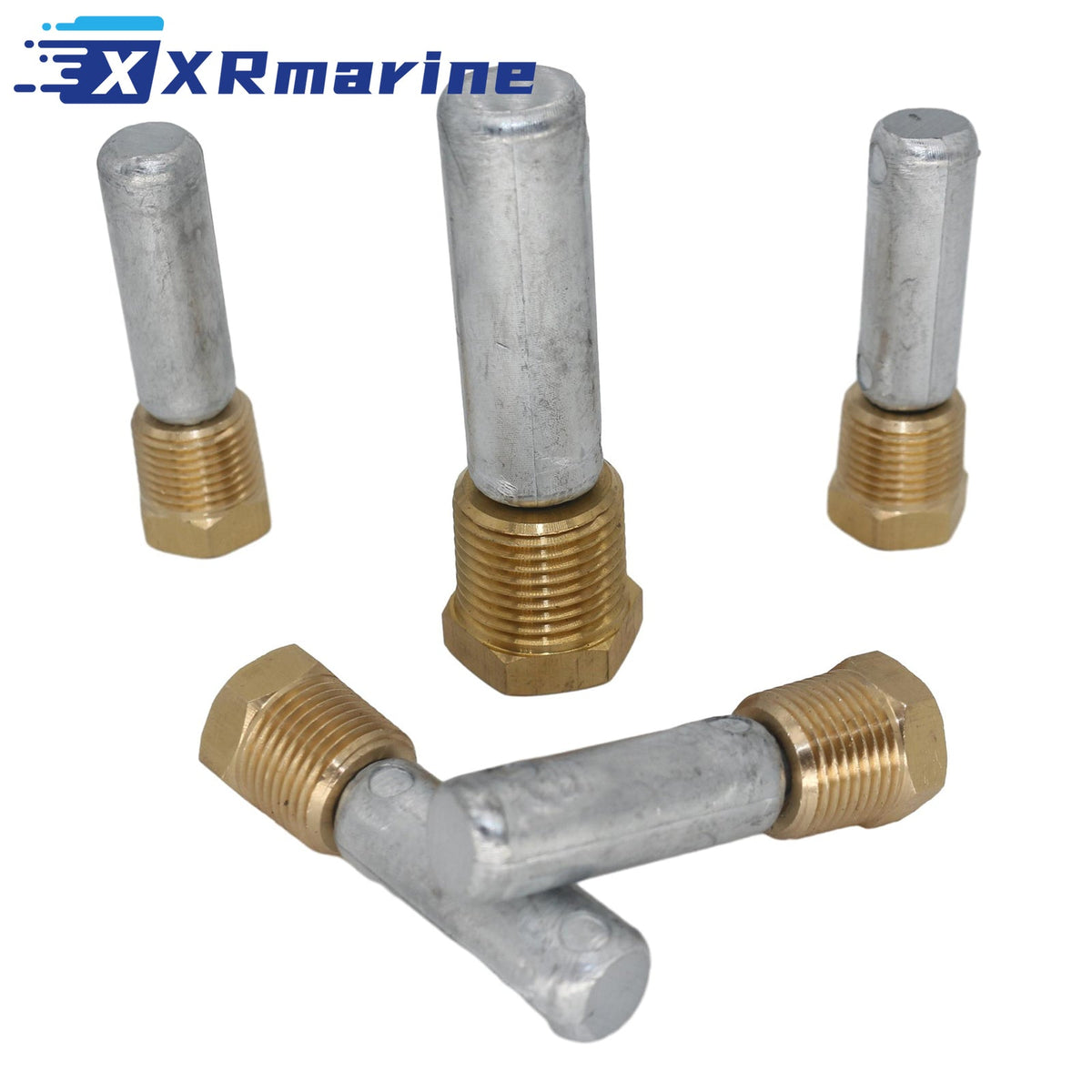

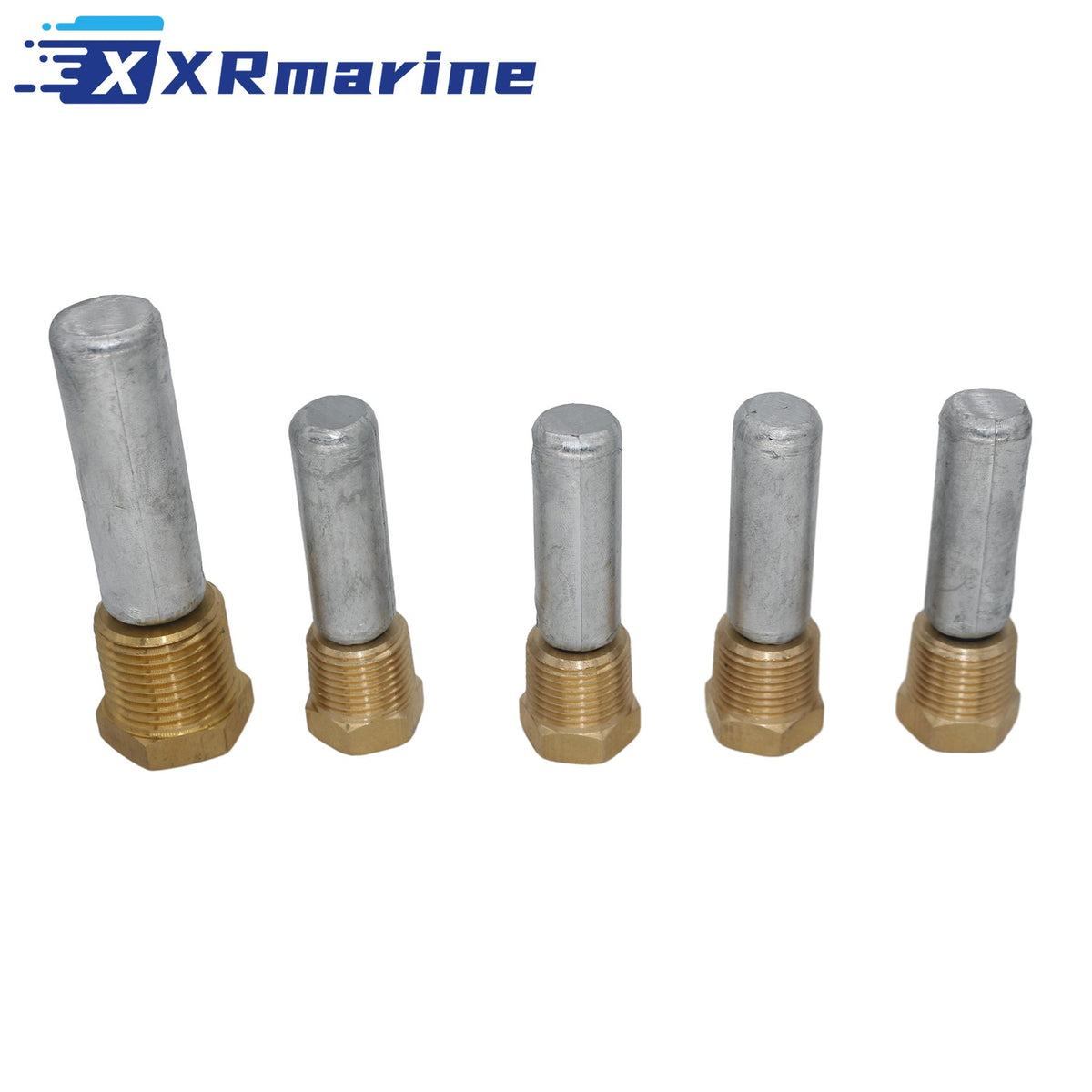

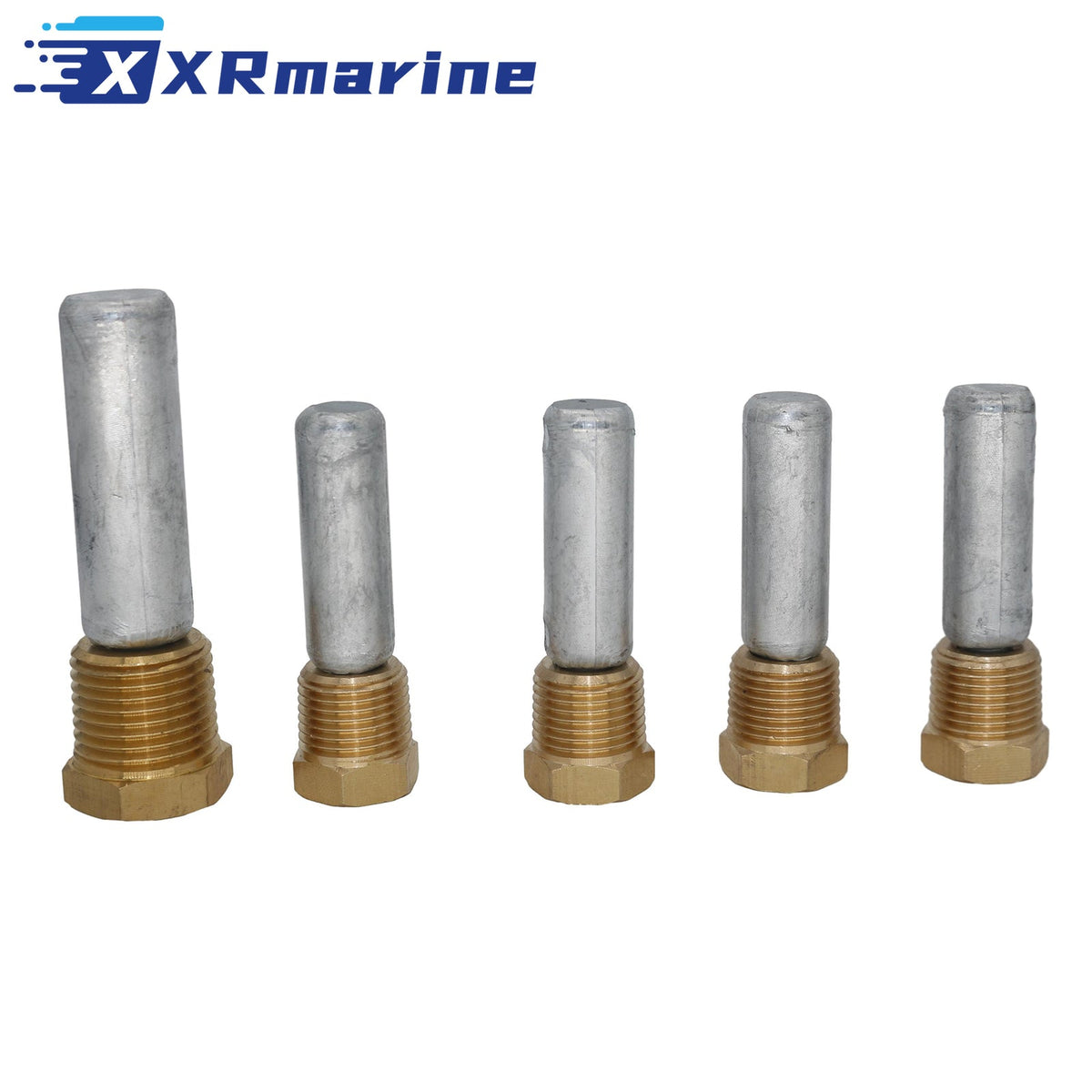

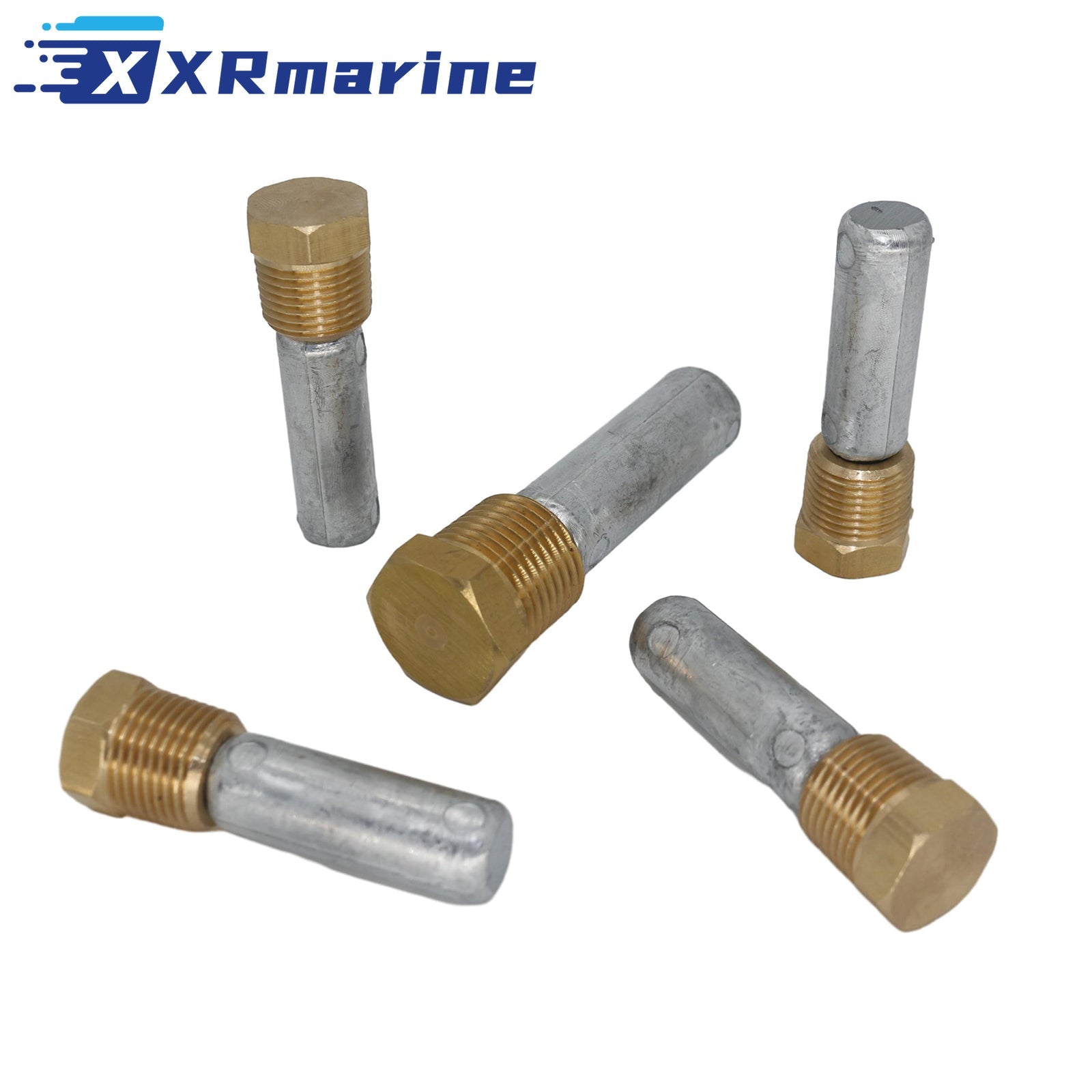

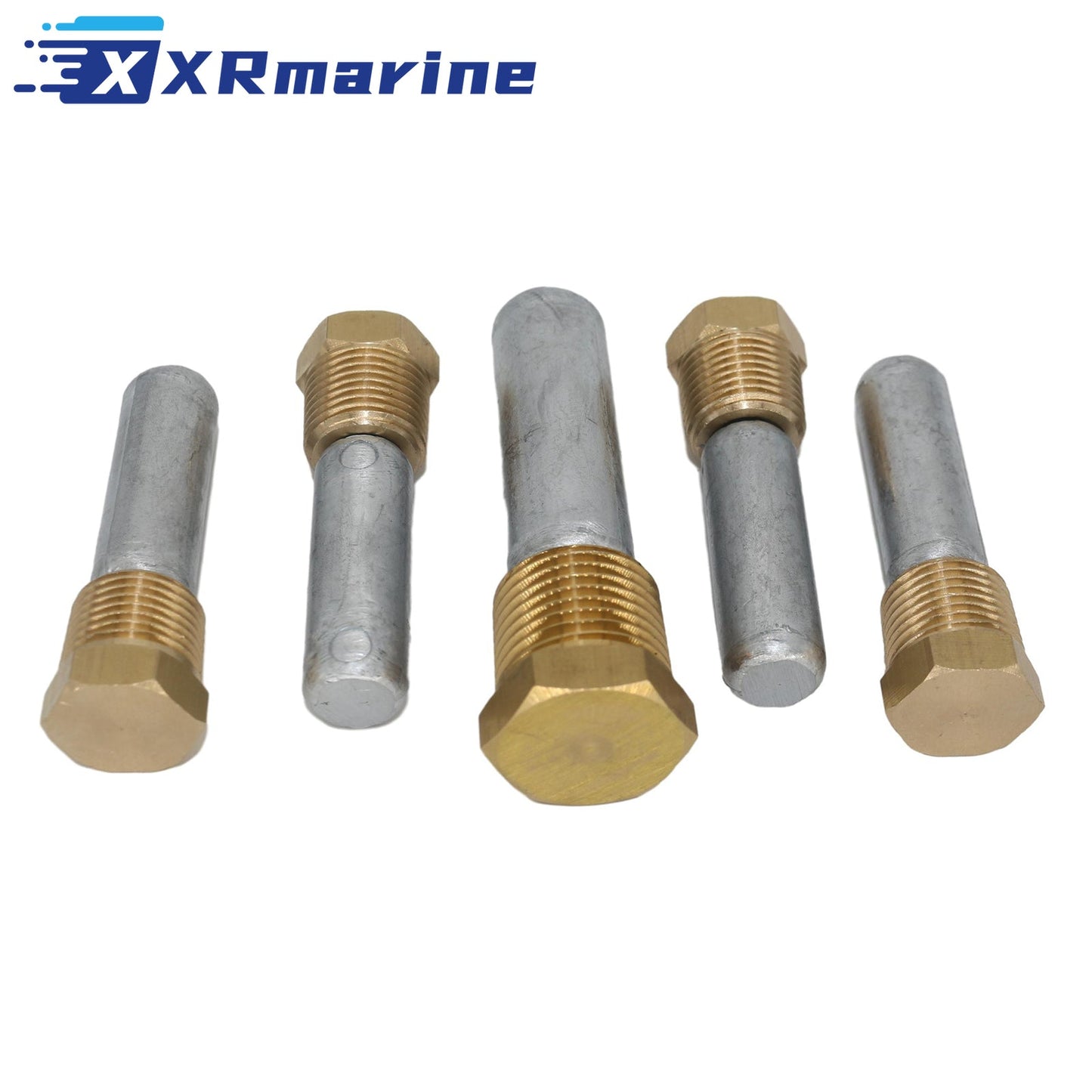

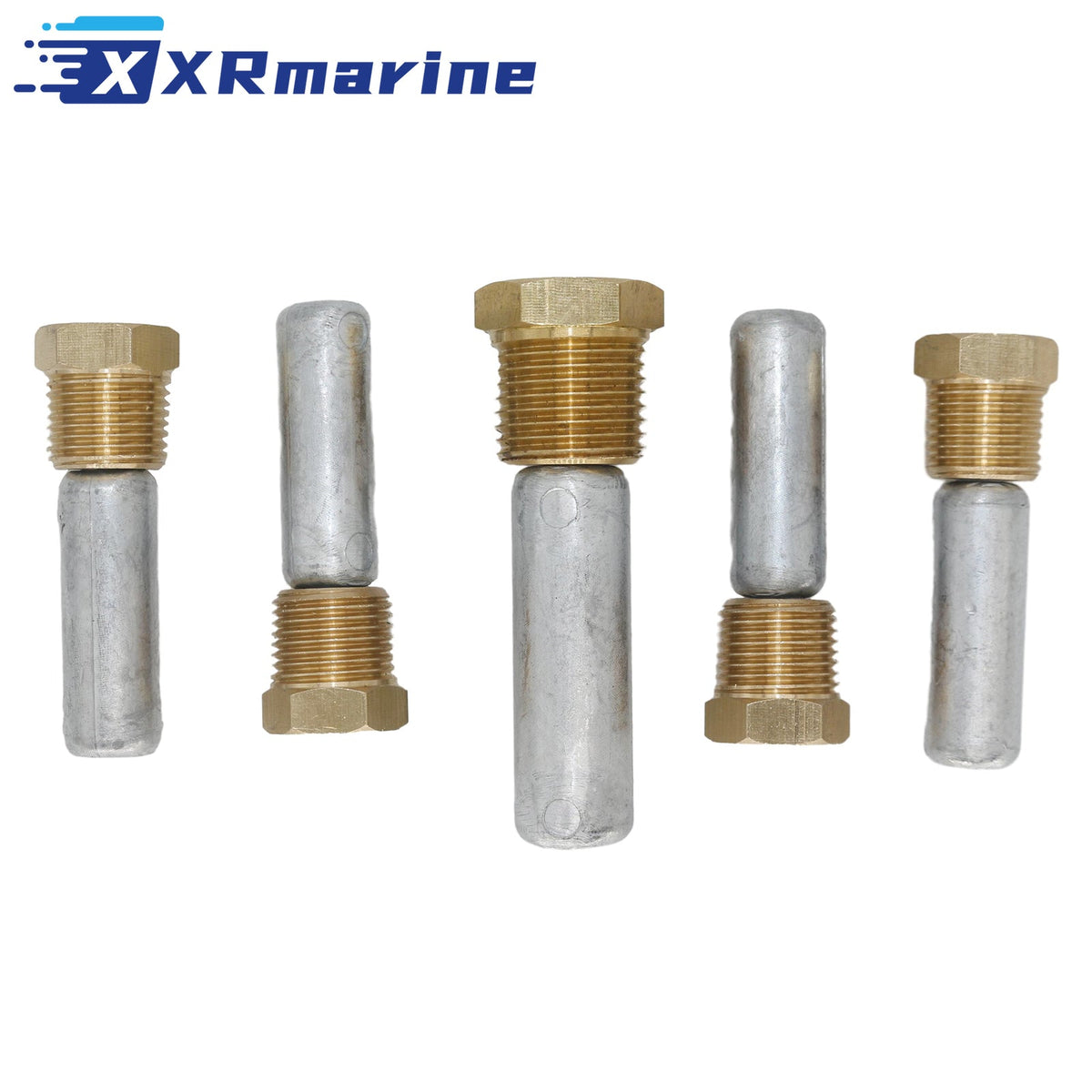

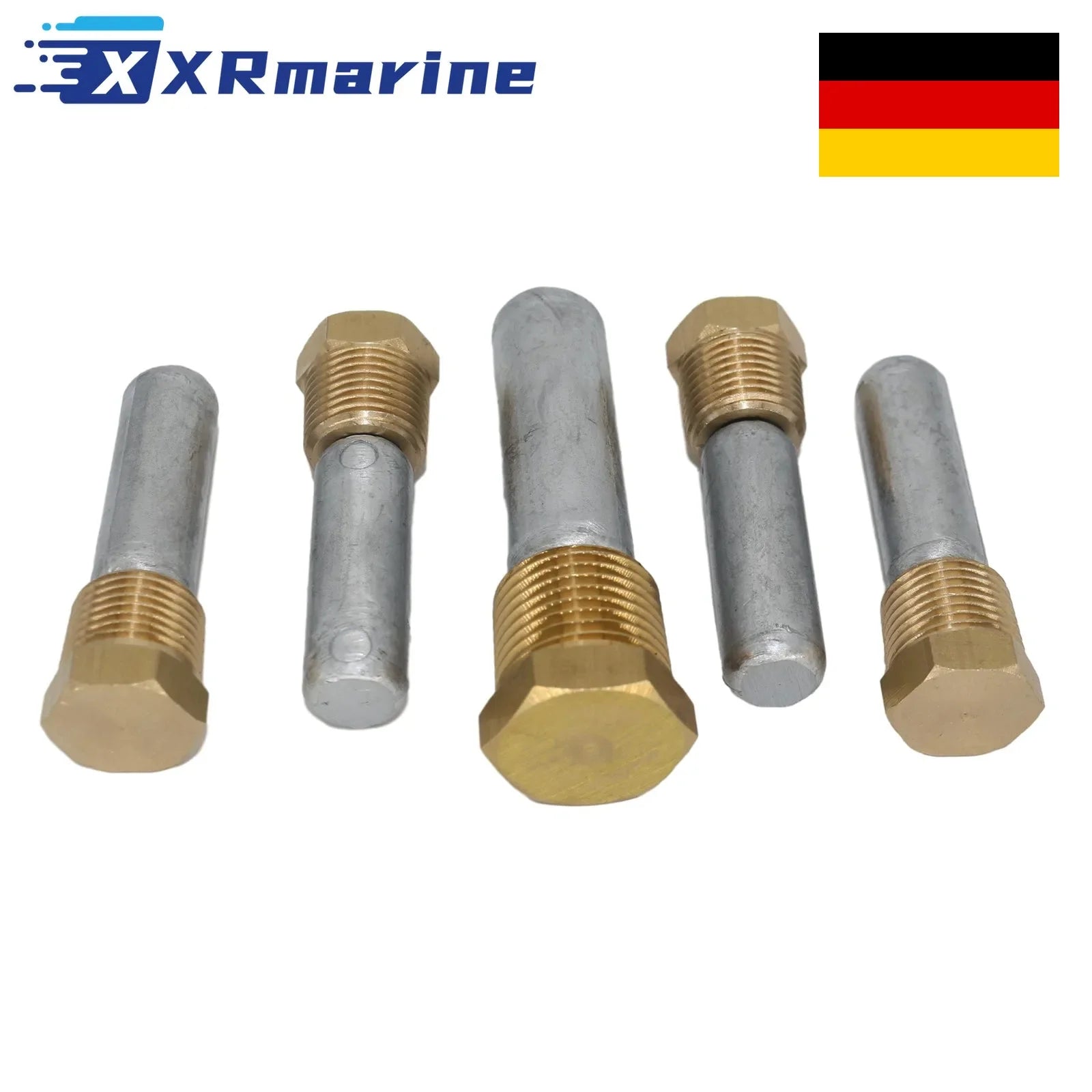

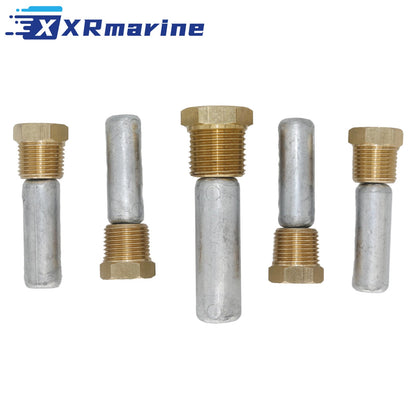

Zinc anode kit for Yanmar marine diesels, 5 pieces in total: 1 intercooler anode with a 1/2 in NPT thread and a 2 in body, plus 4 heat exchanger and oil cooler anodes with a 3/8 in NPT thread and a 1-1/4 in body, 389 g (13.7 oz) boxed at 150 x 180 x 10 mm. The numbers are 119574-18790 for the intercooler and 119574-44150 for the four smaller pieces, and the kit covers the 6LY range except the 6LY3, the 6LP and 6LPA series and part of the 4LHA range. Shipped from our Germany local warehouse.
One engine carries five anode positions, not one, and they do not waste at the same rate. The intercooler zinc usually goes first because it sits in the warmest, fastest moving water, while the two in the oil cooler tend to be forgotten until the cooler bundle is already pitted.
In Germany the choice of anode metal matters more than in the open sea. North Sea and Baltic berths sit between roughly 1.8 and 3.5 percent salinity, and a zinc anode in brackish water passivates rather than protecting, which is the reason some insurers and engine agents specify aluminium for Baltic use.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Zinc anode kit, 5 pieces |
| Engine Family | Yanmar 6LY, 6LP, 6LPA and selected 4LHA marine diesels |
| Intercooler Anode | 1/2 in NPT thread, 2 in length, 5/8 in diameter, 7/8 in wrench |
| Cooler Anodes | 3/8 in NPT thread, 1-1/4 in length, 1/2 in diameter, 11/16 in wrench |
| Quantity | 1 intercooler zinc, 4 heat exchanger and oil cooler zincs |
| Shipping Weight | 389 g (13.7 oz) with packaging |
| Packaging Size | 150 x 180 x 10 mm (5.9 x 7.1 x 0.4 in) |
OEM Cross Reference
| Brand | OEM Part Numbers | Used On |
|---|---|---|
| Yanmar | 119574-18790 | Intercooler zinc, 1 piece |
| Yanmar | 119574-44150 | Heat exchanger and oil cooler zinc, 4 pieces |
Compatible Engines: 4LHA Series
| Model |
|---|
| 4LHA-DTE / -DTP |
| 4LHA-DTZE / -DTZP |
| 4LHA-HTE / -HTP |
| 4LHA-STE / -STP |
| 4LHA-STZE / -STZP |
Compatible Engines: 6LP and 6LPA Series
| Model |
|---|
| 6LP-DTE / -DTP |
| 6LP-DTZE / -DTZP |
| 6LP-DTZE1 / -DTZP1 |
| 6LP-STE / -STP |
| 6LP-STZE / -STZP |
| 6LP-STZE1 / -STZP1 |
| 6LPA-DTE / -DTP |
| 6LPA-DTZE / -DTZP |
| 6LPA-STE / -STP |
| 6LPA-STP2 / -STZP2 |
| 6LPA-STZE / -STZP |
| 6LPA-STZP3 |
Compatible Engines: 6LY Series
| Model | Note |
|---|---|
| All 6LY models | Except 6LY3 |
What's Included
| Component | Qty | Part Number |
|---|---|---|
| Intercooler zinc anode | 1 | 119574-18790 |
| Heat exchanger and oil cooler zinc anode | 4 | 119574-44150 |
Zinc, Aluminium or Magnesium
| Water | Anode Metal | Note |
|---|---|---|
| North Sea, Atlantic coast | Zinc | Standard for salt water, this kit |
| Baltic, 1.8 to 3.5 percent salinity | Aluminium often preferred | Zinc can passivate in brackish water |
| Inland lakes, canals, rivers | Magnesium | Zinc barely works in fresh water |
| Mixed use, one season afloat and one inland | Match the water it sits in most | Anodes protect only in the water they are in |
| Trailer boat, fresh water flush after each use | Magnesium for a lake boat | Flushing does not replace the anode |
| Berth with shore power and stray current | Zinc plus a galvanic isolator | Anodes will not fix a wiring fault |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Check the engine model, this kit does not fit the 6LY3 and does not fit the 4LH-STE rated at 230 hp |
| 2 | Some 4LH engines have no anode ports at all, check the -TE, -HTE and -DTE variants before ordering |
| 3 | Close the raw water seacock and have a tray under each port before the old anode comes out |
| 4 | Count the positions, five anodes go back in: one intercooler and four across the coolers |
| 5 | Clean the thread and dress the plug head if it is corroded, a seized anode usually means damaged threads |
| 6 | Fit the new anodes dry, no sealant on the first threads, and tighten with the correct wrench size |
| 7 | Open the seacock and check each plug for weeping at idle before the boat goes back in the water |
| 8 | Inspect again after six weeks afloat, the first check tells you how fast your water eats them |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Germany
| Destination | Warehouse | Note |
|---|---|---|
| Germany | Germany local warehouse | Domestic delivery, no import duty |
| Austria, Netherlands, Belgium | Germany local warehouse | EU delivery, no customs charge |
| Other EU destinations | Germany local warehouse | EU delivery, VAT included |
Before You Buy
- Check the engine model, this kit does not fit the 6LY3 and does not fit the 4LH-STE rated at 230 hp
- Some 4LH engines have no anode ports, check the -TE, -HTE and -DTE variants first
- Count the positions, five anodes go back in on a full set
- Renew at 50 percent consumption, a half gone anode has already lost most of its protection
- This kit is zinc, for Baltic brackish berths check whether your engine agent specifies aluminium
- 30-Day Easy Returns
- Ships from our Germany local warehouse
