Product Overview

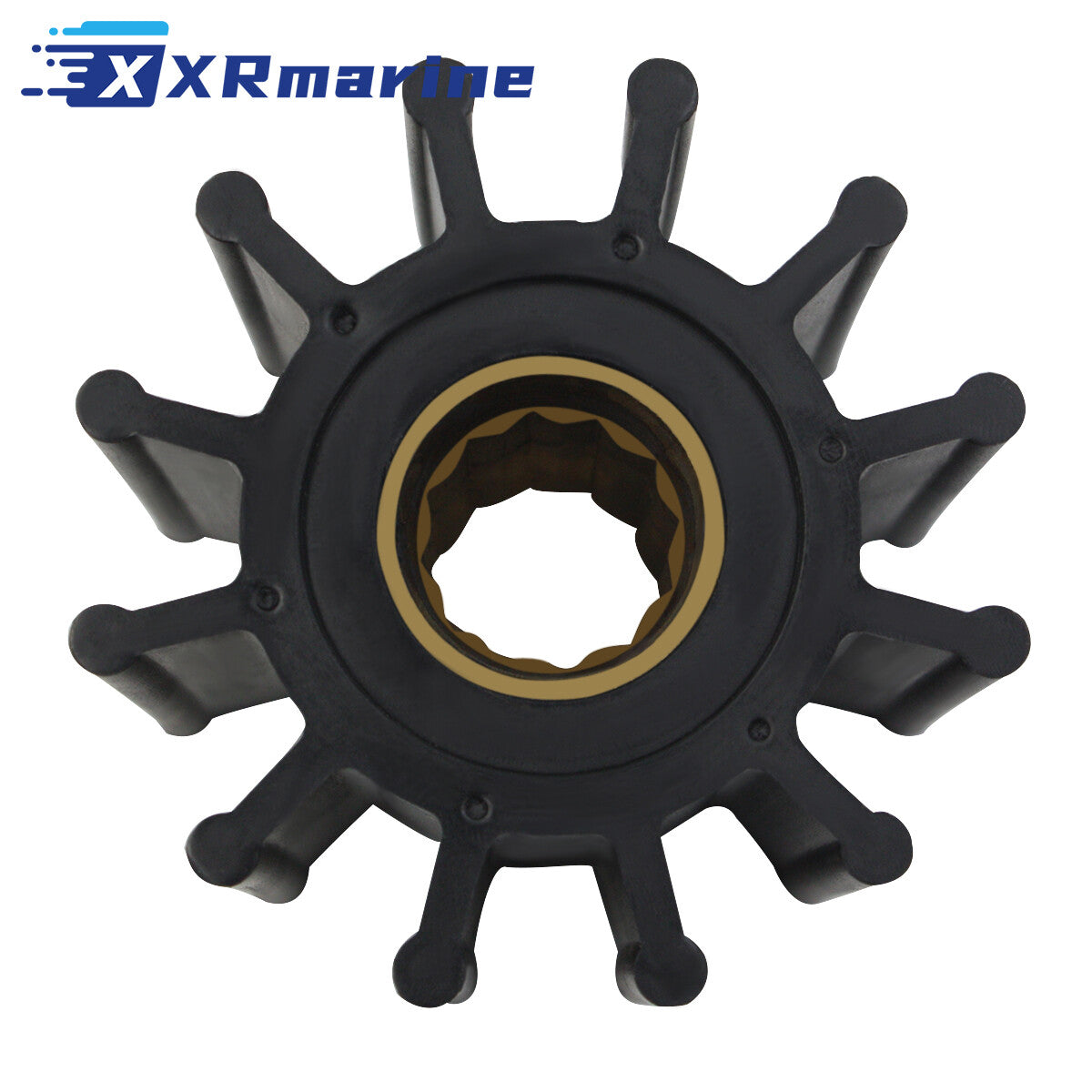

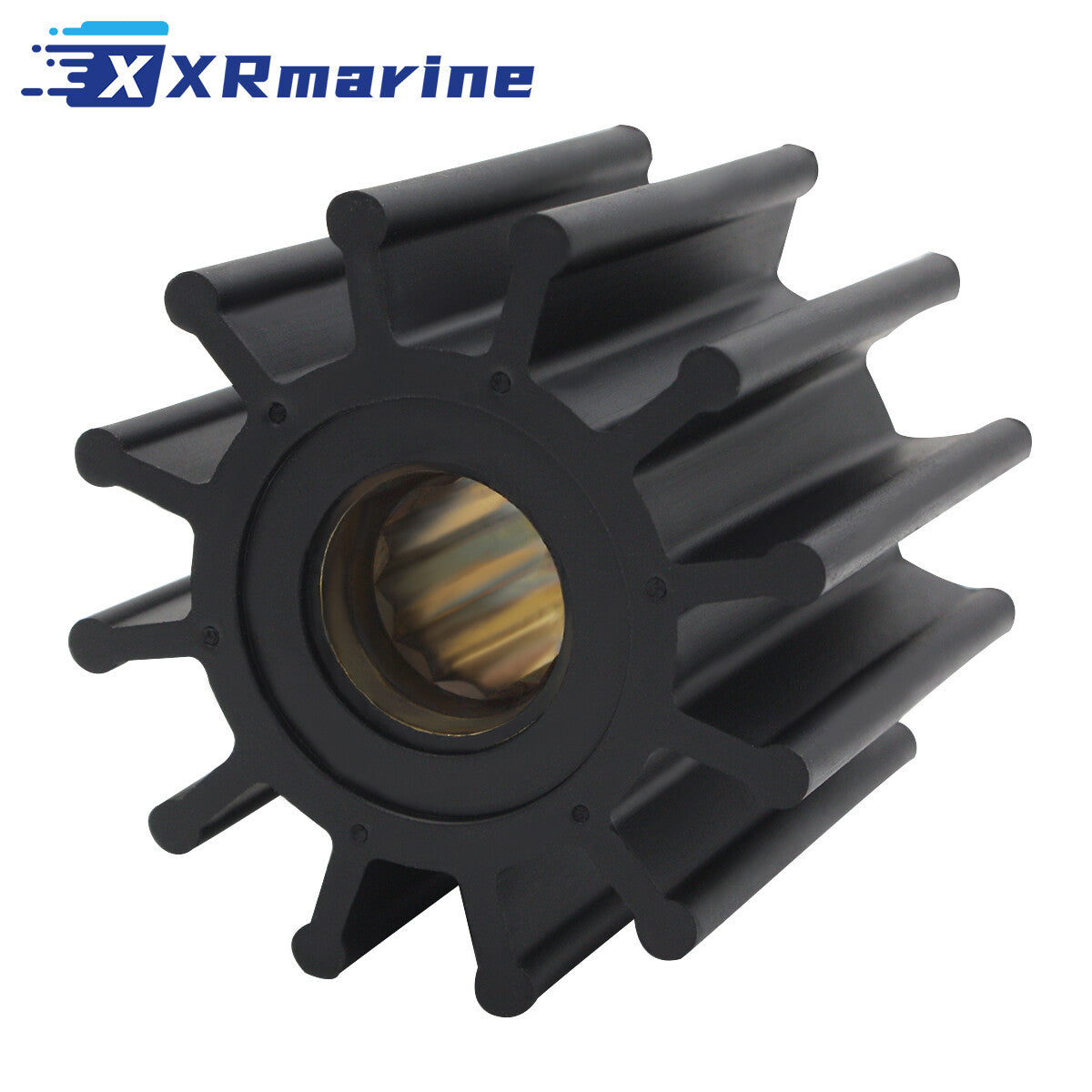

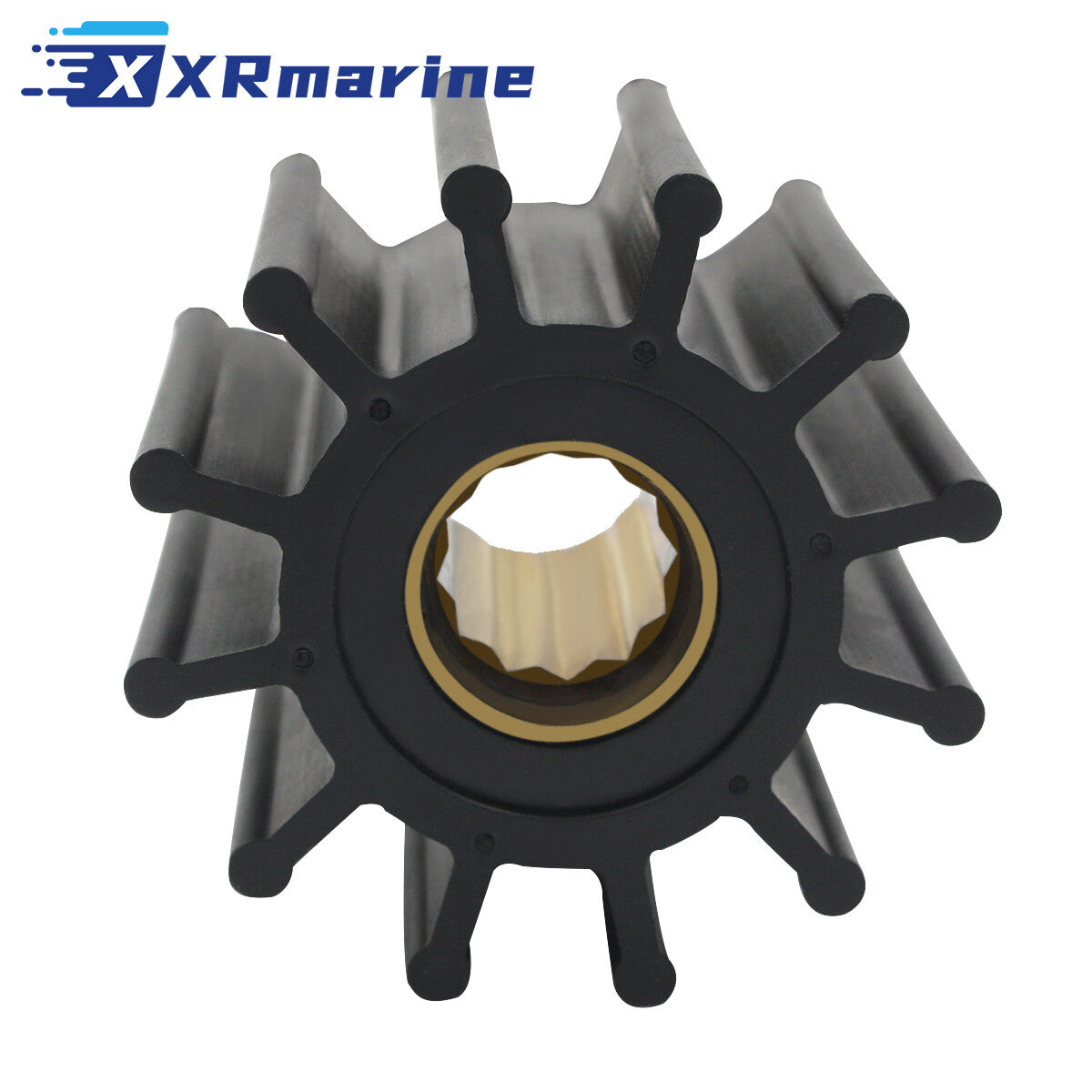

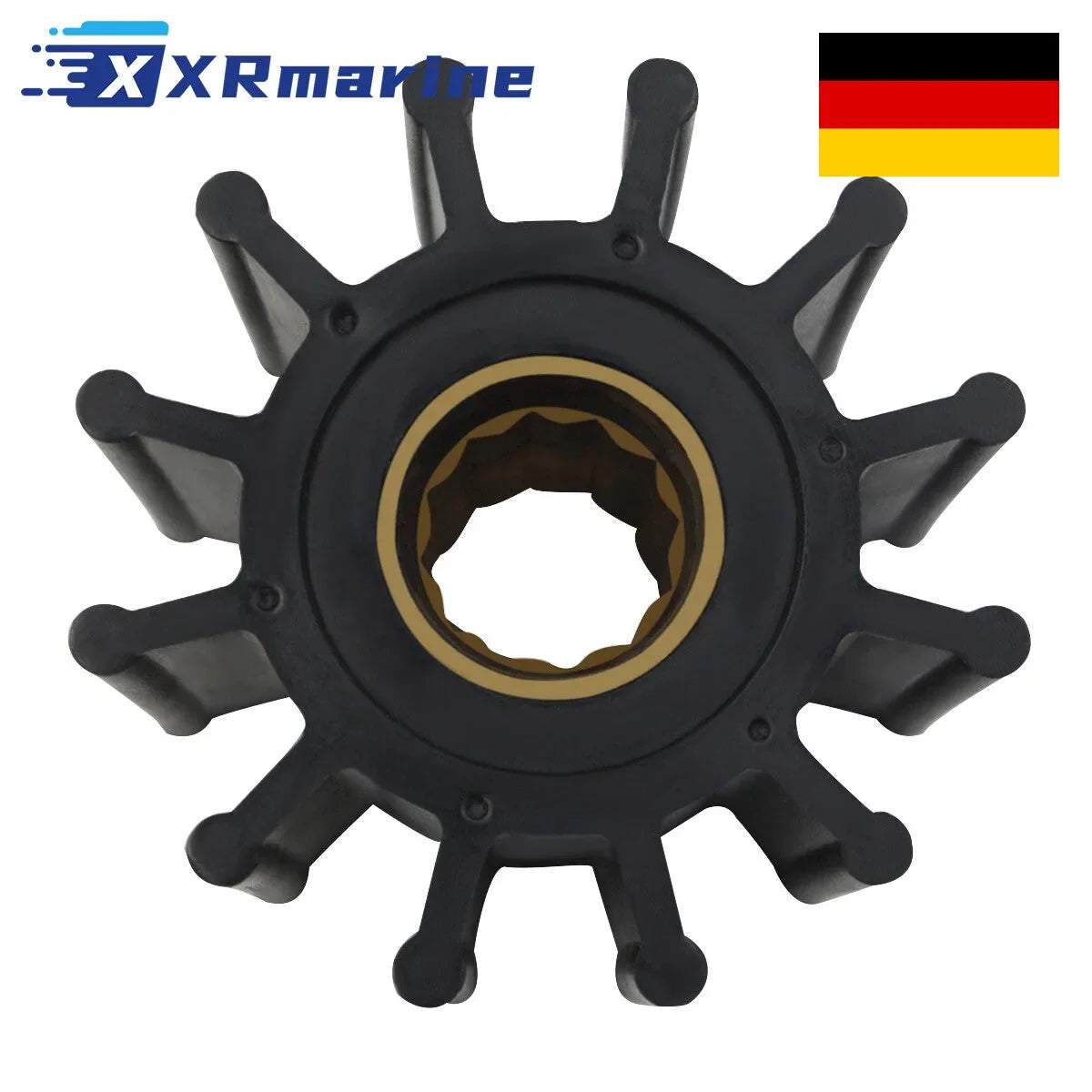

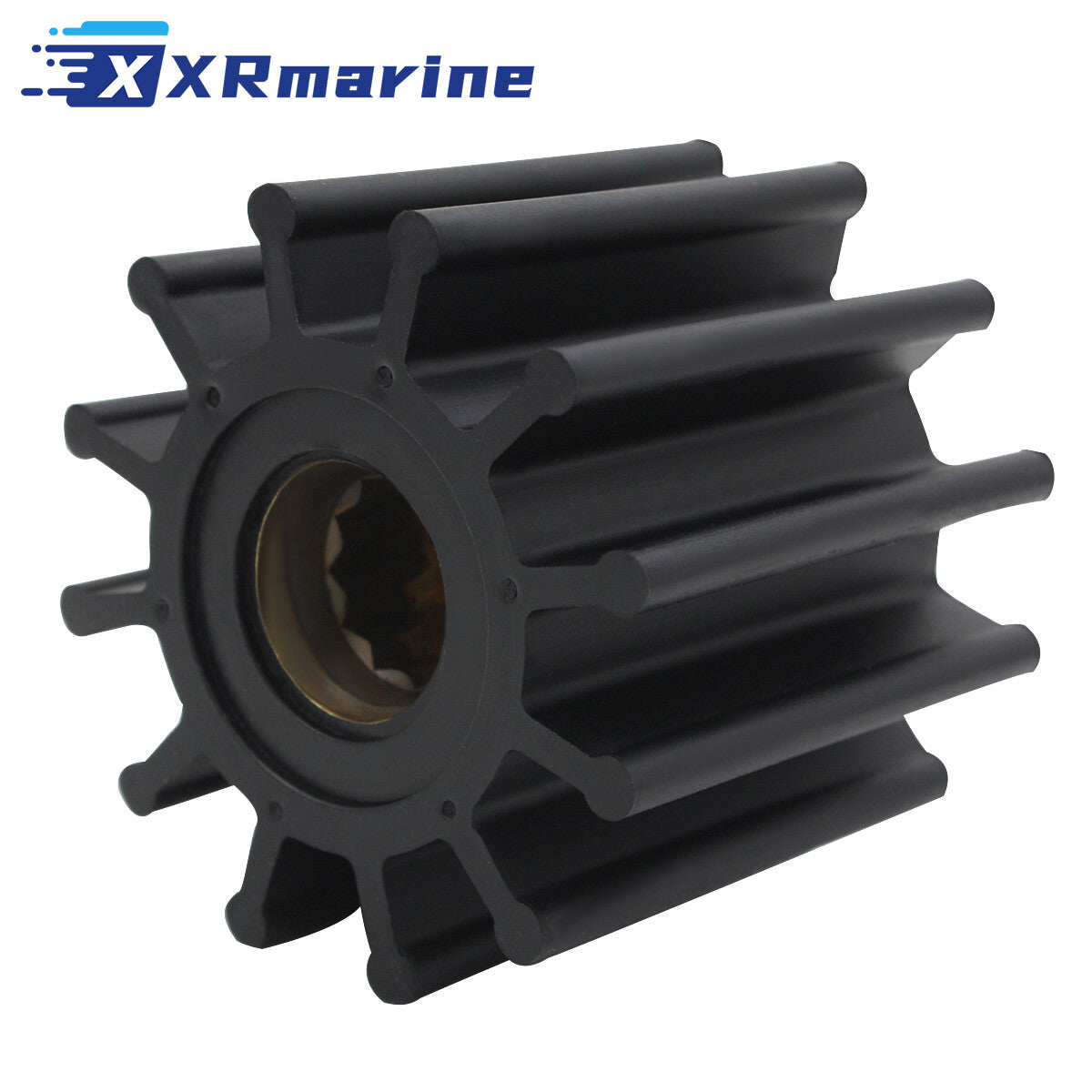

Flexible water pump impeller kit for Johnson F5, F6 and F6B-9 raw water pumps and Northern Lights 30 kW Alaska Diesel L6414A generator sets, 57 mm diameter, 48.4 mm wide, 15.8 mm spline shaft, 12 blades in neoprene with a brass insert, supplied with two O-rings and one gasket, replacing Johnson 09-812B, 09-812B-1 and Northern Lights 25-11031. Dispatched from our Germany local warehouse.
This is the wide body spline drive impeller used across the Johnson F5 and F6 pump family and on the Northern Lights and Indmar pumps that take the same rotor. The 48.4 mm width is what separates it from the narrow 31.5 mm and 40 mm impellers that share the 57 mm diameter, so measuring the old part side on is worth the two minutes.
The kit carries two O-rings because the F6B-9 pump body uses a pair, and one gasket for the cover joint. The spline has to sit square on the shaft and the cam and cover plate have to be clean, otherwise the new rubber will be chewed at the tips within a season. Coolant side hoses and the pump base should be checked while the cover is off.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Flexible impeller kit |
| Drive Type | Spline drive |
| Blades | 12 |
| Diameter | 57 mm / 2-1/4 in |
| Width | 48.4 mm / 1-29/32 in |
| Shaft Diameter | 15.8 mm / 5/8 in |
| Material | Neoprene |
| Insert Material | Brass |

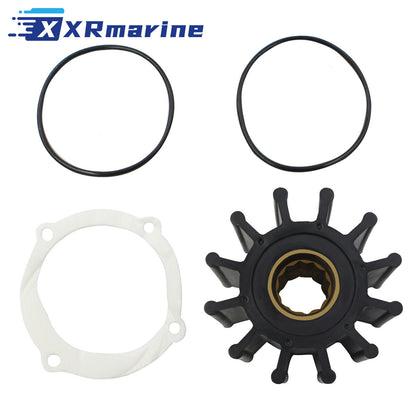

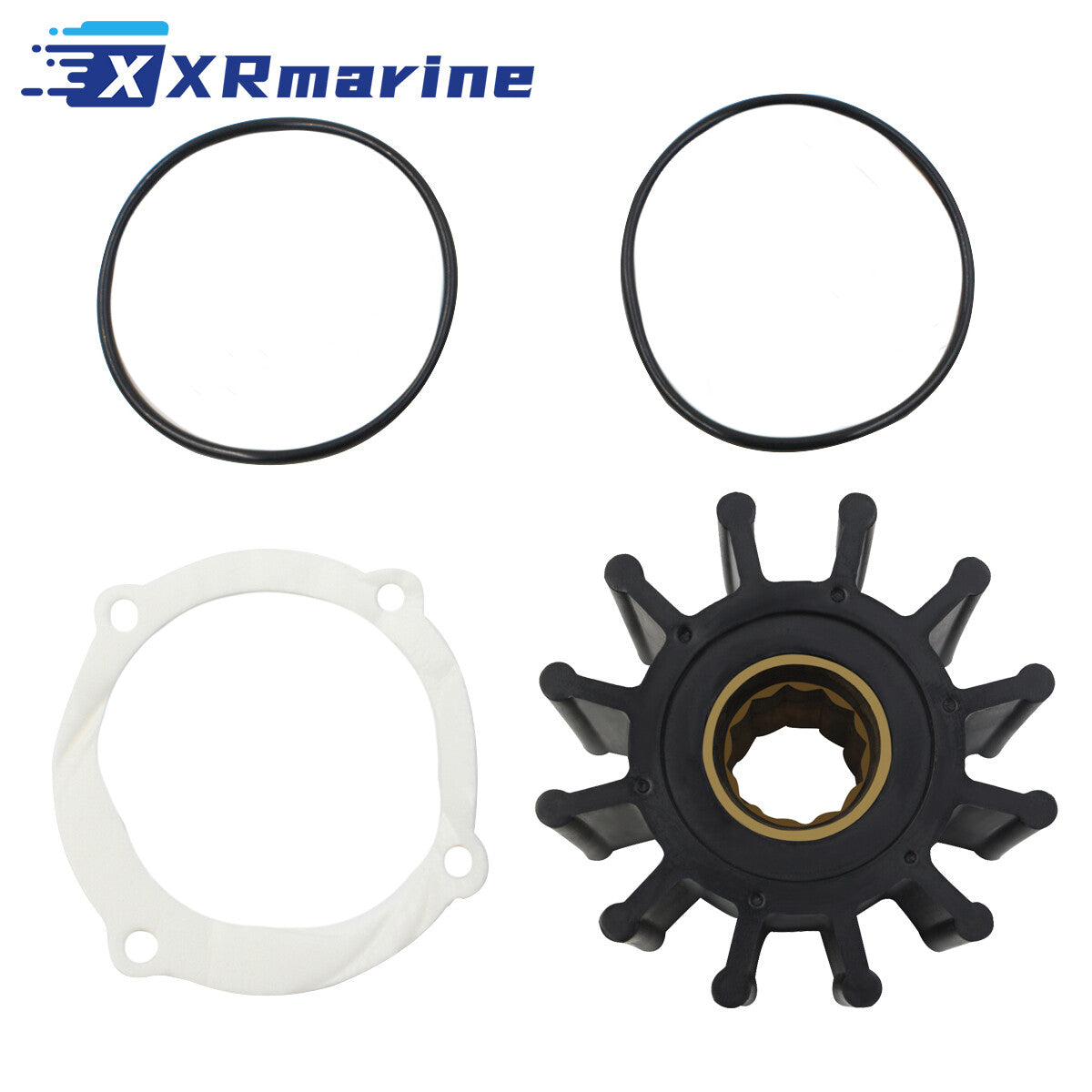

| Kit Parts | Impeller, two O-rings, one gasket |
| Country of Origin | Taiwan |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Johnson / Evinrude | 09-812B, 09-812B-1 |
| Northern Lights | 25-11031 |
| Volvo Penta | K-135, 21951354, 3842786, 21213664, 21951352 |
| Yanmar | 119773-42600, 119773-42600-01 |
| Yamaha | 6TA-12457-00 |
| Jabsco | 13554-0001, 13554-0001-P |
| Indmar | S685007 |
| Pleasurecraft | RP061018 |
| Mallory | 9-45704 |
| Sierra | 18-3306 |
| CEF / JMP / DJ Pump | 500124, 7136, 09-105-1201 |
Compatible Engines
| Brand | Model or Pump | Note |
|---|---|---|
| Johnson Pumps | F5 raw water pump | Spline drive pump body |
| Johnson Pumps | F6 raw water pump | Spline drive pump body |
| Johnson Pumps | F6B-9 raw water pump | Twin O-ring pump body |
| Northern Lights | 30 kW Alaska Diesel L6414A | Generator set cooling pump |
| Northern Lights | Pump 25-11030, M445 | Same rotor as the Indmar M445 pump |
| Indmar | Pump M445, S685007 | Inboard raw water pump |
| Volvo Penta | Pump applications | Numbers 21951354, 3842786, 21213664 |
| Yanmar | Pump applications | Numbers 119773-42600, 119773-42600-01 |
| Yamaha | Pump applications | Number 6TA-12457-00 |
| Jabsco | Pump 13554-0001 | Jabsco pump body |
| Pleasurecraft | Pump RP061018 | Inboard marine engine |
Pump Numbers Covered
| Number | Where It Appears |
|---|---|
| 09-812B, 09-812B-1 | Johnson F5 and F6 impeller |
| 25-11031 | Northern Lights impeller |
| 25-11030, M445 | Northern Lights and Indmar pump body |
| K-135 | Volvo Penta impeller kit |
| 21951354, 3842786, 21213664, 21951352 | Volvo Penta pump numbers |
| 119773-42600, 119773-42600-01 | Yanmar pump number |
| 6TA-12457-00 | Yamaha pump number |
| 13554-0001 | Jabsco pump number |
| 18-3306 | Sierra aftermarket equivalent |
| 500124, 7136, 09-105-1201 | CEF, JMP and DJ Pump equivalents |
What's Included
| Component | Qty |
|---|---|
| Flexible impeller, 12 blade | 1 |
| O-ring | 2 |
| Cover gasket | 1 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Germany
| Destination | Warehouse | Note |
|---|---|---|
| Germany | Germany local warehouse | Domestic delivery, no import duty for EU buyers |
| Austria, Netherlands, Belgium | Germany local warehouse | EU intra-community delivery |
| France, Italy, Spain, Poland | Germany local warehouse | EU intra-community delivery |
Before You Buy
- Check the number on the old impeller, 09-812B and 25-11031 are the same 57 mm rotor
- Check the width, this is the 48.4 mm wide body, not the 31.5 mm or 40 mm impeller
- Check the spline on the shaft for wear, a rounded spline will strip the new hub
- Check the pump cam and cover plate for scoring before refitting
- Fit with glycerine or soap only, never grease or oil on neoprene
- Seat the spline, fold the blades with rotation, then both O-rings and the gasket
- Prime the pump and confirm flow before loading the engine
- 30-Day Easy Returns
- Ships from our Germany local warehouse
