Product Overview

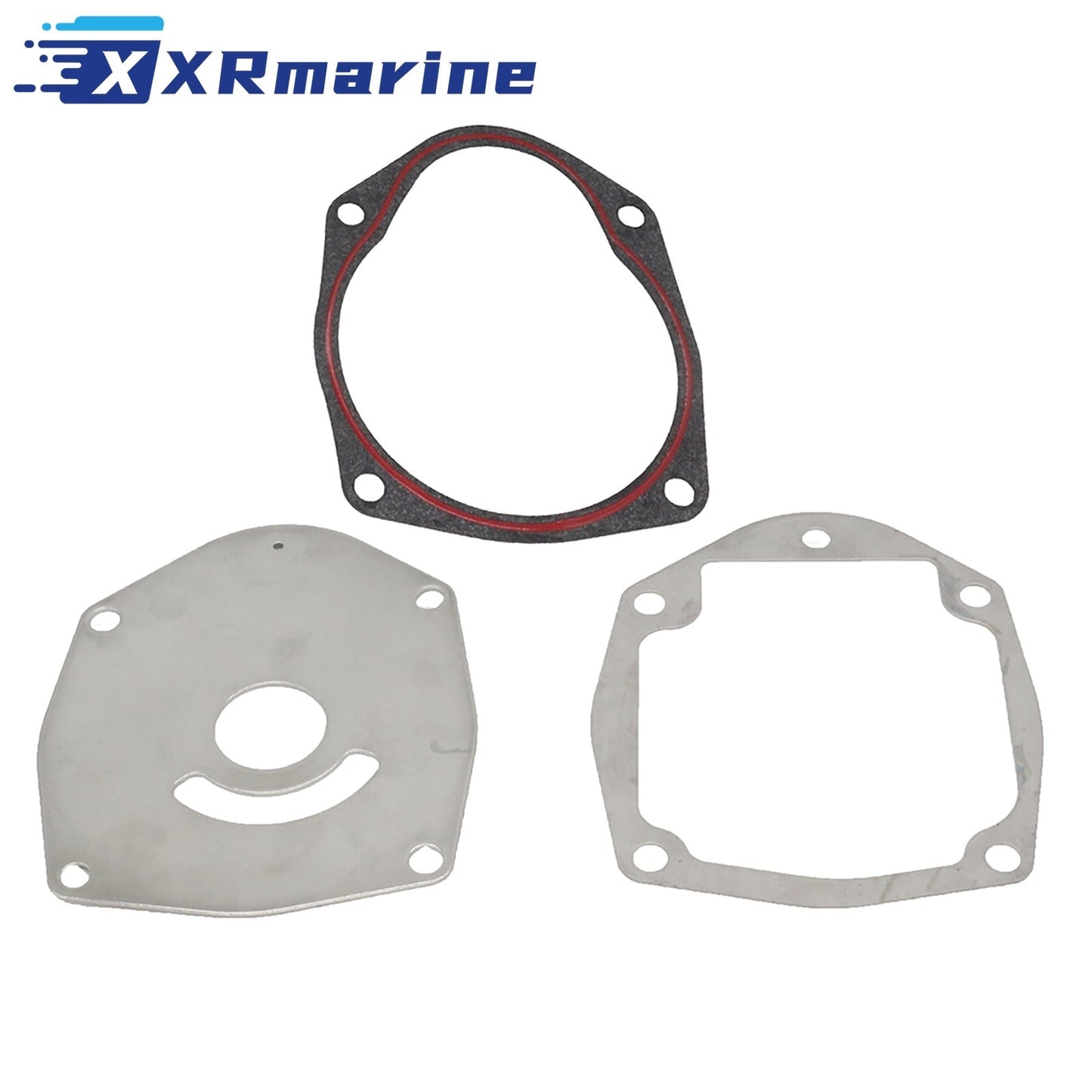

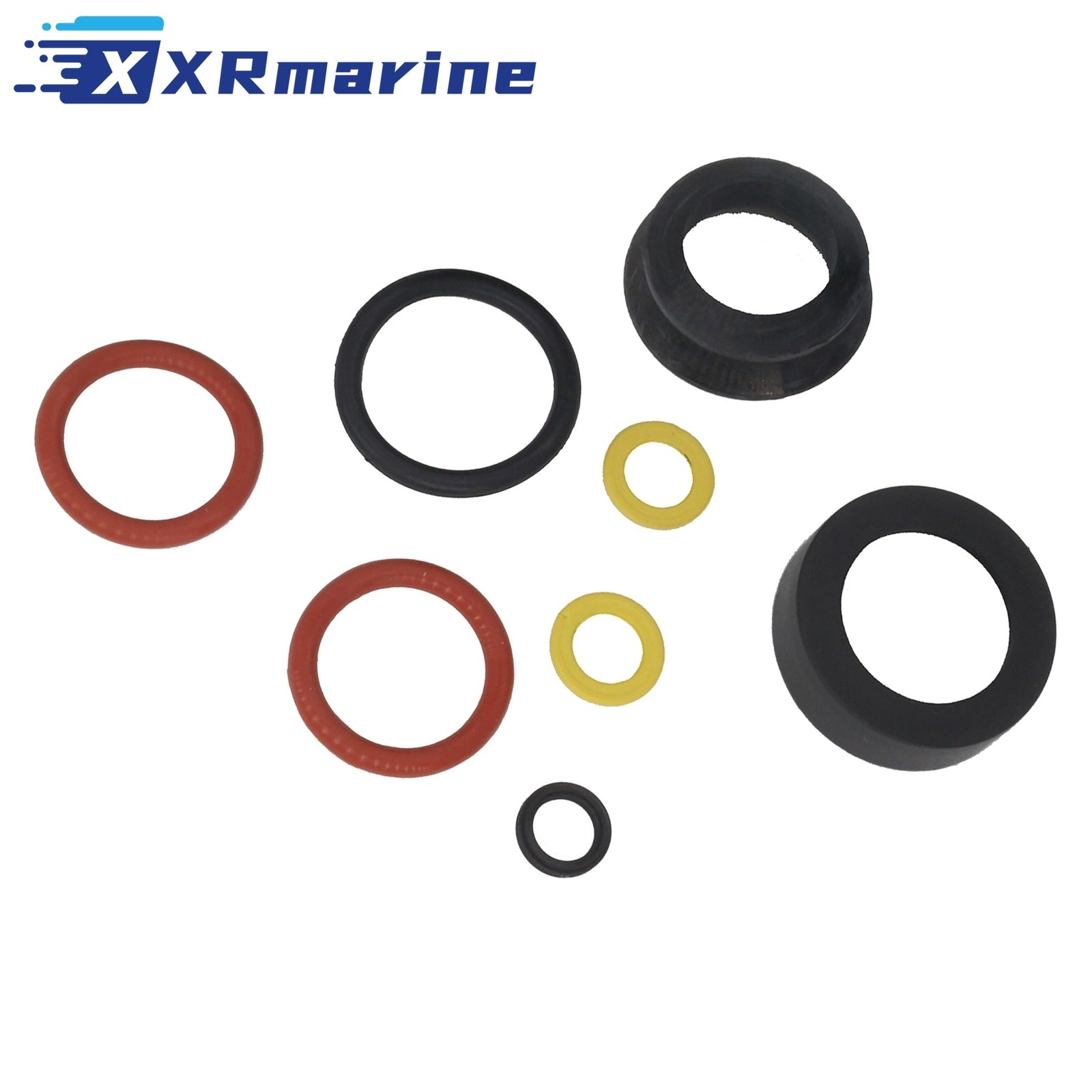

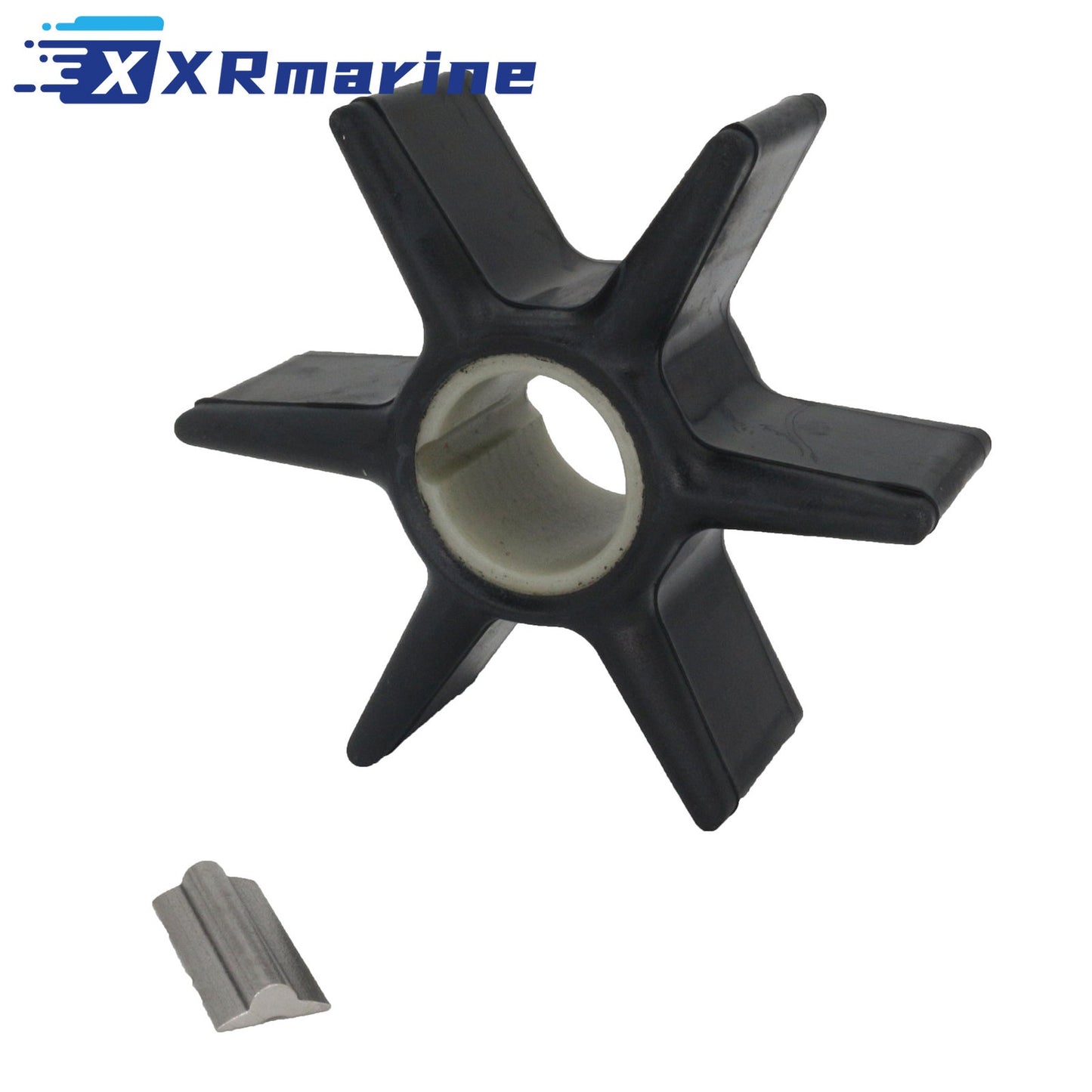

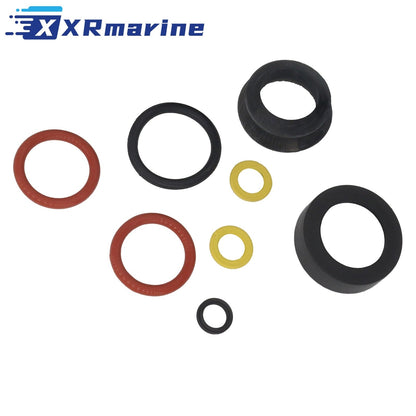

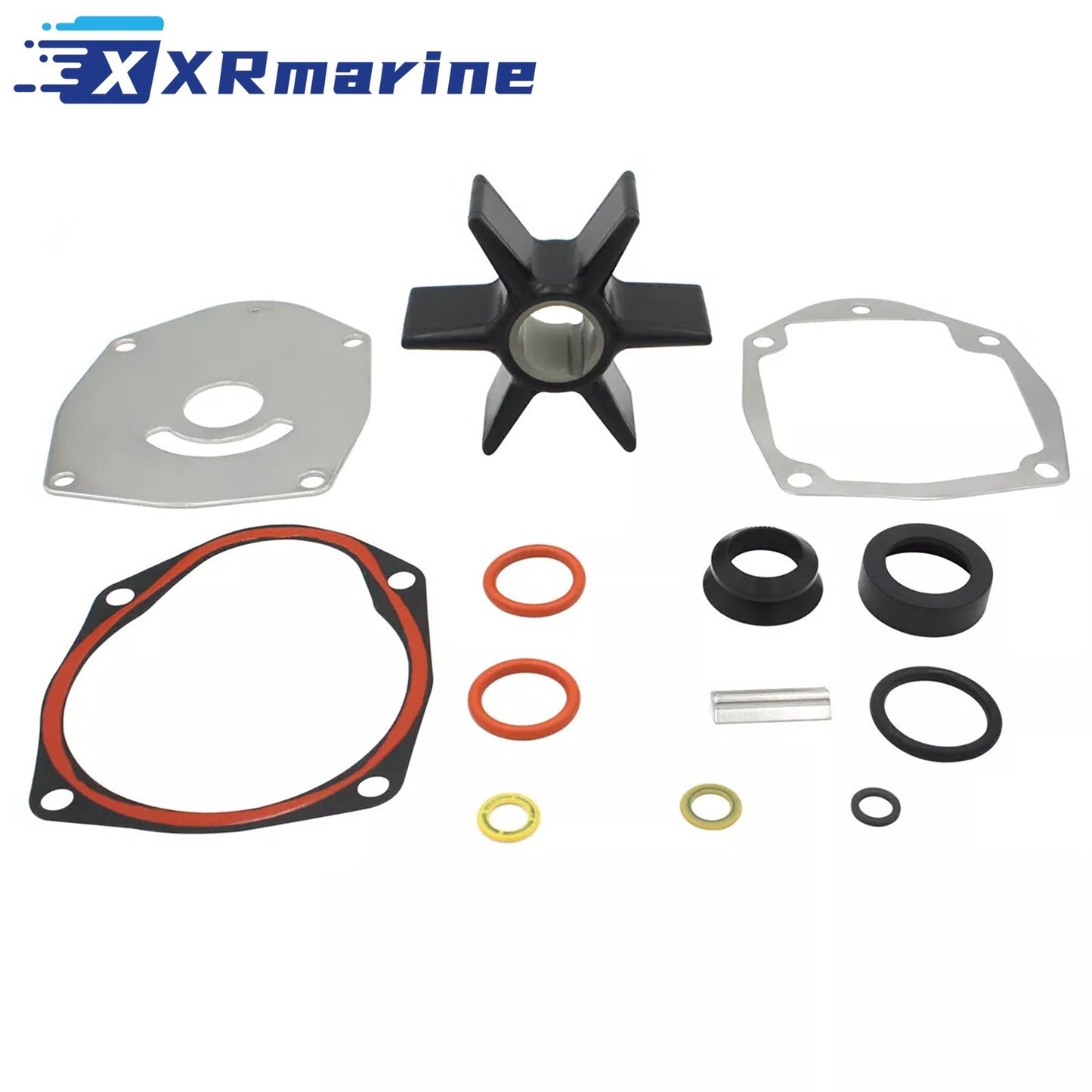

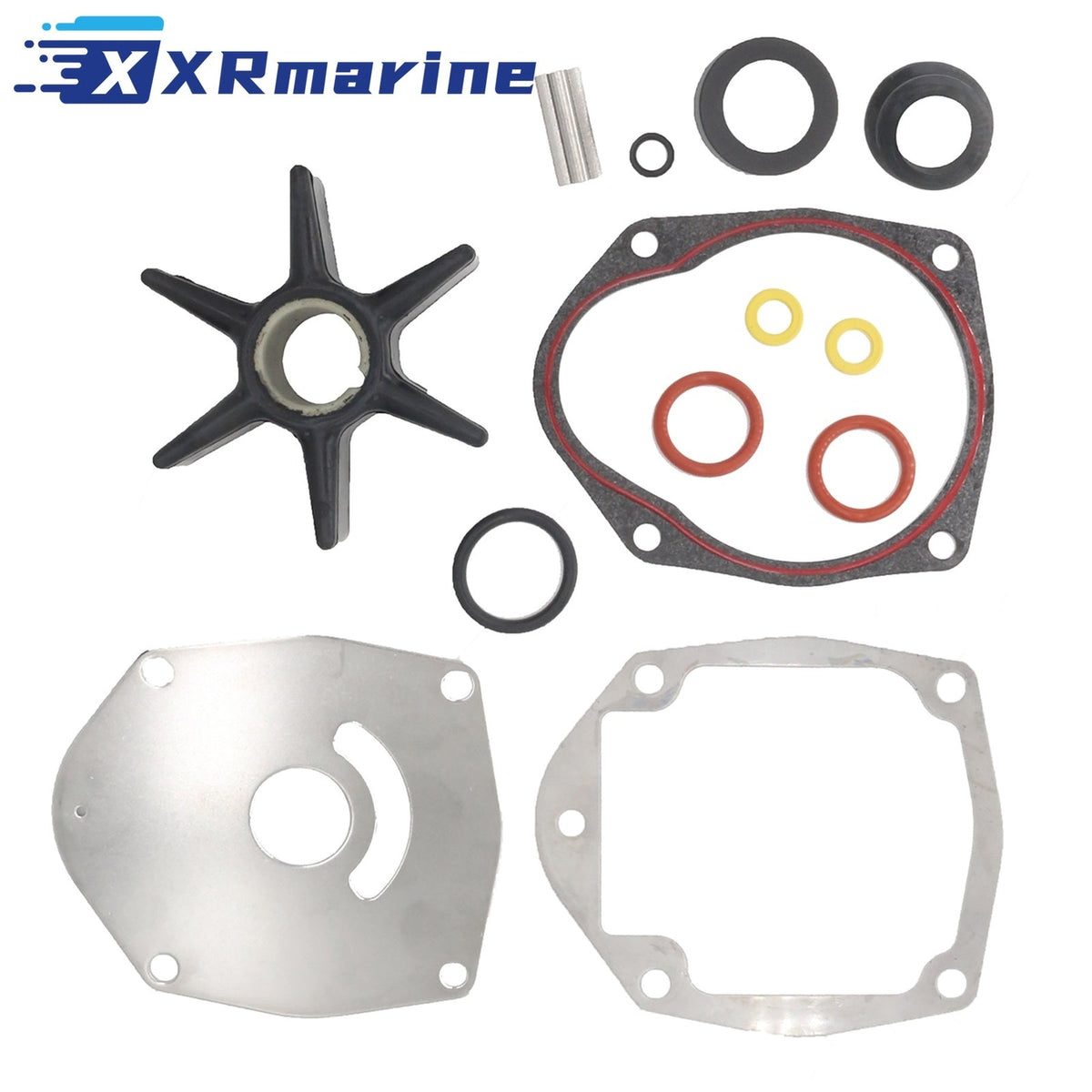

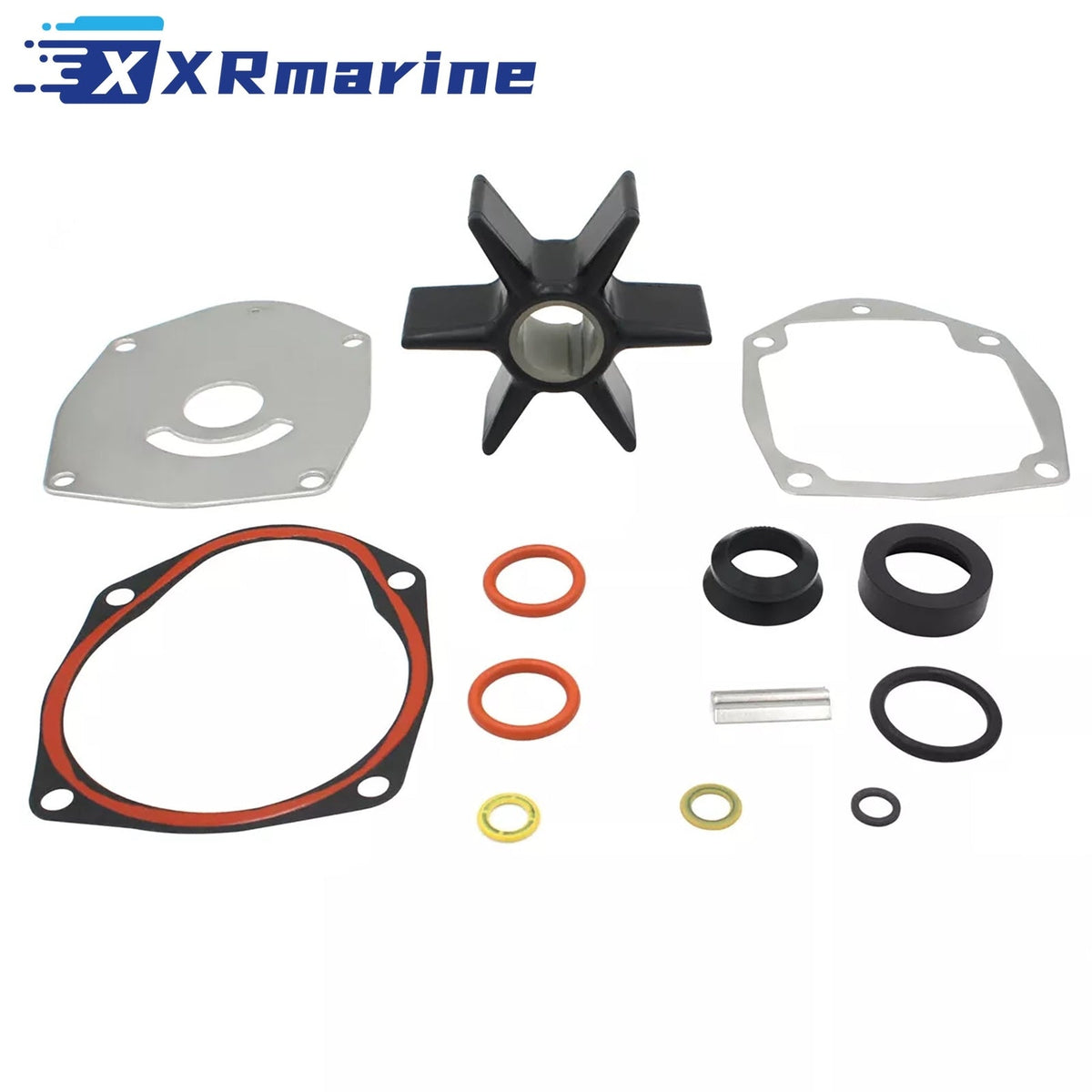

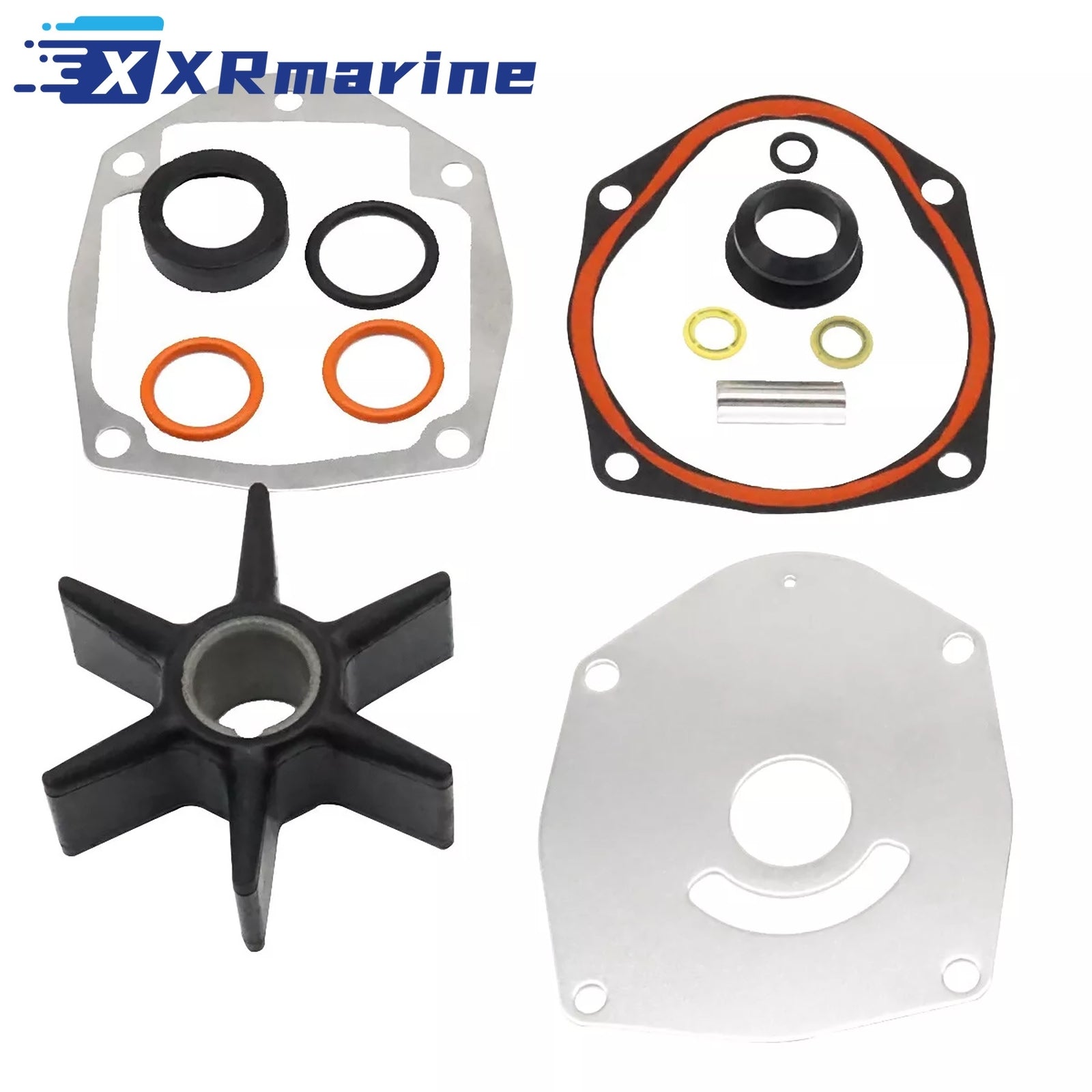

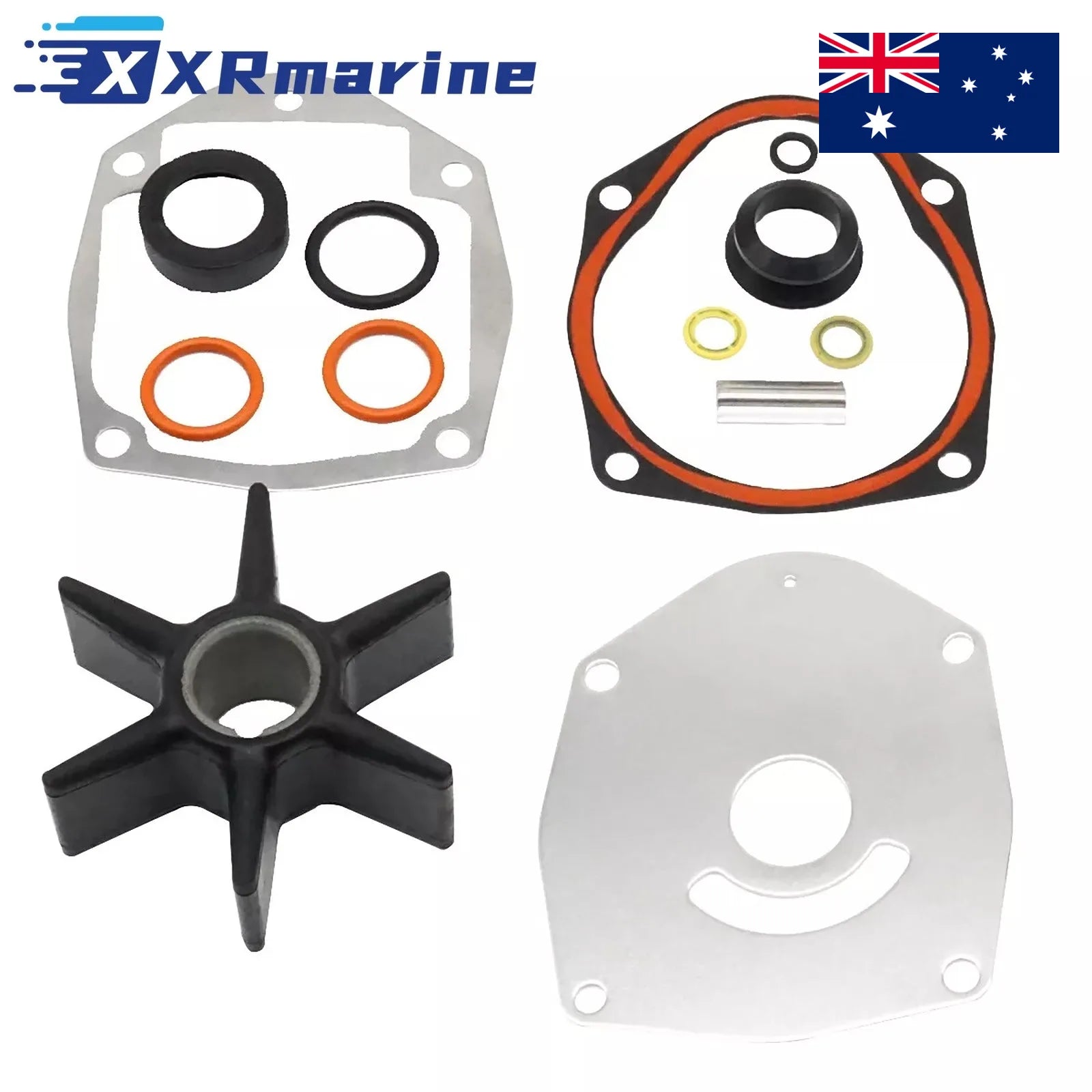

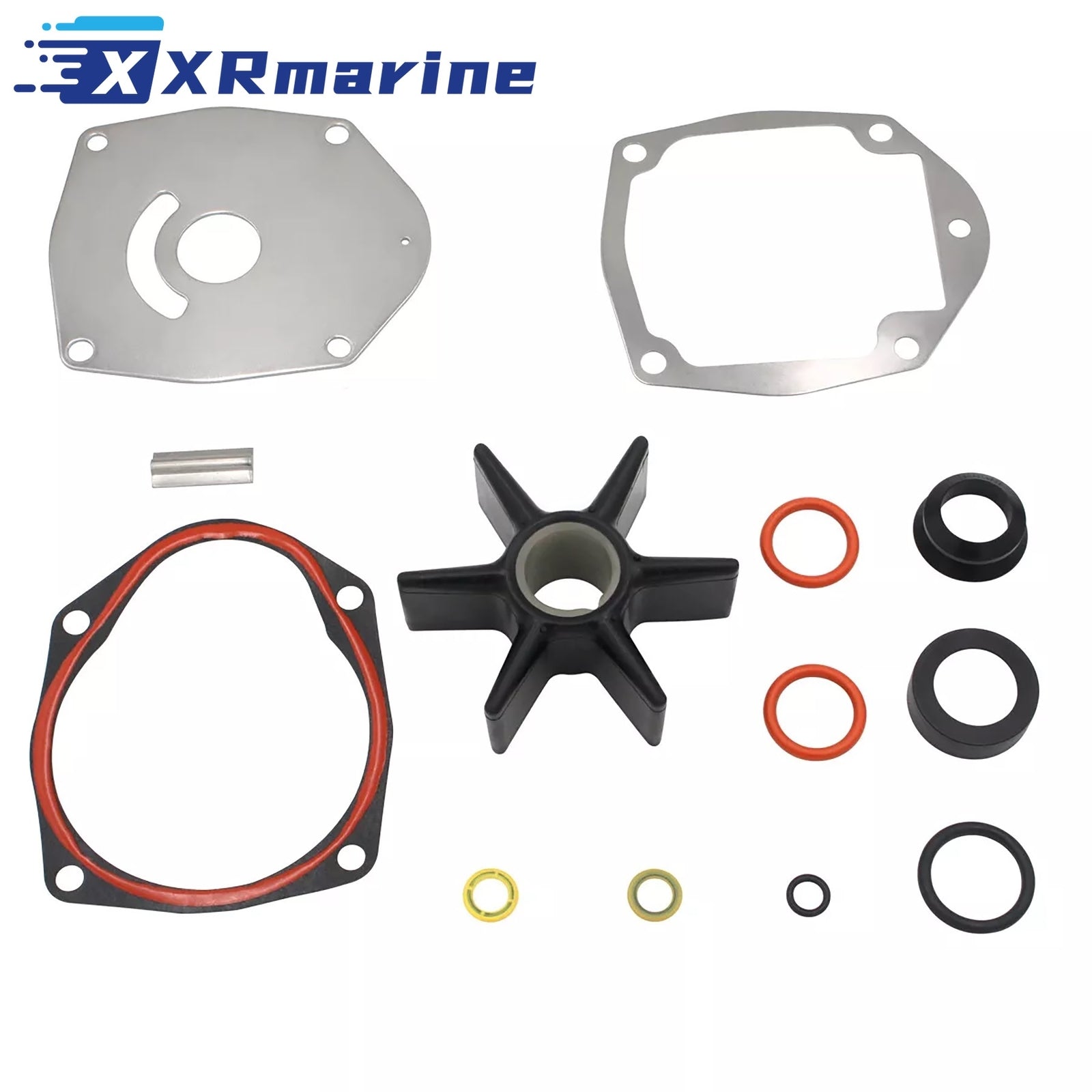

Water pump impeller kit part for MerCruiser Alpha One Gen 2 drives and Mercury Mariner BigFoot outboards from 40 HP to 250 HP. It replaces 47-43026Q06 and the later 47-8M0100526, and crosses to Sierra 18-3265. The kit contents are as shown in the photographs. Dispatched from our Australia local warehouse.
Alpha One Gen 2 drives and the BigFoot gearcase share this pump family, which is why one kit covers sterndrives and outboards from 40 HP right up to the V200, 225 and 250 HP three litre blocks. The impeller is the same part; the difference between the kits is in which gaskets and seals come with it.
Signs the pump needs attention are the usual ones: temperature creeping up at cruise, a tell tale that has gone weak, or water in the gear oil after a season. Check the stainless pump housing liner for grooves while the unit is apart, because a scored liner takes the edges off a new impeller within a few hours of running.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Water pump impeller kit |
| Drive | MerCruiser Alpha One Gen 2 |
| Engine | Mercury and Mariner BigFoot and V6 outboard |
| Horsepower | 40 HP to 250 HP |
| Material | Hardened nylon and neoprene rubber |
| Net Weight | 231 g |
| Quantity | 1 kit, contents as shown in the photographs |
| Country of Origin | Taiwan |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Mercury MerCruiser | 47-43026Q06, 47-43026Q5 |
| Mercury MerCruiser | 47-43026T6, 47-43026T7, 47-43026T8 |
| Mercury MerCruiser | 47-43026T08, 47-43026T10, 47-43026T11 |
| Mercury MerCruiser | 47-43026K06, 47-8M0100526 |
| Sierra | 18-3265 |
Impeller Cross Reference
| Component | Part Numbers | Qty |
|---|---|---|
| Water pump impeller | 19210-ZW1-003, 391538, 399289 | 1 |
| Water pump impeller | 47-43026T2, 47-430262Q02 | 1 |
| Stainless wear plate | 8172761, 8M0050720 | 1 |
Compatible Engines
| Model | Horsepower | Note |
|---|---|---|
| MerCruiser Alpha I Gen II | Sterndrive | Serial 0D469859 and above |
| Mercury Mariner BigFoot | 40 HP, 45 HP, 50 HP, 60 HP | Four stroke |
| Mercury BigFoot | 60 HP | Two stroke, serial 0D000750 and above |
| Mercury BigFoot three cylinder | 60 HP | Two stroke |
| Mercury four stroke | 75 HP, 90 HP, 115 HP | Serial 0A996142 and above |
| Mercury four stroke | 75 HP to 125 HP | All three and four cylinder models |
| Mercury two stroke three cylinder | 70 HP, 75 HP, 80 HP, 90 HP | Serial 0A996142 and above |
| Mercury two stroke four cylinder | 100 HP, 115 HP, 125 HP | Pump cover screws without insulators |
| Mercury V6 | 200 HP, 225 HP, 250 HP | Three litre blocks |
| Mercury Verado four stroke | 135 HP, 150 HP, 175 HP | Serial 1B227000 and above |
Kit Types In This Family
| Kit | What It Covers |
|---|---|
| Impeller only | A new impeller where the housing and plate are still good |
| Impeller and gaskets | A pump service on a drive that has not been apart for years |
| Full kit | Impeller, gaskets, seals and wear plate for a complete rebuild |
| Housing and impeller | Where the stainless liner is already grooved |
Signs the Pump Needs a Kit
| Symptom | What It Points To |
|---|---|
| Temperature climbs at cruise | Reduced flow from a worn impeller |
| Tell tale weaker than before | Vanes set, kit is due |
| Water in the gear oil | Pump base seal or drive shaft seal |
| Overheat alarm at low speed | Vanes breaking up, debris in the plate |
| Whine from the upper housing | Dry running, impeller and liner worn |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Disconnect the battery and drain the gear housing |
| 2 | Split the drive or drop the lower unit as the model requires |
| 3 | Note the vane direction before the old impeller comes out |
| 4 | Check the stainless liner and wear plate for grooves |
| 5 | Fit new gaskets dry, no sealant on the paper |
| 6 | Grease the impeller lightly and fold the vanes the right way |
| 7 | Check the drive shaft splines and the water tube seal |
| 8 | Refill the gear oil and run on muffs to confirm the tell tale |
What's Included
| Component | Qty |
|---|---|
| Water pump impeller kit, contents as shown in the photographs | 1 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Australia
| Destination | Warehouse | Note |
|---|---|---|
| Australia | Australia local warehouse | Domestic delivery, no import duty |
| New Zealand | Australia local warehouse | Short transit, customs may apply |
| Asia Pacific | Australia local warehouse | Tracked air and sea options |
Before You Buy
- Confirm the drive is an Alpha One Gen 2 or a BigFoot gearcase
- Check the serial number against the ranges in the table above
- Check the number on the old impeller, 47-43026Q06 is the common one
- Check the kit contents against the photographs before ordering
- Check the stainless liner for grooves and replace the housing if worn
- Refill with the correct gear oil, do not top up with engine oil
