Product Overview
Water pump impeller kit part for the MerCruiser Alpha One Gen 2 sterndrive and for Mercury and Mariner BigFoot outboards, covering the 40 HP to 250 HP range including the Verado four stroke blocks. It replaces 47-43026Q06 and the later 47-8M0100526, and crosses to Sierra 18-3265. Dispatched from our Germany local warehouse.

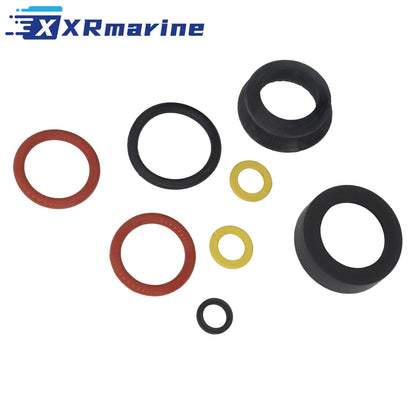

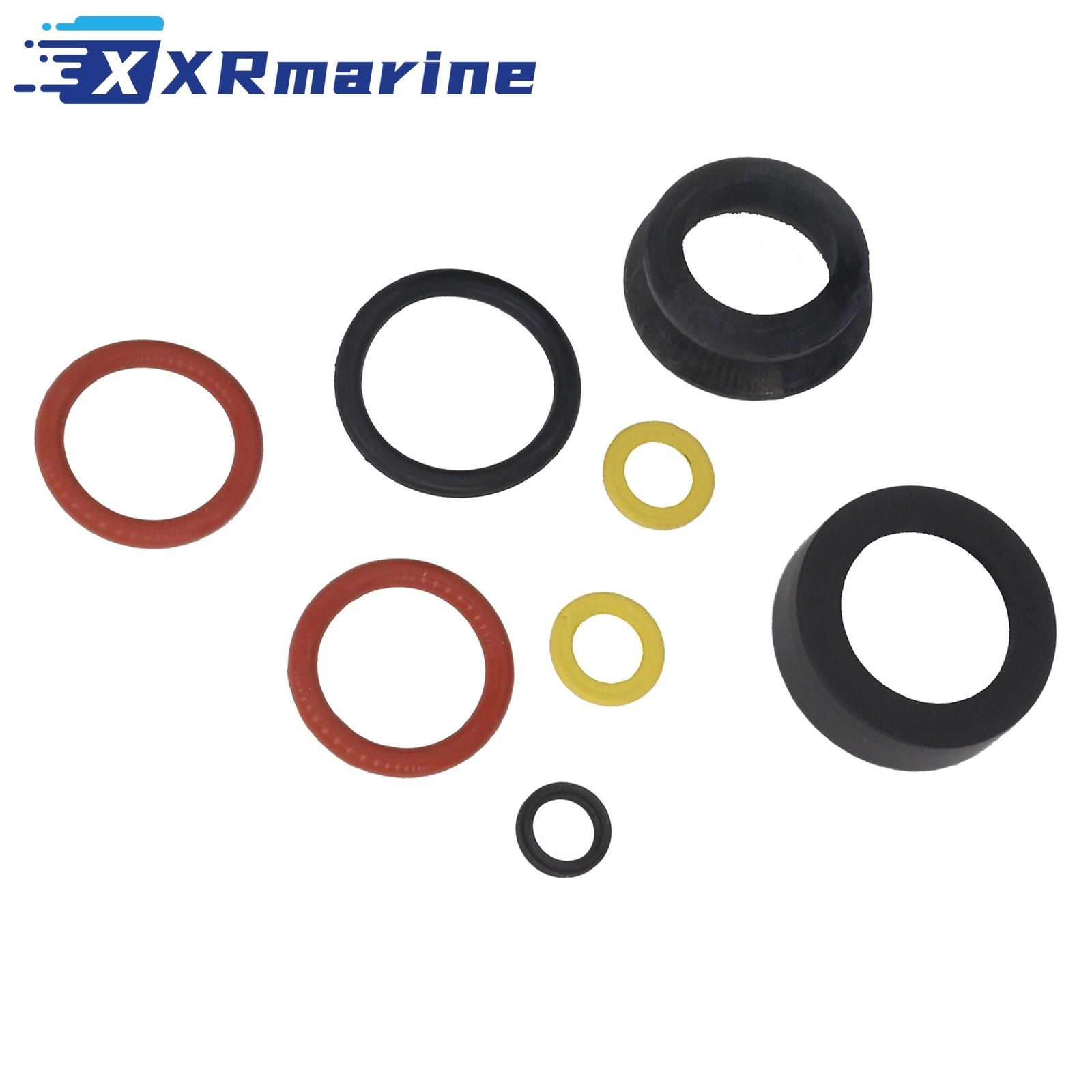

One reason this kit sells across such a wide spread of models is that the raw water pump stayed the same while the engines above it changed. The impeller is common to the Alpha One Gen 2 and to the BigFoot gearcase, so a 60 HP BigFoot and a 250 HP three litre V6 need the same rubber. What differs between the kits in this family is the gasket and seal content, which is why the photographs matter more than the model list.
If the drive has not been apart for several seasons, plan the job as a full pump service rather than an impeller swap. A wear plate with a groove in it will shorten the life of a new impeller, and a pump base seal that is left in place is the usual cause of water turning up in the gear oil a month after the repair.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Water pump impeller kit |
| Drive | MerCruiser Alpha One Gen 2 |
| Engine | Mercury and Mariner BigFoot, Verado and V6 outboard |
| Horsepower | 40 HP to 250 HP |
| Material | Hardened nylon and neoprene rubber |
| Net Weight | 231 g |
| Quantity | 1 kit, contents as shown in the photographs |
| Country of Origin | Taiwan |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Mercury MerCruiser | 47-43026Q06, 47-43026Q5 |
| Mercury MerCruiser | 47-43026T6, 47-43026T7, 47-43026T8 |
| Mercury MerCruiser | 47-43026T08, 47-43026T10, 47-43026T11 |
| Mercury MerCruiser | 47-43026K06, 47-8M0100526 |
| Sierra | 18-3265 |
Impeller Cross Reference
| Component | Part Numbers | Qty |
|---|---|---|

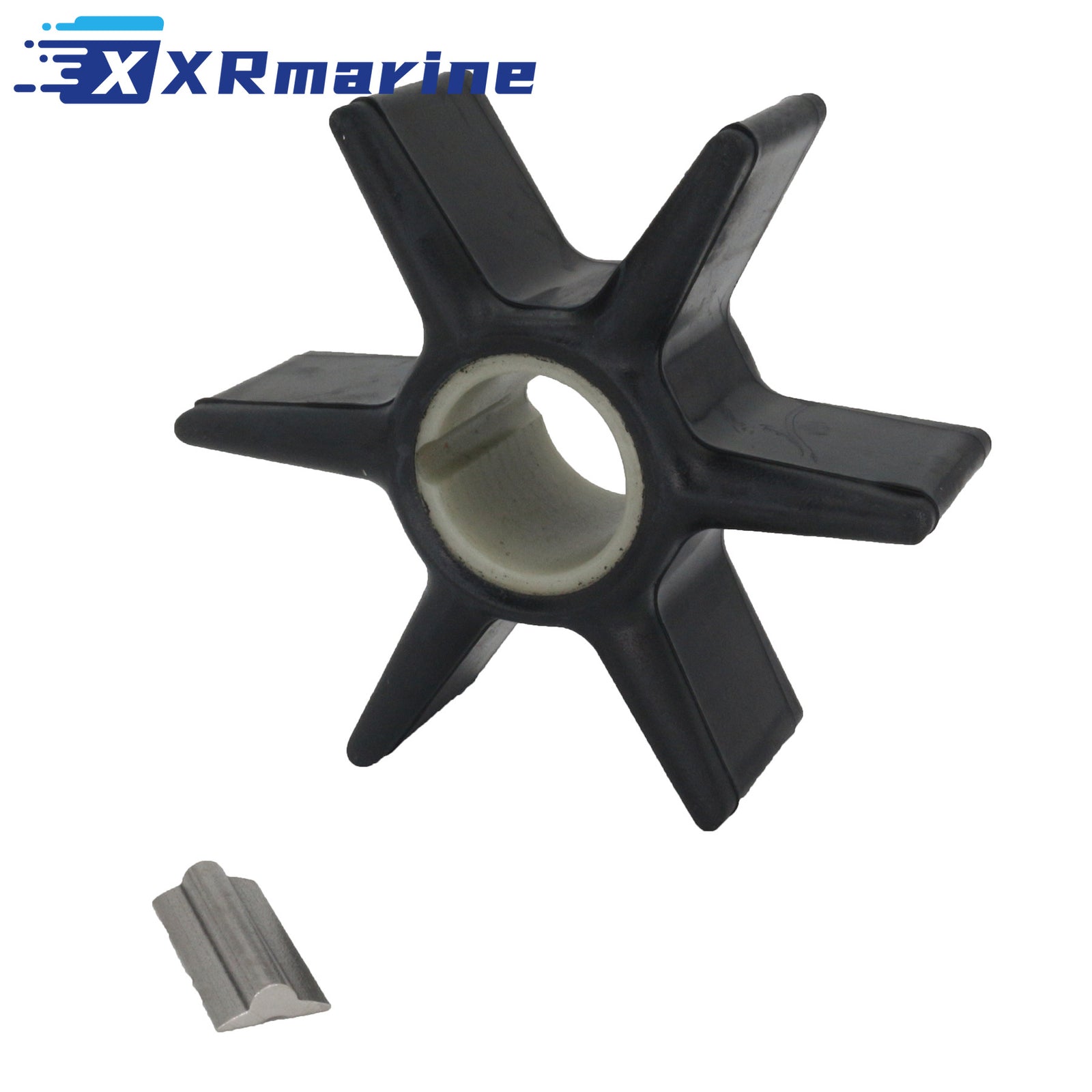

| Water pump impeller | 19210-ZW1-003, 391538, 399289 | 1 |
| Water pump impeller | 47-43026T2, 47-430262Q02 | 1 |
| Stainless wear plate | 8172761, 8M0050720 | 1 |
Compatible Engines
| Engine Family | Horsepower | Serial or Years |
|---|---|---|
| MerCruiser Alpha I Gen II | Sterndrive | Serial 0D469859 and above |
| Mercury Mariner BigFoot four stroke | 40 HP, 45 HP, 50 HP, 60 HP | As listed |
| Mercury BigFoot two stroke | 60 HP | Serial 0D000750 and above |
| Mercury BigFoot three cylinder | 60 HP | Two stroke |
| Mercury four stroke | 75 HP, 90 HP, 115 HP | Serial 0A996142 and above |
| Mercury four stroke | 75 HP to 125 HP | Three and four cylinder models |
| Mercury two stroke three cylinder | 70 HP, 75 HP, 80 HP, 90 HP | Serial 0A996142 and above |
| Mercury two stroke four cylinder | 100 HP, 115 HP, 125 HP | Cover screws without insulators |
| Mercury V6 | 200 HP, 225 HP, 250 HP | Three litre blocks |
| Mercury Verado four stroke | 135 HP, 150 HP, 175 HP | Serial 1B227000 and above |
Service Schedule
| Item | Recommendation |
|---|---|
| Impeller | Every 3 years or 300 hours, sooner in sandy water |
| Wear plate | Inspect at every impeller change |
| Pump housing liner | Replace once grooves are deep enough to catch a nail |
| Pump base seal | Replace whenever the pump is off |
| Gear oil | Change with the pump service, check for water |
| Tell tale | Strong steady stream on muffs before every launch |
Signs the Pump Needs a Kit
| Symptom | What It Points To |
|---|---|
| Temperature climbs at cruise | Worn impeller, reduced flow |
| Tell tale weaker than before | Vanes set in one position |
| Water in the gear oil | Pump base seal or drive shaft seal |
| Overheat alarm at low speed | Vanes breaking up, debris in the plate |
| Whine from the upper housing | Dry running, impeller and liner worn |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Disconnect the battery and drain the gear housing |
| 2 | Split the drive or drop the lower unit as the model requires |
| 3 | Note the vane direction before the old impeller comes out |

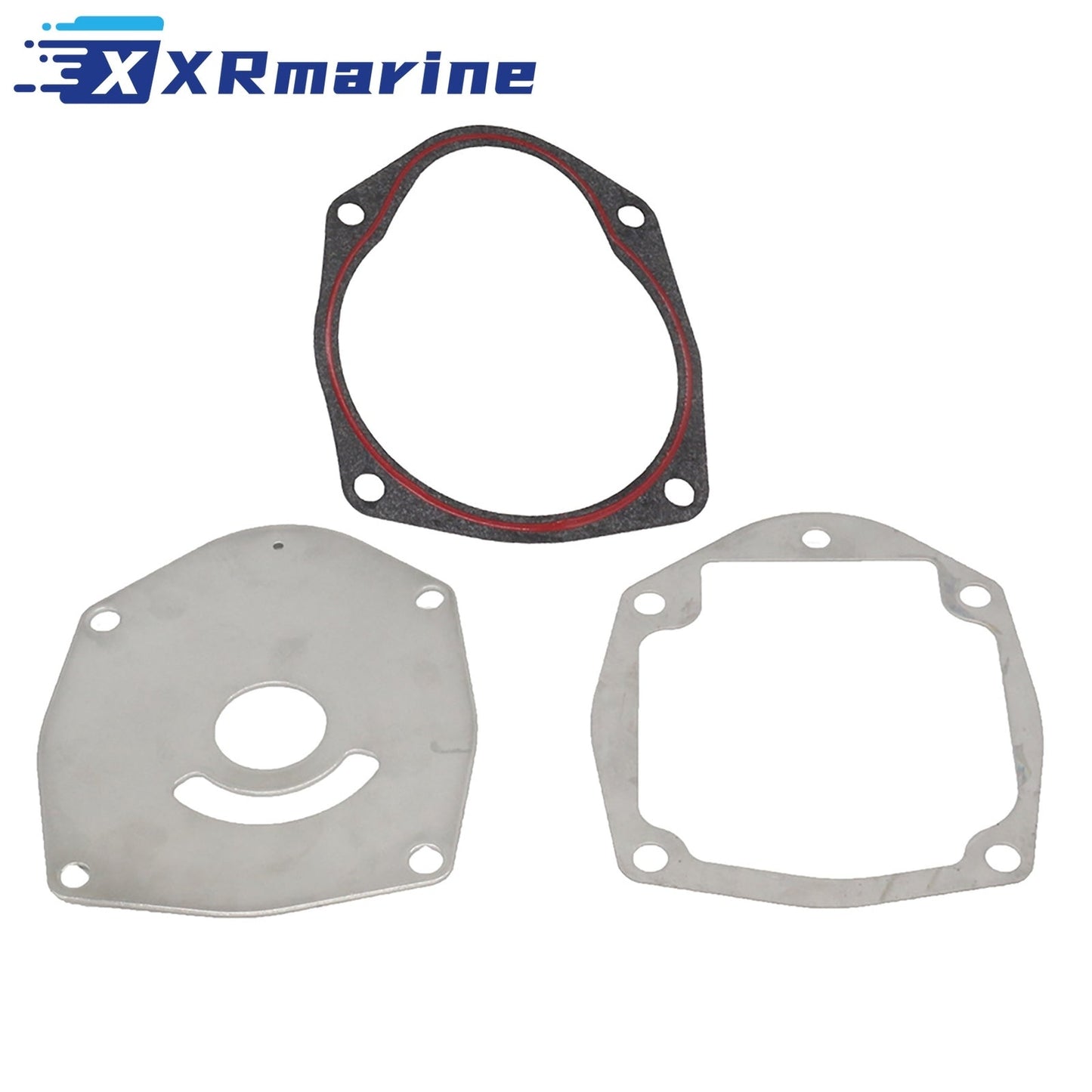

| 4 | Check the stainless liner and wear plate for grooves |
| 5 | Fit new gaskets dry, no sealant on the paper |
| 6 | Grease the impeller lightly and fold the vanes the right way |
| 7 | Check the drive shaft splines and the water tube seal |
| 8 | Refill the gear oil and run on muffs to confirm the tell tale |

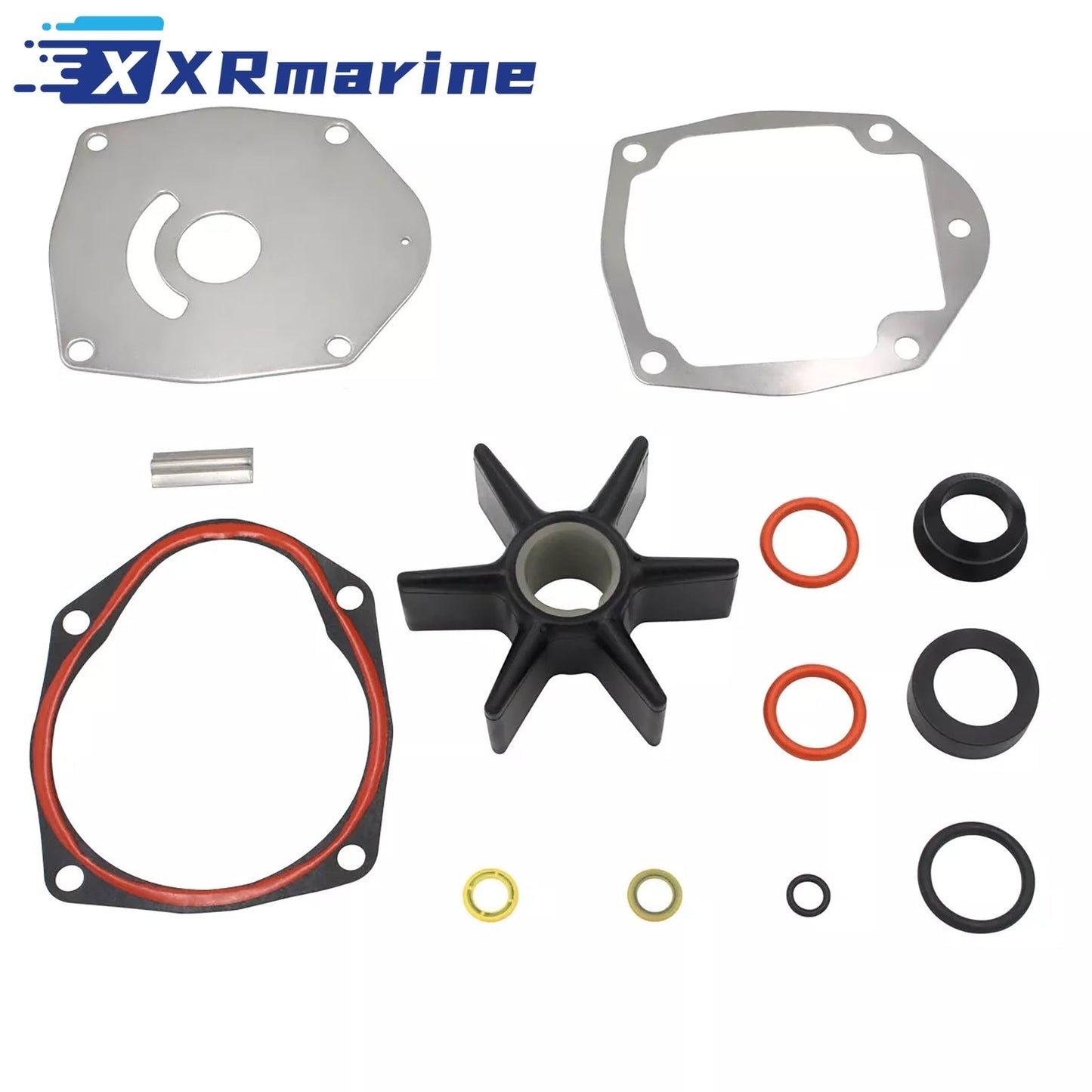

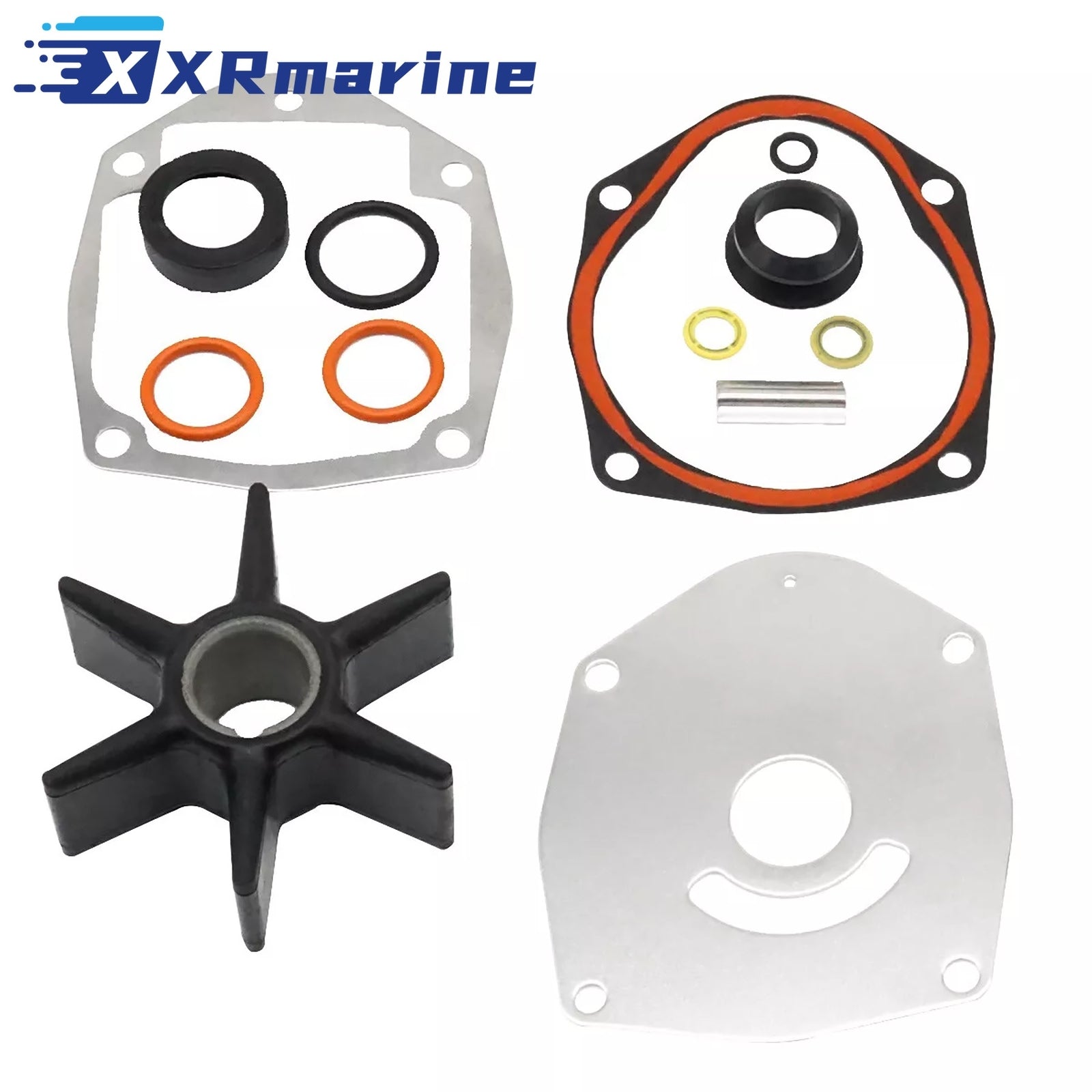

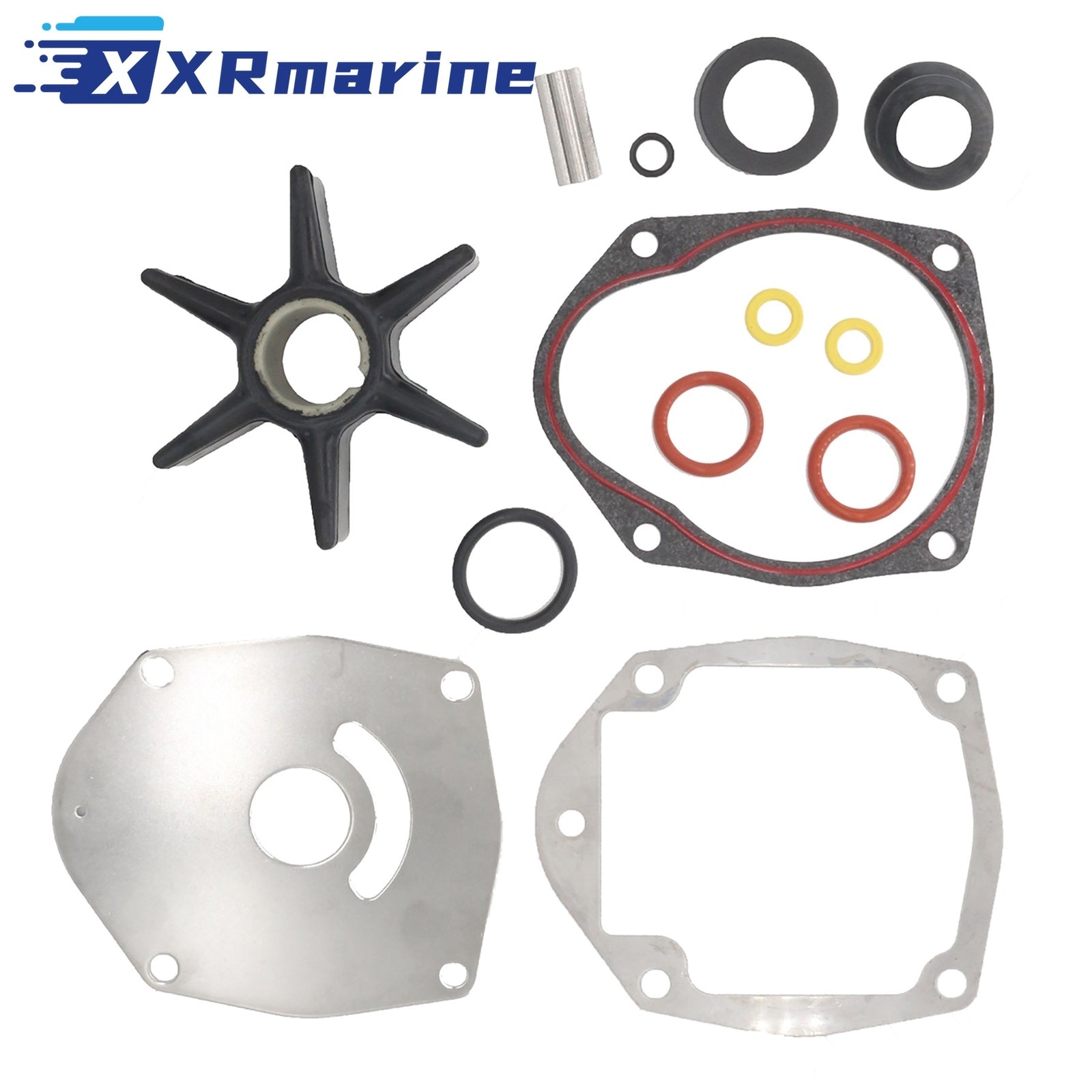

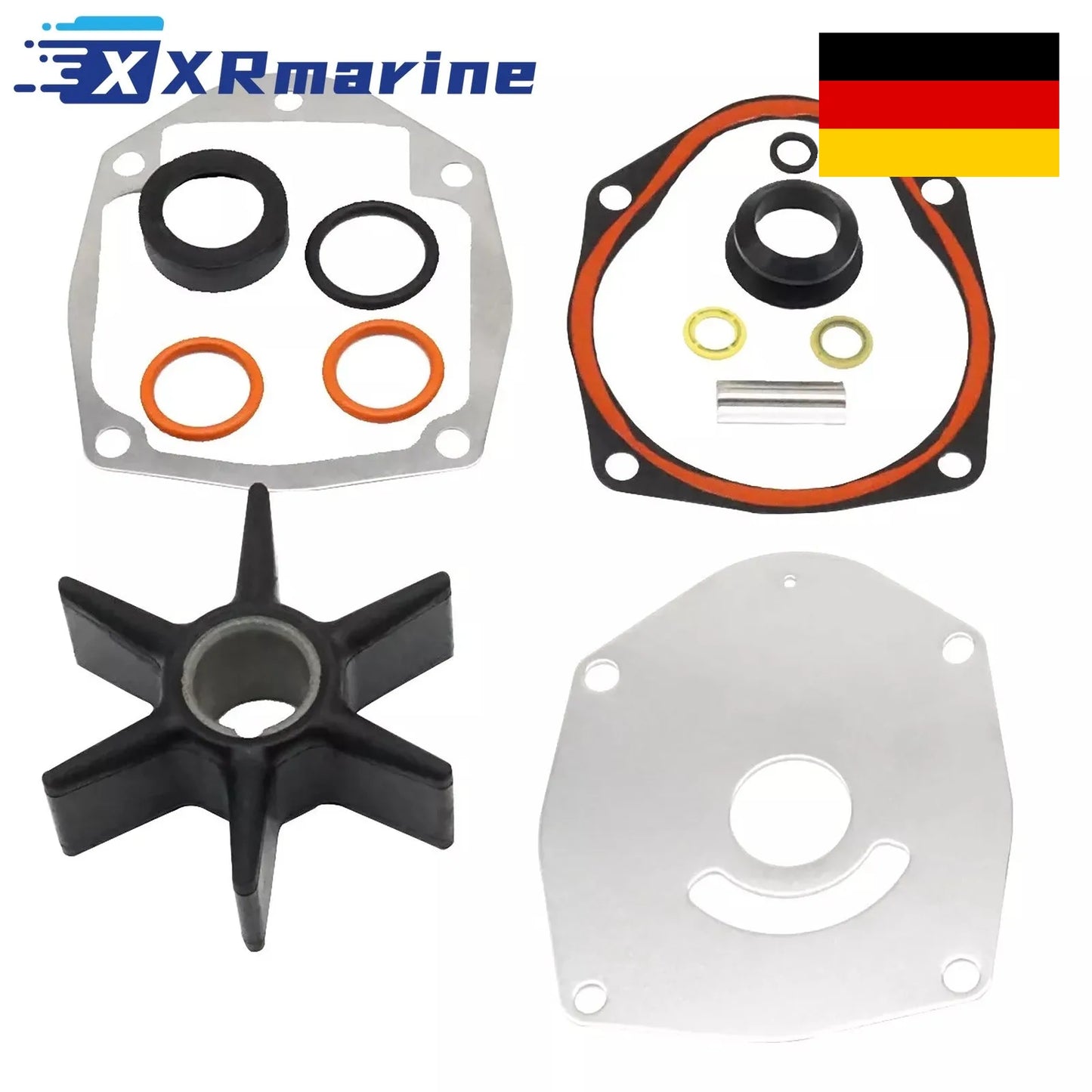

What's Included
| Component | Qty |
|---|---|

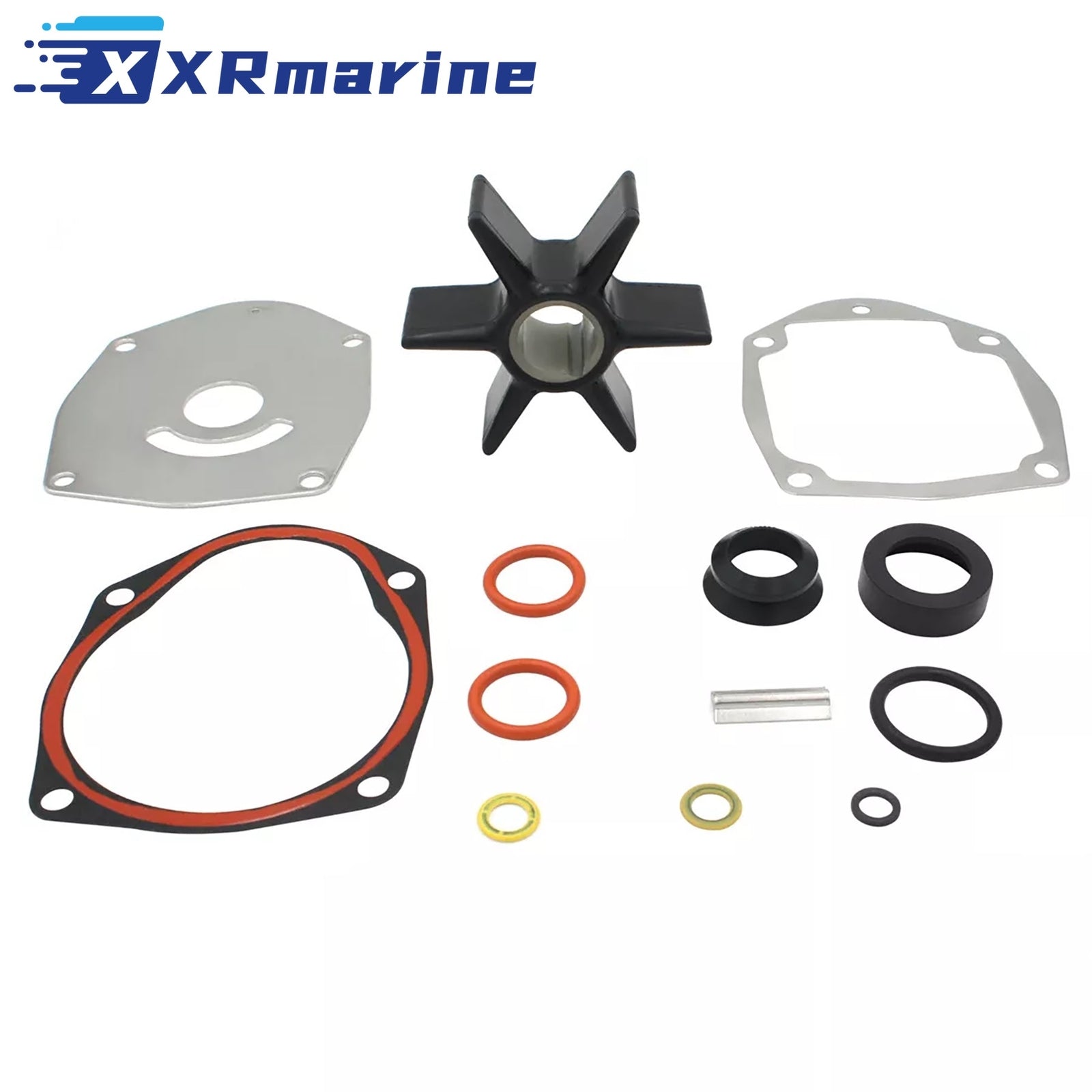

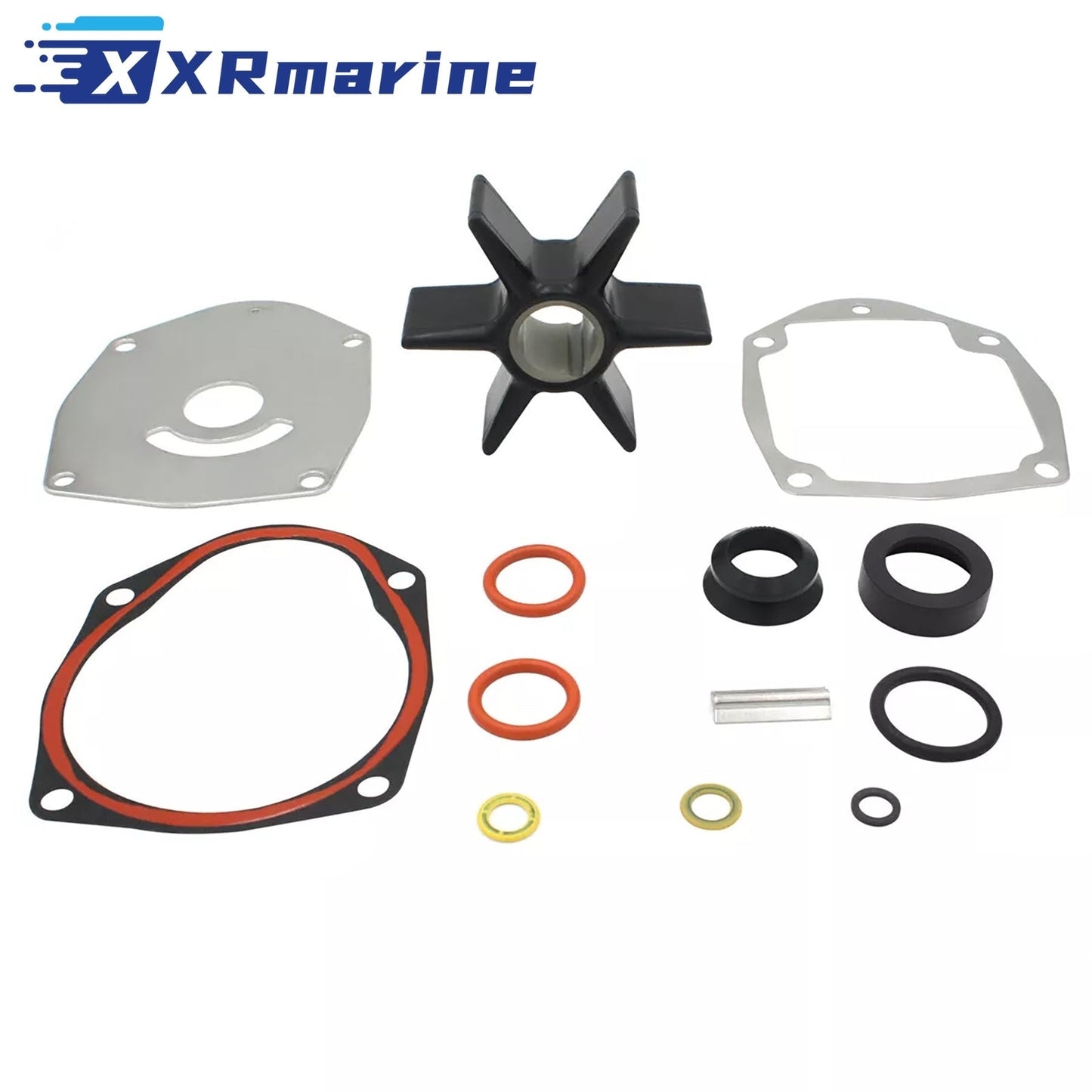

| Water pump impeller kit, contents as shown in the photographs | 1 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Germany
| Destination | Warehouse | Note |
|---|---|---|
| Germany | Germany local warehouse | Domestic delivery, no import duty |
| Austria, Netherlands, Belgium | Germany local warehouse | EU intra-community delivery |
| France, Italy, Spain, Poland | Germany local warehouse | EU intra-community delivery |
Before You Buy
- Confirm the drive is an Alpha One Gen 2 or a BigFoot gearcase
- Check the serial number against the ranges above
- Check the number on the old impeller, 47-43026Q06 is the common one
- Check the kit contents against the photographs before ordering
- Check the liner and wear plate, replace them if grooved
- Refill with the correct gear oil, never engine oil
- 30-Day Easy Returns
- Ships from our Germany local warehouse
