Water Pump Impeller Kit 47-16154-3 369-65021-1 for Mercury Tohatsu 2 3.5 HP Outboard
Water Pump Impeller Kit 47-16154-3 369-65021-1 for Mercury Tohatsu 2 3.5 HP Outboard
Product Overview
Water pump repair kit for Mercury 2 to 3.5 HP, Tohatsu and Nissan 2.5 and 3.5 HP and Johnson Evinrude 3.5 HP outboards, with a 33.6 mm six blade impeller, 14.35 mm high, 10.4 mm hub, supplied with a housing gasket, a plate gasket and a drive key, replacing 47-16154-3, 369-65021-1 and 18-3098.
This is the complete pump kit for the smallest four stroke and two stroke motors, not just the impeller. The two gaskets and the key are included because on these little pumps the housing gasket and the plate gasket are what fail first, and neither is reusable once the pump has been apart.
The 33.6 mm diameter is the small body used on the 2 to 3.5 HP range. Check the hub and the key, then check the stainless plate for scoring, because a scored plate will not seal against a new gasket and the pump will pull air instead of water.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Water pump repair kit |
| Drive Type | Key and pin drive |
| Blades | 6 |
| Outer Diameter | 33.6 mm / 1.32 in |
| Height | 14.35 mm / 0.56 in |
| Hub Shaft Diameter | 10.4 mm / 0.41 in |
| Material | Neoprene |
| Insert Material | Hardened nylon |
| Kit Parts | Impeller, housing gasket, plate gasket, drive key |
| Country of Origin | Taiwan |
| Pack Size | 15 x 10 x 4 cm |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Mercury | 47-16154-3, 47-161543, 47-16154, 161543, 16154 |
| Mercury | 47-8M0204676, 8M0204676, 16159A2 |
| Tohatsu | 369-65021-1, 369-65021-1M, 369650211, 369650211M |
| Tohatsu | 334-65021-0, 3AB873220M, 3AB-87322-0, 3F0873221M, 3F0-87322-1 |
| Nissan | 369-65021-1, 334-65021-0 |
| Johnson / Evinrude | 5040180 |
| Sierra | 18-3098, 18-8921 |
| Mallory | 9-45302 |
Compatible Engines
| Brand | Model or Horsepower | Stroke | Note |
|---|---|---|---|
| Mercury | 2 HP | Four stroke | Serial 0R131842 and above |
| Mercury | 2.5 HP | Four stroke | 1999 and up, serial 0R411838 and above |
| Mercury | 3.5 HP | Four stroke | 1999 and up, serial 0R411838 and above |
| Mercury | 3 HP, 3.3 HP with shift | Two stroke | 1993 and up, serial 0D901217 and above |
| Tohatsu | MFS2C, MFS2.5C, MFS3.5C | Four stroke | 2 to 3.5 HP models |
| Tohatsu | MFS2.5B, MFS3.5B | Four stroke | 2.5 and 3.5 HP models |
| Tohatsu | M2.5A2, M3.5A2, M3.5B2 | Two stroke | 2.5 and 3.5 HP models |
| Nissan | 2.5 HP, 3.5 HP | Two stroke | Same pump as the Tohatsu models |
| Johnson / Evinrude | 3.5 HP | Four stroke | 2012 and newer |
Pump Numbers Covered
| Number | Where It Appears |
|---|---|
| 47-16154-3, 47-161543 | Mercury impeller kit |
| 47-8M0204676 | Mercury current supersession |
| 369-65021-1 | Tohatsu and Nissan impeller |
| 334-65021-0 | Tohatsu pump kit reference |
| 18-3098, 18-8921 | Sierra aftermarket equivalents |
| 9-45302 | Mallory aftermarket equivalent |
| 5040180 | Johnson Evinrude 3.5 HP four stroke |

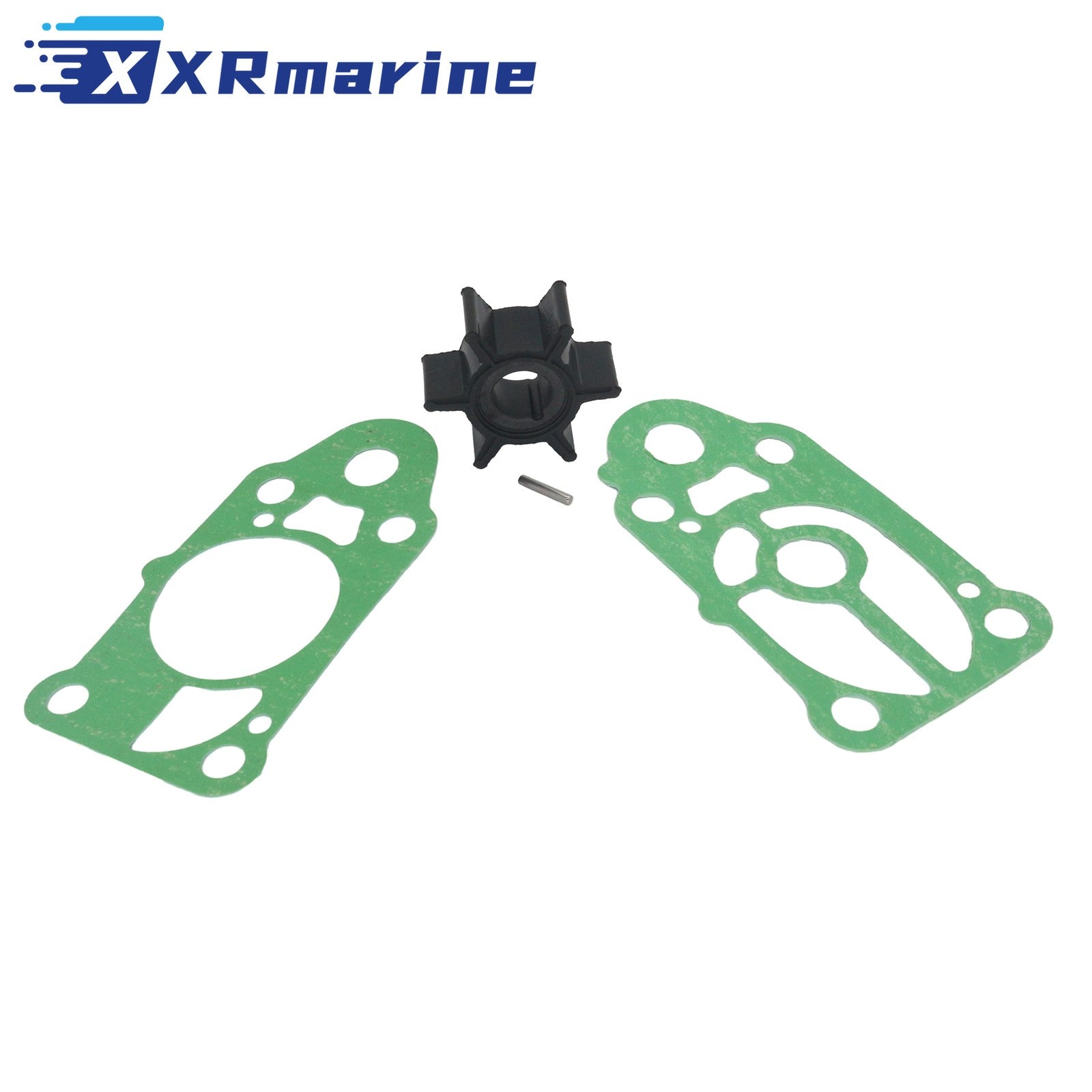

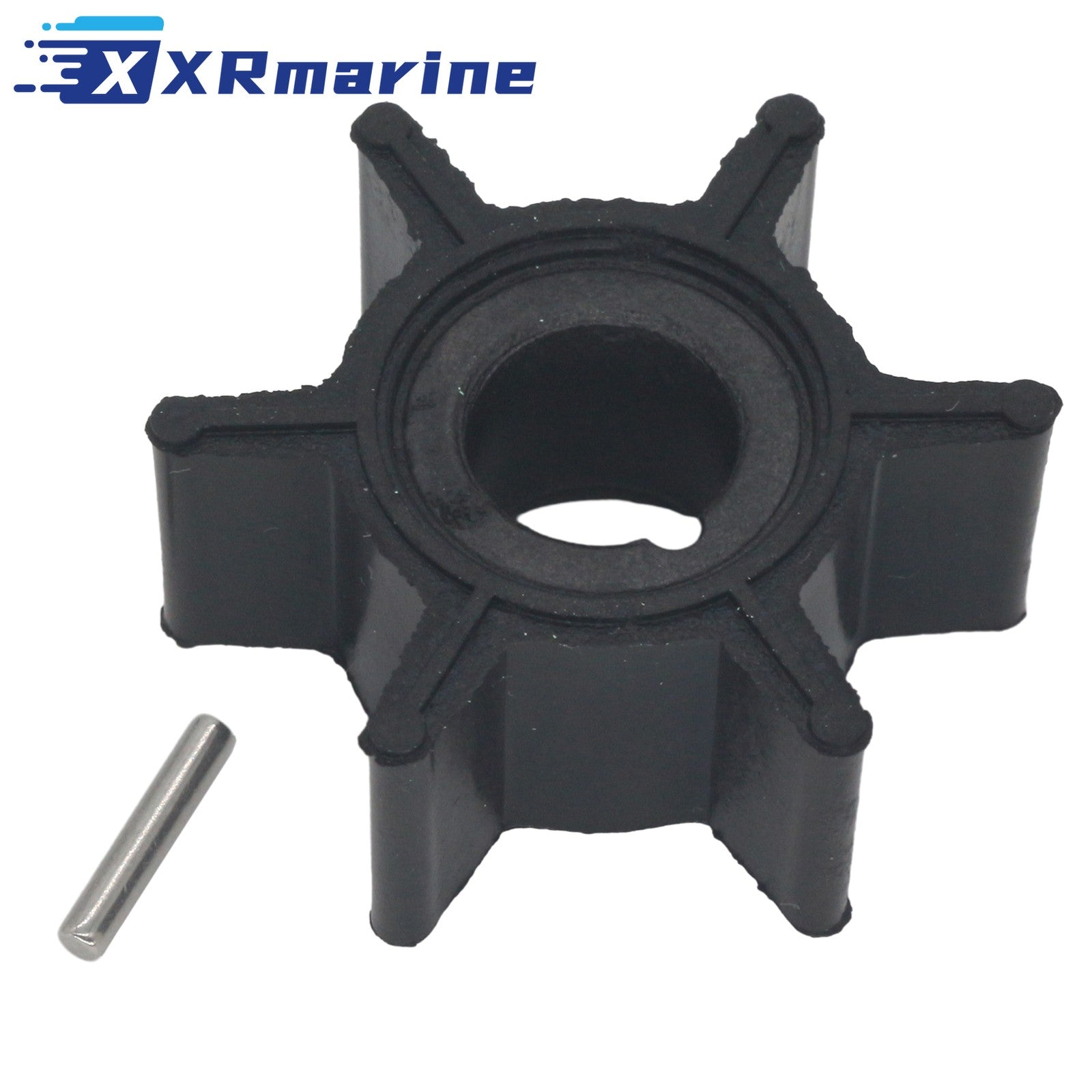

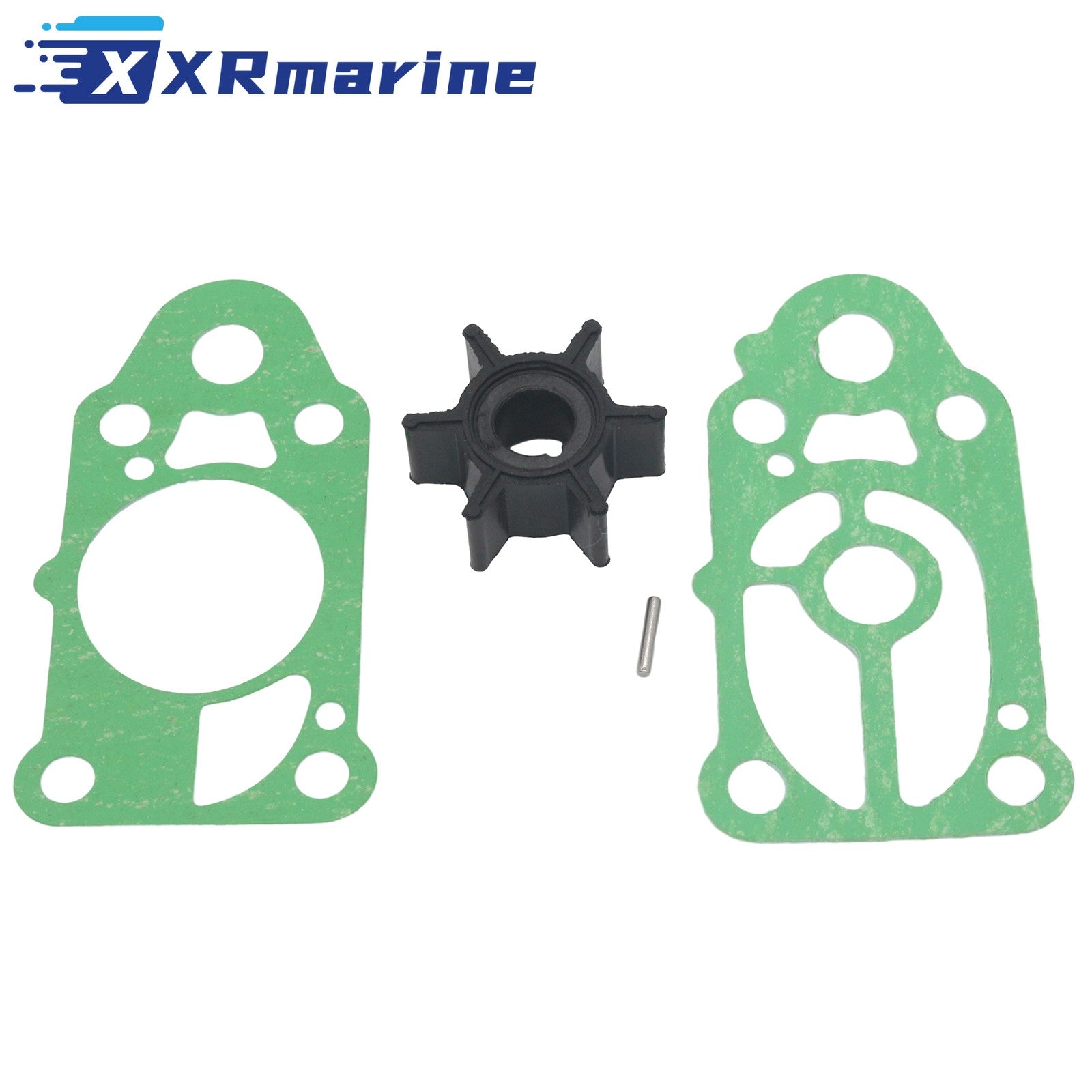

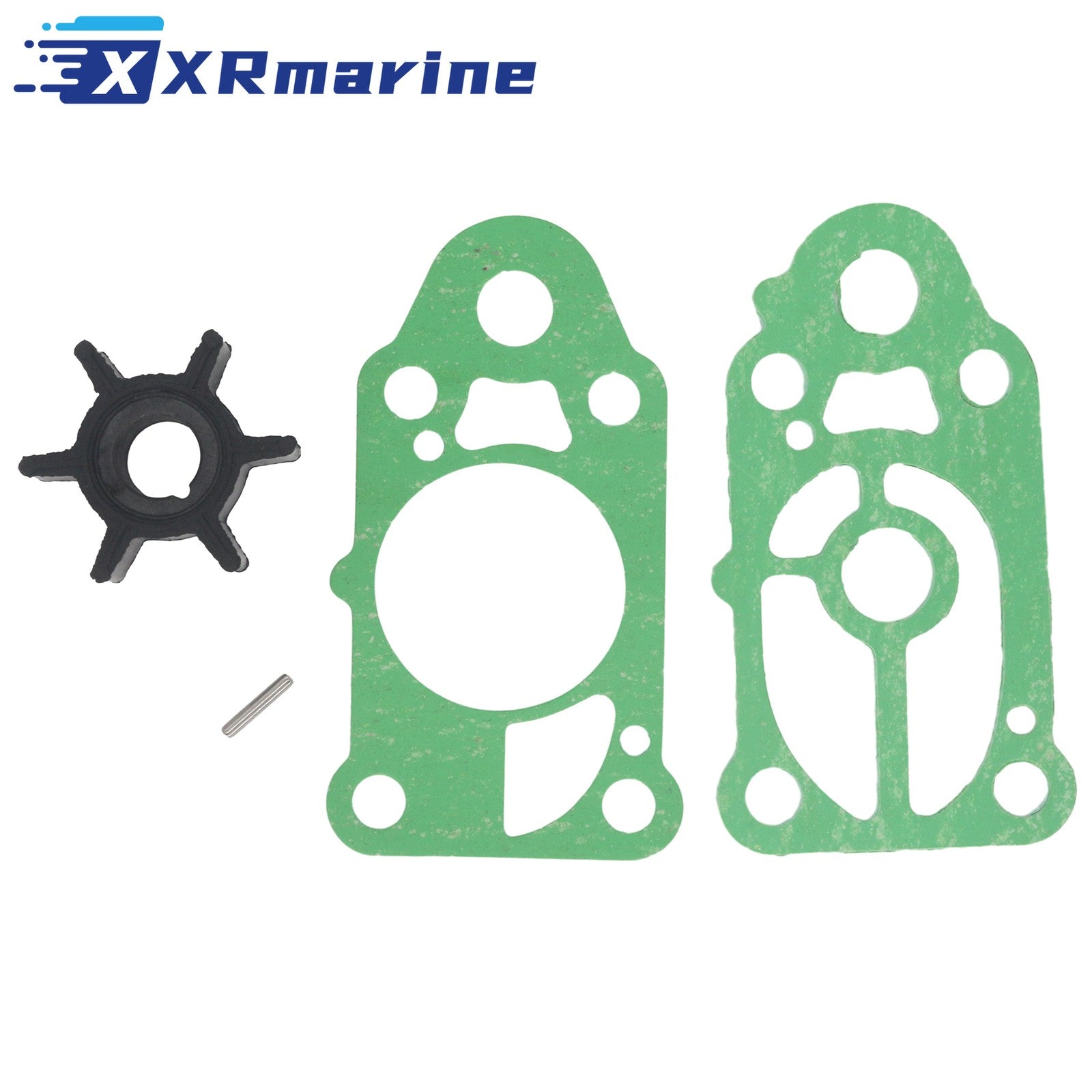

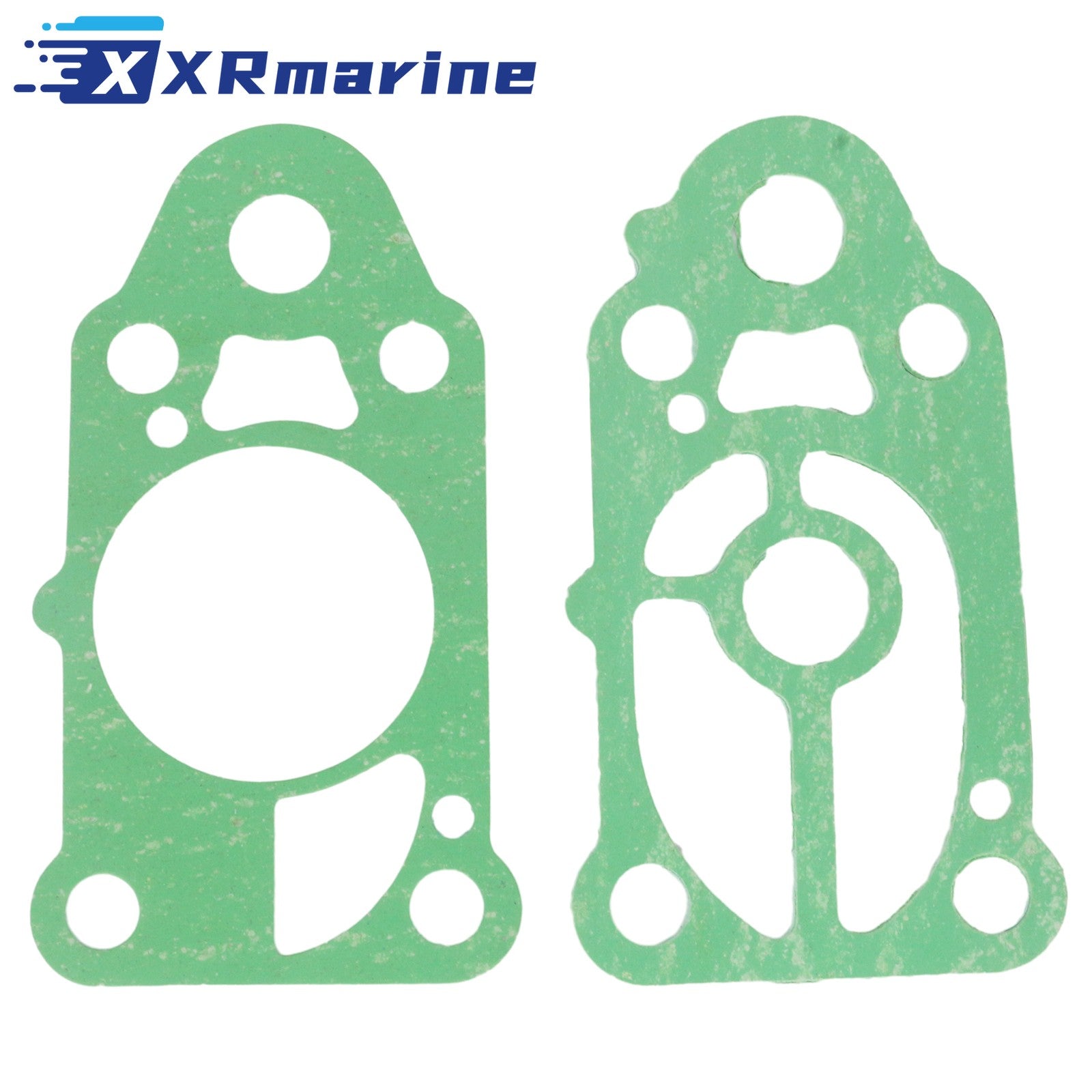

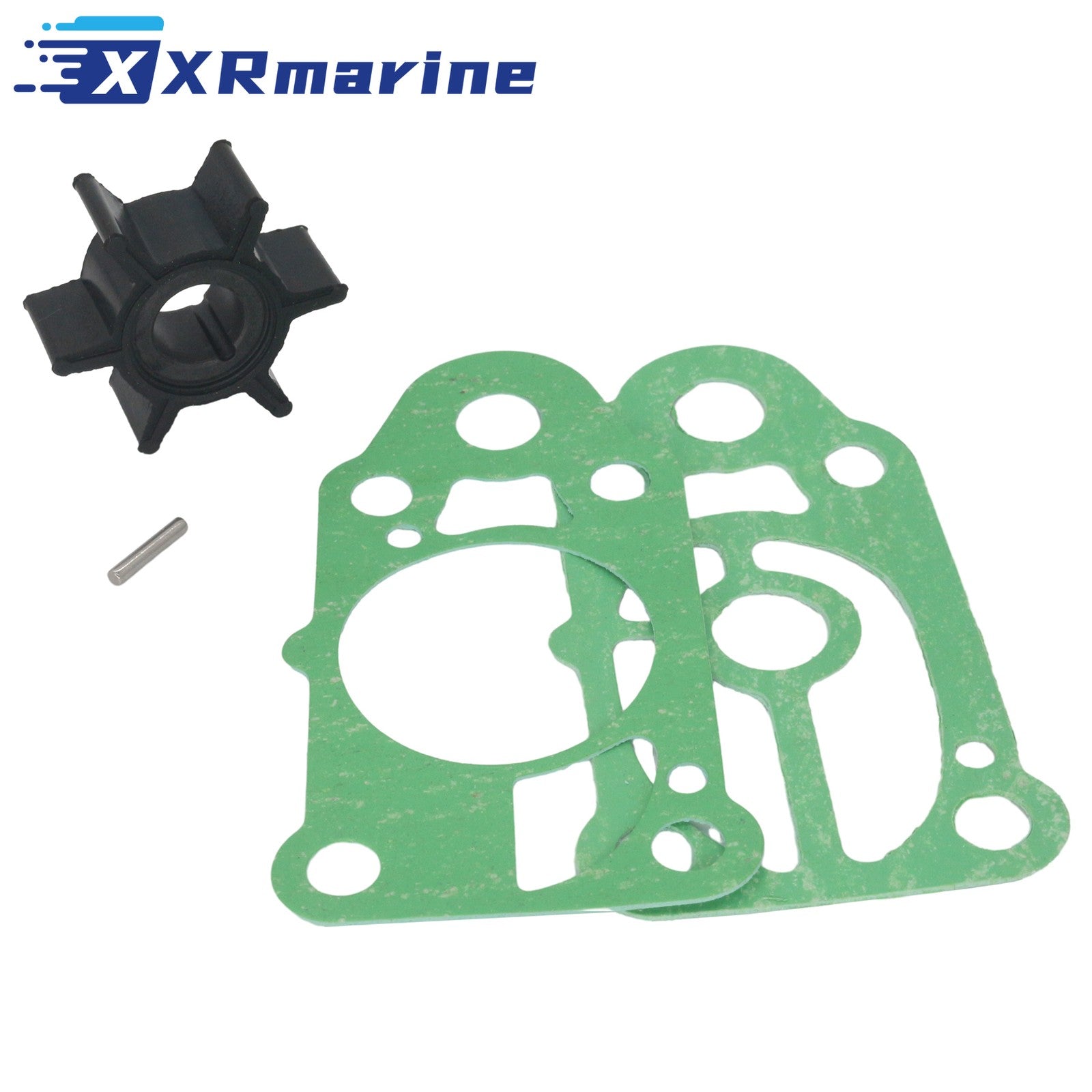

What's Included
| Component | Qty |
|---|---|
| Water pump impeller | 1 |
| Housing gasket | 1 |
| Plate gasket | 1 |
| Impeller key and pin | 1 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Before You Buy
- Check the number on the old impeller, 47-16154-3 and 369-65021-1 are the same 33.6 mm body
- Check the serial number against the ranges above, Mercury changed the pump across the range
- Check the stainless plate for scoring, a scored plate will not seal with a new gasket
- Check the key and the keyway in the shaft before fitting
- Fit with glycerine or soap only, never grease or oil on neoprene
- Fit both gaskets dry, seat the key, and fold the blades in the direction of rotation
- Run on muffs and confirm the telltale before leaving the ramp
