Product Overview

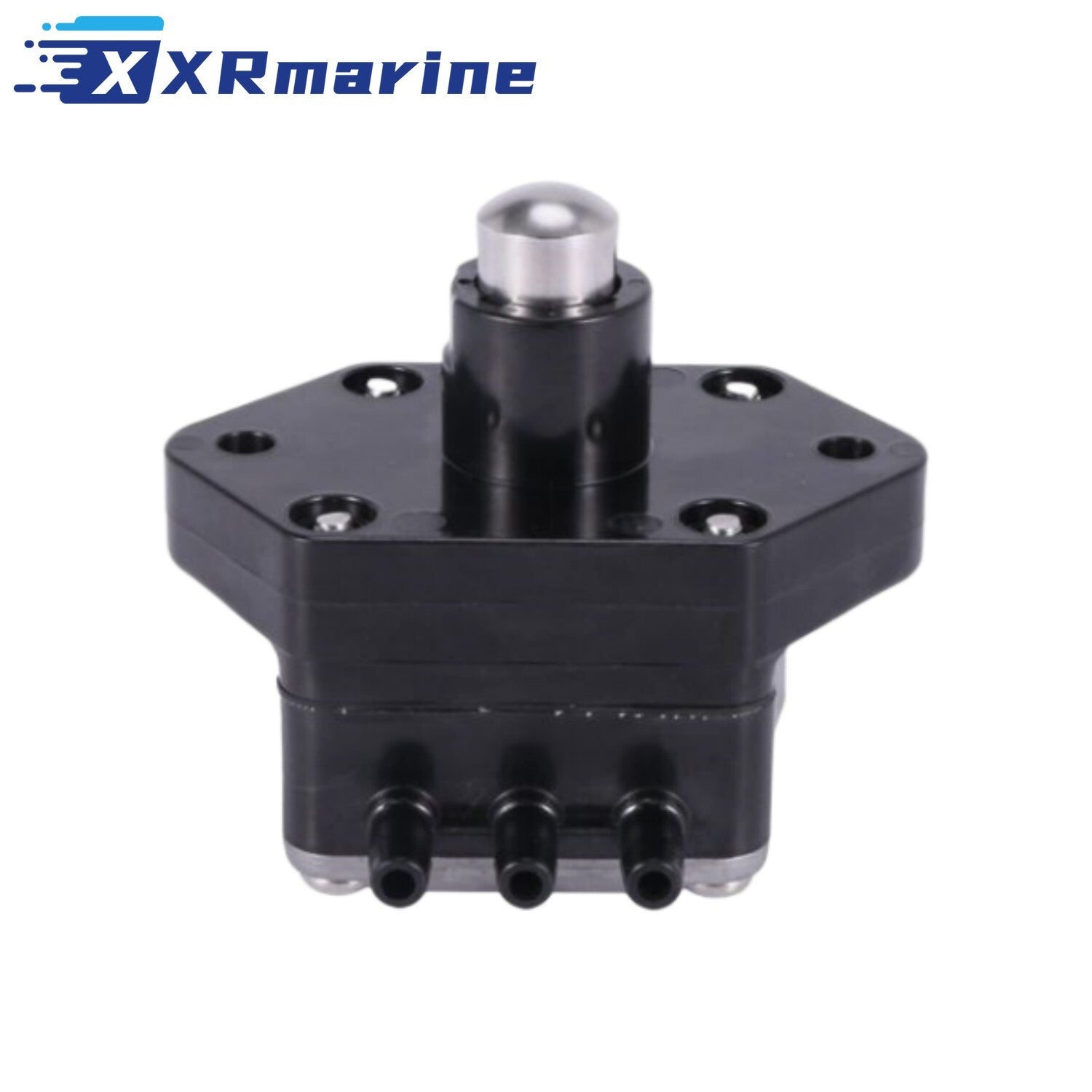

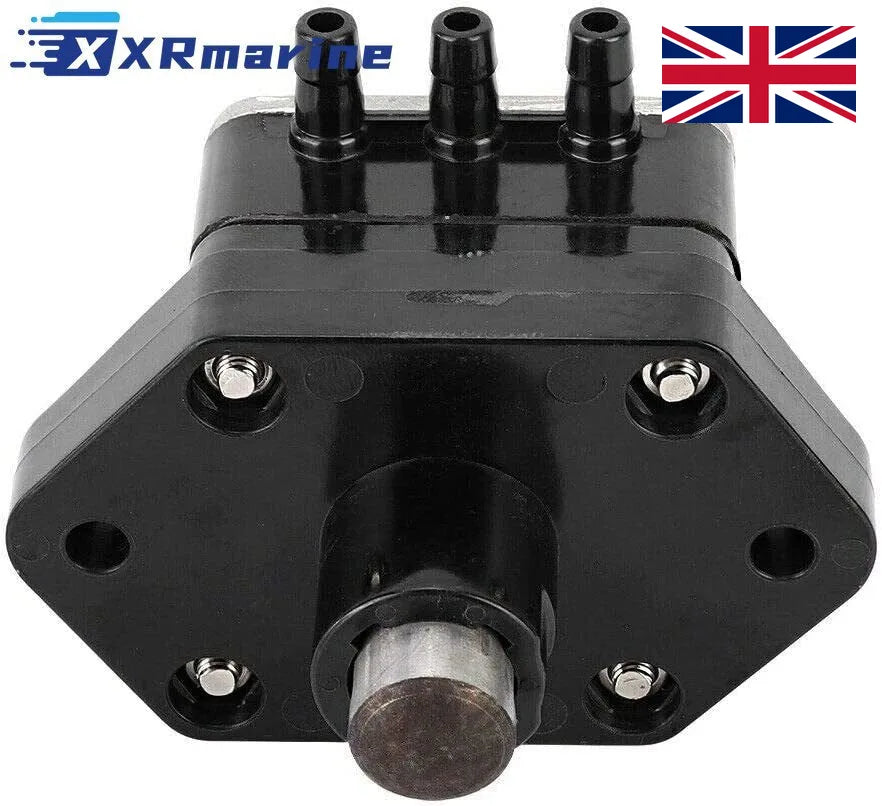

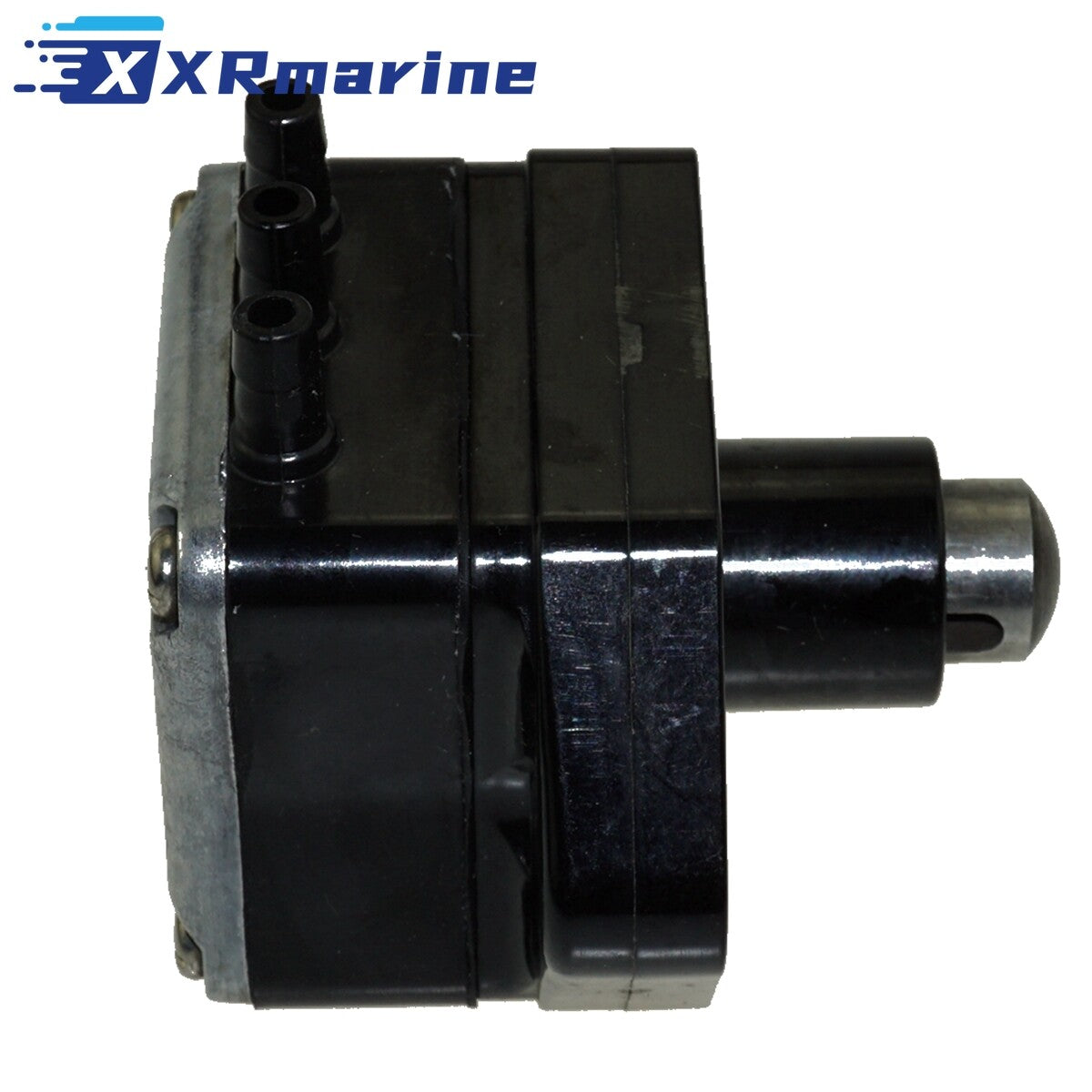

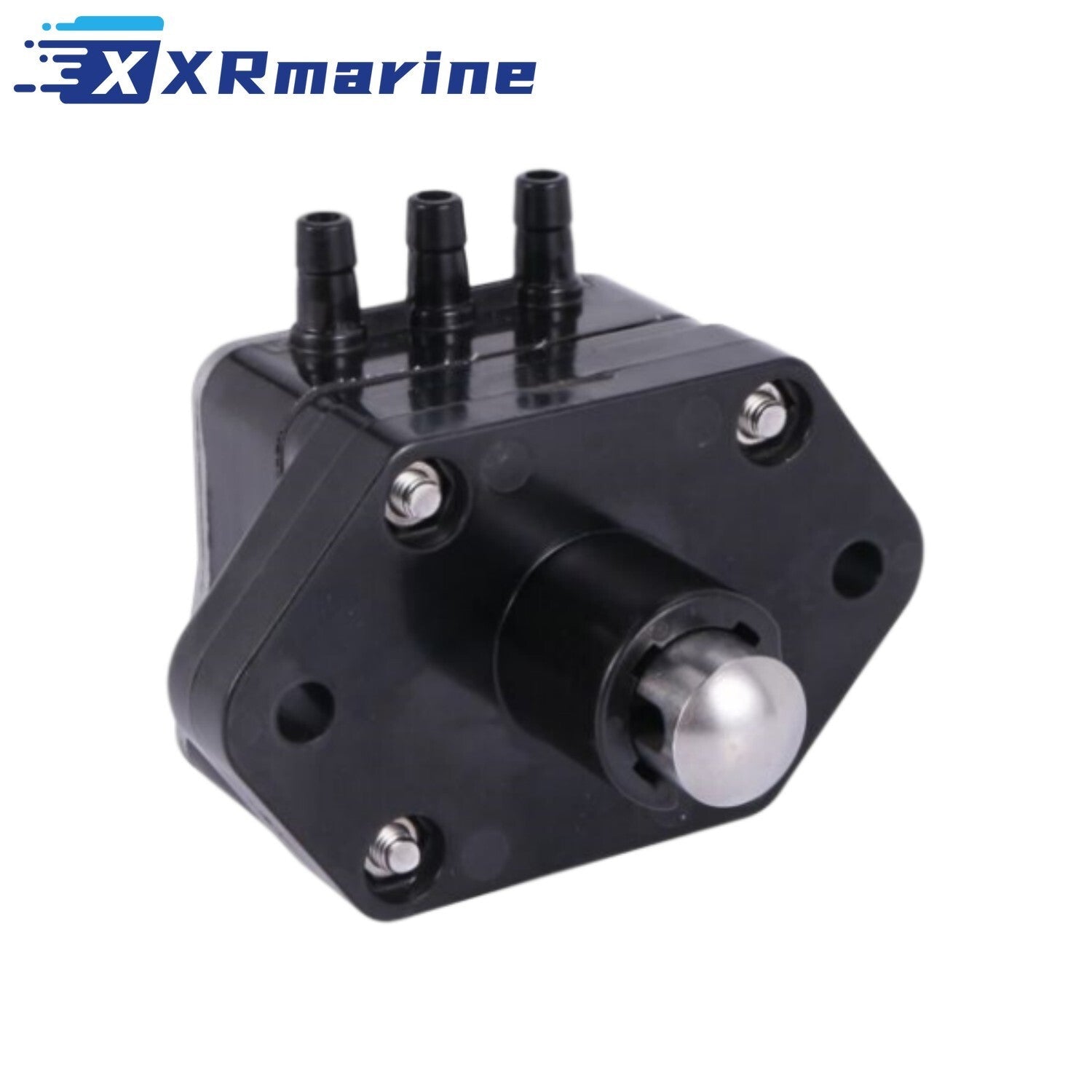

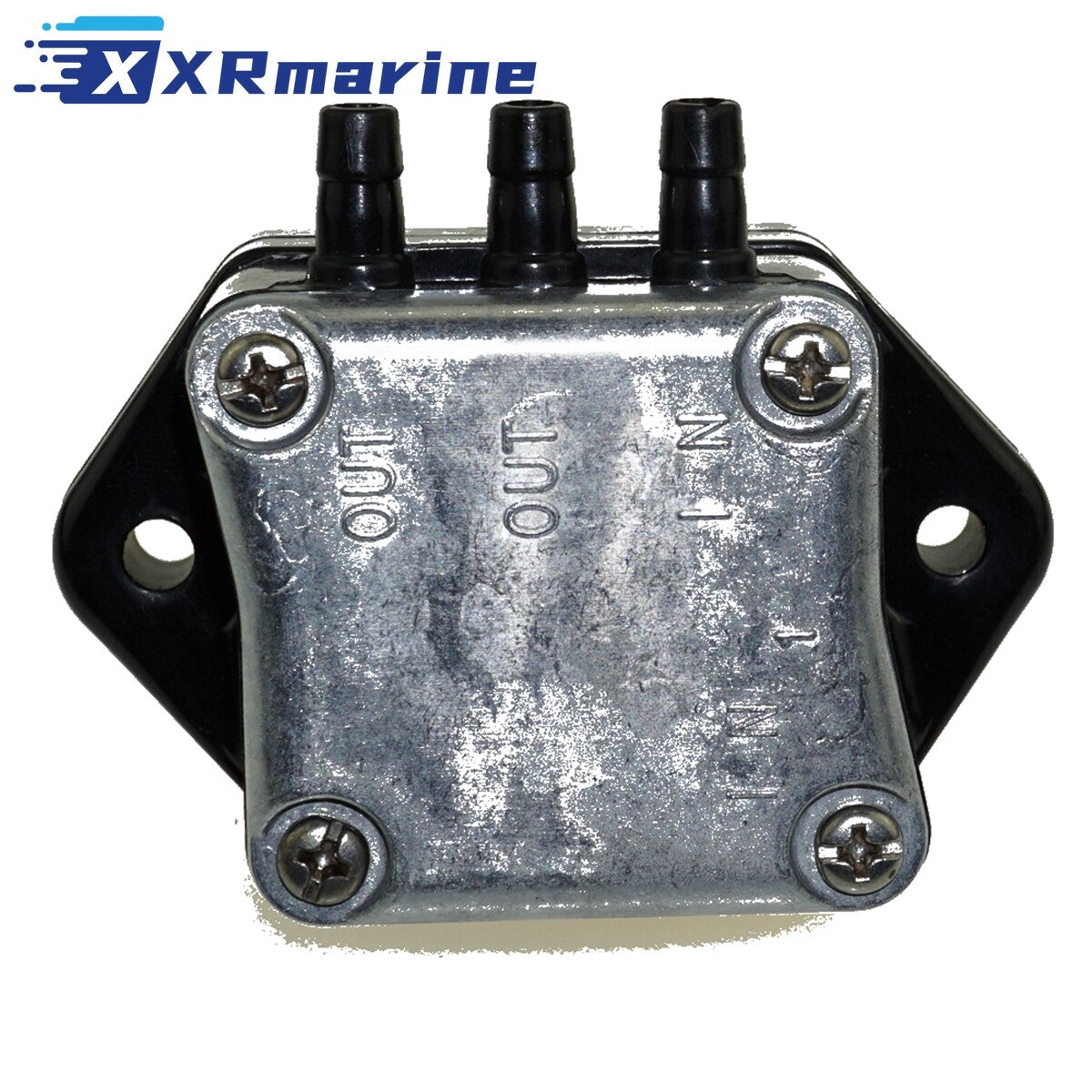

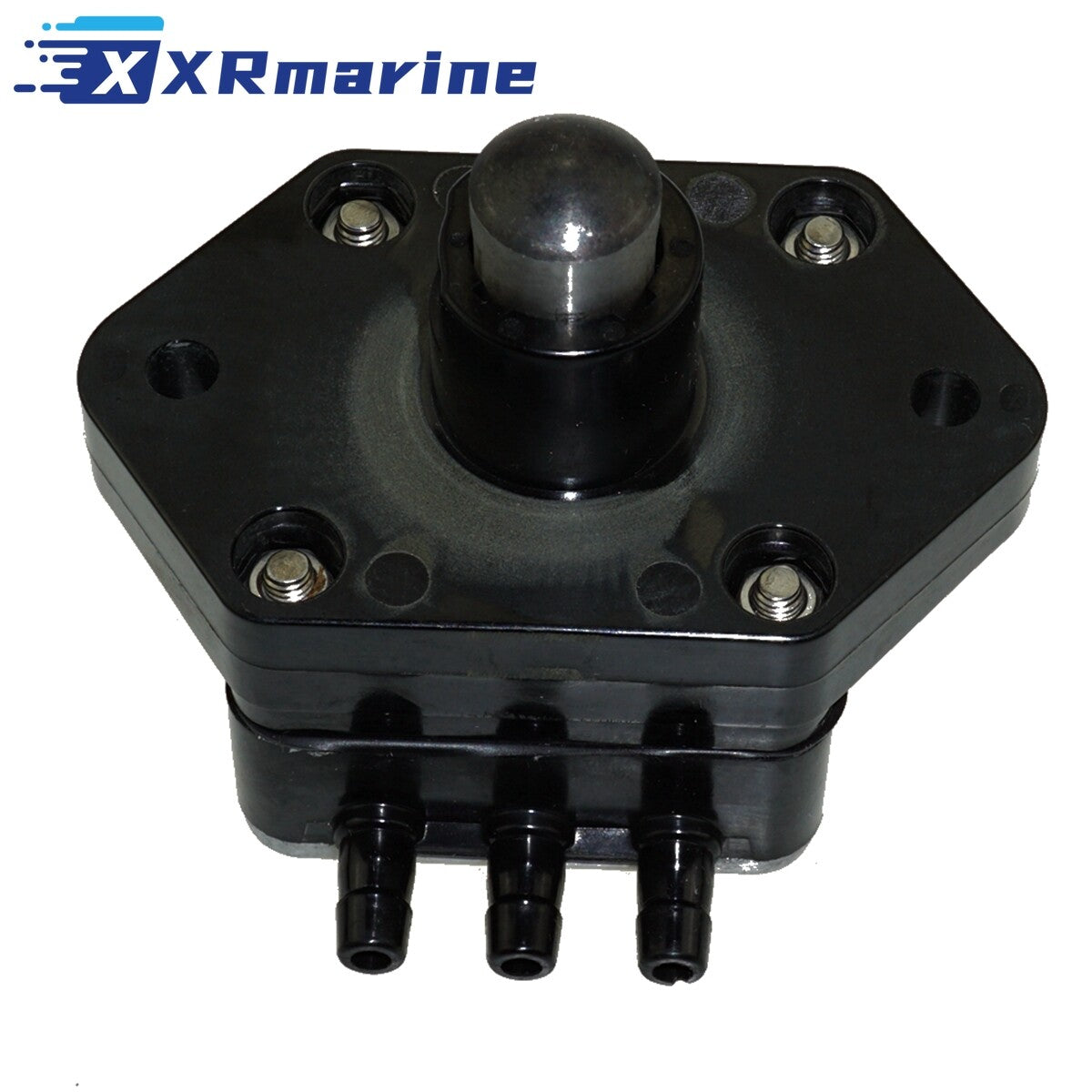

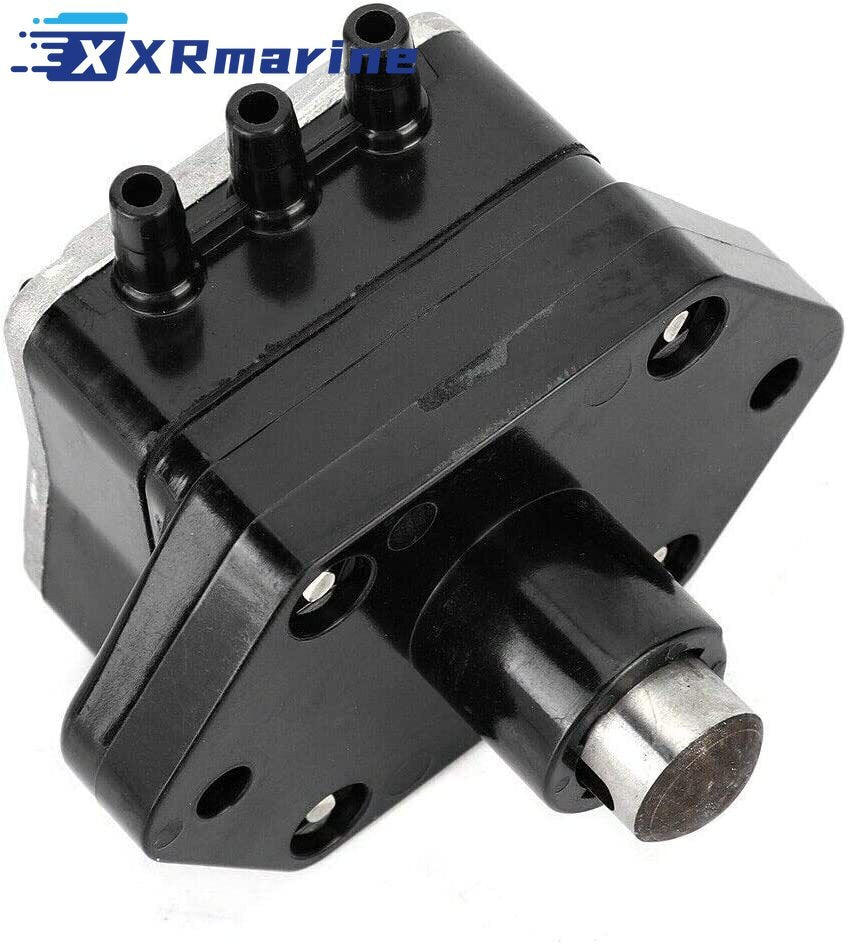

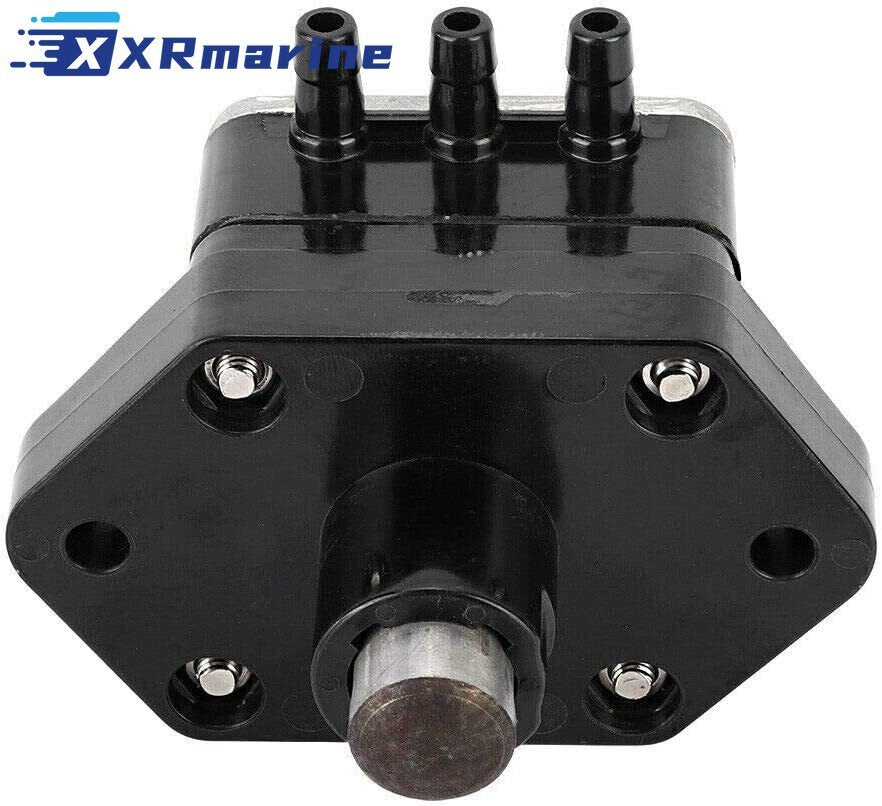

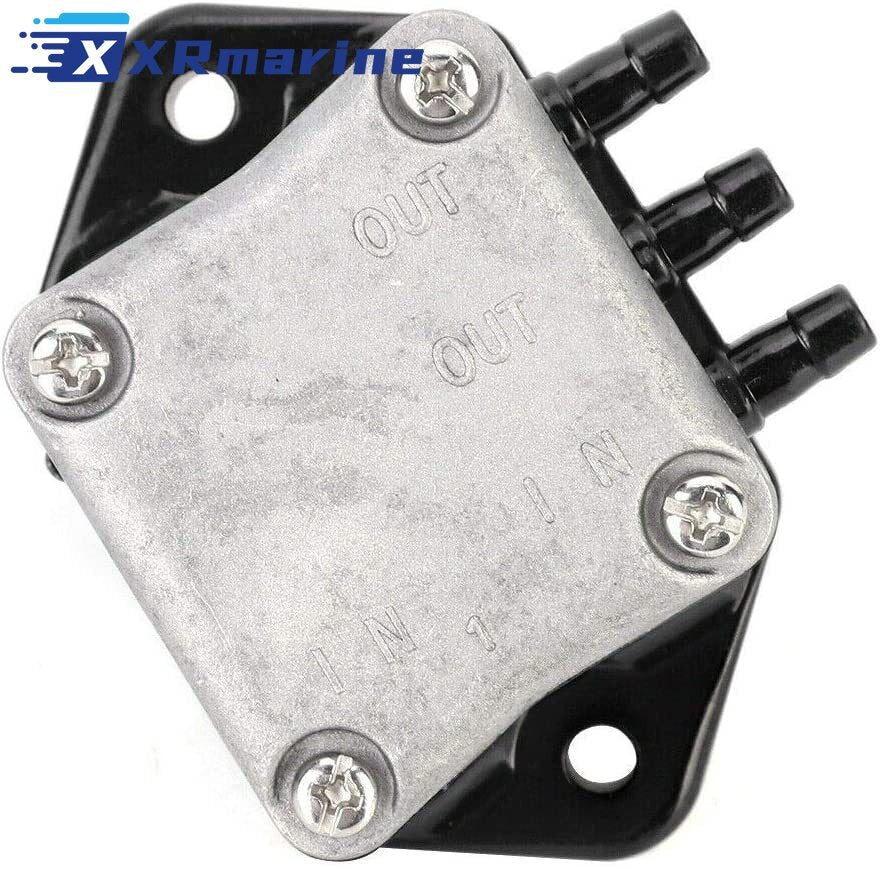

Fuel pump for Yamaha F25, F30, F40, F50 and F60 four-stroke outboards plus the T25, T50 and T60, and for the Mercury and Mariner 25 HP to 60 HP four-strokes, supplied as 1 pump weighing 399 g in a 9 x 10 x 15 cm pack. It replaces Yamaha 62Y-24410-04, 62Y-24410-03, 62Y-24410-02, 62Y-24410-01 and 62Y-24410-00, Mercury 826398A1, 826398A3 and 826398T3, and crosses to Sierra 18-35304. Dispatched from our United Kingdom local warehouse.
This is the electric lift pump that feeds the vapour separator on the four-stroke small block. The 25 to 60 HP engines were built for Yamaha and Mercury both, so the same pump carries a 62Y number and an 826398 number.
Because it is electric and sitting in a warm cowling, the first symptom is often a vapour lock on a hot restart rather than a flat failure. It also weakens gradually, which reads on the water as a motor that will not pull past 4,000 rpm with a full boat.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Electric fuel pump |
| Engine Type | Four stroke |
| Application | Yamaha F25 to F60, T25 to T60; Mercury and Mariner 25 to 60 HP |
| Net Weight | 399 g |
| Pack Size | 9 x 10 x 15 cm (3.5 x 3.9 x 5.9 in) |
| Quantity | 1 pump |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Yamaha | 62Y-24410-04, 62Y-24410-04-00 |
| Yamaha | 62Y-24410-03, 62Y-24410-02 |
| Yamaha | 62Y-24410-02-00, 62Y-24410-01 |
| Yamaha | 62Y-24410-00, 62Y-24410 |
| Mercury Mariner | 826398A1, 826398A3, 826398T3 |
| Sierra | 18-35304 |
Compatible Engines
| Brand | Models | Horsepower | Years |
|---|---|---|---|
| Yamaha | F25, T25 | 25 HP | 1998 to 2003 |
| Yamaha | F30 | 30 HP | 2001 to 2002 |
| Yamaha | F40 | 40 HP | 1999 to 2002 |
| Yamaha | F50, T50 | 50 HP | 1997 to 2003 |
| Yamaha | F60 | 60 HP | 2002 |
| Mercury Mariner | F20, F25, F30, F35 | 20 HP to 35 HP | 1995 to 2004 |
| Mercury Mariner | F40, F45, F50, F55, F60 | 40 HP to 60 HP | 1995 to 2004 |
Yamaha Model Year List
| Year | Models Covered |
|---|---|
| 1997 | F50TLHV, F50TLRV, T50TLRV |
| 1998 | F25ELHW, F25ELRW, F25ESHW, F25TLRW, F50TLHW, F50TLRW, T50TLRW |
| 1999 | F25ELHX, F25ELRX, F25ESHX, F25MLHX, F25MSHX, F25TLRX, F40TLRX, F50TLRX, T50TLRX |
| 2000 | F25ELHY, F25ELRY, F25ESHY, F25MLHY, F25MSHY, F25TLRY, F40ESRY, F40MLHY, F40MSHY, F40TLRY, F50TLRY, T50TLRY |
| 2001 | F25ELHZ, F25ELRZ, F25ESHZ, F25ESRZ, F25MLHZ, F25MSHZ, F25TLRZ, F30TLRZ, F40ESRZ, F40MLHZ, F40MSHZ, F40TLRZ, T25TLRZ, F50TLRZ, T50TLRZ |
| 2002 | F25ELHA, F25ELRA, F25ESHA, F25ESRA, F25MLHA, F25MSHA, F25TLRA, F30TLRA, F40ESRA, F40MJHA, F40MLHA, F40MSHA, F40TLRA, F50TJRA, F50TLRA, F60TLRA, T25TLRA, T50TLRA |
| 2003 | F25ELHB, F25ELRB, F25ESHB, F25ESRB, F25MLHB, F25MSHB, F25TLRB, T25TLRB |
What's Included
| Component | Qty |
|---|---|
| Fuel pump | 1 |
Lean Out at the Top End
| What the Owner Reports | First Check | Likely Answer |
|---|---|---|
| Will not pull past 4,000 rpm loaded | Fuel pressure at the rail under load | Weak pump, this one |
| Starts cold, flat when hot | Vapour lock or a hot pump | Pump and the cowl airflow around it |
| Stumbles then recovers when throttled back | Restricted filter or collapsing bulb | Filter and primer bulb before the pump |
| Whine from the cowling that was never there | Pump drawing air or running dry | Check line joints and the pickup in the tank |
| Hard start after sitting a week | Non return valve in the pump | New pump, no rebuild kit exists |
| Runs fine on muffs, fails on the water | Load only fault, pump volume too low | Pressure and volume test in the water |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Read the number on the old pump, 62Y-24410-04 and 826398A1 are the same unit under two badges |
| 2 | Check the model year against both tables, the four-stroke range changed in 2004 |
| 3 | Pinch the fuel line and keep a tray under the pump, the line holds fuel above the tank level |
| 4 | Renew the inline filter and the primer bulb at the same time, both cause an identical top end lean out |
| 5 | Fit new hose clips, a weeping joint draws air and the motor leans out again |
| 6 | Check the pump connector and the earth strap for green corrosion before the new pump goes in |
| 7 | Measure fuel pressure at the rail before and after, the number tells you whether the job is done |
| 8 | Run the boat under load in the water, hold full throttle and check for weeps and a steady top end |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from the United Kingdom
| Destination | Warehouse | Note |
|---|---|---|
| United Kingdom | United Kingdom local warehouse | Domestic delivery, no import duty |
| Ireland | United Kingdom local warehouse | Customs may apply |
| EU destinations | United Kingdom local warehouse | Customs and import VAT may apply |
Before You Buy
- Read the number on the old pump, 62Y-24410-04 and 826398A1 are the same unit under two badges
- Check the model year against both tables, the four-stroke range changed in 2004
- Renew the inline filter and primer bulb with the pump, both cause the same symptom
- Measure fuel pressure at the rail before and after fitting
- This is the electric pump only, the vapour separator, filter and hose are not included
- 30-Day Easy Returns
- Ships from our United Kingdom local warehouse
