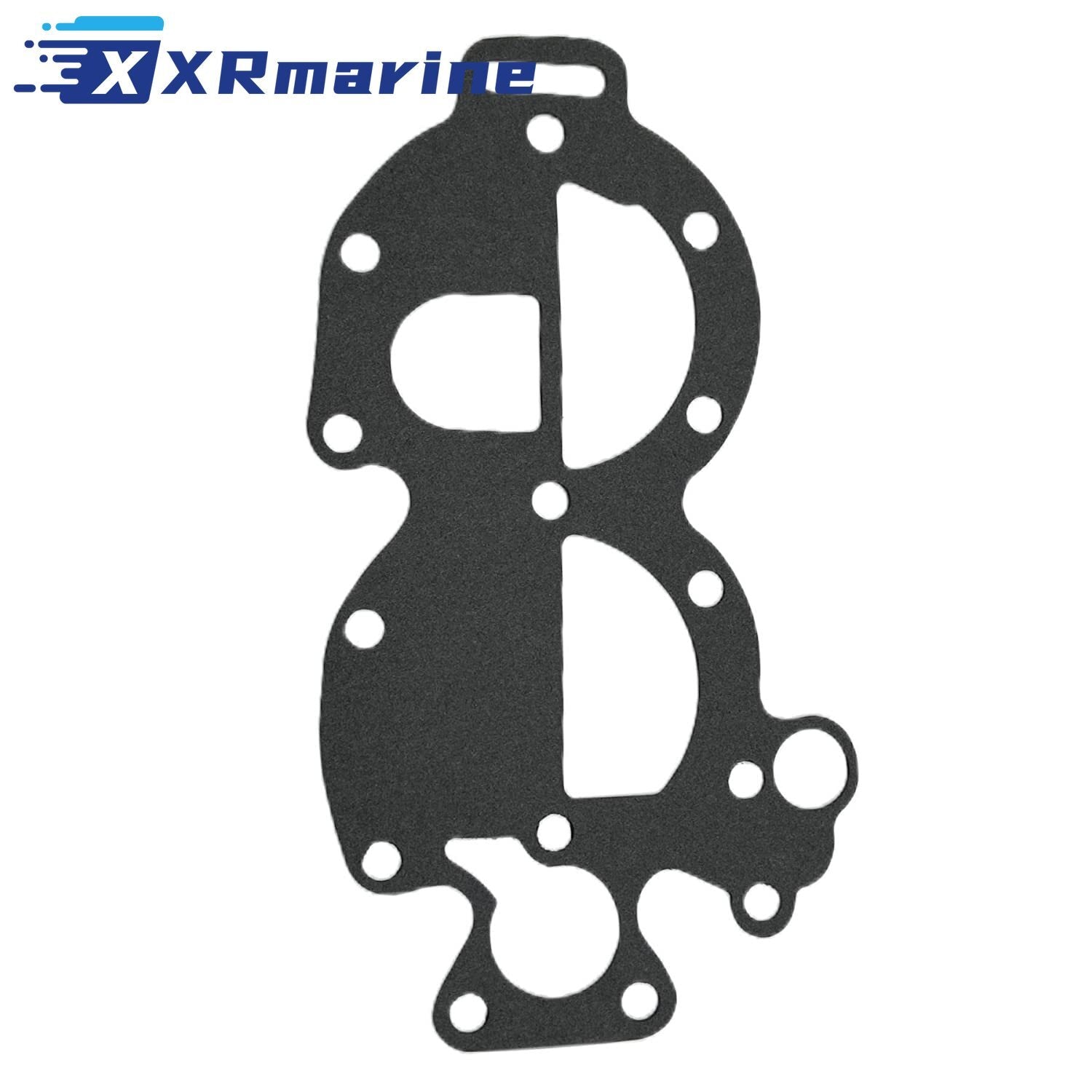

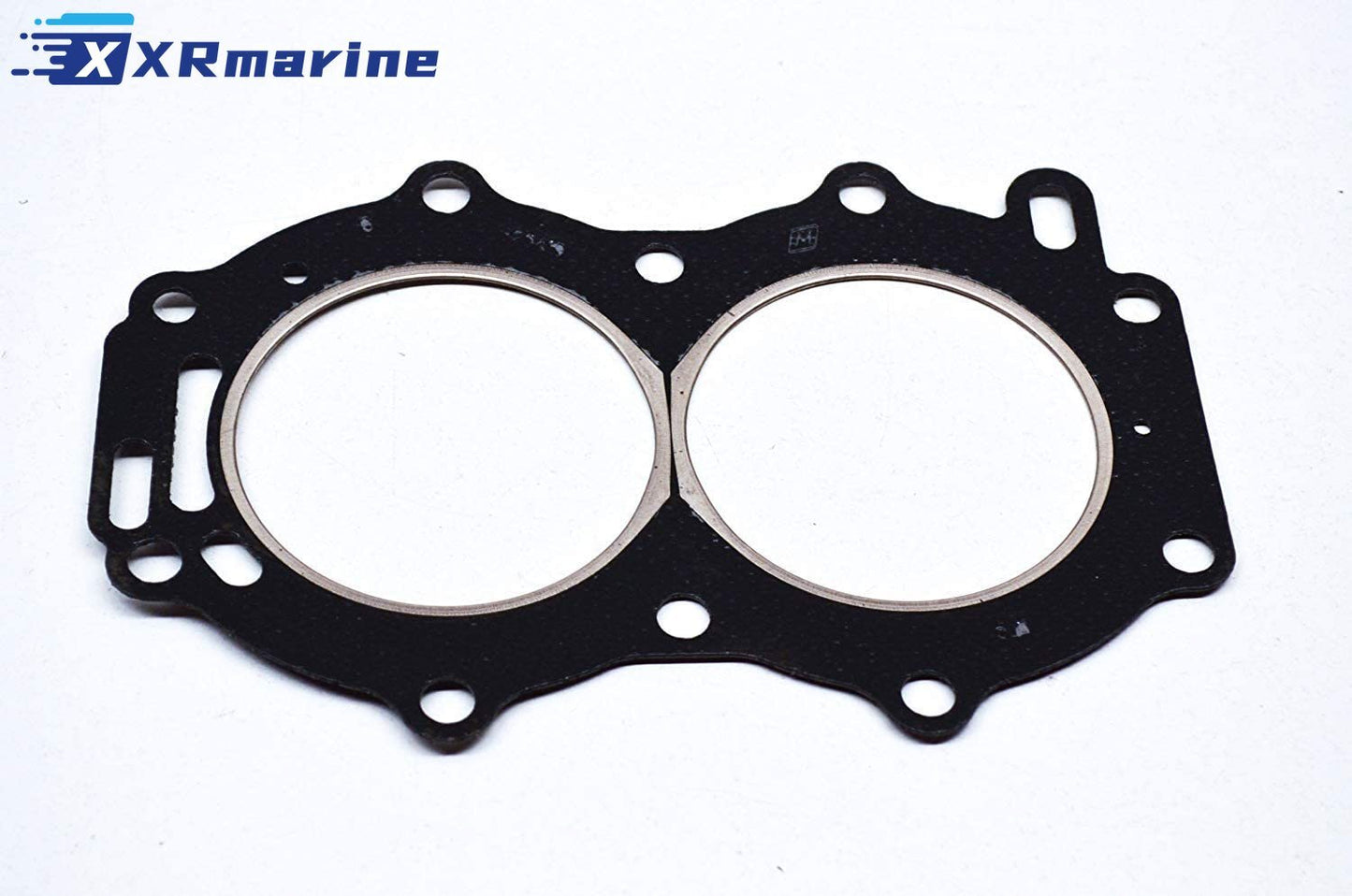

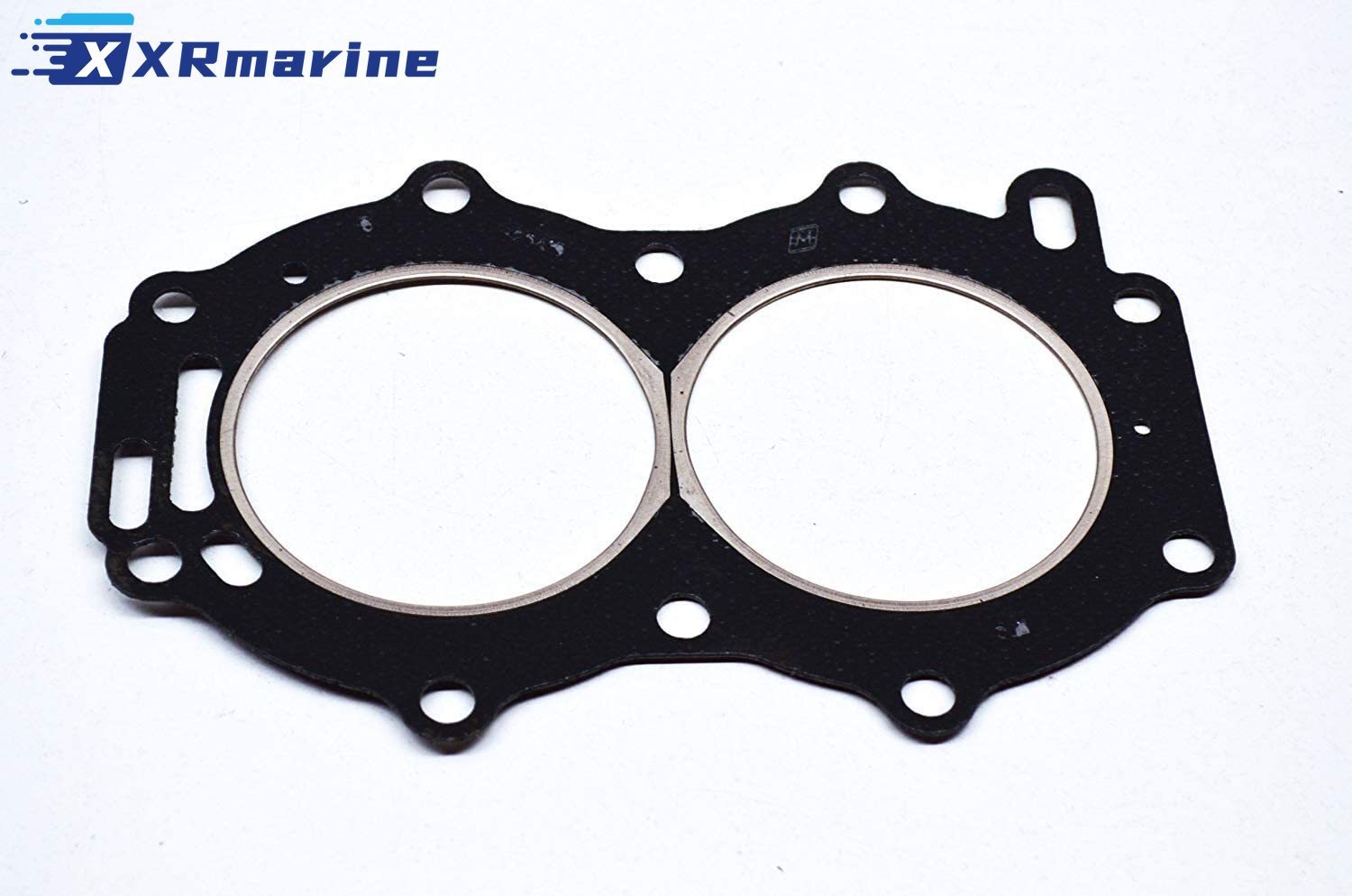

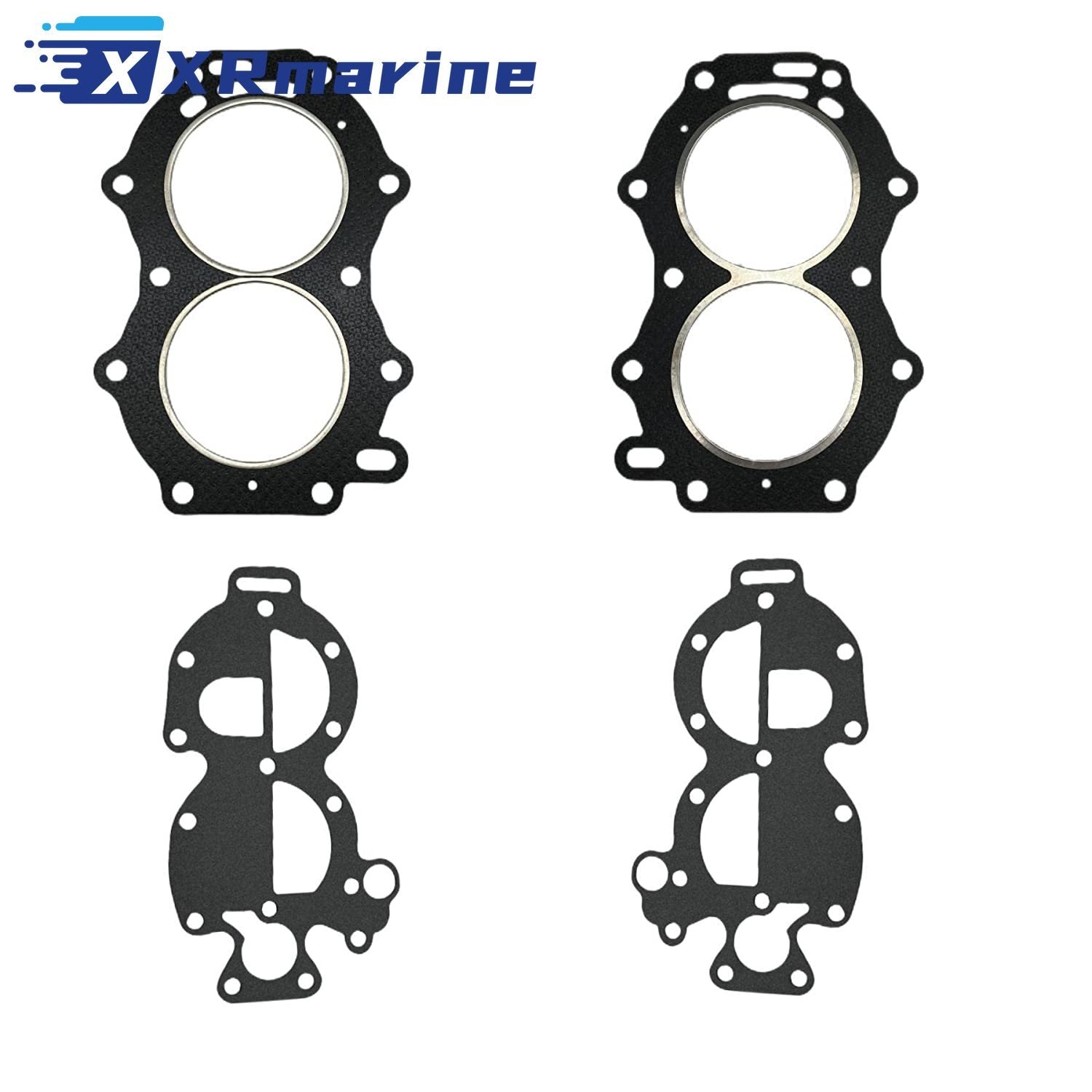

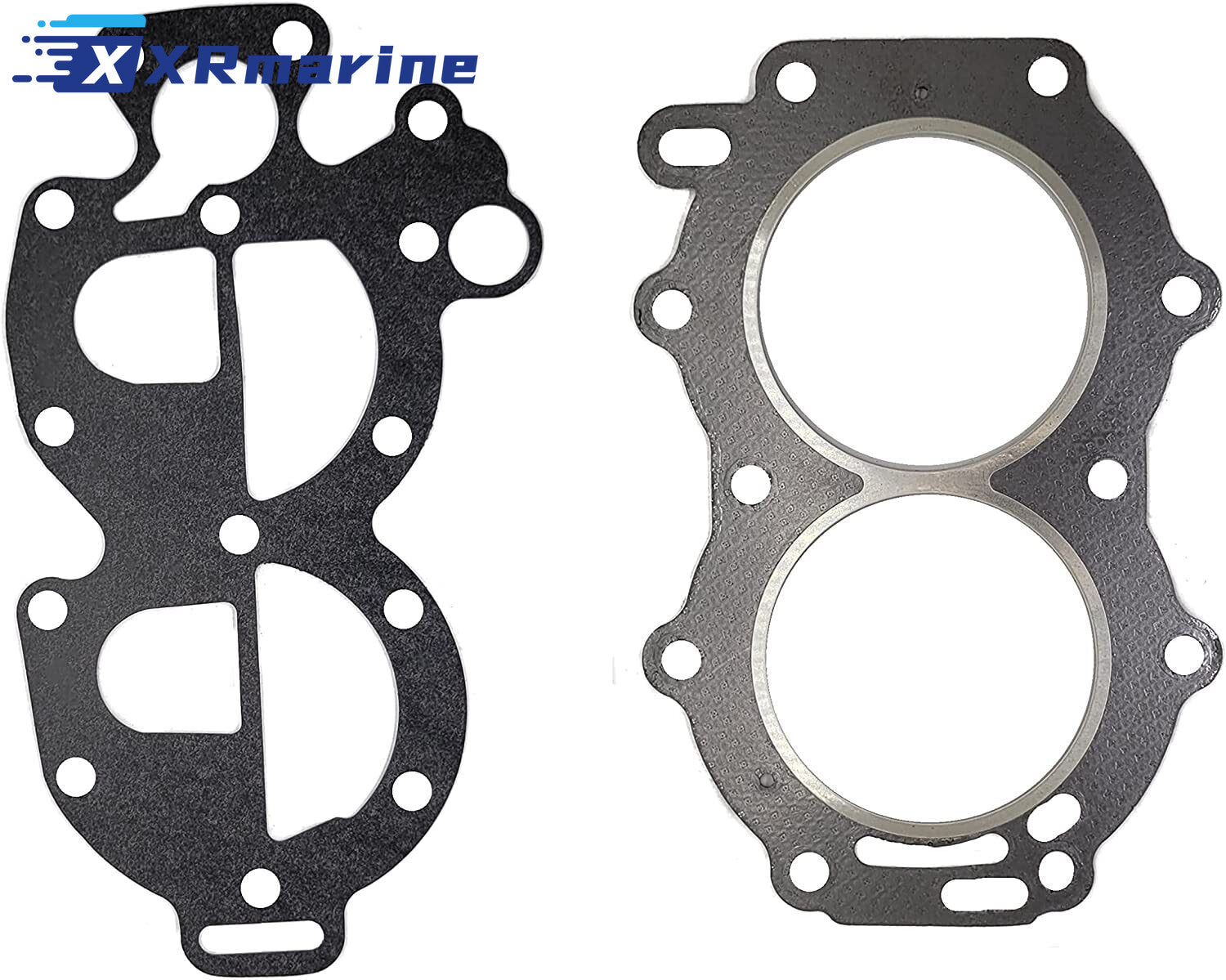

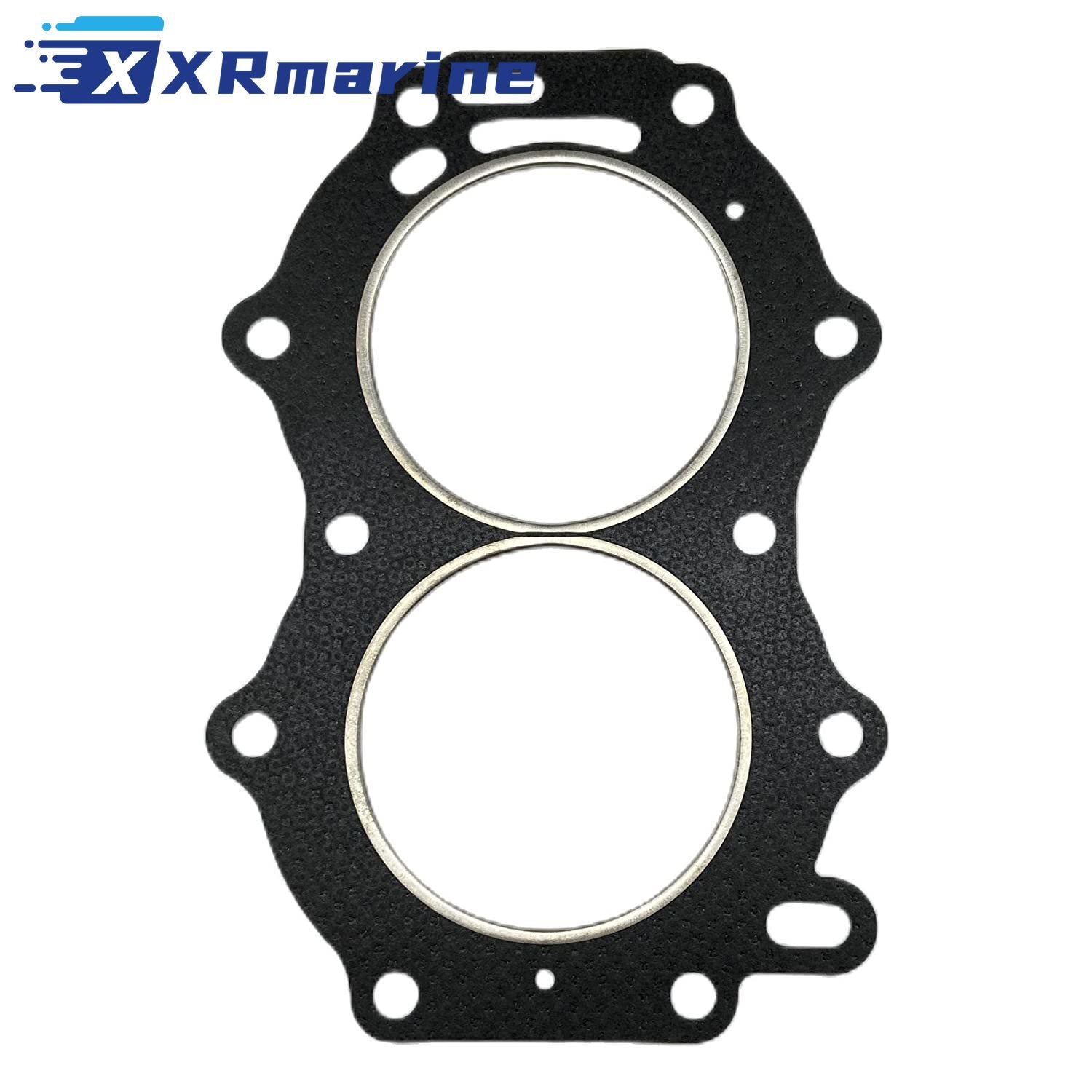

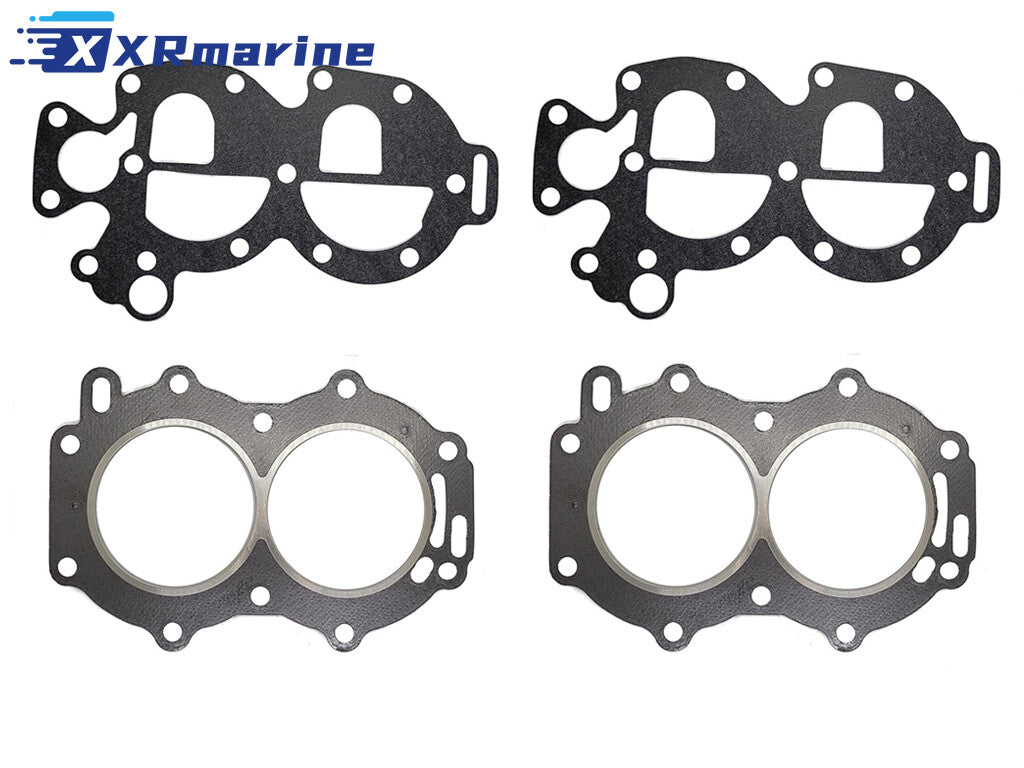

Head Gasket Set 329419 for Johnson Evinrude 20 25 28 30 35 HP 2 Cylinder 1984-2005
Head Gasket Set 329419 for Johnson Evinrude 20 25 28 30 35 HP 2 Cylinder 1984-2005
Product Overview
Head gasket set for Johnson and Evinrude 2-cylinder, 2-stroke outboards from 20 to 35 HP, replacing 324324, 329419, 765012 and 777390, plus Sierra 18-3803 / 18-3899, GLM 34570 and Mallory 9-63830. The detailed application list covers 18 JET 1995-1998, 25 HP 1979-2003, 28 HP 1986-1996, 30 HP 1984-2003 and 35 HP 1979-1988, with the US listing stating 20-35 HP 1984-2005. Fit a new head gasket when compression is low on both cylinders, coolant or water weeps at the head joint, or the engine overheats after a lean run. The set is supplied as one complete head gasket set.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Outboard Head Gasket Set |
| Engine | 2-Stroke, 2 Cylinder |
| Horsepower | 20-35 HP |
| Years | 1984-2005 (see application table) |
| Quantity | 1 head gasket set |
| Packaging Size | 26.5 x 16.5 x 2.5 cm (10.4 x 6.5 x 1.0 in) |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Johnson / Evinrude | 324324, 0324324, 329419, 0329419, 765012, 0765012, 327674, 777390 |
| Sierra | 18-3803, 18-3899 |
| GLM | 34570 |
| Mallory | 9-63830 |
Compatible Engines
| Brand | Model / Horsepower | Years |
|---|---|---|
| Johnson / Evinrude | 18 JET | 1995-1998 |
| Johnson / Evinrude | 25 HP | 1979-2003 |
| Johnson / Evinrude | 28 HP | 1986-1996 |
| Johnson / Evinrude | 30 HP | 1984-2003 |
| Johnson / Evinrude | 35 HP | 1979-1988 |
| Johnson / Evinrude | 20-35 HP, 2-cylinder range | 1984-2005 |
What's Included
| Component | Qty |
|---|---|
| Head Gasket Set | 1 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Before You Buy
- Confirm your outboard is the 2-cylinder, 2-stroke version — this set does not fit 3-cylinder blocks
- Check the model or serial number against the application table before ordering
- Have the head surface checked for warping before fitting a new gasket
- Tighten the head bolts in the factory sequence and torque spec
