Product Overview

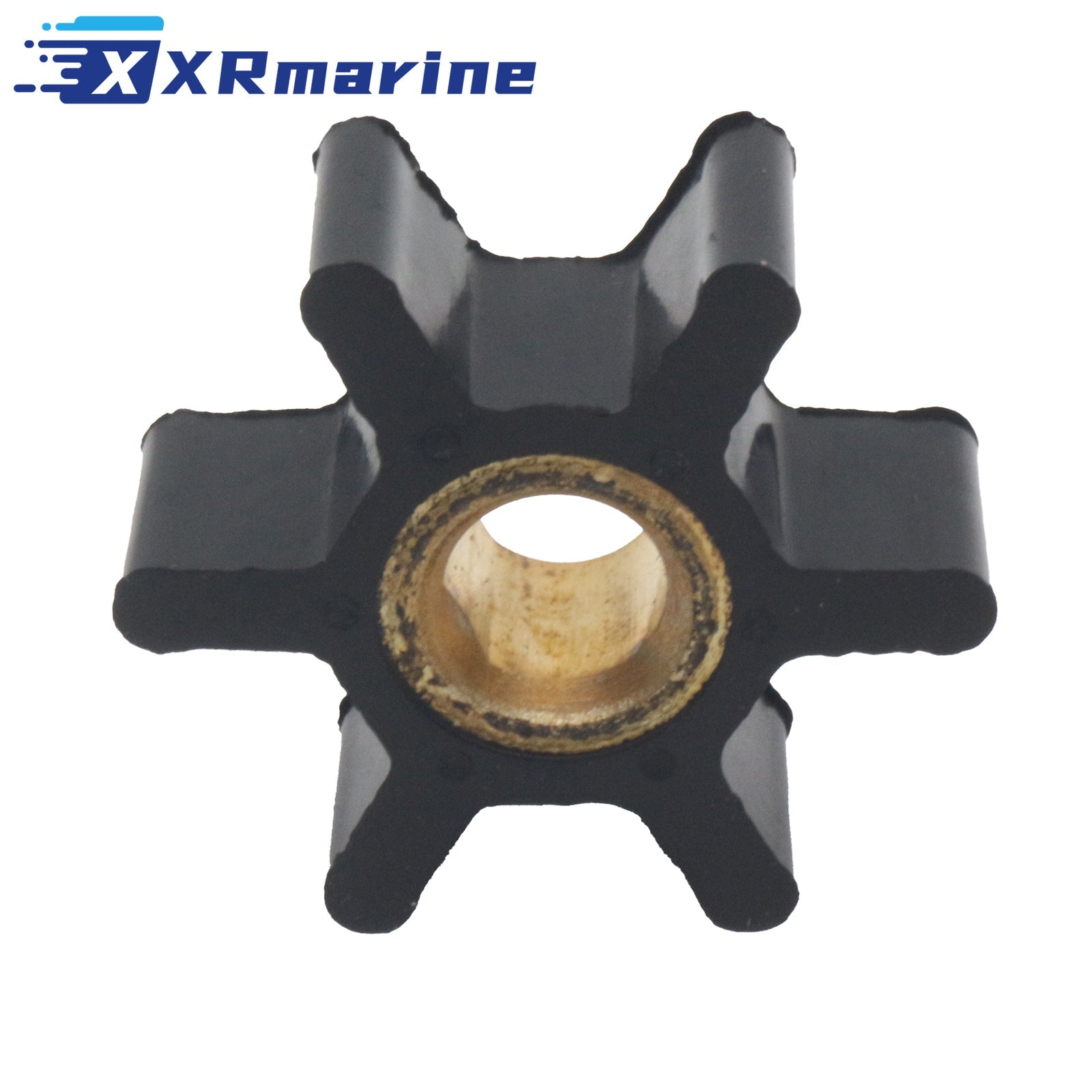

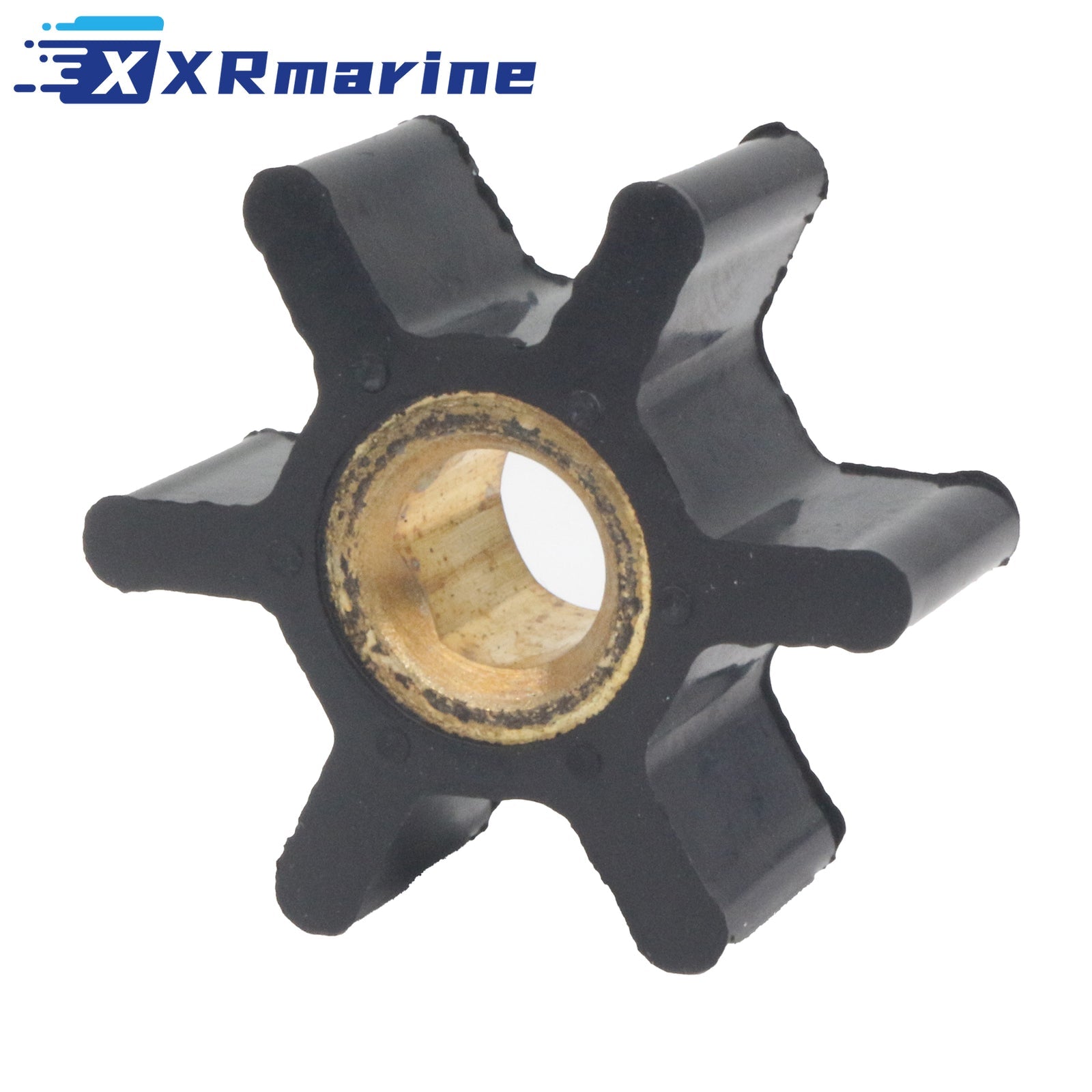

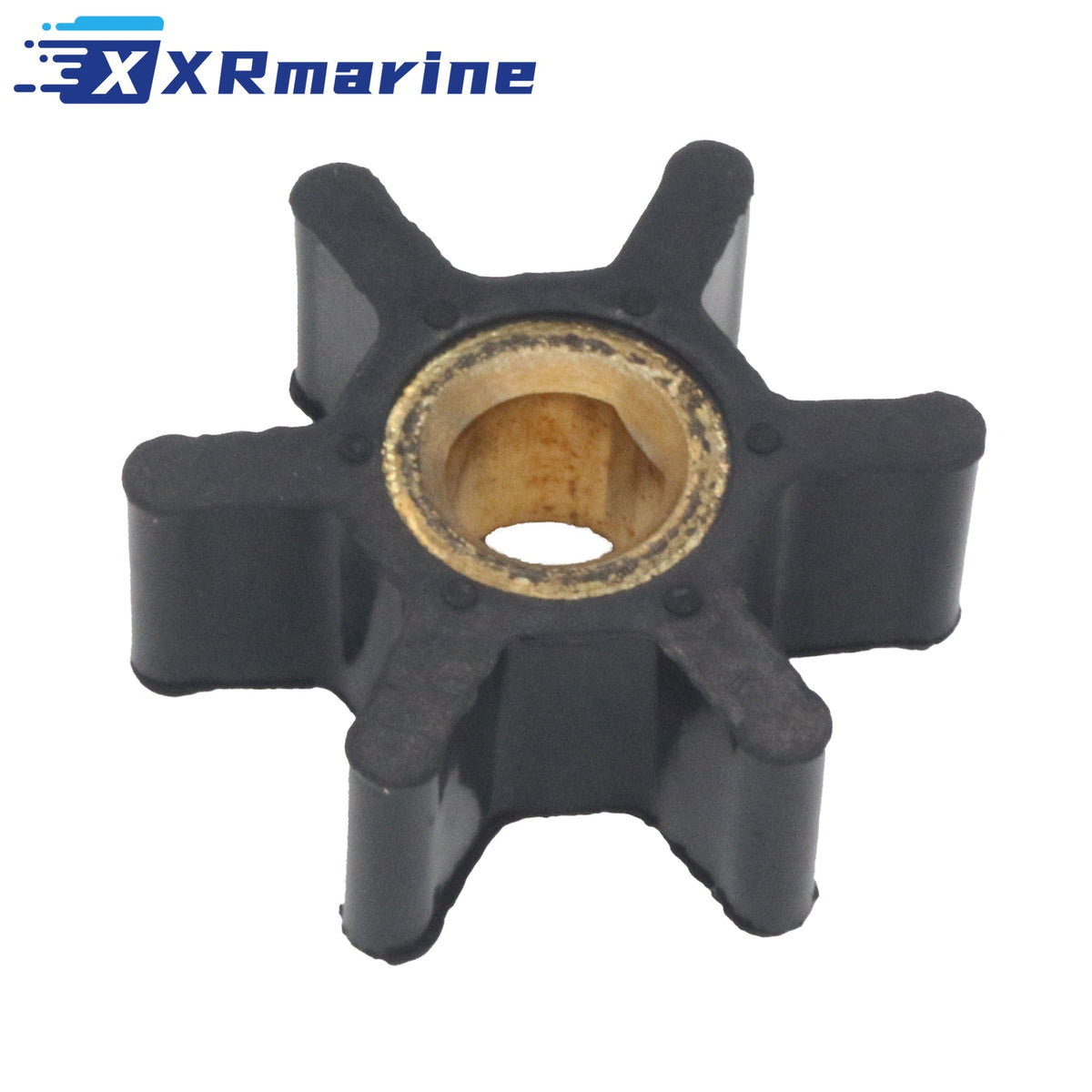

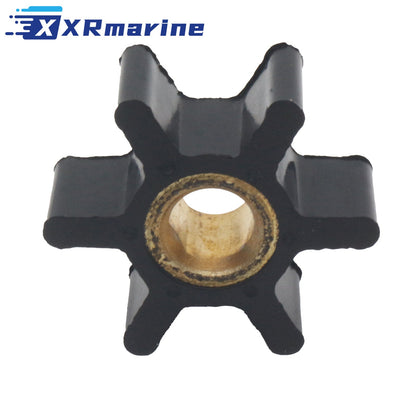

Flexible impeller kit for Yanmar 1GM and 1GM10 marine diesel engines with the three-bolt pump cover. The impeller measures 32 mm across and 12 mm wide on an 8 mm shaft with a single flat D drive and six blades, packed at 12 x 10 x 4 cm and weighing 63 g. It replaces Yanmar 128176-42070 and 128176-42071, sometimes written 128170-42070, plus Sierra 18-8951, Jabsco 1411-0001 and CEF equivalents. Shipped from our Germany local warehouse.

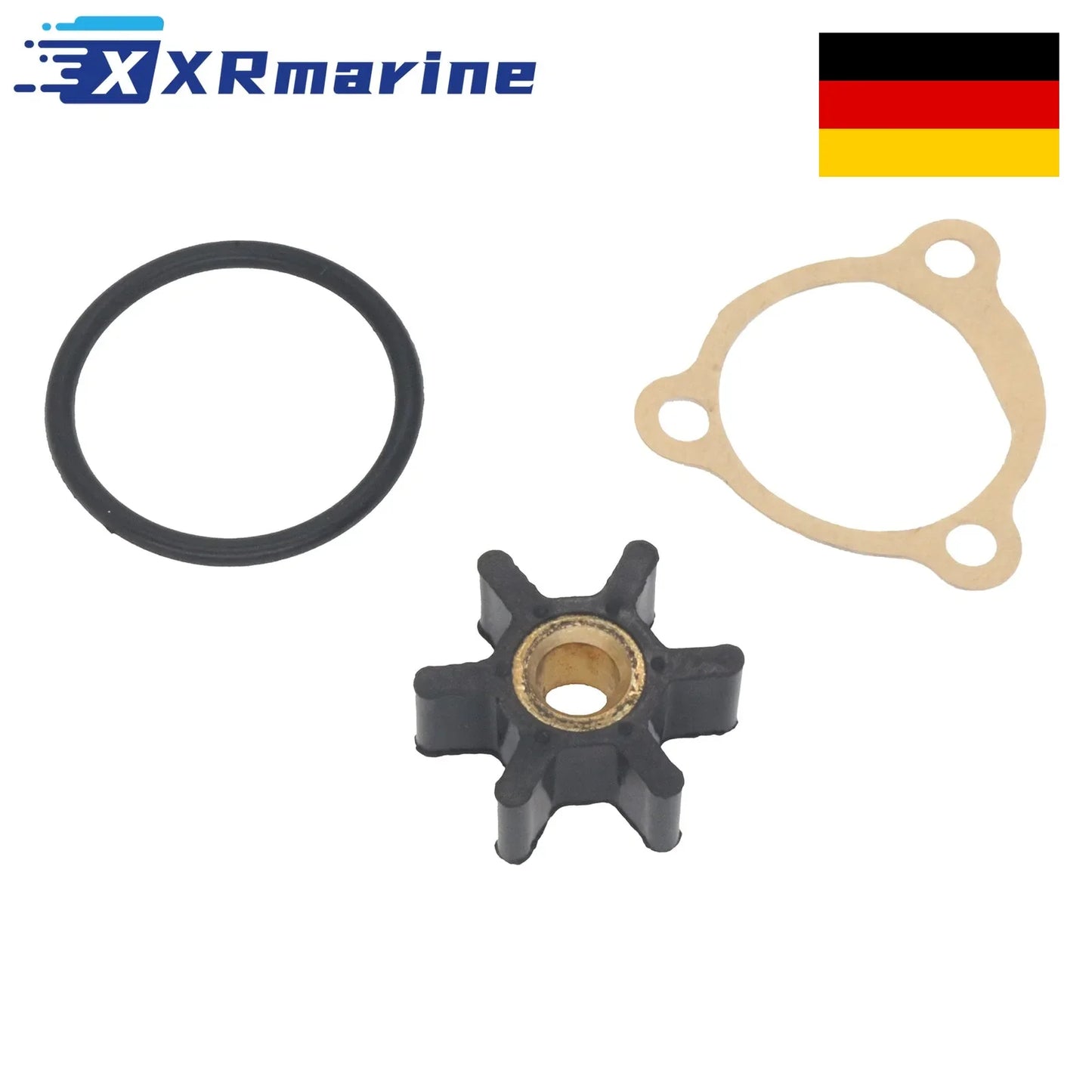

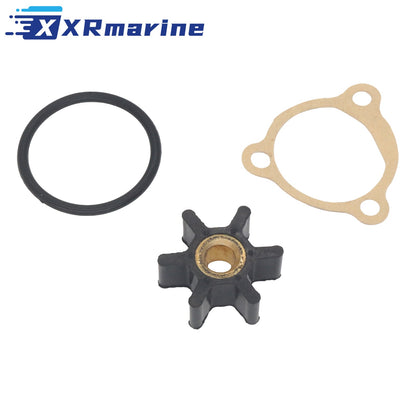

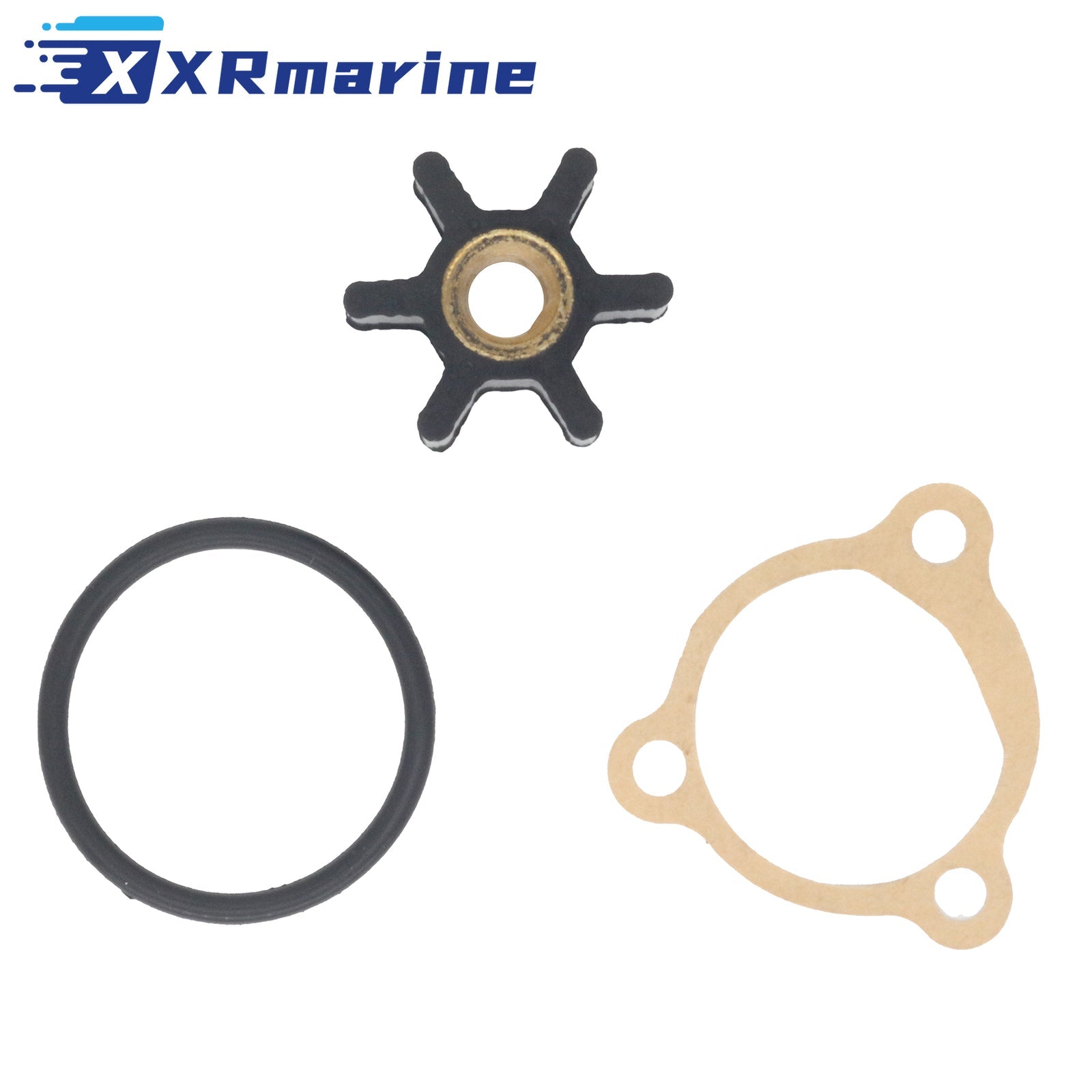

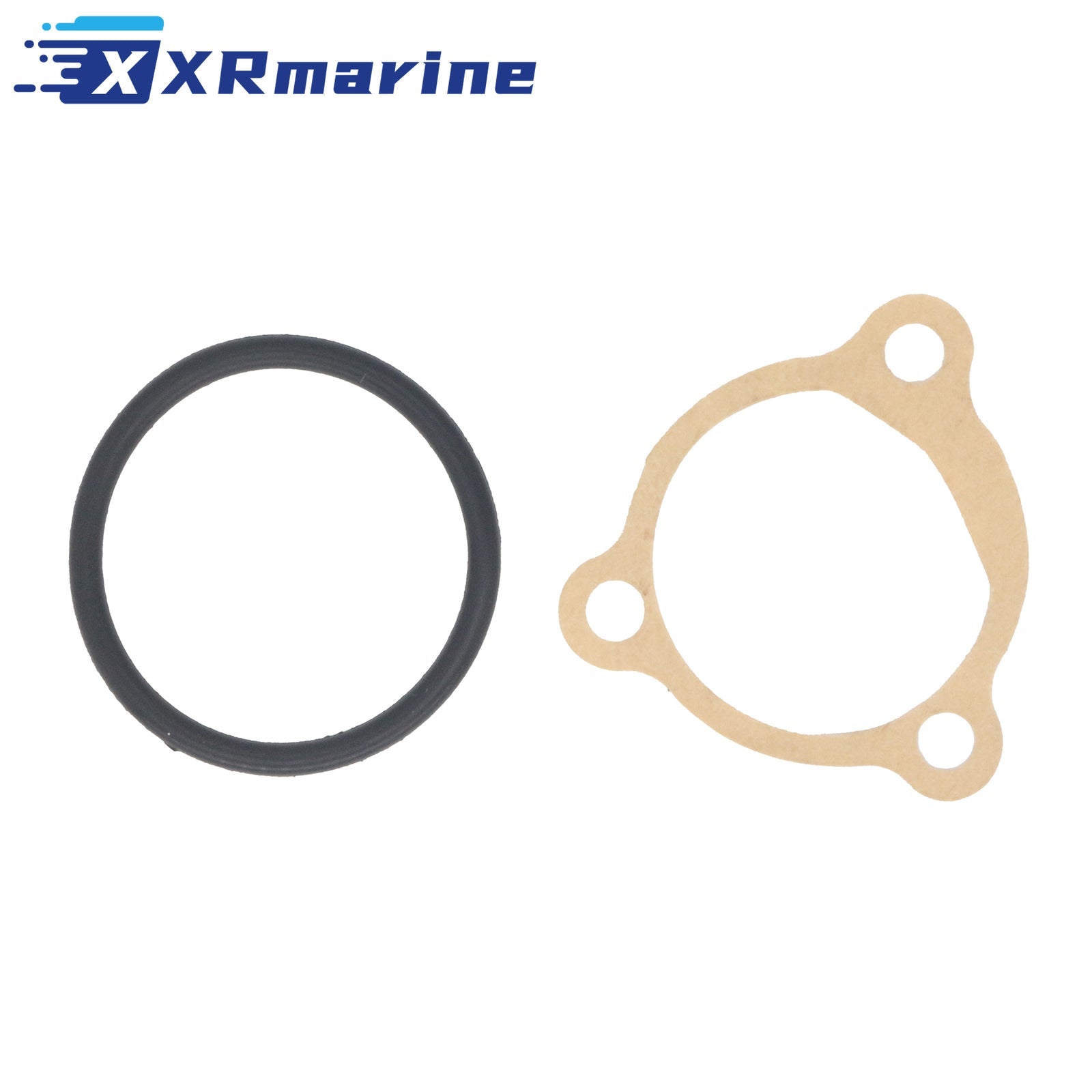

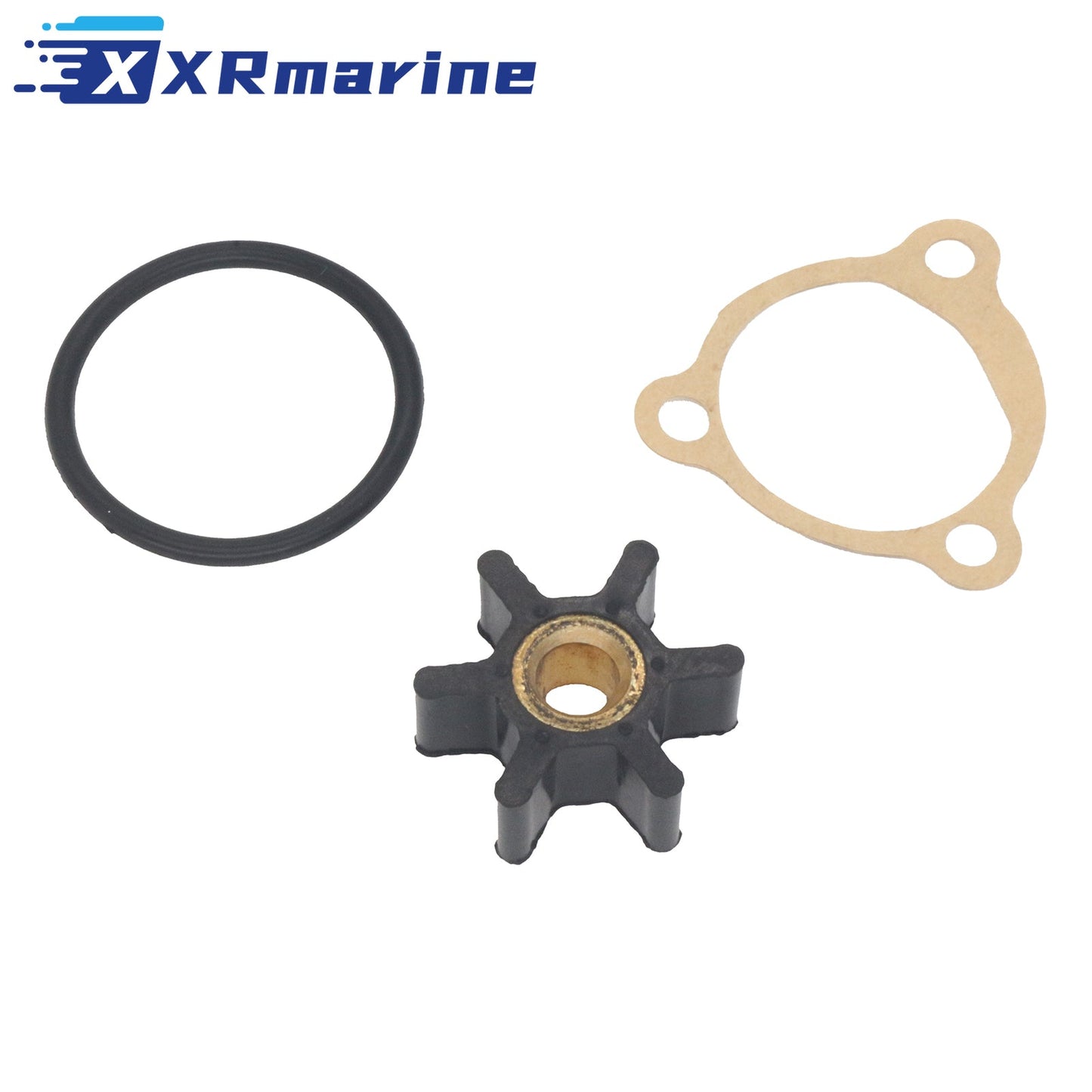

The kit is not the rubber on its own: it also carries the end cover gasket 128170-42090 and the O-ring 24321-000350. That matters because the gasket is what fails first after a cold winter, and a kit fitted without it usually leaks at the cover within a few hours of running.
Every 1GM that has sat on a Baltic mooring from October to April starts the season with an impeller that has been parked in one position for six months. The vanes take a set, and by the first warm run at cruising speed the engine temperature tells you before the exhaust note does.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Flexible impeller kit |
| Engine | Yanmar 1GM, 1GM10 diesel |
| Outer Diameter | 32 mm / 1-1/4 in |
| Width | 12 mm / 15/32 in |
| Shaft | 8 mm / 5/16 in single flat D drive |
| Blades | 6 |
| Material | Flexible rubber compound |
| Cover | 3-bolt cover design |
| Quantity | 1 kit |
| Shipping Weight | 63 g |
| Packaging Size | 12 x 10 x 4 cm (4.7 x 3.9 x 1.6 in) |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Yanmar impeller | 128176-42070, 128176-42071 |
| Yanmar, variant writing | 128170-42070 |
| Sierra impeller | 18-8951 |
| Jabsco | 1411-0001 |
| CEF equivalent | CEF listed for the 1GM pump |
| Yanmar end cover gasket | 128170-42090 |
| Yanmar O-ring | 24321-000350 |
Kit Components
| Component | Part Number | Qty |
|---|---|---|
| Flexible impeller, 6 blade | 21414-0001 | 1 |
| End cover gasket | 128170-42090 | 1 |
| O-ring, 3.1 x 40 mm outside diameter | 24321-000350 | 1 |
Compatible Engines
| Model | Type | Pump |
|---|---|---|
| Yanmar 1GM | Marine diesel | Three-bolt cover, raw water |
| Yanmar 1GM10 | Marine diesel | Three-bolt cover, raw water |
| Later cover design | Marine diesel | Four-bolt cover, not this kit |
What's Included
| Component | Qty |
|---|---|
| Flexible impeller | 1 |
| End cover gasket | 1 |
| O-ring | 1 |
Service Interval and Symptoms
| Situation | What to Do |
|---|---|
| 500 running hours reached | Change the impeller and the gasket together |
| Second season since the last change | Change before launch, not after |
| Stored ashore over winter | Change at launch, the vanes have taken a set |
| Engine runs warm at cruising speed | Check the impeller before the heat exchanger |
| Blade tips missing | Find the pieces before they block the heat exchanger |
| Cover leaking after a change | Old gasket reused or the cover plate is scored |
Impeller Only or Complete Kit
| Your Situation | Right Choice | Why |
|---|---|---|
| Cover gasket sound, impeller renewed before | Impeller only | The seals still do their job |
| Lay-up just ended | This kit | The gasket hardens over winter and leaks |
| Cover plate scored or grooved | Kit plus a new cover plate | A scored plate eats the new impeller |
| Pump ran dry | This kit and check the bore | Dry running scores both the impeller and housing |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Close the raw water seacock before opening the pump |
| 2 | Check the pump cover has three bolts, the later cover will not match |
| 3 | Note the blade direction and the position of the cover plate |
| 4 | Prise the old impeller out, do not lever against the pump bore |
| 5 | Clean the cover face and fit the new gasket and O-ring |
| 6 | Grease the impeller and the pump bore, never fit it dry |
| 7 | Fold the blades in the running direction and fit the cover |
| 8 | Open the seacock and check for leaks and flow before casting off |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Germany
| Destination | Warehouse | Note |
|---|---|---|
| Germany | Germany local warehouse | Domestic delivery, no import duty |
| Austria, Netherlands, Belgium | Germany local warehouse | EU intra-community delivery |
| France, Italy, Spain, Poland | Germany local warehouse | EU intra-community delivery |
Before You Buy
- Check the pump cover has three bolts, the later cover will not match
- Measure the old impeller: 32 mm outer, 12 mm wide, 8 mm shaft
- Grease the impeller and the pump bore before fitting, never run it dry
- Check the cover plate for scoring and replace it if grooved
- This is the impeller, gasket and O-ring, the pump housing is not included
- 30-Day Easy Returns
- Ships from our Germany local warehouse
