Water Pump Impeller Kit 46-96148A5 for Mercury 80-200 HP Mercruiser 120 485
Water Pump Impeller Kit 46-96148A5 for Mercury 80-200 HP Mercruiser 120 485
Product Overview

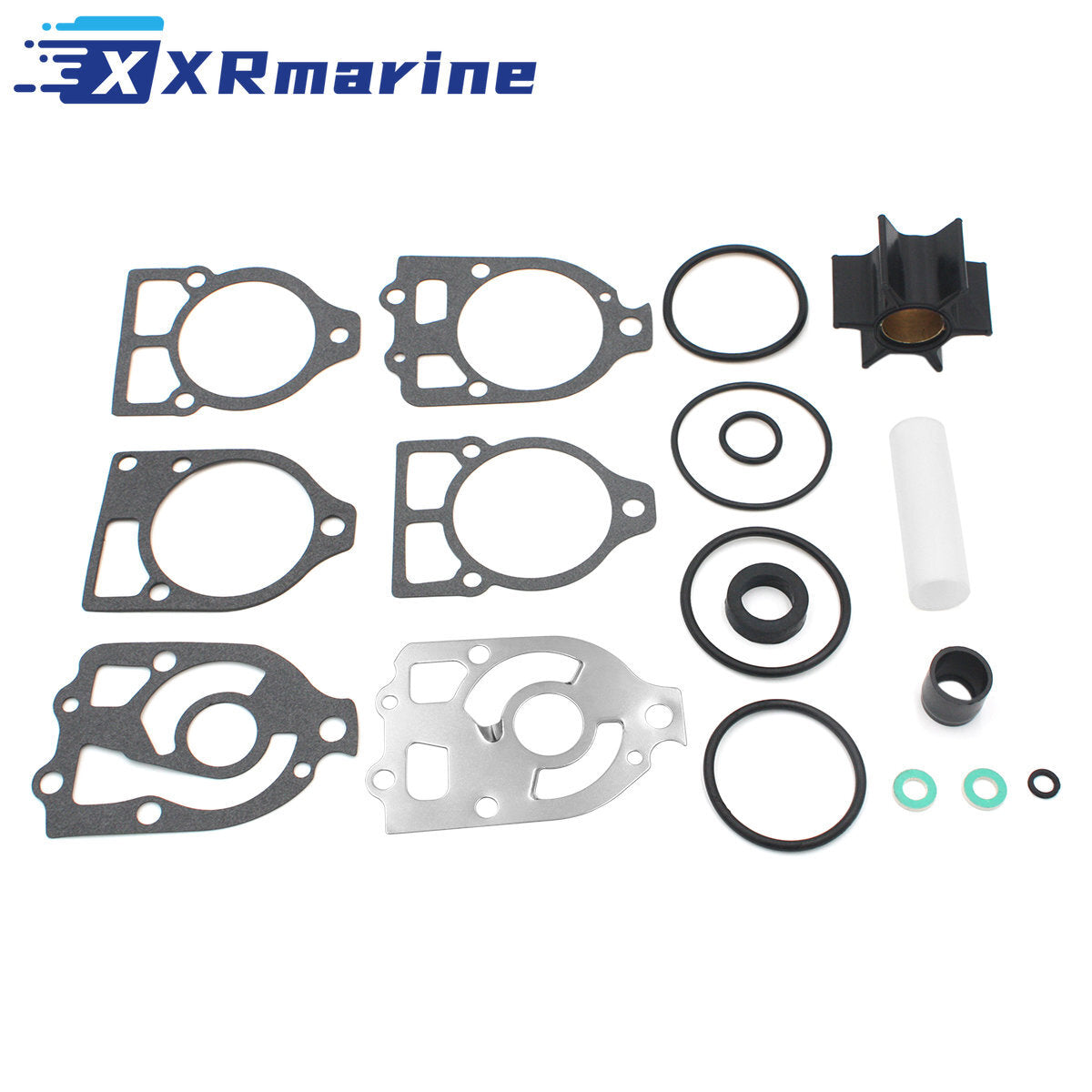

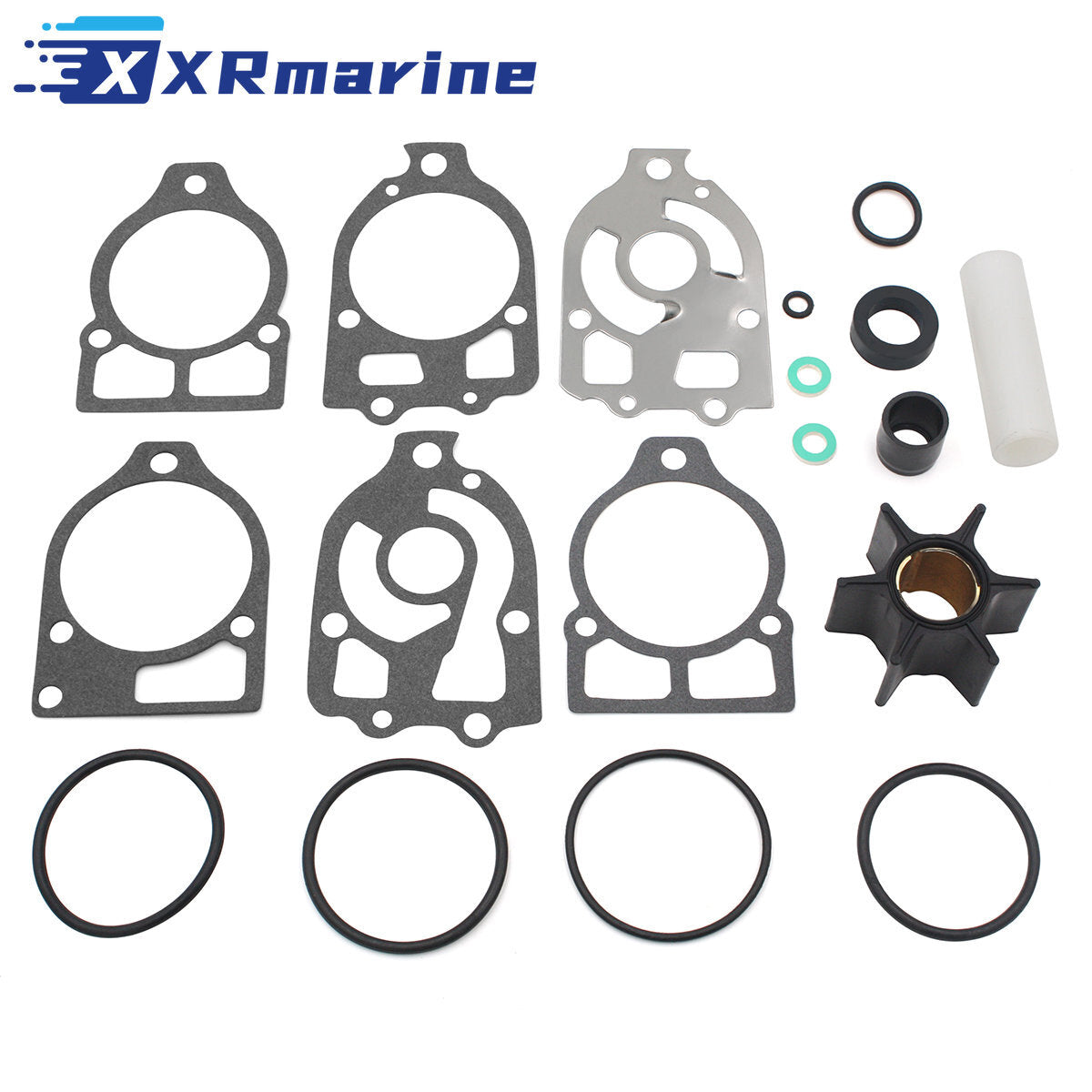

Water pump impeller kit for Mercury outboards from 80 HP to 200 HP and Mercruiser sterndrives from 120 to 485, replacing 46-96148A5, 46-96148A8 and 46-96148Q8 and crossing to Sierra 18-3217 and GLM 12290. The kit is one impeller, wear plate, water tube guide, gaskets, seals, two drain screw washers and a set of O-rings.
The impeller is 47-89984, the large body part used on the V6 and inline motors of that period. The kit is sold with the wear plate and the water tube guide because those three parts wear as a set: a new impeller against a scored plate loses flow, and a worn guide lets the tube drop out of the pump on refit.
It covers the 80 to 200 HP Mercury outboards from 1976 to 2006 by serial range, and the Mercruiser 120, 140, 165, 228, 260, 470, 485 and 898 sterndrives from 1970 to 1982 plus the R, MR and Alpha One drives through 1991. Serial numbers decide fitment, so match yours to the tables below.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Outboard and sterndrive water pump impeller kit |
| Impeller Reference | 47-89984 series |
| Components | Impeller, wear plate, tube guide, gaskets, seals, O-rings |
| Net Weight | 198 g |
| Fitment | Mercury 80 to 200 HP, Mercruiser 120 to 485 |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Mercury kit | 46-96148A5, 46-96148A8, 46-96148Q8, 46-96148T1, 46-96148T8 |
| Mercury kit (short form) | 96148A5, 96148A8, 96148B5, 96148B8, 96148BK8 |
| Mercury kit (earlier) | 46-96146A6, 46-9614888 |
| Mercury superseded | 46-32437A1, 46-32437A3, 46-37433A1, 46-42579A4, 46-44292A4 |
| Mercury superseded | 46-44579A4, 46-48747A3, 46-57234A3, 46-58618A4 |
| Mercury superseded | 46-60367A1, 46-60367A4, 46-64141A11, 46-69222A3 |
| Mercury superseded | 46-73803A3, 46-73804A3, 46-78400A2 |
| Mercury impeller | 47-89984, 47-89984T3, 47-89984T4, 47-899842, 47-899844 |
| Mercury impeller (alternate) | 46-89984, 47-89984Q5, 47-89984T5 |
| Mercury impeller (earlier) | 47-30221, 47-65960, 47-8546065 |
| Mercury impeller (earlier) | 47-803631T, 47-F694065 |
| Mercury wear plate | 32435 |
| Mercury water tube guide | 23-29804, 32-29804T |
| Sierra | 18-3217 |
| GLM | 12290 |
Compatible Engines
| Mercury Outboard | Years | Serial Range |
|---|---|---|
| Mercury Mariner 80-115 HP group | 1978 to 1983 | Serial ranges below |
| Mercury Mariner 140-200 HP group | 1976 to 2006 | Serial ranges below |
| 80 HP | 1978 to 1982 | 05582562 to 06432900 |
| 90 HP | 1978 to 1982 | 04845301 to 05299505 |
| 115 HP | 1978 to 1981 | 04865178 to 05430526 |
| 115 HP, 6 cylinder | 1980 to 1983 | 05600967 to 06436122 |
| V-115 DFI | 2000 | 0G960500 to 0T178499 |
| 140 HP | 1978 to 1979 | 04865678 to 05327662 |
| V-140 International | 2000 to 2005 | 0T178500 to 1B226999 |
| 150 HP | 1978 to 2006 | 04868998 to 0A904645 |
| 175 HP | 1976 to 2006 | 08058870 and up |
| 200 HP | 1979 to 2006 | 05624878 and up |
| V6 135 HP and 150 HP Mariner | 1976 to 2006 | Same V6 pump body, verify the serial against 150 HP column |
Mercruiser Sterndrive Coverage
| Model | Years | Serial Range |
|---|---|---|
| 120, 140 | 1970 to 1982 | 02791957 and up |
| 165 | 1970 to 1982 | 02763442 and up |
| 228, 260, 898 | 1978 to 1982 | 04898730 to 06225576 |
| 470 | 1978 to 1982 | 04893835 to 06225576 |
| 485 | 1978 to 1982 | 04893835 and up |
| R, MR, Alpha One | 1983 to 1991 | 06225577 to 0D469858 |
What's Included
| Component | Qty |
|---|---|
| Impeller | 1 |
| Impeller wear plate | 1 |
| Water tube guide | 1 |

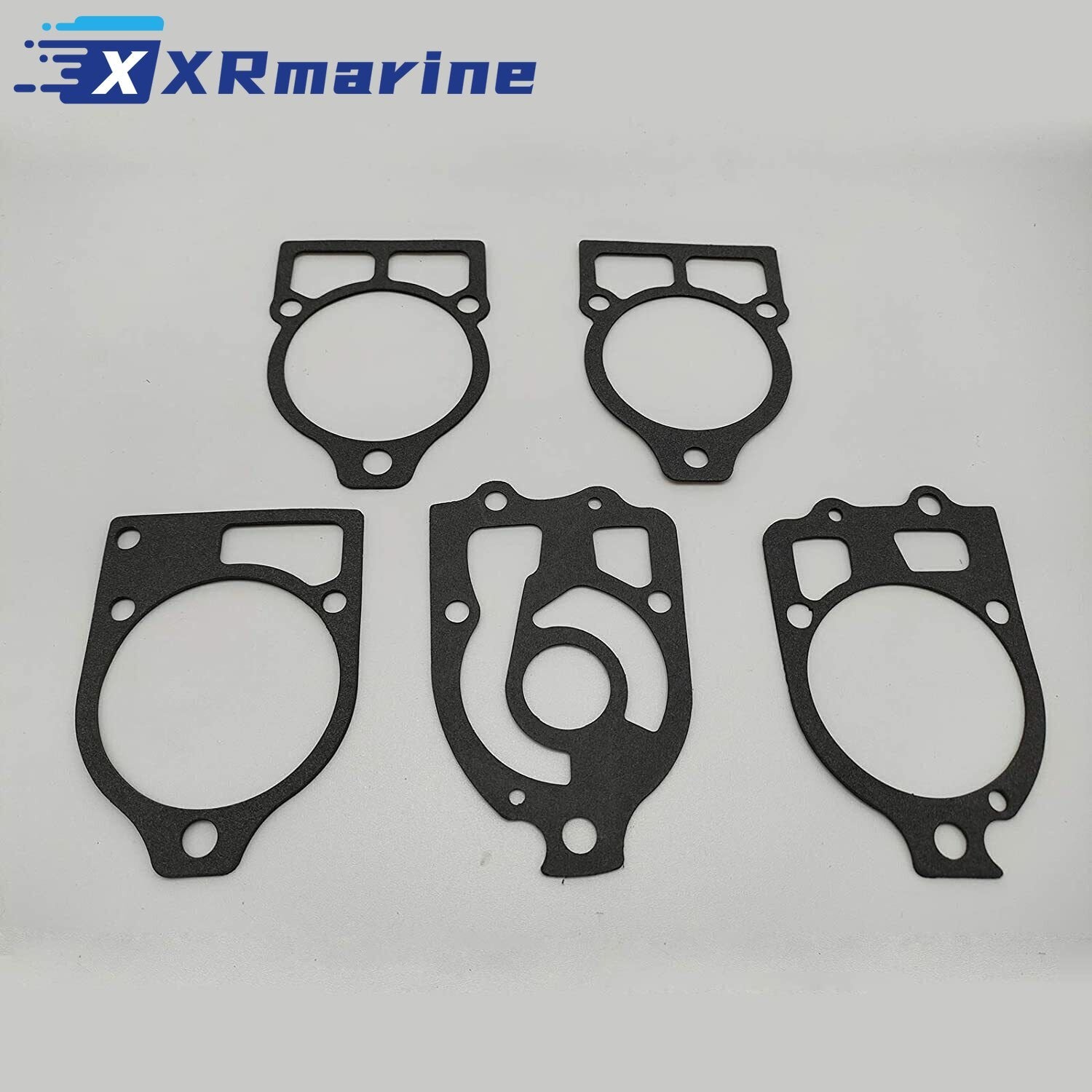

| Gasket set for the pump body | 1 set |
| Water tube grommet and oil passage seal | 1 each |
| Drain screw gasket | 2 |
| O-rings | Full set |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Before You Buy
- Check the serial number against the tables above, the 1970s and the 1990s motors do not share the same pump
- Check whether the drive is an outboard or a sterndrive, both are covered but the housing differs
- Check the driveshaft splines and key slot, a worn slot spins a new impeller
- Check the water tube for a perished grommet at both ends, that is the usual cause of a hot engine after a pump rebuild
- Fit the impeller blades bent in the direction of rotation and grease the housing bore
- Check the telltale stream at idle after the first start, and recheck the temperature on the first run
