Water Pump Impeller 12 Blade 145410-46090 831182 4568-0001 for Yanmar Volvo Penta Jabsco Johnson 57 mm — Australia Local Warehouse
Water Pump Impeller 12 Blade 145410-46090 831182 4568-0001 for Yanmar Volvo Penta Jabsco Johnson 57 mm — Australia Local Warehouse
Product Overview

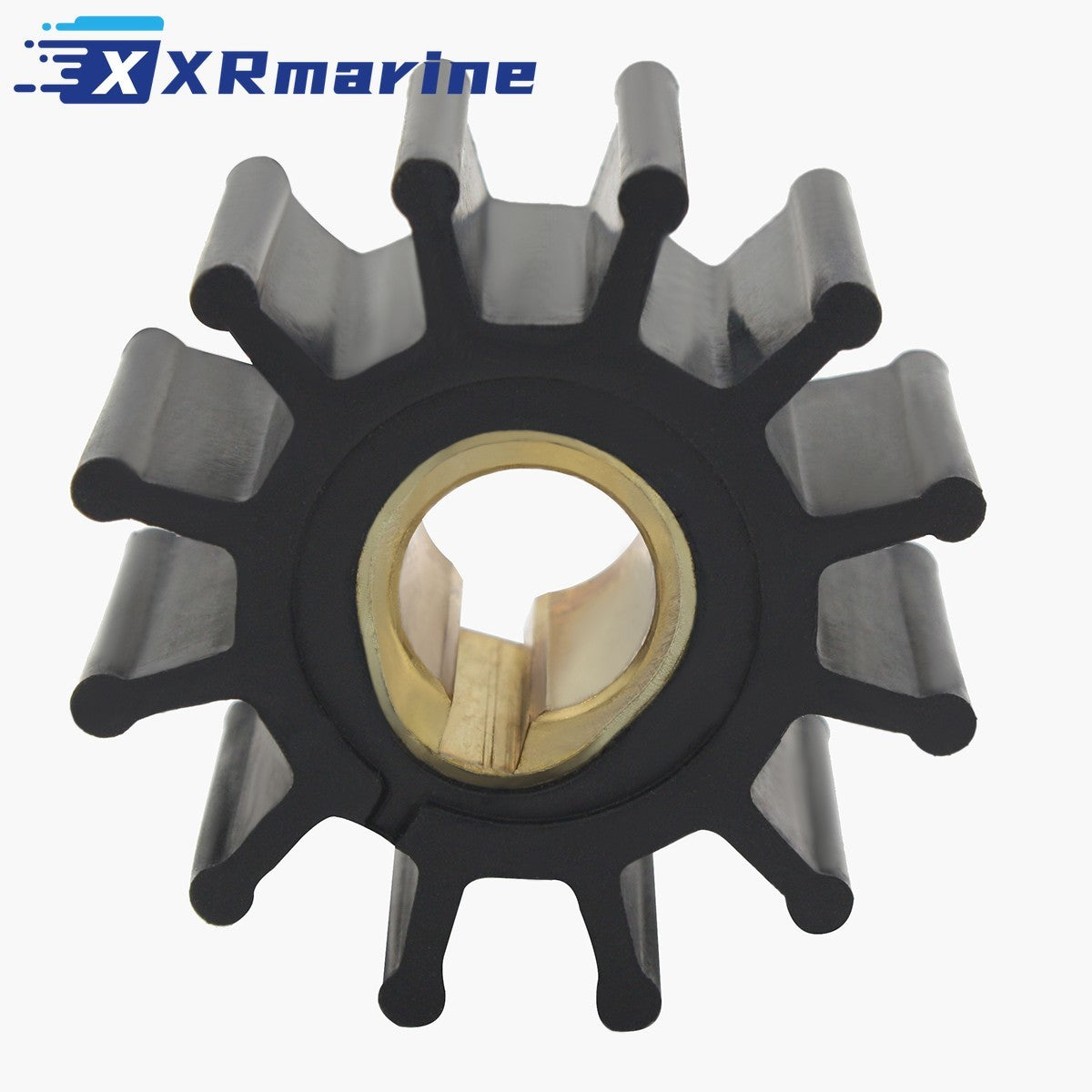

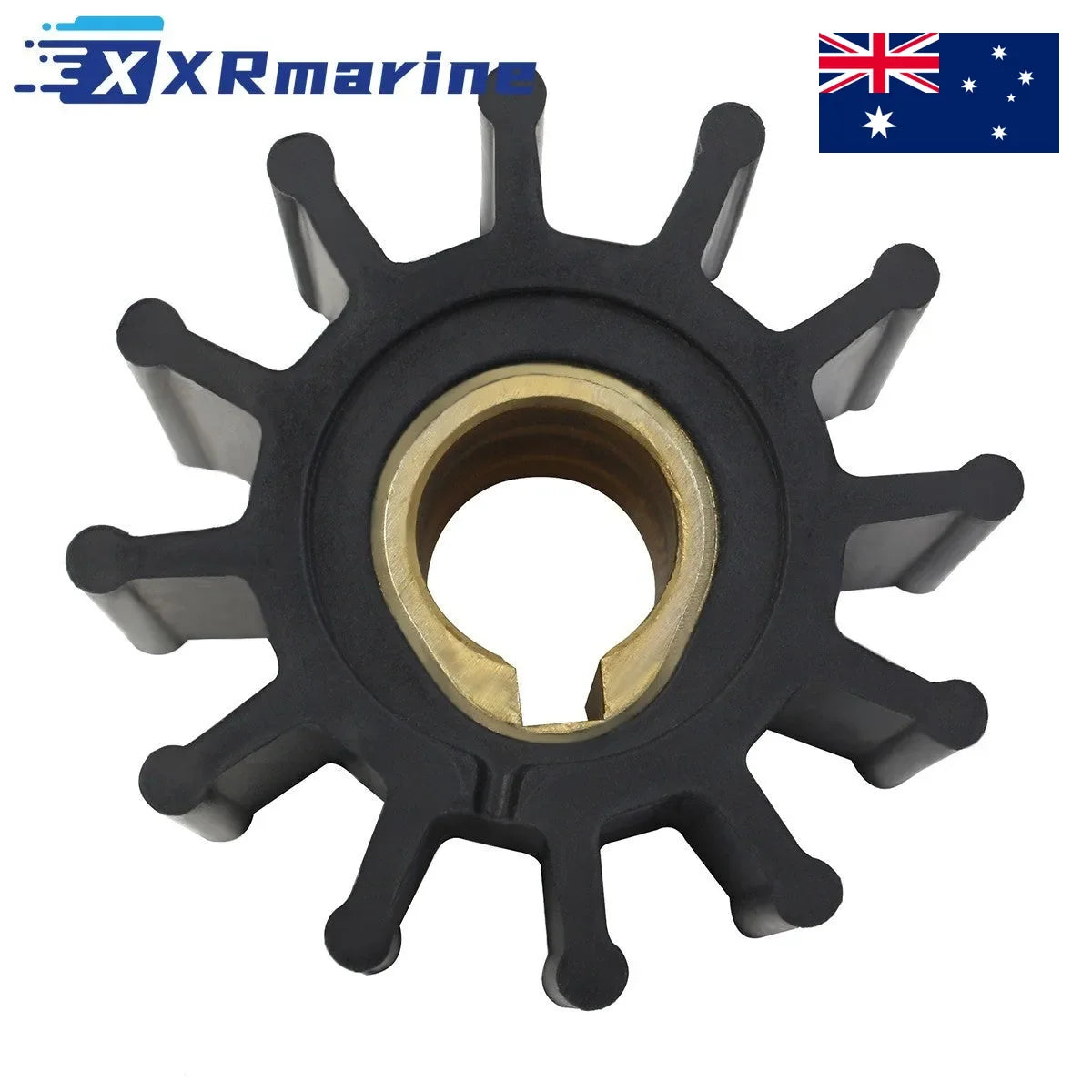

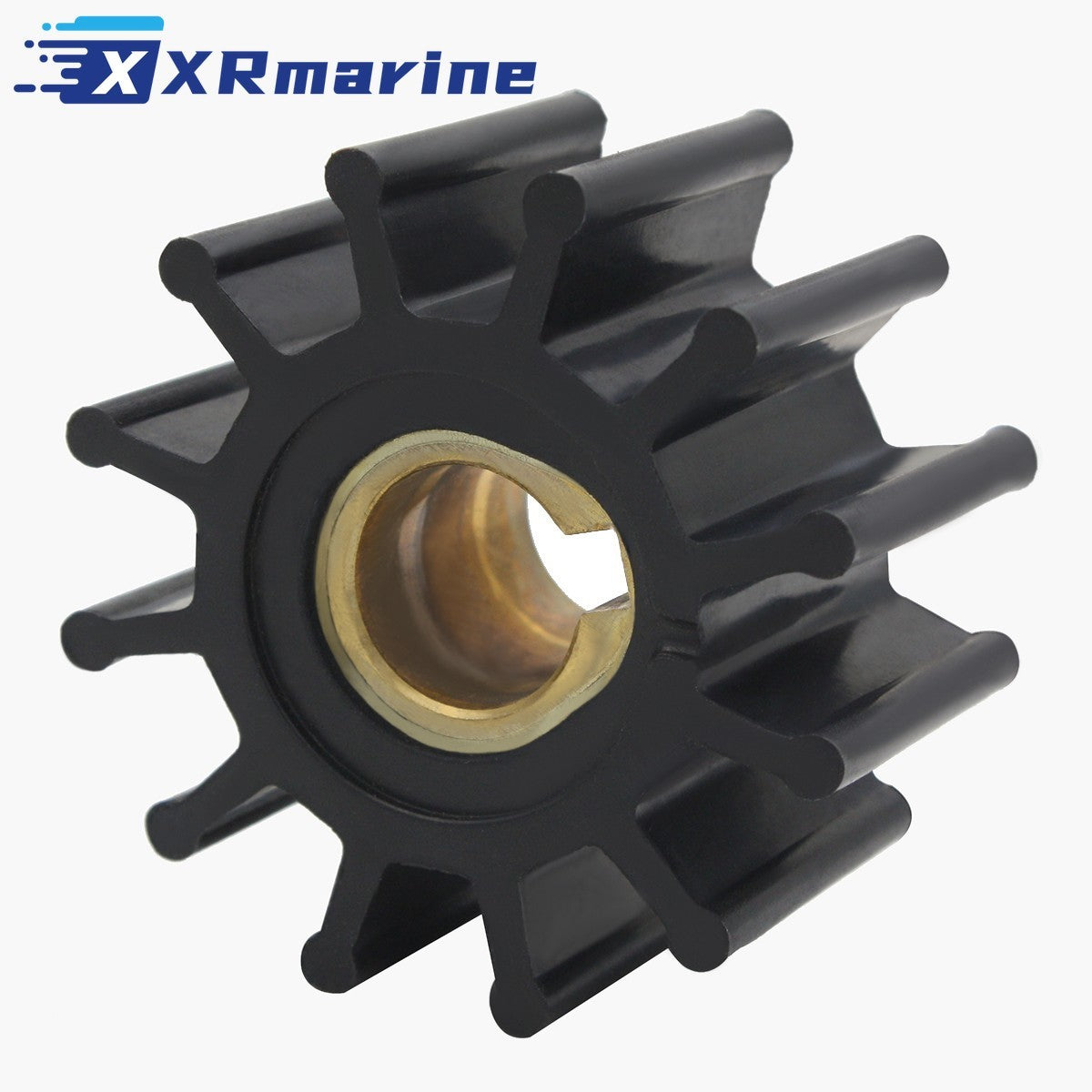

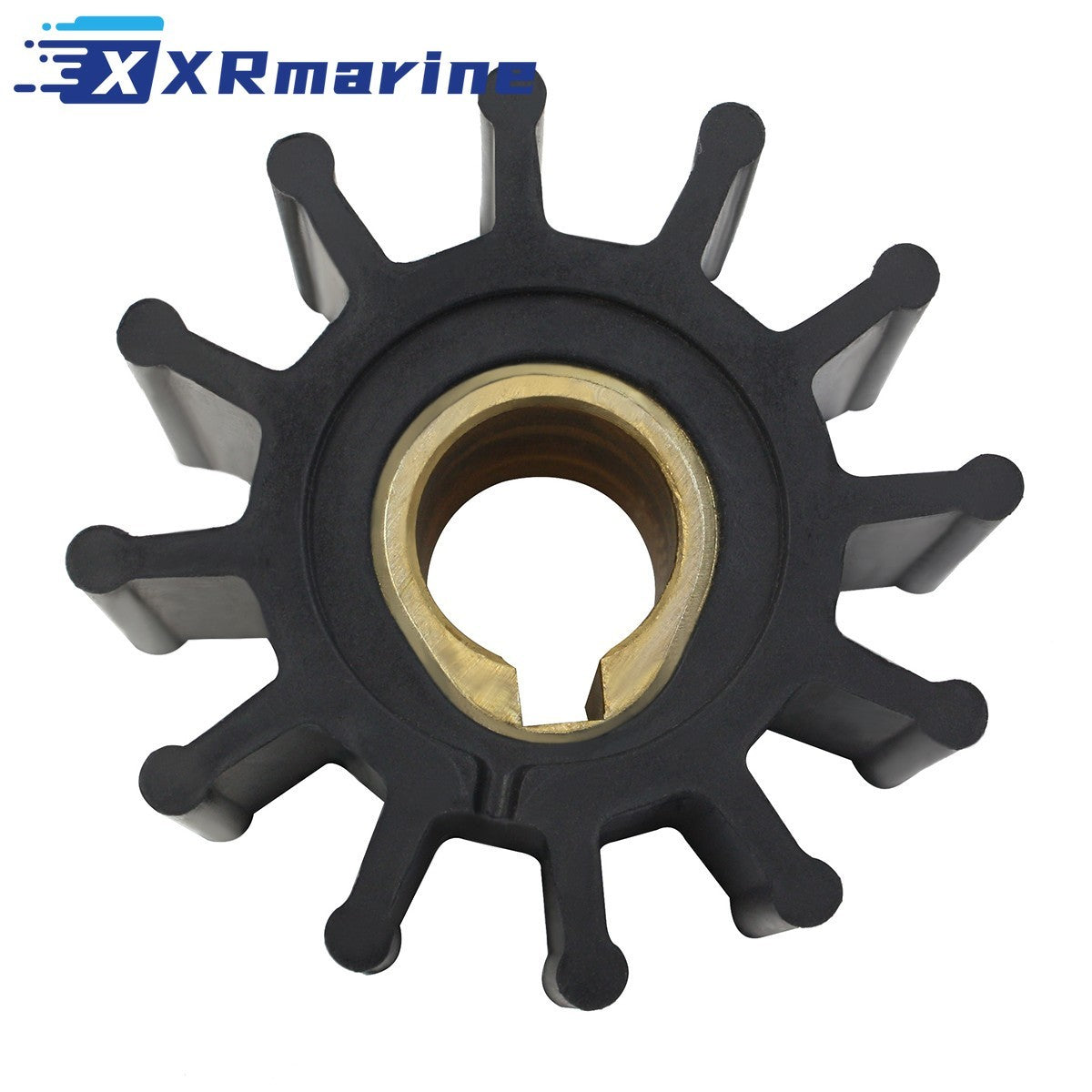

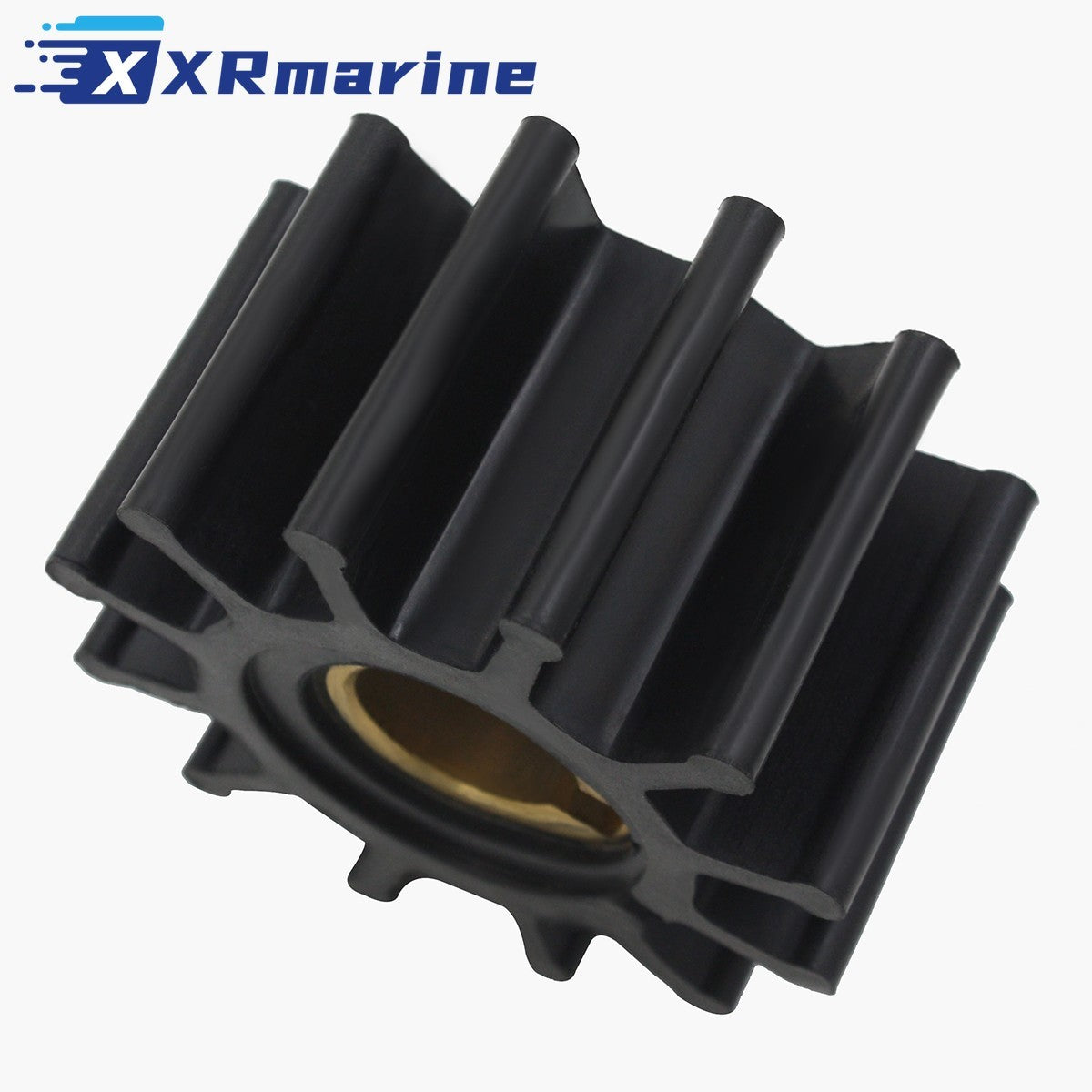

Water pump impeller for Yanmar, Volvo Penta, Jabsco, Johnson and Oberdorfer pumps, a 12 blade key drive neoprene impeller at 57 mm diameter, 31.5 mm width and 15.8 mm shaft diameter with a brass insert. It replaces Yanmar 145410-46090 and 145410-46050, Volvo 831182, 835182, 875573, 875575 and 21951350, Jabsco 4568-0001, 4568-0003 and 4568-0001P, and Johnson 09-801B. Dispatched from our Australia local warehouse.
The dimensions are what matter here rather than the number on the box. Several makers used this same 57 mm by 31.5 mm body with a 15.8 mm hub, and the cross reference below is long for that reason. If the old impeller is worn enough that the number has gone, measure it: twelve vanes, brass insert, and a keyed bore rather than a splined one.
On a raw water cooled diesel the impeller is also the cheapest early warning you get. Vanes that have taken a set will still pump at idle and stop pumping at cruising rpm, which shows up as a temperature gauge that climbs slowly over twenty minutes rather than an alarm that goes off.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Flexible water pump impeller |
| Drive Type | Key drive |
| Blade Count | 12 |
| Outside Diameter | 57 mm (2.24 in) |
| Width | 31.5 mm (1.24 in) |
| Shaft Diameter | 15.8 mm (0.63 in) |
| Insert Material | Brass |
| Material | Neoprene |
| Quantity | 1 impeller |
| Country of Origin | Taiwan |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Yanmar | 145410-46090, 145410-46050 |
| Volvo Penta | 831182, 835182, 875573, 875575, 21951350 |
| Jabsco | 4568-0001, 4568-0001-P, 4568-0001P, 4568-0003 |
| Johnson Pump | 09-801B |
| Oberdorfer | 6620, B6620, 8647 |
| Sierra | 18-3075 |
| GLM | 89530 |
| Mallory | 9-45701 |
| CEF | 500108 |
| DJ Pump | 08-22-1201 |
| Gray Marine | 74366 |
Compatible Engines
| Brand | Model | Pump |
|---|---|---|
| Volvo Penta | AQ131 | Pump 855517, 855578, 831178 |
| Volvo Penta | AQ140A to AQ170 | Pump 855517, 855578, 831178 |
| Volvo Penta | MD21, MD42 | Marine diesel raw water pump |
| Yanmar | 3QM | Marine diesel raw water pump |
| Yanmar | Raw water pump, 145410 family | Key drive pump |
| Oberdorfer | 301, 302, 303 M | Flexible impeller pump |
| Oberdorfer | 6620, B6620, 8647 | Flexible impeller pump |
| Jabsco | 4568-0001, 4568-0003 pump | Key drive pump |
| Johnson Pump | 09-801B pump | Key drive pump |
| Gray Marine | Lugger Six-226, Express Six-226, Six-186, Six-88 | Pump 75797 |
| Gray Marine | Phantom Six-112, Model 100, 109, 110, 116, 118, Six-104 | Pump 75797 |
Kit Contents
| Component | Qty |
|---|---|
| Flexible impeller, 12 blade neoprene, key drive | 1 |
Signs the Impeller Needs Changing
| Symptom | What It Points To |
|---|---|
| Temperature climbs slowly at cruise | Vanes set, reduced flow |
| Tell tale weak at idle | Impeller worn at the tips |
| Rubber in the strainer | Vanes breaking up, flush the block |
| No water after a layup | Dry neoprene with a permanent set |
| Impeller spins but nothing pumps | Key sheared or missing |
| Noise from the pump housing | Dry running, impeller and cam worn |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Close the sea cock and drain the pump |
| 2 | Remove the cover and note the vane direction |
| 3 | Pull the impeller out without prying on the housing face |
| 4 | Check the drive key and the shaft slot before fitting |
| 5 | Check the cam and cover plate for grooves |
| 6 | Fit the new impeller with the vanes folded the correct way |
| 7 | Fit a new gasket or O-ring, do not reuse the old one |
| 8 | Open the sea cock and check flow before the boat goes out |
What's Included
| Component | Qty |
|---|---|
| Water pump impeller, 12 blade | 1 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Australia
| Destination | Warehouse | Note |
|---|---|---|
| Australia | Australia local warehouse | Domestic delivery, no import duty |
| New Zealand | Australia local warehouse | Short transit, customs may apply |
| Asia Pacific | Australia local warehouse | Tracked air and sea options |
Before You Buy
- Find the number on the pump body or the old impeller before ordering
- Confirm the bore is keyed, a splined impeller will not fit this pump
- Measure the old impeller, 57 mm diameter, 31.5 mm wide, 15.8 mm hub
- Check the drive key, a sheared key stops the pump with a good impeller
- This listing is the impeller only, not a complete kit or a pump
- Order the gasket or O-ring at the same time if yours is hard
- 30-Day Easy Returns
- Ships from our Australia local warehouse
