Product Overview

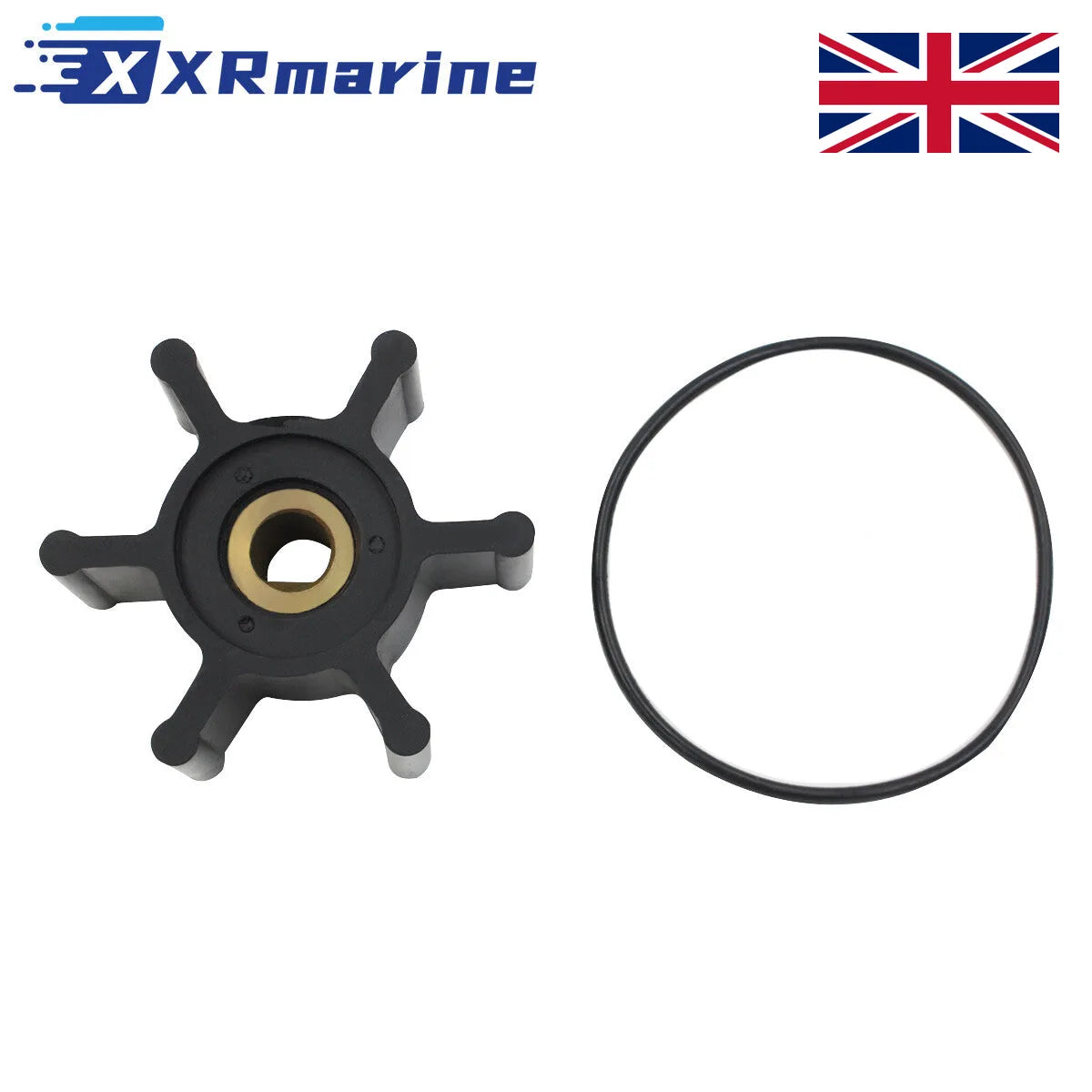

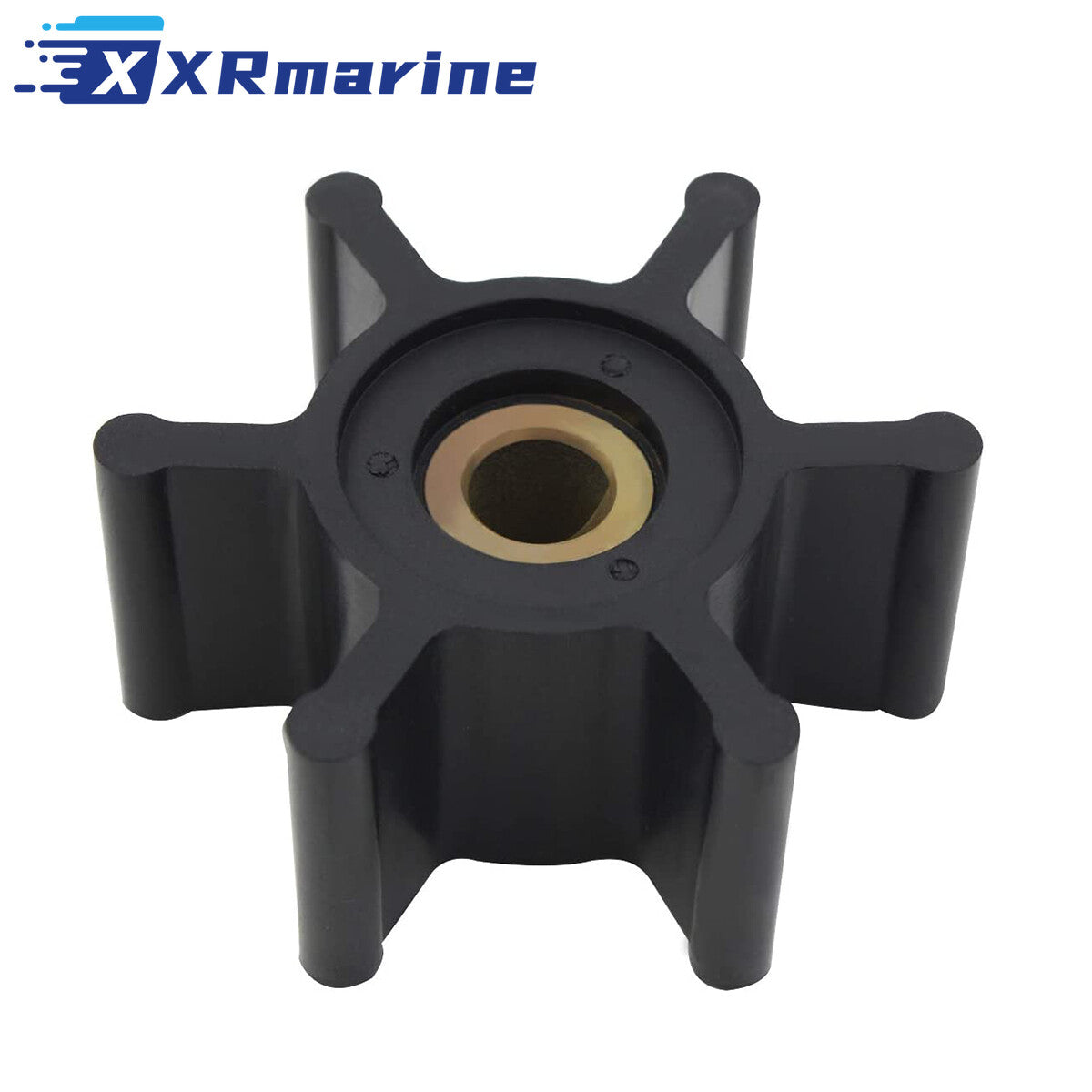

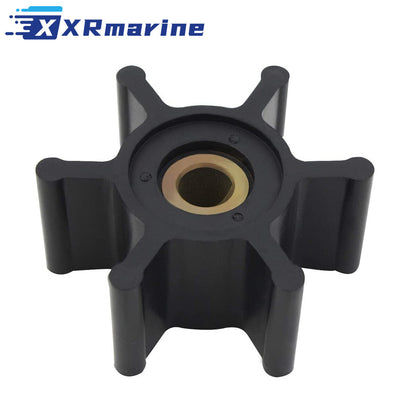

Flexible impeller kit, 6 blades, 51 mm diameter by 22 mm wide, 8 mm shaft bore, with the cover O-ring in the box. It replaces Jabsco 6303-0003, Johnson 09-824P, Yanmar 124223-42092 and Oberdorfer 7482, and fits pumps sold as Sierra 18-30005, Vetus IMP00101, CEF 500210, Ancor J050016 and Milwaukee 49-16-2771. The impeller is H-157. Held in our United Kingdom local warehouse.
The single biggest use for this one in the UK is the electric toilet. A Jabsco or TMC pump head running on a 51 mm impeller, usually blamed for a bowl that will not empty, and usually fixed by this part rather than by a new toilet.
Narrowboats and river cruisers are harder on these pumps than sea boats are. River water carries silt that scours the cover plate, and a pump that runs dry even once will spin the brass insert and finish the impeller in seconds. Both faults show up as weak flow long before the pump stops working.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Flexible impeller kit |
| Drive Type | Single flat drive |
| Blades | 6 |
| Diameter | 51 mm (2 in) |
| Width | 22 mm (7/8 in) |
| Shaft Diameter | 8 mm (5/16 in) |
| Material | Neoprene |
| Insert | Brass |
| Kit Parts | H-157 impeller, O-ring 1.8 x 50 mm inside diameter |
| Country of Origin | Taiwan |
Cross Reference
| Brand | Part Numbers |
|---|---|
| Jabsco | 22799-0001P, 6303-0003, 6303-0001, 7273-0001 |
| Johnson / Evinrude | 09-824P, 09-824P-9, 09-824B |
| Yanmar | 124223-42092, 124323-42091, 128296-42070, 14242-050 |
| Milwaukee | 49-16-2771, 49162771 |
| Ancor | J050016 |
| Vetus | IMP00101 |
| Oberdorfer | 7482, 6617, 7885 |
| JMP | 7053-01 |
| CEF | 500210 |
| Sierra | 18-30005 |
| Albin | 06-01-007 |
Compatible Engines
| Brand | Pump or Machine | Note |
|---|---|---|
| Jabsco | Pump 6303-0003, 6303-0001, 7273-0001 | Small body, 51 mm impeller |
| Jabsco | 37101 series electric toilet | Toilet pump head, the common UK use |
| Johnson | Pump 09-824P, 09-824P-9, 09-824B | Johnson and Evinrude pump family |
| Yanmar | Seawater pump 124223-42092, 124323-42091 | Small diesel raw water pump |
| Yanmar | 128296-42070, 14242-050 | Same impeller, other application numbers |
| Milwaukee | M18 transfer pump 2771-20 | Cordless transfer pump |
| Oberdorfer | Pump 7482, 6617, 7885 | Oberdorfer pump numbers |
| Vetus | Pump IMP00101 | Vetus cooling pump |

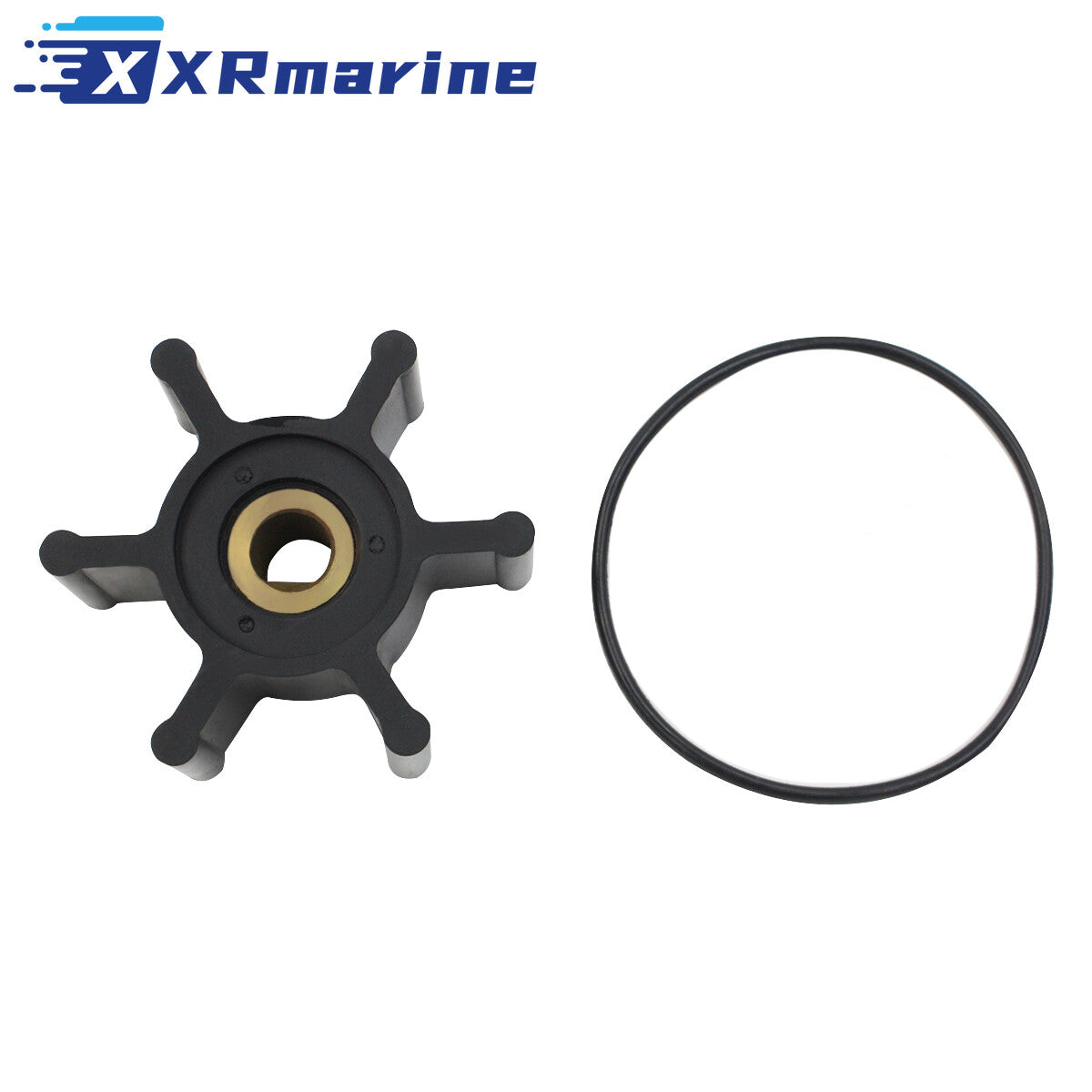

What's Included
| Component | Qty |
|---|---|
| Flexible impeller H-157 | 1 |
| Cover O-ring, 1.8 x 50 mm inside diameter | 1 |
Toilet Pump Check
| Symptom | Cause | Fix |
|---|---|---|
| Bowl empties slowly | Worn or set blades | Fit this impeller |
| Pump runs, no water moves | Brass insert spinning on the shaft | Check the shaft flat, fit new impeller |
| Water drains back into the bowl | Joker valve, not the impeller | Fit a joker valve |
| Pump screeches | Running dry | Check the inlet and the seacock |
| Leak from the pump cover | Flat O-ring | The O-ring is in this kit |
| Rubber pieces in the bowl | Impeller breaking up | Fit new impeller and flush the line |
Winter Drain Down
| Step | Action |
|---|---|
| 1 | Close the seacock or the intake valve |
| 2 | Run the pump dry briefly to clear the body |
| 3 | Remove the cover and take the impeller out for storage |
| 4 | Inspect the cover plate and cam for scoring while it is open |
| 5 | Fit a new impeller and O-ring in spring, not the old one |
| 6 | Open the valve and check flow before the first trip |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from the United Kingdom
| Destination | Warehouse | Note |
|---|---|---|
| United Kingdom | UK local warehouse | Domestic delivery, no import duty |
| Ireland | UK local warehouse | Short transit, customs may apply |
| Channel Islands, Isle of Man | UK local warehouse | Check local customs before ordering |
Before You Buy
- Check the number on the old impeller or on the pump cover
- Measure the old part, 51 mm body, 22 mm wide, 8 mm shaft
- Look at the shaft flat, a rounded flat needs a shaft not an impeller
- Toilet trouble with water running back is usually the joker valve
- Use glycerine or soap to lubricate, never grease or oil
- This is the impeller and O-ring, the pump body is not included
- 30-Day Easy Returns
- Ships from our UK local warehouse
