Lower Unit Drain Screw Gasket 90430-08020 for Yamaha Outboard Sterndrive 20 Pack Red Fibre — Australia Local Warehouse
Lower Unit Drain Screw Gasket 90430-08020 for Yamaha Outboard Sterndrive 20 Pack Red Fibre — Australia Local Warehouse
Product Overview

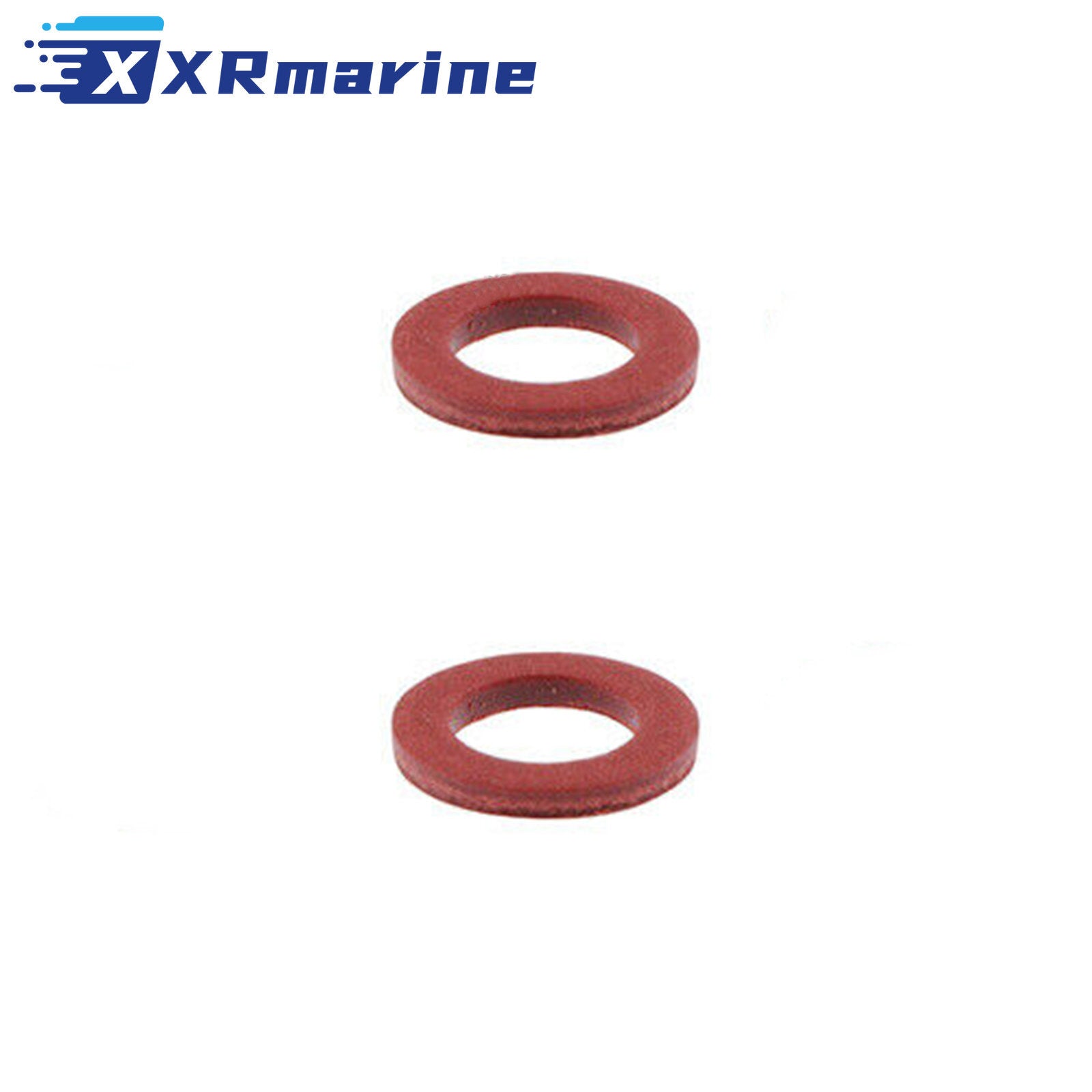

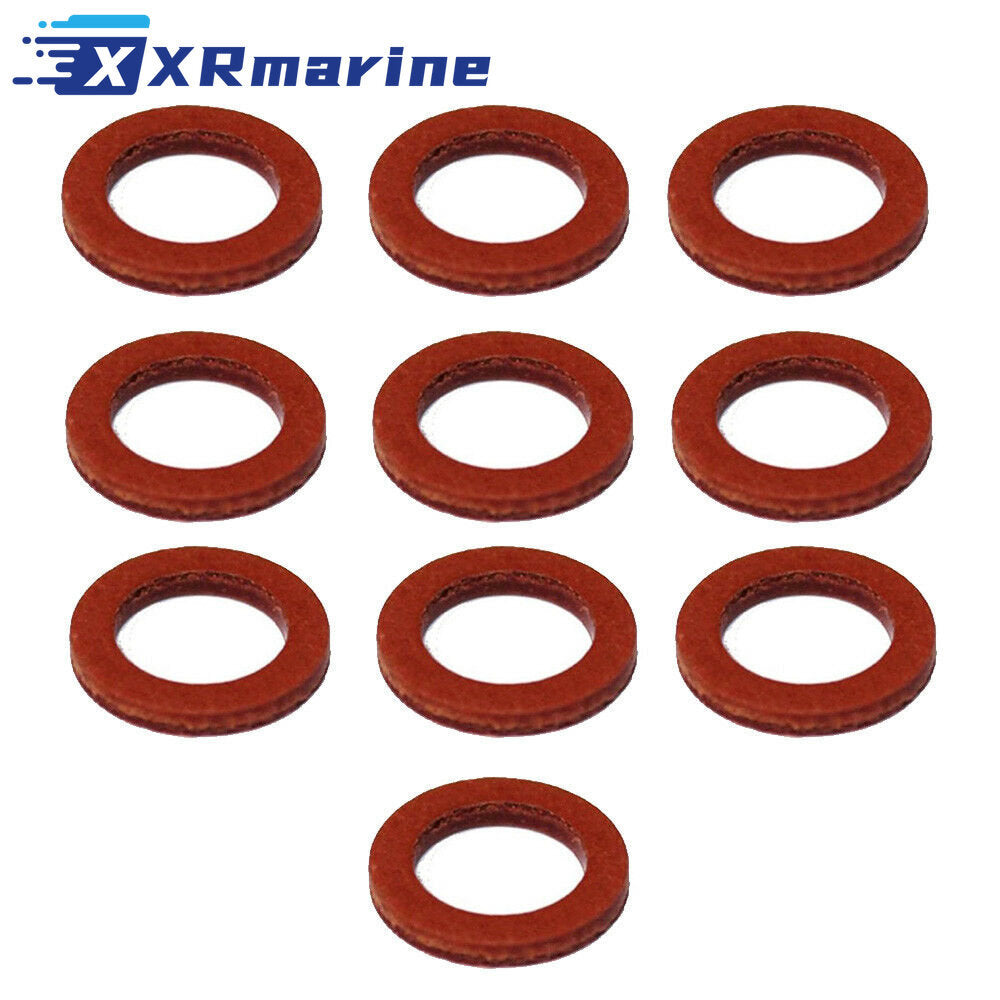

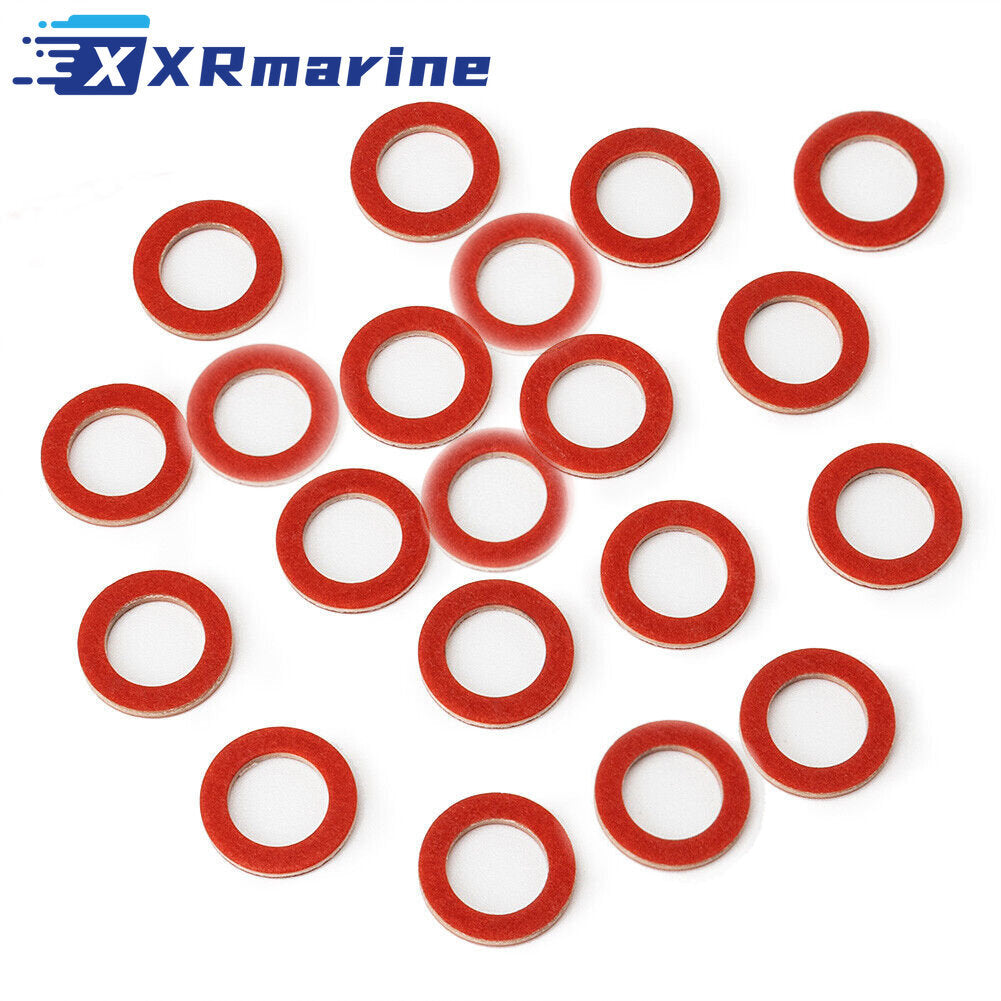

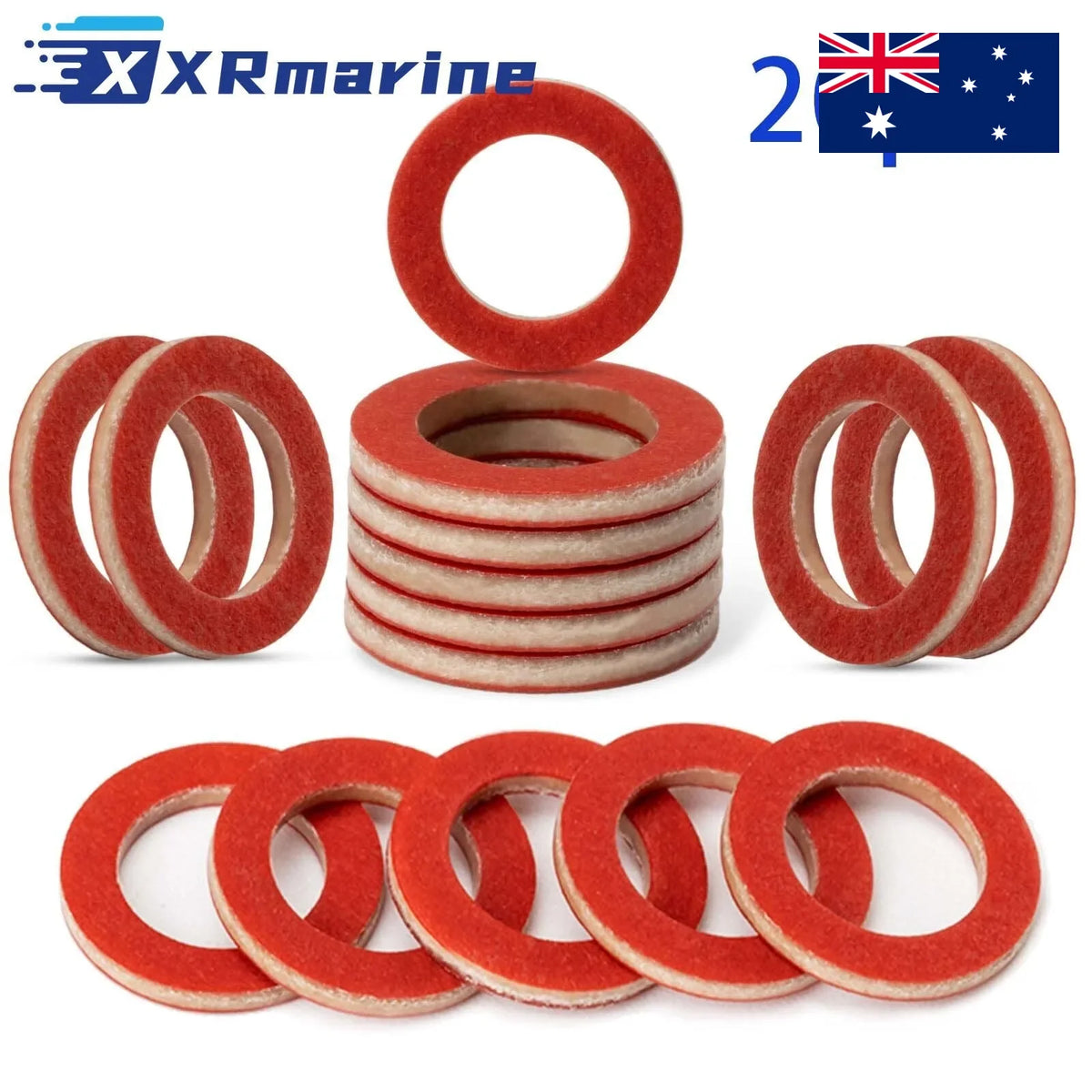

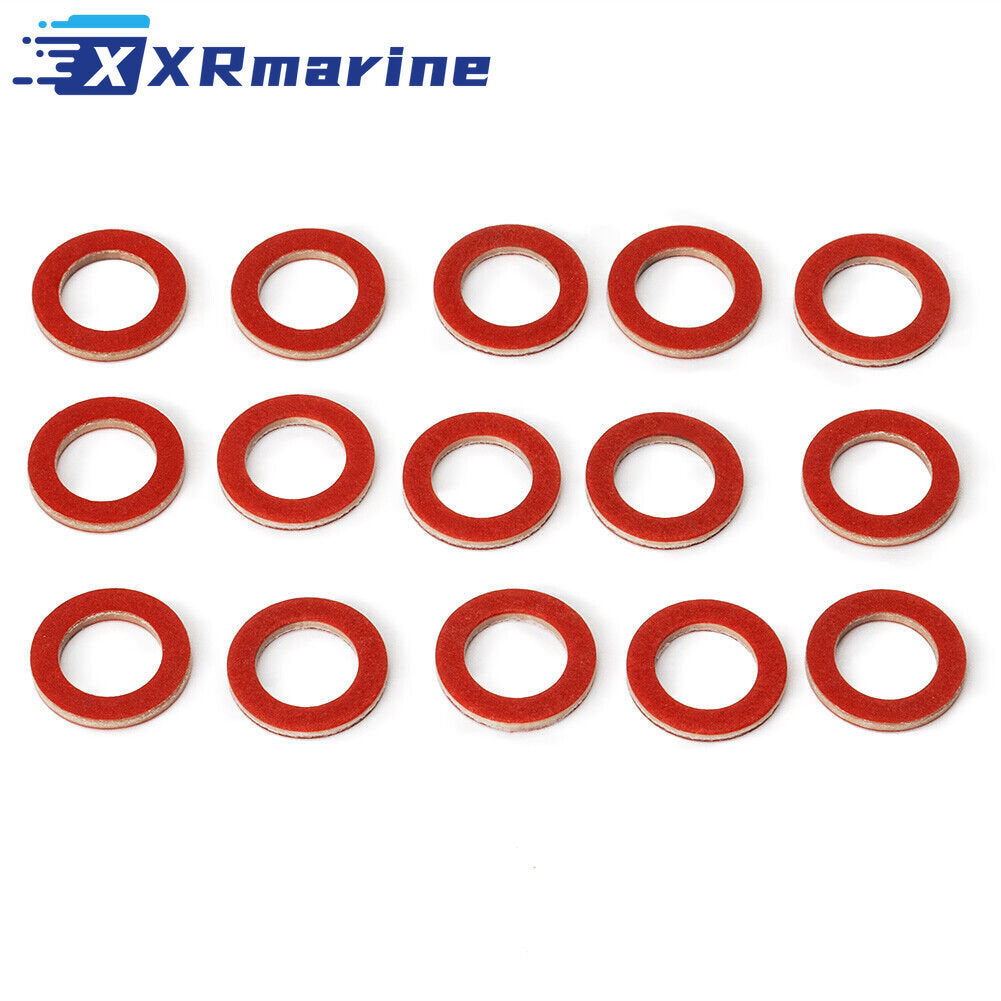

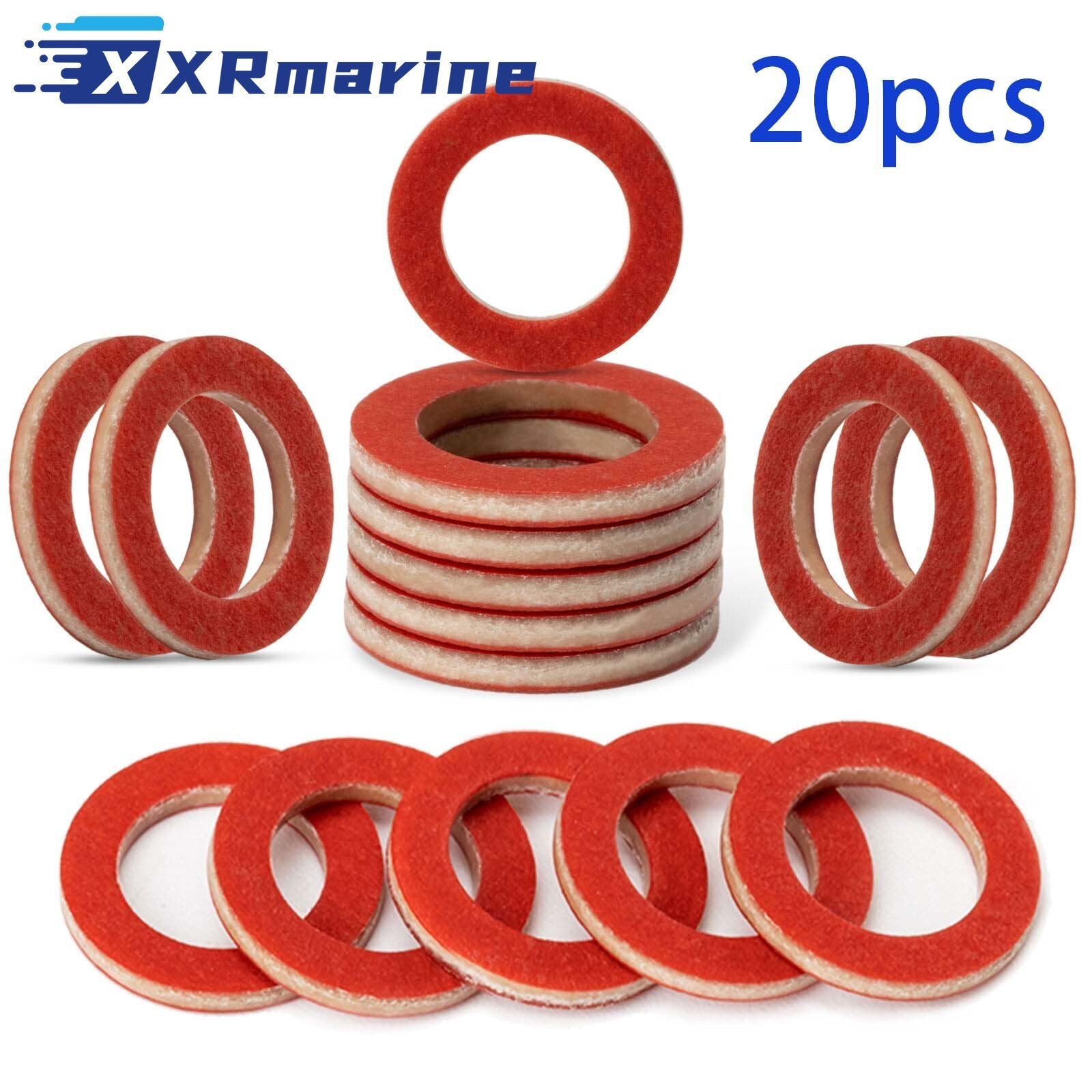

Lower unit drain screw gasket kit for Yamaha outboards, sterndrives and Waverunner gearcases from 2 HP to 300 HP, supplied as 20 red fibre washers. They replace Yamaha 90430-08020, 90430-08020-00, 90430-08003, 90430-08003-00, 90430-08801-00 and 604-45342-00-00, and cross to Sierra 18-4698. Dispatched from our Australia local warehouse.
These are crush washers, not rubber O-rings. They seal once, and the moment the drain or fill screw is cracked open the old one is spent. Refitting a used washer is the single most common reason a Yamaha gearcase leaves an oil film on the skeg a week after a service.
A pack of 20 is about ten oil changes, which is roughly five seasons of gear lube work on one motor. Most owners buy a box once and stop thinking about it, which is the point: it is a part that costs almost nothing and ruins a day on the water when it is missing.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Drain plug gasket kit |
| Engine | Yamaha outboard, sterndrive and Waverunner |
| Horsepower Range | 2 HP to 300 HP |
| Years | 1990-2022, see fitment below |
| Colour | Red |
| Material | Fibre washer |
| Quantity | 20 gaskets |
| Shipping Weight | 14 g |
| Packaging Size | 10 x 8 x 3 cm (3.9 x 3.1 x 1.2 in) |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Yamaha | 90430-08020, 90430-08020-00 |
| Yamaha | 90430-08003, 90430-08003-00 |
| Yamaha | 90430-08801-00, 604-45342-00-00 |
| Sierra | 18-4698 |
Compatible Engines
| Application | Displacement | Years |
|---|---|---|
| Yamaha Waverunner | Boat drives | 1987-2016 |
| Yamaha sterndrive, inline 4 | 3.0 L 181 CID | 1993 |
| Yamaha sterndrive, V6 | 4.3 L 262 CID | 1989-1990 |
| Yamaha sterndrive, V8 small block | 5.0 L 305 CID | 1989-1990 |
| Yamaha sterndrive, V8 small block | 5.7 L 357 CID | 1989-1990 |
| Yamaha sterndrive, V8 big block | 7.4 L 454 CID | 1992 |
What's Included
| Component | Qty |
|---|---|
| Drain plug gasket, red fibre | 20 |
Where They Go
| Screw | Location | Note |
|---|---|---|
| Drain screw | Bottom of the gearcase | Always crack the fill or vent first |
| Fill or vent screw | Upper gearcase | Same washer, same part number |
| Waverunner pump | Jet pump drain | Check the same washer fits before use |
Gear Oil Change Checklist
| Step | Action |
|---|---|
| 1 | Run the motor briefly, then let the gearcase settle |
| 2 | Crack the vent screw before the drain screw |
| 3 | Drain into a clean tray and look for water or metal |
| 4 | Fit a new washer on the drain screw and refit it |
| 5 | Pump oil in through the drain until it reaches the vent hole |
| 6 | Fit a new washer on the vent screw and torque to a firm seat |
| 7 | Recheck both screws for weeping after the first run |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Australia
| Destination | Warehouse | Note |
|---|---|---|
| Australia | Australia local warehouse | Domestic delivery, no import duty |
| New Zealand | Australia local warehouse | Short transit, customs may apply |
| Asia Pacific | Australia local warehouse | Tracked air and sea options |
Before You Buy
- Check the screw is a Yamaha drain or fill screw, not an aftermarket replacement
- Always fit a fresh washer after cracking a screw open
- Wipe the sealing face clean, one grain of sand causes a weep
- Do not overtighten, the alloy gearcase strips before the washer seats
- This is the washer pack only, screws and gear oil are not included
- Keep the box in the toolbox, the next change will need two more
- 30-Day Easy Returns
- Ships from our Australia local warehouse
