Water Pump Impeller Kit 6G1-W0078-A1 for Yamaha 6 8 HP Outboard Mariner Sierra 18-3460 6N0-W0078-A0 — Australia Local Warehouse
Water Pump Impeller Kit 6G1-W0078-A1 for Yamaha 6 8 HP Outboard Mariner Sierra 18-3460 6N0-W0078-A0 — Australia Local Warehouse
Product Overview
Water pump impeller kit, a complete pump service part for Yamaha 6 HP and 8 HP two-stroke outboards and for the Mariner 6 HP and 8 HP motors built on the same powerhead, supplied as 8 components with a net weight of 46 g. It replaces Yamaha 6G1-W0078-00, 6G1-W0078-01 and 6G1-W0078-A1, the short kit 6N0-W0078-A0, and Sierra 18-3460. Held in our Australia local warehouse.

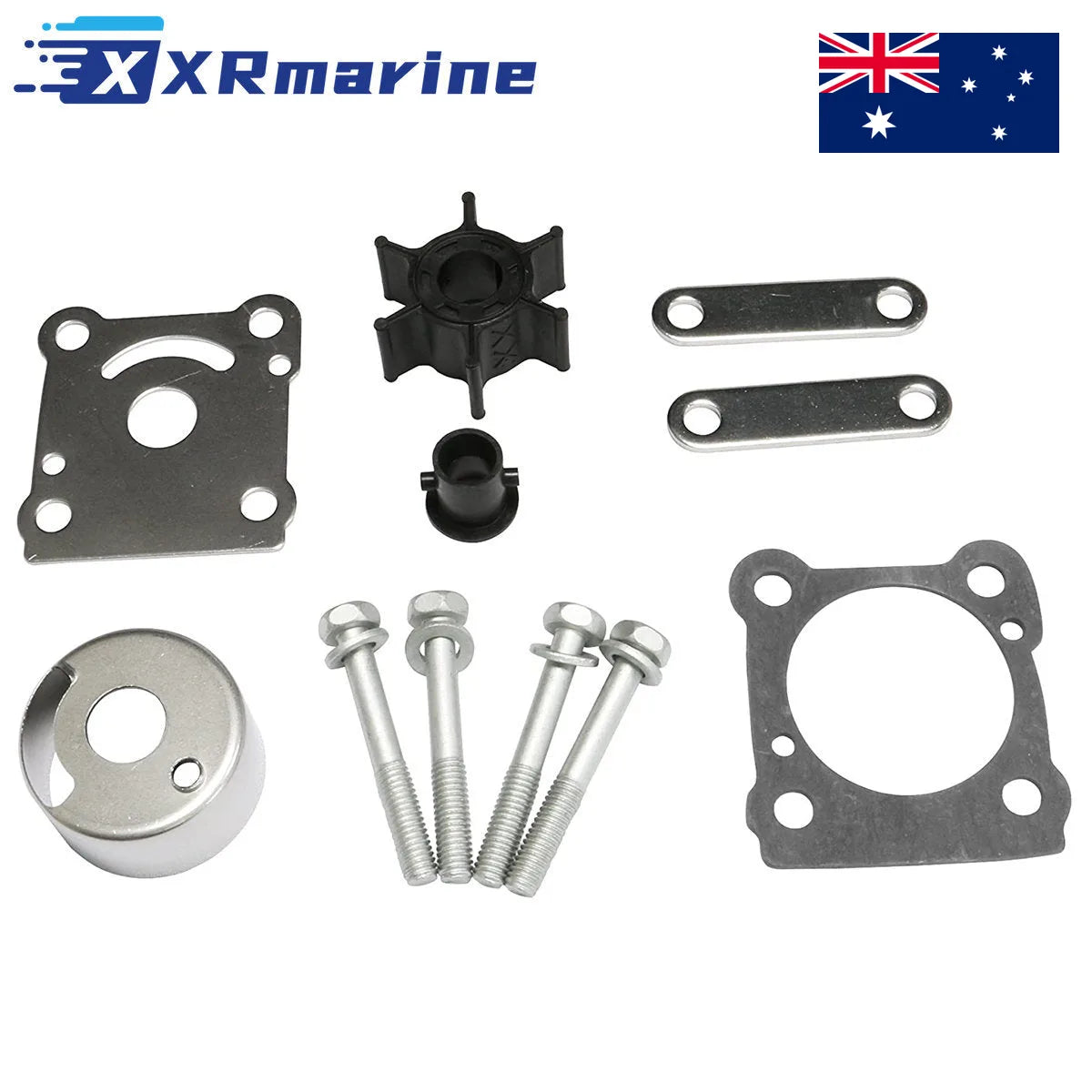

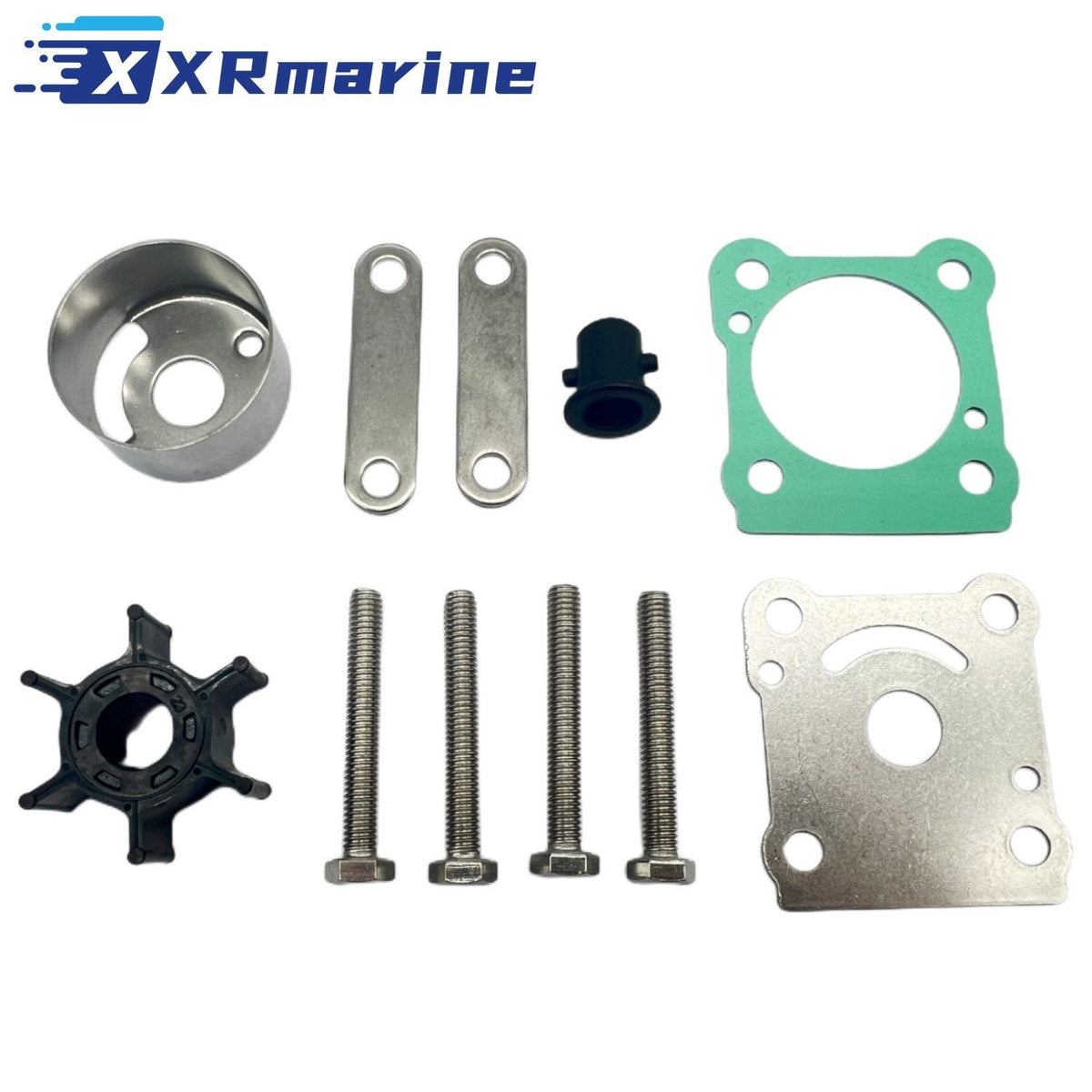

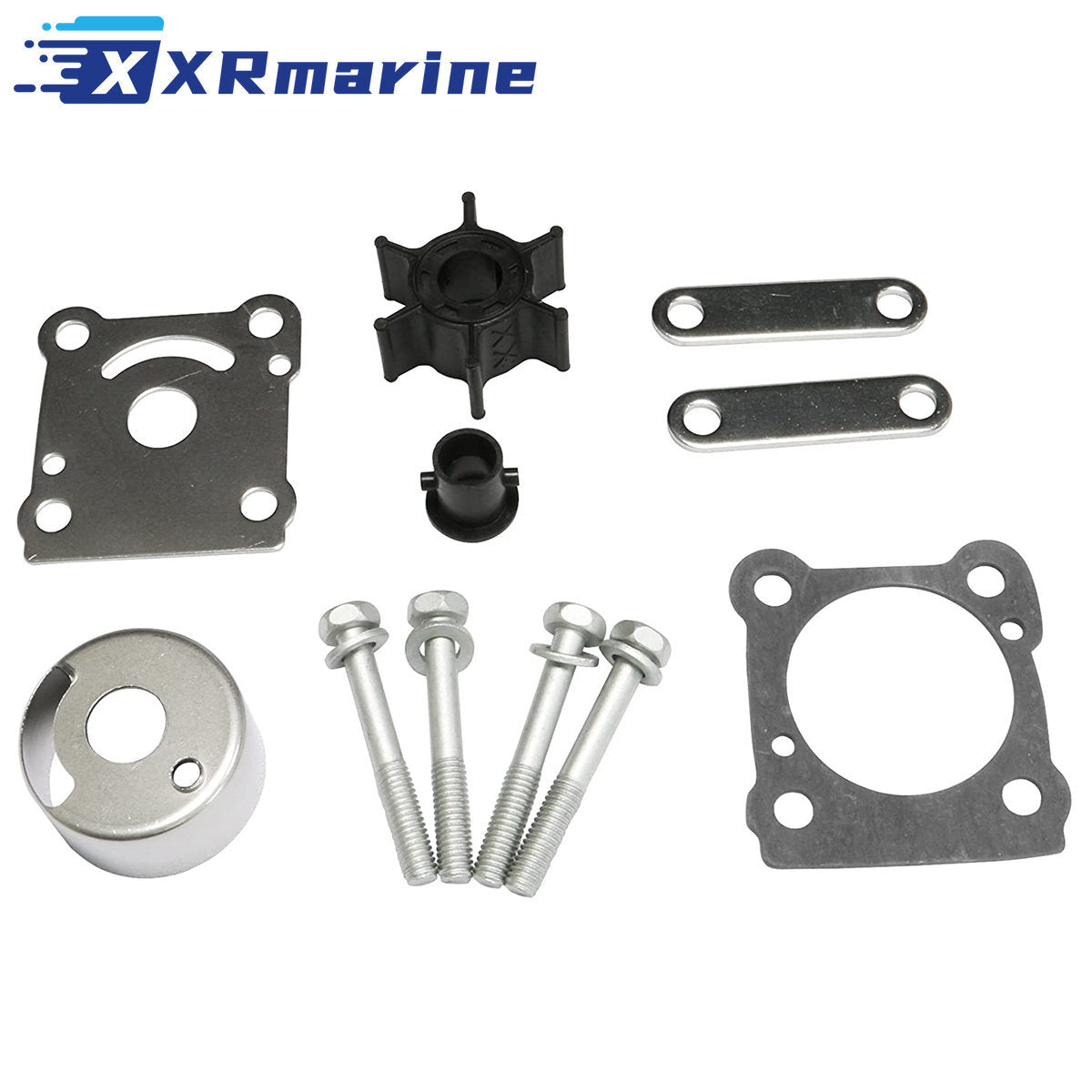

The kit is built around the impeller 6G1-44352-00 and carries everything else the pump needs except the housing: the cartridge insert, the cartridge outer plate, two wear plates, the gasket, the water seal and the 4 housing bolts.
On a 6 HP or 8 HP motor the pump is asked to work at displacement speed almost all the time. There is no planing run to force water through, so a tired impeller shows up as a weak telltale at idle long before the engine overheats.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Water pump impeller service kit |
| Engine Type | Yamaha and Mariner two-stroke outboards |
| Horsepower | 6 HP and 8 HP (6HP, 8HP) |
| Impeller Part Number | 6G1-44352-00, Sierra 47-11590M |
| Components | 8 items, see list below |
| Net Weight | 46 g |
| Country of Origin | Taiwan |
| Quantity | 1 complete kit |
OEM Cross Reference
| Reference | Part Numbers |
|---|---|
| Yamaha pump kit | 6G1-W0078-00, 6G1-W0078-01 |
| Yamaha pump kit | 6G1-W0078-A1 |
| Yamaha short kit | 6N0-W0078-A0 |
| Sierra | 18-3460 |
| Yamaha impeller | 6G1-44352-00 |
| Sierra impeller | 47-11590M |
| Yamaha cartridge insert | 6G1-44322-00 |
| Yamaha cartridge outer plate | 6G1-44323-00 |
| Yamaha wear plate | 6G1-44328-00 |
Compatible Engines
| Brand | Horsepower | Years |
|---|---|---|
| Yamaha | 6 HP | 1988-2000 |
| Yamaha | 8 HP | 1984 and later |
| Mariner | 6 HP | 1984-1986 |
| Mariner | 8 HP | 1984-1986 |
| Mariner | 8 HP | 2002-2006 on the later 8M suffix models |
Assembly Components
| Component | Qty | Part Number |
|---|---|---|
| Impeller | 1 | 6G1-44352-00 |

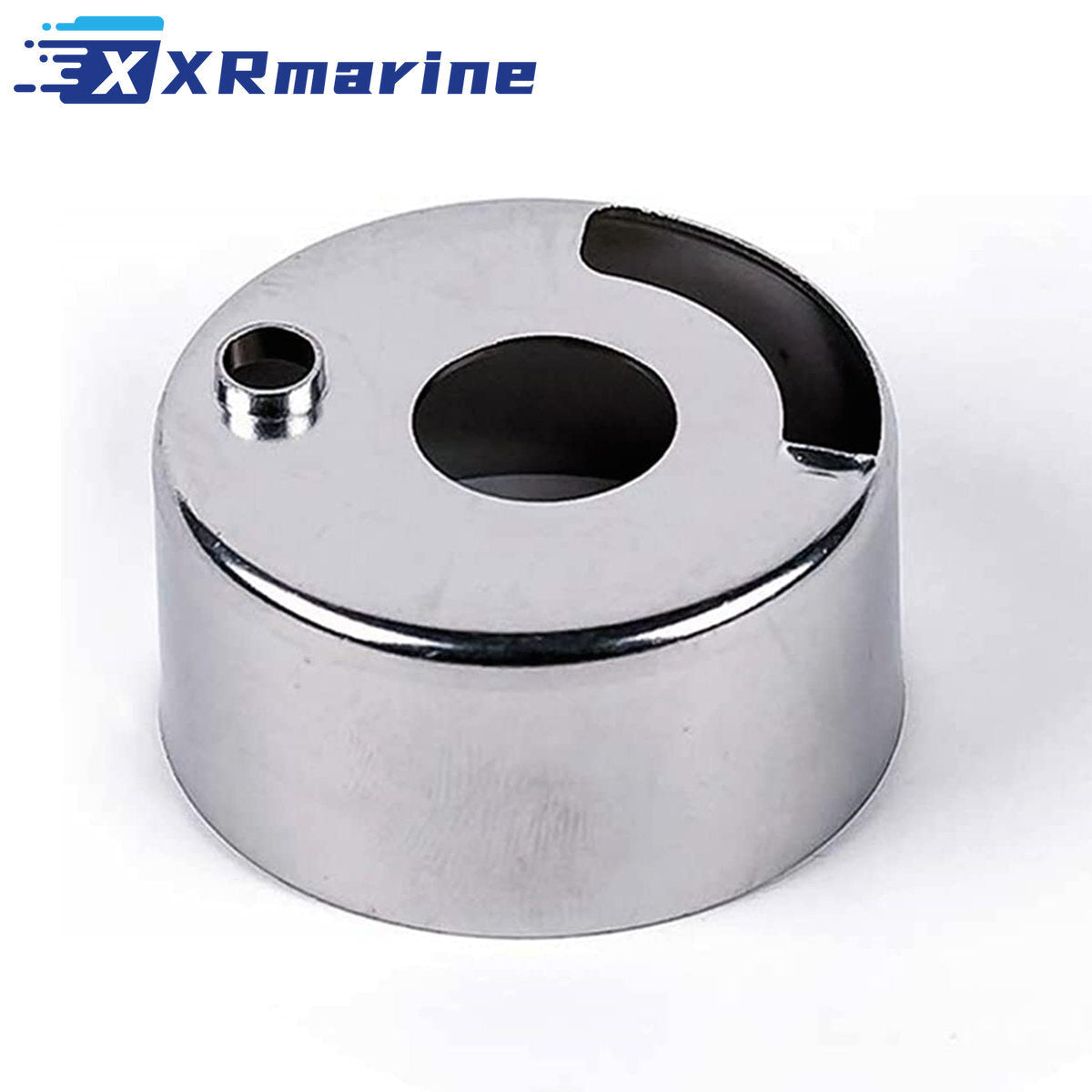

| Cartridge insert | 1 | 6G1-44322-00 |
| Cartridge outer plate | 1 | 6G1-44323-00 |

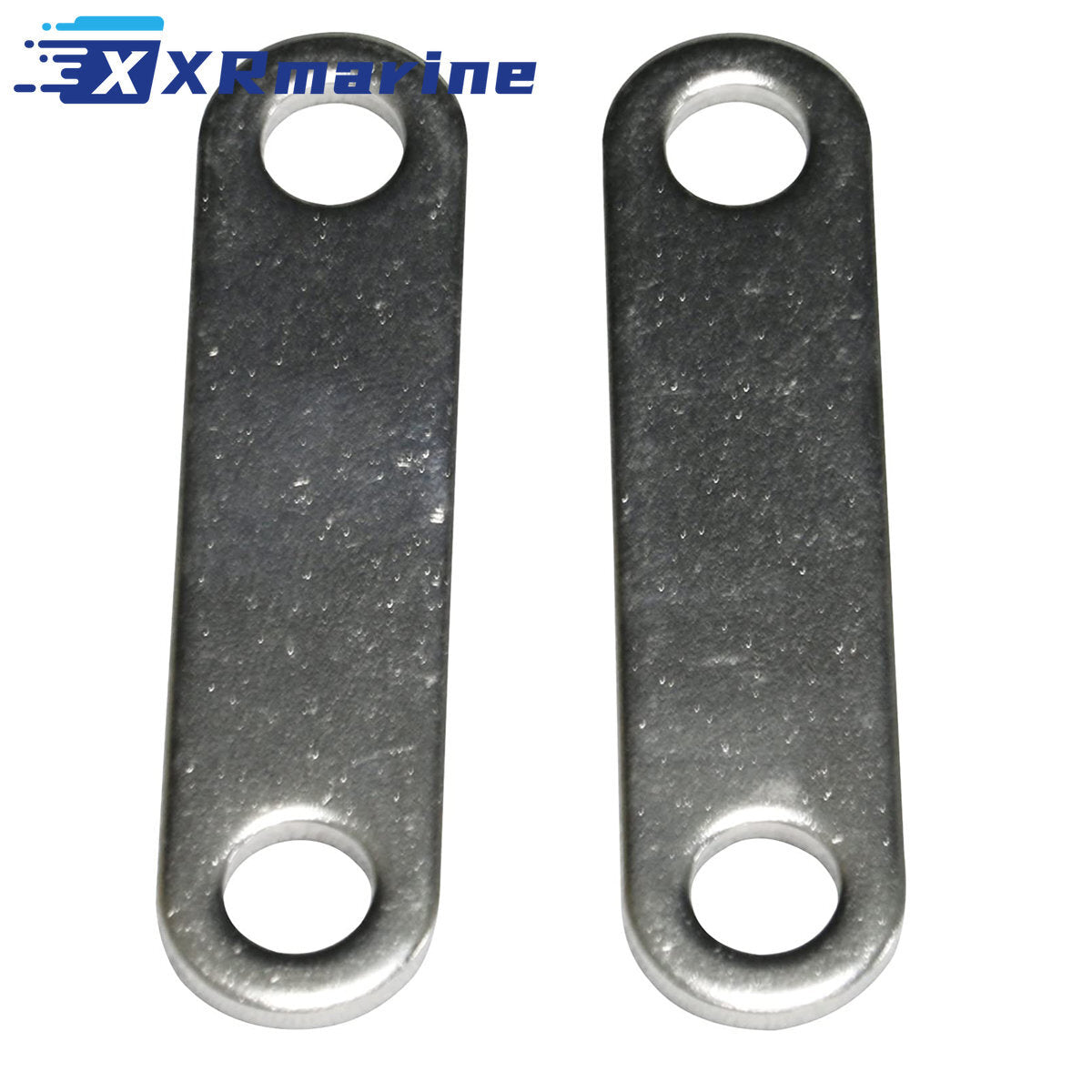

| Wear plate | 2 | 6G1-44328-00 |
| Water pump gasket | 1 | Not published |
| Water seal | 1 | Not published |
| Housing bolt | 4 | Not published |
What's Included
| Component | Qty |
|---|---|
| Water pump gasket | 1 |
| Cartridge insert | 1 |
| Cartridge outer plate | 1 |
| Impeller | 1 |
| Water seal | 1 |
| Wear plate | 2 |
| Hexagon housing bolt | 4 |
Sand, Heat and the Australian Season
| What Happens Here | What It Does to the Pump | What to Do |
|---|---|---|
| Motor run up a sand bank at low tide | Sand scores the impeller tips and the housing liner | Flush and inspect, fit the kit if the tips are worn |
| Shallow estuary with a silt bottom | Abrasive water polishes the wear plates | Two new wear plates are in the kit |
| Boat left on the trailer for the dry season | Blades take a set and lose their curve | Fit a new impeller before the first trip back |
| Summer water temperature over 30 C | Overheating gives little warning at low speed | Check the telltale every trip |
| Motor tilted up for weeks at the ramp | Water drains out, seal dries and weeps | New water seal with the kit |
| Housing bolts corroded from salt air | They round off or snap on removal | Four new bolts supplied |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Check the model suffix and year against the table, the 6 and 8 HP pumps changed across the model runs |
| 2 | Compare the old impeller with 6G1-44352-00, the 4 and 5 HP engines use a different pump |
| 3 | Drain the gearcase and note the blade direction as the housing lifts off |
| 4 | Check the plastic housing for scoring, a grooved housing will wear the new impeller in a season |
| 5 | Lubricate the impeller with glycerine and turn the shaft clockwise as the pump goes back together |
| 6 | Torque the 4 housing bolts evenly, an uneven housing will not hold prime at idle |
| 7 | Run the engine on muffs and check the telltale before leaving the ramp |
| 8 | Flush the motor with fresh water after every saltwater trip |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Australia
| Destination | Warehouse | Note |
|---|---|---|
| Australia | Australia local warehouse | Domestic delivery, no import duty |
| New Zealand | Australia local warehouse | Short transit, customs may apply |
| Asia Pacific | Australia local warehouse | Tracked air and sea options |
Before You Buy
- Check the engine model suffix and year against the table above, the 6 and 8 HP pumps changed across the model runs
- Compare the old impeller with 6G1-44352-00 before fitting, the 4 and 5 HP engines use a different pump
- Inspect the plastic housing for scoring, a grooved housing will wear the new impeller in a season
- Lubricate the impeller with glycerine and turn the shaft clockwise as the pump goes back together
- Torque the 4 housing bolts evenly, an uneven housing will not hold prime at idle
- This is the pump kit, the plastic housing itself is not included
- 30-Day Easy Returns
- Ships from our Australia local warehouse
