Thermostat 5005440 for Johnson Evinrude Outboard Motor 9.9 15 6-55 HP 40-250 HP — Australia Local Warehouse
Thermostat 5005440 for Johnson Evinrude Outboard Motor 9.9 15 6-55 HP 40-250 HP — Australia Local Warehouse
Product Overview

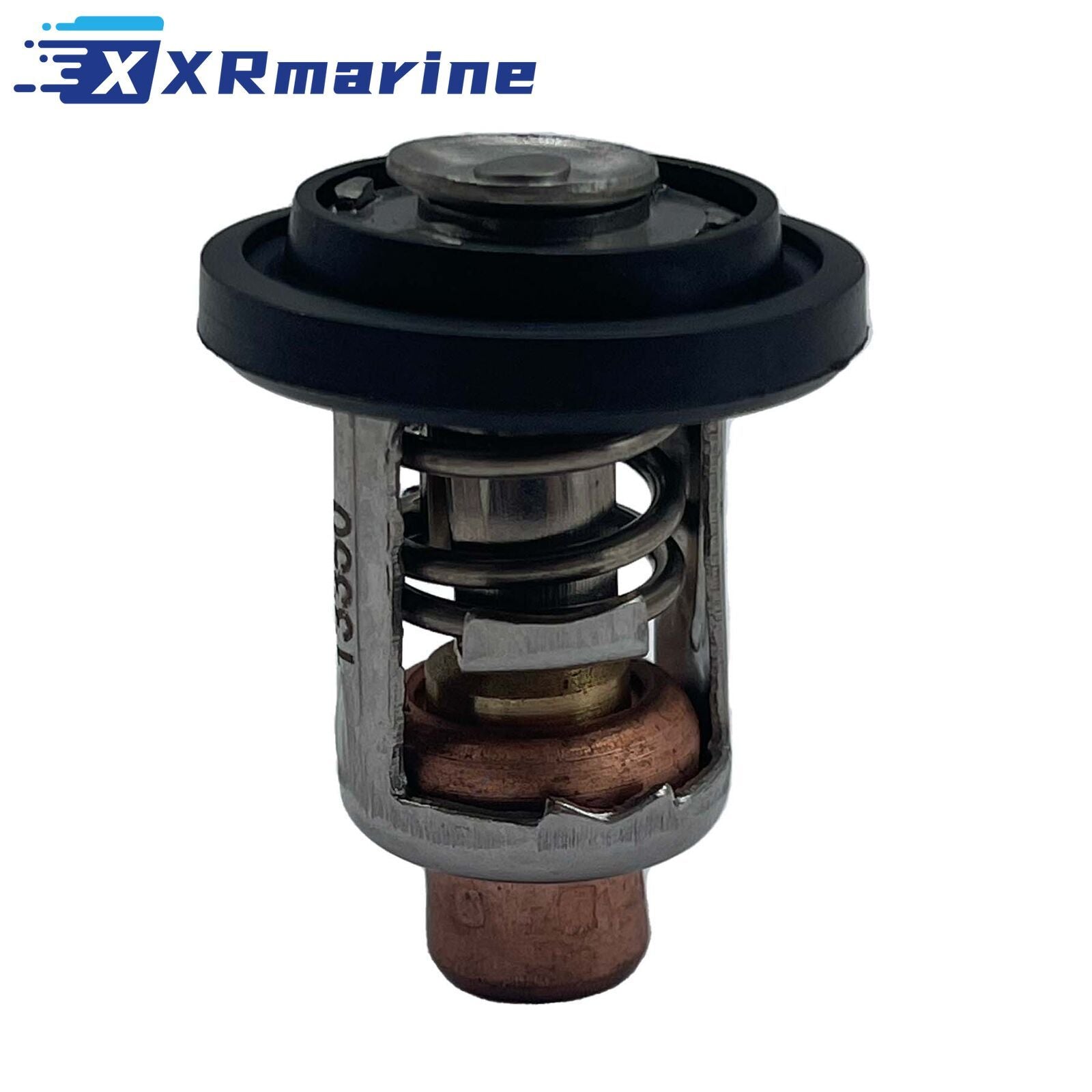

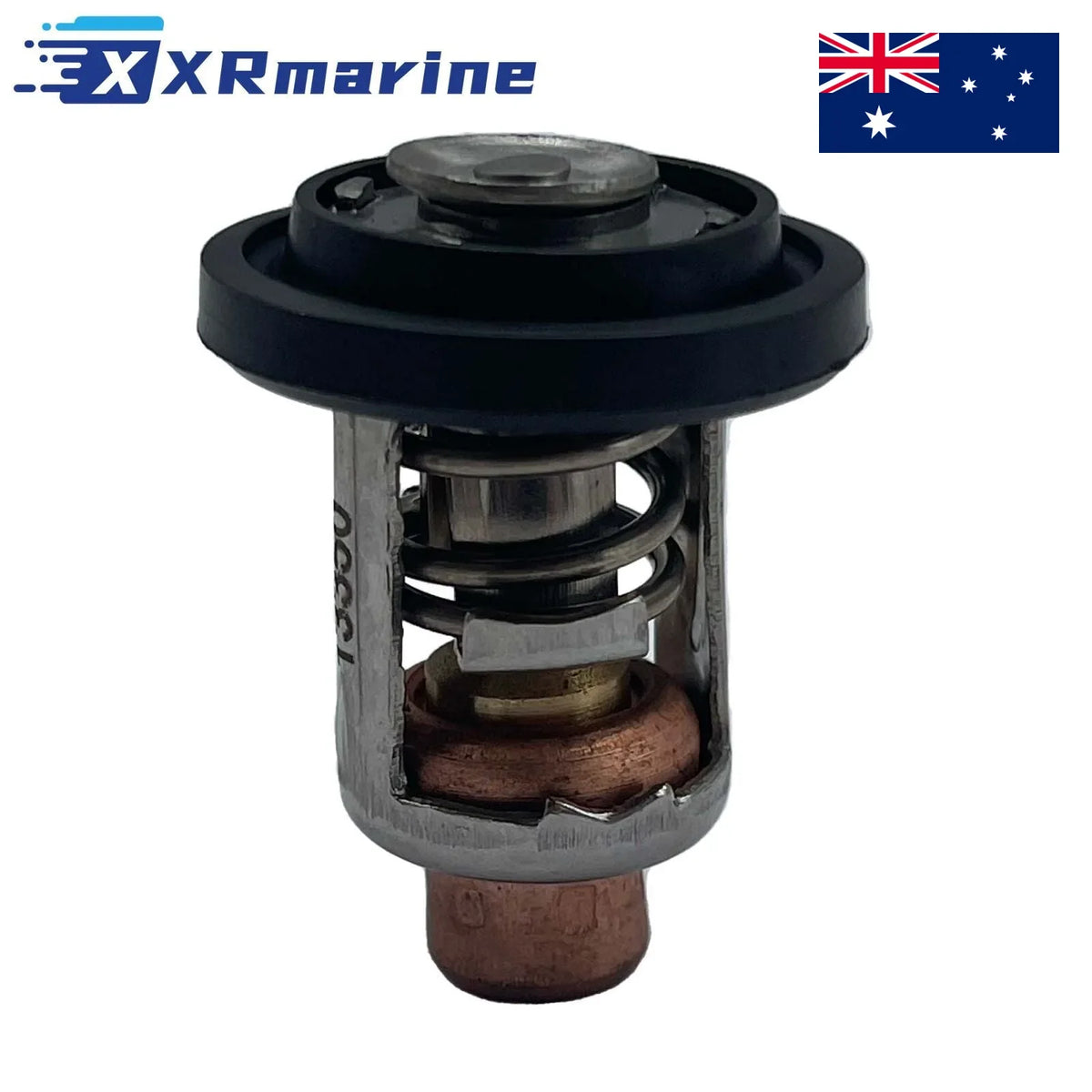

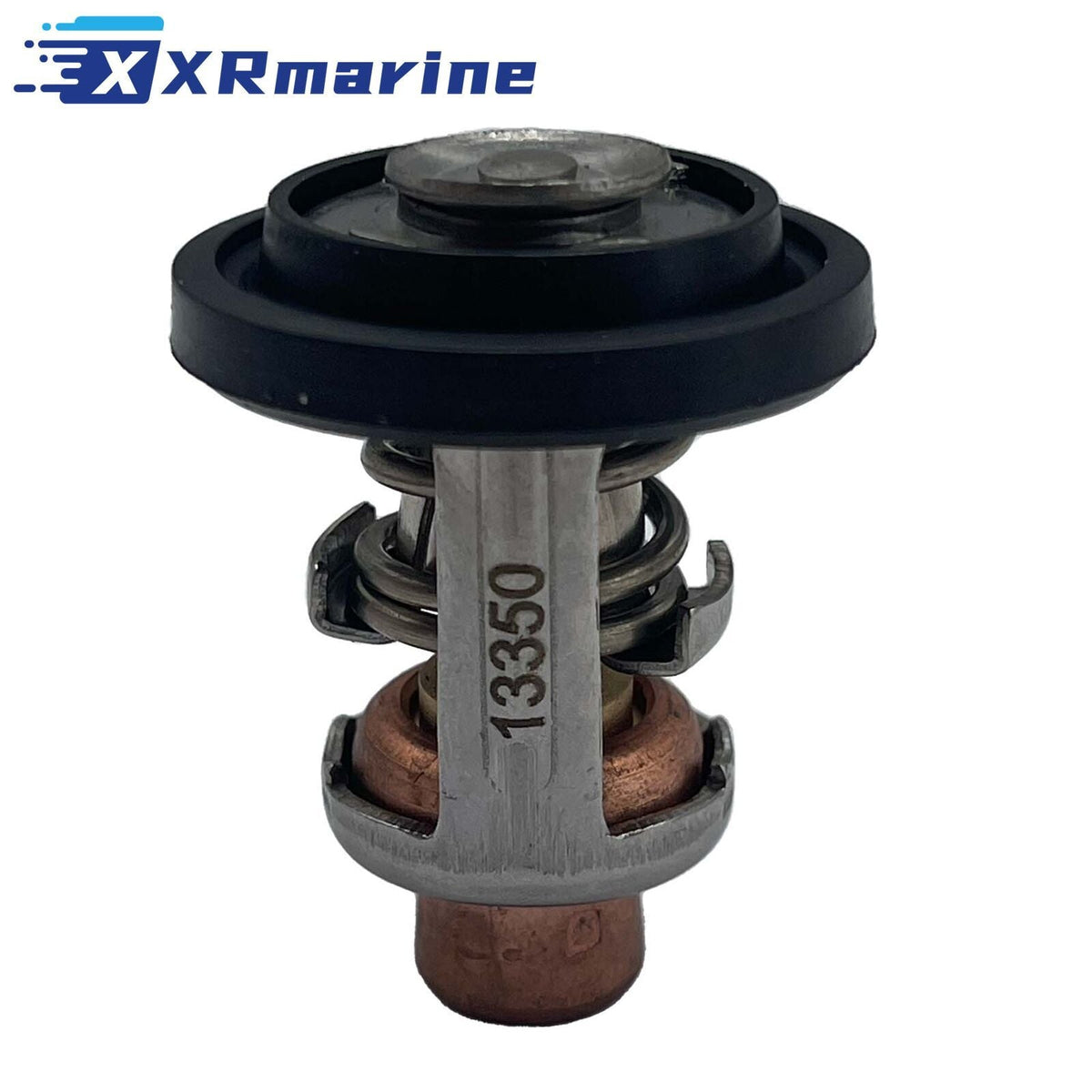

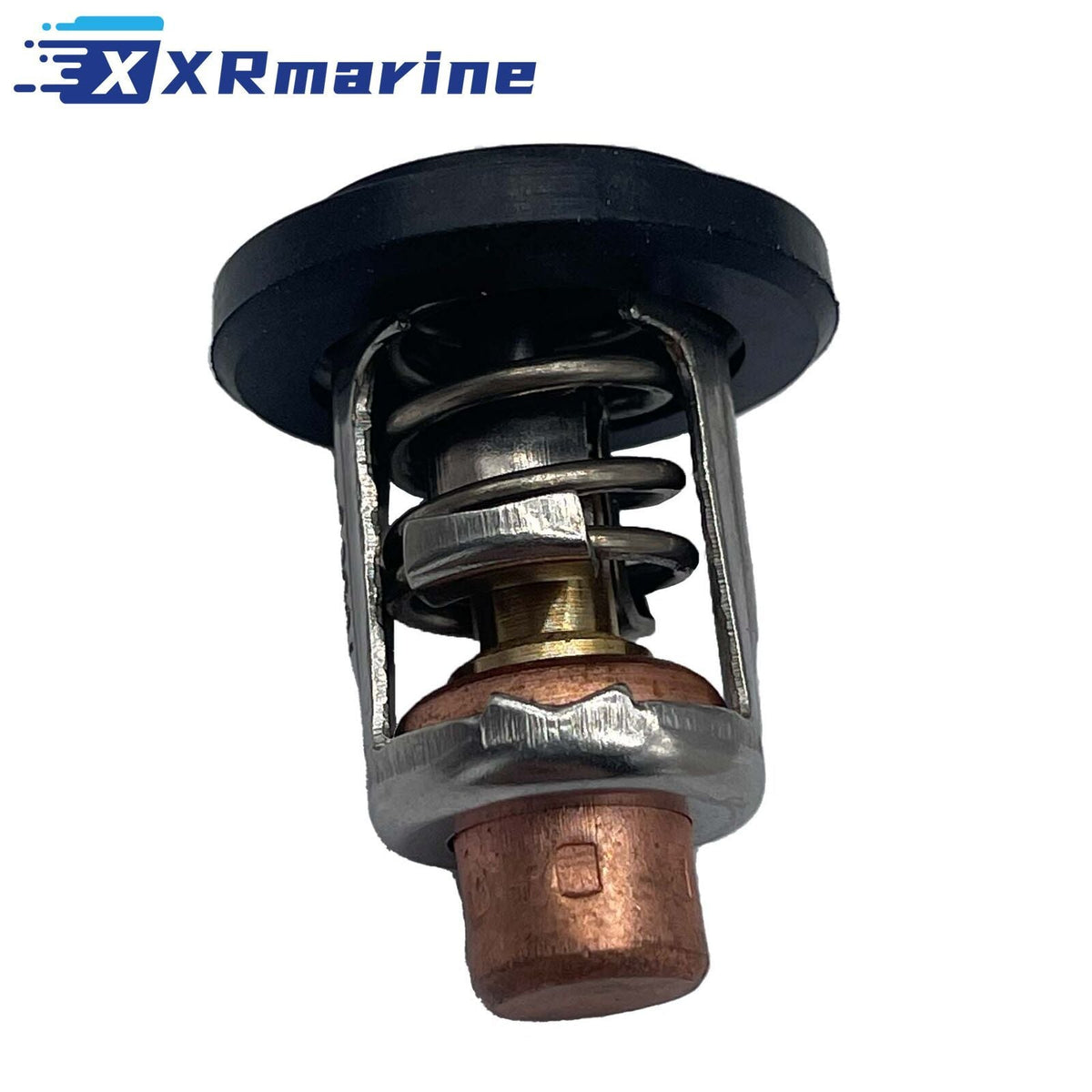

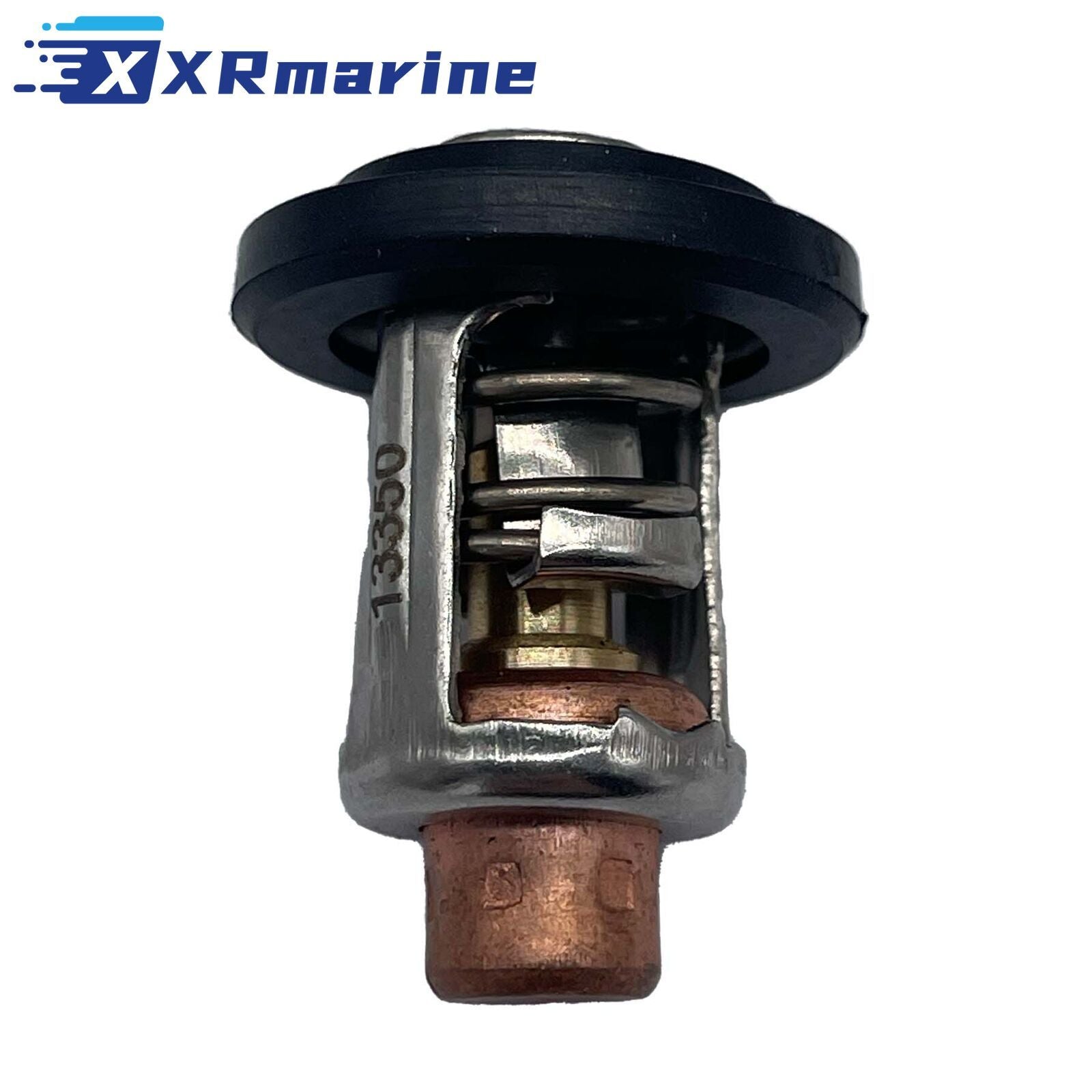

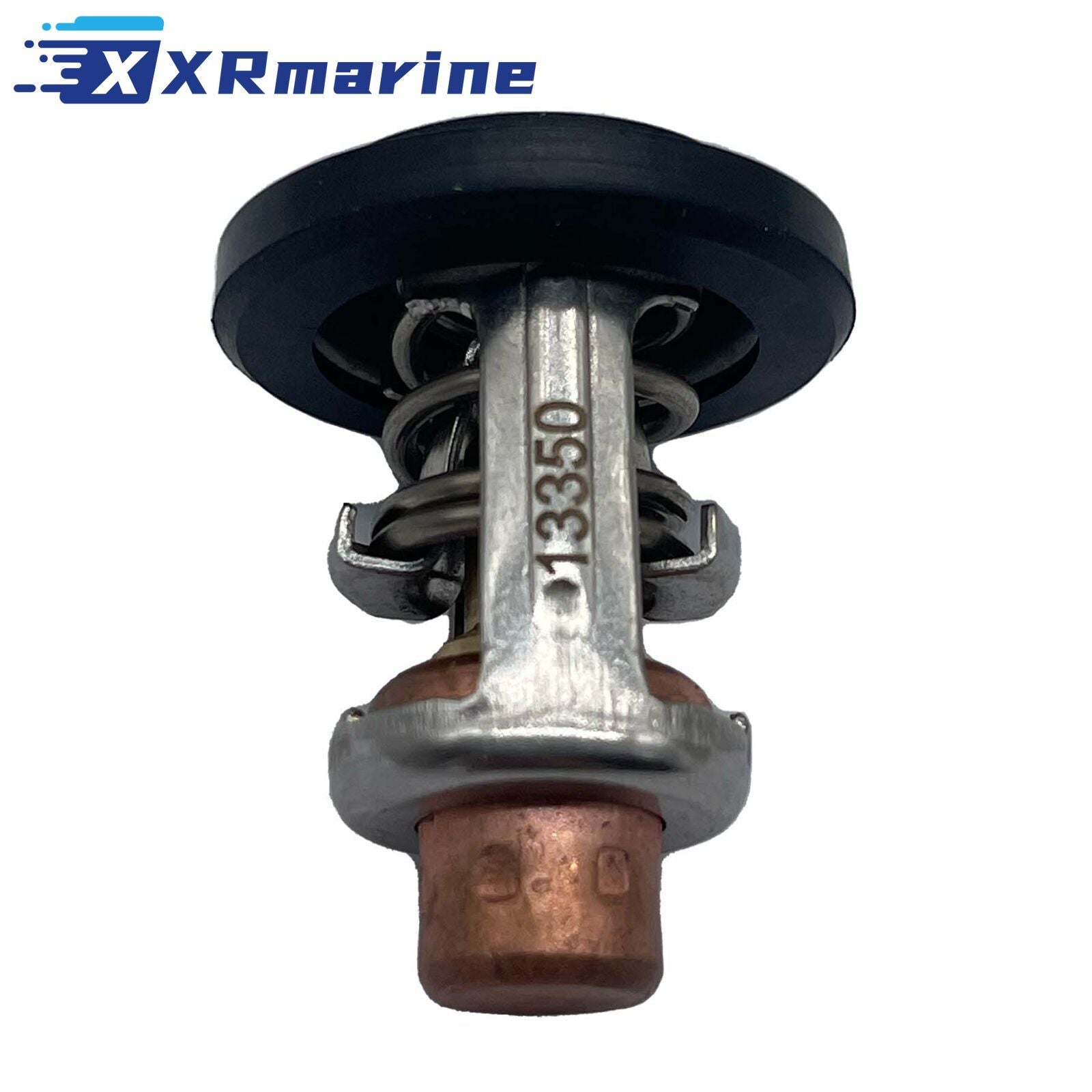

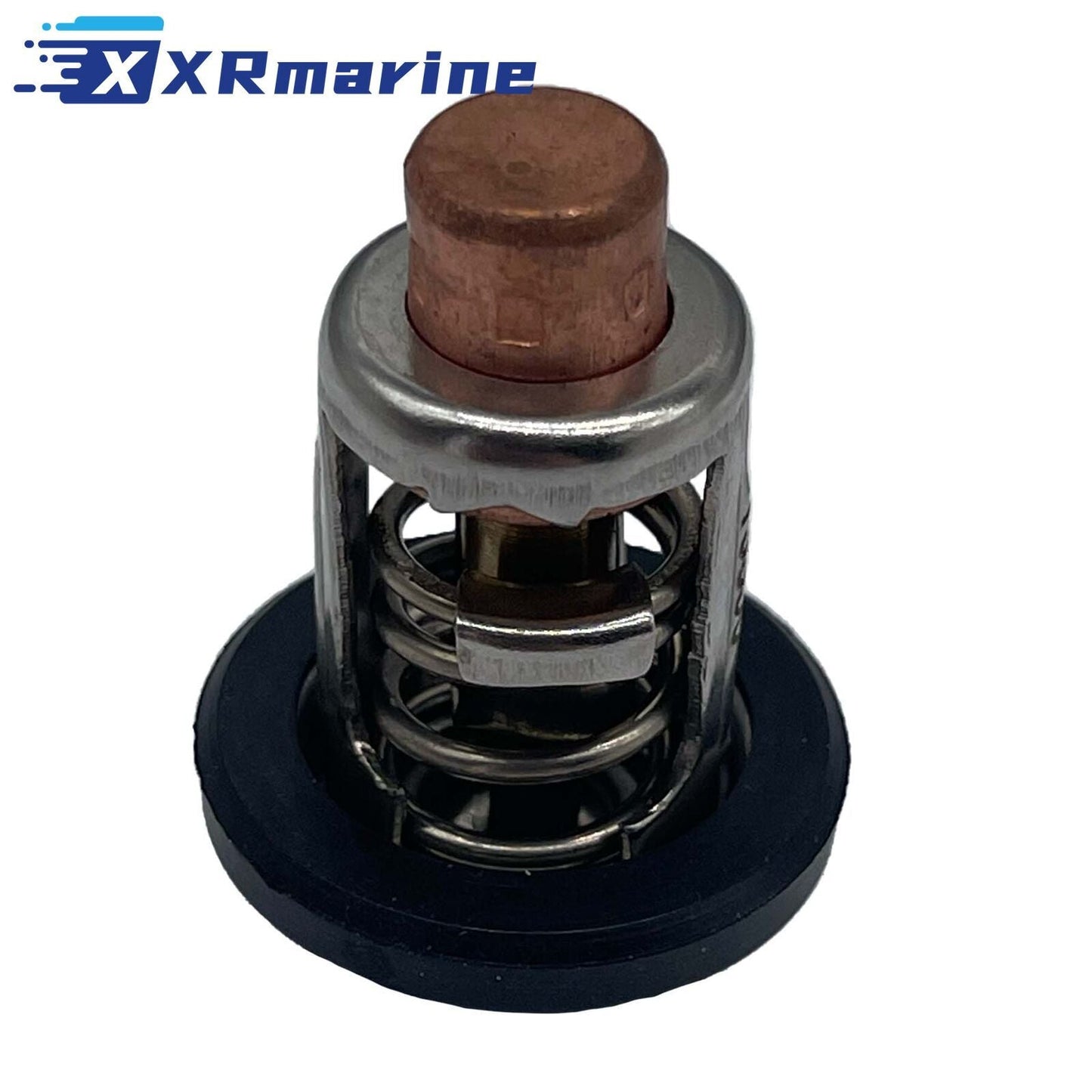

Outboard thermostat part supplied as a complete kit for Johnson and Evinrude outboards, covering 6-55 HP crossflow V4 and V6 models, 40-250 HP E-TEC models and 9.9 HP and 15 HP four-strokes from 1994 to 2001, replacing 5005440, 508626, 378065, 393659, 434841, 437414 and 377148. The same kit also covers Mercury and Mariner 7.5 HP to 250 HP models by serial range, plus Sierra 18-3543, GLM 13010 and Mallory 9-43101. Dispatched from our Australia local warehouse.
The thermostat sets the temperature the engine runs at, and both failure modes are visible on the water. Stuck open, the motor never reaches temperature, runs rich, fouls plugs and burns more fuel than it should. Stuck closed, temperature climbs within minutes, the tell-tale stays weak and the powerhead is at risk on the first long run of the season.
Test the old thermostat in a pan of hot water before ordering anything. It should open before the water boils and close again as it cools. If it stays open, or the housing shows white corrosion and a swollen seal, the whole kit goes in rather than just the thermostat.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Outboard thermostat kit |
| Engine | Johnson, Evinrude, Mercury, Mariner outboard |
| Horsepower | 6-55 HP, 40-250 HP, 9.9 HP, 15 HP |
| Years | 1994-2001 for 9.9 and 15 HP four-stroke |
| Quantity | 1 thermostat kit |
| Housing | Fits original thermostat housing |
| Pack Size | 150 x 180 x 50 mm / 5.9 x 7.1 x 2.0 in |
| Country of Origin | Taiwan |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Johnson / Evinrude | 5005440, 508626, 378065, 393659, 434841, 437414, 377148 |
| Mercury Marine | 75692, 62981, 66850, 75692B2 |
| Sierra | 18-3543, 18-3553 |
| GLM | 13010 |
| Mallory | 9-43101, 9-43019 |
Compatible Engines
| Brand | Horsepower | Application or Serial Range |
|---|---|---|
| Johnson / Evinrude | 40-250 HP | E-TEC models |
| Johnson / Evinrude | 6-55 HP | Crossflow V4 and V6 |
| Johnson / Evinrude | 9.9 HP, 15 HP | Four-stroke, 1994-2001 |
| Mercury / Mariner | 7.5 HP, 9.8 HP | Serial 5206550, 7125388, 7127388, 8057545, 9217756 and up |
| Mercury / Mariner | 45 HP JET | Serial 9683055 to 9885344 |
| Mercury / Mariner | 50 HP, 55 HP, 60 HP (3 cyl.) | Serial 0D000750 to 0G290584 |
| Mercury / Mariner | 70 HP, 75 HP, 80 HP, 90 HP (3 cyl.) | Serial 0A996142 to 0C221999 |
| Mercury / Mariner | 135 HP, 150 HP, 175 HP | Serial 4868998 to 0A904645, 4301235 to 0C100860 |
| Mercury / Mariner | 140 HP International | Serial 0T178500 to 1B226999 |
| Mercury / Mariner | 200 HP, 225 HP, 250 HP | Serial 0G960500 to 1B226999 |
Serial Ranges in Detail
| Model | Serial Range |
|---|---|
| 7.5 HP, 9.8 HP | 5206550 up, 7125388 up, 7127388 up, 8057545 up, 9217756 up |
| 45 JET | 9683055 to 9885344 |
| 50 HP, 55 HP, 60 HP | 0D000750 to 0G290584, 9683055 to 9885344 |
| 70 HP, 75 HP, 80 HP, 90 HP | 0A996142 to 0C221999, 9483121 to 9589038, 9589039 to 9793576 |
| 135 HP, 150 HP, 175 HP | 4868998 to 0A904645, 5600162 to 0A904645, 4301235 to 0C100860 |
| 135 HP, 150 HP, 175 HP | Ranges around 5624878, 5628028 and 8058870 |
| 140 HP International | 0T178500 to 1B226999 |
| 200 HP, 225 HP, 250 HP | 0G960500 to 1B226999 |
Thermostat Modes
| Condition | What You See | What It Means |
|---|---|---|
| Stuck open | Cold running, rich mixture, fouled plugs | Engine never reaches operating temperature |
| Stuck closed | Temperature climbs fast, weak tell-tale | No coolant flow, stop the engine |
| Seal swollen | Weeping at the housing, white corrosion | Old kit, replace the whole set |
| Normal | Steady temperature after 3-5 minutes | Thermostat opens and closes correctly |
What's Included
| Component | Qty |
|---|---|
| Thermostat kit | 1 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Australia
| Destination | Warehouse | Note |
|---|---|---|
| Australia | Australia local warehouse | Domestic delivery, no import duty |
| New Zealand | Australia local warehouse | Short transit, duty may apply on arrival |
Before You Buy
- Confirm your model and horsepower are listed above before ordering
- Check serial range on Mercury and Mariner three cylinder models
- Test the old thermostat in hot water to confirm it is stuck
- Check the thermostat housing and cover for corrosion when replacing
- Renew the housing gasket if it is hardened or torn
- Run the engine on muffs and watch the tell-tale before the first trip
- 30-Day Easy Returns
- Ships from our Australia local warehouse
