Water Pump Impeller Kit 47-89980 for Mercury 3.5 4 4.5 7.5 9.8 HP Outboard
Water Pump Impeller Kit 47-89980 for Mercury 3.5 4 4.5 7.5 9.8 HP Outboard
Product Overview

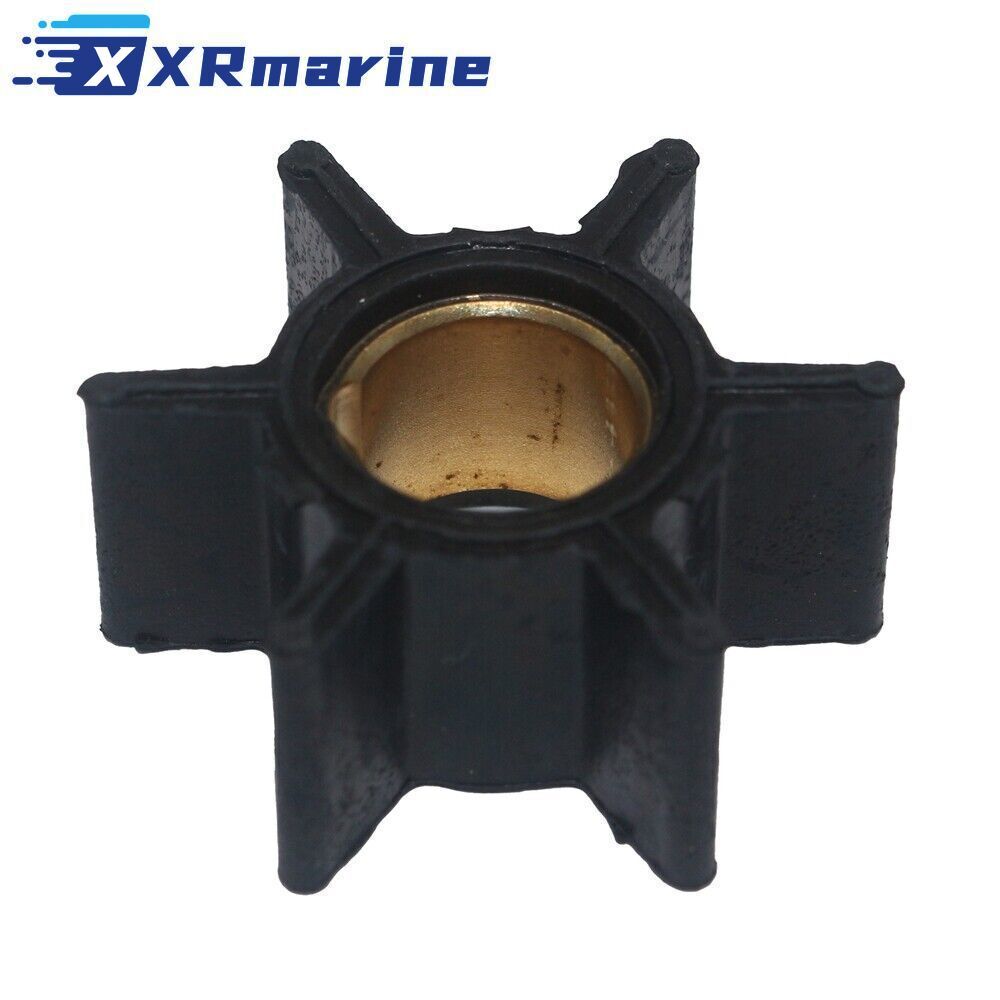

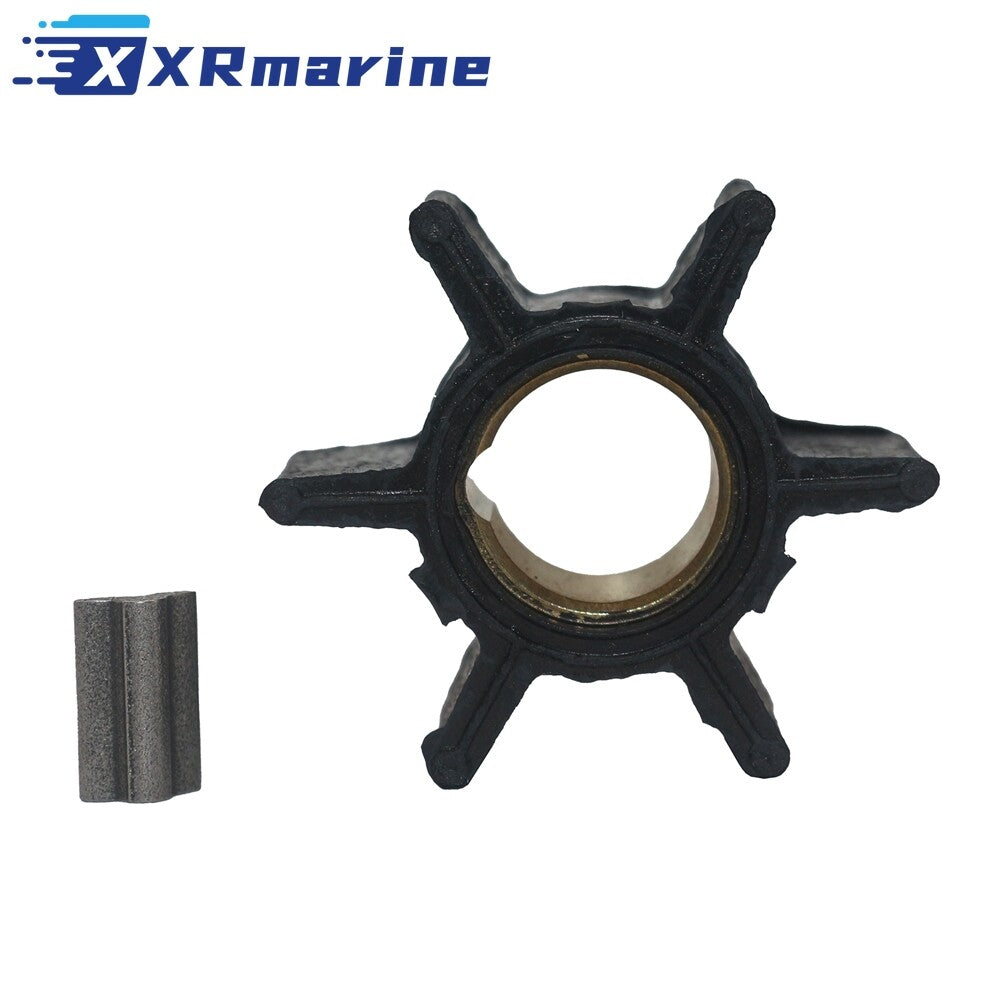

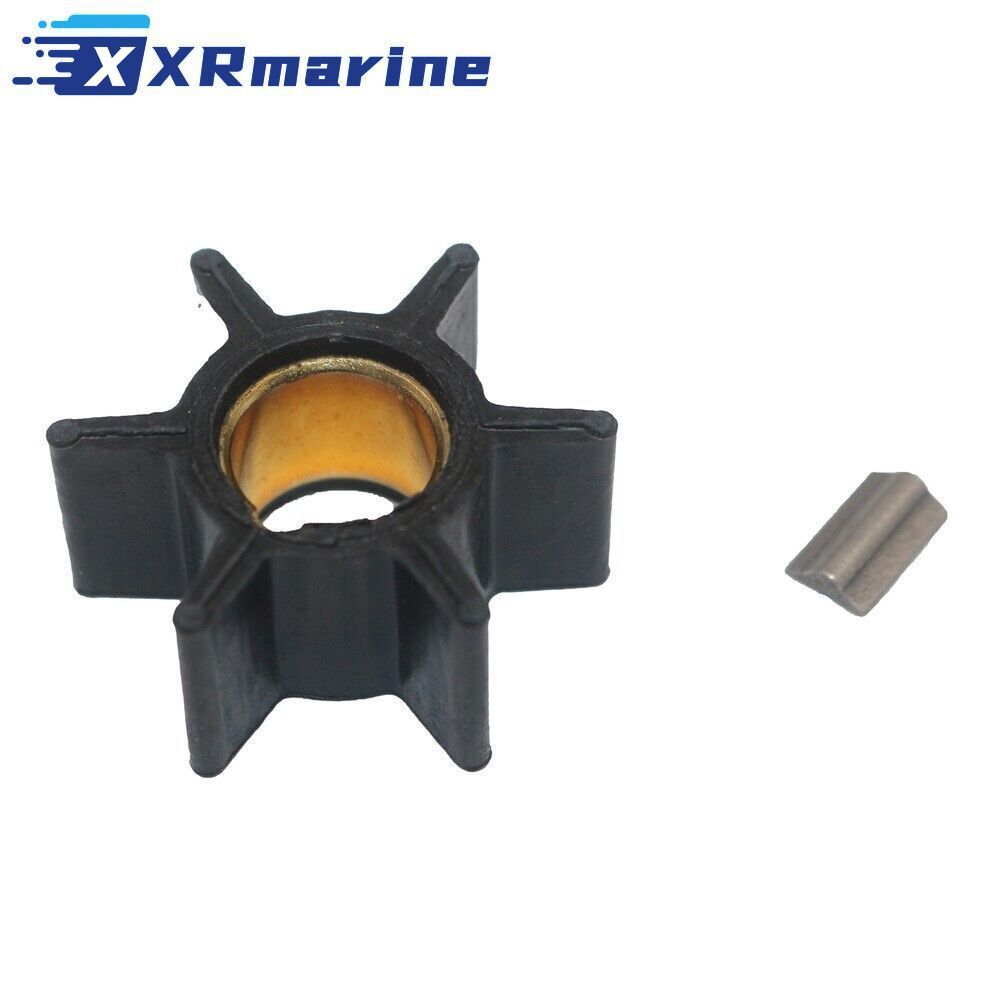

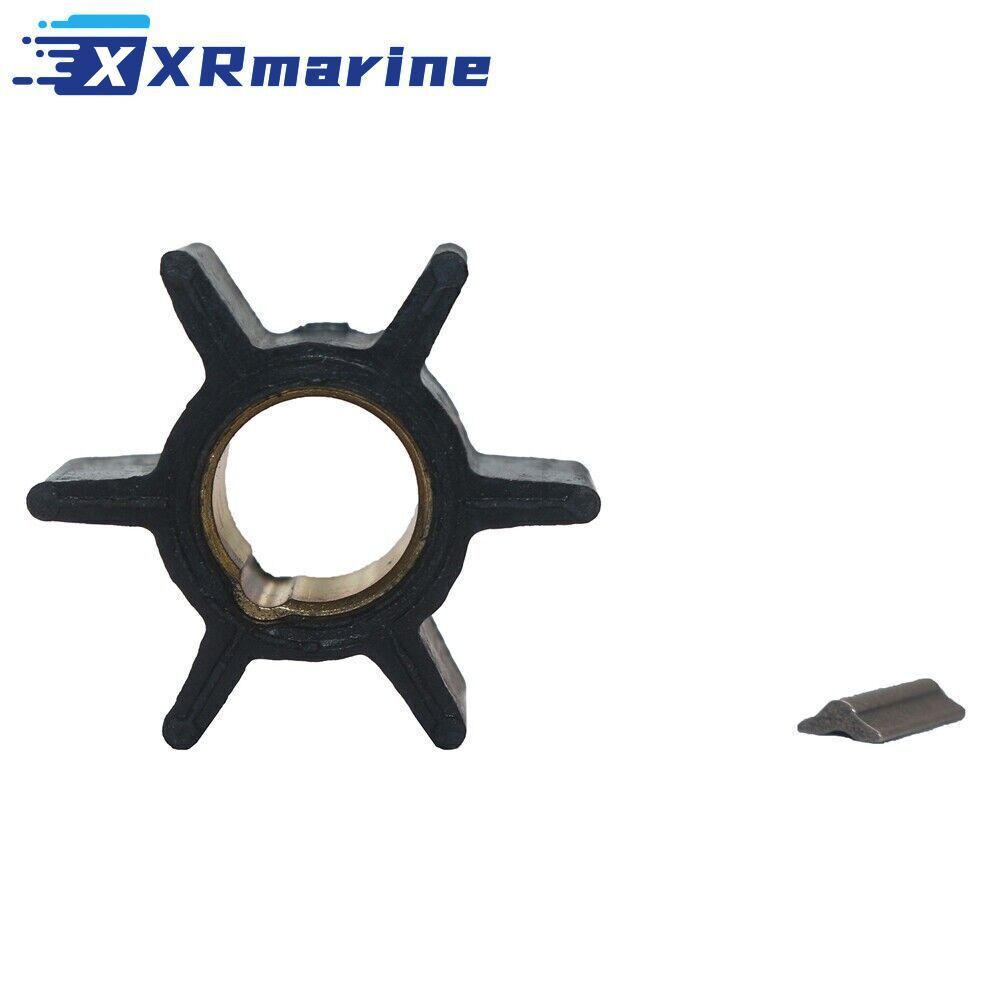

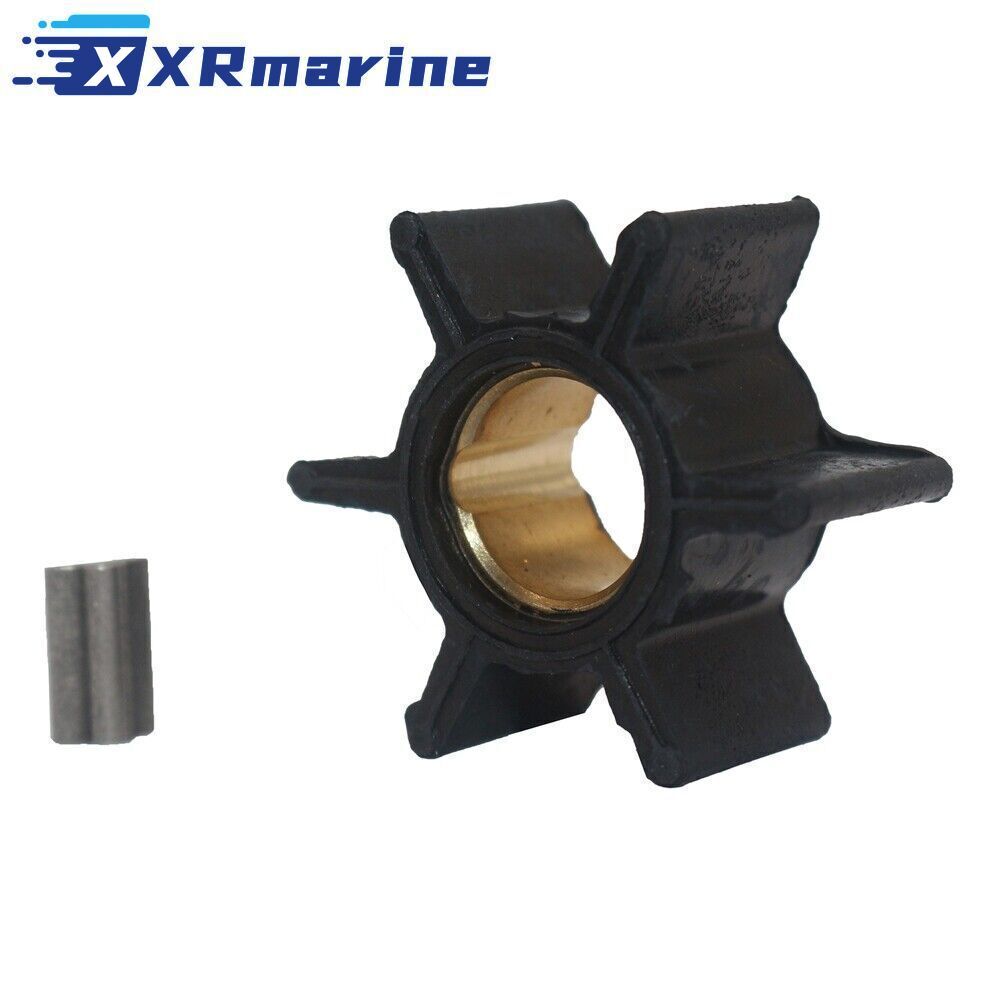

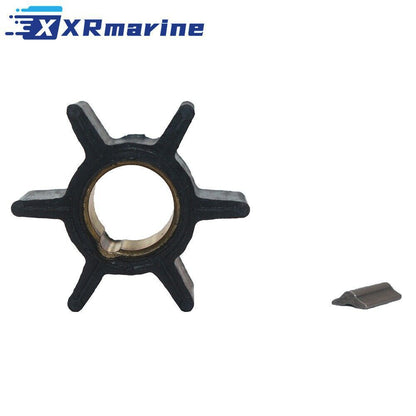

Water pump impeller kit for Mercury two stroke outboards from 3.5 HP to 9.8 HP. The pack is 1 x impeller and 1 x drive key, replacing 47-89980, 47-89980B, 47-68988 and the key 8M0032835, with Sierra 18-3054 as the cross reference.
These are the small single and twin cylinder motors where the pump lives in the lower unit and the key is what drives the impeller off the shaft. A kit without the key leaves you reusing a part that is usually the first thing to wear a flat.
Mercury built this pump over a long run and changed the serial break points by region, so the fitment below is listed by horsepower and serial number rather than by year. Check the serial on the swivel bracket plate.
Specifications & Attributes
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Outboard water pump impeller kit |
| Drive | Key drive |
| Number of Blades | 6 |
| Outer Diameter | 32 mm, 1.26 inch |
| Inner Diameter | 11 mm, 0.43 inch |
| Depth | 14.4 mm, 0.57 inch |
| Material | Neoprene rubber |
| Fitment | Mercury 3.5 to 9.8 HP two stroke outboards |
| Quantity | 1 impeller, 1 key |
| Shipping Weight | 22.5 g |
OEM Cross Reference
| Brand | Part Numbers |
|---|---|
| Mercury | 47-89980, 47-89980B |
| Mercury | 47-68988 |
| Mercury key | 8M0032835, 56655 |
| Sierra | 18-3054 |
Compatible Engines
| Horsepower | Serial Range | Region |
|---|---|---|
| 3.5 HP | 6202173 and up | USA |
| 3.6 HP | 5404657 and up | USA |
| 3.6 HP | 9252831 and up | USA |
| 3.6 HP | 7145388 and up | Canada |
| 4 HP, 1 cylinder | 8068065 and up | Australia |
| 4 HP, 1 cylinder | 7143688 and up | Canada |
| 4 HP, 1 cylinder | 5595532 and up | USA |
| 4 HP, 1 cylinder | 9258281 and up | Belgium |
| 4 HP/40, 2 cylinder | 7146488 THRU 7147237 | Canada |
| 4 HP/40, 2 cylinder | 9256981 THRU 9258280 | Belgium |
| 4 HP/40, 2 cylinder | 5589202 THRU 5595531 | USA |
| 4 HP/40, 2 cylinder | 8065265 THRU 8068064 | Australia |
| 4.5 HP, 1 cylinder | 5595532 and up | USA |
| 4.5 HP, 1 cylinder | 7147238 and up | Canada |
| 4.5 HP, 1 cylinder | 8068065 and up | Australia |
| 4.5 HP, 1 cylinder | 9258281 and up | Belgium |
| 7.5 HP/75 | 7125388 and up | Canada |
| 7.5 HP/75 | 8057545 and up | Australia |
| 7.5 HP/75 | 9217756 and up | Belgium |
| 7.5 HP/75 | 5206550 and up | USA |
| 9.8 HP, Merc 110 | 5206550 and up | USA |
| 9.8 HP, Merc 110 | 8057545 and up | Australia |
| 9.8 HP, Merc 110 | 9217756 and up | Belgium |
| 9.8 HP, Merc 110 | 7127388 and up | Canada |
What's Included
| Component | Qty |
|---|---|
| Impeller | 1 |
| Drive key | 1 |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Before You Buy
- Check the serial number on the swivel bracket against the table above
- Check the old impeller and the key both come out, a lost key is why the last one failed
- Check the pump housing liner for grooves, a worn liner will not seal against a new impeller
- Grease the housing and fit the key in the shaft slot before the impeller goes on
- Turn the shaft by hand after assembly to confirm the blades fold the right way
- Run in a tank and check the telltale before the first trip
