Product Overview

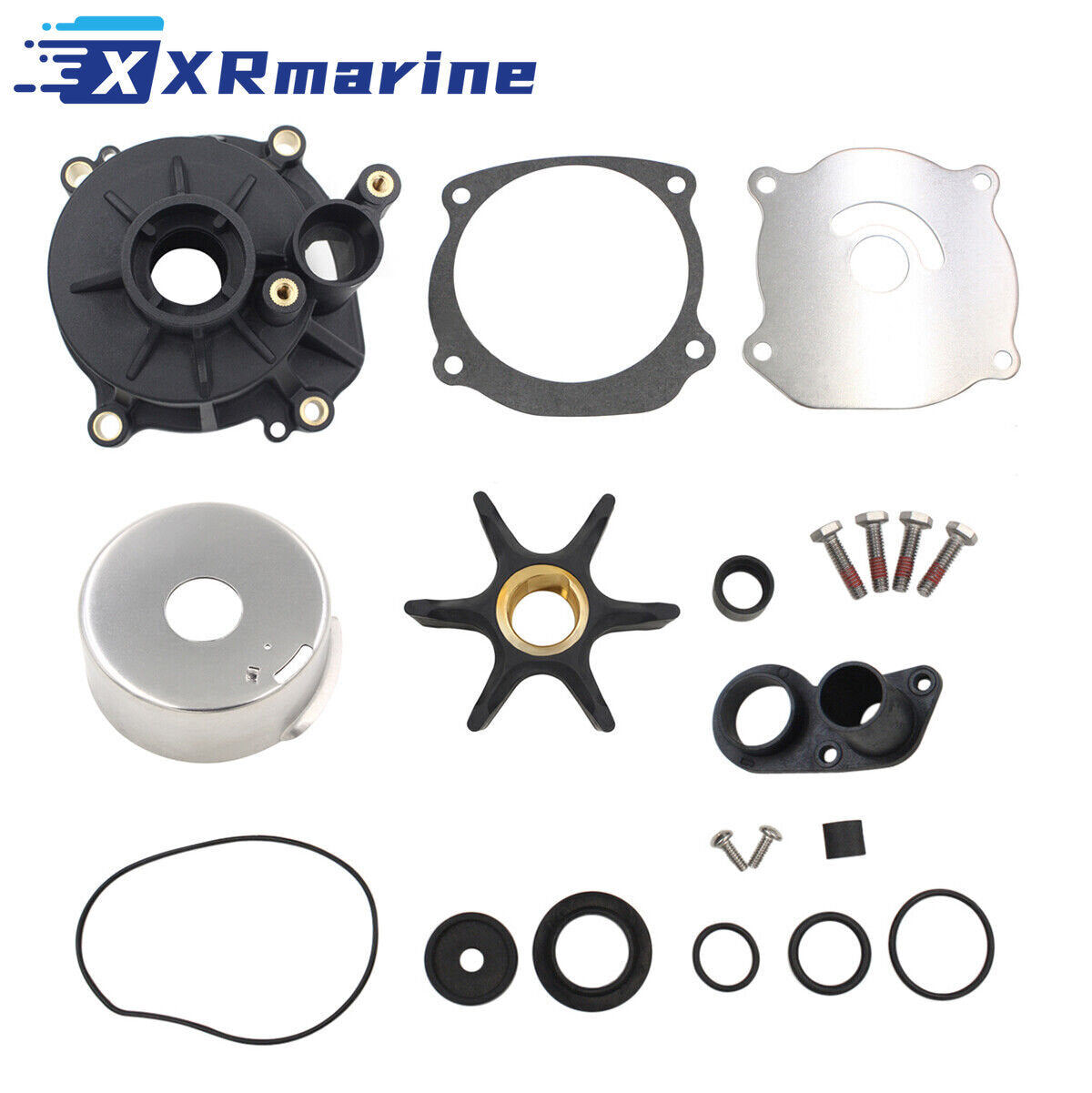

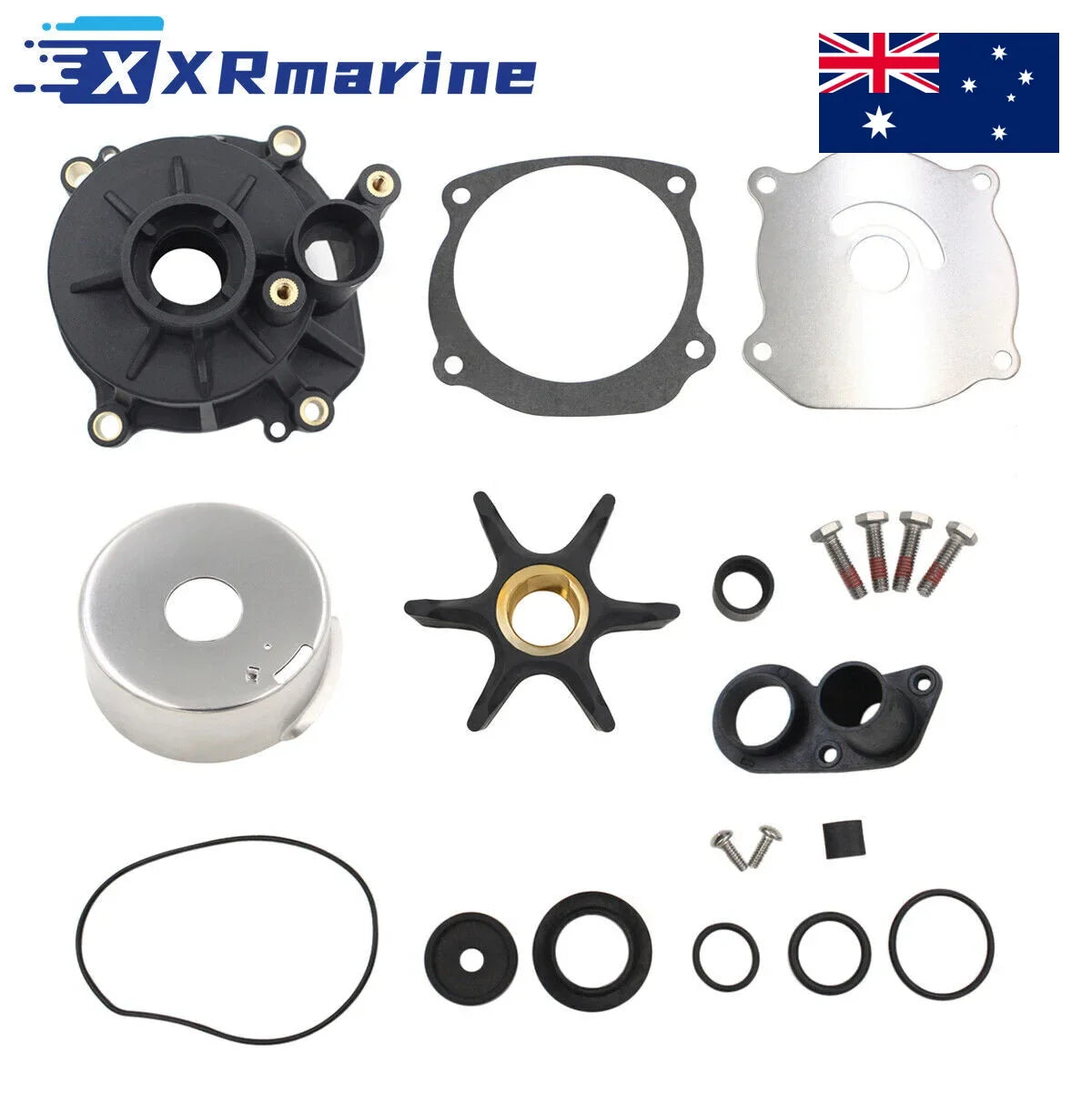

Water pump impeller kit, a complete pump service part for the Johnson and Evinrude crossflow and looper V4 and V6 engines from 90HP to 300 HP built between 1979 and 2002, and the smaller motors listed in the fitment table. It replaces 5001594, 0395060, 0434421 and 0435447, crosses to Sierra 18-3390 and 18-3392, and comes complete with the impeller 395864 / 397131 / 435821, the cup and plate assembly 435027, the housing 435959, the gasket, the key, the grommets, the O-rings and the bolts. Held in our Australia local warehouse.
Buying the whole pump rather than the rubber alone is the right call on these engines. The stainless cup and the housing wear as a pair, so a new impeller dropped into a grooved housing will not hold pressure at high speed, which is exactly where a big two-stroke works hardest.
The kit suits the 20 inch gearcase including the SPL models. The 25 inch gearcase takes a different kit, and the only reliable way to choose between this one and the later 0435929 kit is the model or serial number.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Water pump impeller repair kit |
| Engine Type | Johnson and Evinrude two-stroke outboards |
| Horsepower | 90HP to 300 HP, 3-300 HP across the full listing range, 115 HP and 250HP included |
| Years | 1979-2002 |
| Gearcase | 20 inch models including SPL |
| Impeller Part Number | 395864, 397131, 435821 |
| Housing Part Number | 435959 |
| Country of Origin | Taiwan |
| Quantity | 1 complete kit |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Johnson Evinrude kit | 5001594 |
| Johnson Evinrude kit | 0395060, 395060 |
| Johnson Evinrude kit | 0434421, 434421 |
| Johnson Evinrude kit | 0435447, 435477 |
| Johnson Evinrude kit | 390768, 392750, 395062 |
| Sierra | 18-3390, 18-3392 |
| Impeller | 395864, 397131, 435821 |
| Impeller housing | 435959 |
| Cup and plate assembly | 435027 |
| Water pump cup | 338486 |
| Impeller plate | 338485 |

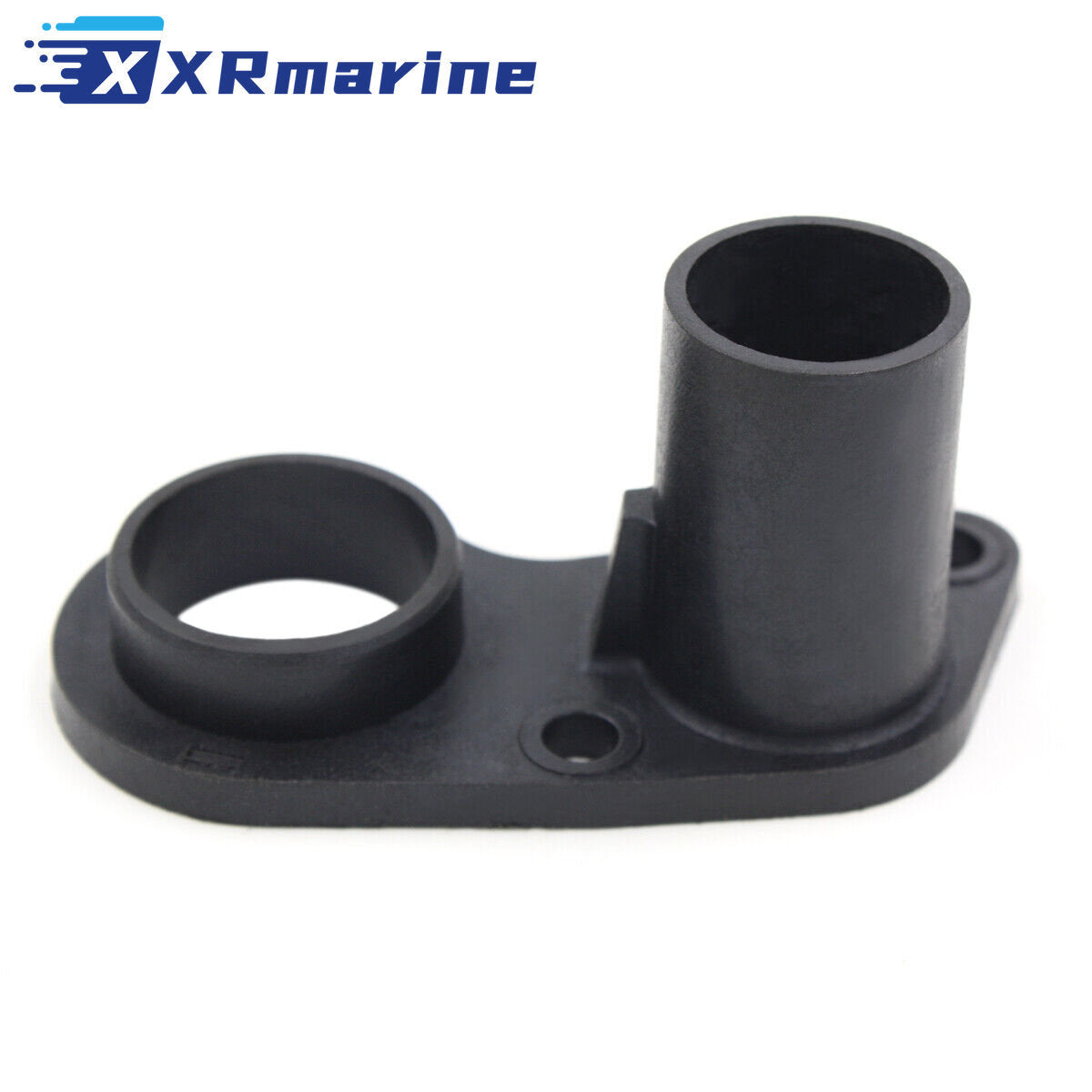

| Plastic part, pump assembly | 338893 |
Compatible Engines
| Horsepower | Years |
|---|---|
| 9.9 HP, 15 HP | 1990 |
| 65 HP | 1991-1995 |
| 80 HP | 1991-1999 |
| 85 HP | 1979-1980, 1991-1995 |
| 88 HP | 1988-1996 |
| 90HP | 1981-1983, 1985-1986, 1988-2000 |
| 100 HP | 1979-1980, 1984-1997 |
| 105 HP | 1991-1998 |
| 110 HP | 1986, 1988-1989 |
| 112 HP | 1994-1997 |
| 115 HP | 1979-1983, 1985, 1990-1999 |
| 120 HP | 1985-1994 |
| 125 HP | 1989-1990, 1992-1998 |
| 130 HP | 1995-1999 |
| 140 HP | 1979-1983, 1985-1994 |
| 150 HP | 1980-2000 |
| 175 HP | 1980-1983, 1986-1999 |
| 200 HP | 1980-1983, 1996-2000 |
| 225 HP | 1986-2000 |
| 250HP | 1991-1995, 1998-2000 |
| 300 HP | 1986-1995 |
Assembly Components
| Component | Qty | Part Number |
|---|---|---|

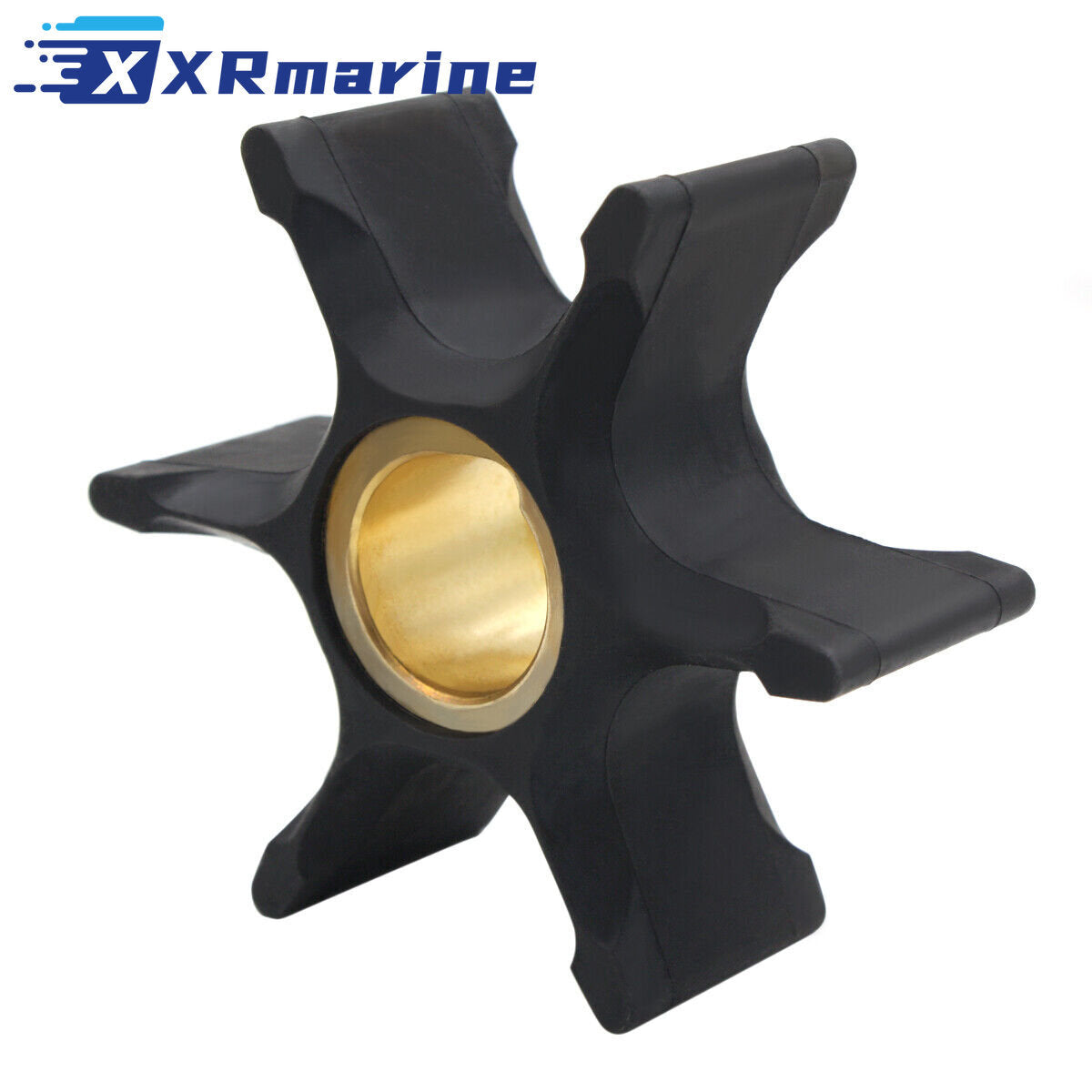

| Impeller | 1 | 395864, 397131, 435821 |

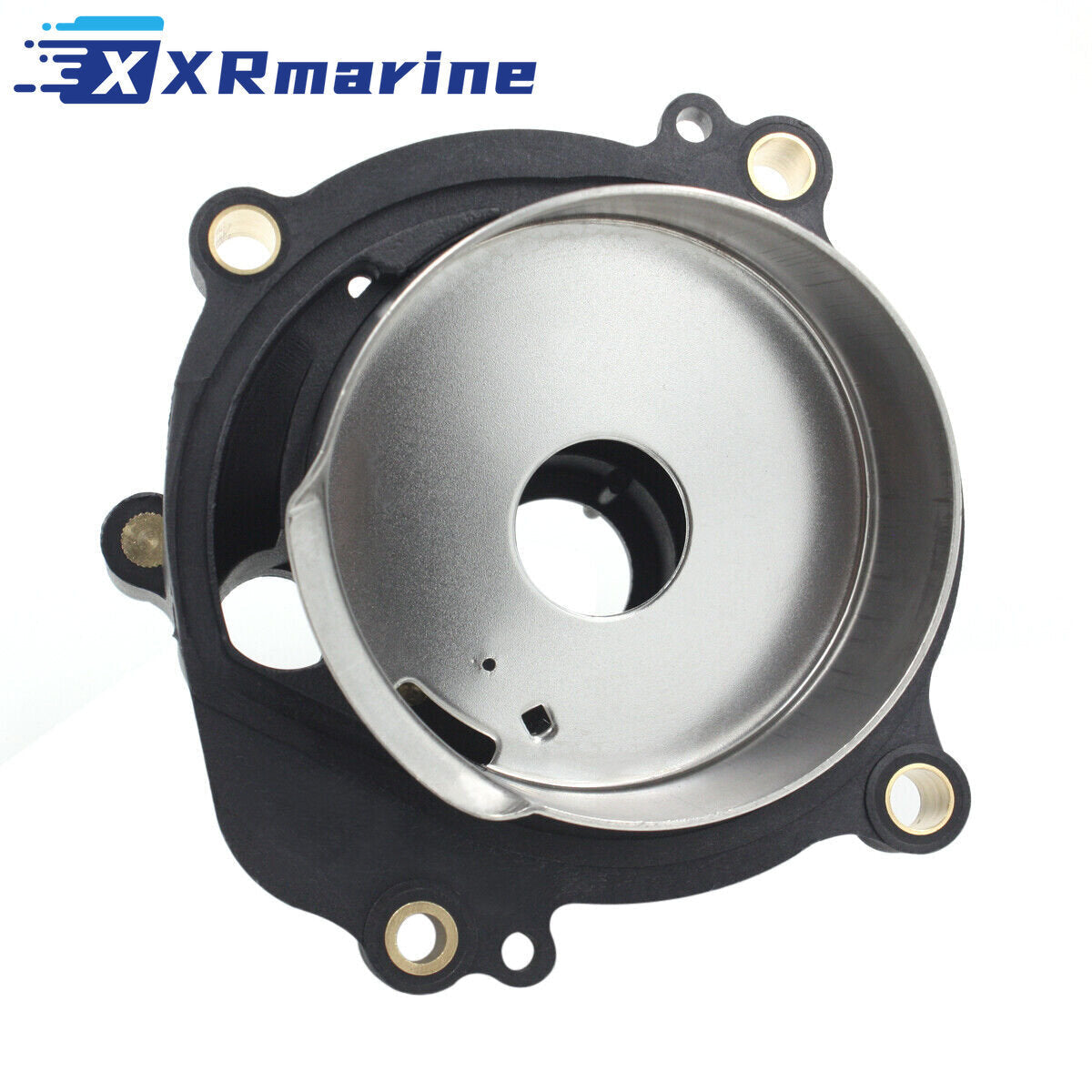

| Cup and plate assembly | 1 | 435027 |

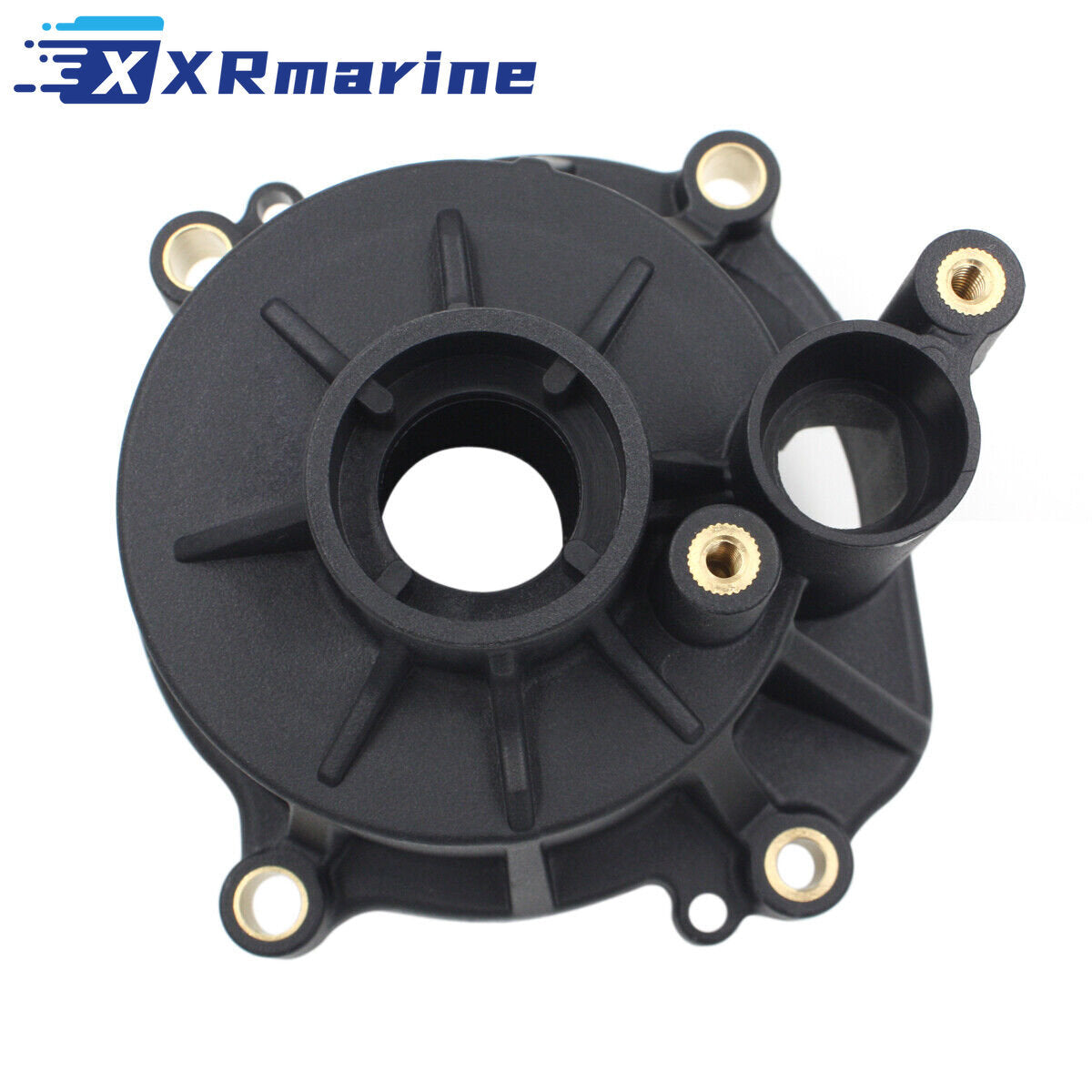

| Water pump housing | 1 | 435959 |
| Water pump cup | 1 | 338486 |

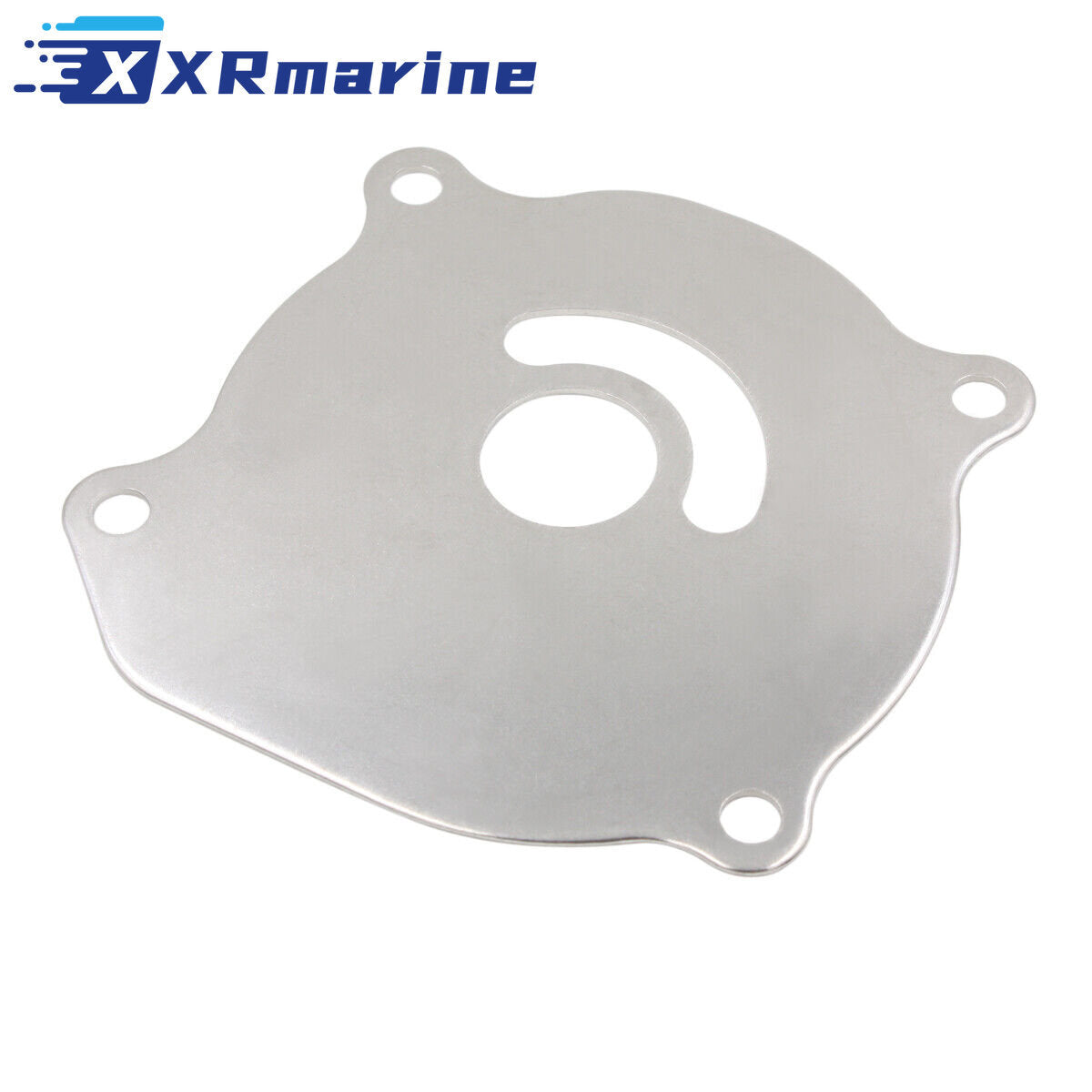

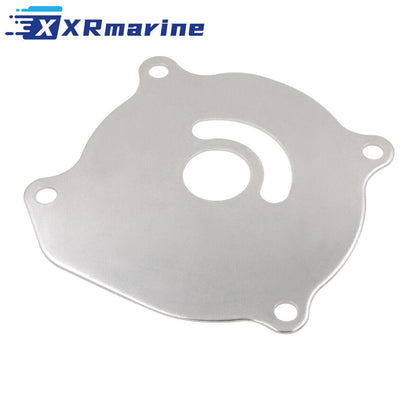

| Impeller plate | 1 | 338485 |

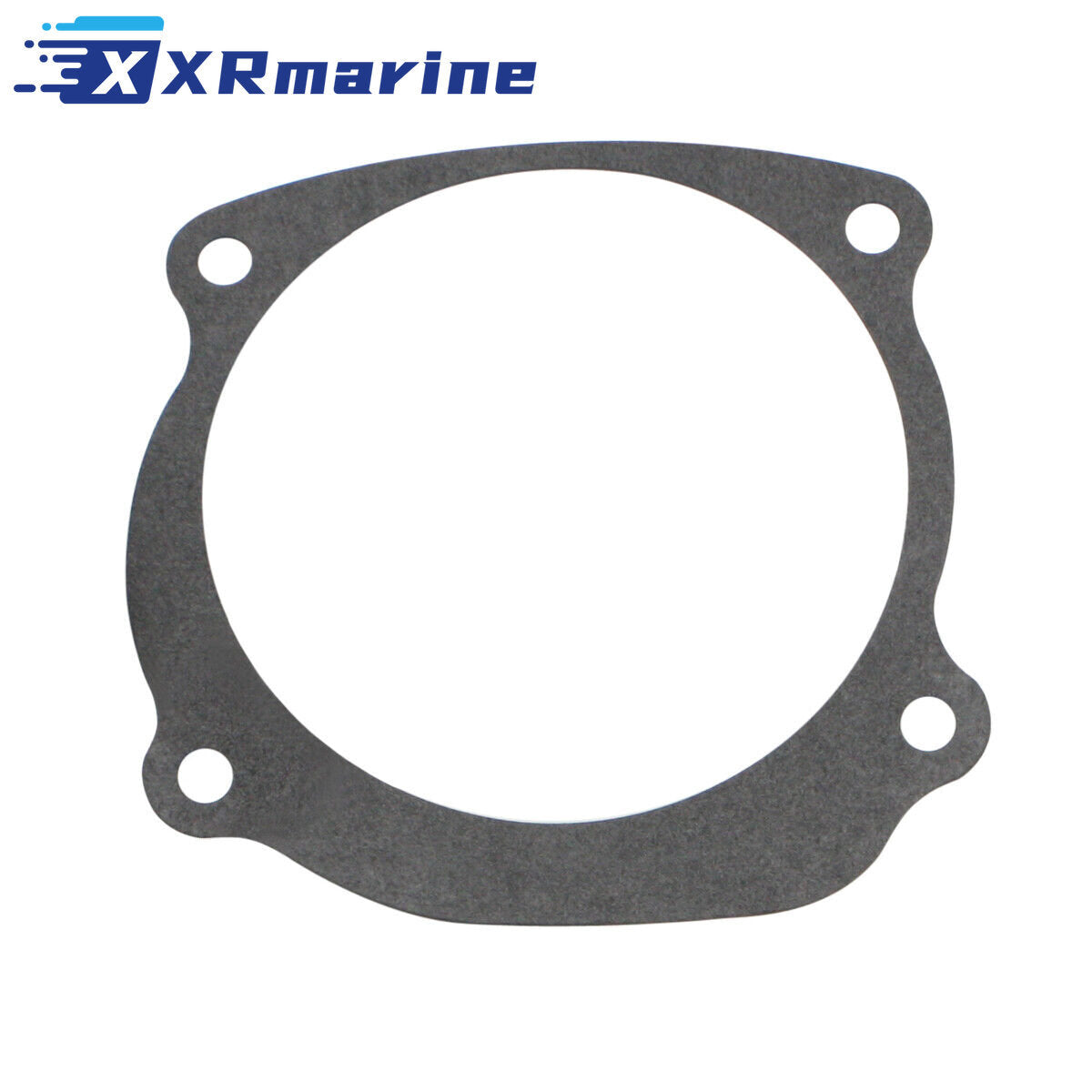

| Impeller gasket | 1 | Not published |
| Impeller key | 2 | Not published |
| Water tube grommet | 3 | Not published |
| O-ring | 3 | Not published |
| Rubber seal | 2 | Not published |
| Bolt and screw, stainless | 10 | Not published |
What's Included
| Component | Qty |
|---|---|
| Impeller | 1 |
| Cup and plate assembly | 1 |
| Impeller key | 2 |
| O-ring | 3 |
| Water tube grommet | 3 |
| Rubber seal | 1 |
| Impeller gasket | 1 |
| Stainless bolt and screw | 10 |
Long Runs Offshore and Trolling
| What the Skipper Sees | Why It Happens | What to Do |
|---|---|---|
| Temperature creeps up on a long run to the reef | Pump volume falls away with a worn cup | Fit the kit before the trip, not after |
| Telltale weak at trolling speed | Blades set, cannot seal at low rpm | New impeller and cup together |
| Motor hot after a day on the plane | Housing grooved, pressure lost at speed | New housing 435959 is in the kit |
| Sand or mud through the intake | Blade tips worn and cup scored | Flush, then inspect the pump |
| Gear oil milky after the trip | Gearcase seal and pump grommets | Renew the seals while the pump is off |
| Screws snapping on removal | Stainless into aluminium over years | Ten new bolts and screws are in the kit |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Check the model and serial against the years above, the 90HP engine was built in several blocks and only some use this pump |
| 2 | Confirm the gearcase is the 20 inch version including SPL, the 25 inch gearcase takes a different kit |
| 3 | Compare the old housing with 435959, if the number differs this is the wrong kit |
| 4 | Drain the gearcase and note the blade direction as the housing comes off |
| 5 | Inspect the driveshaft splines and the gearcase seal while the pump is off, water in the gear oil usually starts here |
| 6 | Lubricate the impeller with glycerine and turn the shaft clockwise as the housing goes down |
| 7 | Torque the bolts evenly in a cross pattern, a distorted housing will not hold pressure |
| 8 | Run the engine on muffs and confirm a strong telltale before the boat goes in the water |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Australia
| Destination | Warehouse | Note |
|---|---|---|
| Australia | Australia local warehouse | Domestic delivery, no import duty |
| New Zealand | Australia local warehouse | Short transit, customs may apply |
| Asia Pacific | Australia local warehouse | Tracked air and sea options |
Before You Buy
- Check the model and serial against the years above, the 90HP engine was built in several blocks and only some use this pump
- Confirm the gearcase is the 20 inch version including SPL, the 25 inch gearcase takes a different kit
- Compare the old housing with 435959, if the number differs this is the wrong kit
- Inspect the driveshaft splines and the gearcase seal while the pump is off, water in the gear oil usually starts here
- Lubricate the impeller with glycerine and turn the shaft clockwise as the housing goes down
- This is the complete pump kit, the gearcase and the water tube are not included
- 30-Day Easy Returns
- Ships from our Australia local warehouse
