Product Overview

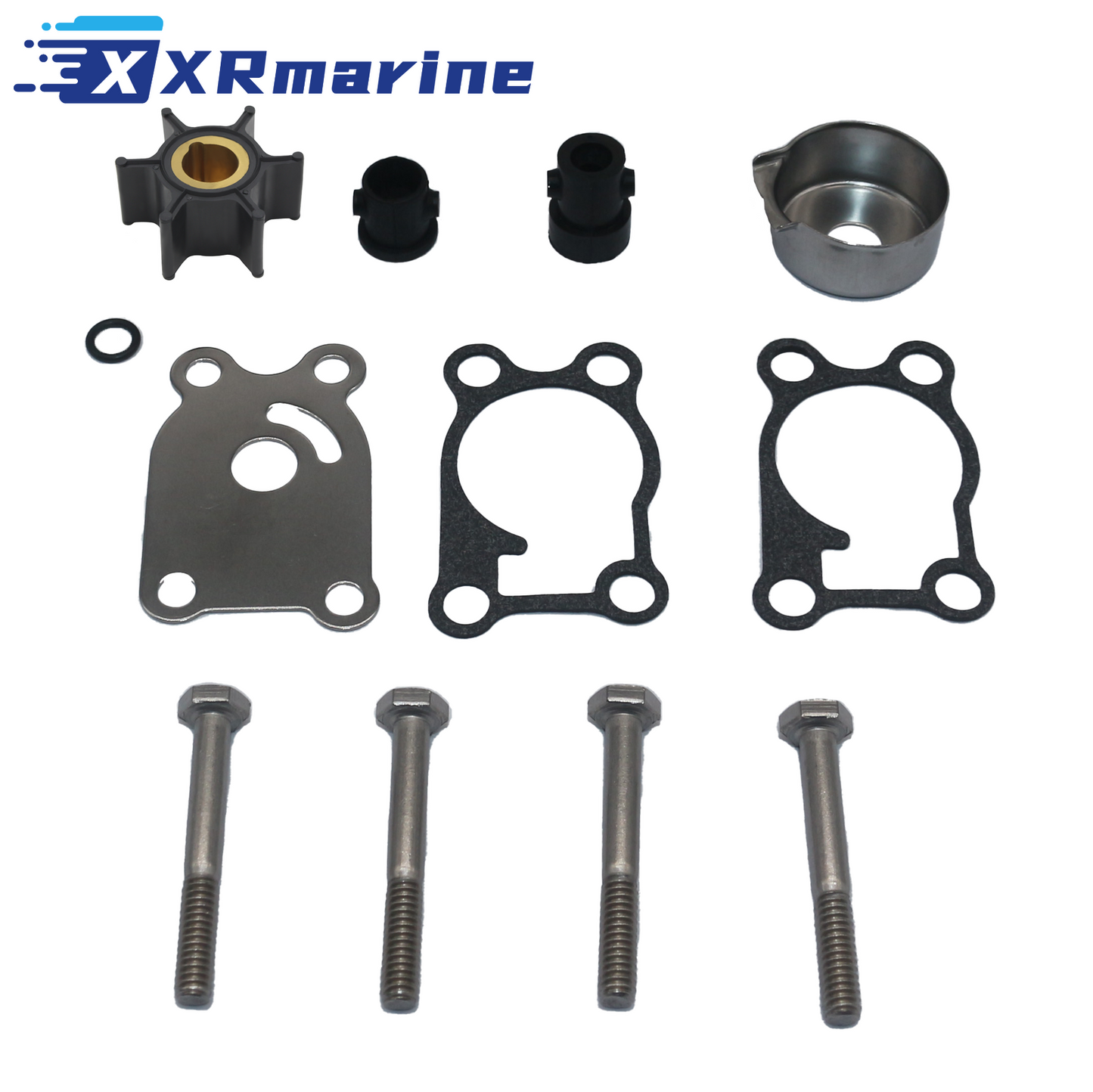

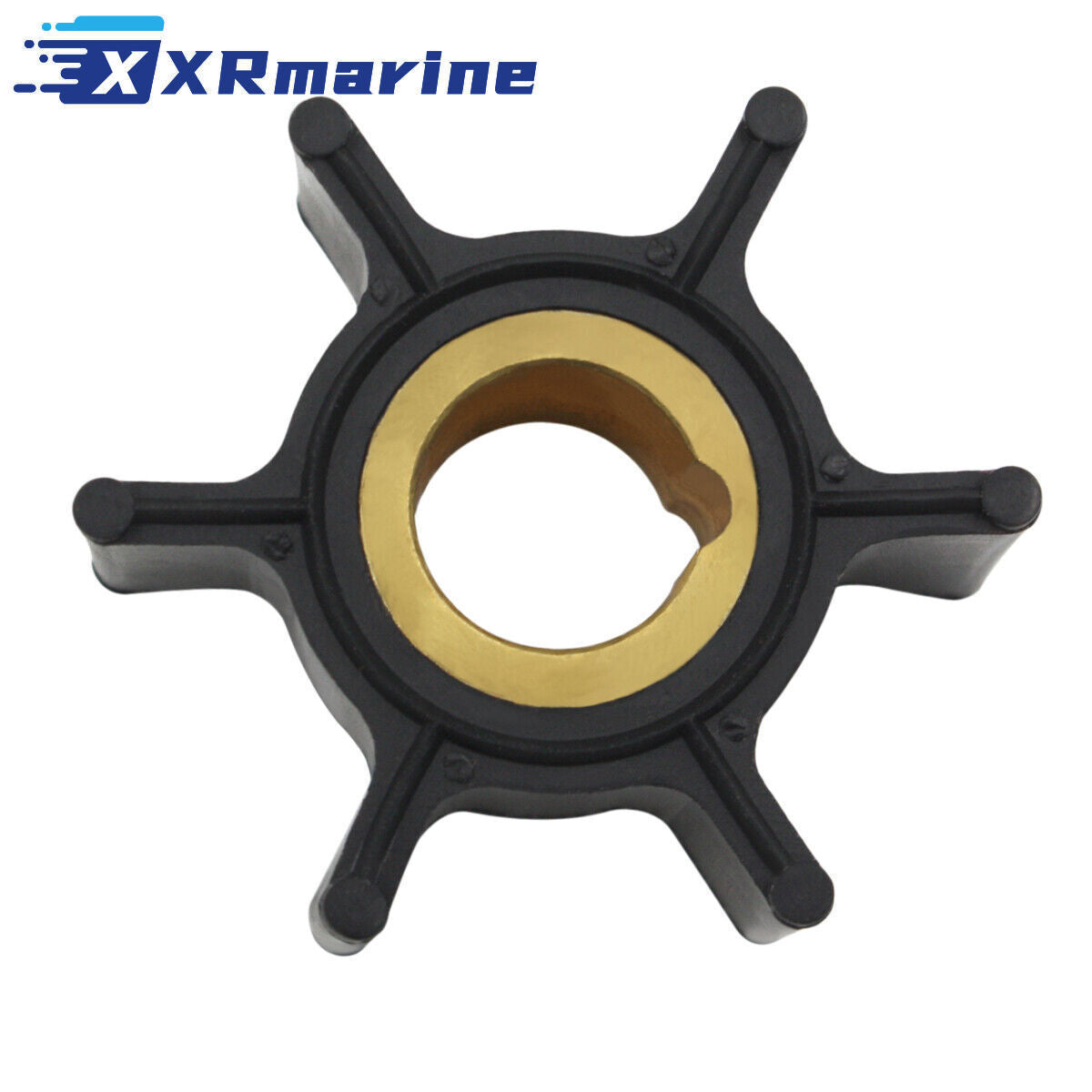

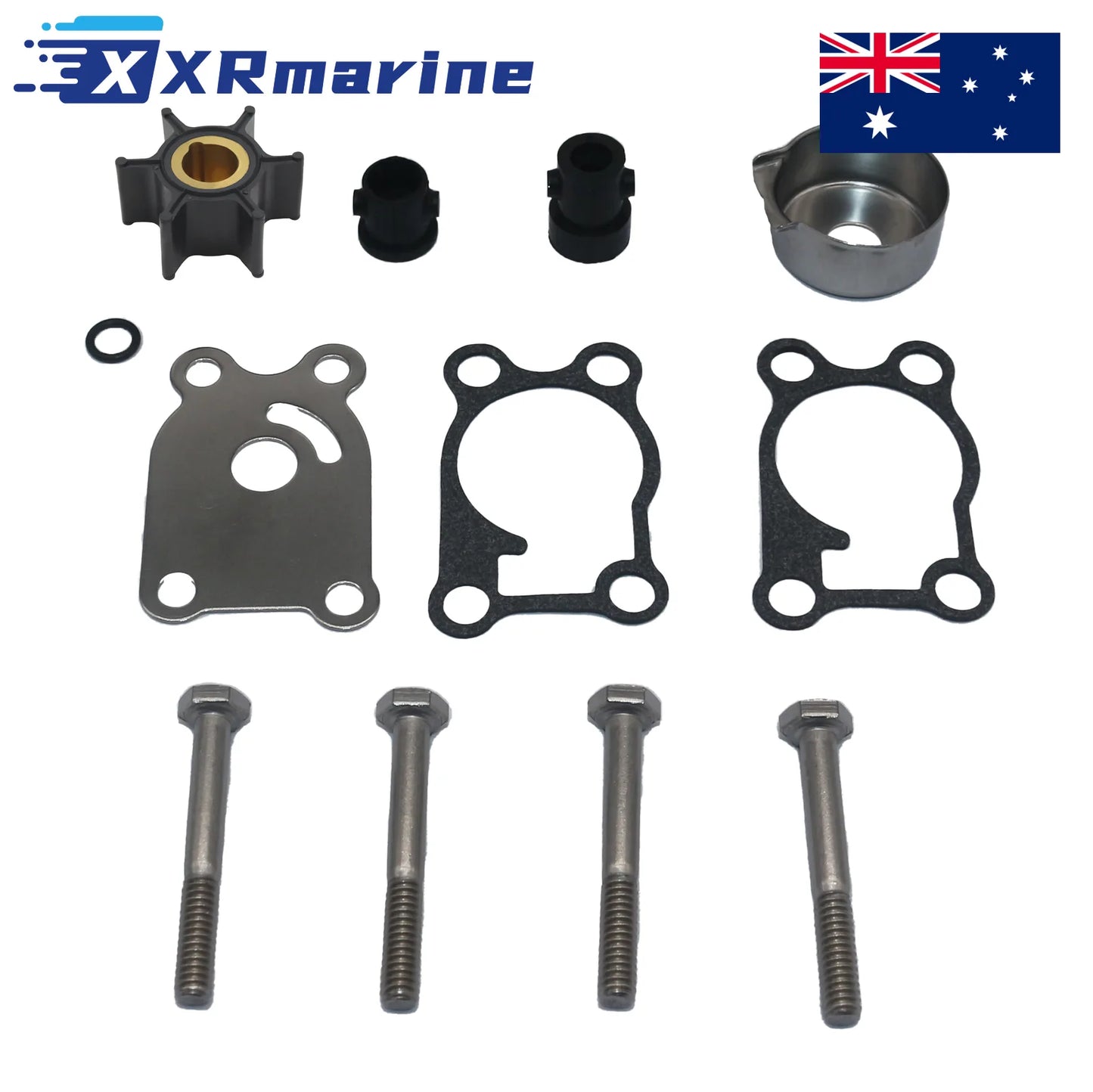

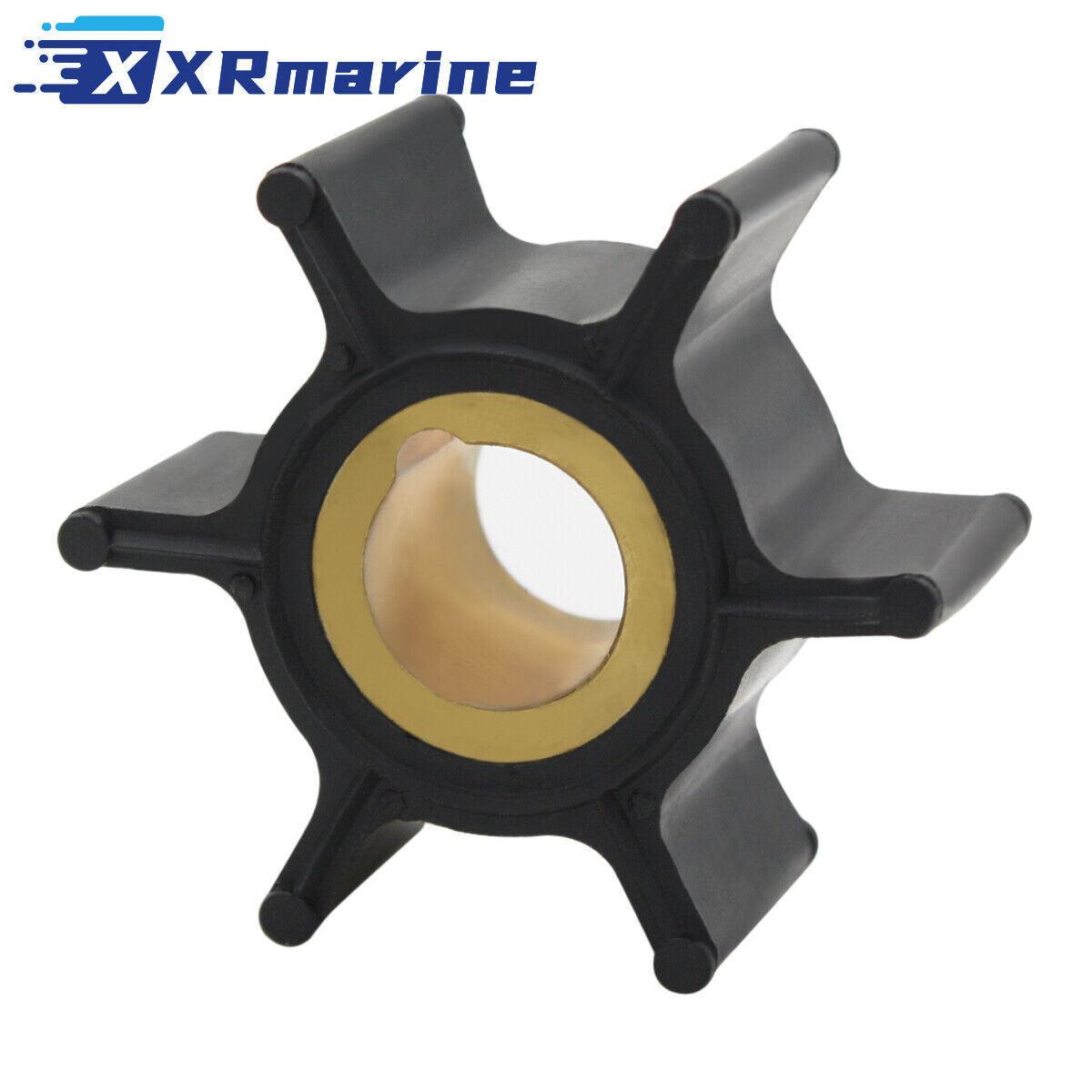

Water pump impeller kit for Johnson and Evinrude outboards from 4 HP to 8 HP built between 1980 and 2005, supplied complete with the impeller, insert cup, outer wear plate, O-ring, gaskets, grommets and 4 stainless bolts. The impeller measures 38 mm outside diameter, 11 mm at the hub and 18 mm deep on a key drive with 6 blades. It replaces 396644, 0396644, 765603 and 389844, and crosses to Sierra 18-4529. Held in our Australia local warehouse.
On these small two-strokes the pump sits in the exhaust housing behind the propeller, which is why a failed impeller shows up as more than a weak telltale: the gearcase fills with exhaust and the motor loses power at the top end while still idling normally.
The kit covers the 4, 4.5, 5, 6, 7.5 and 8 HP motors including the 4 Deluxe and the four-stroke 5 and 6 HP. Check the year in the fitment table, because the early 4.5 HP and the later 5 HP use different housings.
Specifications
| Specification | Detail |
|---|---|
| Condition | New / New with tags |
| Type | Water pump impeller repair kit |
| Outer Diameter | 38 mm |
| Inner Diameter | 11 mm |
| Depth | 18 mm |
| Blades | 6 |
| Drive Type | Key drive |
| Horsepower Range | 4 HP to 8 HP |
| Year Range | 1980 to 2005 |
| Quantity | 1 complete kit |
OEM Cross Reference
| Brand | OEM Part Numbers |
|---|---|
| Johnson Evinrude | 396644, 0396644 |
| Johnson Evinrude | 765603 |
| Johnson Evinrude | 389844 |
| Sierra | 18-4529 |
Compatible Engines
| Horsepower | Model and Years |
|---|---|
| 4 HP | 1986 to 1991 |
| 4.5 HP | 1980 to 1984 |
| 4 Deluxe | Up to 1988 |
| 5 HP | 1996 to 1998, and 1986 to 2005 across the 5, 6 and 8 HP line |
| 6 HP | 1984 to 2001, 2003 to 2004 |
| 7.5 HP | 1980 to 1983 |
| 8 HP | 1984 to 1989, 1991 to 2001, 2004 to 2005 |
| 5 and 6 HP four stroke | 1998 to 2004 |
Assembly Components
| Component | Part Number | Qty |
|---|---|---|
| Water pump impeller | 389576 | 1 |

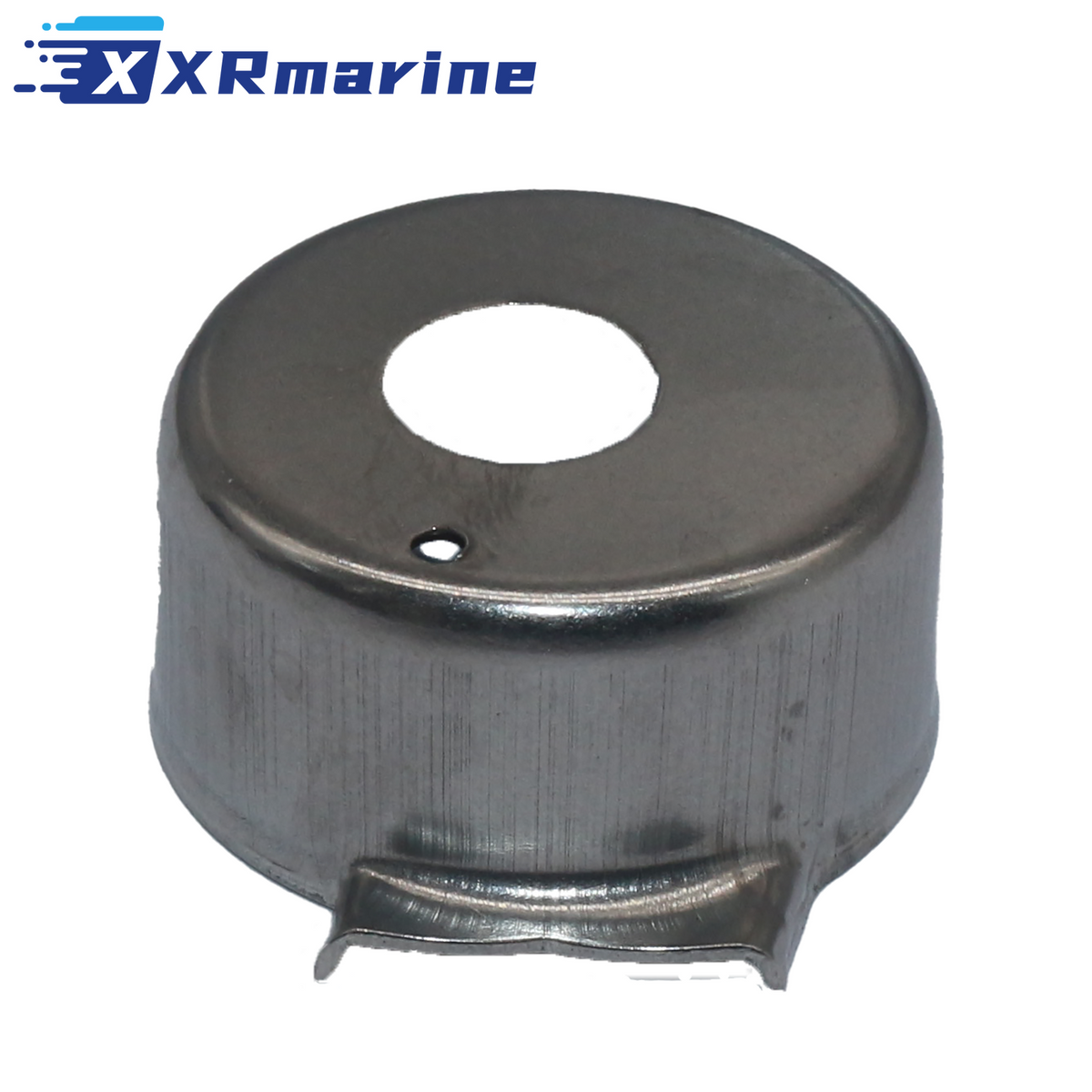

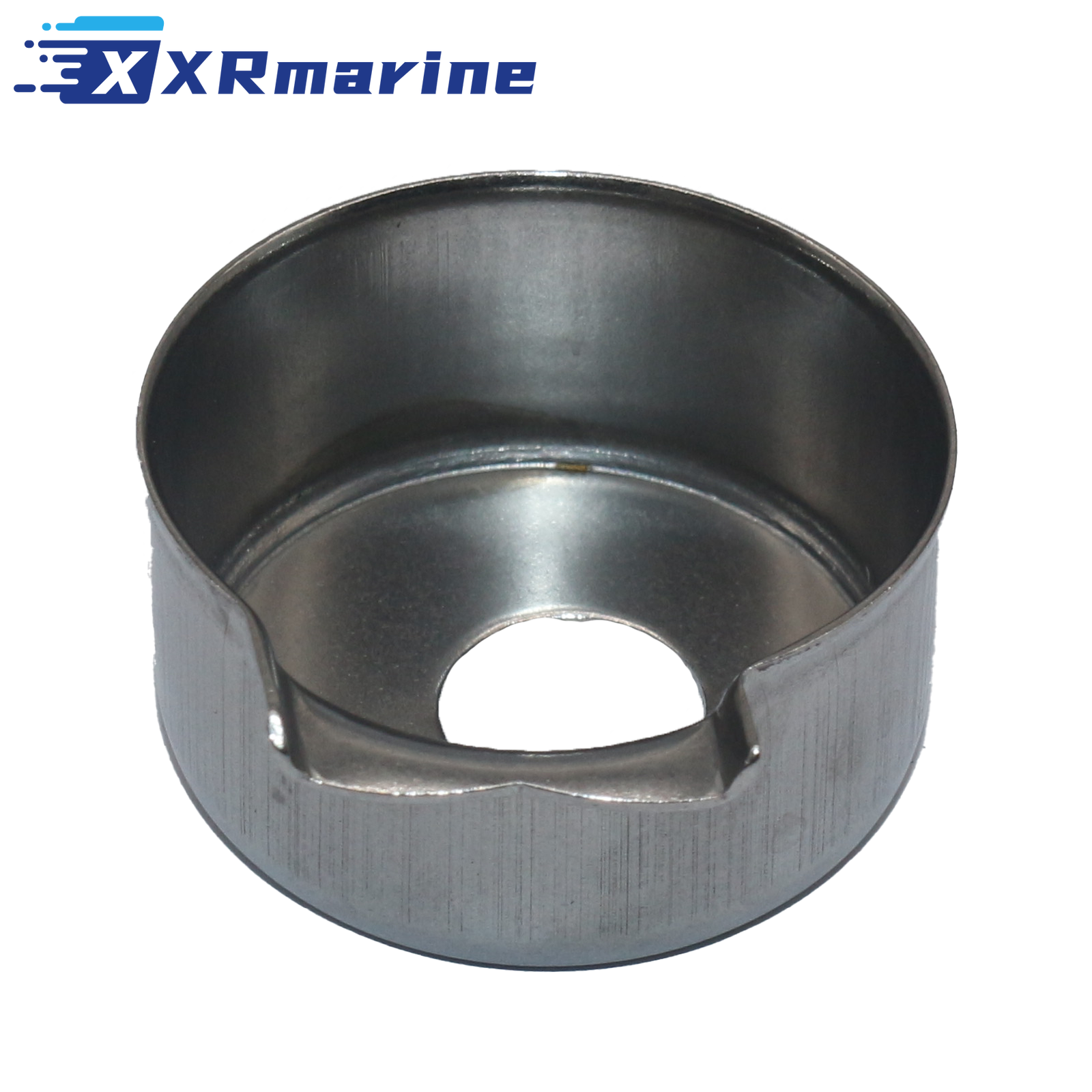

| Insert cup | 324641 | 1 |
| Outer wear plate | 324640 | 1 |

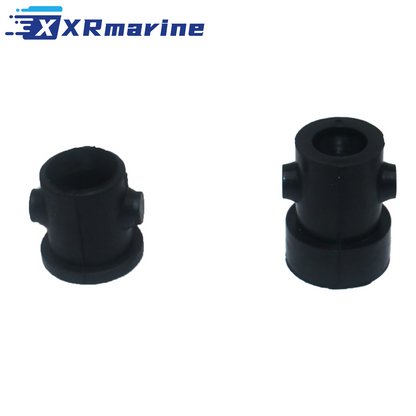

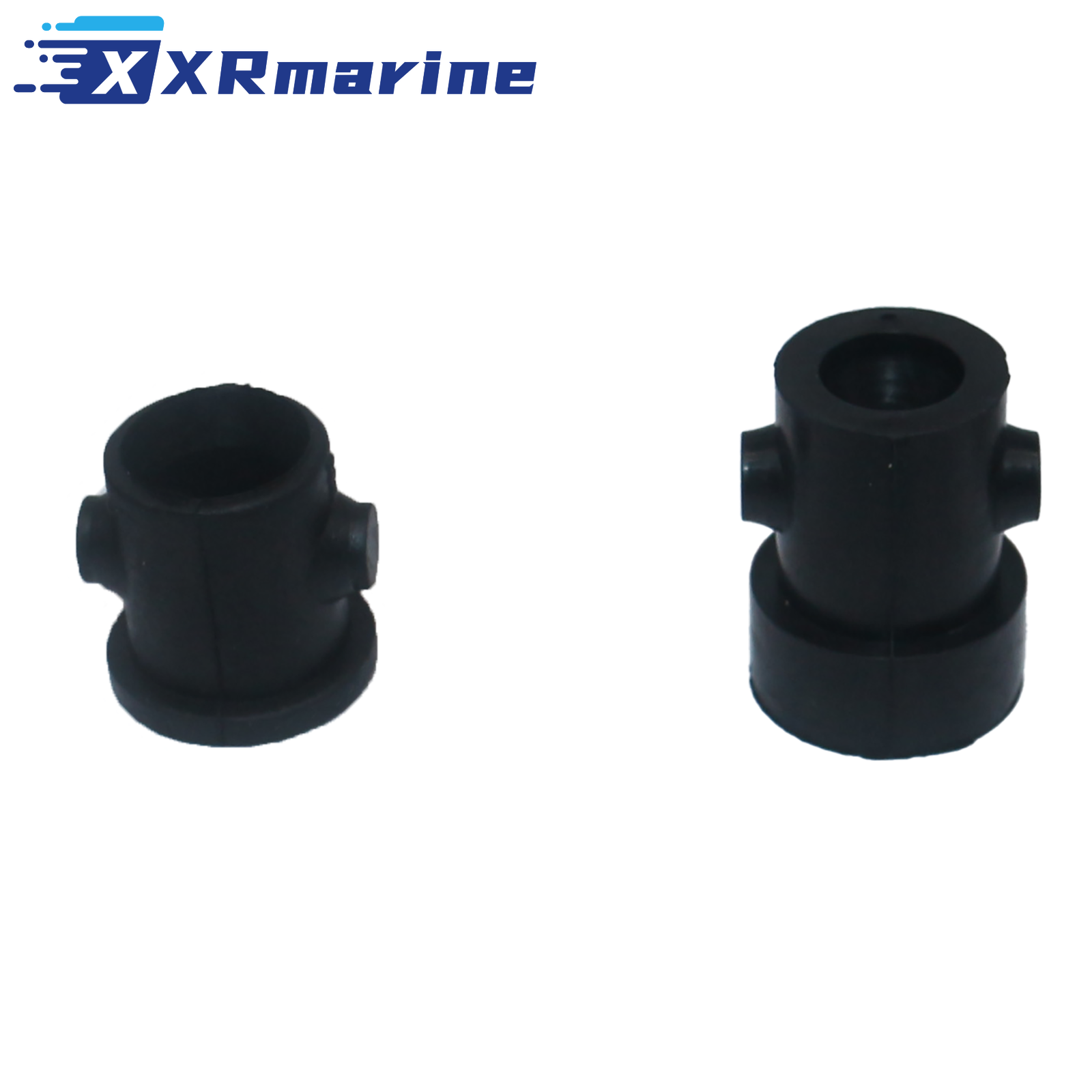

| Grommet | 303191 | 1 |
| O-ring | Not published | 1 |
| Gasket | Not published | 2 |
| Drive key | Not published | 1 |
| Stainless bolt | Not published | 4 |
What's Included
| Component | Qty |
|---|---|
| Water pump impeller | 1 |
| Insert cup | 1 |
| Outer wear plate | 1 |
| O-ring | 1 |
| Stainless steel bolt | 4 |
| Grommet | 2 |
| Gasket | 2 |
Weed, Sand and the Gearcase
| What the Owner Sees | What Is Happening | What to Do |
|---|---|---|
| Motor idles fine but will not pull at the top | Gearcase full of exhaust, pump not moving water | Fit the kit before the next trip |
| Telltale blocked after a weedy run | Weed drawn into the pump inlet | Clear the inlet, then check the impeller |
| Sand in the pump on a shallow ramp | Blade tips worn, cup scored | New cup and plate are in the kit |
| Water in the gear oil after a season | Grommets and gaskets perished | Renew the kit and the gearcase seals |
| Bolts snapping in the housing | Stainless into aluminium over years | Four new bolts supplied |
| Small motor used only a few times a year | Blades set between outings | New impeller every two seasons anyway |
Fitting Notes
| Step | Action |
|---|---|
| 1 | Confirm the horsepower and the year against the fitment table, the 4.5 HP housing is the odd one out |
| 2 | Measure the old impeller at 38 mm outside diameter and 18 mm deep |
| 3 | Drop the gearcase on a stand and note the shift shaft position before it comes apart |
| 4 | Replace the insert cup and wear plate with the impeller, a worn cup will destroy the new blades |
| 5 | Lubricate the impeller with glycerine and turn the shaft by hand to set the blade direction |
| 6 | Check the telltale at idle on the first run, these small pumps block easily with sand and salt |
| 7 | Check the gear oil after the first run, milky oil means a seal besides the pump |
| 8 | Flush the motor after every saltwater or sandy launch |
Condition & Warranty
| Item | Detail |
|---|---|
| Condition | New / New with tags |
| Warranty | Standard |
| Packaging | Sealed retail packaging |
Shipping from Australia
| Destination | Warehouse | Note |
|---|---|---|
| Australia | Australia local warehouse | Domestic delivery, no import duty |
| New Zealand | Australia local warehouse | Short transit, customs may apply |
| Asia Pacific | Australia local warehouse | Tracked air and sea options |
Before You Buy
- Confirm the horsepower and the year against the fitment table, the 4.5 HP housing is the odd one out
- Measure the old impeller at 38 mm outside diameter and 18 mm deep
- Drop the gearcase on a stand and note the shift shaft position before it comes apart
- Replace the insert cup and wear plate with the impeller, a worn cup will destroy the new blades
- Lubricate the impeller with glycerine and turn the shaft by hand to set the blade direction
- This is the pump kit, the plastic housing itself is not included in 396644
- 30-Day Easy Returns
- Ships from our Australia local warehouse
